EV Post-Bill Report Main Insight Module

The EV Post Bill Report Main Insight module provides the reader with an overview of their electric vehicle (EV) charging during the most recent billing period. The module identifies how much they spent charging their vehicle, provides tips to improve their charging habits, and explains how the utility tracks EV charging data.

Requirements

There are no module-specific requirements for this module.

Design

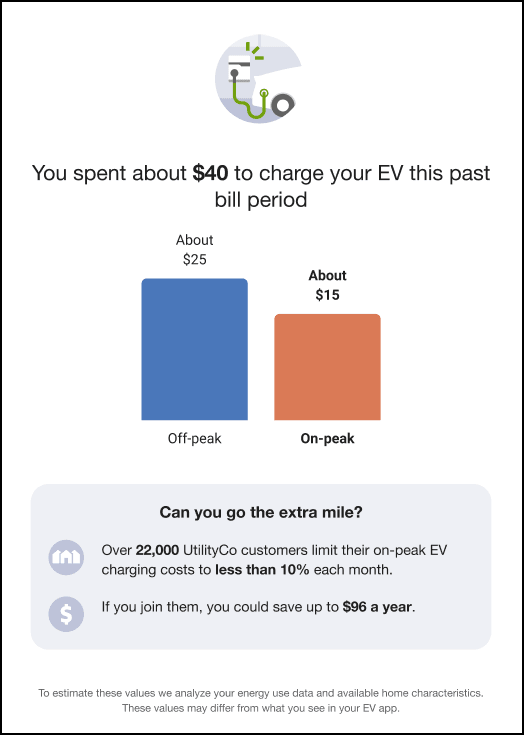

This is an example of the Post-Bill Report Main Insight module:

Configuration Options

For each element listed in the table, indicate the desired configuration in the Input Value column. If you do not provide an input for optional configurations, the default will be used.

Table 6-8 Configuration Options

Configuration Option	Input Value
Images The images can be configured to use client-specific colors. Other than that, the image can not be changed.	Optional Specify client branding colors.
Missing Disaggregation Days Allowed Specify the number of days that disaggregation data can be missing before the module fails. For example, if you set this option to 5, the module will fail if there are 6 days of disaggregation data missing for the bill period. Note that the email is sent without this module if it fails. Default: 5 days	Optional Specify one of these options: Use the default days. Specify an alternate number of days:
Total EV Charging Threshold Specify the required amount of EV charging that must be detected for the module to be included. For example, if you set this option to 10, the module will fail if the customer's EV charging totals 9 kWh. Note that the email is sent without this module if it fails. Default: 10 kWh	Optional Specify one of these options: Use the default. Specify an alternate amount:
Incentive Statement Specify the language you want to use in the incentive statement. By default, the statement reads: "Over 22,000 UtilityCo customers limit their on-peak EV charging costs to less than 10% each month. If you join them, you could save up to $96 a year."	Optional Specify one of these options: Use the default. Specify alternate text:

Configuration Option

Input Value

Images

The images can be configured to use client-specific colors. Other than that, the image can not be changed.

Optional

Specify client branding colors.

Missing Disaggregation Days Allowed

Specify the number of days that disaggregation data can be missing before the module fails.

For example, if you set this option to 5, the module will fail if there are 6 days of disaggregation data missing for the bill period. Note that the email is sent without this module if it fails.

Default: 5 days

Optional

Specify one of these options:

Use the default days.
Specify an alternate number of days:

Total EV Charging Threshold

Specify the required amount of EV charging that must be detected for the module to be included.

For example, if you set this option to 10, the module will fail if the customer's EV charging totals 9 kWh. Note that the email is sent without this module if it fails.

Default: 10 kWh

Optional

Specify one of these options:

Use the default.
Specify an alternate amount:

Incentive Statement

Specify the language you want to use in the incentive statement. By default, the statement reads:

"Over 22,000 UtilityCo customers limit their on-peak EV charging costs to less than 10% each month. If you join them, you could save up to $96 a year."

Optional

Specify one of these options:

Use the default.
Specify alternate text:

To see how this module fits into the overall user experience, see Design and Configuration.
