Utilize File Browsing Clients with Oracle Roving Edge Infrastructure Object Storage

Introduction

Oracle Roving Edge Infrastructure enables customers to distribute their cloud workloads beyond their Oracle Cloud Infrastructure tenancy to deliver cloud services and run application workloads at retail, satellite, and other edge locations. As a result, customers can process data faster and closer to their users and at the points of data ingestion to generate timely insights from their data.

Oracle Roving Edge Infrastructure Object Storage can be used as a central data repository for edge projects and users. During a military exercise, many participants didn’t have experience using object storage tools such as REST APIs or the Oracle Cloud Infrastructure Command Line Interface (OCI CLI). They were experts in military strategy, and not familiar with cloud storage or cloud APIs. Not everyone is familiar with object storage API’s and prefer interfaces that emulate their desktop or laptop experience.

Supported S3 compatible API’s on Oracle Roving Edge Infrastructure Object Storage enables customers to utilize file browsing clients with familiar interfaces such as WinSCP and CyberDuck. These clients provide users a way to access Roving Edge Infrastructure Object Storage in a way that looks similar to local drives and folders on their laptop.

Audience

Oracle Roving Edge Infrastructure administrators and users.

Objective

Setup a file browsing client to connect to Oracle Roving Edge Infrastructure Object Storage.

Prerequisites

Take the following steps on your Oracle Roving Edge Infrastructure node before working with the WinSCP and CyberDuck clients:

Configure and Use WinSCP on Windows

Task 1: Install WinSCP

  1. Download WinSCP, see WinSCP website.

  2. Follow the installation directions on the website to install on your desktop or laptop.

Task 2: Configure WinSCP to Connect to Oracle Roving Edge Infrastructure Object Storage

Start the WinSCP application, you will be prompted for a Login to create a new connection, select Amazon S3 from the drop-down menu, enter the Oracle Roving Edge Infrastructure node hostname (or IP address), port 8019, the Customer Access Key ID, and Customer Secret Access Key, click Login.

Image 5

Explore the WinSCP Interface

WinSCP is an open source free client that provides file transfer between the local Windows host and remote systems such as Oracle Roving Edge Infrastructure Object Storage. The GUI gives users a familiar interface to interact with object storage in a similar was they would local drives and folders.

  1. Once logged in, you can see the Oracle Roving Edge Object Storage buckets, click the bucket you wish to explore. In this example, we will explore the easy-browsing bucket created earlier. The buckets are presented as folders.

    Image 6

  2. Objects in the bucket are presented as files, the test.txt file and two image files uploaded to the bucket are visible.

    Image 7

  3. Double click the test.txt file opens it and displays the contents.

    Image 8

Configure and Use CyberDuck on MacOS

Task1: Install CyberDuck

  1. Download CyberDuck, see CyberDuck website.

  2. Follow the installation directions on the website to install on your desktop or laptop.

Task 2: Configure CyberDuck to Connect to Oracle Roving Edge Infrastructure Object Storage

  1. Start the CyberDuck application and click Open Connection.

    Image 9

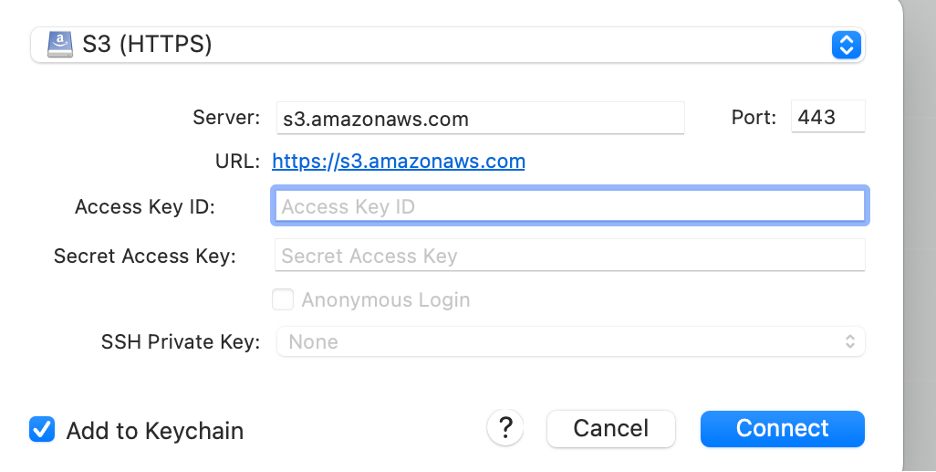

  2. When the pop-up appears, select S3(HTTPS) from the drop-down menu.

    Image 19

  3. Enter the Oracle Roving Edge Infrastructure node IP address or server name, port 8019, the Customer Access Key ID, and Secret Access Key, click Connect. Image 20

Explore the CyberDuck Interface

CyberDuck is a convenient cloud storage browser which works on MacOS and Windows to give users a familiar GUI interface to interact with Oracle Roving Edge Infrastructure Object Storage.

  1. Once connected, each bucket will be presented as a drive in CyberDuck, the easy-browsing bucket created earlier is the first drive presented along with other buckets on the Oracle Roving Edge Infrastructure Object Storage.

    Image 21

  2. Expand the drive to view the objects in the bucket as files, the test.txt and the two image files uploaded to the bucket are visible.

    Image 22

  3. Double click the file name to download it locally, when the download is complete, double click the file name to show it in the local finder.

    Image 23

  4. Once downloaded, double click the test.txt file opens it and displays the contents.

    Image 24
