Configure NAT gateway for private compute instances

Introduction

Many Oracle Cloud Infrastructure customers have compute instances in virtual cloud networks (VCNs) that, for privacy, security, or operational concerns, are connected to private subnets. To grant these resources access to the public internet for software updates, CRL checks, and so on, a customer’s only option has been to create a NAT instance in a public subnet and route traffic through that instance by using its private IP address as a route target from within the private subnet. Although many have successfully used this approach, it does not scale easily and provides a myriad of administrative and operational challenges.

NAT gateway addresses these challenges and provides Oracle Cloud Infrastructure customers with a simple and intuitive tool to address their networking security needs. NAT gateways provide the following features:

Sign in to OCI Console and Create a VCN

Note: Screenshots in the instructions may be different than the actual UI.

  1. Sign in to Oracle Cloud Infrastructure Console using your tenant name, user name and password.

  2. From the OCI Services menu, click Virtual Cloud Networks under Networking, and select the appropriate compartment. Click Start VCN Wizard.

    Note: Ensure that the correct compartment is selected under COMPARTMENT list.

  3. Click VCN with Internet Connectivity and click Start VCN Wizard.

  4. Fill out the dialog box and click Next:

    • VCN NAME: Provide a name
    • COMPARTMENT: Ensure your compartment is selected
    • VCN CIDR BLOCK: Provide a CIDR block (10.0.0.0/16)
    • PUBLIC SUBNET CIDR BLOCK: Provide a CIDR block (10.0.1.0/24)
    • PRIVATE SUBNET CIDR BLOCK: Provide a CIDR block (10.0.2.0/24)

  5. Verify all the information and click Create.

    This will create a VCN with following components: VCN, Public subnet, Private subnet, Internet gateway (IG), NAT gateway (NAT), Service gateway (SG).

  6. Click View Virtual Cloud Network to display your VCN details.

Create and Connect to Compute Instance

  1. Create SSH encryption keys you can use to log into your VM by opening a terminal window in the directory where you want to store your keys and issuing the following OpenSSH command, where <my-key> is your desired key name:

    ssh-keygen -t rsa -N "" -b 2048 -C <my-key> -f <my-key>

    The command generates random text art used to generate the keys. When complete, you should have two files:

    • The private key file: <my-key>
    • The public key file: <my-key>.pub

    You use these files to connect to your compute instance.

  2. Go to OCI Console. From the OCI Services menu, under Compute, click Instances.

  3. Click Create Instance and fill out the dialog box:

    • Name your instance: Enter a name
    • Choose an operating system or image source: For the image, we recommend using the Latest Oracle Linux available.
    • Availability domain: Select Availability Domain
    • Instance type: Select Virtual Machine
    • Instance shape: Select VM shape

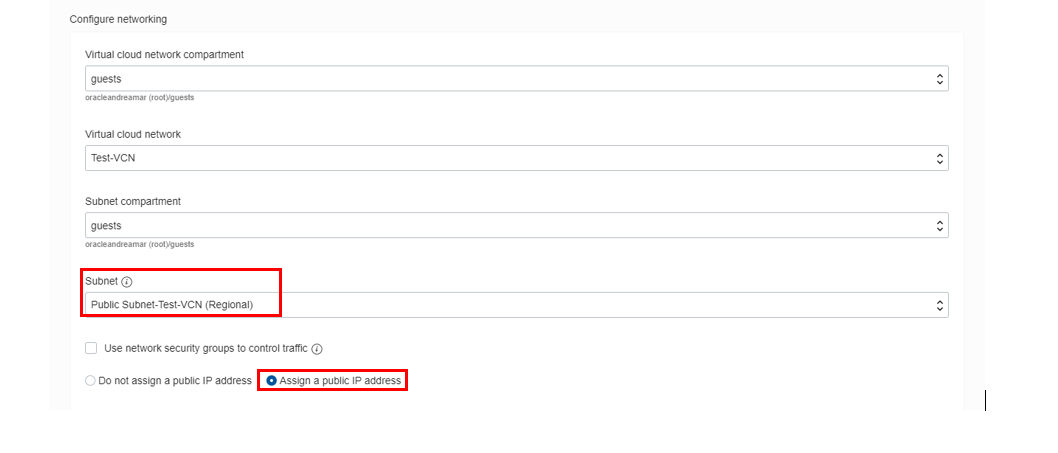

    Under Configure Networking:

    • Virtual cloud network compartment: Select your compartment

    • Virtual cloud network: Choose the VCN

    • Subnet compartment: Choose your compartment

    • Subnet: Choose the Public Subnet under Public Subnets

    • Use network security groups to control traffic: Leave un-checked

    • Assign a public IP address: Check this option

      Assign a Public IP Address

    Then enter the following:

    • Boot Volume: Leave the default
    • Add SSH Keys: Choose Paste SSH Keys and paste the public key saved earlier

  4. Click Create.

    Note: If a ‘Service limit’ error is displayed, choose a different shape from VM.Standard2.1, VM.Standard.E2.1, VM.Standard1.1, VM.Standard.B1.1, or choose a different AD.

  5. Wait for the instance to be in Running state. In the cloud shell terminal, enter the command:

    cd .ssh

  6. Enter ls and verify that your SSH key file exists.

  7. Enter the command:

    bash

    ssh -i id_rsa opc@PUBLIC_IP_OF_COMPUTE

    Hint: If ‘Permission denied error’ is seen, ensure you are using -i in the SSH command. You MUST type the command; do NOT copy and paste the SSH command.

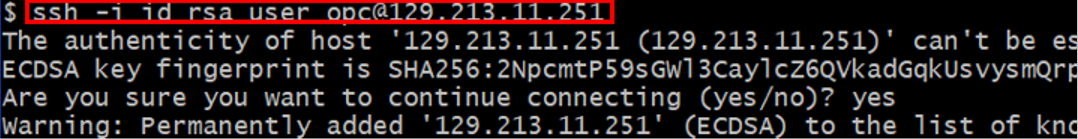

  8. Enter yes when prompted for the security message.

    Security Message

  9. Verify that opc@<COMPUTE_INSTANCE_NAME> appears on the prompt.

Configure the NAT Gateway

We will now create a route table in the VCN.

  1. Switch to the OCI Console. From the OCI Services menu, click Virtual Cloud Networks under Networking. Locate your VCN and click the VCN name to display the VCN details.

  2. Click NAT Gateways.

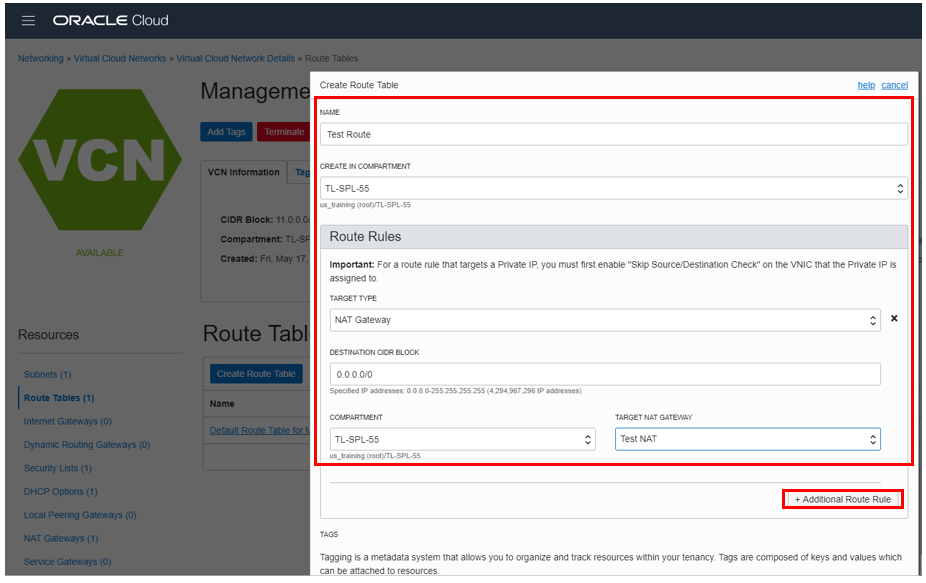

  3. Click Route Tables then Create Route Table. Fill out the dialog box:

    • Create in Compartment: This field defaults to your current compartment; make sure that the correct compartment is selected
    • Name: Enter a name

    Click +Additional Route Rules

    • Target Type: Select NAT Gateway
    • Destination CIDR Block: Enter 0.0.0.0/0
    • Compartment: Make sure the correct compartment is selected
    • Target NAT Gateway: Select the NAT Gateway for your VCN

  4. Click Create Route Table.

    Create Route Table

  5. Click your VCN name to display the VCN details. Click Create Subnet. Fill out the dialog box:

    • Name: Enter a name
    • Subnet Type: Regional
    • CIDR Block: Provide a CIDR (e.g. 10.0.5.0/24)
    • Route Table: Choose the Route table created earlier

    Note: Do not choose the Default route table. This is being done so all routing for compute instances in this subnet are via the NAT gateway.

    • Subnet access: Private Subnet
    • DHCP Options: Select the default
    • Security Lists: Select the security list that you created earlier

  6. Leave all other options as default and click Create Subnet.

    Create Subnet

  7. Go to your cloud shell terminal and generate the SSH key pair. Enter the command:

    ssh-keygen

  8. Press Enter when asked for Enter File in which to save the key, Created Directory, Enter passphrase, and Enter Passphrase again.

  9. Enter the command:

    cd ~/.ssh

    and then

    ls

    You should have the private and public keys: /home/opc/.ssh/<sshkeyname> (private key) and /home/opc/.ssh/<sshkeyname>.pub (public key).

  10. Enter the command:

    cat ~/.ssh/id_rsa.pub

    Copy and paste the public key content to Notepad. We will use this public key to launch a compute instance in private subnet of the VCN.

  11. Switch to the OCI Console window and launch a second compute instance as done previously. Ensure the subnet chosen is the private subnet that we created previously.

  12. Once the instance is running, note down the private IP address of the instance from the instance detail page (by clicking the instance name).

  13. Switch to a git-bash window with an SSH session to public compute instance (first compute instance created earlier). Enter the command:

    cd ~/.ssh

    then

    bash

    ssh –i id_rsa opc@Private_IP_OF_COMPUTE_INSTANCE

    Note: User name is opc.

    Hint: If a “Permission denied error” is seen, ensure you are using -i in the SSH command.

    Note: Use the private IP of the second compute instance noted earlier.

  14. Enter Yes when prompted for the security message.

  15. In the private compute instance, enter the command:

    ping 8.8.8.8

    and verify there is internet connectivity.

    The compute instance in private subnet has Internet access. This is possible since traffic is being routed through the NAT gateway that we created and attached to the VCN. Next we will use the traffic toggle function on NAT gateway to block/allow traffic with a single click.

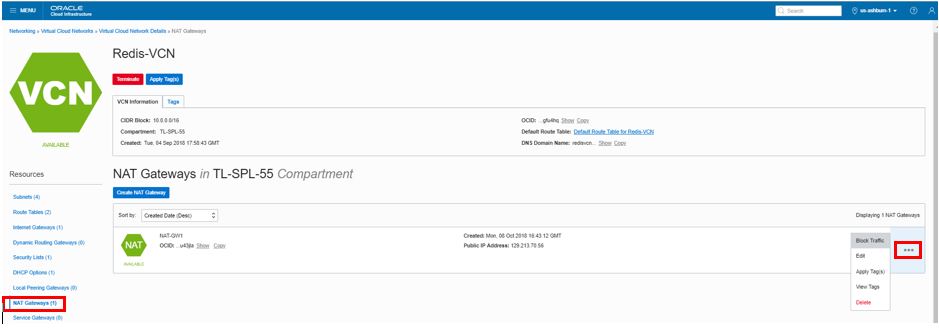

  16. Switch to the OCI Console window. In your VCN’s detail page, click NAT Gateways.

  17. Hover over the Action icon and choose Block Traffic.

  18. Switch back to the SSH session to the private compute instance and enter the command ping 8.8.8.8 (if not already running). Verify there is no response.

    Nat Gateways

  19. Switch back to the OCI Console window and, using above step, this time choose Allow Traffic. Switch back to the SSH session and verify that the ping response is received.

Delete the Resources

  1. Switch to the OCI Console window.

  2. If your compute instance is not displayed, from the OCI services menu, click Instances under Compute.

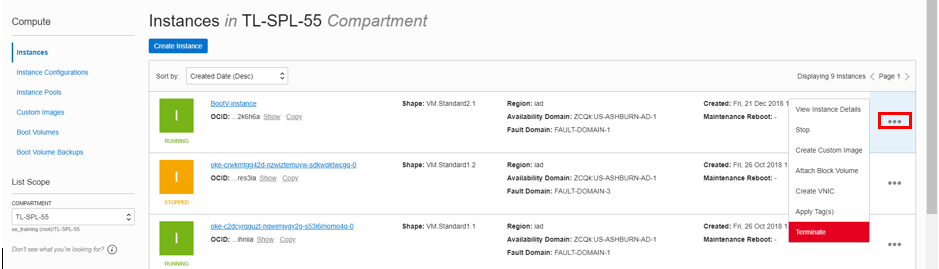

  3. Locate the compute instance, click the Action icon, and then click Terminate.

    Terminate Option

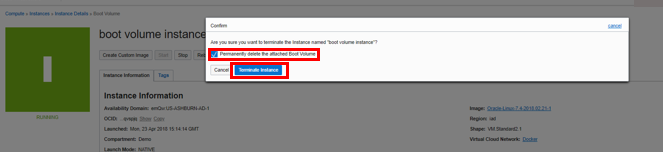

  4. Make sure Permanently delete the attached Boot Volume is checked, and click Terminate Instance. Wait for the instance to fully terminate.

    Terminate Instance Button

  5. Repeat the steps to delete the second compute instance.

  6. From the OCI services menu, click Virtual Cloud Networks under Networking. A list of all VCNs will appear.

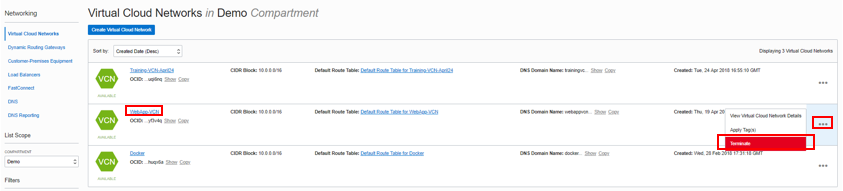

  7. Locate your VCN, click the Action icon and then click Terminate. Click Terminate All in the confirmation window. Click Close once the VCN is deleted.

    Terminate Button
