Secure Kubernetes Web Services using Nginx Ingress Controller, OAuth2 Proxy, and Oracle Identity Domains

Introduction

Securing Kubernetes hosted web services should be easy. Whether your application lacks built-in support for external Identity Provider (IdP) integration or you need a Single Sign-On (SSO) solution to simplify the management and reduce the need for individual authentication mechanisms per service, OAuth2 Proxy offers the flexibility to connect any application to almost any Identity Provider (IdP).

OAuth2 Proxy acts as a reverse proxy sitting in front of your Kubernetes services. It intercepts traffic, redirects users to an external authorization server (like Okta or GitHub) for login, and validates access tokens before forwarding requests to backend services.

Objective

Prerequisites

Task 1: Create an OKE Cluster

  1. Log in to the OCI Console, navigate to Oracle Container Engine for Kubernetes, and click Create.

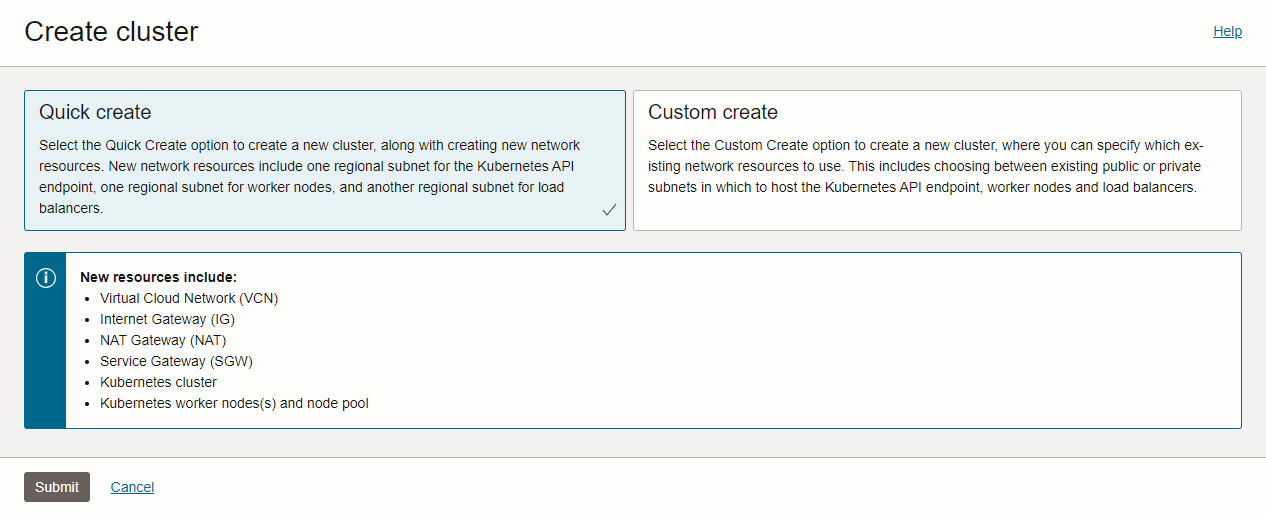

  2. In the Create cluster wizard, click Quick Create.

    Quick Create

  3. Enter the following information and click Next.

    • Name: Enter the cluster name.
    • Kubernetes version: Select the version you want to use.
    • Kubernetes API endpoints: Select Public endpoint.
    • Node type: Select Managed.
    • Kubernetes worker nodes: Select Private workers.
    • Node count: 1.

    Create Cluster

  4. Review and click Create Cluster. Wait for the cluster to become available.

  5. Update the security list associated with the service subnet.

    1. Click the Service subnet.

      Services Subnet

    2. Click Security List and add the following rules.

      • Ingress:

        Security List Ingress rules

      • Egress:

        Security List Egress rules

  6. Update the security list associated with the worker nodes subnet to allow connections from the load balancers.

    1. Click the VCN name.

      OKE Cluster VCN

    2. Under Resources, select Security Lists and click the nodes security list.

      Security Lists

    3. Add the following ingress rule to the nodes security list.

      Nodes Security List ingress

    4. Click Add Ingress Rules.

Task 2: Set up the Nginx Ingress Controller

  1. Once the cluster is available, you can access the cluster using OCI Cloud Shell. Click Access Cluster, and copy and run the following command in OCI Cloud Shell.

    Access Cluster

  2. Run the kubectl get node command to get the list of available nodes.

    Get nodes

  3. Add the Nginx Ingress Controller helm repository. For more information, see Overview of Ingress NGINX Controller and helm.

    helm repo add ingress-nginx https://kubernetes.github.io/ingress-nginx
    helm repo update

  4. Create the values-override.yaml file.

    controller:
      allowSnippetAnnotations: true
      service:
        annotations:
          oci.oraclecloud.com/load-balancer-type: "lb"
          service.beta.kubernetes.io/oci-load-balancer-backend-protocol: "TCP"
          service.beta.kubernetes.io/oci-load-balancer-shape: "flexible"
          service.beta.kubernetes.io/oci-load-balancer-shape-flex-min: "10"
          service.beta.kubernetes.io/oci-load-balancer-shape-flex-max: "10"

  5. Deploy the Nginx Ingress Controller.

    helm install ingress-nginx ingress-nginx/ingress-nginx -f values-override.yaml

  6. Save the following yaml file named application.yaml.

    ---
    # Create ClusterIP service
    apiVersion: v1
    kind: Service
    metadata:
      name: httpbin
      labels:
        app: httpbin
    spec:
      ports:
      - port: 5000
        targetPort: 5000
      selector:
        app: httpbin
    ---
    # Deployment of a sample web application
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: httpbin
    spec:
      replicas: 2
      selector:
        matchLabels:
          app: httpbin
          version: v1
      template:
        metadata:
          labels:
            app: httpbin
            version: v1
        spec:
          containers:
          - image: mendhak/http-https-echo
            imagePullPolicy: IfNotPresent
            name: httpbin
            ports:
            - containerPort: 5000
            env:
            - name: HTTP_PORT
              value: "5000"

  7. Create the application resources.

    kubectl apply -f application.yaml

  8. Create a DNS record for the public IP address associated with the load balancer.

    • Get the public IP address of the load balancer.

      $ kubectl get svc ingress-nginx-controller
      NAME                       TYPE           CLUSTER-IP     EXTERNAL-IP     PORT(S)                      AGE
      ingress-nginx-controller   LoadBalancer   10.96.152.30   158.180.61.74   80:31957/TCP,443:30838/TCP   32s

    • Create the DNS record. If you do not have a DNS server, we will rely on free wildcard DNS service nip.io.

    In this case the FQDN is 158-180-61-74.nip.io.

  9. Save the following yaml file named ingress.yaml.

    Note: Make sure to update the host entries with your FQDN.

    ---
    apiVersion: networking.k8s.io/v1
    kind: Ingress
    metadata:
      name: httpbin-ingress-nginx
    spec:
      ingressClassName: nginx
      tls:
      - hosts:
          - "<YOUR-FQDN>"
      rules:
        - host: "<YOUR-FQDN>"
          http:
            paths:
              - pathType: Prefix
                path: "/"
                backend:
                  service:
                    name: httpbin
                    port:
                      number: 5000

  10. Run the following command to create the ingress resource.

    kubectl apply -f ingress.yaml

  11. Test the connectivity to the service.

    $ curl -k https://<YOUR-FQDN>
    {
      "path": "/",
      "headers": {
        "host": "158-180-61-74.nip.io",
        "x-request-id": "b0320217391a922acecbfe10758b3ffe",
        "x-real-ip": "10.0.10.167",
        "x-forwarded-for": "10.0.10.167",
        "x-forwarded-host": "158-180-61-74.nip.io",
        "x-forwarded-port": "443",
        "x-forwarded-proto": "https",
        "x-forwarded-scheme": "https",
        "x-scheme": "https",
        "user-agent": "curl/7.87.0",
        "accept": "*/*"
      },
      "method": "GET",
      "body": "",
      "fresh": false,
      "hostname": "158-180-61-74.nip.io",
      "ip": "10.0.10.167",
      "ips": [
        "10.0.10.167"
      ],
      "protocol": "https",
      "query": {},
      "subdomains": [
        "158-180-61-74"
      ],
      "xhr": false,
      "os": {
        "hostname": "httpbin-644874bcdb-ll4mb"
      },
      "connection": {}
    }


Task 3: Set up a Confidential Application in Oracle Identity Domains

  1. Navigate to Oracle Identity Domains in the OCI Console and click the OracleIdentityCloudService domain.

  2. Select Integrated Applications from the left-side menu and click Add application.

  3. Select Confidential Application and click Launch workflow.

    New confidential application

  4. Enter the application Name, Description and click Next.

    Application details

  5. Configure the application oAuth parameters.

    1. In the Authorization section, select Authorization code.

    2. Enter the following URLs and click Next.

      • Redirect URL: https://<YOUR-FQDN>/oauth2/callback.
      • Post-logout redirect URL: https://<YOUR-FQDN>.
      • Logout URL: https://<YOUR-FQDN>/oauth2/sign_out.

    Application oauth parameters

  6. In Web tier policy, select Skip and do later and click Finish.

    web-tier-policy

  7. Click Activate to enable the application.

    Activate the application

  8. Navigate to Groups in the left-side menu and associate the groups of users allowed to authenticate with this application.

    Associate user groups with the application

  9. Note down the Client ID and Client Secret.

    Application Client ID and secret

  10. Click OracleIdentityCloudService domain and expand the Domain URL.

    Identity Domain URL

    For example: The Identity Domain URL will be https://idcs-01234567890abcdef.identity.oraclecloud.com (we strip the port number).

Task 4: Deploy the OAuth2 Proxy

We are using the OAuth2 Proxy to handle OAuth2 or OpenID Connect (OIDC) complexity and ensure all the requests forwarded to the applications are authenticated.

  1. Save the following yaml file named oauth2-proxy.yaml and replace the placeholders with the applicable values.

    Note:

    • <Identity Domain URL>: https://idcs-01234567890abcdef.identity.oraclecloud.com/

    • <Identity Domain FQDN>: idcs-01234567890abcdef.identity.oraclecloud.com

    ---
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      labels:
        k8s-app: oauth2-proxy
      name: oauth2-proxy
    spec:
      replicas: 1
      selector:
        matchLabels:
          k8s-app: oauth2-proxy
      template:
        metadata:
          labels:
            k8s-app: oauth2-proxy
        spec:
          containers:
          - args:
            - --provider=oidc
            - --provider-display-name="Oracle Identity Domains"
            - --oidc-issuer-url=<Identity Domain URL>
            - --redirect-url=https://<YOUR-FQDN>/oauth2/callback
            - --upstream=file:///dev/null
            - --http-address=0.0.0.0:4180
            - --email-domain=*
            - --set-xauthrequest=true
            - --session-cookie-minimal=true
            - --whitelist-domain=<Identity Domain FQDN>
            env:
            - name: OAUTH2_PROXY_CLIENT_ID
              value: "<APPLICATION_CLIENT_ID>"
            - name: OAUTH2_PROXY_CLIENT_SECRET
              value: "<APPLICATION_CLIENT_SECRET>"
            # docker run -ti --rm python:3-alpine python -c 'import secrets,base64; print(base64.b64encode(base64.b64encode(secrets.token_bytes(16))));'
            - name: OAUTH2_PROXY_COOKIE_SECRET
              value: "<OUTPUT_OF_THE_ABOVE_DOCKER_COMMAND>"
            image: quay.io/oauth2-proxy/oauth2-proxy:latest
            imagePullPolicy: Always
            name: oauth2-proxy
            ports:
            - containerPort: 4180
              protocol: TCP
    ---
    apiVersion: v1
    kind: Service
    metadata:
      labels:
        k8s-app: oauth2-proxy
      name: oauth2-proxy
    spec:
      ports:
      - name: http
        port: 4180
        protocol: TCP
        targetPort: 4180
      selector:
        k8s-app: oauth2-proxy
    ---
    apiVersion: networking.k8s.io/v1
    kind: Ingress
    metadata:
      name: oauth2-proxy
      annotations:
        nginx.ingress.kubernetes.io/configuration-snippet: |
          set $xheader "";
          if ( $request_uri = "/oauth2/sign_out" ){
            set $xheader "https://<Identity Domain FQDN>/oauth2/v1/userlogout;
          }
          proxy_set_header X-Auth-Request-Redirect ${xheader};
    spec:
      ingressClassName: nginx
      rules:
      - host: <YOUR-FQDN>
        http:
          paths:
          - path: /oauth2
            pathType: Prefix
            backend:
              service:
                name: oauth2-proxy
                port:
                  number: 4180
      tls:
      - hosts:
        - <YOUR-FQDN>

  2. Deploy the OAuth2 Proxy to OKE.

    kubectl apply -f oauth2-proxy.yaml


    Confirm the pod is running.

    kubectl get pods -l k8s-app=oauth2-proxy

  3. Configure Nginx to use OAuth2 Proxy for request authentication.

    Update the ingress.yaml file with the auth annotations.

    ---
    apiVersion: networking.k8s.io/v1
    kind: Ingress
    metadata:
      name: httpbin-ingress-nginx
      annotations:
        nginx.ingress.kubernetes.io/auth-url: "https://$host/oauth2/auth"
        nginx.ingress.kubernetes.io/auth-signin: "https://$host/oauth2/start?rd=$escaped_request_uri"
        nginx.ingress.kubernetes.io/auth-response-headers: "x-auth-request-user, x-auth-request-email"
    spec:
      ingressClassName: nginx
      tls:
      - hosts:
          - "<YOUR-FQDN>"
      rules:
        - host: "<YOUR-FQDN>"
          http:
            paths:
              - pathType: Prefix
                path: "/"
                backend:
                  service:
                    name: httpbin
                    port:
                      number: 5000

  4. Try to connect to your application. You should be redirected to the Oracle authentication page. Once the authentication is successful, you should be redirected to your application.

    Authentication page

    There are two headers identifying the authenticated user.

    "x-auth-request-user": "xxxx@oracle.com"
    "x-auth-request-email": "xxxx@oracle.com"

  5. To sign out from the application, you can go to /oauth2/sign_out on your page.

    https://<YOUR-FQDN>/oauth2/sign_out


    Known Issue: Post sign out redirect is not working. This issue is tracked here: Add an id_token_hint parameter to the logout provider URL for OIDC provider.

Task 5: Clean up Resources

  1. Run the following command to delete all the Kubernetes deployed resources.

    kubectl delete -f oauth2-proxy.yaml -f ingress.yaml -f application.yaml
    helm uninstall ingress-nginx

  2. Delete the application from Oracle Identity Domains.

  3. Delete the OKE cluster.

  4. Delete the VCN created for the OKE cluster.

    Note:

    • You need to wait for the OKE cluster and node pool deletion to end.

    • The VCN name contains the name of the OKE cluster: oke-vcn-quick-<oke-cluster-name>-<random-string>.
