Create OCI DevOps pipelines to build and deploy the Golang microservices

Introduction

This is part four of a six-part tutorial series that shows you how to deploy a temporary set of resources on an OKE cluster using Golang microservices representing the usage of OCI SDK, OCI-CLI, Resource Manager, OCI Devops and Helm to deploy and destroy Apache Airflow.

Objective

In this tutorial you will learn how to create OCI DevOps pipelines for build and deploy.

Prerequisites

Task 1: Explore the go-login code

Note
The code was already uploaded to your OCI repository called go-login on earlier steps of this lab.

T1_1

Task 2: Explore the go-microservices code

Note
The code was already uploaded to your OCI repository called go-microservice on earlier steps of this lab.

T2_1

Task 3: Create the DevOps artifacts for go-login and go-microservice

Before creating the DevOps build pipeline, we need to create the artifacts that will connect with the build results (Helm package and container image).

  1. Go to the OCI Registry you have created for this tutorial.

    T3_1

  2. Click on the Artifacts under your DevOps project, then click Add artifact, and then type Container image repository.

    T3_2

    Important note regarding registry url:

    T3_2

    • This is the base of the registry for region sa-saopaulo-1.

    • Check for your region code, that will be different if you are not using “sa-saopaulo-1”. For more information, see Regions and Availability Domains.

    T3_2

  3. Repeat Step 2 and add the go-microservice artifact.

    T3_2

  4. Create a new general artifact to store the Helm values for go-login by pasting the content of the values.yaml file from the code repository.

    T3_4

  5. Create a new general artifact to store the Helm values for go-microservice by pasting the content of the values.yaml file from the code repository.

    T3_5

  6. Create a new Helm chart type artifact for go-login. You must set the correct namespace and region code on your chart URL.

    T3_6

  7. Create a new Helm chart type artifact for go-microservice. You must set the correct namespace and region code on your chart URL.

    T3_7

At this point, you should have the following artifacts in your DevOps project.

T3_7

Task 4: Create the Devops build pipeline for go-login

  1. Go the console page for your DevOps project and select the DevOps project you have created.

  2. Select Build Pipelines, then click Create build pipeline, enter the name and description and click Create.

    T4_2

  3. Click Add stage, and then select Managed Build.

    T4_2

    T4_2

  4. On Primary code repository, select your OCI repository for go-login.

    T4_4

    • Confirm your repo, select and then click Add.

  5. Add a new stage on your build pipeline to publish the artifact to the registry. Select Deliver artifacts option and then select the go-login-image artifact created in the earlier steps.

    T4_5

    T4_5

Your pipeline should look like this.

T4_5

Task 5: Create the DevOps build pipeline for go-microservice

  1. Go the console page for your DevOps project and select the DevOps project you have created.

  2. Select Build Pipelines, click Create build pipeline, enter the name and description and click Create.

    T4_2

  3. Click Add stage, and then select Managed Build.

    T4_2

    T4_2

  4. On Primary code repository, select your OCI repository for go-microservice.

    T4_4

    • Confirm your repo, select and then click Add.

  5. Add a new stage on your build pipeline to publish the artifact to the registry. Select Deliver artifacts option and then select the go-microservice-image artifact created in the earlier steps.

    T4_5

    T4_5

Your pipeline should look like this.

T4_5

Task 6: Build pipeline {build_spec.yaml} – go-login

The build_spec file is a yaml file that describes the steps to be performed during the build pipeline execution. It runs on a cloud build runner and supports most of the popular languages in cloud native applications. The file is located in the root of your go-login repo code on OCI. This file uses some variables from the VAULT and we need to change it to our tutorial Vault ocids.

For more details regarding build specs, see Build Specification.

The following two variables should be set.

  1. Go to your vault secrets and get the OCID for each secret.

    T6_1

  2. Go to your project repositories and get the ssh url for go-login.

    T6_2

    • Update your build_spec.yaml file and replace values with the copied OCID secrets and then commit the changes on the code.

      T6_2

  3. Go to your bastion jump-box shell console.

    cd $HOME
# If you still have the old go-login.git and go-microservices.git directory, delete it!
rm -rf go-login.git
rm -rf go-microservice.git
git clone <your ssh url for the repo>
cd go-login/
vi build_spec.yaml
#perform the needed changes for your ocid variables and save the file.
git add .
git commit -m "fixed ocid variables"
git push

    T6_3

    T6_3

  4. Go to your go-login build pipeline under your DevOps project, select “Parameters” tab and add the following new parameters.

    • HELM_REPO: The base of your OCI Registry xxx.ocir.io.
    • HELM_REPO_URL: The OCI Registry URL for the related Helm chart.
    • APP_HOST: The host will be used to access your application on Ingress Controller.
    • IMAGE_URL: The OCI Registry Image URL without the tag.

    T6_4

  5. Click Build pipeline tab and then click Start manual run.

    T6_5

    T6_5

    • As we can see, the build was completed successfully along with the image push to the OCI Registry.

      T6_5

  6. Go to the OCI Container Registry and check if there is an image there.

    T6_5

Task 7: Set up OCI credentials for go-microservice

The go-microservices interacts with OCI using SDK and to be able to do that, we need to setup the correct credentials. We will use the similar information we used to setup the OCI CLI during the bastion setup from earlier steps of this tutorial.

All the required credentials will be stored on the OKE configmap and it is injected on the environment variables inside the running container.

T7_0

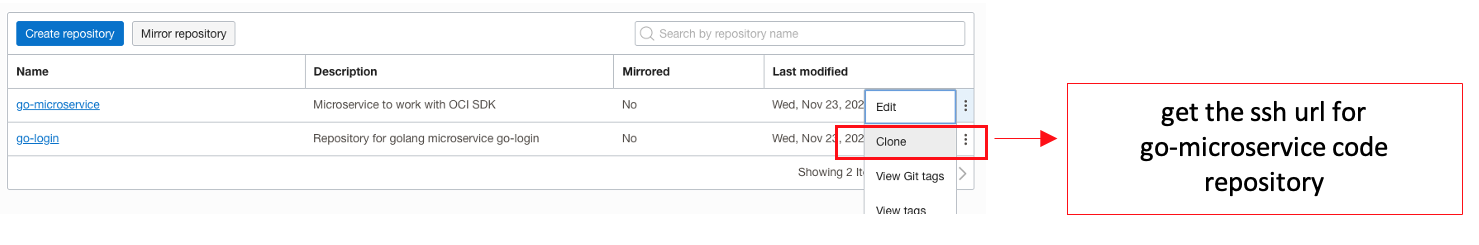

  1. Go to your OCI repositories and get the ssh url for your go-microservice repo.

    T7_1

  2. Go to the console page for your OKE cluster, copy the cluster ocid and replace on the command for ENV_CLUSTER_ID env variable in the next step.

    T7_2

  3. Open your bastion jump-box shell terminal. Make sure you have your ssh key created at: ~/.oci/oci_api_key.pem. Except for the ENV_CLUSTER_ID variable, all other variables can be found in the ~/.oci/config file under your bastion host which you previously setup the OCI CLI

    cat ~/.oci/config

    T7_2

  4. The shell command list below will create a new configmap/values.yaml file with all needed variables to be injected on the running container and then push it to your code repository on OCI. Before running the commands on your bastion host terminal, replace the values “PASTE YOUR…” below.

    cd $HOME
rm -rf go-microservice/
git clone <PAST YOUR ssh url>
cd go-microservice/chart-go-microservice/configmap/
rm values.yaml
pem=$(cat ~/.oci/oci_api_key.pem|base64 -w 0)
echo 'ENV_PEM: "'$pem'"' > values.yaml
echo 'ENV_TENANCY_OCID: "PASTE YOUR TENANCY OCID"' >> values.yaml
echo 'ENV_USER_OCID: "PASTE YOUR USER OCID"' >> values.yaml
echo 'ENV_REGION: "PASTE YOUR REGION NAME"' >> values.yaml
echo 'ENV_FINGERPRINT: "PASTE YOUR FINGERPRINT"' >> values.yaml
echo 'ENV_CLUSTER_ID: "PASTER YOUR CLUSTER OCID"' >> values.yaml
cd $HOME/go-microservice
git add .
git commit -m "added correct values on configmap"
git push

    T7_3

    T7_3

Now, the go-microservice is able to communicate with OCI using the SDK.

Task 8: Build pipeline {build_spec.yaml} – go-microservices

The build_spec file is a yaml file that describes the steps to be performed during the build pipeline execution. It runs on a cloud build runner and supports most of the popular languages in cloud native applications. The file is located on the root of your go-microservice repo code on OCI. This file uses some variables from the VAULT and we need to change it to our tutorial Vault ocids.

For more details regarding build specs, see Build Specification.

The following two variables should be set.

  1. Go to your vault secrets and get the OCID for each secret.

    T6_1

  2. Go to your project repositories and get the ssh url for go-login.

    T6_2

    • You will need to update your build_spec.yaml file and replace values with the copied OCID secrets and then commit the changes on the code.

    T6_2

  3. Go to your bastion jump-box shell console.

    cd $HOME
# If you still have the old go-login.git and go-microservices.git directory, delete it!
rm -rf go-login.git
rm -rf go-microservice.git
git clone <your ssh url for the repo>
cd go-microservice/
vi build_spec.yaml
#perform the needed changes for your ocid variables and save the file.
git add .
git commit -m "fixed ocid variables"
git push

    T8_3

    T8_3

  4. Go to your go-microservice build pipeline under your Devops project, select “Parameters” tab and add new parameters.

    • HELM_REPO: The base of your OCI Registry xxx.ocir.io.
    • HELM_REPO_URL: The OCI Registry URL for the related Helm chart.
    • APP_HOST: The host will be used to access your application on Ingress Controller.
    • IMAGE_URL: The OCI Registry Image URL without the tag.

    T6_4

  5. Click Build pipeline tab and then click Start manual run.

    T8_5

    T8_5

    • As we can see, the build was completed successfully along with the image push to the OCI Registry.

      T8_5

  6. Go to the OCI Container Registry and check if there is an image there.

    T8_5

Task 9: Prepare your OKE to receive the deployments

In this tutorial, we will manually create the OKE namespaces for go-login and go-microservices. We also need to setup the OCI Container Registry credentials inside each of the namespaces using secrets. This is required otherwise your deployment will not be able to fetch the container image from the registry.

  1. Get the plain text TOKEN and username from the OCI Registry you stored on the vault.

    T9_1

  2. Open your bastion jump-box shell console and run the following command.

    Note: Make sure you replace the variables on the commands below with the credentials you got in the previous step and also check the correct docker-server based on your region gru.ocir.io.

     cd $HOME
 kubectl get ns
 kubectl create ns go-login
 kubectl create ns go-microservices
 kubectl create secret docker-registry docker-registry --docker-server=gru.ocir.io --docker-username='your_user_name' --docker-password='your_token' --docker-email='user-email' -n go-login
 kubectl create secret docker-registry docker-registry --docker-server=gru.ocir.io --docker-username='your_user_name' --docker-password='your_token' --docker-email='user-email' -n go-microservices

    • Now let’s deploy the ingress controller to be able to access the microservices over the internet. We are using the official ingress image on version v1.4.0.

       kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v1.4.0/deploy/static/provider/cloud/deploy.yaml
 kubectl scale --replicas=4 deployment ingress-nginx-controller -n ingress-nginx

      T9_2

      T9_2

    • Now, let’s check if the ingress services are good, it should look like this.

      kubectl get svc -n ingress-nginx

      T9_2

    • After creating the ingress-nginx, a new load balancer is automatically created on OCI. Now update the load balancer shape to a cheaper shape and avoid extra costs.

  3. Go to your console, select Load balancers under Networking and then select the newly created load balancer.

    T9_3

  4. Click to update the SHAPE and select the Use a Flexible Load Balancer checkbox.

    T9_4

Task 10: Create a new OCI DevOps environment

To be able to deploy your apps, we need to create the environment.

  1. Select your DevOps project, click Environments, and then click Create environment.

    T10_1

    T10_1

Task 11: Deploy go-login to OCI DevOps using Helm charts

  1. Go to your Devops project, click Deployment Pipelines and create a new pipeline for go-login.

    T11_1

  2. Click to add new stage to deploy, select “Install Helm Charts to Kubernetes Cluster”, select the helm artifact and the values artifact for go-login. Make sure you fill the namespace name as go-login.

    T11_2

  3. Create a trigger on the build pipeline to start the deploy automatically after the build is completed.

    1. Go to the go-login build pipeline under your Devops project and click Add stage.

    2. Select Trigger deployment, click Select deployment pipeline and then select go-login-deploy.

      T11_3

  4. Click Start manual run to test the pipeline.

    T11_4

    T11_4

  5. On the Devops Project page, click Deployments to check the running deployment status.

    T11_5

Task 12: Verify your go-login deployment

  1. Go to your bastion host terminal and check the following:

    • Check the pod health.

      kubectl get pod -n go-login

    • Check the ingress host and address for the app.

      kubectl get ingress -n go-login

      T12_1

    • This deployment uses the ingress control routing traffic over the host name, which means we need to call the service using the correct host name as part the URL.

    • In this tutorial, we did not use SSL certificates. In order to be able to call the services we need to include in the local /etc/hosts of your laptop the right DNS route for it. This is not recommended for production environments.

    • Take note of your external IP address and add the entry in your /etc/hosts.

       sudo vi /etc/hosts

    • Add a new line at the end of the file.

      your.ip.aaa.xx go-login.superocilab.com

    • Run the following command.

      cat /etc/hosts

    • Your /etc/hosts should look like this.

      T12_1

  2. Now you can call the go-login service using a curl and generate a jwt TOKEN by calling the /login endpoint.

    curl http://go-login.superocilab.com
curl http://go-login.superocilab.com/login

    T12_1

Task 13: Deploy go-microservice to OCI Devops using Helm charts

  1. Go to your Devops project, click Deployment Pipelines and create a new pipeline for go-microservice.

    T13_1

  2. Click to add new stage to deploy, select Install Helm Charts to Kubernetes Cluster, select the helm artifact and the values artifact for go-microservice. Make sure you fill the namespace name as go-microservices.

    T13_2

  3. Create a trigger on the build pipeline to start the deploy automatically after build is completed.

    1. Go to the go-microservice build pipeline under your Devops project and click Add stage.

    2. Select Trigger deployment, then click Select deployment pipeline and then select go-microservice-deploy.

    T13_3

    T13_3

  4. Click Start manual run to test the pipeline.

    T13_4

    T13_4

  5. On the Devops Project page, click Deployments to check the running deployment status.

    T11_5

Task 14: Verify your go-microservice deployment

  1. Go to your bastion host terminal and check the following details:

    • Check the pod health.

      kubectl get pod -n go-microservices

    • Check the ingress host and address for the app.

      kubectl get ingress -n go-microservices

      T14_1

    • This deployment uses the ingress control routing traffic over the host name, which means we need to call the service using the correct host name as part the URL.

    • In this tutorial, we did not use SSL certificates. In order to be able to call the services we need to include in the local /etc/hosts of your laptop the right DNS route for it. This is not recommended for production environments.

    • Take note of your external IP address and add the entry on your /etc/hosts (you can add on your local machine too!)

       sudo vi /etc/hosts

    • Add a new line at the end of the file.

      your.ip.aaa.xx go-microservice.superocilab.com

    • Run the following command.

      cat /etc/hosts

    • Your /etc/hosts should look like this.

      T14_1

Now you can call the go-microservice service.

curl curl http://go-microservice.superocilab.com

T14_1
