Deploy a Kubernetes Cluster with Terraform using Oracle Cloud Infrastructure Kubernetes Engine

Introduction

Deploying Kubernetes with Terraform on Oracle Cloud Infrastructure Kubernetes Engine (OCI Kubernetes Engine or OKE) offers a streamlined and scalable approach to managing containerized applications in the cloud. OKE, an Oracle Cloud Infrastructure managed Kubernetes service, simplifies the deployment, management, and scaling of Kubernetes clusters.

By using Terraform, an Infrastructure as Code (IaC) tool, you can automate the provisioning and configuration of OKE clusters, ensuring consistency and efficiency. This combination allows for repeatable deployments, infrastructure versioning, and easy updates, making it ideal for cloud-native and DevOps-focused teams looking to leverage Oracle Cloud Infrastructure ecosystem.

In this tutorial, we are going to deploy a very specific Kubernetes architecture on OCI OKE using Terraform.

We are going to deploy the following components:

Internet Gateway
NAT Gateway
Service Gateway
7 x Subnets (Private and Public)
2 x Node Pools
4 x Worker Nodes (Instances)
Bastion (Instance)
Operator (Instance)

Objectives

Deploy a Kubernetes cluster with Terraform using OKE.

Prerequisites

To deploy objects on OCI using Terraform you first need to prepare your environment for authenticating and running Terraform scripts. For more information, see Task 2: Prepare your Environment for Authentication and Run Terraform Scripts.

Task 1: Clone the Repository with the Terraform Scripts

Clone the terraform-oci-oke repository from here: terraform-oci-oke.
1. At the time of writing this tutorial the latest version is 5.1.8.
2. You can either download the full zip file with the full repository or clone the repository using the git clone command.
3. Click on version to access the 5.1.8 branch.
1. Note that you are in the 5.1.8 branch.
2. Click the docs folder.
Click the src folder.
Click the SUMMARY.md file.
Click Getting started.
1. Note that you are still in the 5.1.8 branch, other branches may contain different types of documentation steps depending on the code version.
2. Note that you are on the getting started page, and this page will do exactly what the title says.
In the following output you can see how we use the Getting Started page to create this tutorial.
1. Run the git clone command to clone the repository.
```
iwhooge@iwhooge-mac ~ % git clone https://github.com/oracle-terraform-modules/terraform-oci-oke.git tfoke
```
2. Run the following command to change the folder into repository folder.
3. Run the following command to list the content of the folder.
4. You can see all files of the repository.

Create a providers.tf file inside this directory with the following content.

providers.tf:

provider "oci" {
  fingerprint      = var.api_fingerprint
  private_key_path = var.api_private_key_path
  region           = var.region
  tenancy_ocid     = var.tenancy_id
  user_ocid        = var.user_id
}

provider "oci" {
  fingerprint      = var.api_fingerprint
  private_key_path = var.api_private_key_path
  region           = var.home_region
  tenancy_ocid     = var.tenancy_id
  user_ocid        = var.user_id
  alias            = "home"
}

Run the following command to list the folder content.
Note that the providers.tf file is created.

Run the following command to initialize Terraform and upgrade the required modules.
```
iwhooge@iwhooge-mac tfoke % terraform init --upgrade
```
Note that the message: Terraform has been successfully Initialized is displayed.

Make sure you have the following information available, to create the terraform.tfvars file. This information can be retrieved using the following steps mentioned here: Task 2: Prepare your Environment for Authentication and Run Terraform Scripts.

Tenancy OCID	ocid1.tenancy.oc1..aaaaaaaaXXX
User OCID	ocid1.user.oc1..aaaaaaaaXXX
Fingerprint	30:XXX
Region	me-abudhabi-1
Private Key Path	~/.oci/4-4-2023-rsa-key.pem
Compartment OCID	ocid1.compartment.oc1..aaaaaaaaXXX

We need to create a terraform.tfvars file inside this directory with the following content.

terraform.tfvars:

# Identity and access parameters
api_fingerprint      = "30:XXX"
api_private_key_path = "~/.oci/4-4-2023-rsa-key.pem"

home_region = "me-abudhabi-1"
region      = "me-abudhabi-1"
tenancy_id  = "ocid1.tenancy.oc1..aaaaaaaaXXX"
user_id     = "ocid1.user.oc1..aaaaaaaaXXX"

# general oci parameters
compartment_id = "ocid1.compartment.oc1..aaaaaaaaXXX"
timezone       = "Australia/Sydney"

# ssh keys
ssh_private_key_path = "~/.ssh/id_rsa"
ssh_public_key_path  = "~/.ssh/id_rsa.pub"

# networking
create_vcn               = true
assign_dns               = true
lockdown_default_seclist = true
vcn_cidrs                = ["10.0.0.0/16"]
vcn_dns_label            = "oke"
vcn_name                 = "oke"

# Subnets
subnets = {
  bastion  = { newbits = 13, netnum = 0, dns_label = "bastion", create="always" }
  operator = { newbits = 13, netnum = 1, dns_label = "operator", create="always" }
  cp       = { newbits = 13, netnum = 2, dns_label = "cp", create="always" }
  int_lb   = { newbits = 11, netnum = 16, dns_label = "ilb", create="always" }
  pub_lb   = { newbits = 11, netnum = 17, dns_label = "plb", create="always" }
  workers  = { newbits = 2, netnum = 1, dns_label = "workers", create="always" }
  pods     = { newbits = 2, netnum = 2, dns_label = "pods", create="always" }
}

# bastion
create_bastion           = true
bastion_allowed_cidrs    = ["0.0.0.0/0"]
bastion_user             = "opc"

# operator
create_operator                = true
operator_install_k9s           = true


# iam
create_iam_operator_policy   = "always"
create_iam_resources         = true

create_iam_tag_namespace = false // true/*false
create_iam_defined_tags  = false // true/*false
tag_namespace            = "oke"
use_defined_tags         = false // true/*false

# cluster
create_cluster     = true
cluster_name       = "oke"
cni_type           = "flannel"
kubernetes_version = "v1.29.1"
pods_cidr          = "10.244.0.0/16"
services_cidr      = "10.96.0.0/16"

# Worker pool defaults
worker_pool_size = 0
worker_pool_mode = "node-pool"

# Worker defaults
await_node_readiness     = "none"

worker_pools = {
  np1 = {
    shape              = "VM.Standard.E4.Flex",
    ocpus              = 2,
    memory             = 32,
    size               = 1,
    boot_volume_size   = 50,
    kubernetes_version = "v1.29.1"
  }
  np2 = {
    shape            = "VM.Standard.E4.Flex",
    ocpus            = 2,
    memory           = 32,
    size             = 3,
    boot_volume_size = 150,
    kubernetes_version = "v1.30.1"
  }
}

# Security
allow_node_port_access       = false
allow_worker_internet_access = true
allow_worker_ssh_access      = true
control_plane_allowed_cidrs  = ["0.0.0.0/0"]
control_plane_is_public      = false
load_balancers               = "both"
preferred_load_balancer      = "public"

Run the following command to list the folder content.
Note that the terraform.tfvars file is created.

Task 2: Run Terraform Apply and Create one OKE Cluster with the Necessary Resources (VCN, Subnets and so on)

Run the following command to plan the Kubernetes cluster deployment on OKE using Terraform.
```
iwhooge@iwhooge-mac tfoke % terraform plan
```
1. Note that this Terraform code will deploy 77 objects.
2. Run the terraform apply command.
Run the following command to apply the Kubernetes cluster deployment on OKE using Terraform.
```
iwhooge@iwhooge-mac tfoke % terraform apply
```
1. Note that this Terraform code will deploy 77 objects.
2. Enter yes to continue the deployment.
When the deployment is finished, you will see a message that the apply is completed.

Note the output that has been provided with useful information you might need for your reference.

Outputs:

apiserver_private_host = "10.0.0.22"

availability_domains = tomap({

  "1" = "cAtJ:ME-ABUDHABI-1-AD-1"

})

bastion_id = "ocid1.instance.oc1.me-abudhabi-1.anqxkljrpkxxxxxx5chephxjadkxqa2ekxksb5gokj4q"

bastion_nsg_id = "ocid1.networksecuritygroup.oc1.me-abudhabi-1.aaaaaxxxxxxxxxxxy5qm22odw7by37h77ki6cosoqd7pzwq"

bastion_public_ip = "129.151.149.237"

bastion_subnet_cidr = "10.0.0.0/29"

bastion_subnet_id = "ocid1.subnet.oc1.me-abudhabi-1.aaaaaaaxxxxxxxxxxxxxxxxmyzp6f2czibfr6534evfkt7m2a"

cluster_endpoints = tomap({

  "kubernetes" = ""

  "private_endpoint" = "10.0.0.22:6443"

  "public_endpoint" = ""

  "vcn_hostname_endpoint" = "cbyedhyevbq.cp.oke.oraclevcn.com:6443"

})

cluster_id = "ocid1.cluster.oc1.me-abudhabi-1.aaaaaaaxxxxxxxxxxxxx57gz5q26hmpzkbcbyedhyevbq"

control_plane_nsg_id = "ocid1.networksecuritygroup.oc1.me-abudhabi-1.aaaaaaaavxvgoewcgxxxxxxxxxxxxx6psycdz6zz5gaf6re4kcxa"

control_plane_subnet_cidr = "10.0.0.16/29"

control_plane_subnet_id = "ocid1.subnet.oc1.me-abudhabi-1.aaaaaaaajvvpdmuixxxxxxxxxxxjkpx77hqu3v2s4qilnp56a"

dynamic_group_ids = tolist([

  "ocid1.dynamicgroup.oc1..aaaaaaaafsikvwgexxxxxxxxx5tx2u4c2s2eic4sslwyabva",

])

ig_route_table_id = "ocid1.routetable.oc1.me-abudhabi-1.aaaaaaaalxxxxxxxxxxxxxxcyzrl2af4ihrkhcjttu2w7aq"

int_lb_nsg_id = "ocid1.networksecuritygroup.oc1.me-abudhabi-1.aaaaaaaanwppaafc7fyiwcoyhjxxxxxxxxxxxxxxxxx6a6752l7547gxg7ea"

int_lb_subnet_cidr = "10.0.2.0/27"

int_lb_subnet_id = "ocid1.subnet.oc1.me-abudhabi-1.aaaaaaaawo5xmcwwbzk3gxxxxxxxxxxxxxxxxxxjjfllbvsdauaq"

lpg_all_attributes = {}

nat_route_table_id = "ocid1.routetable.oc1.me-abudhabi-1.aaaaaaaapqn3uqtszdcxxxxxxxxxxxxxxxxxliwveow232xgffigq"

operator_id = "ocid1.instance.oc1.me-abudhabi-1.anqxkljrpkbrwsac5exxxxxxxxxxxxxxxxxxxxxxxrfdxsjdfzmq56jja"

operator_nsg_id = "ocid1.networksecuritygroup.oc1.me-abudhabi-1.aaaaaaaao5kh3z3eaf4zhbtxixxxxxxxxxxxxxxxxxxxxxevyds3cbrjqzthv5ja"

operator_private_ip = "10.0.0.14"

operator_subnet_cidr = "10.0.0.8/29"

operator_subnet_id = "ocid1.subnet.oc1.me-abudhabi-1.aaaaaaaa6vnirazbox2edmtnxrzhxxxxxxxxxxxxxxxxxxxishk7556iw6zyq"

pod_subnet_cidr = "10.0.128.0/18"

pod_subnet_id = "ocid1.subnet.oc1.me-abudhabi-1.aaaaaaaasfnwg3lnyphk5h275r46ksi3xxxxxxxxxxxxxxxxxxxxxxxqz25iwkcinxa"

policy_statements = tolist([

  "Allow dynamic-group oke-operator-lccwyk to MANAGE clusters in compartment id ocid1.compartment.oc1..aaaaaaaa323ijv54zwkwbz2hhr2nnqoywlpxxxxxxxxxxxxxxxxxxxxxxxtecokaq4h4a",

])

pub_lb_nsg_id = "ocid1.networksecuritygroup.oc1.me-abudhabi-1.aaaaaaaae5stez5u26g6x75dy5nf72mfcixxxxxxxxxxxxxxxxxxxxxxxx2nwkwv5nkaa"

pub_lb_subnet_cidr = "10.0.2.32/27"

pub_lb_subnet_id = "ocid1.subnet.oc1.me-abudhabi-1.aaaaaaaagr5j2l6tu3rmroejg6t4nrixxxxxxxxxx6oar6xcirvq"

ssh_to_bastion = "ssh -i ~/.ssh/id_rsa opc@129.xxx.xxx.xxx"

ssh_to_operator = "ssh -o ProxyCommand='ssh -W %h:%p -i ~/.ssh/id_rsa opc@129.xxx.xxx.xxx' -i ~/.ssh/id_rsa opc@10.0.0.14"

state_id = "lccwyk"

vcn_id = "ocid1.vcn.oc1.me-abudhabi-1.amaaaaaapkbrwsaatndqrw3xq7e7krqfxxxxxxxxxxxxxxxpywz4qvhida"

worker_nsg_id = "ocid1.networksecuritygroup.oc1.me-abudhabi-1.aaaaaaaazbpfavygiv4xy3khfi7cxunixxxxxxxxxxxxxxxxjvsm6jqtja"

worker_pool_ids = {

  "np1" = "ocid1.nodepool.oc1.me-abudhabi-1.aaaaaaaauo57ekyoiiaif25gq7uwrpxxxxxxxxxxxxxxpsnygeam7t2wa"

  "np2" = "ocid1.nodepool.oc1.me-abudhabi-1.aaaaaaaa7423cp6zyntxwxokol3kmdxxxxxxxxxxxxx3wnayv2xq6nyq"

}

worker_pool_ips = {

  "np1" = {

    "ocid1.instance.oc1.me-abudhabi-1.anqxkljrpkbrwsac3t3smjsyxjgen4zqjpxxxxxxxxxxxxx663igu7cznla" = "10.0.90.37"

  }

  "np2" = {

    "ocid1.instance.oc1.me-abudhabi-1.anqxkljrpkbrwsac2eayropnzgazrxxxxxxxxxxxxxxxxpiykrq4r5pbga" = "10.0.125.238"

    "ocid1.instance.oc1.me-abudhabi-1.anqxkljrpkbrwsace4aup47ukjcedxxxxxxxxxxxxxxxxxx2hdxbsyiitva" = "10.0.92.136"

    "ocid1.instance.oc1.me-abudhabi-1.anqxkljrpkbrwsacojjri4b7qsaxxxxxxxxxxxxxxxxxnarf75ejv7a2a" = "10.0.111.157"

  }

}

worker_subnet_cidr = "10.0.64.0/18"

worker_subnet_id = "ocid1.subnet.oc1.me-abudhabi-1.aaaaaaaarrnazbrmwbiyl3ljmdxhgmxxxxxxxxxxxxxxxxxxxv3wtgmiucnsa"

iwhooge@iwhooge-mac tfoke %

Task 3: Confirm Terraform Deployment in the OCI Console

Navigate to the OCI Console and confirm the following Terraform deployments.

OCI Kubernetes Engine Cluster
- Go to the OCI Console.
  1. Navigate to Developer Services and click Kubernetes Clusters (OKE).
  2. Click the oke Kubernetes cluster created in Task 2.
- Scroll down.
  1. Click Node pools.
  2. Click the np1 node pool.
- Scroll down.
- Note that there is one worker node in the np1 node pool.
- Go to the previous page and click the np2 node pool.
- Scroll down.
- Note that there are three worker nodes in the np2 node pool.
Instances
- Go to the OCI Console.
  1. Navigate to Compute and click Instances.
  2. Review the four worker nodes of the Kubernetes cluster.
  3. Review the operator of the Kubernetes cluster.
  4. Review the bastion host belongs of the Kubernetes cluster.
Virtual Cloud Network
- Go to the OCI Console, navigate to Networking, Virtual cloud networks and click the oke VCN.
- Click Subnets and you can see all the seven subnets, of the Kubernetes cluster.
- The following image illustrates what we have created so far with the Terraform script.

Task 4: Use Bastion and Operator to Check the Connectivity

In the output you will find some commands to connect to your Kubernetes environment when the Terraform deployment is completed.

Run the following command to connect to the bastion host.

ssh_to_bastion = "ssh -i ~/.ssh/id_rsa opc@129.xxx.xxx.xxx"

Run the following command to connect to the Kubernetes operator through the bastion host.

ssh_to_operator = "ssh -o ProxyCommand='ssh -W %h:%p -i ~/.ssh/id_rsa opc@129.xxx.xxx.xxx' -i ~/.ssh/id_rsa opc@10.0.0.14"

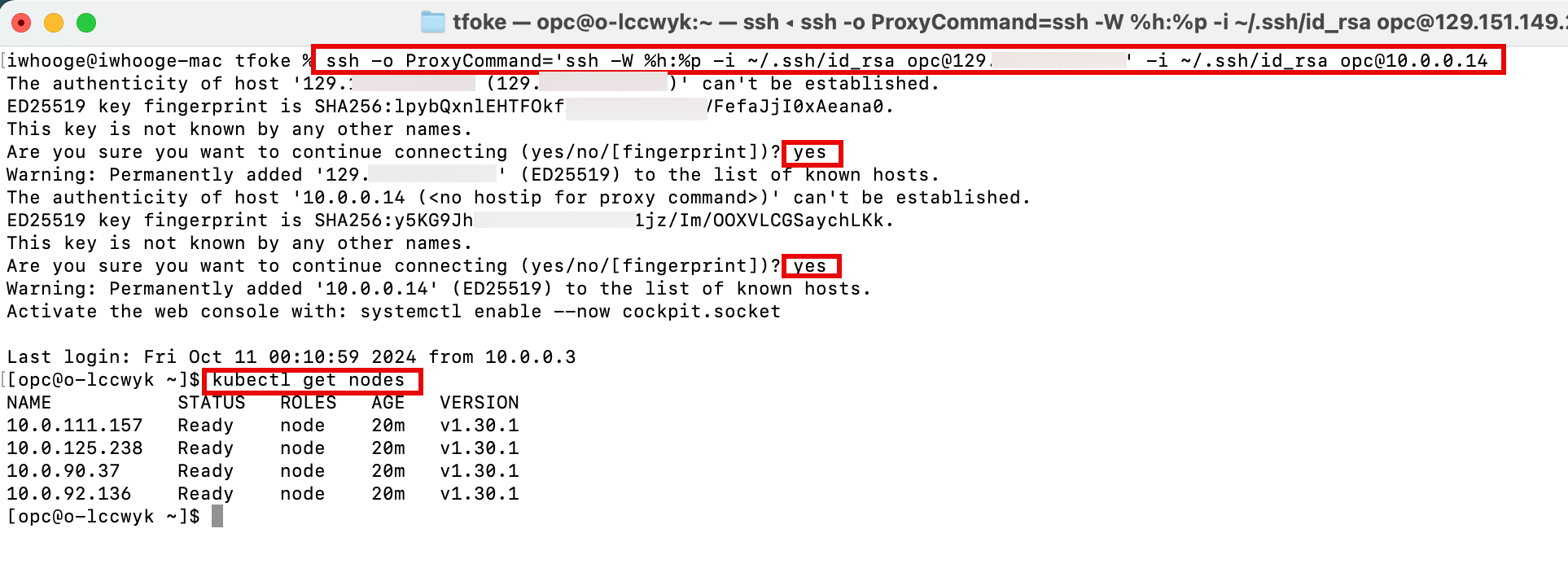

We will manage the Kubernetes cluster from the operator. Enter yes twice and run the kubectl get nodes command to get the Kubernetes Worker nodes.

To make it easy in terms of SSH connections, add the following additional commands in your ~/.ssh/config file.

Host bastion47
    HostName 129.xxx.xxx.xxx
    user opc
    IdentityFile ~/.ssh/id_rsa
    UserKnownHostsFile /dev/null
    StrictHostKeyChecking=no
    TCPKeepAlive=yes
    ServerAliveInterval=50

Host operator47
    HostName 10.0.0.14
    user opc
    IdentityFile ~/.ssh/id_rsa
    ProxyJump bastion47
    UserKnownHostsFile /dev/null
    StrictHostKeyChecking=no
    TCPKeepAlive=yes
    ServerAliveInterval=50

After adding the following content to the ~/.ssh/config file, you will be able to use simple names in the SSH commands.

iwhooge@iwhooge-mac tfoke % ssh operator47

Task 5: Delete the Kubernetes Cluster using Terraform

Run the terraform destroy command to delete the Kubernetes cluster in OKE.
```
iwhooge@iwhooge-mac tfoke % terraform destroy
```
Enter yes.

When the destroy process is finished, you will see a message that the destroy is completed.

Next Steps

Deploying Kubernetes cluster on OCI Kubernetes Engine using Terraform provides an efficient, automated, and scalable solution for managing containerized applications in the cloud.

By leveraging Terraform’s IaC capabilities, you ensure that your Kubernetes clusters are deployed consistently and can be easily maintained or updated over time.

This integration streamlines the process, allowing for better version control, automated scaling, and a repeatable infrastructure setup. Whether you are managing a single cluster or scaling across environments, this approach empowers teams to manage their Kubernetes workloads with reliability and ease in Oracle Cloud Infrastructure.

Acknowledgments

Author - Iwan Hoogendoorn (OCI Network Specialist)

More Learning Resources

Explore other labs on docs.oracle.com/learn or access more free learning content on the Oracle Learning YouTube channel. Additionally, visit education.oracle.com/learning-explorer to become an Oracle Learning Explorer.

For product documentation, visit Oracle Help Center.

Title and Copyright Information

Deploy a Kubernetes Cluster with Terraform using Oracle Cloud Infrastructure Kubernetes Engine

G18096-01

October 2024

Oracle and/or its affiliates.
