3.3 Attribute Mappings
The Schema page for a target application displays the default schema (provided by the connector) that maps Oracle Identity Governance attributes to target system attributes. The connector uses these mappings during reconciliation and provisioning operations.
Google Cloud Platform Connector User Account Attributes
Table 3-3 lists the user-specific attribute mappings between the process form fields in Oracle Identity Governance and Google Cloud Platform Connector attributes. The table also lists whether a specific attribute is used during provisioning or reconciliation and whether it is a matching key field for fetching records during reconciliation.
If required, you can edit the default attribute mappings by adding new attributes or deleting existing attributes as described in Creating a Target Application of Oracle Fusion Middleware Performing Self Service Tasks with Oracle Identity Governance.
Table 3-3 Default Attribute Mappings for Google Cloud Platform Connector User Account
| Display Name | Target Attribute | Data Type | Mandatory Provisioning Property? | Provision Field? | Recon Field? | Key Field? | Case Insensitive? |
|---|---|---|---|---|---|---|---|
| Unique Id | __UID__ | String | No | Yes | Yes | Yes | No |
| Given Name | givenName | String | Yes | Yes | Yes | No | Not applicable |
| Family Name | familyName | String | Yes | Yes | Yes | No | Not applicable |
| Account Name | __NAME__ | String | Yes | Yes | Yes | No | Not applicable |
| Password | __PASSWORD__ | String | Yes | Yes | No | No | Not applicable |
| Is Admin | isAdmin | Boolean | No | No | Yes | No | Not applicable |
| Change Password At Next Login | changePasswordAtNextLogin | Boolean | No | Yes | Yes | No | Not applicable |
| OrgUnit Path | orgUnitPath | String | No | Yes | Yes | No | Not applicable |
| Status | __ENABLE__ | String | No | No | Yes | No | Not applicable |
| IT Resource Name | - | Long | No | No | Yes | No | Not applicable |

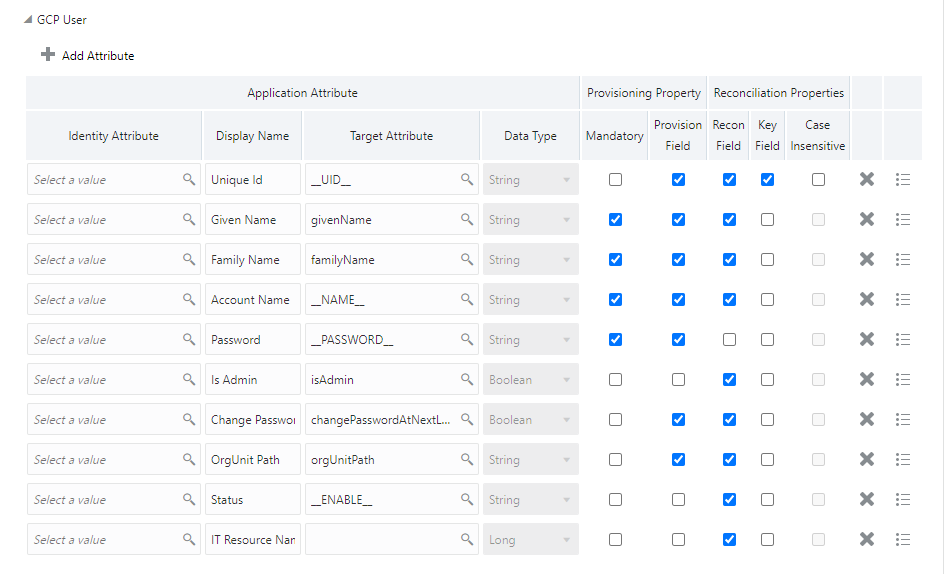

Figure 3-1 shows the default User account attribute mappings.
Figure 3-1 Default Attribute Mappings for Google Cloud Platform Connector User Account
Description of "Figure 3-1 Default Attribute Mappings for Google Cloud Platform Connector User Account"
Nick Names Child Attributes
Table 3-4 lists the attribute mappings for nick names between the process form fields in Oracle Identity Governance and Google Cloud Platform Connector attributes. The table lists whether a given attribute is mandatory during provisioning. It also lists whether a given attribute is used during reconciliation and whether it is a matching key field for fetching records during reconciliation.
If required, you can edit the default attribute mappings by adding new attributes or deleting existing attributes as described in Creating a Target Application of Oracle Fusion Middleware Performing Self Service Tasks with Oracle Identity Governance.
Table 3-4 Default Attribute Mappings for Google Cloud Platform Connector Nick Name
| Display Name | Target Attribute | Data Type | Mandatory Provisioning Property? | Recon Field | Key Field? | Case Insensitive? |
|---|---|---|---|---|---|---|
| Nick Name | aliases | String | No | Yes | Yes | No |

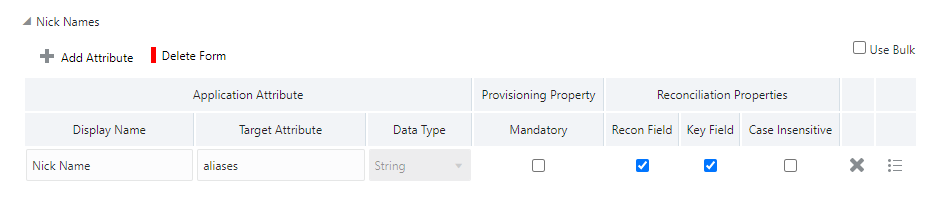

Figure 3-2 shows the default Nick Names child attribute mapping.
Figure 3-2 Default Attribute Mappings for the Nick Name
Description of "Figure 3-2 Default Attribute Mappings for the Nick Name"
Group Names Child Attributes
Table 3-5 lists the attribute mappings for group names between the process form fields in Oracle Identity Governance and Google Cloud Platform Connector attributes. The table lists whether a given attribute is mandatory during provisioning. It also lists whether a given attribute is used during reconciliation and whether it is a matching key field for fetching records during reconciliation.
If required, you can edit the default attribute mappings by adding new attributes or deleting existing attributes as described in Creating a Target Application of Oracle Fusion Middleware Performing Self Service Tasks with Oracle Identity Governance.
Table 3-5 Default Attribute Mappings for Google Cloud Platform Connector Group Name
| Display Name | Target Attribute | Data Type | Mandatory Provisioning Property? | Recon Field | Key Field? | Case Insensitive? |
|---|---|---|---|---|---|---|
| Group Name | groups | String | No | Yes | Yes | No |
Figure 3-3 shows the default Group Names child attribute mapping.
Figure 3-3 Default Attribute Mappings for the Group Name
Description of "Figure 3-3 Default Attribute Mappings for the Group Name"
Admin Role Names Child Attributes
Table 3-6 lists the attribute mappings Admin Role Name between the process form fields in Oracle Identity Governance and Google Cloud Platform Connector attributes. The table lists whether a given attribute is mandatory during provisioning. It also lists whether a given attribute is used during reconciliation and whether it is a matching key field for fetching records during reconciliation.
If required, you can edit the default attribute mappings by adding new attributes or deleting existing attributes as described in Creating a Target Application of Oracle Fusion Middleware Performing Self Service Tasks with Oracle Identity Governance
Table 3-6 Default Attribute Mappings for Google Cloud Platform Connector Admin Role Name
| Display Name | Target Attribute | Data Type | Mandatory Provisioning Property? | Recon Field | Key Field? | Case Insensitive? |
|---|---|---|---|---|---|---|
| Admin Role Name | items | String | No | Yes | Yes | No |

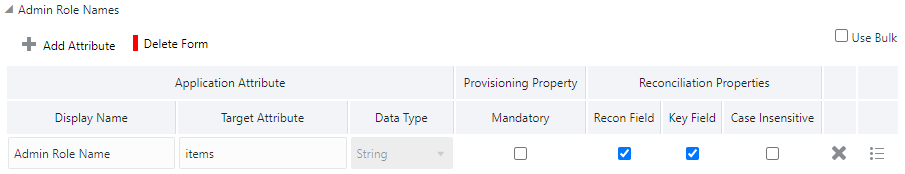

Figure 3-4 shows the default Admin Role Names child attribute mapping.
Figure 3-4 Default Attribute Mappings for the Admin Role Name
Project Role Names Child Attributes
Table 3-7 lists the attribute mappings Project Role Names between the process form fields in Oracle Identity Governance and Google Cloud Platform Connector attributes. The table lists whether a given attribute is mandatory during provisioning. It also lists whether a given attribute is used during reconciliation and whether it is a matching key field for fetching records during reconciliation.
If required, you can edit the default attribute mappings by adding new attributes or deleting existing attributes as described in Creating a Target Application of Oracle Fusion Middleware Performing Self Service Tasks with Oracle Identity Governance.
Table 3-7 Default Attribute Mappings for Google Cloud Platform Connector Project Role Name
| Display Name | Target Attribute | Data Type | Mandatory Provisioning Property? | Recon Field | Key Field? | Case Insensitive? |
|---|---|---|---|---|---|---|
| Project Role Name | roles | String | No | Yes | Yes | No |

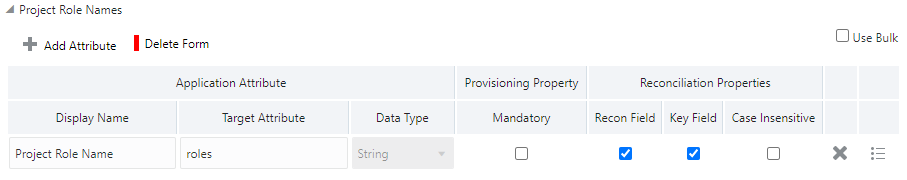

Figure 3-5 shows the default Project Role Names child attribute mapping.
Figure 3-5 Default Attribute Mappings for the Project Role Name
Organization Role Name
Table 3-8 lists the attribute mappings Organization Role Name between the process form fields in Oracle Identity Governance and Google Cloud Platform Connector attributes. The table lists whether or not a given attribute is mandatory during provisioning. It also lists whether a given attribute is used during reconciliation and whether it is a matching key field for fetching records during reconciliation.
If required, you can edit the default attribute mappings by adding new attributes or deleting existing attributes as described in Creating a Target Application of Oracle Fusion Middleware Performing Self Service Tasks with Oracle Identity Governance.
Table 3-8 Default Attribute Mappings for Google Cloud Platform Connector Organization Role Names
| Display Name | Target Attribute | Data Type | Mandatory Provisioning Property? | Recon Field | Key Field? | Case Insensitive? |
|---|---|---|---|---|---|---|
| Organization Role Name | orgroles | String | No | Yes | Yes | No |
Figure 3-6 shows the default Organization Role Name child attribute mapping.
Figure 3-6 Default Attribute Mappings for the Organization Role Names
