Configuring the Connector

3.1 Basic Configuration Parameters

These are the connection-related parameters that Oracle Identity Governance requires to connect to an Oracle Primavera application.

Note:

Unless specified, do not modify entries in the below table.

Table 3-1 Parameters in the Basic Configuration

Parameter	Mandatory ?	Description
authenticationType	Yes	Enter the type of authentication used by your Oracle Primavera target system. For this connector, the target system supports Basic credentials. This is a mandatory attribute while creating an application. Do not modify the value of the parameter. Default value: basic
username	Yes	Enter the user name of the target system that you create for performing connector operations. Sample value: `johnsmith`
password	Yes	Enter the password of the target system user account that you create for connector operations. Sample value: `password`
Host	Yes	Enter the host name of the machine hosting your Oracle Primavera target system. This is a mandatory attribute while creating an application. Sample value: api.primavera.us
Connector Server Name	No	This field is blank. If you are using this connector with the Java Connector Server, then provide the name of Connector Server IT Resource here.
Port	No	Enter the port number at which the target system is listening. Sample value: 443
proxyHost	No	Enter the name of the proxy host used to connect to an external target.
proxyPassword	No	Enter the password of the proxy user ID of the target system user account that Oracle Identity Governance uses to connect to the target system.
proxyPort	No	Enter the proxy port number.
proxyUser	No	Enter the proxy user name.
SSL	No	If the target system requires SSL connectivity, then set the value of this parameter to true. Otherwise set the value to false. Default value:true

3.2 Advanced Settings Parameters

These are the configuration-related entries that the connector uses during reconciliation and provisioning operations.

Note:

Unless specified, do not modify entries in the below table.
All parameters in the below table are mandatory.

Table 3-2 Advanced Settings Parameters

Parameter	Mandatory	Description
Bundle Name	No	This entry holds the name of the connector bundle. Default value: `org.identityconnectors.primavera`
Bundle Version	No	This entry holds the version of the connector bundle. Default value: 12.3.0
Connector Name	No	This entry holds the name of the connector class. Default value: `org.identityconnectors.primavera.PrimaveraConnector`
relURIs	Yes	This entry holds the relative URL of every object class supported by this connector and the connector operations that can be performed on these object classes. This is a mandatory attribute while creating an application. Default value: `"__ACCOUNT__.CREATEOP=/misclsidm/cloudapi/restapi/user","__ACCOUNT__.UPDATEOP=/misclsidm/cloudapi/restapi/user","__ACCOUNT__.SEARCHOP=/misclsidm/cloudapi/restapi/user","__ACCOUNT__.__ENABLE__.__STATUS__=/misclsidm/cloudapi/restapi/user/change-status","__ACCOUNT__.__ROLES__.ROLES=/misclsidm/cloudapi/restapi/user","__ACCOUNT__.RESETPASSWORD=/misclsidm/cloudapi/restapi/user/manual-reset-pwd/false","__ACCOUNT__JOBSTATUS=/misclsidm/cloudapi/restapi/user/status/"`
pollingInterval	Yes	This entry holds the Polling time in milliseconds. Default value: 3000
pollingCount	Yes	This entry holds the Polling count in numbers for retry. Default value: 5
httpHeaderContentType	No	This entry holds the content type expected by the target system in the header. Default value: application/json
httpHeaderAccept	No	This entry holds the accept type expected from the target system in the header. Default value: application/json

3.3 Attribute Mappings

The following topic provides the attribute mappings details.

Attribute Mappings for the Target Application

3.3.1 Attribute Mappings for the Target Application

The Schema page for a target application displays the default schema (provided by the connector) that maps Oracle Identity Governance attributes to target system attributes. The connector uses these mappings during reconciliation and provisioning operations.

The following table lists the user-specific attribute mappings between the process form fields in Oracle Identity Governance and Oracle Primavera target application attributes. The table also lists whether a specific attribute is used during provisioning or reconciliation and whether it is a matching key field for fetching records during reconciliation.

If required, you can edit the default attribute mappings by adding new attributes or deleting existing attributes as described in Creating a Target Application Creating a Target Application in Oracle Fusion Middleware Performing Self Service Tasks with Oracle Identity Governance.

Table 3-3 Default Attributes for Oracle Primavera Target Application

Display Name	Target Attribute	Data Type	Mandatory Provisioning Property?	Provision Field?	Recon Field?	Key Field?	Case Insensitive?
Id	__UID__	String	No	No	Yes	No	Not Applicable
Login ID	__NAME__	String	Yes	Yes	Yes	Yes	Yes
Password	__PASSWORD__	String	No	Yes	No	No	Not applicable
User Status	__ENABLE__	String	No	No	Yes	No	Not applicable
Email Address	emailAddress	String	Yes	Yes	Yes	No	Not applicable
First Name	firstName	String	Yes	Yes	Yes	No	Not applicable
Last Name	lastName	String	Yes	Yes	Yes	No	Not applicable
User Type	userType	String	No	Yes	Yes	No	Not applicable
Company	Company	String	Yes	Yes	Yes	No	Not applicable
IT Resource Name	__	Long	No	No	Yes	No	Not applicable

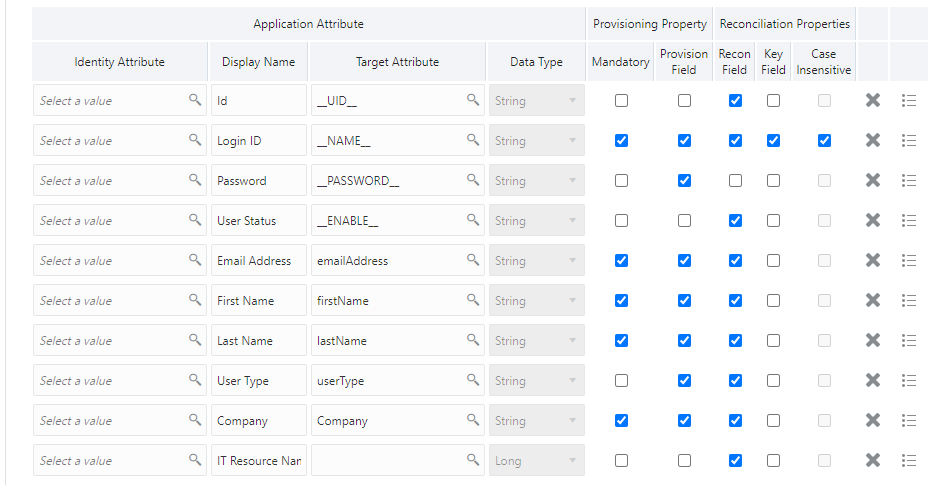

The following figure shows the default User account attribute mappings.

Figure 3-1 Default Attribute Mappings for Oracle Primavera User Account

Oracle Primavera Role Entitlement

The following table lists the roles forms attribute mappings between the process form fields in Oracle Identity Governance and Oracle Primavera target application attributes. The table lists whether a given attribute is mandatory during provisioning. It also lists whether a given attribute is used during reconciliation and whether it is a matching key field for fetching records during reconciliation.

If required, you can edit the default attribute mappings by adding new attributes or deleting existing attributes as described in Creating a Target Application in Oracle Fusion Middleware Performing Self Service Tasks with Oracle Identity Governance.

The following table shows default Attribute Mappings for Roles

Table 3-4 Default Attribute Mappings for Roles

Display Name	Target Attribute	Data Type	Mandatory Provisioning Property?	Recon Field?	Key Field?	Case Insensitive?
Role Name	Roles~__ROLE__~name	String	No	Yes	Yes	No

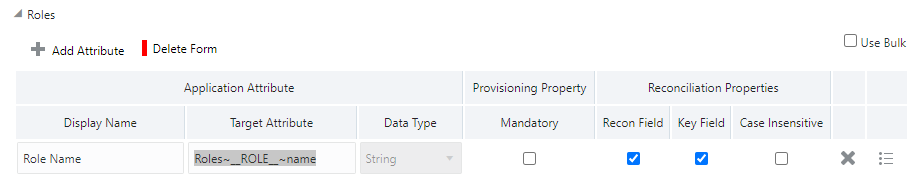

The following figure shows the default Roles Entitlement mapping.

Figure 3-2 Default Attribute Mappings for Oracle Primavera Roles

3.4 Correlation Rules

Learn about the predefined rules, responses, and situations for Target applications. The connector uses these rules and responses for performing reconciliation.

Correlation Rules for the Target Application

3.4.1 Correlation Rules for the Target Application

When you create a target application, the connector uses correlation rules to determine the identity to which Oracle Identity Governance must assign a resource.

Predefined Identity Correlation Rules

By default, the Oracle Primavera connector provides a simple correlation rule when you create a target application. The connector uses this correlation rule to compare the entries in Oracle Identity Governance repository and the target system repository, determine the difference between the two repositories, and apply the latest changes to Oracle Identity Governance.

The following table lists the default simple correlation rule for an Oracle Primavera connector. If required, you can edit the default correlation rule or add new rules. You can create complex correlation rules also. For more information about adding or editing simple or complex correlation rules, see Updating Identity Correlation Rules in Oracle Fusion Middleware Performing Self Service Tasks with Oracle Identity Governance.

Table 3-5 Predefined Identity Correlation Rule for an Oracle Primavera Connector

Target Attribute	Element Operator	Identity Attribute	Case Sensitive?
__NAME__	Equals	User Login	No

In this identity rule:

__NAME__ is a single-valued attribute on the target system that identifies the user account.
User Login is the field on the OIG User form.

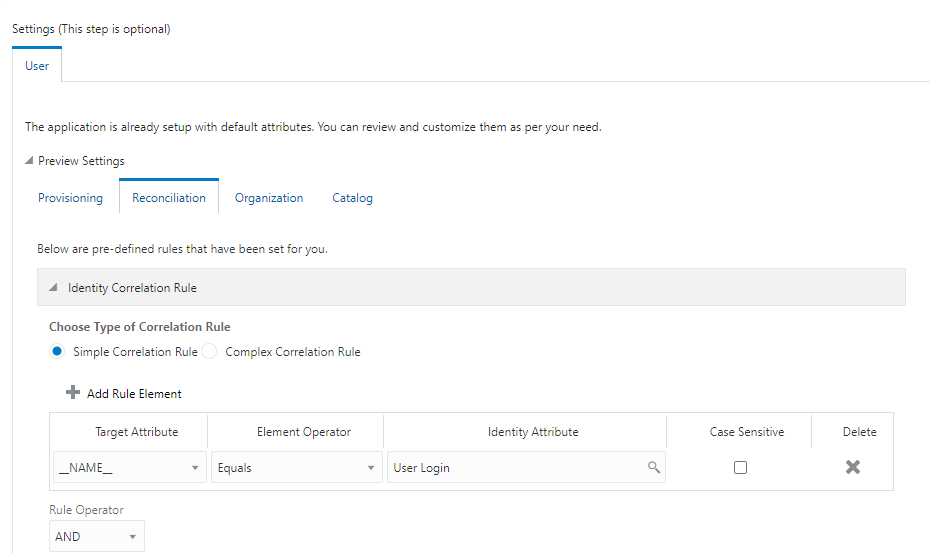

The following shows the Simple Correlation Rule for Oracle Primavera Target Application

Figure 3-3 Simple Correlation Rule for Oracle Primavera Target Application

Predefined Situations and Responses

The Oracle Primavera connector provides a default set of situations and responses when you create a target application. These situations and responses specify the action that Oracle Identity Governance must take based on the result of a reconciliation event.

The following lists the default situations and responses for an Oracle Primavera Target application. If required, you can edit these default situations and responses or add new ones. For more information about adding or editing situations and responses, see Updating Situations and Responses Updating Situations and Responses in Oracle Fusion Middleware Performing Self Service Tasks with Oracle Identity Governance

Table 3-6 Predefined Situations and Responses for an Oracle Primavera Target Application

Situation	Response
No Matches Found	None
One Entity Match Found	Establish Link
One Process Match Found	Establish Link

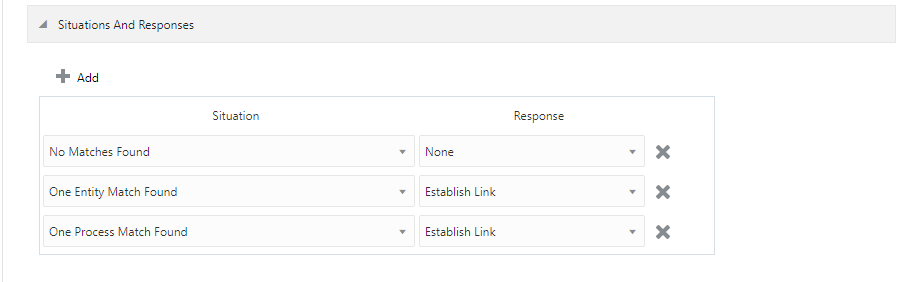

The following figure shows the situations and responses for an Oracle Primavera that the connector provides by default.

Figure 3-4 Predefined Situations and Responses for an Oracle Primavera Target Application

3.5 Reconciliation Jobs

These are the reconciliation jobs that are automatically created in Oracle Identity Governance after you create the application.

User Reconciliation Jobs

You can either use these predefined jobs or edit them to meet your requirements. Alternatively, you can create custom reconciliation jobs. For information about editing these predefined jobs or creating new ones, see Updating Reconciliation Jobs in Oracle Fusion Middleware Performing Self Service Tasks with Oracle Identity Governance.

The following reconciliation jobs are available for reconciling user data:

Oracle Primavera Full User Reconciliation: Use this reconciliation job to reconcile user data from a target application.
Oracle Primavera Limited User Reconciliation: Use this reconciliation job to reconcile records from the target system based on a specified filter criterion.

The following table describes the parameters of the Oracle Primavera Full User Reconciliation job.

Table 3-8 Parameters of the Oracle Primavera Full User Reconciliation Job

Parameter	Description
Application name	Name of the AOB application with which the reconciliation job is associated. This value is the same as the value that you provided for the Application Name field while creating your target application. Do not change the default value.
Filter Suffix	Enter the search filter for fetching user records from the target system during a reconciliation run. Filter suffix for single user: Id LoginID For more information about creating filters, see Configuring Reconciliation Jobs.
Object Type	This parameter holds the name of the object type for the reconciliation run. Default value: User Do not change the default value.
Scheduled Task Name	Name of the scheduled task used for reconciliation. Do not modify the value of this parameter.
