24 SSL Configuration

You can view Oracle Stream Analytics server SSL configuration using the Oracle Stream Analytics Visualizer. To change the configuration, you must manually update the server's config.xml file.

For more information, see SSL Management.

View the SSL Configuration for a Server

1. In the left pane, click the Domain > Server node, where Domain refers to the name of your Oracle Stream Analytics domain and Server refers to the name of the server instance.

2. In the right pane, click the SSL tab.

3. In the left table, click the SSL configuration you want to view as Figure 24-1 shows.

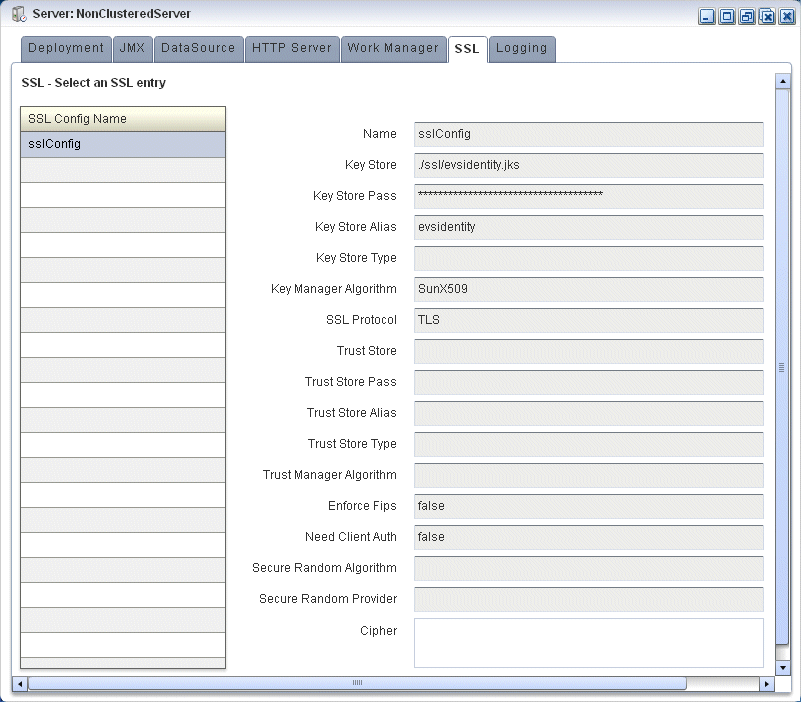

   Figure 24-1 SSL Tab


   Description of "Figure 24-1 SSL Tab"

   The default configuration name is sslConfig.

4. View the SSL configuration options the right table displays.

   Table 24-1 lists the SSL configuration options.

   Table 24-1 SSL Options

   Option	Description
   Name	The name of the selected SSL configuration.
   Key Store	The file path and name of the key store certificate file contains a self-signed certificate. The file path is relative to the Oracle/Middleware/my_oep/user_projects/domains/DOMAIN_DIR/servername directory.
   Key Store Pass	The key store password.
   Key Store Alias	The key store alias.
   Key Store Type	The key store type.
   Key Manager Algorithm	The key manager algorithm.
   SSL Protocol	The SSL protocol.
   Trust Store	The file path and name of the key store certificate file contains a self-signed certificate. The file path is relative to the Oracle/Middleware/my_oep/user_projects/domains/DOMAIN_DIR/servername directory.
   Trust Store Pass	The trust store password.
   Trust Store Alias	The trust store alias.
   Trust Store Type	The trust store type.
   Trust Manager Algorithm	The trust store algorithm.
   Enforce Fips	Whether or not Oracle Stream Analytics server uses a Federal Information Processing Standards (FIPS)-certified pseudo-random number generator for SSL.
   Need Client Auth	Whether or not Oracle Stream Analytics server uses client authentication.
   Secure Random Algorithm	The FIPS secure random algorithm, such as FIPS186PRNG.
   Secure Random Provider	The FIPS secure random provider, such as com.rsa.jsafe.provider.JsafeJCE.
   Cipher	The SSL ciphers.
