22 Task Roles

How you can use Oracle Stream Analytics Visualizer to create and delete roles that associate permissions with user groups is described.

This chapter includes the following sections:

• Create an Application Role

• Delete a Role

• Add the Application Role to a User

For more information, see User, Group, and Role Management.

22.1 Create an Application Role

Oracle Stream Analytics is configured by default with a set of task roles that are in turn mapped to groups.

See User, Group, and Role Management for details.

This section describes how to create a new application role.

Create an Application Role

1. Log on to Oracle Stream Analytics Visualizer as a user with the Admin role.
2. In the left pane, click the Domain > Security node, where Domain refers to the name of your Oracle Stream Analytics domain.
3. In the right pane, click the Role tab.

   The Role tab appears as Figure 22-1 shows.

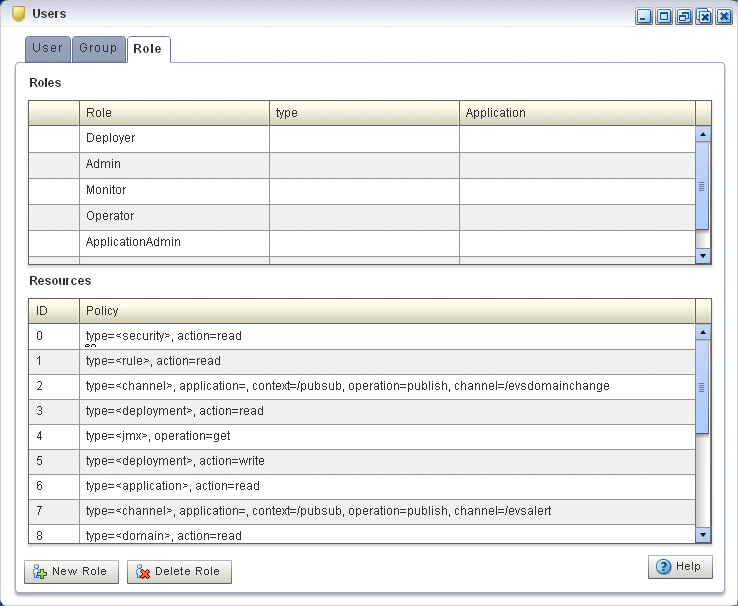

   Figure 22-1 Role Tab


   Description of "Figure 22-1 Role Tab"
4. Click the New Role button at the bottom of the right pane.

   The Add Application Role panel appears as Figure 22-2 shows.

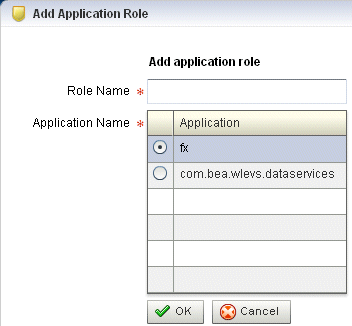

   Figure 22-2 Add Application Role


   Description of "Figure 22-2 Add Application Role"
5. Configure the Add Application Role panel as Table 22-1 describes.

   Table 22-1 Add Application Role Panel Attributes

   Attribute	Description
   Role Name	Enter the name of the role.
   Application Name	Select the radio button of the application you want to associate with this role from the list of all the currently running applications.

6. Click OK.

   When the application role has been successfully created, a confirmation message appears momentarily.

22.2 Delete a Role

Oracle Stream Analytics is configured by default with a set of roles that are in turn mapped to groups: you cannot delete these default roles.

See User, Group, and Role Management for details.

This section describes how to delete a role that you created.

Delete a Role

1. Log on to Oracle Stream Analytics Visualizer as a user with the Admin role.
2. In the left pane, click the Domain > Security node, where Domain refers to the name of your Oracle Stream Analytics domain.
3. In the right pane, click the Role tab.
4. In the Role table, select the radio button to the left of the name of the role that you want to delete as Figure 22-3 shows.

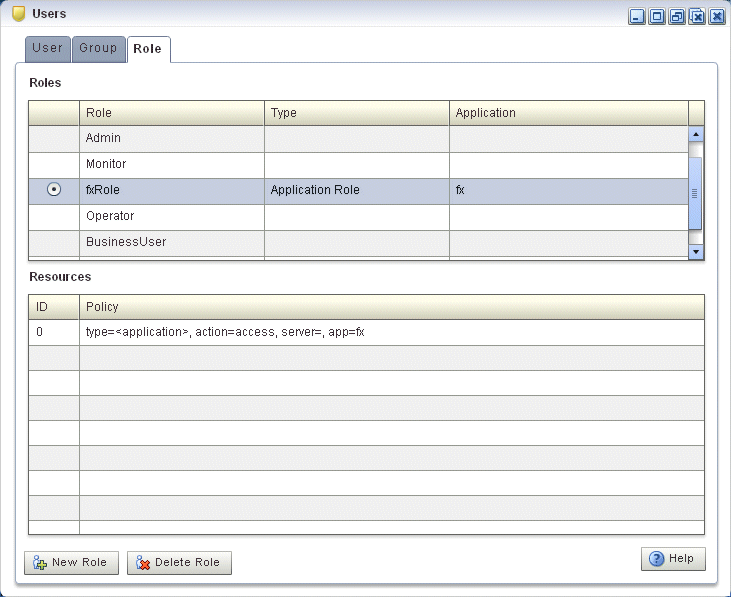

   Figure 22-3 Selecting a Role


   Description of "Figure 22-3 Selecting a Role"
5. Click the Delete Role button at the bottom of the right pane.

   A confirmation dialog appears as Figure 22-4 shows.

   Figure 22-4 Delete Role Dialog


   Description of "Figure 22-4 Delete Role Dialog"
6. Click Yes.

   When the role has been successfully deleted, a confirmation message appears momentarily.

22.3 Add the Application Role to a User

For example, if user testOEP is a non-administrator who belongs to the BusinessUser group and needs access to application fx, you can use the following steps to set up user testOEP with the required access.

To Add the Application Role to a User to Grant Access to an Application

1. Create an application role as described in Create an Application Role with the following properties:

   Role Name: fxRole. Application Name: Select the fx radio button.

2. Create a group as described in Create a Group with the following properties:

   Group Name: fxGroup Has Roles: fxRole.

3. Edit the textOEP user as described in Edit a User with the following properties:

   Username: testOEP Belong to groups: fxGroup
