Creating the Human Task Service Component

Learn to create the human task service component in which you design your human task.

To create the human task service component:

1. From the Service Components section of the Components window, drag a Human Task into the SOA Composite Editor.

   The Create Human Task dialog appears.

2. Enter the details described in Table 31-1.

   Table 31-1 Create Human Task Dialog Fields and Values

   Field	Value
   Name	Enter VacationRequestTask.
   Namespace	Accept the default value.
   Create Composite Service with SOAP Bindings	Do not select the check box. Instead, you create a human task that you later associate with the BPEL process you created in Creating an Application and a Project with a BPEL Process. The BPEL process was created with an automatically-bound web service.

3. Click OK.

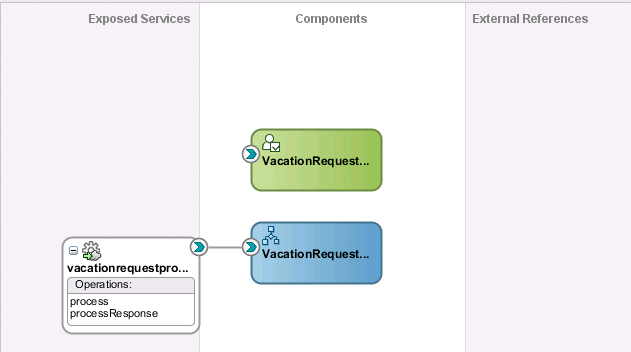

   The Human Task icon appears in the SOA Composite Editor above the BPEL process, as shown in Figure 31-4.

   Figure 31-4 Human Task Icon in SOA Composite Editor


   Description of "Figure 31-4 Human Task Icon in SOA Composite Editor"
4. Double-click the Human Task icon.

   The Human Task Editor appears. You are now ready to begin design of your human task.
