How to Configure BPEL Process Instance Creation

You can control the number of instances to create and use to route messages with the reenableAggregationOnComplete property.

To configure BPEL process instance creation:

In the SOA Composite Editor, select the BPEL process service component, as shown in Figure 9-16.

Figure 9-16 Selected BPEL Process Service Component

Description of "Figure 9-16 Selected BPEL Process Service Component"
Go to the Property Inspector in the lower right corner of Oracle JDeveloper. If the Property Inspector is not displayed, select Property Inspector from the View main menu.
In the Properties section, click the Add icon, as shown in Figure 9-17.

Figure 9-17 Property Inspector

Description of "Figure 9-17 Property Inspector"

The Create Property dialog is displayed.
In the Name field, enter the bpel.config.reenableAggregationOnComplete deployment descriptor property. The prefix of bpel.config is required for this type of deployment descriptor.

In the Value field, enter true, as described in Table 9-12.

Table 9-12 reenableAggregationOnComplete Property Settings

Value Description Example

Value	Description	Example
`true`	Creates a new instance to handle messages. However, there is a window between messages coming in and instance completion. This can result in messages remaining in the `DLV_MESSAGE` table. This setting can result in the occurrence of race conditions. For more information, see Table 9-13.	You invoke messages 1 through 4 for a client using the `initiate` operation. This results in the following actions: Two instances of the BPEL process are created and completed. Messages 1 and 2 are routed to the first instance and messages 3 and 4 are routed to the second instance.
`false`	This is the default behavior. This setting causes the aggregation feature to be disabled. Only one instance is created. Messages that are not handled by the instance remain in the `DLV_MESSAGE` table. This setting is recommended for most environments.	You invoke messages 1 through 4 for a client using the `initiate` operation. One instance of the BPEL process is created and completed. Do not attempt to route multiple messages using the same correlation set to one BPEL instance.

true

Creates a new instance to handle messages. However, there is a window between messages coming in and instance completion. This can result in messages remaining in the DLV_MESSAGE table. This setting can result in the occurrence of race conditions. For more information, see Table 9-13.

You invoke messages 1 through 4 for a client using the initiate operation. This results in the following actions:

Two instances of the BPEL process are created and completed.
Messages 1 and 2 are routed to the first instance and messages 3 and 4 are routed to the second instance.

false

This is the default behavior. This setting causes the aggregation feature to be disabled. Only one instance is created. Messages that are not handled by the instance remain in the DLV_MESSAGE table. This setting is recommended for most environments.

You invoke messages 1 through 4 for a client using the initiate operation. One instance of the BPEL process is created and completed.

Do not attempt to route multiple messages using the same correlation set to one BPEL instance.

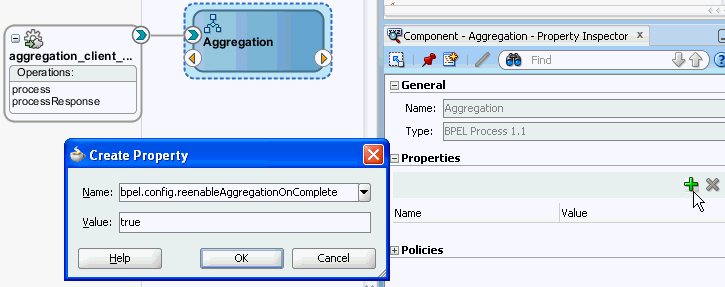

Figure 9-18 shows the completed Create Property dialog.

Figure 9-18 Create Property Dialog

Description of "Figure 9-18 Create Property Dialog"

Click OK.

The reenableAggregationOnComplete property with the bpel.config prefix looks as follows in the composite.xml file.

<composite name="Aggregation" revision="1.0" label="2011-07-10_13-52-24_174"
 mode="active" state="on">
. . .
. . .
<component name="Aggregation" version="1.1">
    <implementation.bpel src="Aggregation.bpel"/>
      <property name="bpel.config.reenableAggregationOnComplete" type="xs:string"
              many="false" override="may">true</property>
  </component>
. . .
. . .
</composite>
