8 Managing Commit Processing

As the final step in Capture processing, committing applies the settings in commit profiles defined for the workspace, and outputs batch documents and their metadata in a selected output format to a specific location or content repository. After batches are successfully committed, they are permanently removed from the Capture workspace.

This chapter describes how you configure and manage commit profiles and their processing for a workspace. It includes the following sections:

Introduction to Commit Processing

This section covers the following topics:

Methods of Committing Documents

Organizations choose to commit batches in a variety of ways, depending on configuration and needs.

  • Some organizations use the WebCenter Content commit driver or WebCenter Content Imaging commit driver to commit documents directly into these content repositories.

  • Some organizations use the Oracle Content and Experience commit driver to commit documents directly into Oracle Content and Experience.

  • Some organizations use the Text File commit driver to output to a folder and list file, for later use in a variety of ways. Another process might process the documents for intelligent data recognition (for example, using Oracle WebCenter Forms Recognition), or import documents independently into their content management system. You can customize the contents of commit text files, but they typically contain a reference to each document file and associated metadata values.

You can configure multiple commit profiles to process for a workspace. For example, one commit profile may commit documents to a content management system, while another commits to a text file. A Service Bureau might output to a commit text file containing references to images, then FTP the information to clients. Still another organization might commit directly into their content management system and create a commit text file for backup, to be kept for 90 days or archived permanently.

Figure 8-1 Commit Profile General Settings

Description of Figure 8-1 follows
Description of "Figure 8-1 Commit Profile General Settings"

About Image Document Output Formats

Regardless of the format in which image documents were captured and formatted in Capture, you can output them to one of the following formats upon commit:

  • TIFF Multi-Page: Outputs documents to multiple page, TIFF format.

  • PDF Image-Only: Outputs documents to PDF/A format.

  • PDF Searchable: Outputs documents to PDF (portable document format) containing the original image with hidden text to facilitate full-text searching of the document. Refer to the Capture Certification Matrix for a list of platforms that support searchable PDF.

Caution:

The text generated from OCR results for searchable PDF documents CANNOT be edited and may contain recognition errors.

How Non-Image Documents Are Committed

Non-image documents are files such as Microsoft Word, Microsoft Excel, PDF, or EML documents. Depending on configuration, non-image files may be retained in their native format in Capture. At commit, non-image documents are processed differently than image documents:

  • Non-image documents remain in their native format and are not converted to TIFF or PDF format. The document output setting is ignored for all non-image documents in the batch, but applied to any image documents.

    For example, a Microsoft Word document committed by a commit profile configured to output searchable PDF is committed to the repository as a Word document. Similarly, email messages captured and stored in EML format and output to Content Server are committed in EML format regardless of the commit profile's selected document output format.

  • Once non-image documents have been successfully committed by all online and applicable commit profiles, they are deleted from the Capture workspace just like image documents.

How Commit Profiles are Applied During Commit Processing

Batches arriving at commit processing are ready to undergo processing by one or more commit profiles defined for the workspace. A batch may be uniform (for example, consisting of all image documents that use the same document profile) or varied (for example, consisting of image and non-image documents assigned different document profiles). Regardless, batch committing follows this general process:

  1. For a batch to reach commit, Commit Processor must be selected as a post-processing step in the client profile or processor job.

  2. Capture runs all commit profiles defined for the workspace on the batch, subject to the following rules:

    1. Commit profiles run one at a time, in the order in which they are specified on the workspace's Commit tab.

    2. Commit profiles must be Online. Changing a profile to Offline deactivates its use in commit processing for the workspace.

    3. A commit profile skips processing any documents whose assigned document profile does not match the document profiles assigned to the commit profile. See Restricting a Commit Profile Based on Document Profile.

    4. As Capture processes each document, it verifies that required metadata fields are complete. An error occurs for a document if required fields do not contain values.

    5. If an error is encountered, commit processing may skip the document, skip the commit profile, or cancel commit processing, as described in About Commit Error Handling.

  3. Capture commits documents in the batch.

    1. Capture continues to commit all the documents within the batch, repeating this process until all commit profiles have been executed or an error occurs which causes the entire commit process to be canceled.

    2. When there are no remaining documents in the batch, Capture deletes the batch.

      If a document fails to be committed, it remains in the batch and an error is generated.

    3. Based on system configuration, Capture outputs records to the audit table.

  4. When a document has been successfully committed by all applicable commit profiles, Capture removes the document's files and associated metadata from the batch.

About Image Attachment Output Formats

Regardless of the format in which image attachments were captured and formatted in Capture, you can output them to one of the following formats upon commit:

  • TIFF Multi-Page: Outputs attachments to multiple page, TIFF format.

  • PDF Image-Only: Outputs attachments to PDF/A format.

  • PDF Searchable: Outputs attachments to PDF (portable document format) containing the original image with hidden text to facilitate full-text searching of the document. Refer to the Capture Certification Matrix for a list of platforms that support searchable PDF.

About Commit Error Handling

Use a commit profile's error handling options to specify what happens when errors are encountered during batch committing. If an error is encountered, you can:

  • Skip to the next document

    This option skips committing the current document and begins committing the next document in the batch.

  • Skip to the next commit profile

    This option stops the current commit profile from executing and begins processing the next commit profile (if specified).

  • Cancel the commit

    This option stops the entire commit process, including any other commit profiles, from executing.

During commit, a record is maintained that indicates if a document/attachment has been successfully committed with a commit profile. When a document/attachment is about to be committed by a commit profile, a check is performed to see if the document/attachment has already been successfully committed by the commit profile. If it has, the document/attachment will not be reattempted.

Regardless of error settings, all documents in which an error is encountered remain in the batch until the error is resolved and they are successfully committed.

About Documents Remaining After Commit

If uncommitted documents remain in a batch after all commit profiles have been executed, the batch lock is cleared and the batch is put in a ready state so that it can be opened in the Capture client.

About Commit Processor Logging

The Capture system administrator can consult the Commit Processor performance metrics and logs to address commit processing issues and errors. See Viewing Performance Metrics and Understanding Loggers for Capture in Administering Oracle WebCenter Enterprise Capture.

Adding, Copying, or Editing a Commit Profile

To add, copy, or edit a commit profile:

  1. In a selected workspace, click the Commit tab.

  2. In the Commit Profiles table, click the Add button or select a commit profile and click the Edit button.

    You can also copy a commit profile by selecting one, clicking the Copy button, and entering a new name when prompted. Copying a commit profile allows you to quickly duplicate and modify it.

  3. Complete settings on the General Settings train stop.

    1. Enter a name in the Commit Profile Name field.

    2. Ensure that the Online field is selected. When online, the commit profile is executed whenever a batch for the workspace is processed by the Commit Processor. See Activating and Ordering Commit Profiles.

    3. If the commit profile uses a script, select it in the Script field. This field displays scripts previously added on the Advanced tab and assigned a type of Commit Processor. See Customizing Commit Processing Using Scripts.

    4. In the Commit Driver field, select the method by which the profile commits batches. See Methods of Committing Documents.

    5. In the Document Output Format field, specify the format in which to commit image documents. See About Image Document Output Formats and Configuring PDF Searchable Document Output.

    6. In the Attachment Document Output Format field, specify the format in which to commit image attachments. See About Image Attachment Output Formats and Configuring PDF Searchable Attachment Output.

    7. In the Error Handling Policy field, specify what happens if an error is encountered in one or more documents in the batch being committed. See About Commit Error Handling.

    8. In the Restrict Commit to Document Profiles field, select one or more document profiles to restrict the commit profile to only documents assigned those document profiles. See Restricting a Commit Profile Based on Document Profile.

    9. Complete date format, locale, and encoding settings. Default Date Format option is enabled for Text File and Oracle Content and Experience commit driver. Default Locale option is enabled for Text File, WebCenter Content, and Oracle Content and Experience commit driver. Encoding option is enabled for Text File commit driver.

  4. On the Commit Driver Settings train stop, complete driver-specific settings.

    1. For text file, see Configuring a Text File Commit Profile.

    2. For WebCenter Content, see Configuring a WebCenter Content Commit Profile.

    3. For WebCenter Content Imaging, see Configuring a WebCenter Content Imaging Direct Commit Profile.

    4. For Oracle Content and Experience, see Configuring an Oracle Content and Experience Commit Profile.

  5. On the Document Output Settings train stop, specify settings for searchable PDF output such as optional text file and OCR options. See Configuring PDF Searchable Document Output.

    This train stop is available only if you selected PDF Searchable in the Document Output Format field on the General Settings train stop.

  6. On the Attachment Output Settings train stop, specify settings for searchable PDF output such as optional text file and OCR options. See Configuring PDF Searchable Attachment Output. This train stop is available only if you selected PDF Searchable in the Attachment Document Output Format field on the General Settings train stop.

  7. Click Submit to save the commit profile.

  8. Configure how batches flow to commit processing. See Configuring Batch Flow to the Commit Processor.

  9. Activate the commit profile and specify execution order.

    All the online commit profiles are processed in the order in which they are listed on the Commit tab. See Activating and Ordering Commit Profiles.

  10. Test the commit profile by committing a batch (for example, from the client). Search for and view the document in the repository or location specified in the commit profile. See Example: Viewing Batch Commit Results.

Deleting a Commit Profile

Deleting a commit profile makes it unavailable for batches for which commit processing is set as a post-processing step. You may want to change a commit profile to offline for a time before deleting it, allowing you to resolve unexpected issues with its deletion.

To delete a commit profile:

  1. In a selected workspace, select the Commit tab.
  2. In the Commit Profiles table, select a profile to delete and click the Delete button.

    To deactivate a commit profile instead, select it and click the Toggle Online/Offline button.

  3. When prompted, click Yes to confirm the deletion.

Activating and Ordering Commit Profiles

Commit profiles apply to all batches committed from the associated workspace. When you specify Commit Processor as a post-processing step in a client profile or other processor job, all online commit profiles begin processing in the order in which they are listed on the Commit tab. You can limit their processing in several ways:

  • You can change a commit profile to Offline, as described below, which temporarily deactivates it.

  • In the commit profile, you can restrict committing to documents assigned to one of the selected document profiles. This enables you to commit different types of documents into separate content management systems based on the document's assigned document profile. See Restricting a Commit Profile Based on Document Profile.

To activate and order commit profile processing.

  1. In a selected workspace, click the Commit tab.
  2. To activate or deactivate a commit profile, select a commit profile in the Commit Profiles table and click the Toggle Online/Offline button.

    Active commit profiles display Online in the Status column, and inactive ones display Offline.

  3. Use the up and down buttons to order the commit profiles as needed.

    Note:

    Documents in which an error is encountered remain in the batch until the error is resolved and they are committed again.

Restricting a Commit Profile Based on Document Profile

As described in How Commit Profiles are Applied During Commit Processing, when a batch reaches commit processing as a final post-processing step, the Commit Processor runs the batch through all online commit profiles as ordered on the Commit tab. However, you can prevent a commit profile from processing a document by restricting the commit profile to processing only documents assigned to specified document profiles. For example, you might use this method to configure one commit profile to commit Purchase Order documents to WebCenter Content Imaging and another commit profile to commit Customer Agreement documents to Content Server.

To restrict a commit profile's execution based on document profile:

  1. In a selected workspace, click the Commit tab.
  2. In the Commit Profiles table, select a commit profile and click the Edit button.
  3. In the Restrict Commit to Document Profiles field on the General Settings train stop, select one or more document profiles to commit only those documents assigned the selected document profiles.

Configuring a Text File Commit Profile

A text file commit profile creates a delimited text file that contains the full path to each document file, followed by document metadata and the full path to each attachment file. The document files along with attachments are extracted from the batch, formatted, and output to a specified folder.

You can configure text file commit driver settings. For example, you can specify where files are written, which values are written and delimited in the text file, and how files are named.

Figure 8-2 Text Commit Driver Settings

Description of Figure 8-2 follows
Description of "Figure 8-2 Text Commit Driver Settings"

To configure text file commit driver settings:

  1. In a selected workspace, create a commit profile. See Adding, Copying, or Editing a Commit Profile.

  2. Select settings on the General Settings train stop.

    1. Select Text File in the Commit Driver field.

    2. In the Default Date Format, Default Locale, and Encoding fields, complete date format, locale, and encoding settings to be used in text files.

  3. Select the Commit Driver Settings train stop.

    Because you selected Text File as the commit driver, this train stop displays settings specific to text file commits.

  4. On the Text File Folder tab, specify how to write commit text files.

    1. Optionally, you can select the Do not create Commit Text File option in the Commit Text File Create Option field if you do not want to create a commit text file. If you select this option, all other fields on this tab will be disabled.

    2. In the Commit Text File Folder field, enter a location to which to write the commit text files. Use a fully qualified folder path relative to the Capture server's operating system.

    3. Optionally, select the Store in subfolders field and its related field to store commit text files in subfolders named based on:

      - Year

      - Year and Month

      - Year, Month, and Day

    4. In the File Prefix and File Extension fields, specify an optional prefix and extension.

  5. On the Document Folder tab, specify how to write the document files.

    1. In the Document Folder field, enter a location to which to write the document files. Use a fully qualified folder path relative to the Capture server's operating system.

    2. Optionally, select the Create a folder per committed batch field to create a folder for each committed batch, where folders are named using the syntax BatchID.WorkspaceID.

    3. Optionally, under Subfolder Options, select Store in subfolders to store document files in subfolders, then specify how to name the subfolders. You can name subfolders based on:

      - Year

      - Year and Month

      - Year, Month, and Day

      You can also name subfolders based on one or more metadata field values. Select Metadata Field(s), click Configure, and select and order one or more metadata fields; the Subfolder Path field displays the structure of the subfolder path using the specified metadata fields.

    4. Optionally, in the Attachment Option field, select the Exclude Attachments option to exclude the attachments. If this option is selected, the document’s attachment(s) are not placed into its corresponding attachment folder when committed. In addition, the document’s attachment folder is not created and the attachment record is also not created in the text file.

    5. In the If folder name consists of invalid characters field, specify how Capture should handle any invalid characters found in folder names (remove the characters or cancel the document's commit).

  6. On the Formatting tab, specify the metadata fields and delimiters to use in the commit text file.

    1. In the Field Delimiter field, specify the character to use to separate fields. If you choose Other, enter a character in the Other Character field that becomes available.

    2. Optionally, in the Text Qualifier field, specify the character mark to use to identify the beginning and end of text fields. The default value for this field is None.

    3. From the Available Fields list, select metadata fields to include in the commit text file and move them to the Selected Fields list. For example, you might include the two document file fields <File Name (full path)> and <Document ID> (<Document ID> is a system generated field that represents a GUID for the document). Reorder the metadata fields as needed. The order of the fields represents the order that the metadata fields appear in a document record.

    4. For each attachment in a document, an attachment record will be created immediately following the document record. The attachment record will be in the following format:

      @Attachment<Delimiter><Attachment Type><Delimiter><Attachment File Name>

      Attachment Type is the name of the corresponding attachment type.

      Delimiter is the field delimiter specified on the Formatting tab.

      Attachment File Name is the relative path and file name to the attachment from the perspective of the text file.

  7. On the Document File Naming tab, specify how to name the document files.

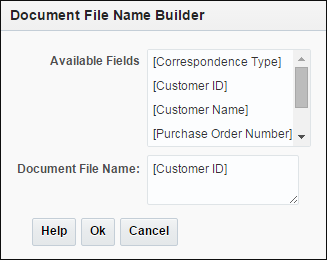

    1. Optionally, select the Name document file based on Metadata field values field to name the document file based on one or more selected metadata field values. If this field is not selected, Capture names the document files using the default naming scheme that includes the internal batch ID, an underscore, and a numeric identifier. From the Available Fields list, select metadata fields to include and move them to the Selected Fields list.

    2. Order the selected fields. The order of the fields affects the naming of the document file.

    3. In the Field Delimiter field, specify the field delimiter to use between each of the selected metadata field values.

    4. In the If File Name Consists of Invalid Characters field, specify how Capture should handle any invalid characters found in document file names.

    5. In the Items Linked to Multiple Pages field, select the Create a copy for each page option to create multiple copies for each page linked to the same batch item. For example, when pages are duplicated in the Capture client, only one batch item physically exists, but multiple pages reference the item. During commit, you can specify whether only one file is output for the batch item or multiple copies of the batch item are output for each page linked to that item.

  8. Click Submit to save the commit profile.

  9. Test the commit profile.

    After committing a batch, locate the commit folder and view its contents, including text file and document files.

Configuring a WebCenter Content Commit Profile

This section covers the following topics:

About the WebCenter Content Commit Driver

Use the WebCenter Content commit driver to commit documents from Capture to Content Server. This commit driver uses the Content Server RIDC API.

Configuring the driver settings involves the following main steps. Detailed steps are provided in Configuring WebCenter Content Commit Driver Settings.

  1. Create a commit profile and select WebCenter Content as the commit driver.
  2. Connect to the Content Server instance after entering login information.
  3. Specify how to check-in the documents into WebCenter Content, including how to title them, and who can view and access them. You can assign type, security group, and account values to documents using one of these methods:
    • Assign them a static value

    • Assign them based on Capture metadata field values

    • Assign them based on choice list values users select

  4. Map Capture metadata fields to WebCenter Content fields. As documents are committed using this driver, metadata values entered in Capture are written into the specified Content fields.
  5. Set additional options, such as document file naming, workflow bypass, and web service overrides.

Figure 8-3 Content Commit Driver Settings

Description of Figure 8-3 follows
Description of "Figure 8-3 Content Commit Driver Settings"

Configuring WebCenter Content Commit Driver Settings

To create a Content commit profile, you need login credentials to a WebCenter Content Server instance. To configure WebCenter Content commit driver settings:

  1. In a selected workspace, create a commit profile. See Adding, Copying, or Editing a Commit Profile.

  2. On the General Settings train stop, select WebCenter Content in the Commit Driver field.

  3. Select the Commit Driver Settings train stop.

    Because you selected WebCenter Content as the commit driver, this train stop displays settings specific to WebCenter Content commits.

  4. On the Login tab, enter a user name, password, and server URL to log in to the WebCenter Content Server instance during commit. This user must have permission to check-in documents into Content. The user name and password are case sensitive. Use the following format for the Server URL:

    http://hostname:port/cs/idcplg

    Click Login. Upon successful login, the status changes to Connected, and the remaining tabs become available.

  5. On the Check-In tab, specify the document title, type, security group, and account within Content.

    1. For information about document titles, see Titling and Naming WebCenter Content Document Files.

    2. For information about specifying type, security group, and account metadata values, see Assigning Metadata During a Content Server Commit.

  6. On the Field Mappings tab, map Capture metadata fields to Content Server fields. As documents are committed using this driver, the document's metadata field values are written into the specified Content Server fields. To map a Content Server field, select one and click the Edit button. In the window that displays, select a Capture field or one of the predefined system level fields.

    When Assign Values Dynamically and By Field Mappings are selected on the Check-In tab, the following additional fields are displayed in the Content Server Field column on the Field Mappings tab: <Account>, <Content Type>, and <Security Group>. Mapping these fields allows metadata values to be dynamically assigned at commit, based on these Capture field values.

    For information about mapping to custom Content Server fields, see Mapping to Custom Content Server Fields.

  7. On the Options tab, specify settings to customize the document check-in process, such as naming document files and providing an alternative check-in service. See Titling and Naming WebCenter Content Document Files. On this tab, you can also optionally specify to exclude attachments.

    Note:

    Capture uses the Alternative Check-In Service field to override the default service for the document check-in process.

    If you want to use fast check-in and the configuration setting DirectReleaseNewCheckinDoc is set to true (DirectReleaseNewCheckinDoc=true) in the Content Server, you need to use the CHECKIN_NEW service in the Capture commit profile.

    Capture uses CHECKIN_UNIVERSAL, which does not perform a fast check-in. CHECKIN_NEW can recognize the DirectReleaseNewCheckinDoc=true setting. To use the CHECKIN_NEW service to perform the check-in, in the Alternative Check-In Service field, enter CHECKIN_NEW.

Titling and Naming WebCenter Content Document Files

When committing files to Content Server, you can specify a document title and a document file name for them using a similar process.

To specify document titles or document file names:

  1. While creating a WebCenter Content commit profile (Configuring a WebCenter Content Commit Profile), display the title/file name builder window:

    1. For document titles, click the Configure button next to Document Title on the Check-In tab.

    2. For document file names, click the Configure button on the Options tab.

      The title or name builder window is displayed, as shown in Figure 8-4.

      Figure 8-4 Document File Name Builder

      Description of Figure 8-4 follows
      Description of "Figure 8-4 Document File Name Builder"
  2. Construct a document title or file name.

    From the Available Fields list, select a Capture field to add it to the title or name (multiple Capture fields can be selected).

    Use the Document Title or Document File Name list to build the title or name. You can include the following elements:

    • Literal characters: Enter alphanumeric characters

    • Capture metadata fields

Assigning Metadata During a Content Server Commit

You can assign values to the Content Server Type, Security Group, and Account fields:

Using Static Values

When you assign values using this method, documents committed using the profile are assigned the metadata values selected from those available for the specified Content Server.

  1. On the Check-In tab of the Commit Driver Settings train stop configured for a WebCenter Content commit, select values in the Default Type, Default Security Group, and Default Account fields.
Based on Capture Metadata Values

When you assign values using this method, documents committed using the profile are assigned metadata values based on Capture field values.

  1. On the Check-In tab of the Commit Driver Settings train stop configured for a WebCenter Content commit, select the Assign Values Dynamically field, then choose By Field Mappings. This adds <Account>, <Content Type>, and <Security Group> metadata mappings to the Field Mappings tab.
  2. On the Field Mappings tab of the Commit Driver Settings train stop configured for a WebCenter Content commit, select a Capture metadata field for each of the metadata mappings fields.

    Note:

    If you do not map the <Content Type>, <Security Group>, or <Account> fields, the value specified in the corresponding <Default Type>, <Default Security Group>, or <Default Account> field on the Check-In tab is used.

Based on User's Choice List Selections

When you assign values using this method, a combination of metadata values is assigned based on a user's choice list selection. For example, if a user selects a value of Invoice from a choice list metadata field, the document might be assigned a type of ACCTG, a security group of Finance, and no account value (<No Account> selected).

This configuration requires either a user defined choice list (Managing User Defined Choice Lists) or a database choice list (Managing Database Choice Lists).

  1. On the Check-In tab of the Commit Driver Settings train stop configured for a WebCenter Content commit, select the Assign Values Dynamically field, then choose By Metadata Field.
  2. In the Metadata Field field, select the Capture field whose choice list value is used to assign type, security group, and account.
  3. In the Choice List Source field, select Capture Source or a previously created database choice list source.
  4. In the Choice List field, select the choice list from those available for the source you selected.
  5. In the Content Attribute Mapping table, click the Add button.
  6. In the Add/Edit Metadata Mappings window that displays, select a choice list value and select options in the Type, Security Group, and Account fields.
    • The Type, Security Group, and Account fields each contain a default option (for example, <DEFAULT TYPE>). Select one of these default options to use the value specified in the corresponding default field on the Check-In tab (for example, Default Type field). This can simplify changing the default for many mappings by changing the default value on the Check-In tab.

    • The Account field contains a <No Account> option that you can select to skip assigning a value to the Account metadata field. Type and Security Group are required.

  7. Repeat steps 5 and 6 to continue mapping field values.

Mapping to Custom Content Server Fields

In addition to mapping Capture metadata fields to Content Server fields on the Field Mappings tab, as described in Configuring WebCenter Content Commit Driver Settings, you can map Capture fields to custom Content Server fields. You might do this, for example, when you have custom code running on the Content Server that specifically references these fields. (Without custom code, these custom fields are ignored.)

To add, edit, or delete custom Content Server fields for metadata mapping:

  1. On the Field Mappings tab (Configuring WebCenter Content Commit Driver Settings), click the Add button in the Custom Fields table.
  2. In the Add/Edit Custom Fields window, enter the custom field's name and a description of the custom field in Field Caption field.

    Once the custom field has been added, it can be mapped in the Field Mappings table.

Configuring a WebCenter Content Imaging Direct Commit Profile

Use the WebCenter Content Imaging commit driver to commit documents from Capture to WebCenter Content Imaging using one of these methods:

  • Direct Commit, where Capture connects to a WebCenter Content Imaging instance and commits documents directly into it, as described in this section.

  • Input Agent Commit, where Capture creates input files from Capture batches, which are then uploaded in bulk to WebCenter Content Imaging by its Input Agent service. See Configuring a WebCenter Content Imaging Input Agent Commit Profile.

Note:

To support multiple configurations, create and activate multiple WebCenter Content Imaging commit profiles. For example, you might create a profile to commit documents directly and another to commit them via Input Agent.

This section covers the following topics:

About Direct Committing

With a direct commit profile, Capture logs into WebCenter Content Imaging and commits documents directly using WebCenter Content Imaging's web services. Creating this type of WebCenter Content Imaging commit profile involves the following configuration. Detailed steps are provided in Configuring Direct Commit Settings.

  1. Create a commit profile and select WebCenter Content Imaging as the commit driver.
  2. Enter login information for the WebCenter Content Imaging commit driver to automatically connect to the WebCenter Content Imaging system.

    Note:

    Each time you commit using a WebCenter Content Imaging direct commit profile, Capture connects to the specified WebCenter Content Imaging instance, then logs out after the commit is complete.

  3. Specify direct commit as the commit method.
  4. Map Capture metadata fields to WebCenter Content Imaging application metadata fields.

    Note:

    To successfully commit documents, the data types of mapped Capture metadata fields and WebCenter Content Imaging application fields must match. If the commit driver detects a problem, such as incompatible fields, it logs a message and stops the commit process.

  5. Optionally, set the commit driver to search for existing WebCenter Content Imaging documents and append to them, if found. To search for matches, you select a search definition created in WebCenter Content Imaging.

Figure 8-5 WebCenter Content Imaging Commit Driver Settings (Direct Commit)

Description of Figure 8-5 follows
Description of "Figure 8-5 WebCenter Content Imaging Commit Driver Settings (Direct Commit)"

Searching For and Appending to WebCenter Content Imaging Documents

You can set the commit profile to search for a matching document during direct commits. When searching, Capture compares metadata values for the document being committed to search parameters specified in the selected WebCenter Content Imaging search definition.

When searching and appending:

  • If Capture finds a match to an existing document, it appends the new document to the matched document.

  • If Capture does not find a match, a new document is created.

  • If Capture finds multiple matching documents, the document commit stops.

Important Points About Searching and Appending

  • The Searching and appending option is available for documents output in multiple page TIFF format only. (On the commit profile's General Settings train stop, the Document Output Format field must be set to TIFF Multi-Page).

  • Because the performance of searches affects the performance of the commit process, searches should be carefully defined and tuned.

  • The WebCenter Content Imaging search definition is integral to matching, and must reflect client profile settings in the workspace. For example, if a client profile contains five metadata fields but the search definition contains three fields only, searches are less specific, and documents considered separate documents in Capture could be appended to in WebCenter Content Imaging. In addition, the search definition must use AND conditions, not OR conditions.

  • Depending on the database used for the WebCenter Content Imaging Server, the search may be case sensitive, meaning that if metadata values are identical but their case differs, no matching occurs.

Configuring Direct Commit Settings

Follow these steps to configure a commit profile that writes documents from Capture to WebCenter Content Imaging.

  1. In a selected workspace, add or edit a commit profile. See Adding, Copying, or Editing a Commit Profile.
  2. On the General Settings train stop, select WebCenter Content Imaging in the Commit driver field.
  3. In the Document Output Format field, select TIFF Multi-Page.
  4. In the Attachment Document Output Format field, select TIFF Multi-Page.
  5. On the Commit Driver Settings train stop, log in to the WebCenter Content Imaging instance by specifying the User ID, Password, Security Policy, and Imaging WebService URL fields and click Connect. This user must have permission to check documents into WebCenter Content Imaging. The format of the Imaging WebService URL is:

    http://hostname:port/imaging/ws

    Upon successful connection, Capture displays the connection status as Connected.

    Note:

    Each time users commit using the profile, Capture uses this login information to connect to WebCenter Content Imaging using the URL specified.

  6. On the General tab, leave the Direct Commit field selected as the commit method.
  7. On the Field Mappings tab, select the WebCenter Content Imaging application to commit to, and map Capture fields to WebCenter Content Imaging fields. Make sure that the data type of mapped fields match. Select an Imaging field and click the Edit button, then select a Capture field or one of the predefined system level fields to map to. Repeat to map additional fields.
  8. On the Advanced tab, specify options for searching and appending. See Searching For and Appending to WebCenter Content Imaging Documents.

    Searching requires a previously created search definition in WebCenter Content Imaging administration that specifies how documents are matched. If you select the Search and Append to Matching Imaging Documents field, select a definition in the Search Definition field.

Configuring a WebCenter Content Imaging Input Agent Commit Profile

Use the WebCenter Content Imaging commit driver to commit documents from Capture to WebCenter Content Imaging using one of these methods:

  • Direct Commit, where Capture connects to a WebCenter Content Imaging instance and commits documents directly into it. See Configuring a WebCenter Content Imaging Direct Commit Profile.

  • Input Agent Commit, where Capture creates input files from Capture batches, which are then uploaded in bulk to WebCenter Content Imaging by its Input Agent service, as described in this section.

Note:

To support multiple configurations, create and activate multiple WebCenter Content Imaging commit profiles. For example, you might create a profile to commit documents directly and another to commit them via Input Agent.

This section covers the following topics:

About Input Agent Committing

During an Input Agent commit, Capture writes a delimited input file for the batch, along with its images, to a specified Capture output directory. The input file lists document images along with their associated metadata values for bulk uploading into WebCenter Content Imaging. The WebCenter Content Imaging Input Agent service monitors a specified Input Agent input directory and upon finding input files that match its input mask, uploads the files' referenced documents in bulk into WebCenter Content Imaging.

Creating this type of WebCenter Content Imaging commit profile involves the following configuration. Detailed steps are provided in Configuring Input Agent Settings.

  1. Create a commit profile and select WebCenter Content Imaging as the commit driver.
  2. Enter login information for the WebCenter Content Imaging commit driver to connect to the WebCenter Content Imaging system for field mapping definition.
  3. Select Input Agent Commit as the commit method. Then specify the Capture output directory to which Capture writes input files and images upon commit. In addition, you also specify the Input Agent input directory from which the WebCenter Content Imaging Input Agent uploads documents.

    Note:

    These settings identify the same directory but in different ways. For example, if Capture is running on a Windows system and WebCenter Content Imaging is running on a Linux system, these fields would contain different paths to the same location.

  4. Map Capture metadata fields to a selected WebCenter Content Imaging input definition.

    Note:

    When committing documents indirectly using input files, Capture metadata fields and WebCenter Content Imaging application field names do not have to match. However, you must ensure that your input file definitions are correct so they correspond to the input files generated by Capture.

About Input Definitions

Configuring an Input Agent commit requires an input definition created in WebCenter Content Imaging's Manage Inputs area.

Creating an input definition in WebCenter Content Imaging includes these steps:

  1. Upload a sample file that specifies how input files from Capture are composed. The sample file also specifies how input files are named, as described in How Capture Names Input Files Upon Commit.
  2. Specify the Imaging application to input documents and their metadata values.
  3. Based on the sample file, define an input mask that the Input Agent uses to locate files for input. For example, if you specify a mask of ServiceReportsInput*.txt, the Input Agent finds and processes input files that begin with that name.
  4. Define a delimiter that specifies the character by which values in the input text file are separated. For example, enter a pipe (|) character.
How Capture Names Input Files Upon Commit

Capture names input files it creates upon commit based on the file attributes defined in the corresponding WebCenter Content Imaging input definition.

Configuring Input Agent Settings

Follow these steps to configure a commit profile that writes input files from Capture to WebCenter Content Imaging for processing by a WebCenter Content Imaging Input Agent. Also see About Input Agent Committing.

Note:

A WebCenter Content Imaging input definition is required for configuring an Input Agent commit.

Figure 8-6 WebCenter Content Imaging Commit Driver Settings (Input Agent Commit)

Description of Figure 8-6 follows
Description of "Figure 8-6 WebCenter Content Imaging Commit Driver Settings (Input Agent Commit)"
  1. In a selected workspace, add or edit a commit profile. See Adding, Copying, or Editing a Commit Profile.
  2. On the General Settings train stop, select WebCenter Content Imaging in the Commit Driver field.
  3. On the Login tab of the Commit Driver Settings train stop, log in to the WebCenter Content Imaging instance by specifying the User ID, Password, Security Policy, and Imaging WebService URL fields and clicking Connect. The format of the Imaging WebService URL is:

    http://hostname:port/imaging/ws

    Upon successful connection, Capture displays the connection status as Connected.

    Note:

    Each time users commit using the profile, Capture uses this login information to connect to WebCenter Content Imaging using the URL specified.

  4. On the General tab, select Input Agent Commit as the commit method.
  5. In the Input Agent Directory field, select a directory configured for the selected WebCenter Content Imaging instance.
  6. In the Capture Output Directory field, specify the directory to write the input files and images. Use a fully qualified folder path relative to the Capture server's operating system.

    Note:

    These settings identify the same directory but in different ways. For example, if Capture is running on a Windows system and WebCenter Content Imaging is running on a Linux system, these fields would contain different paths to the same location.

  7. In the Imaging Input Definition field on the Field Mappings tab, select the input definition to use to generate input files.
  8. Map Capture fields to Imaging fields. Make sure that the data type of mapped fields match. Select an Imaging field and click the Edit button, then select the Capture field to map to. Repeat to map additional fields.

Configuring an Oracle Content and Experience Commit Profile

About the Oracle Content and Experience Commit Driver

Use the Oracle Content and Experience commit driver to commit documents from Capture to Oracle Content and Experience.

Configuring the driver settings involves the following main steps. Detailed steps are provided in Configuring Oracle Content and Experience Commit Driver Settings.

  1. Create a commit profile and select Oracle Content and Experience as the commit driver.

  2. Connect to the Oracle Content and Experience instance after entering login information.

  3. Specify where to upload the documents in Oracle Content and Experience and how to name the files. Create metadata collections.

Configuring Oracle Content and Experience Commit Driver Settings

To configure Oracle Content and Experience commit driver settings:

  1. In a selected workspace, create a commit profile. See Adding, Copying, or Editing a Commit Profile.

  2. On the General Settings train stop, select Oracle Content and Experience in the Commit Driver field.

  3. Select the Commit Driver Settings train stop.

    Because you selected Oracle Content and Experience as the commit driver, this train stop displays settings specific to Oracle Content and Experience commits.

  4. On the Login tab, enter a user name, password, and server URL to log in to the Oracle Content and Experience server instance during document commits.

    Click Login. Upon successful login, the status changes to Connected, and the remaining tabs become available.

  5. On the Document Folder tab, specify where to commit the documents:

    • In the Parent Folder section, click Select Folder... to display the Select Parent Folder window. In the Select Parent Folder window, if there is no parent folder specified for the commit profile, the user's home folder is displayed; otherwise, the selected parent folder is displayed. Select a folder to which to commit all the documents and click OK. The name of the selected parent folder is displayed in the Name field and the corresponding unique ID of the parent folder is displayed in the ID field. Optionally, click Clear Folder to clear the current selection and select a new Oracle Content and Experience folder.

    • Optionally, in the Subfolder Creation section, select Create Subfolders using Field values option to store document files in subfolders created dynamically within the parent folder and named using metadata field values. From the Available Fields list, select metadata fields to include and move them to the Selected Fields list. Each metadata field represents a subfolder and the order of the metadata fields represents the subfolder hierarchy.

      In the If folder name consists of invalid characters field, specify how Capture should handle any invalid characters found in a subfolder name by selecting either Remove invalid characters option or Cancel document commit option.

    Note:

    • When creating subfolders in Oracle Content and Experience, detection of existing folder names is case insensitive.

    • If a metadata field value used to create a subfolder is blank, and there are subsequent non-blank subfolders, the document commit is aborted with an error message indicating that the subfolder path is invalid.

    • If a metadata field value used to create a subfolder is blank and there are no subsequent non-blank subfolders, the document is stored in the parent folder of the first blank subfolder.

      See the following examples:

      If metadata fields, CustName=”Corp 1”,CorrespondenceType=”AP”,OrderNumber=NULL, then the document is stored in <Parent Folder>\Corp 1\AP.

      If metadata fields, CustName=”Corp 1”,CorrespondenceType=NULL,OrderNumber=NULL, then the document is stored in <Parent Folder>\Corp 1.

      If metadata fields, CustName=NULL,CorrespondenceType=NULL,OrderNumber=NULL, then the document is stored in <Parent Folder>\.

  6. On the Document File Naming tab, specify how to name the document files and document attachment files.

    • Optionally, select Use original file name for non-image files field to name non-image files using their original file names.

    • Optionally, select the Name document file based on Metadata field values field to name the file based on one or more selected metadata field values. If this field is not selected, Capture names the files using the default naming scheme that includes the internal batch ID, an underscore, and a numeric identifier. From the Available Fields list, select metadata fields to include and move them to the Selected Fields list.

    • Order the metadata fields in the Selected Fields list. The order of the fields affects the naming of the document file.

    • In the Field Delimiter field, specify the field delimiter to use between metadata field values.

    • In the If File Name Consists of Invalid Characters field, specify how Capture should handle any invalid characters found in document file names by selecting either Remove invalid characters option or Cancel document commit option.

  7. On the Metadata tab, select the Enable Metadata Collection Support field to create metadata collections and optionally include selected system fields to metadata collections.

    From the System Fields list, select system fields to include when creating metadata collections. The System Fields list is enabled for selection only if the Enable Metadata Collection Support field is selected.

    When a document is committed, a metadata collection is automatically created if it does not already exist. A metadata collection is named as:

    <Workspace Name>-<DocumentProfile>

    If a document is not assigned a document profile, the metadata collection is named as: <Workspace Name>-Default.

    All the document profile fields are added to the metadata collection.

    System fields are named in the following format: Capture!<System Field>. For example, Capture!<Batch_ID>.

    Note:

    • If a system field contains /, <, or > character, these characters will be removed.

    • If a system field contains a : (colon), it will be replaced with a - (hyphen). For example: System Date:Year will be replaced with System_Date-Year.

    • If a metadata collection name or system field name contains an invalid Oracle Content and Experience character except space character, the commit process will be aborted and an error message will be displayed. To correct this issue, a Capture administrator needs to update the document profile and/or the system field name and then, recommit the batch. If a metadata collection or system field name contains a space character, the space character will be replaced with an _ (underscore).

    When the document is committed, if a field does not already exist in the collection, the Oracle Content and Experience commit driver adds the new field to the collection. Capture fields that are deleted are ignored and not removed from the collection. And, system fields that were previously selected but currently not selected are also ignored and not removed from the collection.

    After a metadata collection is created,

    • it is assigned to the parent folder of the document,

    • all the document profile field values are assigned to the metadata collection associated with the document,

    • and system field values are assigned to the metadata collection associated with the document as applicable.

  8. On the Options tab, in the Document Attachment Options field, optionally, specify whether and how to include document attachments:

    • Select the Exclude Attachments option if you want to exclude attachments from documents when committing documents to Oracle Content and Experience.

    • Select the Include Attachments in sub-folders per Attachment Type option to include attachments in subfolders based on attachment type when committing documents to Oracle Content and Experience.

      Note:

      For each attachment, a subfolder is created in the primary document’s Oracle Content and Experience folder (if the subfolder does not already exist). The subfolder is named using the attachment type name of the document attachment. If the attachment does not have an attachment type name, the subfolder is named as Attachments.

Configuring PDF Searchable Document Output

If you specified a document output format of PDF Searchable on the General Settings train stop, complete fields on the Document Output Settings train stop to configure additional settings related to this document format.

Figure 8-7 PDF Searchable Document Output Settings

Description of Figure 8-7 follows
Description of "Figure 8-7 PDF Searchable Document Output Settings"
  1. In a selected workspace, add or edit a commit profile. See Adding, Copying, or Editing a Commit Profile.

  2. Complete settings on the Document Output Settings train stop.

    1. In the Optical Character Recognition settings:

      • Select the languages to use for the searchable PDF output. The English language is selected by default.

        Note:

        In case Asian languages are selected for OCR, English is also recognized by default without having to specify it explicitly.

        The following table lists the available languages:

        Name Alternate Name Alphabet Classification

        English

        Latin

        German

        Latin

        French

        Latin

        Dutch

        Latin

        Norwegian

        Latin

        Swedish

        Latin

        Finnish

        Latin

        Danish

        Latin

        Icelandic

        Latin

        Portuguese

        Latin

        Spanish

        Latin

        Catalan

        Catalonian

        Latin

        Galician

        Gallegan

        Latin

        Italian

        Latin

        Maltese

        Latin

        Greek

        Greek

        Polish

        Latin

        Czech

        Latin

        Slovak

        Latin

        Hungarian

        Latin

        Slovenian

        Latin

        Croatian

        Latin

        Romanian

        Rumanian

        Latin

        Albanian

        Latin

        Turkish

        Latin

        Estonian

        Latin

        Latvian

        Latin

        Lithuanian

        Latin

        Esperanto

        Latin

        Serbian(Latin)

        Bosnian

        Latin

        Serbian

        Cyrillic

        Macedonian

        Cyrillic

        Moldavian

        Cyrillic

        Bulgarian

        Cyrillic

        Byelorussian

        Belarusian, Belarusan

        Cyrillic

        Ukrainian

        Cyrillic

        Russian

        Cyrillic

        Chechen

        Cyrillic

        Kabardian

        Cyrillic

        Afrikaans

        Latin

        Aymara

        Latin

        Basque

        Latin

        Bemba

        Ichibemba

        Latin

        Blackfoot

        Siksika

        Latin

        Breton

        Latin

        Brazilian

        Latin

        Bugotu

        Bughotu

        Latin

        Chamorro

        Latin

        Tswana(Chuana)

        Chuana, Setswana

        Latin

        Corsican

        Latin

        Crow

        Latin

        Eskimo

        Inuit

        Latin

        Faroese

        Latin

        Fijian

        Latin

        Frisian

        Latin

        Friulian

        Latin

        Gaelic(Irish)

        Irish

        Latin

        Gaelic(Scottish)

        Scottish

        Latin

        Ganda(Luganda)

        Luganda

        Latin

        Guarani

        Latin

        Hani

        Latin

        Hawaiian

        Latin

        Ido

        Latin

        Indonesian

        Latin

        Interlingua

        Latin

        Kasub

        Kashubian

        Latin

        Kawa

        Wa, Blang

        Latin

        Kikuyu

        Gikuyu

        Latin

        Kongo

        Latin

        Kpelle

        Latin

        Kurdish

        Latin

        Latin

        Latin

        Luba

        Latin

        Luxembourgian

        Letzeburgesch, Luxembourgeois

        Latin

        Malagasy

        Latin

        Malay

        Latin

        Malinke

        Maninkakan

        Latin

        Maori

        Latin

        Mayan

        Latin

        Miao

        Hmong

        Latin

        Minankabaw

        Minangkabau

        Latin

        Mohawk

        Latin

        Nahuatl

        Latin

        Nyanja

        Chewa, Chichewa

        Latin

        Occidental

        Latin

        Ojibway

        Ojibwa

        Latin

        Papiamento

        Latin

        PidginEnglish

        Tok Pisin

        Latin

        Provencal

        Occitan

        Latin

        Quechua

        Latin

        Rhaetic

        Romansh

        Latin

        Romany

        Latin

        Ruanda

        Rwanda, Kinyarwanda

        Latin

        Rundi

        Latin

        Samoan

        Latin

        Sardinian

        Latin

        Shona

        Latin

        Sioux

        Dakota

        Latin

        Sami

        Latin

        Sami(Lule)

        Lule Sami

        Latin

        Sami(Northern)

        Northern Sami

        Latin

        Sami(Southern)

        Southern Sami

        Latin

        Somali

        Latin

        Sotho

        Sesotho, Sutu

        Latin

        Sundanese

        Latin

        Swahili

        Kiswahili

        Latin

        Swazi

        Swati

        Latin

        Tagalog

        Filipino

        Latin

        Tahitian

        Latin

        Tinpo

        Latin

        Tongan

        Latin

        Tun

        Tunia

        Latin

        Visayan

        Cebuano

        Latin

        Welsh

        Latin

        Sorbian(Wend)

        Wend

        Latin

        Wolof

        Latin

        Xhosa

        Latin

        Zapotec

        Latin

        Zulu

        Latin

        Japanese

        Asian

        Chinese(S)

        Simplified Chinese

        Asian

        Chinese(T)

        Traditional Chinese

        Asian

        Korean

        Asian

      • Optionally, to optimize OCR recognition for financial, medical and legal documents, from the list of available professional dictionaries, select the ones that you want to use in the searchable PDF output.

        Note:

        Although the Asian languages support English recognition, the professional dictionaries are not used when an Asian language is selected for OCR.

      • Select the Single Language Detection per Page field to detect the predominant language on a page in the document. This option is particularly useful when the language for a page is unknown. This field is unchecked by default.

        Note:

        The Single Language Detection per Page field is enabled only when multiple languages are selected.

        When this field is not selected, it is recommended to use fewer than five languages to improve recognition accuracy.

        A configuration error message may be displayed in the following cases:

        • If you deselect this field when multiple Asian languages are selected for OCR.

        • If you select this field when an unsupported language (for example, Greek) has been selected for recognition.

        • If you select an unsupported language for OCR when this field is selected.

    2. In the Advanced PDF Settings:

      • Select the Color Image Quality for color images. You can choose: Minimum (minimum size), Good (medium size), or Best (maximum size).

      • In the Compatibility field, select the PDF version of the searchable PDF document. You can choose: PDF 1.4, PDF 1.5, PDF 1.6, PDF 1.7, PDF A/1b, PDF A/2b, or PDF A/2u.

      • Select the Create Linear PDF for Efficient Web Viewing field to create a linear PDF document. This option is enabled only when you select PDF 1.4, PDF 1.5, PDF 1.6, or PDF 1.7 in the Compatibility field. Linear PDFs are documents that have been organized in a special way to enable efficient incremental access in a network environment. This field is unchecked by default.

      • Select the Preserve Original Image Orientation field to prevent the automatic reorientation of the image. This field is unchecked by default.

    3. In the Text File Options settings:

      • Select the Create Text File field to create a text file along with the searchable PDF output file that contains all text captured during the OCR process.

      • In the Text File Code Page field, search for and select the character set to use for the OCR text file. The default value is UTF-8. The following table lists the available character sets:

        Code Page Name Description

        Big5

        Traditional Chinese (support Eten extension and HKscs non-standard mode)

        Code Page 437

        DOS Latin US

        Code Page 850

        DOS Latin 1

        Code Page 852

        DOS Latin 2

        Code Page 860

        DOS Portuguese

        Code Page 863

        DOS French-Canadian

        Code Page 865

        DOS Nordic

        Code Page 866

        DOS Cyrillic CIS

        CWI Magyar

        DOS Hungarian

        EUC-CN

        Simplified Chinese

        EUC-JP

        Japanese

        EUC-TW

        Traditional Chinese

        GB 18030

        Simplified Chinese

        GBK

        Simplified Chinese

        Greek-ELOT

        DOS Greek

        Greek-MEMOTEK

        DOS Greek

        HKSCS-2004

        Traditional Chinese (HKscs standard mode, supports Eten extension)

        Icelandic

        DOS Icelandic

        IVKAM C-S

        Czech & Slovak

        Latin 1

        ISO 8859-1

        Mac Central EU

        PT 202

        Mac INSO Latin 2

        MAC CE

        Mac Primus CE u

        MAC CE

        Macintosh

        Mac Western

        Magyar Ventura

        DOS Hungarian

        Maltese

        Malta; 7 bits used

        Mazowia Polish

        DOS Polish

        OCR

        Non Standard Win

        Roman 8

        For HP printers

        Shift_JIS

        Japanese

        Sloven & Croat

        7 bits used

        Turkish

        DOS Turkish

        UHC

        Korean (extended EUC-KR)

        Unicode

        Multilingual

        UTF-8

        Multilingual

        Windows ANSI

        Code Page 1252

        Windows Baltic

        Code Page 1257

        Windows Cyrillic

        Code Page 1251

        Windows Eastern

        Code Page 1250

        Windows Esperant

        Non Standard Win

        Windows Greek

        Code Page 1253

        Windows Sami

        Sami

        Windows Turkish

        Code Page 1254

        WordPerfect

        Multilingual

        WordPerfect Old

        Multilingual

  3. Click Submit to save the commit profile.

Configuring PDF Searchable Attachment Output

The Attachment Output Settings train stop for a commit profile is available only if you selected PDF Searchable in the Attachment Document Output Format field on the General Settings train stop. Complete the fields on the Attachment Output Settings train stop to configure additional settings related to this attachment format.
  1. In a selected workspace, add or edit a commit profile. See Adding, Copying, or Editing a Commit Profile
  2. Complete settings on the Attachment Output Settings train stop. If searchable PDF settings are configured for document output but are not configured for attachment output, then this train stop will be populated with the settings configured for document output.
  3. Optionally, perform steps 2.a and 2.b (see Configuring PDF Searchable Document Output). Click Submit to save the commit profile.

Configuring Batch Flow to the Commit Processor

To commit batches, a client profile or batch processor job must be configured to flow to the Commit Processor, as described in How Commit Profiles are Applied During Commit Processing. You do this by setting the Commit Processor as the post-processing step in a client profile or other processor job. To configure batch flow from:

Customizing Commit Processing Using Scripts

To customize Commit Processor behavior, incorporate a JavaScript.

To use a script in a commit profile:

  1. From a developer, obtain a Commit Processor JavaScript file.

    See Developing Scripts with WebCenter Enterprise Capture in Developing Scripts for Oracle WebCenter Enterprise Capture.

  2. On the workspace's Advanced tab, import a script, specifying Commit Processor as its script type, and identifying the script file. See Managing Capture Scripts.
  3. On the Commit tab, select the commit profile and click the Edit button.
  4. In the Script field on the General Settings train stop, select the Commit Processor script you imported.
  5. Test the results of the added commit script.
