Perform Cross-Region Disaster Recovery for Oracle Essbase on OCI
This reference architecture outlines how to design and operate a cross-region disaster recovery solution for Oracle Essbase on OCI with focus on predictable recovery, secure connectivity, and operational consistency across regions.
Architecture

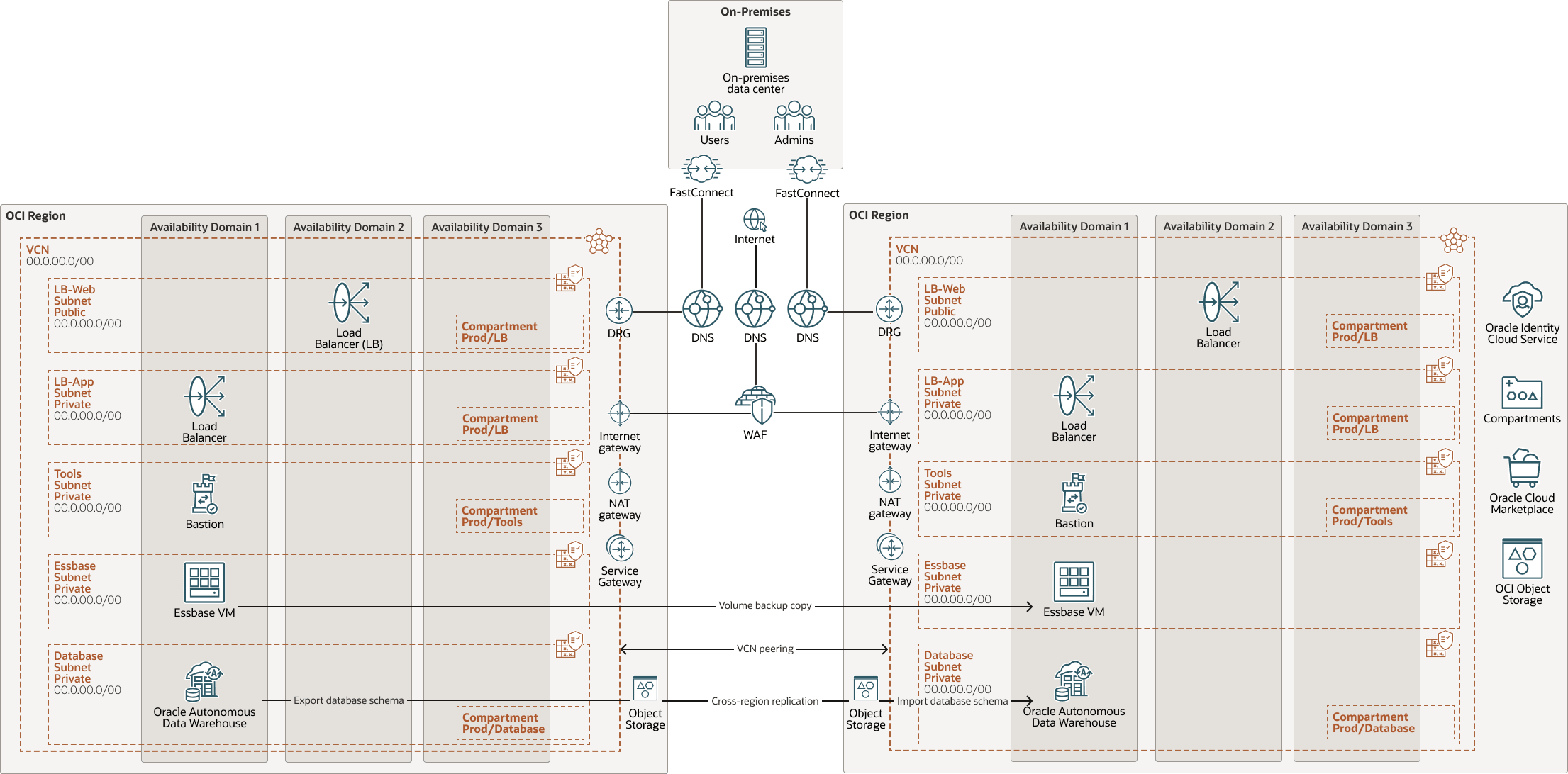

The following diagram illustrates this reference architecture:
essbase-oci-cross-region-dr-oracle.zip
Deploy Essbase across two OCI regions. Use multiple availability domains and fault domains for resilience within each region.
Use OCI FastConnect for dedicated links to both primary and secondary regions, to reduce reliance on the public internet and provide higher bandwidth and reliability. Match virtual circuit throughput to the selected port (1 Gbps or 10 Gbps). For inter-region private traffic, use remote peering with Dynamic Routing Gateways (DRGs) to keep traffic off the public internet.
Deploy bastion hosts in both regions for secure and auditable administration paths.
Apply multi-layer isolation and compartmentalization to clearly segment public, application, and data tiers, and manage access with policies and quotas.
Tip:
Remember to add CIDR ranges for the VCN and subnets.The architecture has the following components:
- OCI region
An OCI region is a localized geographic area that contains one or more data centers, hosting availability domains. Regions are independent of other regions, and vast distances can separate them (across countries or even continents).
- Availability domain
Availability domains are standalone, independent data centers within a region. The physical resources in each availability domain are isolated from the resources in the other availability domains, which provides fault tolerance. Availability domains don’t share infrastructure such as power or cooling, or the internal availability domain network. So, a failure at one availability domain shouldn't affect the other availability domains in the region.
- Fault domain
A fault domain is a grouping of hardware and infrastructure within an availability domain. Each availability domain has three fault domains with independent power and hardware. When you distribute resources across multiple fault domains, your applications can tolerate physical server failure, system maintenance, and power failures inside a fault domain.
- Compartment
Compartments are cross-regional logical partitions within an OCI tenancy. Use compartments to organize, control access, and set usage quotas for your Oracle Cloud resources. In a given compartment, you define policies that control access and set privileges for resources.
- OCI virtual cloud
network and subnet
A virtual cloud network (VCN) is a customizable, software-defined network that you set up in an OCI region. Like traditional data center networks, VCNs give you control over your network environment. A VCN can have multiple non-overlapping classless inter-domain routing (CIDR) blocks that you can change after you create the VCN. You can segment a VCN into subnets, which can be scoped to a region or to an availability domain. Each subnet consists of a contiguous range of addresses that don't overlap with the other subnets in the VCN. You can change the size of a subnet after creation. A subnet can be public or private.
- Security list
For each subnet, you can create security rules that specify the source, destination, and type of traffic that is allowed in and out of the subnet.
- Route table
Virtual route tables contain rules to route traffic from subnets to destinations outside a VCN, typically through gateways.
- OCI FastConnect
Oracle Cloud Infrastructure FastConnect creates a dedicated, private connection between your data center and OCI. FastConnect provides higher-bandwidth options and a more reliable networking experience when compared with internet-based connections.
- Remote
peering
Remote peering enables private communication between resources in different VCNs, which can be located in the same or different OCI regions. Each VCN uses its own Dynamic Routing Gateway (DRG) for remote peering. The DRGs securely route traffic between the VCNs over OCI's private backbone, allowing resources to communicate using private IP addresses without routing traffic over the internet or through on-premises networks. Remote peering removes the need for internet gateways or public IP addresses for instances that need to connect across regions.
- Dynamic routing gateway
(DRG)
The DRG is a virtual router that provides a path for private network traffic between VCNs in the same region, between a VCN and a network outside the region, such as a VCN in another OCI region, an on-premises network, or a network in another cloud provider.
- Network
address translation (NAT) gateway
A NAT gateway enables private resources in a VCN to access hosts on the internet, without exposing those resources to incoming internet connections.
- Service
gateway
A service gateway provides access from a VCN to other services, such as Oracle Cloud Infrastructure Object Storage. The traffic from the VCN to the Oracle service travels over the Oracle network fabric and does not traverse the internet.
- Load balancer
Oracle Cloud Infrastructure Load Balancing provides automated traffic distribution from a single entry point to multiple servers.
- OCI Compute
With Oracle Cloud Infrastructure Compute, you can provision and manage compute hosts in the cloud. You can launch compute instances with shapes that meet your resource requirements for CPU, memory, network bandwidth, and storage. After creating a compute instance, you can access it securely, restart it, attach and detach volumes, and terminate it when you no longer need it.
- OCI Object Storage
OCI Object Storage provides access to large amounts of structured and unstructured data of any content type, including database backups, analytic data, and rich content such as images and videos. You can safely and securely store data directly from applications or from within the cloud platform. You can scale storage without experiencing any degradation in performance or service reliability.
Use standard storage for "hot" storage that you need to access quickly, immediately, and frequently. Use archive storage for "cold" storage that you retain for long periods of time and seldom or rarely access.
- Oracle Autonomous Data Warehouse
Oracle Autonomous Data Warehouse is a self-driving, self-securing, self-repairing database service that is optimized for data warehousing workloads. You do not need to configure or manage any hardware, or install any software. OCI handles creating, backing up, patching, upgrading, and tuning the database.
Recommendations
- Essbase: Use the same Essbase Marketplace image version in both the primary and standby regions. Because
Marketplace provides only the latest image, deploy the standby region at the same
time as the primary and upgrade both regions together to keep versions aligned.
After any upgrade to the primary region, remember to upgrade the standby region as
well, so both always use the same Essbase image version.
Follow the backup and restore instructions for Essbase Marketplace linked in Explore More.
- OCI FastConnect: Provides both primary and secondary region connectivity back to the on-premises data centre. This approach protects against the network connection failure to one of the regions.
- Multi-Layer Isolation and Compartmentalization: Clear segmentation between public, application, and database resources with OCI compartments for governance and security.
- OCI Bastion Hosts: In both regions, bastion hosts provide secure, auditable admin access.
- Follow this backup strategy
- Block volumes: Take regular Essbase server block volume backups in the primary region and copy them to the secondary region. Stop Essbase services before block volume and database backups to ensure consistency.
- Database schema: Back up Essbase schemas and, if stored in Object Storage, enable cross-region replication on the buckets to continuously copy backups to the standby region.
- Application-level backup (LCM): Use Lifecycle Management to export individual applications/cubes for granular protection and selective migrations across regions.
- Follow this recovery strategy:
- Assess impact and declare dister recovery as needed.
- Restore infrastructure and attach replicated block volumes in the standby region.
- Restore database schema and application-level exports as required.
- Validate services and cut over connectivity, then resume operations and monitor
Considerations
When implementing Essbase on OCI, consider these factors.
- Performance: Select FastConnect bandwidth tiers that meet workload needs and ensure virtual circuit throughput is set equal to or below the chosen port speed. FastConnect offers two tiers: 1 Gbps and 10 Gbps. These values are the maximum throughput used in each tier. The virtual circuit throughput should be equal to or lower than the selected port.
- Frequency Matters: Script and schedule backups and replications with the OCI API, linked in Explore More, based on data change rates and business RPO/RTO targets. Test both instance-level and application-level restores regularly to validate procedures. Protect all backup artifacts with appropriate OCI security controls and encryption.
- Test Restores Regularly: Perform regular test restores (both instance and application-level) to validate your recovery plan.
- Secure Your Backups: Always protect backup files and exports with proper OCI security controls and encryption.
