Analyze and visualize healthcare data and apply AI on OCI to solve real-world challenges
Oracle Cloud Infrastructure (OCI) and services provide many options to build, deploy, and monitor scalable and high-performance analytical solutions over Electronic Health Record and patient monitoring data and provide easy access to actionable intelligence using seamless user experience via simple and intuitive web interface.
Data collected from medical devices can be analyzed to optimize alarm parameters, and AI can help to develop intelligent applications for improving clinical efficiency and reducing risk.
For this reference architecture, we are showcasing a customer use case which was using Snowflake and Snowpark to store and analyze data. This caused challenges of growing cost and reduced overall price-performance benefit. As more and more hospitals and healthcare providers were signing up for the service, data was growing at an exponential rate and cost of analyzing hundreds of terabytes of data was growing exponentially. The solution lacked flexibility to provide fit for purpose data analytical solutions.
Inefficient data and model management hindered the ability to quickly onboard customers and bring products to market. Security of the system was an afterthought and often required manual process to implement proper security controls at each layer of the deployment. Lack of support for open-source tools and libraries created vendor lock-ins and prevented portability.
Architecture
OCI supports open-source tools, and its framework makes it seamless to implement the architecture using in-house skilled resources while providing portability.
In this reference architecture, we will discuss a solution design that can be implemented for use cases including improving patient care and disease prevention; evidence-based decision-making in pre-authorization; and detecting, analyzing, and optimizing medical alarm parameters for hospitals and healthcare providers.
Data Analytics and Machine Learning:
For the healthcare customer, Oracle Autonomous Data Warehouse was an ideal solution since the customer was using streaming data from sensors where Oracle Autonomous Data Warehouse’s scalability and their Lakehouse capabilities were optimal. Oracle Autonomous Data Warehouse’s easy integration with Oracle Machine Learning helped the customer prepare and understand their data better in the pre-processing stage. Oracle Machine Learning also supports exporting data to and from Jupyter Notebooks, enabling data scientists to combine Oracle’s in-database ML with other popular data science libraries. Oracle Machine Learning has many benefits, including: ease of install, usage of in-database computing, reduced management overhead, cross-purpose powerful and scalable database compute for SQL, Python based analytics at scale.
Using Oracle Machine Learning, the customer was able to install and test a wide variety of Python-based libraries (including Panda, NumPy), run the existing Julia application, and analytics at scale. Oracle Machine Learning also features Automatic Model Deployment, where models are instantly available for scoring within applications or analytics dashboards after training and simplifying the deployment process. The customer was able to port the same Python UDFs and UDTFs, and the same SQL queries from Snowflake to Oracle Autonomous Data Warehouse without needing to refactor code. For the ML model, customer used the AutoML capability, greatly simplifying the model training process, allowing users with minimal machine learning experience to achieve desired accuracy and generate insights from medical device data.
AI application using GPU compute on OCI:
OCI provides optimal performance for AI applications with cutting edge cloud infrastructure powered by Nvidia and AMD GPUs. OCI helps to accelerate your AI solution with model training, inferencing, and AI analysis. OCI partners with Nvidia to bring Nvidia Nemo for end-to-end development of generative AI, and uses Nvidia Inference Microservices (NIM) to speed up AI inference of AI models. To run AI applications on OCI AI infrastructure, OCI deploys GPU compute instances with either HPC Slurm cluster or Oracle Cloud Infrastructure Kubernetes Engine (OCI Kubernetes Engine or OKE) using our customized and scalable terraform stacks, including various storage options.
AI based medical diagnosis and clinical data management consists of NLP/LLM for EHR data, medical imaging, clinical data, and lab results. Nvidia application frameworks, such as BioNemo, MONAI, triton inference server, along with Cohere provides a solution that speeds up AI adoption.
Data Science Notebooks and integration:
This reference architecture uses the Oracle Cloud Infrastructure Data Science service, a fully managed platform for teams of data scientists to build, train, deploy, and manage machine learning (ML) models using Python with built-in framework like Pytorch, TensorFlow and other open-source framework of your choice. This service can be used to create an open-source Jupyter-based development environment with built-in integration with GitHub. Nvidia A10 GPU compute can be used for training the LLM models, build MLOps pipeline integrated with mlfow, and, lastly, deploy from Notebook into a scalable and low latency inference secured endpoint and monitor model performance. The customer could choose from a variety of supported Nvidia GPUs on bare metals or virtual instances to train and deploy AI models at scale.
Backup and Disaster Recovery:
For healthcare, customer data protection and availability is extremely important. Due to various regulations, data must be protected and made available on demand. Oracle Autonomous Database provides options of automated backup and recovery and can create a replica database using Oracle Cloud Guard. The database replica also can work as a read-only standby copy of database to reduce load on the primary database, therefore improve database performance and load balancing.
Security and Access Management:
This architecture implements OCI Zero Trust security best practice using network, data and application security features in all layers of the architecture. For network security, compute is implemented in private network using Virtual Cloud Network (VCN) and traffic filter is applied using Security List (SLs) and Network Security Group (NSGs). Data is always encrypted at rest (AES256) and in transit (TLS 2.0) with easy customer provided certificate management.
Oracle Data Safe, which is included with Oracle Autonomous Database, provides a unified control center that helps manage the day-to-day security and compliance requirements of Oracle databases. Oracle Data Safe provides advanced data security features required by healthcare such as Data Masking, Data Obfuscation, Activity Auditing, and SQL Firewall Management.
Oracle Cloud Infrastructure Identity and Access Management (OCI Identity and Access Management) implements the principle of least privilege and OAuth 2.0 authentication of end user access using identity. It securely provides advanced features like Multi Factor Authentication and token based authentication (JWT).

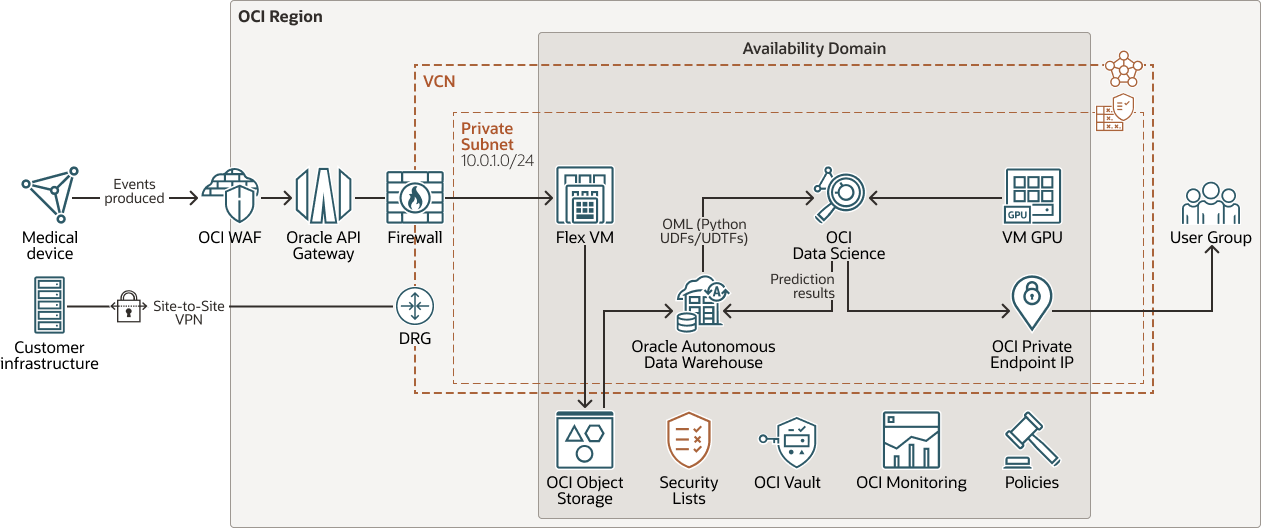

The following diagram illustrates this reference architecture.
oci-ai-healthcare_arch-oracle.zip
The architecture has the following components:
- API Gateway
Oracle Cloud Infrastructure API Gateway enables you to publish APIs with private endpoints that are accessible from within your network, and which you can expose to the public internet if required. The endpoints support API validation, request and response transformation, CORS, authentication and authorization, and request limiting.
- Object Storage
Oracle Cloud Infrastructure Object Storage provides quick access to large amounts of structured and unstructured data of any content type, including database backups, analytics data, and rich content such as images and videos. You can safely and securely store and retrieve data directly from the internet or within the cloud platform. You can scale storage without experiencing any degradation in performance or service reliability. Use standard storage for "hot" storage that you need to access quickly, immediately, and frequently. Use archive storage for "cold" storage that you retain for long periods of time and seldom or rarely access.
- Web Application Firewall (WAF)
Oracle Cloud Infrastructure Web Application Firewall (WAF) is a payment card industry (PCI) compliant, regional-based and edge enforcement service that is attached to an enforcement point, such as a load balancer or a web application domain name. WAF protects applications from malicious and unwanted internet traffic. WAF can protect any internet facing endpoint, providing consistent rule enforcement across a customer's applications.
- Dynamic routing gateway (DRG)
The DRG is a virtual router that provides a path for private network traffic between VCNs in the same region, between a VCN and a network outside the region, such as a VCN in another Oracle Cloud Infrastructure region, an on-premises network, or a network in another cloud provider.
- Security list
For each subnet, you can create security rules that specify the source, destination, and type of traffic that must be allowed in and out of the subnet.
Recommendations
- OCI Data Integration is a fully managed, multi-tenant service that helps data engineers and developers
with data movement and data loading tasks. The solution can use data integration
data loading service to ingest and load data into a staging area in the object
storage for low cost, durable and highly scalable long-term data retention. Bulk
data transfers can be done using secured FTP, HL7v2 over MLP and standard Fast
Healthcare Interoperability Resources (FHIR) web services. Staged data can be
further processed, prepared, and curated to populate into an Oracle Autonomous Data Warehouse database for application and user consumption via web interface and ad-hoc
query.
Powered by Spark ETL or ELT processes, a large volume of data can be ingested from a variety of data assets, cleansed, transformed, reshaped and efficiently loaded to Oracle Autonomous Data Warehouse. The Oracle Autonomous Data Warehouse database is an industry leading fully managed and automated database for analytical workloads including data marts, data warehouse and data lakes. It is self-tuning, and provides automated provisioning, patching, and maintenance, thus optimizing performance.
Further data can be analyzed using Oracle Cloud Infrastructure Data Science service. AI models can be built, trained, and deployed using high-performance low-cost GPU compute. Custom outgoing web hooks are built to push data assets to end users using a secured endpoint and identity service.
- Use a private virtual cloud network to deploy services and use a security list and NSGs to restrict unintended access.
- Use OCI Identity and Access Management to apply the principal of least privilege and role-based access controls.
- OCI API Gateway enables you to publish APIs with private endpoints that are accessible from within your network, and which you can expose to the public internet if required. The endpoints support API validation, request and response transformation, CORS, authentication and authorization, and request limiting.
- OCI ensures regulatory compliance with major standards, including HIPAA and FedRAMP, providing a secure foundation for protecting sensitive data.
- Use open-source technology to avoid vendor lock-in on OCI such as LangChain, REST API, Functions, and build an abstraction layer on top to accelerate innovation and transformation.
