Secure network architecture for on-premises database backups to OCI Object Storage with Private Endpoint
Offsite backups are critical for business continuity. Oracle Cloud Infrastructure (OCI) offers OCI Object Storage with private endpoint as a backup target, where OCI builds a secure and private connectivity from customer on-premises location without public IP addresses associated with OCI Object Storage.
Architecture
This reference architecture shows a secure, high performance, and private network design to backup Oracle Exadata Database Service on Cloud@Customer data to OCI Object Storage.
For optimal network performance, Oracle Cloud Infrastructure FastConnect with private peering connects the on-premises data center with an OCI region of a customer tenant.
OCI Object Storage private endpoint provides secure access to Object Storage using a private IP in a customer subnet within a VCN.
An OCI private DNS Zone provides responses only for clients connecting through a VCN. By configuring an OCI DNS listening endpoint and implementing forwarding rules in the on-premises customer data center, seamless hybrid DNS resolution is achieved.

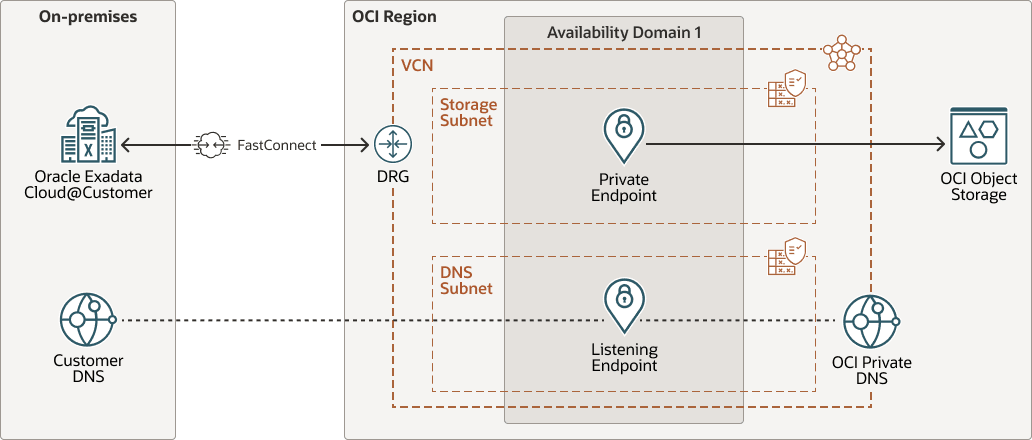

The following diagram illustrates this reference architecture.
secure-backup-oci-object-storage-oracle.zip
The architecture has the following components:
- Region
An OCI region is a localized geographic area that contains one or more data centers, hosting availability domains. Regions are independent of other regions, and vast distances can separate them (across countries or even continents).
- Availability domains
Availability domains are standalone, independent data centers within a region. The physical resources in each availability domain are isolated from the resources in the other availability domains, which provides fault tolerance. Availability domains don’t share infrastructure such as power or cooling, or the internal availability domain network. So, a failure at one availability domain shouldn't affect the other availability domains in the region.
- Virtual cloud network (VCN) and subnets
A VCN is a customizable, software-defined network that you set up in an OCI region. Like traditional data center networks, VCNs give you control over your network environment. A VCN can have multiple non-overlapping classless inter-domain routing (CIDR) blocks that you can change after you create the VCN. You can segment a VCN into subnets, which can be scoped to a region or to an availability domain. Each subnet consists of a contiguous range of addresses that don't overlap with the other subnets in the VCN. You can change the size of a subnet after creation. A subnet can be public or private.
- Dynamic routing gateway (DRG)
The DRG is a virtual router that provides a path for private network traffic between VCNs in the same region, between a VCN and a network outside the region, such as a VCN in another OCI region, an on-premises network, or a network in another cloud provider.
- FastConnect
Oracle Cloud Infrastructure FastConnect creates a dedicated, private connection between your data center and OCI. FastConnect provides higher-bandwidth options and a more reliable networking experience when compared with internet-based connections.
- Object Storage
OCI Object Storage provides access to large amounts of structured and unstructured data of any content type, including database backups, analytic data, and rich content such as images and videos. You can safely and securely store data directly from the internet or from within the cloud platform. You can scale storage without experiencing any degradation in performance or service reliability.
Use standard storage for "hot" storage that you need to access quickly, immediately, and frequently. Use archive storage for "cold" storage that you retain for long periods of time and seldom or rarely access.
- Object Storage private endpoint
Object Storage Private Endpoint provides secure access to Object Storage from your OCI VCNs or on-premises networks. The private endpoint is a VNIC with a private IP address in a subnet you choose within your VNC. This method is an alternative to using a service gateway using public IP addresses associated with OCI services.
- Private DNS resolvers
A private DNS resolver answers DNS queries for a VCN. A private resolver can be configured to use views and zones as well as conditional forwarding rules to define how to respond to DNS queries.
- Listening endpoint
A listening endpoint receives queries from within the VCN or from other VCN resolvers, from the DNS of other cloud service providers (such as AWS, GCP, or Azure), or from the DNS of your on-premises network. Once created, no further configuration is needed for a listening endpoint.
Recommendations
- VCN
When you create a VCN, determine the number of CIDR blocks required and the size of each block based on the number of resources that you plan to attach to subnets in the VCN. Use CIDR blocks that are within the standard private IP address space.
Select CIDR blocks that don't overlap with any other network (in Oracle Cloud Infrastructure, your on-premises data center, or another cloud provider) to which you intend to set up private connections.
After you create a VCN, you can change, add, and remove its CIDR blocks.
When you design the subnets, consider your traffic flow and security requirements. Attach all the resources within a specific tier or role to the same subnet, which can serve as a security boundary.
- IAM Policies and network Sources
Creating a private endpoint in a VCN and associating it with a bucket doesn't limit access to the bucket from the internet or other network sources. You need to define rules using IAM polices on the bucket, so requests are only authorized if they originate from a specific VCN or a CIDR block within that VCN. All other access, including over the internet, is blocked to these buckets.
- Security
Assign a network security group (NSG) to the OCI listening endpoint and configure the security group following a deny-all security posture, allowing only the on-premises DNS IP on port UDP:53. Object Storage private endpoint can be configured for restricting access to specific buckets and compartments.
- High availability
This architecture shows a simplified design. In a production deployment, make sure your design follows high availability best practices.
Deploy
To configure the network communication and DNS resolution from on-premises to OCI in the above architecture diagram, complete the following high-level steps.
Network Configuration
- Create a VCN.
- Create a private subnet for the Object Storage private endpoint.
- Deploy the Object Storage private endpoint.
- Create a private subnet for the DNS endpoint.
- Create a DRG.
- Attach the VCN to the DRG.
- Create a FastConnect with a Private Virtual Circuit to connect to on-premises and attach it to the DRG.
DNS Configuration
- Create a listening endpoint in the VCN DNS resolver, deploy it in the DNS subnet.
- In the DNS Subnet Security list, allow UDP:53 with source IP for the on-premises DNS server.
- Create DNS forwarding rules in the on-premises DNS Server. Configure the rules
from the table below.
Domain name* Destination IP:Port objectstorage. <oci-region-identifier>.oci.customer-oci.comOCI Listening Endpoint IP. Port 53 swiftobjectstorage. <oci-region-identifier>.oci.customer-oci.comOCI Listening Endpoint IP. Port 53 *See Regions and Availability Domains for the latest information about regions and availability domains.
