Cabling Tables and Diagrams for Oracle ZFS Storage Appliance Racked System ZS9-2 MR Capacity Configurations
The following table describes the locations and port connections for two controllers and nine disk shelves in the base cabinet, using 3-meter optical SAS cables. The first disk shelf is located in RU01, and each disk shelf has two IOMs.
The following tables are for a full base rack configuration consisting of two chains, and an expansion rack configuration consisting of two chains.
Note:
Two Oracle Storage Drive Enclosure DE3-12C disk shelves are the equivalent of one Oracle Storage Drive Enclosure DE3-24C disk shelf. Configuration information for both of these disk shelves is located in Overview of Oracle ZFS Storage Appliance Racked System ZS9-2 MR Capacity Configurations. Also, Oracle Storage Drive Enclosure DE3-12C cabling guidelines and example cabling diagrams for specifically connecting to Oracle ZFS Storage Appliance Racked System ZS9-2 MR controllers are provided in Cabling Guidelines for Adding an Oracle Storage Drive Enclosure DE3-12C. Additional example Oracle Storage Drive Enclosure DE3-12C cabling diagrams are located in Example Mixed Disk Shelf Configurations.Table 10-10 Base Cabinet: Controller and Disk Shelf Locations and Connections
FROM | TO | |||
---|---|---|---|---|
RU |
CONTROLLER |
HBA PORT |
RU |
DISK SHELF PORT |
20 |
1 |
Slot 4, Port 0 |
1 |
IOM 1, Port 2 |
17 |
0 |
Slot 9, Port 0 |
1 |
IOM 0 Port 2 |
20 |
1 |
Slot 4, Port 1 |
23 |
IOM 1, Port 2 |
17 |
0 |
Slot 9, Port 1 |
23 |
IOM 0 Port 2 |
17 |
0 |
Slot 4, Port 0 |
1, 5, 13 |
IOM 1, Port 0 |
20 |
1 |
Slot 9, Port 0 |
1, 5, 13 |
IOM 0, Port 0 |
17 |
0 |
Slot 4, Port 1 |
27, 35, 39 |
IOM 1, Port 0 |
20 |
1 |
Slot 9, Port 1 |
27, 35, 39 |
IOM 0, Port 0 |
The following table describes the locations and port connections for 10 disk shelves in an expansion cabinet, using 6-meter optical SAS cables. The first disk shelf is located in RU01, and each disk shelf has two IOMs. The expansion cabinet supports disk shelves 10 through 19.
Table 10-11 Expansion Cabinet: Controller and Disk Shelf Locations and Connections
FROM | TO | |||
---|---|---|---|---|
RU |
CONTROLLER |
HBA PORT |
RU |
DISK SHELF PORT |
20 |
1 |
Slot 4, Port 2 |
1 |
IOM 1, Port 2 |
17 |
0 |
Slot 9, Port 2 |
1 |
IOM 0, Port 2 |
20 |
1 |
Slot 4, Port 3 |
21 |
IOM 1, Port 2 |
17 |
0 |
Slot 9, Port 3 |
21 |
IOM 0, Port 2 |
17 |
0 |
Slot 4, Port 2 |
5, 9, 13, 17 |
IOM 1, Port 0 |
20 |
1 |
Slot 9, Port 2 |
5, 9, 13, 17 |
IOM 0, Port 0 |
17 |
0 |
Slot 4, Port 3 |
25, 33, 37 |
IOM 1, Port 0 |
20 |
1 |
Slot 9, Port 3 |
25, 33, 37 |
IOM 0, Port 0 |
The following diagrams illustrate how pre-racked systems are cabled, as well as how to expand your system in the future. The legend for each diagram is as follows:
-
A hollow circle indicates the cable connection to the top IOM (IOM 1).
-
A solid circle indicates the cable connection to the bottom IOM (IOM 0).

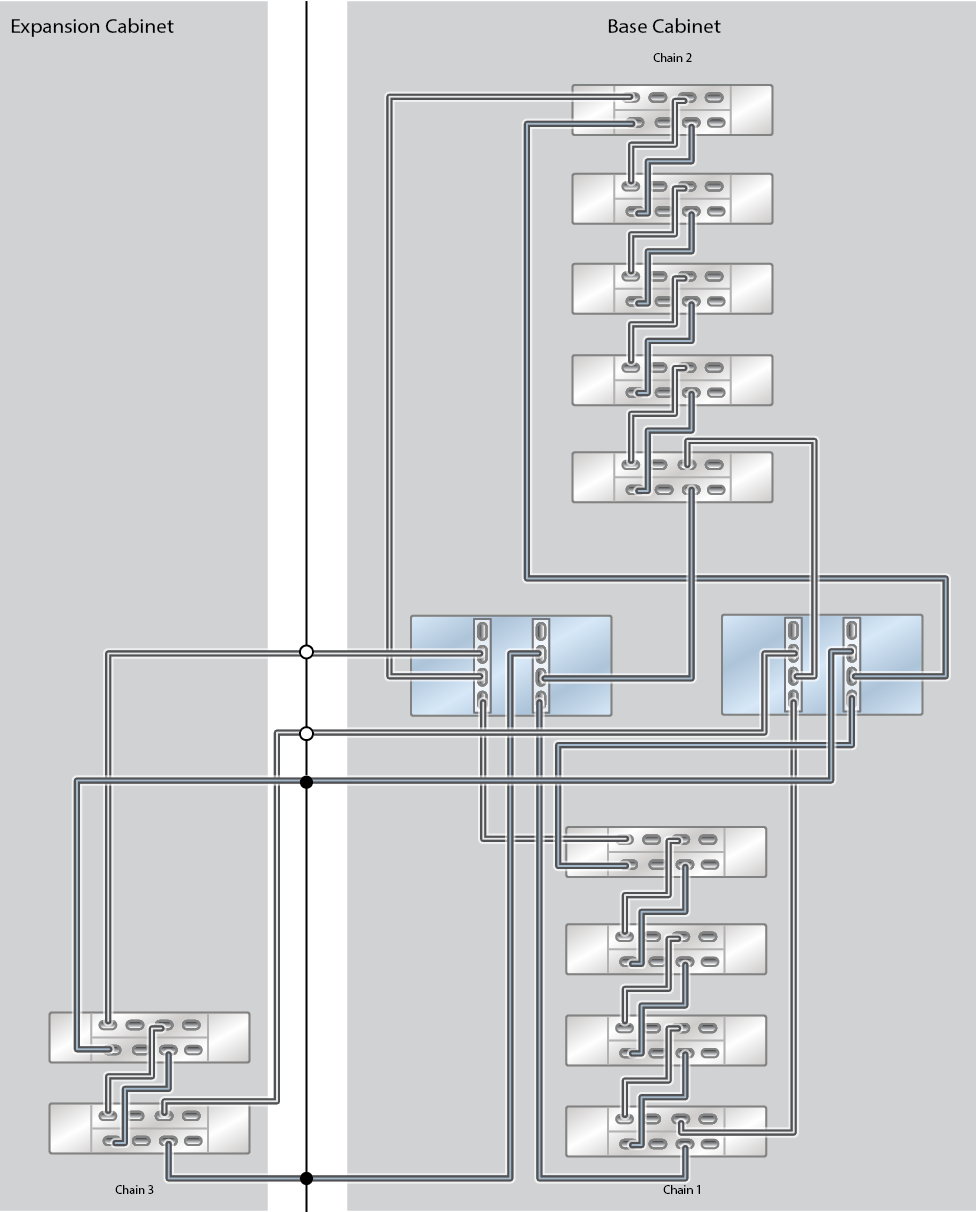

11 Oracle Storage Drive Enclosure DE3-24C Disk Shelves

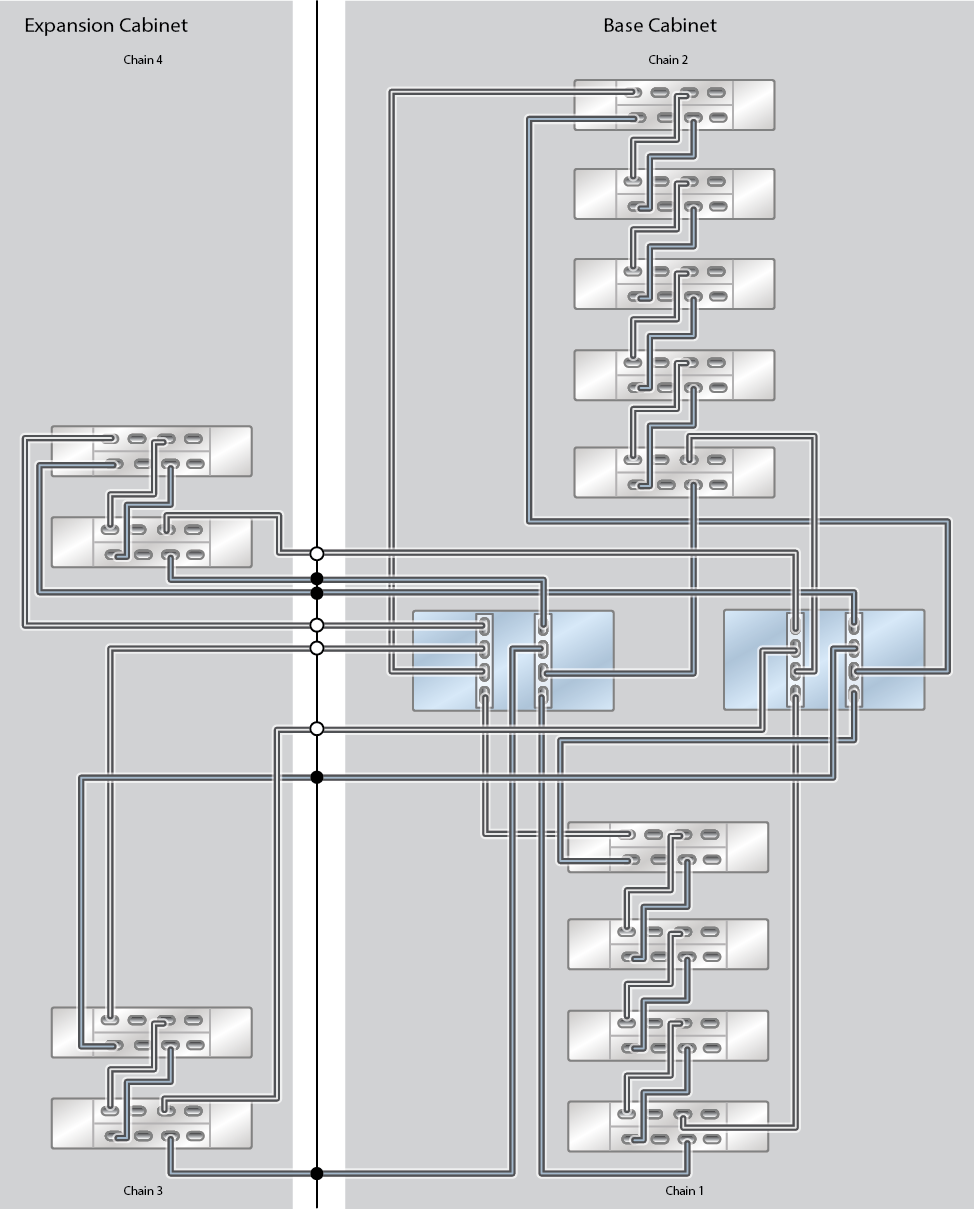

13 Oracle Storage Drive Enclosure DE3-24C Disk Shelves

14 Oracle Storage Drive Enclosure DE3-24C Disk Shelves (Half Rack)

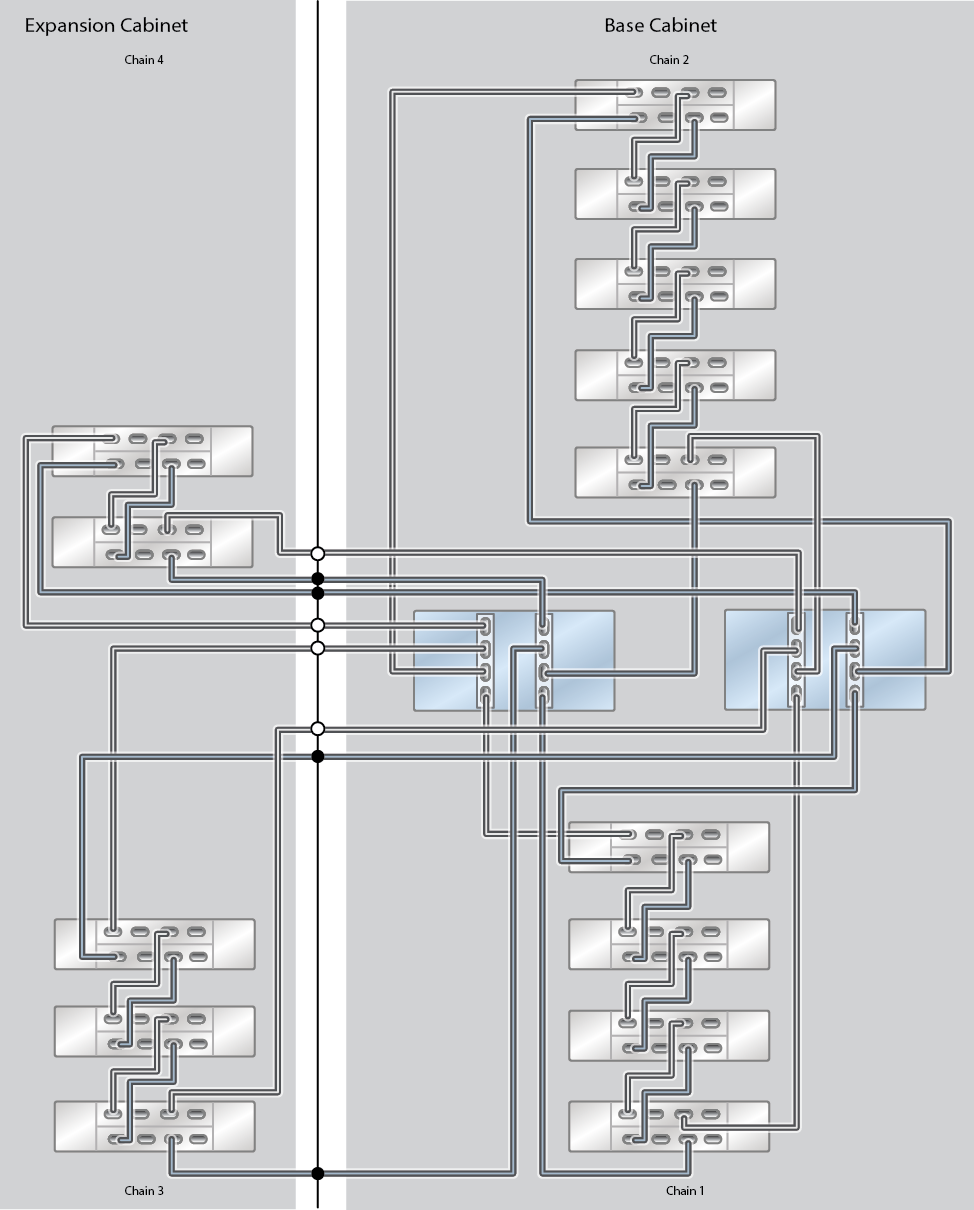

15 Oracle Storage Drive Enclosure DE3-24C Disk Shelves

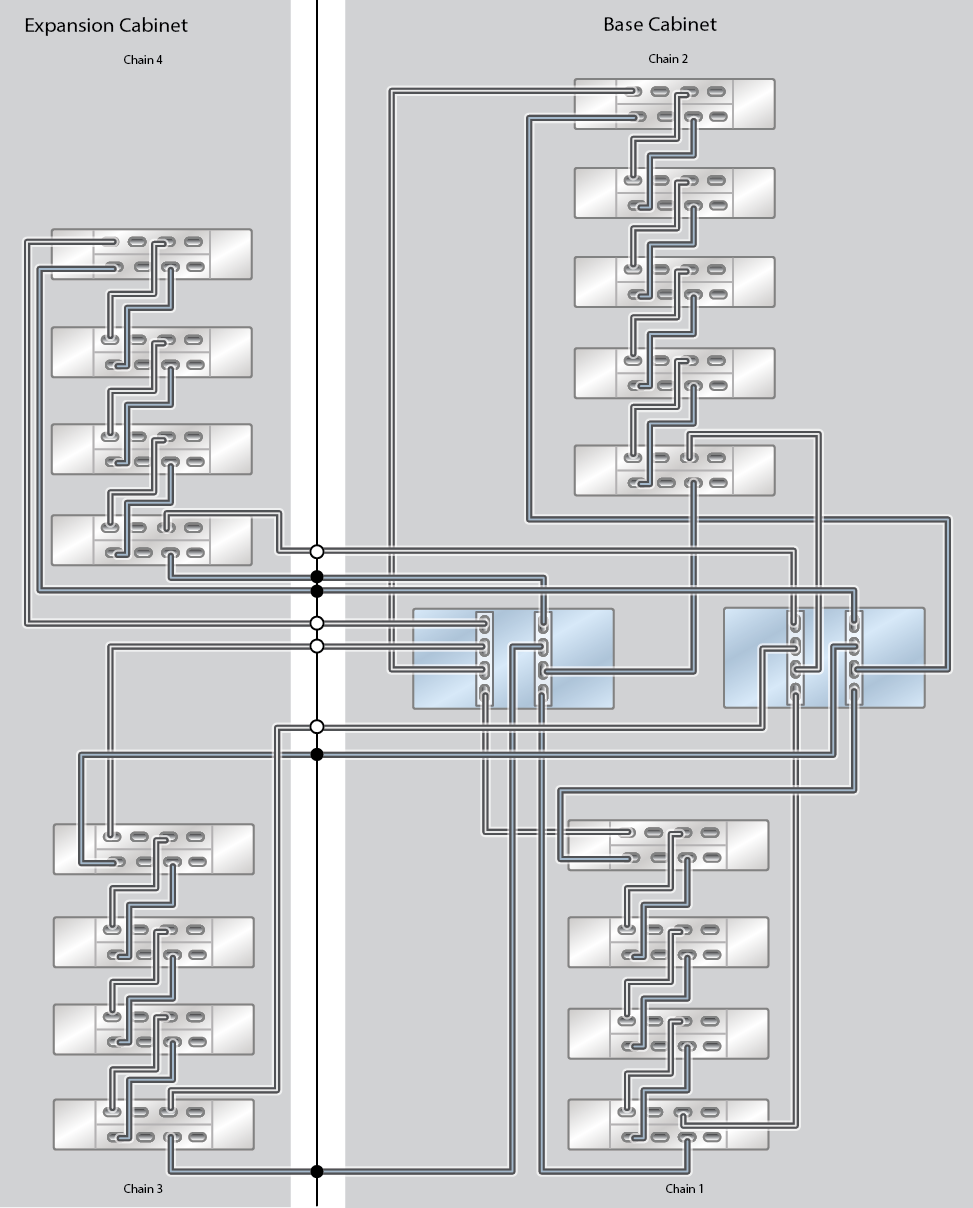

17 Oracle Storage Drive Enclosure DE3-24C Disk Shelves

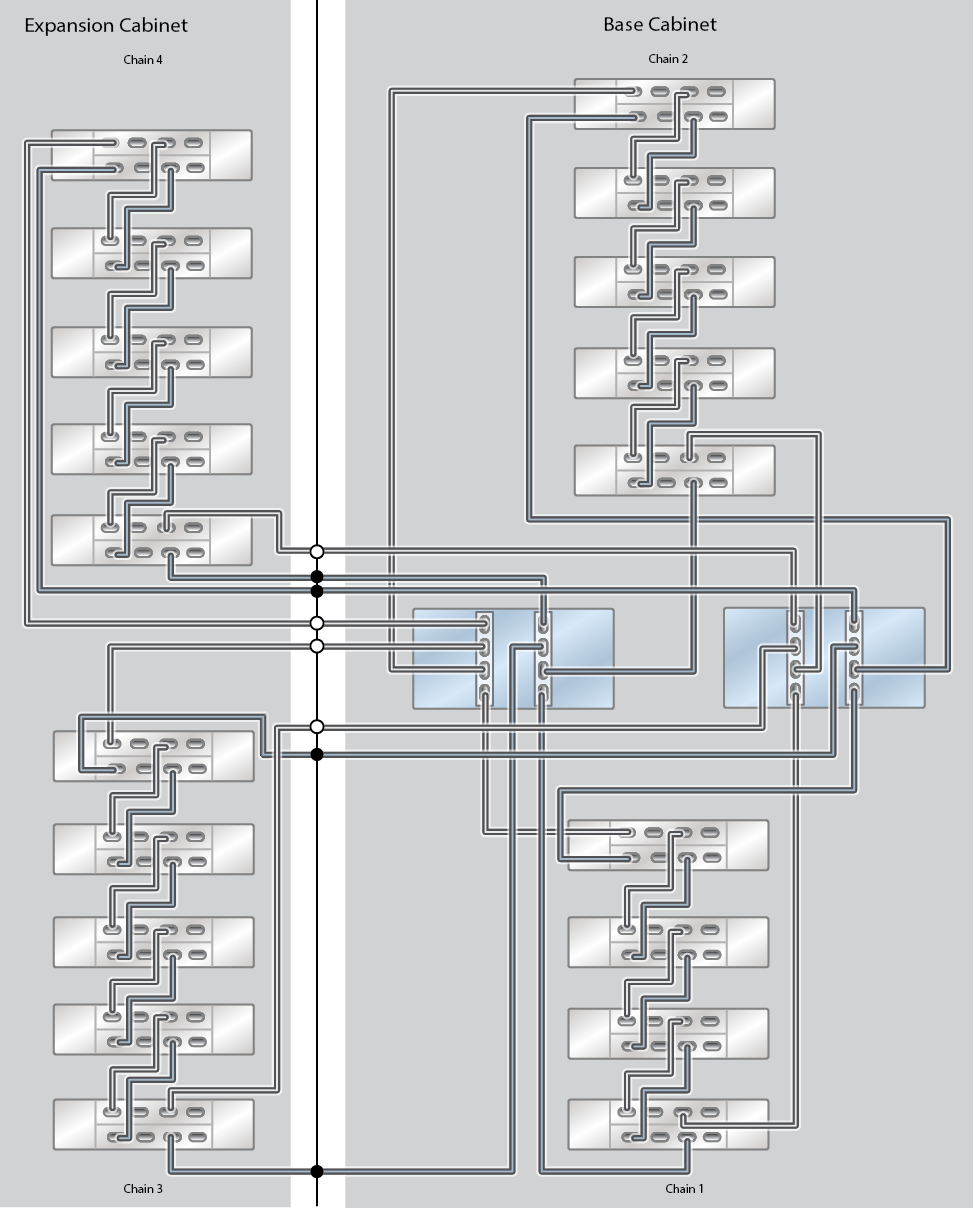

19 Oracle Storage Drive Enclosure DE3-24C Disk Shelves
