Oracle ZFS Storage ZS11-2 Front Panel Components

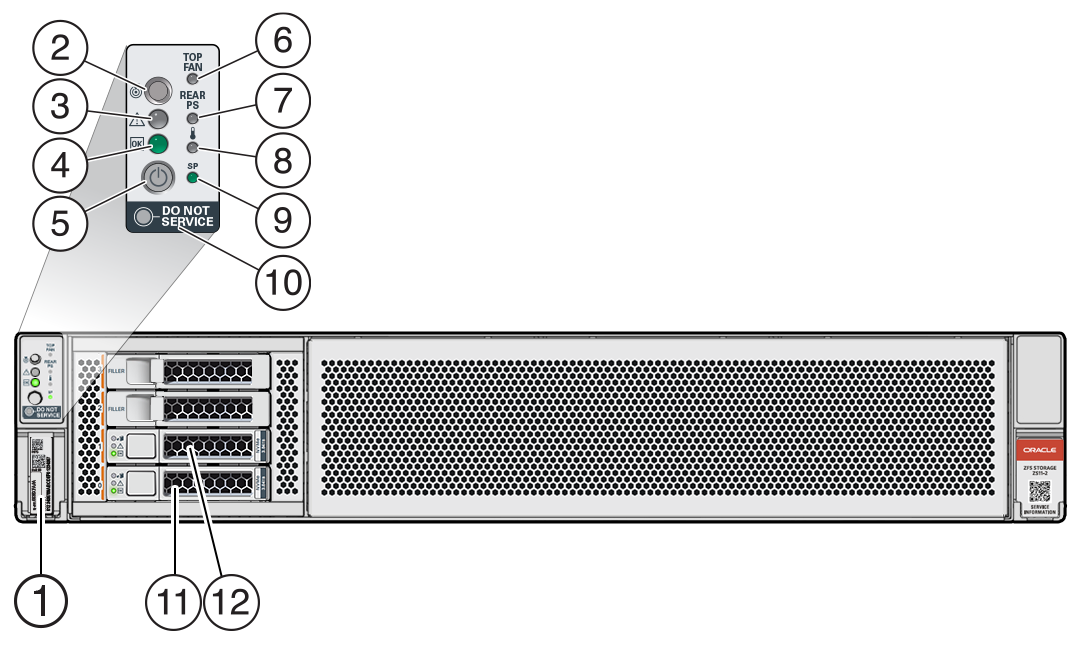

The Oracle ZFS Storage ZS11-2 controller drive slots and front panel components are shown in the following figure.


Image shows the front panel of the Oracle ZFS Storage ZS11-2 controller with callouts.

1 RFID tag

2 System status LED: Locator (white)

3 System status LED: Service Action Required (amber)

4 System status LED: Power/OK (green)

5 Power button

6 Fan service action required (amber)

7 Power Supply (PS) service action required (amber)

8 Over-temperature warning (amber)

9 Service Processor (SP) OK (green)

10 Do Not Service indicator

11 System disk 0

12 System disk 1
