Oracle ZFS Storage ZS11-2 Rear Panel Components

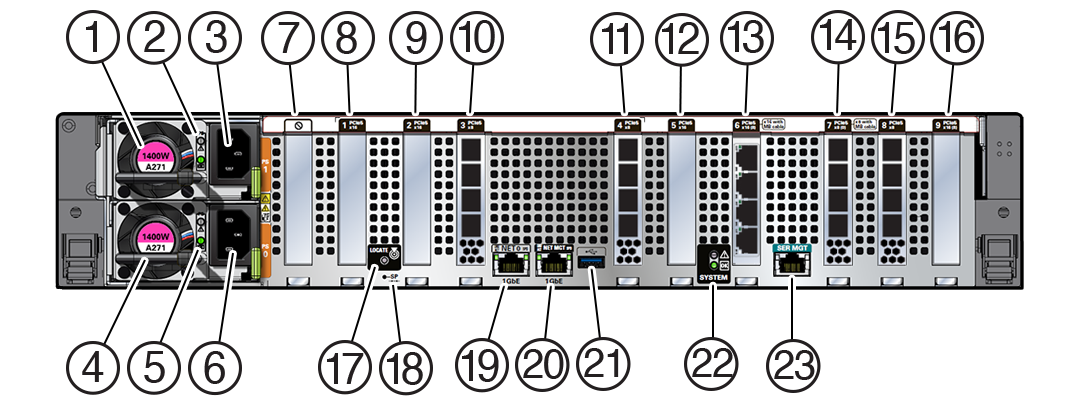

The Oracle ZFS Storage ZS11-2 controller PCIe slots and rear panel components are shown in the following figure (Oracle ZFS Storage ZS11-2 high-end model shown).


The image shows the Oracle ZFS Storage ZS11-2 high-end model rear panel components.

1 Power Supply Unit (PSU) 1

2 PSU 1 status indicators (top to bottom):

  • Attention (amber)

  • Power/OK (green)

3 PSU 1 AC power inlet (AC1)

4 Power Supply Unit (PSU) 0

5 PSU 0 status indicators (top to bottom):

  • Attention (amber)

  • Power/OK (green)

6 PSU 0 AC power inlet (AC0)

7 Not available

8 Sixth PCIe option (slot 1)

9 Second PCIe option (slot 2)

10 External SAS-3 HBA (slot 3)

11 Slot 4: One of the following options:

  • External SAS-3 HBA

  • Fourth PCIe option

12 Third PCIe option (slot 5)

13 Ethernet cluster interface card (slot 6)

14 Slot 7: One of the following options:

  • External SAS-3 HBA

  • Fifth PCIe option

15 External SAS-3 HBA (slot 8)

16 First PCIe option (slot 9)

17 LOCATE: System locate LED

18 SP: Reset service processor (SP)

19 NET 0: Network (NET 0) 1GbE RJ-45 100/1000BASE-T port

20 NET MGT: Oracle Integrated Lights Out Manager (ILOM) service processor (SP) network management (NET MGT) 1GbE RJ-45 100/1000BASE-T port

21 USB 3.1 port

22 System status LEDs (top to bottom):

  • Attention (amber)

  • Power/OK (green)

23 SER MGT: Serial management (SER MGT) RJ-45 serial port



For information about how to connect cables to form a cluster, see Connecting Cluster Cables in Oracle ZFS Storage Appliance Cabling Guide, Release OS8.8.x.
