Oracle ZFS Storage ZS3-2 Rear Panel Components

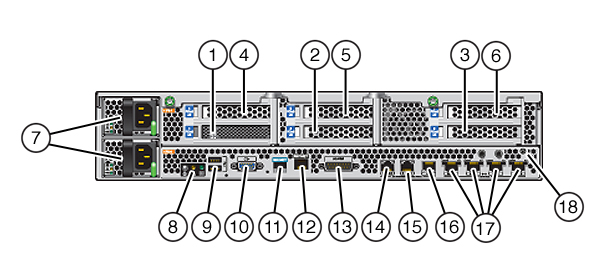

The Oracle ZFS Storage ZS3-2 controller PCIe slots and rear panel components are shown in the following figure.

For more information about PCIe cards, see Oracle ZFS Storage ZS3-2 PCIe I/O Cards in Oracle ZFS Storage Appliance Customer Service Manual, Release OS8.8.x.


Graphic showing the components at the back of the Oracle ZFS Storage ZS3-2 controller

1 SAS-2 internal HBA (slot 1)

2 4x4 SAS external HBA (slot 2)

3 PCIe slot 3

4 PCIe slot 4

5 PCIe slot 5

6 PCIe slot 6

7 AC power supplies PS1 (top), PS0 (bottom)

8 System status LEDs

9 USB 2.0 ports

10 SP 15-pin VGA video port

11 Serial management port

12 Network management (NET MGT) 10/100 BASE-T Ethernet port

13 Alarm port, DB-15 connector (not used for the ZS3-2)

14-16 Cluster I/O ports

17 10-Gbit Ethernet ports

18 Chassis ground post



Note:

The three Cluster I/O ports (0, 1, and GigE) are reserved for cluster interconnection only.

The Oracle ZFS Storage ZS3-2 controller has the following ports:

  • Ethernet Ports - Oracle ZFS Storage ZS3-2 has four RJ-45 10-Gigabit Ethernet (10GbE) network connectors, labeled NET 3, NET 2, NET 1, and NET 0 (left to right) on the rear panel. The ports operate at 100 Mbits/sec, 1000 Mbits/sec, or 10-Gbits/sec. Use these ports to connect the appliance to the network.

    Graphic showing the four Ethernet ports and labels

    The LEDs located above each NET port are Link/Activity (left) and Speed (right) indicators for each port as described in this table:

    Connection Type

    EEE Terminology

    Speed LED Color

    Transfer Rate

    Fast Ethernet

    100BASE-TX

    Off

    100 Mbits/sec

    Gigabit Ethernet

    1000BASE-T

    Amber

    1000 Mbits/sec

    10 Gigabit Ethernet

    10GBASE-T

    Green

    10000 Mbits/sec

  • Cluster I/O Ports - Two cluster serial ports (0 and 1) and one Ethernet port provide communication between two controllers to form a cluster configuration. For information about how to connect cables to form a cluster, see Connecting Disk Shelf Cables.

    Graphic showing the three cluster input output ports

    Caution:

    When disconnecting an RJ-45 cable from a cluster serial port (0 and 1), use extreme care not to damage the internal RJ-45 receptacle. To properly disconnect an RJ-45 cable from a cluster serial port, see Disconnecting an RJ-45 Cable.

  • Network Management Port - The network management connector (NET MGT) is an RJ-45 10/100 BASE-T Ethernet port and provides an alternate terminal interface to the SP console.

    Graphic showing the network management port

  • Serial Management Port - The serial management connector (SER MGT) is an RJ-45 port and provides a terminal connection to the service processor (SP) console.

    Graphic showing the serial management port

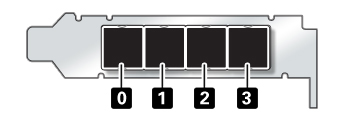

  • HBA Ports - The 4x4 SAS HBA, installed in PCIe slot 2 of the ZS3-2, provides connectivity to external disk shelves. The HBA logical ports are numbered 0-3, left to right, as shown in the following illustration:

    Graphic showing the port numbers zero through 3 on the HBA
