Oracle ZFS Storage ZS4-4 Front Panel Components

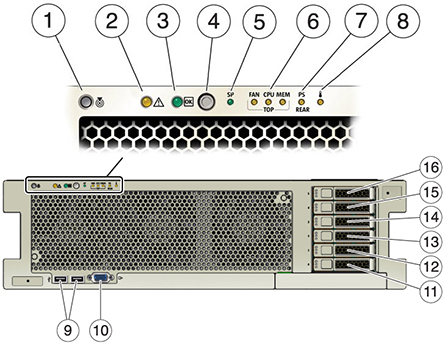

The Oracle ZFS Storage ZS4-4 controller drive slots and front panel components are shown in the following figure.


Figure showing front panel components

1 Locator LED/button (white)

2 Service action required LED (amber)

3 Power/OK LED (green)

4 Power button

5 Service Processor (SP) OK (green)/Fault (amber) LED

6 Fan/CPU/Memory Service action required LED (amber)

7 Power Supply (PS) Service action required LED (amber)

8 Over temperature warning LED (amber)

9 USB 2.0 connectors (2)

10 DB-15 video port

11 Boot drive 0 (required)

12 Boot drive 1 (required)

13 Solid state drive 2 (optional)

14 Solid state drive 3 (optional)

15 Solid state drive 4 (optional)

16 Solid state drive 5 (optional)



The Oracle ZFS Storage ZS4-4 controller has two 2.5-inch SAS system boot drives in slots 0 and 1, configured as a mirrored pair. Up to four SAS read cache SSDs can fill slots 2 through 5, in that order. A filler panel must be installed in empty drive slots.

The system boot drive LEDs are shown in the following figure.


Graphic showing the location of the three drive LEDs

Table 2-5 System Boot Drive LEDs

1 Ready to remove (blue)

2 Service action required (amber)

3 OK/Activity (green)
