Oracle ZFS Storage ZS5-2 Front Panel Components

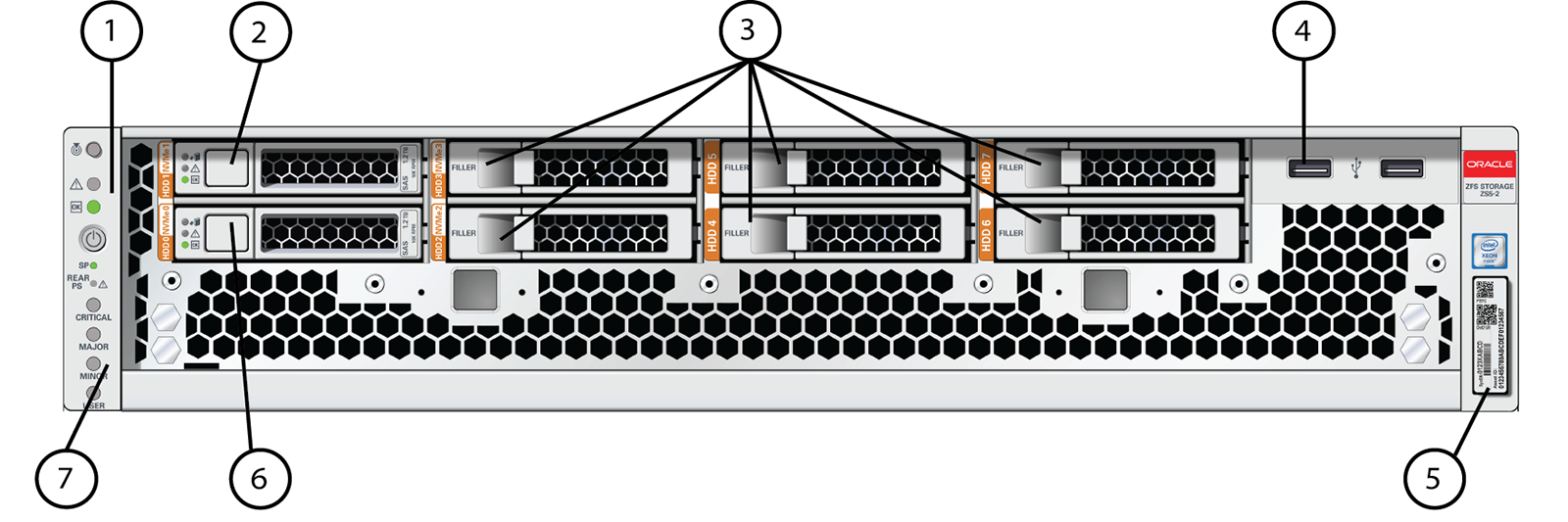

The Oracle ZFS Storage ZS5-2 controller drive slots and front panel components are shown in the following figure.


The image shows the Oracle ZFS Storage ZS5-2 front panel components.

1 LEDs: Locator, Service, Power

2 System disk 1

3 Permanent HDD filler panels

4 Two USB 2.0 ports

5 RFID tag

6 System disk 0

7 Alarm indicators (not used)
