Oracle ZFS Storage ZS5-2 Rear Panel Components

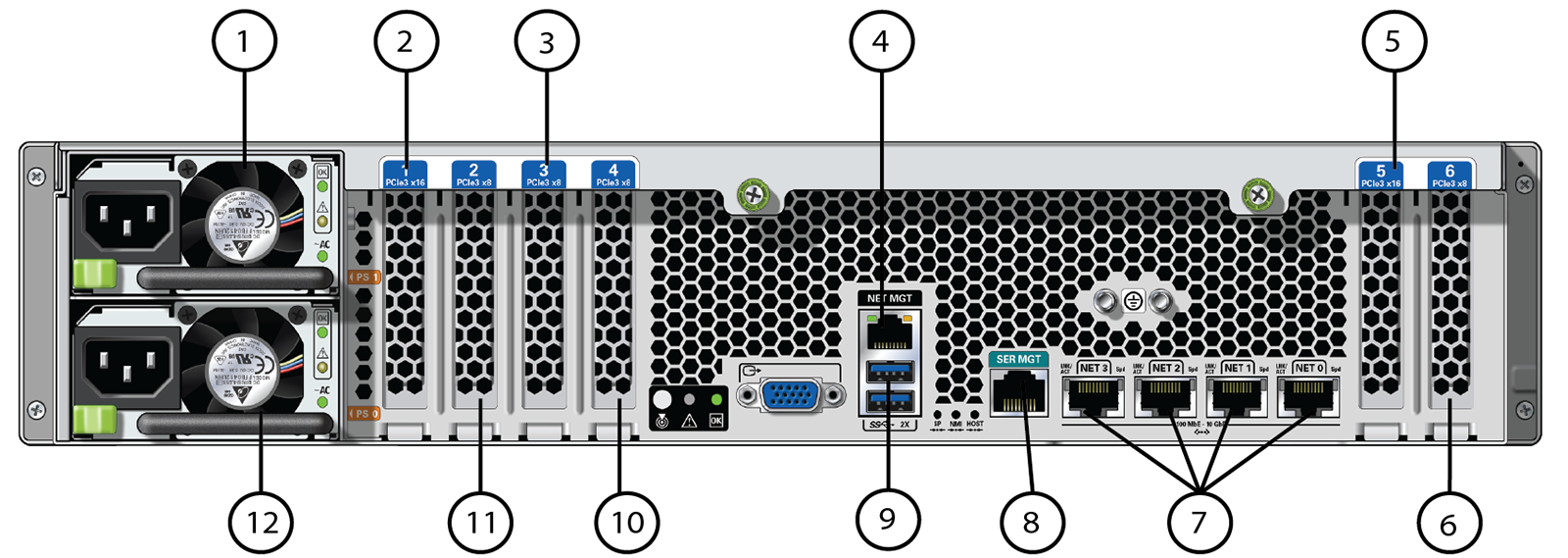

The Oracle ZFS Storage ZS5-2 controller PCIe slots and rear panel components are shown in the following figure.


The image shows the Oracle ZFS Storage ZS5-2 rear panel components.

1 Power Supply Unit (PSU) 1

2 Second PCle option (slot 1)

3 Third PCle option (slot 3)

4 Network Management (NET MGT) 10/100/1000 BASE-T Ethernet port

5 First PCle option (slot 5)

6 Second 4x4 SAS HBA, or fourth PCle option (slot 6)

7 Network (NET) 10 GbE ports: NET 0, NET 1, NET 2, NET 3

8 SER MGT port

9 Two USB 3.0 ports

10 Cluster interface card (slot 4)

11 First 4x4 SAS HBA (slot 2)

12 Power Supply Unit (PSU) 0

Cluster Interface Card Compatibility - The Oracle ZFS Storage ZS5-2 controller contains a Version 3 cluster interface card, which is incompatible with Version 2.

For information about how to connect cables to form a cluster, see Connecting Cluster Cables.
