Sun ZFS Storage 7120 Front Panel Components

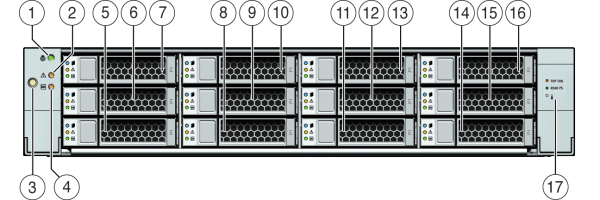

The following figure and legend show the Sun ZFS Storage 7120 front panel and the drive locations. The Logzilla 3.5" SSD belongs in slot 3 and is not supported in controllers configured with the internal Sun Aura flash HBA Logzilla.


Graphic showing the components on the controller front panel

1 Locator LED/button (white)

2 Service Action Required LED (amber)

3 Power button

4 Power/OK LED (green)

5 HDD 0

6 HDD 1

7 HDD 2

8 HDD or SSD 3

9 HDD 4

10 HDD 5

11 HDD 6

12 HDD 7

13 HDD 8

14 HDD 9

15 HDD 10

16 HDD 11

17 Drive map
