Sun ZFS Storage 7120 Rear Panel Components

The following figure and legend show the Sun ZFS Storage 7120 rear panel.

Note:

Optional Sun Dual Port 40Gb/sec 4x Infiniband QDR HCAdapter PCIe cards (375-3606-01) may be located in slots 1, 2, or 3. 375-3606-01 HCA expansion cards are not supported in the 10Gb network configurations. For more information about PCIe cards, see Sun ZFS Storage 7120 PCIe Options in Oracle ZFS Storage Appliance Customer Service Manual, Release OS8.8.x.

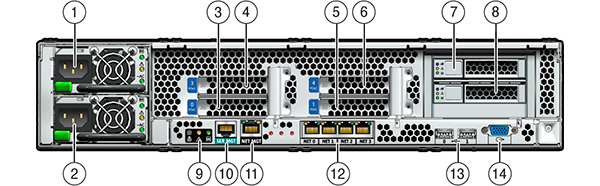

Graphic showing the components at the back of the controller

1 Power Supply Unit 1

2 Power Supply Unit 0

3 PCIe 0

4 PCIe 3

5 PCIe 1

6 PCIe 4

7 Boot HDD 1

8 Boot HDD 0

9 Rear Panel System Status LEDs

10 Serial Management port

11 Network Management port

12 Gbit Ethernet ports NET 0, 1, 2, 3

13 USB 2.0 ports (0, 1)

14 HD15 Video port



The Sun ZFS Storage 7120 controller has the following ports:

  • Ethernet Ports - There are four RJ-45 Gigabit Ethernet ports (NET 0, NET 1, NET 2, NET 3) located on the motherboard that operate at 10/100/1000 Mbit/sec. These network interfaces must be configured before use.

  • Network Management Port - The network management connector (NET MGT) is an RJ-45 port and provides an alternate terminal interface to the SP console.

    Graphic showing the network management port

  • Serial Management Port - The serial management connector (SER MGT) is an RJ-45 port and provides a terminal connection to the SP console.

    Graphic showing the serial management port
