Oracle ZFS Storage ZS3-2 Front and Rear Panel Components

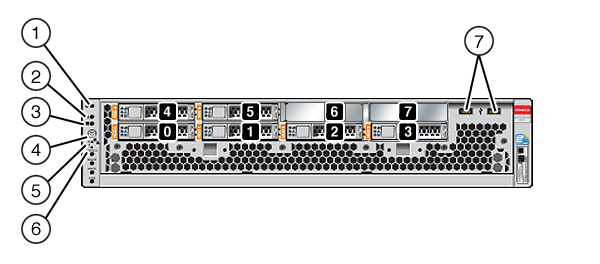

Oracle ZFS Storage ZS3-2 Front Panel Components - The Oracle ZFS Storage ZS3-2 controller drive slots and front panel components are shown in the following figure.
![Graphic showing Oracle ZFS Storage ZS3-2 controller front panel Graphic showing Oracle ZFS Storage ZS3-2 controller front panel](img/a2900_front-panel.jpg)
Drive slots 0 and 1 have two mirrored boot drives. Up to four read-optimized cache solid state drives (SSDs) fill slots 2 through 5, in order. Slots 6 and 7 are empty and must contain drive fillers.
1 Locator LED/button (white) |
5 Service Processor OK LED (green) |
2 Service Action Required LED (amber) |
6 Fan/CPU/Memory Service Required LED |
3 Power OK LED (green) |
7 USB 2.0 ports |
4 Power button |
Note:

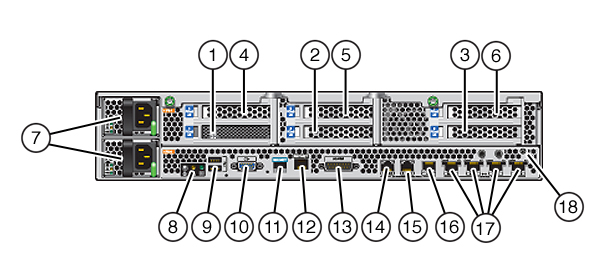

The LEDs below the Fan/CPU/Memory Service Required LED are not currently used.Oracle ZFS Storage ZS3-2 Rear Panel Components - The Oracle ZFS Storage ZS3-2 controller PCIe slots and rear panel components are shown in the following figure.
![Graphic showing Oracle ZFS Storage ZS3-2 controller rear panel Graphic showing Oracle ZFS Storage ZS3-2 controller rear panel](img/a2901_rear-view.jpg)
1 8-port SAS-2 internal HBA (slot 1) |
7 AC power supplies PS1 (top), PS0 (bottom) |
13 Alarm port, DB-15 connector (not used for the ZS3-2) |
2 4x4 SAS HBA (slot 2) |
8 System status LEDs |
14-16 Cluster I/O ports |
3 PCIe slot 3 |
9 USB 2.0 ports |
17 10-Gbit Ethernet ports |
4 PCIe slot 4 |
10 SP 15-pin VGA video port |
18 Chassis ground post |
5 PCIe slot 5 |
11 Serial management port |
|
6 PCIe slot 6 |
12 Network management (NET MGT) 10/100 BASE-T Ethernet port |
Note:
The three Cluster I/O ports (0, 1, and GigE) are reserved for cluster interconnection only.Cluster Interface Compatibility - The Oracle ZFS Storage ZS3-2 controller contains embedded support for Version 2 clustering ports. It does not have a cluster interface card nor can one be installed in a PCIe slot.
Ethernet Ports
The Oracle ZFS Storage ZS3-2 controller has four RJ-45 10-Gigabit Ethernet (10GbE) network connectors, labeled NET 3, NET 2, NET 1, and NET 0 (left to right) on the rear panel. The ports operate at 100 Mbits/sec, 1000 Mbits/sec, or 10-Gbits/sec. Use these ports to connect the appliance to the network.
Table 10-2 Oracle ZFS Storage ZS3-2 Ethernet Port LEDs Description
Connection Type | EEE Terminology | Speed LED Color | Transfer Rate |
---|---|---|---|
Fast Ethernet |
100BASE-TX |
Off |
100 Mbits/sec |
Gigabit Ethernet |
1000BASE-T |
Amber |
1000 Mbits/sec |
10 Gigabit Ethernet |
10GBASE-T |
Green |
10000 Mbits/sec |
The LEDs located above each NET port are Link/Activity (left) and Speed (right) indicators for each port.
![Graphic showing the Oracle ZFS Storage ZS3-2 controller Ethernet ports Graphic showing the Oracle ZFS Storage ZS3-2 controller Ethernet ports](img/a3106_ethernet-ports.png)
Network Management Port
The Oracle ZFS Storage ZS3-2 network management connector (NET MGT) is an RJ-45 10/100 BASE-T Ethernet port and provides an alternate terminal interface to the SP console.
![Graphic showing the Oracle ZFS Storage ZS3-2 controller network management port Graphic showing the Oracle ZFS Storage ZS3-2 controller network management port](img/a3105_net-mgmt-port.png)
Serial Management Port
The Oracle ZFS Storage ZS3-2 serial management connector (SER MGT) is an RJ-45 port and provides a terminal connection to the service processor (SP) console.
![Graphic showing the Oracle ZFS Storage ZS3-2 controller serial management port Graphic showing the Oracle ZFS Storage ZS3-2 controller serial management port](img/a3104_serial-mgmt-port.png)
Cluster I/O Ports
Two cluster serial ports (0 and 1) and one Ethernet port provide communication between two Oracle ZFS Storage ZS3-2 controllers to form a cluster configuration. For information about how to connect cables to form a cluster, see Connecting Cluster Cables in Oracle ZFS Storage Appliance Cabling Guide, Release OS8.8.x.
Caution:
When disconnecting an RJ-45 cable from a cluster serial port (0 and 1), use extreme care not to damage the internal RJ-45 receptacle.Oracle ZFS Storage ZS3-2 Controller Cluster I/O Ports: Serial 0, Serial 1, Ethernet
![Graphic showing Oracle ZFS Storage ZS3-2 controller cluster I/O ports: Serial 0, Serial 1, Ethernet Graphic showing Oracle ZFS Storage ZS3-2 controller cluster I/O ports: Serial 0, Serial 1, Ethernet](img/a3107_nc-cluster-ports.jpg)
4x4 SAS HBA

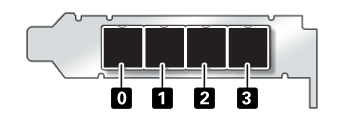

The 4x4 SAS HBA, installed in PCIe slot 2 of the Oracle ZFS Storage ZS3-2 controller, provides connectivity to external disk shelves. The HBA logical ports are numbered 0-3, as shown in the following figure.
![Graphic showing the Oracle ZFS Storage ZS3-2 controller 4x4 SAS HBA port numbers Graphic showing the Oracle ZFS Storage ZS3-2 controller 4x4 SAS HBA port numbers](img/a3426_thebe2-ports.png)
For controllers with an additional 4x4 SAS HBA, see Oracle ZFS Storage ZS3-2 PCIe I/O Cards for slot placement.
