Ampliación de las páginas de la consola mediante documentos de esquema

Revise los requisitos, los tipos soportados y los ejemplos de documentos de esquema utilizados con las configuraciones de Terraform en Resource Manager.

Se recomiendan documentos de esquema para las configuraciones de Terraform al utilizar Resource Manager. La inclusión de un documento de esquema permite ampliar páginas en la consola de Oracle Cloud Infrastructure. Facilite la entrada de variables en la página Crear pila mostrando los controles de claves SSH y nombrando, agrupando, rellenando previamente valores de forma dinámica, entre otros. Defina el texto en el separador Información de la aplicación de la página Detalles de pila que se abre para una pila creada.

Requisitos para documentos de esquema

Los documentos de esquema para Resource Manager tienen los siguientes requisitos:

Formato YAML.
Los tipos de dato deben ser coherentes con la configuración de Terraform asociada.

Por ejemplo, supongamos que declara el tipo number para la variable availability en el esquema. En esta situación, availability debe tener el mismo tipo declarado (number) en la configuración de Terraform asociada. (Por defecto, las variables sin tipo declarado utilizan string.)
Colocación en la carpeta raíz de la configuración de Terraform del gestor de recursos. Por defecto, el documento de esquema asume que la carpeta raíz es el directorio de trabajo.

Tipos admitidos (controles y relleno previo dinámico)

En esta sección, se muestran los tipos admitidos por Resource Manager para los controles y la población previa dinámica.

La mayoría de los tipos necesitan el OCID del compartimento (dependsOn: required: compartmentId). Algunos tipos tienen elementos obligatorios u opcionales adicionales. Para determinar los elementos necesarios y opcionales para un tipo, consulte Esquema Meta para Validación.

Opcionalmente, filtre listas rellenadas previamente de forma dinámica por otras variables mediante dependsOn. Por ejemplo, filtre las subredes por VCN. Para obtener más información, consulte Relleno previo dinámico.

Nota

Las descripciones de los archivos schema.yaml están codificadas en HTML en la salida.

Cuando se definen en la configuración de Terraform, las siguientes variables se rellenan automáticamente con valores en las páginas de la consola que se utilizan para crear y editar la pila. Los valores de la pila se utilizan al seleccionar las acciones de Terraform Plan, Aplicar y Destruir.

tenancy_ocid (OCID de arrendamiento)
compartment_ocid (OCID de compartimento)
region (región)
current_user_ocid (OCID del usuario actual)

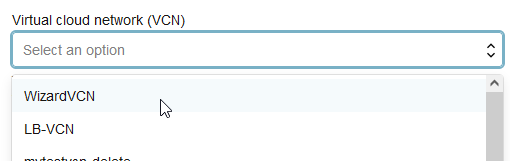

Escriba (se representa como un campo desplegable rellenado dinámicamente a menos que se indique lo contrario)	Identificador de recurso	Comentarios

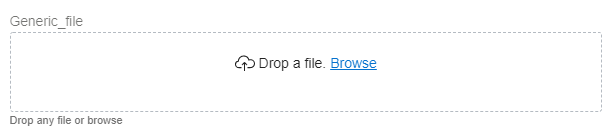

`file`	--	Supera un control para agregar un único archivo soltando o navegando. Cuando se muestra este control, un usuario puede cargar un archivo de cualquier extensión, como una clave de licencia o un certificado. Para obtener más información, consulte Control de archivos.
`oci:apm:domain:id`	OCID de dominio de Application Performance Monitoring (APM)
`oci:blockstorage:policies:id`	Política de copia de seguridad de volumen
`oci:container:cluster:id`	OCID de clusters de Kubernetes
`oci:core:image:id`	OCID de imagen
`oci:core:instanceshape:name`	Nombre de la unidad de instancia
`oci:core:natgateway:id`	OCID de gateway de NAT
`oci:core:nsg:id`	OCID de grupo de seguridad de red
`oci:core:servicegateway:id`	OCID de gateway de servicio

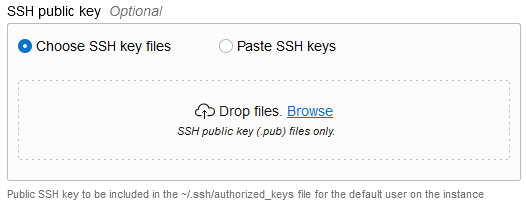

`oci:core:ssh:publickey`	--	Superpone un control para agregar una o más claves SSH públicas borrando archivos o pegando valores de clave. Para obtener más información, consulte SSH key control.
`oci:core:subnet:id`	OCID de subred
`oci:core:vcn:id`	OCID de VCN
`oci:database:autonomouscontainerdatabase:id`	OCID de Autonomous Container Database
`oci:database:autonomousdatabase:id`	OCID de Autonomous Database
`oci:database:autonomousdatabaseversion:id`	Versión de Autonomous Database
`oci:database:database:id`	OCID de base de datos para una base de datos del servicio Base de datos base o una base de datos Exadata Database Service on Dedicated Infrastructure.
`oci:database:dbhome:id`	OCID de directorio raíz de base de datos (se aplica a Base Database y Exadata Database Service on Dedicated Infrastructure)
`oci:database:dbsystem:id`	OCID del sistema de base de datos (se aplica a la base de datos base)
`oci:identity:availabilitydomain:name`	Nombre de dominio de disponibilidad
`oci:identity:compartment:id`	OCID de compartimento
`oci:identity:dynamicgroups:id`	OCID de grupo dinámico	Especifique el OCID del arrendamiento como `compartmentId`. Consulte ListDynamicGroups.
`oci:identity:faultdomain:name`	Nombre de dominio de errores
`oci:identity:groups:id`	OCID de grupo	Especifique el OCID del arrendamiento como `compartmentId`. Consulte ListGroups.
`oci:identity:region:name`	Nombre de la región

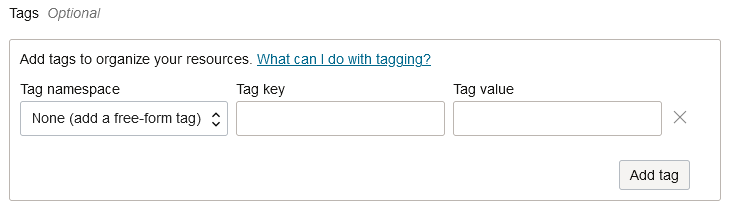

`oci:identity:tag:value`	Nombre de clave de etiqueta del espacio de nombres de etiqueta; consulte TagSummary	Superpone un control para agregar etiquetas definidas y de formato libre. Para obtener más información, consulte Control de Tagging.
`oci:kms:key:id`	OCID de la clave de almacén; consulte ListKeys
`oci:kms:secret:id`	OCID del secreto de almacén; consulte ListSecrets
`oci:kms:vault:id`	OCID de almacén
`oci:kubernetes:versions:id`	Consulte GetClusterOptions
`oci:loadbalancer:loadbalancer:id`	OCID del equilibrador de carga
`oci:ods:project:id`	OCID de proyecto de Data Science
`oci:resourcemanager:privateendpoint:id`	OCID de punto final privado de gestor de recursos	Especifique un compartimento (`compartmentId`) y una VCN (`vcnId`) para mostrar los puntos finales privados. Para ver un ejemplo, consulte Declaración de ejemplo para puntos finales privados en esta página.

Meta Esquema para Validación

Utilice el siguiente archivo de esquema de metadatos para confirmar que el documento de esquema está utilizando tipos de variables soportados.

Esquema de metadatos

# Meta JSON Schema.
#
# This is used to validate the Schema file when the package is uploaded/loaded into Resource Manager.
# For marketplace, it is also used to validate the package when the package artifact is created in Partner Portal.
#
# NOTE: additionalProperties are set to true explicitly even though this is the default.  It must be set to true in
# cases where we use the allOf. This is a quirk of JSON Schema.  During validation, allOf means it has to match all of
# the individual definitions separately. It doesn't mean it has to match a Union of the individual definitions. This
# is a known issue with JSON Schema.
title: Schema
type: object
required:
  - variables
  - schemaVersion
additionalProperties: true
properties:
  title:
    type: string
  description:
    type: string
  stackDescription:
    type: string
  packageVersion:
    type: string
  version:
    type: string
  schemaVersion:
    type: string
    enum:
      - 1.0.0
      - 1.1.0
  locale:
    $ref: "#/definitions/locale"
  logoUrl:
    $ref: "#/definitions/url"
  source:
    $ref: "#/definitions/source"
  informationalText:
    type: string
  instructions:
    type: string
  troubleshooting:
    type: string
  allowViewState:
    type: boolean
  variables:
    $ref: "#/definitions/variables"
  # Deprecated - use variableGroups instead
  groupings:
    $ref: "#/definitions/variableGroups"
  variableGroups:
    $ref: "#/definitions/variableGroups"
  outputs:
    $ref: "#/definitions/outputs"
  outputGroups:
    $ref: "#/definitions/outputGroups"
  primaryOutputButton:
    type: string
    format: variablereference

definitions:
  source:
    type: object
    properties:
      type:
        enum:
          - marketplace
          - quickstart
          - web
      reference:
        type:
          - string
          - number
    additionalProperties: false

  variableGroups:
    type: array
    items:
      $ref: "#/definitions/variableGroup"

  variableGroup:
    type: object
    required:
      - title
      - variables
    properties:
      title:
        type: string
      variables:
        type: array
        items:
          type: string
          format: variablereference
      visible:
        $ref: "#/definitions/booleanStatement"
    additionalProperties: true

  locale:
    enum:
      - en
    default: en

  url:
    type: string
    pattern: ^https?:\/\/(www\.)?[-a-zA-Z0-9@:%._\+~#=]{2,256}\.[a-z]{2,4}\b([-a-zA-Z0-9@:%_\+.~#?&//=]*)$

  ocid:
    type: string
    pattern: ^ocid1\.([a-z0-9_-]{1,32})\.([a-z0-9_-]{1,15})\.([a-z0-9]{0,24})\.([a-z0-9]{60})$

  variables:
    type: object
    additionalProperties:
      $ref: "#/definitions/variable"

  variable:
    oneOf:
      - $ref: "#/definitions/staticVariable"
      - $ref: "#/definitions/dynamicVariable"

  baseVariable:
    type: object
    properties:
      title:
        type: string
        minLength: 1
      description:
        type: string
      required:
        type: boolean
        default: false
      visible:
        $ref: "#/definitions/booleanStatement"

  booleanStatement:
    oneOf:
      - type: boolean
      - type: string
      - $ref: "#/definitions/equality"
      - $ref: "#/definitions/greaterThanOrEqual"
      - $ref: "#/definitions/lessThanOrEqual"
      - $ref: "#/definitions/greaterThan"
      - $ref: "#/definitions/lessThan"
      - $ref: "#/definitions/booleanOr"
      - $ref: "#/definitions/booleanAnd"
      - $ref: "#/definitions/booleanNot"

  equality:
    type: object
    properties:
      eq:
        type: array
        items:
          - type: [string, number]
          - type: [string, number]
        additionalItems: false
    additionalProperties: false

  greaterThanOrEqual:
    type: object
    properties:
      ge:
        type: array
        items:
          - type: [string, number]
          - type: [string, number]
        additionalItems: false
    additionalProperties: false

  lessThanOrEqual:
    type: object
    properties:
      le:
        type: array
        items:
          - type: [string, number]
          - type: [string, number]
        additionalItems: false
    additionalProperties: false

  greaterThan:
    type: object
    properties:
      gt:
        type: array
        items:
          - type: [string, number]
          - type: [string, number]
        additionalItems: false
    additionalProperties: false

  lessThan:
    type: object
    properties:
      lt:
        type: array
        items:
          - type: [string, number]
          - type: [string, number]
        additionalItems: false
    additionalProperties: false

  booleanOr:
    type: object
    properties:
      or:
        type: array
        items:
          - $ref: "#/definitions/booleanStatement"
          - $ref: "#/definitions/booleanStatement"
        additionalItems: false
    additionalProperties: false

  booleanAnd:
    type: object
    properties:
      and:
        type: array
        items:
          - $ref: "#/definitions/booleanStatement"
          - $ref: "#/definitions/booleanStatement"
        additionalItems: false
    additionalProperties: false

  booleanNot:
    type: object
    properties:
      not:
        type: array
        items:
          - $ref: "#/definitions/booleanStatement"
        additionalItems: false
    additionalProperties: false

  dependsOnCompartment:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - dependsOn
        properties:
          dependsOn:
            type: object
            required:
              - compartmentId
            properties:
              compartmentId:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  staticVariable:
    oneOf:
      - $ref: "#/definitions/arrayVariable"
      - $ref: "#/definitions/booleanVariable"
      - $ref: "#/definitions/enumVariable"
      - $ref: "#/definitions/integerVariable"
      - $ref: "#/definitions/numberVariable"
      - $ref: "#/definitions/stringVariable"
      - $ref: "#/definitions/multilineVariable"
      - $ref: "#/definitions/fileVariable"

      - $ref: "#/definitions/passwordVariable"
      - $ref: "#/definitions/datetimeVariable"

  dynamicVariable:
    oneOf:
      - $ref: "#/definitions/imageVariable"
      - $ref: "#/definitions/instanceShapeVariable"
      - $ref: "#/definitions/subnetVariable"
      - $ref: "#/definitions/vcnVariable"
      - $ref: "#/definitions/availabilityDomainVariable"
      - $ref: "#/definitions/compartmentVariable"
      - $ref: "#/definitions/faultDomainVariable"
      - $ref: "#/definitions/regionVariable"
      - $ref: "#/definitions/dbSystemVariable"
      - $ref: "#/definitions/dbHomeVariable"
      - $ref: "#/definitions/dbHomeVersionVariable"
      - $ref: "#/definitions/databaseVariable"
      - $ref: "#/definitions/autonomousDatabaseVariable"
      - $ref: "#/definitions/autonomousDatabaseVersionVariable"
      - $ref: "#/definitions/autonomousContainerDBVariable"
      - $ref: "#/definitions/kmsVaultVariable"
      - $ref: "#/definitions/containerClusterVariable"
      - $ref: "#/definitions/volumeBackupPoliciesVariable"
      - $ref: "#/definitions/loadBalancerVariable"
      - $ref: "#/definitions/serviceGatewayVariable"
      - $ref: "#/definitions/kubernetesVersionsVariable"
      - $ref: "#/definitions/instanceVariable"
      - $ref: "#/definitions/natGatewayVariable"
      - $ref: "#/definitions/tagVariable"
      - $ref: "#/definitions/nsgVariable"
      - $ref: "#/definitions/mountTargetsVariable"
      - $ref: "#/definitions/kmsKeyVariable"
      - $ref: "#/definitions/kmsSecretVariable"
      - $ref: "#/definitions/odsProjectVariable"
      - $ref: "#/definitions/instanceShapeVariableWithFlex"
      - $ref: "#/definitions/groupsVariable"
      - $ref: "#/definitions/dynamicGroupsVariable"
      - $ref: "#/definitions/logAnalyticsLogGroup"
      - $ref: "#/definitions/logAnalyticsLogEntities"
      - $ref: "#/definitions/logAnalyticsScheduledTasks"
      - $ref: "#/definitions/logAnalyticsEntityTypes"
      - $ref: "#/definitions/managementAgents"
      - $ref: "#/definitions/logAnalyticsSources"
      - $ref: "#/definitions/privateEndpointVariable"
      - $ref: "#/definitions/apmDomainVariable"

  nonNegativeInteger:
    type: integer
    minimum: 0

  nonNegativeIntegerDefault0:
    allOf:
      - $ref: "#/definitions/nonNegativeInteger"
      - default: 0

  arrayVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required: [type]
        properties:
          type:
            enum: [array]
          items:
            $ref: "#/definitions/variable"
          maxItems:
            $ref: "#/definitions/nonNegativeInteger"
          minItems:
            $ref: "#/definitions/nonNegativeIntegerDefault0"
          uniqueItems:
            type: boolean
            default: false
          contains:
            $ref: "#/definitions/variable"
        additionalProperties: true

  booleanVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required: [type]
        properties:
          type:
            enum: [boolean]
          default:
            $ref: "#/definitions/booleanStatement"
            default: false
        additionalProperties: true

  enumVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required: [type]
        properties:
          type:
            enum: [enum]
          enum:
            type: array
            items:
              type: string
          default:
            $ref: "#/definitions/booleanStatement"
          allowMultiple:
            type: boolean
            default: false
        additionalProperties: true

  integerVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required: [type]
        properties:
          type:
            enum: [integer]
          default:
            type: integer
          multipleOf:
            type: number
            exclusiveMinimum: 0
          minimum:
            type: number
          maximum:
            type: number
          exclusiveMinimum:
            type: number
          exclusiveMaximum:
            type: number
        additionalProperties: true

  numberVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required: [type]
        properties:
          type:
            enum: [number]
          default:
            type: number
          multipleOf:
            type: number
            exclusiveMinimum: 0
          minimum:
            type: number
          maximum:
            type: number
          exclusiveMinimum:
            type: number
          exclusiveMaximum:
            type: number
        additionalProperties: true

  stringVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required: [type]
        properties:
          type:
            enum: [string]
          default:
            $ref: "#/definitions/booleanStatement"
          pattern:
            type: string
          maxLength:
            $ref: "#/definitions/nonNegativeInteger"
          minLength:
            $ref: "#/definitions/nonNegativeIntegerDefault0"
        additionalProperties: true

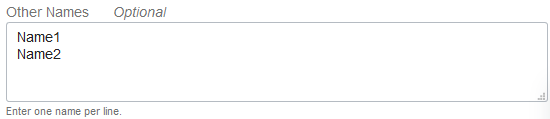

  multilineVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required: [type]
        properties:
          type:
            enum: [text]
          default:
            $ref: "#/definitions/booleanStatement"
          pattern:
            type: string
          multiline:
            type: boolean
          maxLength:
            $ref: "#/definitions/nonNegativeInteger"
          minLength:
            $ref: "#/definitions/nonNegativeIntegerDefault0"
        additionalProperties: true

  fileVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required: [type]
        properties:
          type:
            enum: [file]
        additionalProperties: true

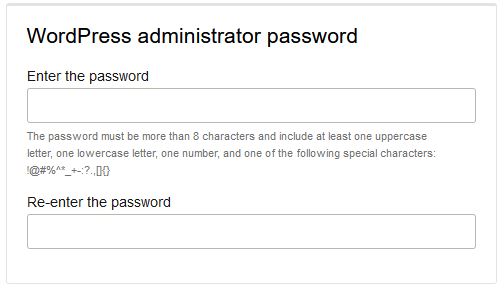

  passwordVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required: [type]
        properties:
          type:
            enum: [password]
          default:
            $ref: "#/definitions/booleanStatement"
          confirmation:
            $ref: "#/definitions/booleanStatement"
        additionalProperties: true

  datetimeVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required: [type]
        properties:
          type:
            enum: [datetime]
          default:
            $ref: "#/definitions/booleanStatement"
        additionalProperties: true

  imageVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:core:image:id]
          pattern:
            type: string
          dependsOn:
            type: object
            required:
              - compartmentId
            properties:
              compartmentId:
                type: string
                format: variablereference
              shape:
                type: string
                format: variablereference
              operatingSystem:
                type: string
                format: variablereference
              operatingSystemVersion:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  instanceShapeVariableWithFlex:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:core:instanceshapewithflex:name]
          pattern:
            type: string
          dependsOn:
            type: object
            required:
              - compartmentId
            properties:
              imageId:
                type: string
                format: variablereference
              compartmentId:
                type: string
                format: variablereference
              availabilityDomain:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  instanceShapeVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:core:instanceshape:name]
          pattern:
            type: string
          dependsOn:
            type: object
            required:
              - compartmentId
            properties:
              imageId:
                type: string
                format: variablereference
              compartmentId:
                type: string
                format: variablereference
              availabilityDomain:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  natGatewayVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:core:natgateway:id]
          dependsOn:
            type: object
            required:
              - compartmentId
            properties:
              vcnId:
                type: string
                format: variablereference
              compartmentId:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  instanceVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:core:instance:id]
          dependsOn:
            type: object
            required:
              - compartmentId
            properties:
              compartmentId:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  subnetVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:core:subnet:id]
          dependsOn:
            type: object
            required:
              - vcnId
              - compartmentId
            properties:
              vcnId:
                type: string
                format: variablereference
              compartmentId:
                type: string
                format: variablereference
              hidePublicSubnet:
                $ref: "#/definitions/booleanStatement"
              hidePrivateSubnet:
                $ref: "#/definitions/booleanStatement"
              hideRegionalSubnet:
                $ref: "#/definitions/booleanStatement"
              hideAdSubnet:
                $ref: "#/definitions/booleanStatement"
            additionalProperties: false
        additionalProperties: true

  serviceGatewayVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:core:servicegateway:id]
          dependsOn:
            type: object
            required:
              - compartmentId
            properties:
              vcnId:
                type: string
                format: variablereference
              compartmentId:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  logAnalyticsLogGroup:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:logan:loggroup:id]
          dependsOn:
            type: object
            required:
              - compartmentId
            properties:
              compartmentId:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  logAnalyticsScheduledTasks:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:logan:scheduledtask:id]
          dependsOn:
            type: object
            required:
              - compartmentId
              - taskType
            properties:
              compartmentId:
                type: string
                format: variablereference
              taskType:
                type: string
            additionalProperties: false
        additionalProperties: true

  logAnalyticsLogEntities:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:logan:logentity:id]
          dependsOn:
            type: object
            required:
              - compartmentId
            properties:
              compartmentId:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  logAnalyticsEntityTypes:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
        properties:
          type:
            enum: [oci:logan:entitytype:id]
        additionalProperties: true

  managementAgents:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:mgmt:agent:id]
          dependsOn:
            type: object
            required:
              - compartmentId
            properties:
              compartmentId:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  logAnalyticsSources:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:logan:source:id]
          dependsOn:
            type: object
            required:
              - compartmentId
            properties:
              compartmentId:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  nsgVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:core:nsg:id]
          dependsOn:
            type: object
            required:
              - compartmentId
            properties:
              vcnId:
                type: string
                format: variablereference
              compartmentId:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  vcnVariable:
    allOf:
      - $ref: "#/definitions/dependsOnCompartment"
      - required: [type]
        properties:
          type:
            enum: [oci:core:vcn:id]
        additionalProperties: true

  availabilityDomainVariable:
    allOf:
      - $ref: "#/definitions/dependsOnCompartment"
      - required: [type]
        properties:
          type:
            enum: [oci:identity:availabilitydomain:name]
        additionalProperties: true

  compartmentVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required: [type]
        properties:
          type:
            enum: [oci:identity:compartment:id]
          default:
            $ref: "#/definitions/booleanStatement"
        additionalProperties: true

  faultDomainVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:identity:faultdomain:name]
          dependsOn:
            type: object
            required:
              - compartmentId
              - availabilityDomainName
            properties:
              compartmentId:
                type: string
                format: variablereference
              availabilityDomainName:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  regionVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required: [type]
        properties:
          type:
            enum: [oci:identity:region:name]
          default:
            $ref: "#/definitions/booleanStatement"
            default: ${session.region}
        additionalProperties: true

  dbSystemVariable:
    allOf:
      - $ref: "#/definitions/dependsOnCompartment"
      - required: [type]
        properties:
          type:
            enum: [oci:database:dbsystem:id]
        additionalProperties: true

  dbHomeVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:database:dbhome:id]
          dependsOn:
            type: object
            required:
              - dbSystemId
              - compartmentId
            properties:
              dbSystemId:
                type: string
                format: variablereference
              compartmentId:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  dbHomeVersionVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:database:dbhome:dbversion]
          dependsOn:
            type: object
            required:
              - dbHomeId
            properties:
              dbHomeId:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  databaseVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:database:database:id]
          dependsOn:
            type: object
            required:
              - dbHomeId
              - compartmentId
            properties:
              dbHomeId:
                type: string
                format: variablereference
              compartmentId:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  autonomousDatabaseVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:database:autonomousdatabase:id]
          dependsOn:
            type: object
            required:
              - compartmentId
            properties:
              compartmentId:
                type: string
                format: variablereference
              dbWorkload:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  autonomousDatabaseVersionVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:database:autonomousdatabaseversion:id]
          dependsOn:
            type: object
            properties:
              compartmentId:
                type: string
                format: variablereference
              dbWorkload:
                type: string
                format: variablereference
              additionalProperties: false
        additionalProperties: true

  autonomousContainerDBVariable:
    allOf:
      - $ref: "#/definitions/dependsOnCompartment"
      - required: [type]
        properties:
          type:
            enum: [oci:database:autonomouscontainerdatabase:id]
        additionalProperties: true

  kmsVaultVariable:
    allOf:
      - $ref: "#/definitions/dependsOnCompartment"
      - required: [type]
        properties:
          type:
            enum: [oci:kms:vault:id]
        additionalProperties: true

  kmsKeyVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:kms:key:id]
          dependsOn:
            type: object
            required:
              - compartmentId
              - vaultId
            properties:
              compartmentId:
                type: string
                format: variablereference
              vaultId:
                type: string
                format: variablereference
              protectionMode:
                type: string
                format: variablereference
              algorithm:
                type: string
                format: variablereference
              length:
                type: number
                format: variablereference
              curveId:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  kmsSecretVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:kms:secret:id]
          dependsOn:
            type: object
            required:
              - compartmentId
            properties:
              compartmentId:
                type: string
                format: variablereference
              vaultId:
                type: string
                format: variablereference
              name:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  containerClusterVariable:
    allOf:
      - $ref: "#/definitions/dependsOnCompartment"
      - required: [type]
        properties:
          type:
            enum: [oci:container:cluster:id]
        additionalProperties: true

  sshPublicKeyVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required: [type]
        properties:
          type:
            enum: [oci:core:ssh:publickey]
        additionalProperties: true

  kubernetesVersionsVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:kubernetes:versions:id]
          dependsOn:
            type: object
            required:
              - clusterOptionId
              - compartmentId
            properties:
              clusterOptionId:
                type: string
                format: variablereference
              compartmentId:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  volumeBackupPoliciesVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required: [type]
        properties:
          type:
            enum: [oci:blockstorage:policies:id]
          dependsOn:
            type: object
            properties:
              compartmentId:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  groupsVariable:
    allOf:
      - $ref: "#/definitions/dependsOnCompartment"
      - required: [type]
        properties:
          type:
            enum: [oci:identity:groups:id]
        additionalProperties: true

  dynamicGroupsVariable:
    allOf:
      - $ref: "#/definitions/dependsOnCompartment"
      - required: [type]
        properties:
          type:
            enum: [oci:identity:dynamicgroups:id]
        additionalProperties: true

  loadBalancerVariable:
    allOf:
      - $ref: "#/definitions/dependsOnCompartment"
      - required: [type]
        properties:
          type:
            enum: [oci:loadbalancer:loadbalancer:id]
          pattern:
            type: string
        additionalProperties: true

  mountTargetsVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required:
          - type
          - dependsOn
        properties:
          type:
            enum: [oci:mount:target:id]
          dependsOn:
            type: object
            required:
              - compartmentId
              - availabilityDomain
            properties:
              availabilityDomain:
                type: string
                format: variablereference
              compartmentId:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  tagVariable:
    allOf:
      - $ref: "#/definitions/dependsOnCompartment"
      - required: [type]
        properties:
          type:
            enum: [oci:identity:tag:value]
        additionalProperties: true

  odsProjectVariable:
    allOf:
      - $ref: "#/definitions/dependsOnCompartment"
      - required: [type]
        properties:
          type:
            enum: [oci:ods:project:id]
        additionalProperties: true

  privateEndpointVariable:
    allOf:
      - $ref: "#/definitions/baseVariable"
      - required: [type]
        properties:
          type:
            enum: [oci:resourcemanager:privateendpoint:id]
          dependsOn:
            type: object
            required:
              - compartmentId
              - vcnId
            properties:
              compartmentId:
                type: string
                format: variablereference
              vcnId:
                type: string
                format: variablereference
            additionalProperties: false
        additionalProperties: true

  apmDomainVariable:
    allOf:
      - $ref: "#/definitions/dependsOnCompartment"
      - required: [type]
        properties:
          type:
            enum: [oci:apm:domain:id]
        additionalProperties: true

  outputs:
    type: object
    additionalProperties:
      $ref: "#/definitions/output"

  output:
    oneOf:
      - $ref: "#/definitions/booleanOutput"
      - $ref: "#/definitions/numberOutput"
      - $ref: "#/definitions/stringOutput"
      - $ref: "#/definitions/copyableStringOutput"
      - $ref: "#/definitions/linkOutput"
      - $ref: "#/definitions/ocidOutput"
      - $ref: "#/definitions/mapOutput"
      - $ref: "#/definitions/jsonOutput"
      - $ref: "#/definitions/listOutput"
      - $ref: "#/definitions/csvOutput"

  outputGroups:
    type: array
    items:
      $ref: "#/definitions/outputGroup"

  outputGroup:
    type: object
    required:
      - title
      - outputs
    properties:
      title:
        type: string
      outputs:
        type: array
        items:
          type: string
    additionalProperties: true

  baseOutput:
    type: object
    properties:
      title:
        type: string
      description:
        type: string
      sensitive:
        type: boolean
        default: false
      format:
        type: string
      visible:
        type: boolean
        default: true
    additionalProperties: true

  booleanOutput:
    allOf:
      - $ref: "#/definitions/baseOutput"
      - required: [type]
        properties:
          type:
            enum: [boolean]
          value:
            type: boolean
        additionalProperties: true

  numberOutput:
    allOf:
      - $ref: "#/definitions/baseOutput"
      - required: [type]
        properties:
          type:
            enum: [number]
          value:
            type: number
        additionalProperties: true

  stringOutput:
    allOf:
      - $ref: "#/definitions/baseOutput"
      - required: [type]
        properties:
          type:
            enum: [string]
          value:
            type: string
        additionalProperties: true

  copyableStringOutput:
    allOf:
      - $ref: "#/definitions/baseOutput"
      - required: [type]
        properties:
          type:
            enum: [copyableString]
          value:
            type: string
        additionalProperties: true

  mapOutput:
    allOf:
      - $ref: "#/definitions/baseOutput"
      - required: [type]
        properties:
          type:
            enum: [map]
          value:
            type: object
        additionalProperties: true

  jsonOutput:
    allOf:
      - $ref: "#/definitions/baseOutput"
      - required: [type]
        properties:
          type:
            enum: [json]
          value:
            type: object
        additionalProperties: true

  listOutput:
    allOf:
      - $ref: "#/definitions/baseOutput"
      - required: [type]
        properties:
          type:
            enum: [list]
          value:
            type: array
        additionalProperties: true

  csvOutput:
    allOf:
      - $ref: "#/definitions/baseOutput"
      - required: [type]
        properties:
          type:
            enum: [csv]
          value:
            type: array
        additionalProperties: true

  linkOutput:
    allOf:
      - $ref: "#/definitions/baseOutput"
      - required: [type]
        properties:
          type:
            enum: [link]
          displayText:
            type: string
            minLength: 3
            maxLength: 45
          value:
            $ref: "#/definitions/url"
        additionalProperties: true

  ocidOutput:
    allOf:
      - $ref: "#/definitions/baseOutput"
      - required: [type]
        properties:
          type:
            enum: [ocid]
          value:
            $ref: "#/definitions/ocid"
        additionalProperties: true

Ejemplo de documento de esquema

A continuación se muestra un documento de esquema de ejemplo.

Ejemplo

# Title shown in Application Information tab.
title: Sample input variable schema
# Sub Title shown in Application Information tab.
description: Sample description...
informationalText: Sample informational text to display in tab...
schemaVersion: 1.1.0
version: "20190304"

# URL of Logo Icon used on Application Information tab. Logo must be 130x130 pixels.
# (Optional)
logoUrl: https://cloudmarketplace.oracle.com/marketplace/content?contentId=53066708

# Used in Application Information tab to Hyperlink Title and Logo to the Marketplace
# Listing.
# Also used to link to Listing Usage section for "View Instructions".
# (Optional) If it is missing, Application Information uses the
# "marketplace-listing-id" tag for the same purpose.
source:
  type: marketplace
  reference: 16132843

locale: "en"
variableGroups:
  - title: "Node Configuration"
    variables:
      - targetCompartment
      - ${nodeCount}
      - ${nodeShapes}
      - ${availability}
  - title: "Application Details"
    variables:
      - ${username}
      - ${password}
      - ${dnsServers}
  - title: "Subnet"
    variables:
      - ${vcnCompartment}
      - ${myVcn}
      - ${subnetCompartment}
      - ${mySubnet}
      - ${mySubnetWithFilter}
      - ${hide_public_subnet}
      - ${hide_private_subnet}
      - ${hide_regional_subnet}
      - ${hide_ad_subnet}
  - title: "Network Configuration"
    variables:
      - ${service_gateway}
      - ${nat_gateway}
      - ${load_balancer}
      - ${myNsg}
      - ${Kubernetes_version}
      - ${backup_policies}
      - ${mount_target}
  - title: "Existing Groups"
    variables:
      - ${iam_groups_use_existing}
  - title: "Identity"
    variables:
      - ${iam_groups}
      - ${iam_dynamic_groups}
  - title: "Database"
    variables:
      - ${dbCompartment}
      - ${myDbSystem}
      - ${myDbHome}
      - ${myDb}
      - ${myAutonomousDB}
      - ${myAutonomousDBVersion}
  - title: "Advanced"
    variables:
      - ${myImageId}
      - ${myInstance}
      - ${myShape}
      - ${myCompatibleShape}
      - ${myCompatibleShapeBasedOnAd}
      - ${multilineText}
    visible: true
  - title: "Hidden"
    variables:
      - ${myRegion}
    visible: false
  - title: "Existing Vcn"
    variables:
      - ${myVcn}
    visible:
      or:
        - ${useExistingVcn}
        - and:
            - and:
                - true
                - true
            - not:
                - false
  - title: "Password can't be 'password'!"
    variables:
      - ${password}
  - title: "Complex Conditional Section"
    variables:
      - ${myVcn}
    visible:
      or:
        - ${useExistingVcn}
        - and:
            - and:
                - true
                - true
            - not:
                - false
  - title: "Equality Conditional Section"
    variables:
      - ${myVcn}
    visible:
      eq:
        - ${objectStorageTier}
        - standard
  - title: "Less than Conditional Section"
    variables:
      - ${myVcn}
    visible:
      lt:
        - ${availability}
        - 5
  - title: "Less than or Equal Conditional Section"
    variables:
      - ${myVcn}
    visible:
      le:
        - ${availability}
        - 4
  - title: "Greater than Conditional Section"
    variables:
      - ${myVcn}
    visible:
      gt:
        - ${availability}
        - 5
  - title: "Greater than or Equal Conditional Section"
    variables:
      - ${myVcn}
    visible:
      ge:
        - ${availability}
        - 4
  - title: "Vault section"
    variables:
      - ${myVault}
      - ${myVaultKey}
      - ${mode}
      - ${myCompatibleKey}
      - ${algo}
      - ${myCompatibleKeyBasedOnAlgo}
      - ${mySecret}
      - ${myVaultSecret}
  - title: "DataScience"
    variables:
      - ${ods_project_ocid}
  - title: "Generic File"
    variables:
      - ${generic_file}
  - title: "Resource Tagging"
    variables:
      - ${tag}
  - title: "Resource Manager Section"
    variables:
      - ${private_endpoint_ocid}
  - title: "APM Domain Selection"
    variables:
      - ${apmDomain}

variables:
  # string field
  username:
    type: string
    minLength: 1
    maxLength: 255
    pattern: "^[a-z][a-zA-Z0-9]+$"
    # title is used as the label if present
    title: Username
    # description used as the tooltip if present
    description: Enter your username
    default: admin
    required: true

  # password field
  password:
    description: Really Bad Password Field
    type: password

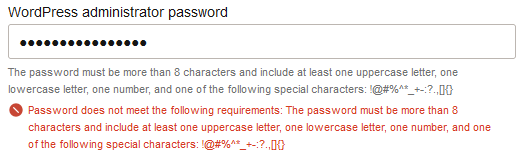

    pattern: "^[a-zA-z]{1,8}$"
    required: true

  # integer field
  nodeCount:
    type: integer
    description: Number of Nodes
    minimum: 3
    maximum: 12
    multipleOf: 3

  # non-integer number field
  availability:
    type: number
    default: 99.7
    maximum: 100
    minimum: 0

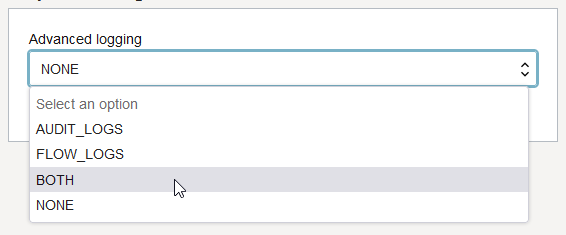

  # string enum
  objectStorageTier:
    type: enum
    enum:
      - archive
      - standard
    allowMultiple: false

  # input a list, each element must be an ip addresses
  dnsServers:
    type: array
    items:
      type: string
      pattern: "^(?:(?:25[0-5]|2[0-4][0-9]|[01]?[0-9][0-9]?)\\.){3}(?:25[0-5]|2[0-4][0-9]|[01]?[0-9][0-9]?)$"
    minItems: 1
    uniqueItems: true
    default: [8.8.8.8, 8.8.4.4]

  # datetime picker
  expireDate:
    type: datetime

  # compartmentId dynamic dropdown, targetCompartment present in input variables
  targetCompartment:
    type: oci:identity:compartment:id

  # ---- subnet picker ---- #

  useExistingVcn:
    type: boolean

  vcnCompartment:
    type: oci:identity:compartment:id
    visible: ${useExistingVcn}

  myVcn:
    type: oci:core:vcn:id
    dependsOn:
      compartmentId: ${vcnCompartment}
    visible:
      or:
        - ${useExistingVcn}
        - and:
            - and:
                - true
                - true
            - not:
                - false

  subnetCompartment:
    type: oci:identity:compartment:id
    visible: ${useExistingVcn}

  mySubnet:
    type: oci:core:subnet:id
    dependsOn:
      compartmentId: ${subnetCompartment}
      vcnId: ${myVcn}
    visible: ${useExistingVcn}

  mySubnetWithFilter:
    type: oci:core:subnet:id
    dependsOn:
      compartmentId: ${subnetCompartment}
      vcnId: ${myVcn}
      hidePublicSubnet: ${hide_public_subnet}
      hidePrivateSubnet: ${hide_private_subnet}
      hideRegionalSubnet: ${hide_regional_subnet}
      hideAdSubnet: ${hide_ad_subnet}
    visible: ${useExistingVcn}

  hide_public_subnet:
    type: boolean
    default: false

  hide_private_subnet:
    type: boolean
    default: false

  hide_regional_subnet:
    type: boolean
    default: false

  hide_ad_subnet:
    type: boolean
    default: false

  load_balancer:
    type: oci:loadbalancer:loadbalancer:id
    pattern: ^(10)Mbps.*$
    title: Existing LBaaS for "Application" Evaluation
    required: true
    dependsOn:
      compartmentId: ${vcnCompartment}

  Kubernetes_version:
    type: oci:kubernetes:versions:id
    title: Kubernetes version
    description: The Oracle cloud kubernetes version for tenancy.
    required: true
    visible: true
    dependsOn:
      compartmentId: ${vcnCompartment}
      clusterOptionId: "all"

  backup_policies:
    type: oci:blockstorage:policies:id
    title: Backup Policy
    description: The Oracle Cloud Backup Policy for tenancy.
    required: true

  mount_target:
    type: oci:mount:target:id
    title: Mount target
    description: The Oracle Cloud mount target
    dependsOn:
      compartmentId: ${targetCompartment}
      availabilityDomain: ${myAvailabilityDomain}

  myNsg:
    type: oci:core:nsg:id
    title: "Network Security Group"
    description: "Network Security Group description"
    dependsOn:
      compartmentId: ${vcnCompartment}

  service_gateway:
    type: oci:core:servicegateway:id
    title: NAT Gateway
    dependsOn:
      compartmentId: ${vcnCompartment}
      vcnId: ${myVcn}

  nat_gateway:
    type: oci:core:servicegateway:id
    title: NAT Gateway
    dependsOn:
      compartmentId: ${vcnCompartment}
      vcnId: ${myVcn}

  iam_groups_use_existing:
    type: boolean
    title: Use existing Groups
    required: true
    default: false

  iam_groups:
    type: oci:identity:groups:id
    title: Group Name
    dependsOn:
      compartmentId: ${targetCompartment}
    visible:
      or:
        - ${iam_groups_use_existing}
        - and:
            - and:
                - true
                - true
            - not:
                - false

  iam_dynamic_groups:
    type: oci:identity:dynamicgroups:id
    title: Dynamic Group Name
    dependsOn:
      compartmentId: ${targetCompartment}
    visible:
      or:
        - ${iam_groups_use_existing}
        - and:
            - and:
                - true
                - true
            - not:
                - false

  myRegion:
    type: oci:identity:region:name
    visible: false

  myImageId:
    type: oci:core:image:id
    dependsOn:
      compartmentId: ${targetCompartment}

  myShape:
    type: oci:core:instanceshape:name
    dependsOn:
      compartmentId: ${targetCompartment}

  myInstance:
    type: oci:core:instance:id
    dependsOn:
      compartmentId: ${targetCompartment}

  myCompatibleShape:
    type: oci:core:instanceshape:name
    dependsOn:
      compartmentId: ${targetCompartment}
      imageId: ${myImageId}
    visible:
      or:
        - ${useExistingVcn}
        - and:
            - and:
                - true
                - true
            - not:
                - false

  myCompatibleShapeBasedOnAd:
    type: oci:core:instanceshape:name
    dependsOn:
      compartmentId: ${targetCompartment}
      availabilityDomain: ${myAvailabilityDomain}
    visible:
      or:
        - ${useExistingVcn}
        - and:
            - and:
                - true
                - true
            - not:
                - false

  myAvailabilityDomain:
    type: oci:identity:availabilitydomain:name
    dependsOn:
      compartmentId: ${targetCompartment}
    visible: complexExpression

  myFaultdomain:
    type: oci:identity:faultdomain:name
    dependsOn:
      compartmentId: ${targetCompartment}
      availabilityDomainName: ${myAvailabilityDomain}

  dbCompartment:
    type: oci:identity:compartment:id

  myDbSystem:
    type: oci:database:dbsystem:id
    dependsOn:
      compartmentId: ${dbCompartment}

  myDbHome:
    type: oci:database:dbhome:id
    dependsOn:
      dbSystemId: ${myDbSystem}
      compartmentId: ${dbCompartment}

  myDbHomeVersion:
    type: oci:database:dbhome:dbversion
    dependsOn:
      dbHomeId: ${myDbHome}

  myDb:
    type: oci:database:database:id
    dependsOn:
      dbHomeId: ${myDbHome}
      compartmentId: ${dbCompartment}

  myAutonomousDB:
    type: oci:database:autonomousdatabase:id
    dependsOn:
      compartmentId: ${dbCompartment}
      dbWorkload: "DW"

  myAutonomousDBVersion:
    type: oci:database:autonomousdatabaseversion:id
    title: AutonomousDatabaseVersionTitle
    description: AutonomousDatabaseVersionDescription
    required: true
    default: "19c"
    dependsOn:
      compartmentId: ${compartment_ocid}
      dbWorkload: "AJD"

  container_cluster_ocid:
    type: oci:container:cluster:id
    required: true
    title: OKE Cluster
    description: Kubernetes cluster managed by OCI Container Engine for Kubernetes
    dependsOn:
      compartmentId: ${compartment_ocid}

  myVault:
    type: oci:kms:vault:id
    title: "vault"
    description: "vault"
    dependsOn:
      compartmentId: ${targetCompartment}

  myVaultKey:
    type: oci:kms:key:id
    title: "key"
    description: "key"
    dependsOn:
      compartmentId: ${targetCompartment}
      vaultId: ${myVault}

  mode:
    type: enum
    enum:
      - Hsm
      - Software
    allowMultiple: false

  myCompatibleKey:
    type: oci:kms:key:id
    title: "key"
    description: "key"
    dependsOn:
      compartmentId: ${targetCompartment}
      vaultId: ${myVault}
      protectionMode: ${mode}

  algo:
    type: enum
    enum:
      - AES
      - RSA
      - ECDSA
    allowMultiple: true

  myCompatibleKeyBasedOnAlgo:
    type: oci:kms:key:id
    title: "key"
    description: "key"
    dependsOn:
      compartmentId: ${targetCompartment}
      vaultId: ${myVault}
      protectionMode: ${mode}
      algorithm: ${algo}

  mySecret:
    type: "oci:kms:secret:id"
    title: "secret"
    description: "secret"
    dependsOn:
      compartmentId: ${targetCompartment}

  myVaultSecret:
    type: "oci:kms:secret:id"
    title: "secret"
    description: "secret"
    dependsOn:
      compartmentId: ${targetCompartment}
      vaultId: ${myVault}

  ods_project_ocid:
    type: oci:ods:project:id
    required: true
    title: odsProject
    description: "Select ods project from list"
    dependsOn:
      compartmentId: ${targetCompartment}

  generic_file:
    type: file
    required: true
    title: GenericFile
    description: "Drop a raw file (stored as base64 string data)"

  tag:
    type: oci:identity:tag:value
    required: true
    title: Tagging
    description: Tag value for resource created
    dependsOn:
      compartmentId: ${targetCompartment}

  private_endpoint_ocid:
    type: oci:resourcemanager:privateendpoint:id
    required: true
    title: privateEndpoint
    description: "Resource Manager Private Endpoint for Private Access"
    dependsOn:
      compartmentId: ${targetCompartment}
      vcnId: ${vcnId}

  multilineText:
    type: text
    required: false
    multiline: true
    title: Multi-line value
    description: Multi-line value
    default: "First line\nSecond line\nThird line"

  apmDomainVariable:
    type: oci:apm:domain:id
    title: "APM Domain"
    description: "APM Domain"
    dependsOn:
      compartmentId: ${targetCompartment}

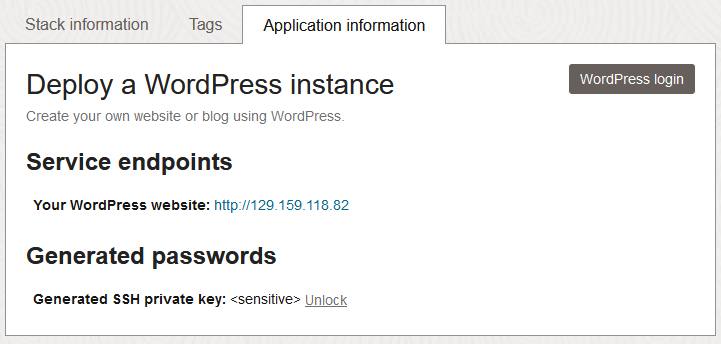

# Used to present outputs with more refinement on the Application Information tab.
# The Application Information tab is only shown if the schema has a "title",
# "description", and at least one output in this "outputs" section.
#
# type:
#   - boolean
#   - string
#   - number
#   - link - contains url that can be hyperlinked.  If type is not specified and the
#            value is a proper url, this type is assumed.
#   - ocid - contains an OCID.  An attempt is made to hyperlink it to the designated
#            resource in the console.
#   - csv - synonym for list.  Array of values converted to a comma separated list.
#   - json - synonym for map.  Map of key / values converted to JSON.
#   - list - array of values converted to a comma separated list.
#   - map - map of key / values converted to JSON.
#
# displayText: used in links to give text displayed instead of value
# title: friendly label
# visible: if false, this ouptut is not shown in the outputs section of Application Information.
#          It can still be used as the primaryOutputButton.
outputs:
  controlCenterUrl:
    type: link
    title: Control Center
    displayText: Control Center
    visible: false

  schemaRegistryUrl:
    type: link
    title: Schema Registry
    displayText: Schema Registry

  schemaRegistryPublicIps:
    type: csv
    title: Public IPs

  schemaRegistryLoadBalancer:
    type: ocid
    title: Load Balancer

  brokerPublicIps:
    type: csv

  connectUrl:
    type: link
    title: Connect
    displayText: Connect

  connectPublicIps:
    type: csv
    title: Public IPs

  restUrl:
    type: link
    title: Rest API

# primaryOutputButton is a reference to a link output that creates a primary button
# on the Application Information tab.
# (Optional) if not provided, no primary button is shown.  Also if the output
# referenced is not a link output, no button is shown.
primaryOutputButton: ${controlCenterUrl}

# Used to group Outputs.  Any outputs not included in these defined groups, are
# included in a default group labelled "Outputs".
# (Optional) if not groups are given, outputs are not grouped at all.
outputGroups:
  - title: Schema Registry
    outputs:
      - ${schemaRegistryUrl}
      - ${schemaRegistryPublicIps}
      - ${schemaRegistryInstances}
      - ${schemaRegistryLoadBalancer}

  - title: Broker / Connect
    outputs:
      - ${brokerPublicIps}
      - ${brokerInstances}
      - ${connectUrl}
      - ${connectPublicIps}
      - ${restUrl}

Cómo controlar los elementos de la consola

Utilice un documento de esquema para controlar la visualización de variables de pila y otros elementos en las páginas de detalles de pila de la consola.

Este control de visualización está disponible para pilas creadas a partir de un archivo de configuración de Terraform. Mediante un documento de esquema, puede definir el aspecto y el comportamiento de las variables durante la creación de la pila y el texto que se muestra en el separador Información de la aplicación de una pila creada.

A continuación se muestran los elementos de visualización de la consola que controla el documento de esquema. Para ver instrucciones y ejemplos relevantes, expanda un elemento de visualización en el que esté interesado.

Etiqueta y descripción de campo

Para representar una etiqueta de campo y una descripción para una variable:

Agregue las líneas title: <field_label> y description: <field_description>.

Imagen de ejemplo para una etiqueta y descripción de campo de variable:

Campo de registro avanzado con la descripción "Activar o desactivar registro avanzado (logs de flujo de VCN o logs de auditoría)".

Declaración de ejemplo para una etiqueta y descripción de campo de variable:

  advanced_logging_option:
    type: enum
    description: "Enable or disable advanced logging (VCN flow logs and/or audit logs)."
    title: "Advanced logging"

Valor por defecto

Para representar una variable con un valor por defecto:

Agregue la línea default: <default-value>.

Imagen de ejemplo para una variable con un valor por defecto:

Valor por defecto "DataScienceGroup" para el nombre de grupo de variables para políticas de seguridad.

Ejemplo de declaración para un valor por defecto:

  ods_group_name:
    type: string
    title: ${Messages.solutionsHub.solutions.dataScience.variables.ods_group_name.title()}
    description: ${Messages.solutionsHub.solutions.dataScience.variables.ods_group_name.description()}
    required: true
  # provide a default value
    default: "DataScienceGroup"

Campo de texto de varias líneas

Para representar una variable como un campo de texto de varias líneas:

Agregue la línea multiline: true.

Para declarar un valor por defecto con varias líneas:

Separe cada línea con \n.

Imagen de ejemplo para una variable representada como un campo de texto de varias líneas, con dos líneas de texto introducidas:

Declaración de ejemplo para un campo de texto de varias líneas:

  otherNames:
    type: text
    required: false
    multiline: true
    title: "Other Names"
    description: "Enter one name per line."
    default: "Name1\nName2"

Grupo y orden

Para representar un grupo (cuadro) de variables, con las variables en una secuencia prescrita:

Agregue un bloque variableGroups.
Agregue una línea title a este bloque.
Agregue un bloque variables a variableGroups.
Agregue variables al bloque variables en el orden que desee.

Imagen de ejemplo para un grupo de variables:

Configuración del grupo de variables WordPress que contiene campos para el nombre de usuario y la contraseña.

Ejemplo de declaración para un grupo de variables con un orden prescrito:

variableGroups:
  - title: "WordPress configuration"
    variables:
    - wp_admin_user
    - wp_admin_password

Control de claves SSH

Para representar una variable como un control de clave SSH:

Agregue la línea type: oci:core:ssh:publickey.

Imagen de ejemplo para un control de clave SSH:

Declaración de ejemplo para un control de clave SSH:

  ssh_public_key:
    title: SSH public key
    description: Public SSH key to be included in the ~/.ssh/authorized_keys file for the default user on the instance
    # renders variable as an SSH key control
    type: oci:core:ssh:publickey
    additionalProps:
      allowMultiple: true
    required: false
    default: [""]
    pattern: "((^(ssh-rsa AAAAB3NzaC1yc2|ecdsa-sha2-nistp256 AAAAE2VjZHNhLXNoYTItbmlzdHAyNT|ecdsa-sha2-nistp384 AAAAE2VjZHNhLXNoYTItbmlzdHAzODQAAAAIbmlzdHAzOD|ecdsa-sha2-nistp521 AAAAE2VjZHNhLXNoYTItbmlzdHA1MjEAAAAIbmlzdHA1Mj|ssh-ed25519 AAAAC3NzaC1lZDI1NTE5|ssh-dss AAAAB3NzaC1kc3)[0-9A-Za-z+\/]+[=]{0,3})( [^,]*)?)(,((ssh-rsa AAAAB3NzaC1yc2|ecdsa-sha2-nistp256 AAAAE2VjZHNhLXNoYTItbmlzdHAyNT|ecdsa-sha2-nistp384 AAAAE2VjZHNhLXNoYTItbmlzdHAzODQAAAAIbmlzdHAzOD|ecdsa-sha2-nistp521 AAAAE2VjZHNhLXNoYTItbmlzdHA1MjEAAAAIbmlzdHA1Mj|ssh-ed25519 AAAAC3NzaC1lZDI1NTE5|ssh-dss AAAAB3NzaC1kc3)[0-9A-Za-z+\/]+[=]{0,3})( [^,]*)?)*$"

Control de archivo

Para representar una variable como un control de archivos:

Agregue la línea type: file.
Nota

El archivo cargado se almacena en formato Base64. Para utilizar el archivo, decodifique la salida. Por ejemplo, agregue el siguiente código a un archivo outputs.tf en la configuración de Terraform.
```
output "generic_file_raw" {
  value = base64decode(var.generic_file)
}
```

Imagen de ejemplo para un control de archivos:

Ejemplo de declaración para un control de archivo:

  generic_file:
    type: file
    title: generic_file
    description: Drop any file or browse
    required: true

Control de etiquetado

Para representar una variable como control de etiquetado:

Agregue la línea type: oci:identity:tag:value.

Nota

Para rellenar previamente los valores de etiqueta en la consola, acceda a los valores desde la configuración de Terraform. Por ejemplo, agregue el siguiente código a un archivo main.tf en la configuración de Terraform.

resource "oci_logging_log_group" "sample_log_group" {
  compartment_id = var.compartment_ocid
  display_name   = "sample_log_group"
  description    = "Prepopulated tag values"
  freeform_tags  = var.tag_value.freeformTags
  defined_tags   = var.tag_value.definedTags
}

Imagen de ejemplo para un control de etiquetado:

Declaración de ejemplo para un control de etiquetado:

  tag_value:
    type: oci:identity:tag:value
    title: Tags
    required: true

Relleno previo dinámico

Para rellenar previamente variables de forma dinámica con valores basados en dependencias:

Agregue las líneas type: <supported-type> y dependsOn: <other_variable>.
<supported-type> es un tipo que se muestra en Supported Types (Dynamic Prepopulation and Controls).

Imagen de ejemplo para una variable rellenada previamente de forma dinámica:

Valores rellenados previamente para el campo Red virtual en la nube (VCN).

Ejemplo de declaración para una variable rellenada previamente de forma dinámica:

    vcn_ocid:
    "title": "Virtual cloud network (VCN)",
    "description": "The virtual cloud network to use with the compute instance. You can use the subnets template to create a VCN."
    # prepopulates available values for VCN
      type: oci:core:vcn:id
    # determines values for prepopulation from selected compartment
      dependsOn:
        compartmentId: compartment_ocid
      required: true
      default: ""

Ejemplo de declaración para puntos finales privados:

  private_endpoint_ocid:
    type: oci:resourcemanager:privateendpoint:id
    required: true
    title: "Resource Manager Private Endpoint"
    description: "Resource Manager Private Endpoint for Private Access"
    dependsOn:
      compartmentId: ${privateEndpointCompartmentOCID}
      vcnId: ${privateEndpointVCNOCID}

Declaraciones de ejemplo para la VCN según el compartimento, con subred según el compartimento y la VCN:

  vcnCompartment:
    # prepopulates available values for compartment
    type: oci:identity:compartment:id

myVcn:
    # prepopulates available values for VCN
    type: oci:core:vcn:id
    # determines values for VCN prepopulation from selected compartment
    dependsOn:
      compartmentId: ${vcnCompartment}

subnetCompartment:
    # prepopulates available values for compartment
    type: oci:identity:compartment:id

mySubnet:
    # prepopulates available values for subnet
    type: oci:core:subnet:id
    # determines values for subnet prepopulation from selected compartment and VCN
    dependsOn:
      compartmentId: ${subnetCompartment}
      vcnId: ${myVcn}

Declaración de ejemplo de imagen 1, donde la imagen depende solo del compartimento (el campo dependsOn obligatorio):

  instance_image:
    title: Image
    description: Image
    type: oci:core:image:id
    required: true
    dependsOn:
       compartmentId: ${compartment_ocid}

Declaración de ejemplo de imagen 2, donde la imagen depende del compartimento, el sistema operativo, la versión del sistema operativo y la unidad:

  instance_image:
    title: Image
    description: Image
    type: oci:core:image:id
    required: true
    dependsOn:
       compartmentId: ${compartment_ocid}
       operatingSystem: "Oracle Linux"
       operatingSystemVersion: "7.8"
       shape: "<shape name>"

Valores enumerados (selección de valor único)

Representar valores enumerados para una variable (permitiendo la selección de un valor):

Agregue las líneas type: enum y agregue un bloque enum.

Imagen de ejemplo para una variable con valores enumerados que permiten seleccionar un único valor:

Valores enumerados para el campo Registro avanzado.

Declaración de ejemplo para una variable con valores enumerados:

  advanced_logging_option:
    title: "Advanced logging"
    description: "Enable or disable advanced logging (VCN flow logs and/or audit logs)."
    type: enum
    # enumerated values
    enum:
    - AUDIT_LOGS
    - FLOW_LOGS
    - BOTH
    - NONE
    default: NONE
    required: true

Valores enumerados (selección de varios valores)

Representar valores enumerados para una variable (permitiendo la selección de varios valores):

Agregue las líneas type: enum y agregue un bloque enum.
Agregue las líneas additionalProps: y agregue un bloque allowMultiple:true.

Imagen de ejemplo para una variable con valores enumerados que permiten la selección de varios valores:

En esta imagen se muestra una variable con valores enumerados, donde se pueden seleccionar varios valores.

Declaración de ejemplo para una variable con valores enumerados (selección de varios valores):

    attachment_type:
      type: enum
      title: "Attachment type"
      additionalProps:
        allowMultiple: true
      default: "iscsi"
      # enumerated values (multiple value selection)
      enum:
        - "iscsi"
        - "paravirtualized"

Casilla de control

Para representar una variable como casilla de control:

Agregue la línea type: boolean.

Imagen de ejemplo para una variable de casilla de control:

Casilla de verificación de representación para la variable Enable vault support?

Ejemplo de declaración para una variable de casilla de control:

  ods_vcn_use_existing:
    # renders variable as a check box
    type: boolean
    title: "Enable vault support?"
    description: "Use a vault to store secrets and manage encrypted resources."
    required: true
    default: false

Dependencia de visibilidad

Nota

Los grupos tienen mayor prioridad que las variables constituyentes de los grupos. Por ejemplo, si una variable es visible dentro de un grupo que no lo es, el grupo completo no será visible.

Operaciones soportadas:

and
eq (igual que)
ge (mayor o igual que)
gt (mayor que)
le (menor o igual que)
lt (menor que)
not
or

Para ocultar o mostrar variables o grupos de variables en función de otras variables:

Agregue la línea visible: <other_variable>.

Ejemplo de la variable ¿Usar almacén existente?, cuya visibilidad depende de la selección del usuario para la variable ¿Activar soporte de almacén?:

¿Desea usar el almacén existente? solo está visible cuando se selecciona Activar soporte de almacén.

Declaraciones de ejemplo que muestran los campos "Nombre de aplicación" y "Nombre de gateway de API" (functions_app_name y apigateway_name) solo cuando se selecciona la casilla de control "Aprovisionar funciones y gateway de API" (enable_functions_apigateway):

  enable_vault:
    type: boolean
    title: "Enable vault support?"
    description: "Use a vault to store secrets and manage encrypted resources."
    required: true
    default: false

  ods_use_existing_vault:
    type: boolean
    title: "Use existing vault?"
    description: "Use a pre-existing vault in the current compartment."
    required: true
    default: false
  # show only when enable_vault variable is selected
    visible: enable_vault

Contraseña

Para representar una variable como contraseña:

Agregue la línea type: password.

Para solicitar una nueva entrada para la confirmación de la contraseña introducida:

Agregue la línea confirmation: true.

Imagen de ejemplo para una variable de contraseña que requiere confirmación:

Solicitud de confirmación para una contraseña (WordPress contraseña de administrador).

Declaración de ejemplo para una variable de contraseña que requiere confirmación:

  wp_admin_password:
    title: "WordPress administrator password"
    description: "The password must be more than 8 characters and include at least one uppercase letter, one lowercase letter, one number, and one of the following special characters: !@#%^*_+-:?.,[]{}"
    # renders variable as a password field
    type: password
    # renders a second field to re-enter the password for confirmation
    confirmation: true
    pattern: "^(?=.*[!@#%^*_+\\-:?.,\\[\\]\\{\\}])(?=.*[0-9])(?=.*[a-z])(?=.*[A-Z])(?!.*[$\\(\\)]).{8,32}$"
    required: true

Variables necesarias

Para requerir un valor para una variable:

Agregue la línea required: true.

Imagen de ejemplo para una variable necesaria, con advertencia de validación:

Advertencia de validación para una variable necesaria (red virtual en la nube (VCN)) que no se ha rellenado.

Ejemplo de declaración para una variable necesaria:

    vcn_ocid:
    "title": "Virtual cloud network (VCN)",
    "description": "The virtual cloud network to use with the compute instance. You can use the subnets template to create a VCN."
      type: oci:core:vcn:id
      dependsOn:
        compartmentId: compartment_ocid
    # displays validation warning if no value is selected or entered
      required: true
      default: ""

Variable opcional

Para marcar una variable como opcional:

Agregue la línea required: false.

Imagen de ejemplo para una variable opcional:

Marcado "Opcional" que se muestra a la derecha del título de la variable: IP privada.

Declaración de ejemplo para una variable opcional:

    private_ip:
      title: "Private IP"
      description: "Private IP address of your choice to assign to the VNICs."
      type: string
      # displays "Optional" marking to right of field label
      required: false
      default: ""

Patrón de validación

Para validar el valor introducido para una variable con un patrón de expresión regular:

Agregue la línea pattern: <regular-expression>.
<regular-expression> es el patrón de validación específico del valor que desea validar.
Ejemplo de patrón de hiperenlace: ^https?:\/\/(www\.)?[-a-zA-Z0-9@:%._\+~#=]{2,256}\.[a-z]{2,4}\b([-a-zA-Z0-9@:%_\+.~#?&//=]*)$

Imagen de ejemplo para un error de validación de un valor introducido:

Error de validación para un valor introducido (WordPress contraseña de administrador).

Ejemplo de declaración para una variable con un patrón de validación:

  wp_admin_password:
    title: "WordPress administrator password"
    description: "The password must be more than 8 characters and include at least one uppercase letter, one lowercase letter, one number, and one of the following special characters: !@#%^*_+-:?.,[]{}"
    type: password
    confirmation: true
    # validate entered value against alphanumeric regular expression
    pattern: "^(?=.*[!@#%^*_+\\-:?.,\\[\\]\\{\\}])(?=.*[0-9])(?=.*[a-z])(?=.*[A-Z])(?!.*[$\\(\\)]).{8,32}$"
    required: true

Variables confidenciales (separador Salidas, separador Información de Aplicación)

La salida de una variable con marcas confidenciales se muestra como <sensible> con una opción Desbloquear en el separador Información de la aplicación. Este separador está visible en las páginas Detalles del trabajo y Detalles de pila.

Imagen de ejemplo para una variable con marca confidencial (Clave privada SSH generada) en el separador Información de la aplicación:

Variable marcada como confidencial en el separador Información de aplicación.

Para obtener más información sobre el argumento confidencial de Terraform, consulte sensitive - Suppressing Values in CLI Output.

Para marcar una variable como confidencial:

Agregue la línea sensitive: true.

Declaración de ejemplo para una variable con marca confidencial:

  ssh_private_key:
    title: Generated SSH private key
    # marks variable as sensitive
    sensitive: true

Separador de información de la aplicación

Para mostrar el separador Información de aplicación de una pila creada a partir de la configuración de Terraform:

Agregue líneas para el esquema title y description.
También puede agregar una línea para un cuadro de texto informativo azul: informationalText.
Agregue al menos una salida en la sección outputs, agrupada opcionalmente mediante outputGroups.

Para permitir la copia de un valor de salida mostrado en el separador Información de aplicación:

Defina el tipo: agregue la línea type: copyableString.

Imagen de ejemplo para el separador Información de aplicación:

Separador de información de la aplicación.

Declaración de ejemplo para el título, la descripción y las salidas de un esquema:

# heading under Application Information tab
title: "Deploy a WordPress instance"
# text under heading
description: "Create your own website or blog using WordPress."

...

# output variable groups
outputGroups:
- title: "Service endpoints"
  outputs:
    - wordpress_public_ip
- title: "Generated passwords"
  outputs:
    - generated_ssh_private_key

...

# output variable field names and values
outputs:
  wordpress_public_ip:
    type: link
    title: "Your WordPress website"
  generated_ssh_private_key:
    title: "Generated SSH private key"
    sensitive: true

Cómo interactuar con elementos de la consola

En esta sección se describe cómo interactuar con la visualización de información de pila controlada por esquema en la consola de Oracle Cloud Infrastructure.

La información de pila se ve afectada por el documento de esquema (si lo hay) que incluya en la configuración de Terraform para crear la pila. El documento de esquema afecta al aspecto y comportamiento de las variables durante la creación de la pila y al texto que se muestra en el separador Información de Aplicación de una pila creada.

Desbloquear variables confidenciales

Una opción Unlock (Desbloquear) en el separador Application information (Información de aplicación) indica una sensitive-marked variable (variable marcada como confidencial). Esta opción cambia entre Desbloquear y Bloquear.

Para ver el valor, seleccione Desbloquear.
Para ocultar el valor, seleccione Bloquear.
