ノート:

このチュートリアルでは、Oracle Cloudへのアクセスが必要です。無料アカウントにサインアップするには、Oracle Cloud Infrastructure Free Tierの開始を参照してください。
Oracle Cloud Infrastructureの資格証明、テナンシおよびコンパートメントに例の値を使用します。演習を完了するときは、これらの値をクラウド環境に固有の値に置き換えます。

Deploy OCI Managed Database with PostgreSQL Service using Terraform

イントロダクション

広く評価されているオープンソースのオブジェクト・リレーショナル・データベースであるPostgreSQLは、堅牢なアーキテクチャと揺るぎないデータ整合性のため、エンタープライズ環境において好ましい選択となっています。Oracle Cloud Infrastructure(OCI)の可用性により、インテリジェントなサイズ設定、コスト効率の高いチューニング、耐久性を備えたフルマネージドで高性能なデータベース・サービスが導入されています。PostgreSQL supports enterprises, small and medium-sized businesses (SMBs), and a wide range of development environments, demonstrating its adaptability and robustness.

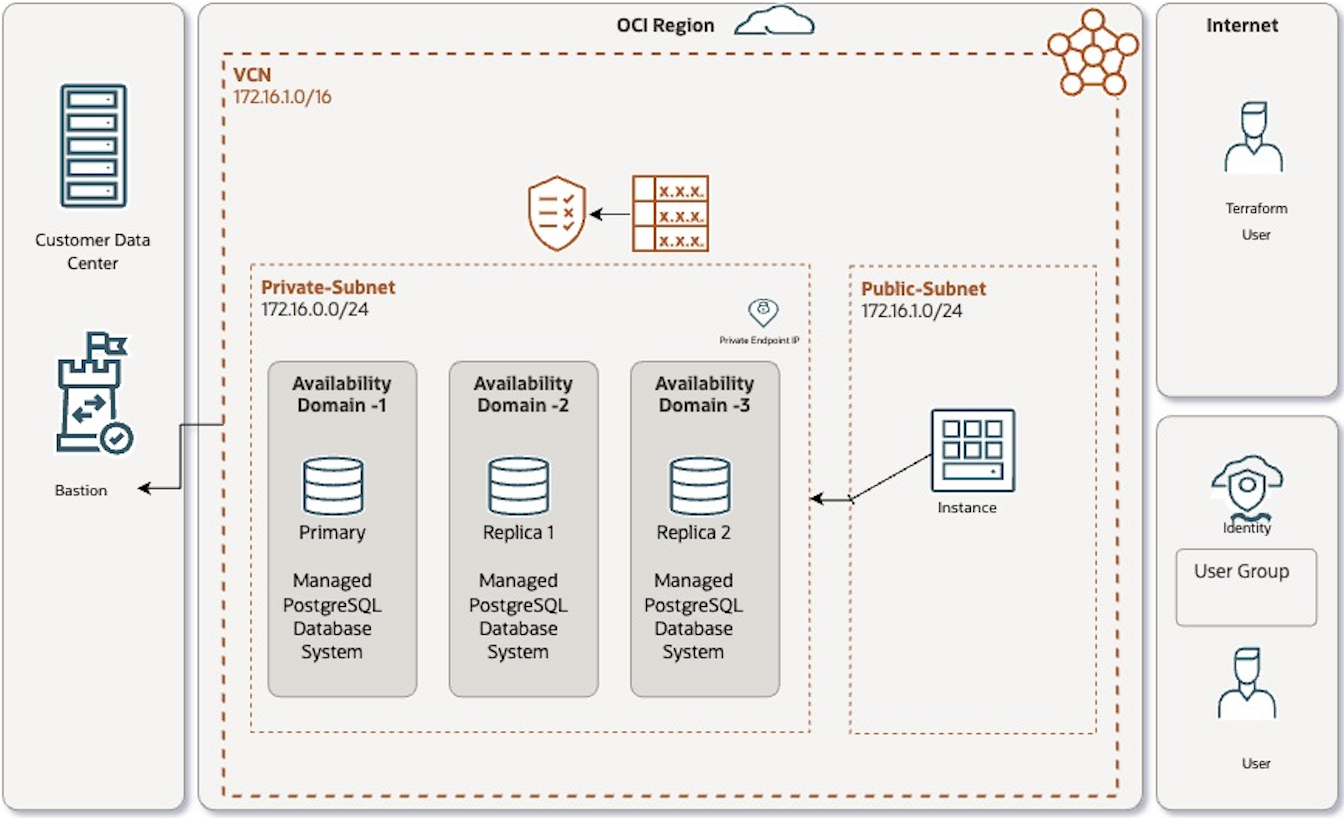

In this tutorial, we will learn how we can deploy three nodes of an OCI managed PostgreSQL database system in an OCI cloud tenancy and connect privately through a compute instance using Terraform script.

目的

Deploy an OCI managed database with PostgreSQL and a compute instance to connect the database service privately using Terraform scripts. We will be deploying following architecture in OCI using Terraform code.

Note: If the selected region has a single availability domain, creating a highly available database system will spread all PostgreSQL instances across all fault domains in the region, irrespective of whether an AD-specific or regional subnet.

前提条件

Oracle Cloud Infrastructureテナンシ。
ユーザーの作成、ユーザー・グループへのユーザーの追加およびセキュリティ・ポリシーの作成を行う権限を持つユーザー・アカウント。
The user should have OCI IAM permissions. For more information, see OCI Database with PostgreSQL Policies.

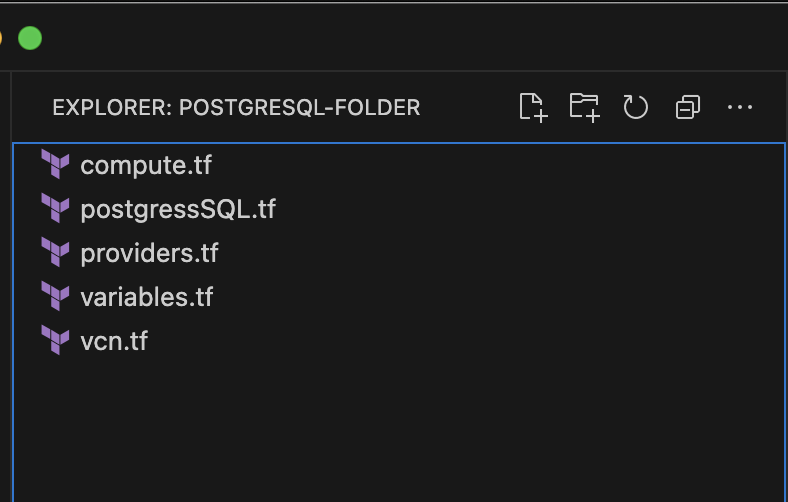

タスク1: フォルダへのTerraformスクリプト・ファイルの作成

providers.tfスクリプトを作成します。

まず、providers.tfファイルを作成します。ローカル・フォルダを作成し、作成したファイルに次のコードをコピーします。tenancy_id、user_id、regionなどの値は、後のステップで作成するvariables.tfファイルで置き換えられます。To get the OCI configurations values, generate API keys in OCI by accessing user settings, create an API key pair, securely download the private key, then use it along with the user and tenancy OCIDs in Terraform code for authentication to deploy OCI resources.For more information, see Generate an API Signing Key.
```
terraform {
    required_providers {
    oci =  {
        source = "oracle/oci"
        version = "5.22.0"
    }
  }
}
# Provider configuration for Tenancy
provider "oci" {
tenancy_ocid          = var.tenancy_id
user_ocid             = var.user_id
fingerprint           = var.api_fingerprint
private_key_path      = var.api_private_key_path
region                = var.region
}
```

vcn.tfスクリプトを作成します。

We need a VCN network with private and public subnets to deploy and access the OCI PostgreSQL database system, remembering that PostgreSQL database will be deployed only on a private subnet.次のコードを使用して、vcn.tfという名前のファイルを作成します。The code will make sure that only the VCN CIDR can access port 5432 for PostgreSQL, and it will allow access to the compute instance through SSH on port 22 within the security list.ここでの値の置換について心配する必要はありません。variables.tfファイルでこれを実行できます。

resource oci_core_vcn psql_vcn_tf {
    #Required
    compartment_id = var.compartment_id

    #Optional
    cidr_block = var.vcn_cidr_block
    display_name = var.vcn_display_name
}

resource oci_core_subnet public_subnet {
    #Required
    cidr_block = var.public_subnet_cidr_block
    compartment_id = var.compartment_id
    vcn_id = oci_core_vcn.psql_vcn_tf.id

    #Optional
    display_name = var.public_subnet_display_name
    route_table_id = oci_core_route_table.tf_public_route_table.id
}

resource oci_core_subnet private_subnet {
    #Required
    cidr_block = var.private_subnet_cidr_block
    compartment_id = var.compartment_id
    vcn_id = oci_core_vcn.psql_vcn_tf.id

    display_name = var.private_subnet_display_name
    route_table_id = oci_core_route_table.tf_private_route_table.id
    prohibit_internet_ingress = true
    security_list_ids = [oci_core_security_list.tf_private_security_list.id]
}

resource oci_core_internet_gateway vcntf_igw {
  vcn_id       = oci_core_vcn.psql_vcn_tf.id
  compartment_id = var.compartment_id
  display_name = var.internet_gateway_name
}

resource oci_core_nat_gateway tf_nat_gateway {
  vcn_id       = oci_core_vcn.psql_vcn_tf.id
  compartment_id = var.compartment_id
  display_name = example-ngw
  # Add route tables to direct traffic through this NAT gateway
}

data oci_core_services test_services {
}

variable create_service_gateway {
  description = whether to create a service gateway. If set to true, creates a service gateway.
  default     = true
  type        = bool
}

data oci_core_services all_oci_services {
  filter {
    name   = name
    values = [All .* Services In Oracle Services Network]
    regex  = true
  }
  count = var.create_service_gateway == true ? 1 : 0
}

resource oci_core_service_gateway service_gateway {
  compartment_id = var.compartment_id
  display_name   = var.service_gateway_displayname
  services {
    service_id = lookup(data.oci_core_services.all_oci_services[0].services[0], id)
  }
  vcn_id = oci_core_vcn.psql_vcn_tf.id
  count = var.create_service_gateway == true ? 1 : 0
}

resource oci_core_security_list tf_public_security_list {
  vcn_id         = oci_core_vcn.psql_vcn_tf.id
  compartment_id = var.compartment_id
  display_name   = var.public_subnet_security_list_display_name

  ingress_security_rules {
    protocol    = 6  # TCP protocol for SSH
    source      = 0.0.0.0/0  # Allow inbound traffic from all sources
    tcp_options {
            #Optional
            max = 22
            min = 22
        }
    description = Allow SSH from all sources
  }
}

resource oci_core_security_list tf_private_security_list {
  vcn_id         = oci_core_vcn.psql_vcn_tf.id
  compartment_id = var.compartment_id
  display_name   = var.private_subnet_security_list_disply_name

  ingress_security_rules {
    protocol    = 6  # TCP protocol to connect Postgress service from compute instance in public subnet
    source      = oci_core_vcn.psql_vcn_tf.cidr_block  # Allow inbound traffic from CIDR Block of VCN sources
    tcp_options {
            #Optional
            max = 5432
            min = 5432
        }
    description = Allow psql service connections from all ranges cidr vcn
  }
}

resource oci_core_route_table tf_public_route_table {
  vcn_id     = oci_core_vcn.psql_vcn_tf.id
  compartment_id = var.compartment_id
  display_name = var.public_subnet_route_table_display_name
  route_rules {
    // Define route rules for public subnet
    network_entity_id = oci_core_internet_gateway.vcntf_igw.id
    destination = 0.0.0.0/0
    destination_type = CIDR_BLOCK
  }
}

resource oci_core_route_table tf_private_route_table {
  vcn_id     = oci_core_vcn.psql_vcn_tf.id
  compartment_id = var.compartment_id
  display_name = var.private_subnet_route_table_display_name
  route_rules {
    // Define route rules for private subnet
    network_entity_id = oci_core_nat_gateway.tf_nat_gateway.id
    destination = 0.0.0.0/0
    destination_type = CIDR_BLOCK
  }
  route_rules {
    network_entity_id = oci_core_service_gateway.service_gateway.0.id
    destination = all-iad-services-in-oracle-services-network
    destination_type  = SERVICE_CIDR_BLOCK
  }
  }

resource oci_core_route_table_attachment public_route_table_attachment {
  #Required
  subnet_id = oci_core_subnet.public_subnet.id
  route_table_id =oci_core_route_table.tf_public_route_table.id
}

resource oci_core_route_table_attachment private_route_table_attachment {
  #Required
  subnet_id = oci_core_subnet.private_subnet.id
  route_table_id =oci_core_route_table.tf_private_route_table.id
  depends_on = [oci_core_service_gateway.service_gateway]
}

instance.tfスクリプトを作成します。

PostgreSQLデータベースにアクセスするには、パブリック・サブネットにコンピュート・インスタンスが必要です。インスタンスに接続してから、PostgreSQLにアクセスします。これは、プライベート・サブネットを介してのみアクセスできるためです。これを行うには、次のコードを使用してinstance.tfというファイルを作成します。後でvariables.tfファイルの計算変数値を簡単に更新できます。

# Resources
data "oci_identity_availability_domains" "ads" {
  compartment_id = var.compartment_id
}

resource "oci_core_instance" "tf_compute" {
  # Required
  availability_domain = data.oci_identity_availability_domains.ads.availability_domains[0].name
  compartment_id      = var.compartment_id
  shape               = var.compute_shape
  source_details {
    source_id         = var.source_operating_system_image_id
    source_type       = "image"
  }
  display_name        = var.compute_instance_display_name
  shape_config {
    ocpus         = var.compute_cpus
    memory_in_gbs = var.compute_memory_in_gbs
  }
  create_vnic_details {
    subnet_id = oci_core_subnet.public_subnet.id
    assign_public_ip  = true
  }
  metadata = {
    ssh_authorized_keys = file(var.compute_ssh_authorized_keys)
  }
  preserve_boot_volume = false
  provisioner "remote-exec" {
    inline = [
      "sudo dnf install -y https://download.postgresql.org/pub/repos/yum/reporpms/EL-8-x86_64/pgdg-redhat-repo-latest.noarch.rpm",
      "sudo dnf -qy module disable postgresql",
      "sudo dnf install -y postgresql16-server",
      "sudo /usr/pgsql-16/bin/postgresql-16-setup initdb",
      "sudo systemctl enable postgresql-16",
      "sudo systemctl start postgresql-16"
    ]
    connection {
      type        = "ssh"
      host        = self.public_ip
      user        = "opc"
      private_key = file(var.api_private_key_for_ssh)
    }
  }

}

# Outputs
output "compute_id" {
  value = oci_core_instance.tf_compute.id
}

output "compute_state" {
  value = oci_core_instance.tf_compute.state
}

output "compute_public_ip" {
  value = oci_core_instance.tf_compute.public_ip
}

postgresql.tfスクリプトを作成します。

OCI PostgreSQLデータベース・システムを設定するには、postgresql.tfという名前のファイルにTerraformコードを追加します。このコードは、シェイプ、コア、ノードなど、システムの構成の詳細を示します。最適化された設定では、3ノードのデータベース・システム(1つのプライマリ・ノードと2つのレプリカ)を異なる可用性ゾーンにまたがって検討します。まず、postgresql.tfファイルを作成し、指定されたコードを挿入します。PostgreSQLデータベースの変数値をvariables.tfファイルに簡単に追加して、特定の要件を満たすことができます。

resource "oci_psql_db_system" "test_db_system" {
    #Required
    compartment_id = var.compartment_id
    db_version = var.db_system_db_version
    display_name = var.db_system_display_name
    network_details {
        #Required
        subnet_id = oci_core_subnet.private_subnet.id
    }
    shape = var.db_system_shape
    storage_details {
        #Required
        is_regionally_durable = var.db_system_storage_details_is_regionally_durable
        system_type = var.db_system_storage_details_system_type
        #Optional
        # availability_domain = var.db_system_storage_details_availability_domain
        # iops = var.db_system_storage_details_iops
    }
    credentials {
        #Required
        password_details {
            #Required
            password_type = var.db_system_credentials_password_details_password_type
            #Optional
            password = var.db_system_credentials_password_details_password
        }
        username = var.db_system_credentials_username
    }
    instance_count = var.db_system_instance_count
    instance_memory_size_in_gbs = var.db_system_instance_memory_size_in_gbs
    instance_ocpu_count = var.db_system_instance_ocpu_count

}

variables.tfスクリプトを作成します。

In this section, the user needs to adjust and update the values for the resources to be created within their OCI tenancy.variables.tfファイルを作成し、次のコードを追加します。これは、同じフォルダに作成される最後のファイルです。要件に従って各変数を慎重に確認および変更します。値の中には、各コードの「値」セクションに事前に入力されるものと、ニーズに固有のものには、入力が必要なものがあります。ファイル内のすべての値が追加または変更されたら、実行フェーズに進みます。

# Provider identity parameters - Replace these values from API Key Values from OCI User

variable "api_fingerprint" {
  description = "Fingerprint of OCI API private key for Requestor Tenancy"
  type        = string
  default     = ""
}

variable "api_private_key_path" {
  description = "Path to OCI API private key used for Requestor Tenancy"
  type        = string
  default     = ""
}

variable "tenancy_id" {
  description = "Tenancy ID where to create resources for Requestor Tenancy"
  type        = string
  default     = ""
}

variable "user_id" {
  description = "User ID that Terraform will use to create resources for Requestor Tenancy"
  type        = string
  default     = ""
}

variable "region" {
  description = "OCI region where resources will be created for Requestor Tenancy"
  type        = string
  default     = "us-ashburn-1"  # example value
  # check this document, if you want to use different region - https://docs.oracle.com/en-us/iaas/Content/General/Concepts/regions.htm#About
}


# compartment OCID - Replace these values

variable "compartment_id" {
  description = "Compartment ID where to create resources for Requestor Tenancy"
  type        = string
  default     = ""
}

variable "db_system_db_version" {
  description = "Version"
  type = number
  default = 14
}

variable "db_system_display_name" {
  description = "postgress db service name"
  type = string
  default = "psqlfromterraform" # example value
}


variable "db_system_shape" {
    description = "shape"
    type = string
    default = "PostgreSQL.VM.Standard.E4.Flex.4.64GB"  # example value
    #change the shape value as per your requirements
}

variable "db_system_instance_count" {
  description = "instance count"
  type = number
  default = 3  # example value
}

variable "db_system_instance_memory_size_in_gbs" {
  description = "RAM"
  type = number
  default = 64  # example value
}

variable "db_system_instance_ocpu_count" {
  description = "OCPU count"
  type = number
  default = 4  # example value
}

variable "db_system_storage_details_is_regionally_durable" {
  description = "regional"
  type = bool
  default = true
}
variable "db_system_credentials_password_details_password_type" {
    description = "type"
    type = string
    default = "PLAIN_TEXT"

}

variable "db_system_credentials_password_details_password" {
  description = "password"
  type = string
  default = ""
}

variable "db_system_credentials_username" {
  description = "username"
  type = string
  default = "admin" # example value
}

variable "db_system_storage_details_system_type" {
  description = "type"
  type = string
  default = "OCI_OPTIMIZED_STORAGE"
}



# OCI VCN parameters - psql instance deployed on this

variable "vcn_cidr_block" {
  description = "vcn cidr"
  type = string
  default = "172.16.0.0/16" # example value
}

variable "vcn_display_name" {
  description = "vcn name"
  type = string
  default = "vcn-from-tf-psql" # example value
}

variable "public_subnet_cidr_block" {
    description = "subnet cidr range"
    type = string
    default = "172.16.1.0/24" # example value
}

variable "private_subnet_cidr_block" {
    description = "subnet cidr range"
    type = string
    default = "172.16.2.0/24" # example value
}

variable "public_subnet_display_name" {
  description = "public subnet name"
  type = string
  default = "public-subnet" # example value

}

variable "private_subnet_display_name" {
  description = "public subnet name"
  type = string
  default = "private-subnet" # example value

}

variable "internet_gateway_name" {
  description = "internet gateway name"
  type = string
  default = "internetgateway" # example value
}

variable "service_gateway_displayname" {
  description = "Service Gateway Display Name"
  type = string
  default = "servicegateway" # example value
}

variable "public_subnet_security_list_display_name" {
  description = "Public Subnet Security List Display Name"
  type = string
  default = "public_subnet_security_list" # example value
}

variable "private_subnet_security_list_display_name" {
  description = "Public Subnet Security List Display Name"
  type = string
  default = "public_subnet_security_list" # example value
}

variable "public_subnet_route_table_display_name" {
  description = "Public Subnet Route table Display Name"
  type = string
  default = "public_subnet_route_table" # example value
}

variable "private_subnet_route_table_display_name" {
  description = "Public Subnet Route table Display Name"
  type = string
  default = "private_subnet_route_table" # example value
}


# OCI Compute Instance parameters - We will use this instance to connect postgreSQL db instance

variable "compute_shape" {
  type    = string
  default = "VM.Standard.E4.Flex" # example value
}

variable "compute_cpus" {
  type    = string
  default = "1" # example value
}

variable "compute_memory_in_gbs" {
  type    = string
  default = "1" # example value
}

variable "compute_ssh_authorized_keys" {
  type = string
  default = ""
}

variable "api_private_key_for_ssh" {
  type = string
  default = ""
}

variable "source_operating_system_image_id" {
  description = "Oracle Linux 8 image ocid"
  type = string
  default = "ocid1.image.oc1.iad.aaaaaaaaszr5wpipg6qskiol3fhbitm56qdmumpbcpv6irzxuofi2nfmlhma" # example value
  # if you change the region , then change the default value from the region you have selected from this document -https://docs.oracle.com/en-us/iaas/images/image/998f1273-d4fd-4e16-8673-dd2517ddd724/
}

variable "compute_instance_display_name" {
  description = "display name of the compute name"
  type = string
  default = ""
}

必要なファイルを作成し、必要な値でvariables.tfファイルを調整すると、次のスクリーンショットに表示されている設定がフォルダ構造に反映されます。

tfフォルダ

タスク2: Terraformスクリプトの実行

Using your terminal or command prompt, run the following commands to initialize Terraform and create resources within your OCI tenancy. These commands will initialize Terraform and deploy the specified resources in your OCI tenancy.

terraform init

terraform plan

terraform apply

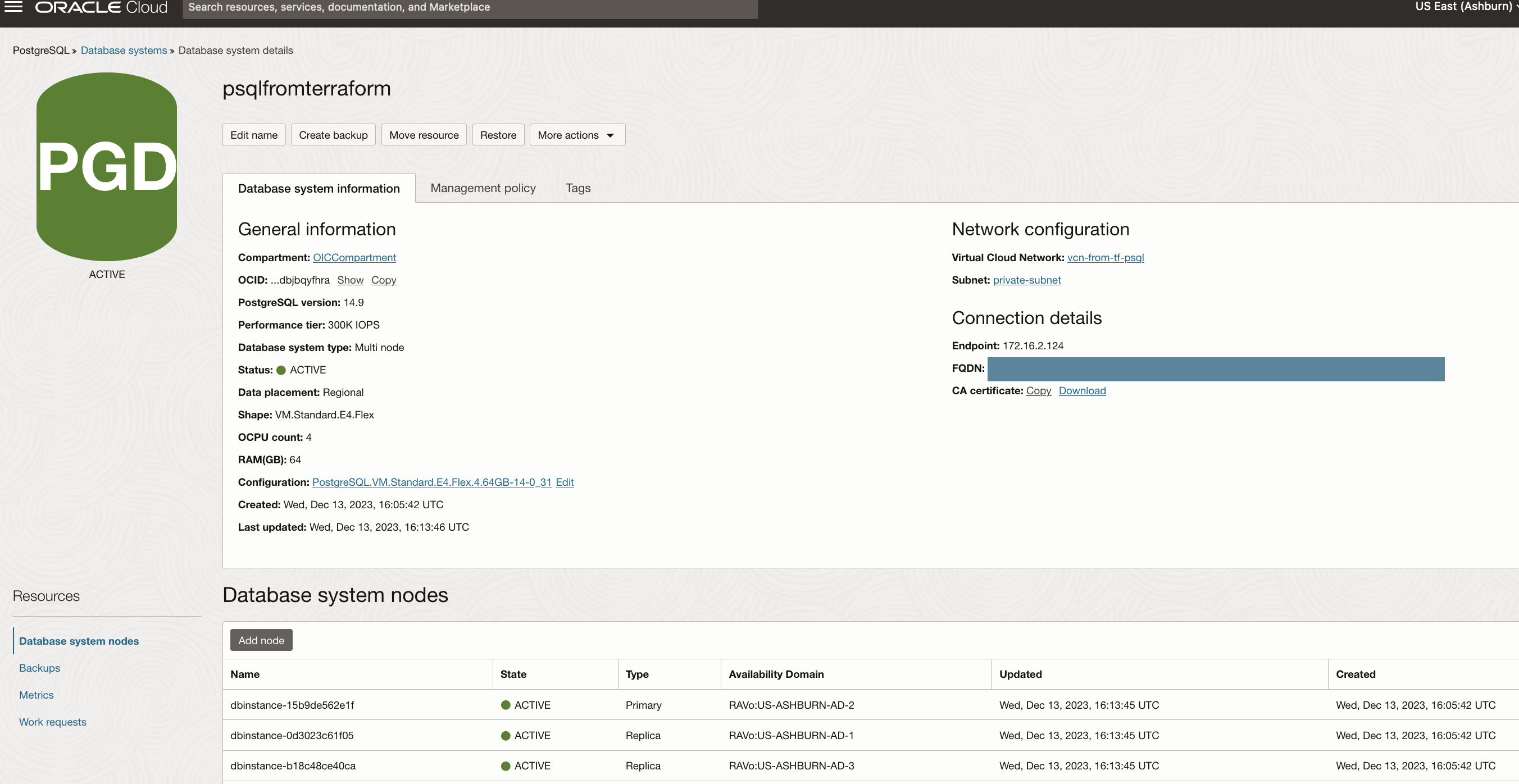

postgreSQLdb_oci_console

タスク3: OCI PostgreSQLデータベースへの接続

Upon completion, navigate to the OCI Console to locate OCI PostgreSQL and a compute instance preloaded with the psql client.Access the compute instance via SSH using its public IP, then execute the provided command to establish a connection with the OCI PostgreSQL database system (both SSH port 22 and database port 5432 are created automatically through the vcn.tf script; no action is needed for port management).Update the private endpoint IP, obtainable from the OCI PostgreSQL database console, along with the username and password you have specified in the variable.tf file.コマンドを実行すると、接続するパスワードの入力を求められます。

psql --version
psql -h endpoint_ip -U admin_username -d postgres

前述のコマンドの実行後、ユーザーは管理対象のPostgreSQLデータベースに対して確立された接続を確認できる必要があります。

psqldb_access_from_instance

The user successfully deployed three nodes of OCI managed PostgreSQL database and connected them privately using a compute instance.

高可用性およびビジネス継続性

確認

著者 - Akarsha I K (クラウド・アーキテクト)

その他の学習リソース

docs.oracle.com/learnの他のラボをご覧いただくか、Oracle Learning YouTubeチャネルで無料のラーニング・コンテンツにアクセスしてください。また、education.oracle.com/learning-explorerにアクセスしてOracle Learning Explorerになります。

製品ドキュメントは、Oracle Help Centerを参照してください。

タイトルおよび著作権情報

Deploy OCI Managed Database with PostgreSQL Service using Terraform

F91015-01

January 2024

Deploy OCI Managed Database with PostgreSQL Service using Terraform

イントロダクション

目的

前提条件

タスク1: フォルダへのTerraformスクリプト・ファイルの作成

タスク2: Terraformスクリプトの実行

タスク3: OCI PostgreSQLデータベースへの接続

関連リンク

確認

その他の学習リソース
