양방향 복제 구성

단방향 복제를 설정한 후에는 반대 방향으로 데이터를 복제하기 위한 몇 가지 추가 단계만 있습니다. 이 빠른 시작 예제에서는 Autonomous Transaction Processing 및 Autonomous Data Warehouse를 두 개의 클라우드 데이터베이스로 사용합니다.

관련 항목

시작하기 전에

이 빠른 시작을 계속하려면 동일한 테넌시 및 영역에 두 개의 기존 데이터베이스가 있어야 합니다. 샘플 데이터가 필요한 경우 Archive.zip을 다운로드한 다음 실습 1, 태스크 3: ATP 스키마 로드의 지침을 따릅니다.

개요

다음 단계에서는 Oracle Data Pump를 사용하여 대상 데이터베이스를 인스턴스화하고 동일한 영역에 있는 두 데이터베이스 간에 양방향 복제(양방향)를 설정하는 방법을 안내합니다.

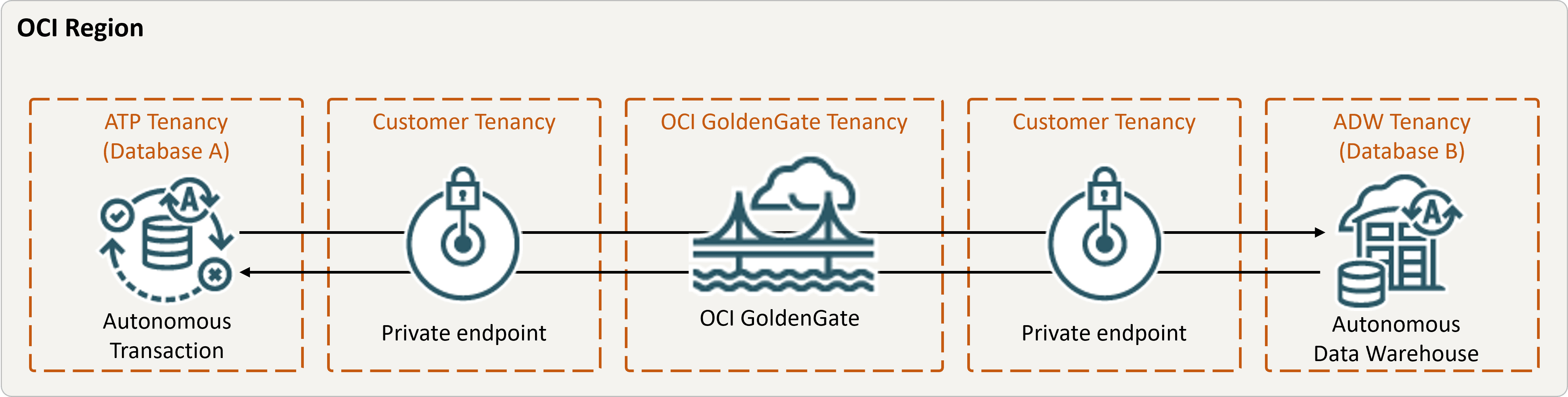

다음 bidirectional.png에 대한 설명입니다.
그림 bidirectional.png에 대한 설명

작업 1: 환경 설정

  1. 배치 생성.
  2. 데이터베이스에 대한 접속을 생성합니다.
  3. 배포에 대한 연결을 지정합니다.
  4. 보완 로깅 활성화:
    ALTER DATABASE ADD SUPPLEMENTAL LOG DATA
  5. 다음 query를 실행하여 원본 데이터베이스의 모든 테이블에 대해 support_mode=FULL를 확인합니다.

    select * from DBA_GOLDENGATE_SUPPORT_MODE where owner = 'SRC_OCIGGLL';
  6. 데이터베이스 B에서 다음 query를 실행하여 데이터베이스의 모든 테이블에 대해 support_mode=FULL를 확인합니다.
    select * from DBA_GOLDENGATE_SUPPORT_MODE where owner = 'SRCMIRROR_OCIGGLL';

작업 2: 두 데이터베이스에 대한 트랜잭션 정보 및 체크포인트 테이블 추가

OCI GoldenGate 배포 콘솔에서 관리 서비스에 대한 구성 화면으로 이동한 후 다음을 완료합니다.

  1. 데이터베이스 A 및 B에 트랜잭션 정보를 추가합니다.
    1. 데이터베이스 A의 경우 스키마 이름에 SRC_OCIGGLL를 입력합니다.
    2. Database B의 경우 Schema Name에 SRCMIRROR_OCIGGLL를 입력합니다.

    주:

    이 예와 다른 데이터 집합을 사용하는 경우 스키마 이름은 고유해야 하며 데이터베이스 스키마 이름과 일치해야 합니다.
  2. 데이터베이스 A 및 B에 대한 체크포인트 테이블 생성:
    1. 데이터베이스 A의 경우 체크포인트 테이블에 "SRC_OCIGGLL"."ATP_CHECKTABLE"를 입력합니다.
    2. 데이터베이스 B의 경우 체크포인트 테이블에 "SRCMIRROR_OCIGGLL"."CHECKTABLE"를 입력합니다.

작업 3: 통합 Extract 생성

통합 추출은 소스 데이터베이스에 대한 지속적인 변경사항을 캡처합니다.

  1. 배치 세부정보 페이지에서 콘솔 실행을 누릅니다.
  2. 통합 추출 추가 및 실행.

    주:

    소스 테이블을 지정하는 데 사용할 수 있는 매개변수에 대한 자세한 내용은 추가 추출 매개변수 옵션을 참조하십시오.
    1. [매개변수 추출] 페이지에서 EXTTRAIL <extract-name> 아래에 다음 행을 추가합니다.
      -- Capture DDL operations for listed schema tables
      ddl include mapped

      -- Add step-by-step history of
      -- to the report file. Very useful when troubleshooting.
      ddloptions report

      -- Write capture stats per table to the report file daily.
      report at 00:01

      -- Rollover the report file weekly. Useful when IE runs
      -- without being stopped/started for long periods of time to
      -- keep the report files from becoming too large.
      reportrollover at 00:01 on Sunday

      -- Report total operations captured, and operations per second
      -- every 10 minutes.
      reportcount every 10 minutes, rate

      -- Table list for capture
      table SRC_OCIGGLL.*;

      -- Exclude changes made by GGADMIN
      tranlogoptions excludeuser ggadmin

    주:

    tranlogoptions excludeuser ggadmin는 양방향 복제 시나리오에서 ggadmin에 의해 적용된 트랜잭션을 다시 캡처하지 않습니다.
  3. 장기 실행 트랜잭션 확인:
    1. 소스 데이터베이스에서 다음 스크립트를 실행합니다.
      select start_scn, start_time from gv$transaction where start_scn < (select max(start_scn) from dba_capture);

      query에서 행을 반환하면 트랜잭션의 SCN을 찾은 다음 트랜잭션을 커밋하거나 롤백해야 합니다.

작업 4: Oracle Data Pump를 사용하여 데이터 엑스포트(ExpDP)

Oracle Data Pump(ExpDP)를 사용하여 소스 데이터베이스에서 Oracle Object Store로 데이터를 익스포트할 수 있습니다.

  1. Oracle Object Store 버킷을 생성합니다.

    Export 및 Import 스크립트에 사용할 네임스페이스와 버킷 이름을 기록해 둡니다.

  2. 인증 토큰을 생성한 다음 나중에 사용할 수 있도록 토큰 문자열을 복사하여 텍스트 편집기에 붙여 넣습니다.
  3. 소스 데이터베이스에 인증서를 생성하고 <user-name><token>를 이전 단계에서 생성한 Oracle Cloud 계정 사용자 이름 및 토큰 문자열로 바꿉니다.
    BEGIN
      DBMS_CLOUD.CREATE_CREDENTIAL(
        credential_name => 'ADB_OBJECTSTORE',
        username => '<user-name>',
        password => '<token>'
      );
    END;
  4. 소스 데이터베이스에서 다음 스크립트를 실행하여 데이터 익스포트 작업을 생성합니다. 객체 저장소 URI의 <region>, <namespace><bucket-name>를 적절히 바꿔야 합니다. SRC_OCIGGLL.dmp은 이 스크립트가 실행될 때 생성되는 파일입니다.
    DECLARE
    ind NUMBER;              -- Loop index
    h1 NUMBER;               -- Data Pump job handle
    percent_done NUMBER;     -- Percentage of job complete
    job_state VARCHAR2(30);  -- To keep track of job state
    le ku$_LogEntry;         -- For WIP and error messages
    js ku$_JobStatus;        -- The job status from get_status
    jd ku$_JobDesc;          -- The job description from get_status
    sts ku$_Status;          -- The status object returned by get_status

    BEGIN
    -- Create a (user-named) Data Pump job to do a schema export.
    h1 := DBMS_DATAPUMP.OPEN('EXPORT','SCHEMA',NULL,'SRC_OCIGGLL_EXPORT','LATEST');

    -- Specify a single dump file for the job (using the handle just returned
    -- and a directory object, which must already be defined and accessible
    -- to the user running this procedure.
    DBMS_DATAPUMP.ADD_FILE(h1,'https://objectstorage.<region>.oraclecloud.com/n/<namespace>/b/<bucket-name>/o/SRC_OCIGGLL.dmp','ADB_OBJECTSTORE','100MB',DBMS_DATAPUMP.KU$_FILE_TYPE_URIDUMP_FILE,1);

    -- A metadata filter is used to specify the schema that will be exported.
    DBMS_DATAPUMP.METADATA_FILTER(h1,'SCHEMA_EXPR','IN (''SRC_OCIGGLL'')');

    -- Start the job. An exception will be generated if something is not set up properly.
    DBMS_DATAPUMP.START_JOB(h1);

    -- The export job should now be running. In the following loop, the job
    -- is monitored until it completes. In the meantime, progress information is displayed.
    percent_done := 0;
    job_state := 'UNDEFINED';
    while (job_state != 'COMPLETED') and (job_state != 'STOPPED') loop
      dbms_datapump.get_status(h1,dbms_datapump.ku$_status_job_error + dbms_datapump.ku$_status_job_status + dbms_datapump.ku$_status_wip,-1,job_state,sts);
      js := sts.job_status;

    -- If the percentage done changed, display the new value.
    if js.percent_done != percent_done
    then
      dbms_output.put_line('*** Job percent done = ' || to_char(js.percent_done));
      percent_done := js.percent_done;
    end if;

    -- If any work-in-progress (WIP) or error messages were received for the job, display them.
    if (bitand(sts.mask,dbms_datapump.ku$_status_wip) != 0)
    then
      le := sts.wip;
    else
      if (bitand(sts.mask,dbms_datapump.ku$_status_job_error) != 0)
      then
        le := sts.error;
      else
        le := null;
      end if;
    end if;
    if le is not null
    then
      ind := le.FIRST;
      while ind is not null loop
        dbms_output.put_line(le(ind).LogText);
        ind := le.NEXT(ind);
      end loop;
    end if;
      end loop;

      -- Indicate that the job finished and detach from it.
      dbms_output.put_line('Job has completed');
      dbms_output.put_line('Final job state = ' || job_state);
      dbms_datapump.detach(h1);
    END;

작업 5: Oracle Data Pump(ImpDP)를 사용하여 대상 데이터베이스 인스턴스화

Oracle Data Pump(ImpDP)를 사용하여 소스 데이터베이스에서 익스포트된 SRC_OCIGGLL.dmp에서 대상 데이터베이스로 데이터를 임포트합니다.

  1. 이전 섹션의 동일한 정보를 사용하여 Oracle Object Store에 액세스할 수 있도록 Target Database에 인증서를 생성합니다.
    BEGIN
      DBMS_CLOUD.CREATE_CREDENTIAL(
        credential_name => 'ADB_OBJECTSTORE',
        username => '<user-name>',
        password => '<token>'
      );
    END;
  2. 대상 데이터베이스에서 다음 스크립트를 실행하여 SRC_OCIGGLL.dmp에서 데이터를 임포트합니다. 객체 저장소 URI의 <region>, <namespace><bucket-name>를 적절하게 바꿔야 합니다.
    DECLARE
    ind NUMBER;  -- Loop index
    h1 NUMBER;  -- Data Pump job handle
    percent_done NUMBER;  -- Percentage of job complete
    job_state VARCHAR2(30);  -- To keep track of job state
    le ku$_LogEntry;  -- For WIP and error messages
    js ku$_JobStatus;  -- The job status from get_status
    jd ku$_JobDesc;  -- The job description from get_status
    sts ku$_Status;  -- The status object returned by get_status
    BEGIN

    -- Create a (user-named) Data Pump job to do a "full" import (everything
    -- in the dump file without filtering).
    h1 := DBMS_DATAPUMP.OPEN('IMPORT','FULL',NULL,'SRCMIRROR_OCIGGLL_IMPORT');

    -- Specify the single dump file for the job (using the handle just returned)
    -- and directory object, which must already be defined and accessible
    -- to the user running this procedure. This is the dump file created by
    -- the export operation in the first example.

    DBMS_DATAPUMP.ADD_FILE(h1,'https://objectstorage.<region>.oraclecloud.com/n/<namespace>/b/<bucket-name>/o/SRC_OCIGGLL.dmp','ADB_OBJECTSTORE',null,DBMS_DATAPUMP.KU$_FILE_TYPE_URIDUMP_FILE);


    -- A metadata remap will map all schema objects from SRC_OCIGGLL to SRCMIRROR_OCIGGLL.
    DBMS_DATAPUMP.METADATA_REMAP(h1,'REMAP_SCHEMA','SRC_OCIGGLL','SRCMIRROR_OCIGGLL');

    -- If a table already exists in the destination schema, skip it (leave
    -- the preexisting table alone). This is the default, but it does not hurt
    -- to specify it explicitly.
    DBMS_DATAPUMP.SET_PARAMETER(h1,'TABLE_EXISTS_ACTION','SKIP');

    -- Start the job. An exception is returned if something is not set up properly.
    DBMS_DATAPUMP.START_JOB(h1);

    -- The import job should now be running. In the following loop, the job is
    -- monitored until it completes. In the meantime, progress information is
    -- displayed. Note: this is identical to the export example.
    percent_done := 0;
    job_state := 'UNDEFINED';
    while (job_state != 'COMPLETED') and (job_state != 'STOPPED') loop
      dbms_datapump.get_status(h1,
        dbms_datapump.ku$_status_job_error +
        dbms_datapump.ku$_status_job_status +
        dbms_datapump.ku$_status_wip,-1,job_state,sts);
        js := sts.job_status;

      -- If the percentage done changed, display the new value.
      if js.percent_done != percent_done
      then
        dbms_output.put_line('*** Job percent done = ' ||
        to_char(js.percent_done));
        percent_done := js.percent_done;
      end if;

      -- If any work-in-progress (WIP) or Error messages were received for the job, display them.
      if (bitand(sts.mask,dbms_datapump.ku$_status_wip) != 0)
      then
        le := sts.wip;
      else
        if (bitand(sts.mask,dbms_datapump.ku$_status_job_error) != 0)
        then
          le := sts.error;
        else
          le := null;
        end if;
      end if;
      if le is not null
      then
        ind := le.FIRST;
        while ind is not null loop
          dbms_output.put_line(le(ind).LogText);
          ind := le.NEXT(ind);
        end loop;
      end if;
    end loop;

    -- Indicate that the job finished and gracefully detach from it.
    dbms_output.put_line('Job has completed');
    dbms_output.put_line('Final job state = ' || job_state);
    dbms_datapump.detach(h1);
    END;

작업 6: 비통합 Replicat 추가 및 실행

  1. 복제 추가 및 실행.
    1. 매개변수 파일 화면에서 MAP *.*, TARGET *.*;을 다음 스크립트로 바꿉니다.
      -- Capture DDL operations for listed schema tables
      --
      ddl include mapped
      --
      -- Add step-by-step history of ddl operations captured
      -- to the report file. Very useful when troubleshooting.
      --
      ddloptions report
      --
      -- Write capture stats per table to the report file daily.
      --
      report at 00:01
      --
      -- Rollover the report file weekly. Useful when PR runs
      -- without being stopped/started for long periods of time to
      -- keep the report files from becoming too large.
      --
      reportrollover at 00:01 on Sunday
      --
      -- Report total operations captured, and operations per second
      -- every 10 minutes.
      --
      reportcount every 10 minutes, rate
      --
      -- Table map list for apply
      --
      DBOPTIONS ENABLE_INSTANTIATION_FILTERING;
      MAP SRC_OCIGGLL.*, TARGET SRCMIRROR_OCIGGLL.*;

      주:

      DBOPTIONS ENABLE_INSTATIATION_FILTERING는 Oracle Data Pump를 사용하여 임포트된 테이블에 대해 CSN 필터링을 사용으로 설정합니다. 자세한 내용은 DBOPTIONS Reference를 참조하십시오.
  2. 데이터베이스 A에 대해 몇 가지 변경 사항을 수행하여 데이터베이스 B에 복제된 것을 확인합니다.

작업 7: 데이터베이스 B에서 데이터베이스 A로 복제 구성

데이터베이스 A에서 데이터베이스 B로 설정된 1-6개의 복제 작업을 수행합니다. 다음 단계에서는 데이터베이스 B에서 데이터베이스 A로의 복제를 설정합니다.

  1. 데이터베이스 B에서 추출 추가 및 실행 EXTRAIL <extract-name> 뒤의 추출 매개변수 페이지에서 다음을 포함해야 합니다.
    -- Table list for capture
    table SRCMIRROR_OCIGGLL.*;

    -- Exclude changes made by GGADMIN
    tranlogoptions excludeuser ggadmin
  2. 데이터베이스 A에 Replicat 추가 및 실행 [매개변수] 페이지에서 MAP *.*, TARGET *.*;를 다음으로 바꿉니다.
    MAP SRCMIRROR_OCIGGLL.*, TARGET SRC_OCIGGLL.*;
  3. 데이터베이스 B에서 몇 가지 변경 작업을 수행하여 데이터베이스 A에 복제된 내용을 확인합니다.

작업 8: 프로세스 모니터 및 유지 관리

  1. 성능 모니터.
  2. 추적 파일 관리.
