42 Managing Replication Configuration Attributes

This chapter describes the configuration attributes that control the Oracle Internet Directory replication server and how to manage these attributes using Oracle Enterprise Manager Fusion Middleware Control and LDAP command-line utilities.

This chapter includes the following sections:

Section 42.1, "Introduction to Replication Configuration Attributes"
Section 42.2, "Configuring Replication Configuration Attributes by Using Fusion Middleware Control"
Section 42.3, "Managing Replication Configuration Attributes From the Command Line"

See Chapter 43, "Managing and Monitoring Replication" for specific replication management tasks.

42.1 Introduction to Replication Configuration Attributes

The configuration attributes reside in specific containers in the DIT. This introduction contains the following topics:

Section 42.1.1, "The Replication Configuration Container"
Section 42.1.2, "The Replica Subentry"
Section 42.1.3, "The Replication Agreement Entry"
Section 42.1.4, "The Replication Naming Context Container Entry"
Section 42.1.5, "The Replication Naming Context Object Entry"
Section 42.1.6, "The Replication Configuration Set"
Section 42.1.7, "Examples of Replication Configuration Objects in the Directory"

42.1.1 The Replication Configuration Container

All replication information for a node resides in the container cn=replication configuration located at the root DSE. This entry resides on each node in a DRG. The following is a sample replication configuration container entry:

dn: cn=replication configuration
orclaci: access to entry by * (browse)
orclaci: access to attr=(*) by * (search,read)
orclnormdn: cn=replication configuration
cn: replication configuration
description: Replication agreement Container object
objectclass: top
objectclass: orclcontainerOC

42.1.2 The Replica Subentry

The Replica subentry has the DN

orclreplicaid=Replica_ID,cn=replication configuration

This subentry is created at installation under the replication configuration container. It contains attributes that identify and define the characteristics of the node it represents.

Table 42-1 describes the attributes of the replica subentry. Under Update Mechanism, EM indicates that you can manage this attribute with Oracle Enterprise Manager Fusion Middleware Control. LDAP indicates that you can manage this attribute by using LDAP tools.

Table 42-1 Attributes of the Replica Subentry

Attribute	Description	Update Mechanism	Default	Possible Values
`orclreplicaid`	Unique identifier for directory database. Initialized at installation. Matches orclreplicaid at the root DSE.	Read-only	hostname_ORACLESID	Integer
`orclreplicauri`	Address used to open a connection to this replica.	EM, LDAP		Valid ldapURI format
`orclreplicasecondaryuri`	Addresses used if `orclReplicaURI` cannot be used.	EM, LDAP		Valid ldapURI format
`orclreplicatype`	Defines the type of replica such as read-only or read/write.	EM, LDAP	0 (Read/Write)	0: Read/Write 1: Read-Only 2: Pilot
`orclpilotmode`	Defines whether replica is in pilot (testing) mode.	`remtool -pilotreplica`	0	0: False 1: True
`orclreplicastate`	Defines state of the replica.	EM, LDAP		You can set 0, 1, 2, 6, or 8. Server sets other values. See Table D-1.
`pilotstarttime`	Time when replica entered pilot (testing) mode.	Read-only		Time

Note:

On Windows systems, ensure that the replication server is not running before you enable bootstrapping by changing the value of orclReplicaState to 0.

In Figure 42-3 , a replica subentry is represented by orclReplicaID=UID_of_node_D,cn=replication configuration.

The following is a sample replica subentry:

dn: orclreplicaid=myhost1_repl1,cn=replication configuration
objectclass: top
objectclass: orclreplicasubentry
orclreplicaid: myhost1_repl1
orclreplicauri: ldap://myhost1:3060/
orclreplicasecondaryuri: ldap://myhost1.mycompany.com:3060/
orclreplicastate: 1

42.1.3 The Replication Agreement Entry

The DN of the Replication Agreement Entry is:

orclagreementid=Agreement_ID,orclreplicaid=Replica_ID,cn=replication configuration

This entry contains attributes that define the replication agreement between the two or more nodes and is associated with the orclReplAgreementEntry objectclass. There are two kinds of agreement:

Oracle Database Advanced Replication-based replication agreement. The replication agreement for Advanced Replication nodes resides under the replication configuration set. For example: In Figure 42-2, an Oracle Database Advanced Replication-based replication agreement entry is represented by orclagreementID=000001,cn=replication configuration.
LDAP-based replication agreement. The replication agreement for LDAP nodes resides under the supplier's replica subentry. For example, in Figure 42-3, an LDAP-based replication agreement entry is represented by orclagreementID=000003, orclReplicaID=UID_of_node_D,cn=replication configuration.

42.1.3.1 Replication Agreement Entry Attributes

Table 42-2 shows the attributes in the replication agreement. Under Update Mechanism, EM indicates that you can manage this attribute with Oracle Enterprise Manager Fusion Middleware Control. LDAP indicates that you can manage this attribute by using LDAP tools.

Table 42-2 Attributes of the Replication Agreement Entry

Attribute	Description	Update Mechanism	Default	Possible Values
`orclagreementid`	Name of replication agreement entry.	Read-only
`orclreplicadn`	LDAP-based replication only. DN of the replica to identify a consumer in the replication agreement.	Read-only		DN
`orclentryexclusionfilter`	LDAP-based one-way replication only. LDAP filter string that specifies entries that should not be replicated. Applies to Oracle Internet Directory 11g Release 1 (11.1.1.9.0) and later. See Configuring Replication Filtering Using the `orclEntryExclusionFilter` Attribute.	LDAP		LDAP filter string enclosed in parentheses. Supported maximum length is `1500` characters. For example: `(sn=smith)`
`orclreplicationprotocol`	Replication protocol for change propagation to replica. Values:	Read-only		ODS_ASR_1.0: Oracle Database Advanced Replication-based ODS_LDAP_1.0: LDAP-based
`orcldirreplgroupdsas`	For Oracle Database Advanced Replication-based groups only. Orclreplicaid values of all the nodes in this replication group. This list must be identical on all nodes in the group. You can modify this attribute.	LDAP
`orclupdateschedule`	Update interval for new changes and those being retried.	EM, LDAP	60 (seconds)	Greater than or = 0
`orclhiqschedule`	Interval at which the directory replication server repeats the change application process.	EM, LDAP	600 (seconds)	Greater than or = 60 (seconds)
`orclldapconnkeepalive`	Whether the connections from replication server to the directory server are kept active or established every time the changelog processing is done.	EM, LDAP	1	0: false 1: true
`orcllastappliedchangenumber`	Last change number transported or applied at the consumer replica. For LDAP-based agreements, this attribute contains subtypes. The format is: orcllastappliedchangenumber; status_type$supplier_replicaID$consumer_replicaID: Number where status_type is: `transport` or `apply`, supplier_replicaID and consumer_replicaID indicate the direction of LDAP data flow, and `Number` is the last applied change number. It indicates that changelogs from supplier_replicaID to consumer_replicaID with change number less than `Number` have been transported/applied at node consumer_replicaID. For Oracle Database Advanced Replication-based agreements, only the base type is used.	Read-only
`orclexcludednamingcontexts`	Subtrees to be excluded from replication. Applicable only to Oracle Database Advanced Replication-based agreements. LDAP replication uses the Replication Naming Context Entry, described, in Table 42-3.	Read-only
`orclreplicationid`	Unique identifier of a one-way, two-way, or peer-to-peer replication group	Read-only
`orclagreementtype`	Replication agreement type.	Read-only		0: one-way/read-only fan-out replication agreement 1: two-way/updatable fan-out replication agreement 2: LDAP-based multimaster replication agreement 3: Oracle Database Advanced Replication-based multimaster replication agreement

42.1.3.2 Oracle Database Advanced Replication-Based Replication Agreements

For Advanced Replication, the replication agreement on each node lists all of the nodes in the group. It is identical on each node except for local options such as partitioned naming contexts on the local directory server.

The entry for this kind of replication agreement resides immediately below the cn=replication configuration container entry. For example, the DN of such an agreement can look like this: orclagreementID=000001,cn=replication configuration.

42.1.3.3 LDAP Replication Agreements

For LDAP-based replication, there are separate replication agreements for each supplier-consumer relationship. For one-way replication, there is a single, one-way replication agreement.

The entry for an LDAP-based replication agreement resides immediately below the replica subentry of the node that serves as the supplier. Thus, the DN of the replication agreement as found on a supplier node is:

orclagreementID=unique_identifier_of_the_replication_agreement, orclReplicaID=unique_identifier_of_supplier_node, cn=replication configuration

Similarly, the DN of the replication agreement as found on a consumer node is:

orclagreementID=unique_identifier_of_the_replication_agreeement, orclReplicaID=unique_identifier_of_supplier_node, cn=replication configuration

In a fan-out replication agreement, you can tell which node the agreement entry is associated with by looking at its parent. For example, look at the following replication agreement entry.

orclagreementID=000002,orclReplicaID=node_A,cn=replication configuration

In this example, you can determine that the replication agreement represented by orclagreementID=000002 is associated with node A. This is because the parent of orclagreementID=000002 is orclReplicaID=node_A.

Notes:

The container entry cn=replication configuration is replicated on all nodes, but may not be identical on all nodes.
The orclreplicadn attribute of an LDAP-based replication agreement specifies the associated consumer node.
The agreementtype indicates the replication agreement type. See Table 42-2, "Attributes of the Replication Agreement Entry" for values of orclagreementtype.

42.1.3.4 Two-Way LDAP Replication Agreements

For two-way replication, there can be either a single, two-way replication agreement or two one-way agreements for each supplier-consumer relationship. The following is a sample two-way replication agreement entry:

dn: orclagreementid=000002, orclreplicaid=stadd58_repl, cn=replication configuration
orclagreementid: 000002
orclreplicationprotocol: ODS_LDAP_1.0
orclreplicadn: orclreplicaid=stadd57_repl,cn=replication configuration
orclldapconnkeepalive: 1
orclagreementtype: 1
orclreplicationid: 000002
orcllastappliedchangenumber;transport$stadd57$stadd58: 106
orcllastappliedchangenumber;transport$stadd58$stadd57: 2421
orcllastappliedchangenumber;apply$stadd57$stadd58: 106
orcllastappliedchangenumber;apply$stadd58$stadd57: 2421
orclupdateschedule: 0
orclhiqschedule: 60
objectclass: orclReplAgreementEntry
objectclass: top

Note:

The value of orclagreementtype is 1 because this is a two-way replication agreement. See Table 42-2, "Attributes of the Replication Agreement Entry" for values of orclagreementtype for other replication agreement types.

42.1.4 The Replication Naming Context Container Entry

This entry contains all the LDAP naming context objects.

This entry has the RDN cn=replication namecontext, and it is created below the orclagreementID entry during replication configuration. The following is a sample replication naming context container entry:

dn: cn=replication namecontext,orclagreementid=000002,
 orclreplicaid=myhost1_repl1,cn=replication configuration
objectclass: top
objectclass: orclcontainerOC
cn: replication namecontext

42.1.5 The Replication Naming Context Object Entry

This entry contains all the LDAP naming context objects. These objects specify the replication filtering policy, that is, what to include in or exclude from replication to an LDAP-based partial replica.

Note:

You cannot include naming contexts or exclude attributes in Oracle Database Advanced Replication-based agreements. Advanced Replication agreements use the base attribute orclexcludednamingcontexts described in Table 42-2.

This entry is created below the naming context container entry during replication configuration. It is configurable. For example, in Figure 42-3 , the replication naming context object is: cn=includednamingcontext000001,cn=replication namecontext,orclagreementID=000003,orclReplicaID=UID_of_node_D,cn=replication configuration.

Table 42-3 describes the attributes of the replication naming context entry. If you use the Replication Wizard in Oracle Enterprise Manager Fusion Middleware Control to set up replication, you set these on the Scope page.

Table 42-3 Attributes of the Replication Naming Context Entry

Attribute Description

Attribute	Description
`orclincludednamingcontexts`	The root of the naming context to be replicated. If orclincludednamingcontexts is set to "`*"`, all the naming contexts are replicated. This attribute has subtypes that specify the replication direction in which the naming context should be included. The format is: orclincludednamingcontexts ; supplier_replicaID$consumer_replicaiD: DN This is a single valued attribute. For each naming context object, you can specify only one unique subtree in each direction. In partial replication, except for subtrees listed in the orclexcluednamingcontexts attribute, all subtrees in the specified included naming context are replicated. You can modify this attribute.
`orclexcludednamingcontexts`	The root of a subtree, located within the included naming context, to be excluded from replication.This attribute has subtypes that specify the replication direction in which the naming context should be excluded. The format is: orclexcludednamingcontexts; supplier_replicaID$consumer_replicaiD : DN This is a multivalued attribute. From within the naming context specified in the orclincludednamingcontexts attribute, you can specify one or more subtrees to be excluded from the partial replication in each direction. You can modify this attribute.
`orclexcludedattributes`	An attribute, located within the included naming context, to be excluded from replication. `Orclexcludedattributes` has subtypes that specify the replication direction in which the specified attribute should be excluded. The format is: orclexcludedattributes; supplier_replicaID$consumer_replicaiD: attribute_name This is a multivalued attribute. You can modify this attribute

orclincludednamingcontexts

The root of the naming context to be replicated. If orclincludednamingcontexts is set to "*", all the naming contexts are replicated. This attribute has subtypes that specify the replication direction in which the naming context should be included. The format is:

orclincludednamingcontexts ; supplier_replicaID$consumer_replicaiD: DN

This is a single valued attribute. For each naming context object, you can specify only one unique subtree in each direction.

In partial replication, except for subtrees listed in the orclexcluednamingcontexts attribute, all subtrees in the specified included naming context are replicated.

You can modify this attribute.

orclexcludednamingcontexts

The root of a subtree, located within the included naming context, to be excluded from replication.This attribute has subtypes that specify the replication direction in which the naming context should be excluded. The format is:

orclexcludednamingcontexts; supplier_replicaID$consumer_replicaiD : DN

This is a multivalued attribute. From within the naming context specified in the orclincludednamingcontexts attribute, you can specify one or more subtrees to be excluded from the partial replication in each direction.

You can modify this attribute.

orclexcludedattributes

An attribute, located within the included naming context, to be excluded from replication. Orclexcludedattributes has subtypes that specify the replication direction in which the specified attribute should be excluded. The format is:

orclexcludedattributes; supplier_replicaID$consumer_replicaiD: attribute_name

This is a multivalued attribute.

You can modify this attribute

The following is a sample replication naming context object entry:

dn:cn=namectx001,
cn=replication namecontext,
orclagreementid=unique_identifier_of_the_replication_agreement,
orclreplicaid=replica_id_of_node_A,
cn=replication configuration
orclincludednamingcontexts: cn=mycompany
orclexcludednamingcontexts; replica_id_of_node_A$ replica_id_of_node_B : c=us,cn=mycompany
orclexcludedattributes; replica_id_of_node_B$ replica_id_of_node_A : userPassword

The example specifies the following replication filtering:

The naming context cn=mycompany is included for replication in both directions for node A and node B.
The naming context c=us,cn=mycompany is excluded for replication from node A to node B only.
The userPassword attribute is excluded for replication from node B to node A

42.1.6 The Replication Configuration Set

The replication configuration set has the DN:

cn=configset0,cn=osdrepld,cn=subconfigsubentry

Table 42-4 lists and describes the attributes of the replication configuration set, which has the following DN:

cn=configset0,cn=osdrepld,cn=subconfigsubentry

You must restart the replication server in order for any attribute changes under this DN to take effect, except for the attribute orcldebuglevel. Under Update Mechanism, EM indicates that you can manage this attribute with Oracle Enterprise Manager Fusion Middleware Control. LDAP indicates that you can manage this attribute by using LDAP tools.

Table 42-4 Replication Configuration Set Attributes

Attribute	Description	Update Mechanism	Default	Possible Values
`modifyTimestamp`	Time of entry creation or modification.	Read-only
`modifiersName`	Name of person creating or modifying the entry	Read-only
`orclChangeRetryCount`	Number of processing retry attempts for a change-entry before being moved to the human intervention queue.	EM, LDAP	10	Greater than or equal to 1.
`orclThreadsPerSupplier;transport`	Number of worker threads spawned at each supplier for transporting change logs.	EM, LDAP	1	1-100
`orclThreadsPerSupplier;apply`	Number of worker threads spawned at each supplier for applying change logs.	EM, LDAP	5	1-100
`orclreplautotune`	Dynamically vary the number of threads assigned to transport and apply tasks based on load. If you set the server to auto tune, you must specify the number of maximum number of threads to be shared between these tasks. Restart server after changing.	EM, LDAP	1	0: Off 1: On
`orclreplmaxworkers`	Maximum number of worker threads. Required if `orclreplautotune` is set.	EM, LDAP	20	1-100
`orclsdumpflag`	Generate stack dump. (Restart after changing.)	EM, LDAP	0	0: False 1: True
`orclmaxlogfilesize`	Maximum log file size (MB)	EM, LDAP	1 MB	> or = 1
`orclmaxlogfiles`	Maximum number of log files to keep in rotation	EM, LDAP	100	> or = 1
`orclsizelimit`	Maximum number of entries to process per replication cycle	EM, LDAP	1000	1-10000
`orclconflresolution`	Automatically resolve replication conflicts	EM, LDAP	1	0: False 1: True
`orclreplusesasl;digest-md5`	Use SASL for replication binds.	EM, LDAP	Attribute does not exist by default.	auth, auth-int, auth-conf
`orclActivateReplication`	Specifies that replication be activated on the replication server designated by `orclOidInstanceName` and `orclOidComponentName`.	EM, LDAP	0	0: False 1: True
`orclReplicationState`	Activation state of the replication server	Read-only, using EM, LDAP	0	0 or nonexistant: Not running False 1: Running
`orcldebuglevel`	Debug level of replication server	EM, LDAP	0	Values are additive: 0: No Debug Log 2097152: Replication Performance Log 4194304: Replication Debug Log 8388608: Function Call Trace 16777216: Heavy Trace Log
`orclOidComponentName`	Name of OID component where replication is or will be activated	Read-only	Set during replication setup	String
`orclOidInstanceName`	Instance number of instance where replication is or will be activated	Read-only	Set during replication setup	Integer
`orclReplAttrConflict`	Specifies whether timestamp or attribute version should be honored first during attribute level conflict resolution.	EM, LDAP	0	0: Timestamp first. 1: Version number first

42.1.7 Examples of Replication Configuration Objects in the Directory

The examples of replication objects in this section rely on the replication environment shown in Figure 42-1.

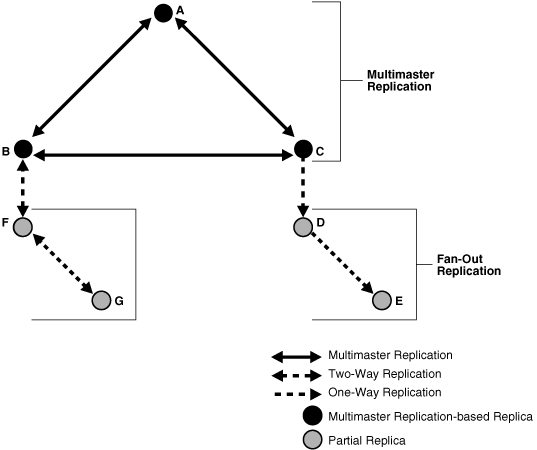

Figure 42-1 Example: Multimaster Replication and Fan-Out Replication

This illustration is described in the text.

In Figure 42-1, nodes A, B, and C form a multimaster replication group. Node C replicates to a fourth node, D, which, in turn, fans out to Node E.

The replication agreements in this environment are as follows:

Node A has one replication agreement representing its multimaster relationship with nodes B and C.
Node B has two replication agreements, the first representing its multimaster relationship with nodes A and C, the second representing its relationship to node F. The replication agreement between B and F is two-way.
Node C has two replication agreements, the first representing its multimaster relationship with nodes A and B, the second representing its relationship to node D. This is a one-way replication agreement in which C serves as the supplier and node D is the consumer.
Node D has two replication agreements. Both of its replication agreements are one-way. One represents its relationship to the supplier node C, from which it consumes changes, the other represents its relationship to consumer node E for which it is the supplier.
Node E has a one-way replication agreement with Node D. Node E is the consumer.
Node F has two replication agreements, one representing its relationship to the node B, the other representing its relationship to node G.Both are two-way replication agreements.
Node G has a one-way replication agreement with Node F. Node G is the consumer.

Figure 42-2 shows the replication objects in the DIT that pertain to node C in Figure 42-1 .

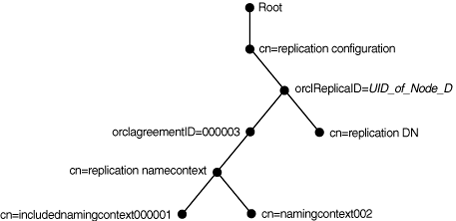

Figure 42-2 Example: Replication Configuration Entries for Node C

For node C, the entry cn=replication configuration at the root DSE contains these RDNs:

orclagreementID=000001: The multimaster replication agreement in which node C participates with nodes A and B.
orclReplicaID=UID_of_node_C: Unique identifier of node C that contains information about it.
orclagreementID=000002: Unique identifier of the relationship between supplier node C and consumer node D. You know that, in this case, orclagreementID=000002 is the replication agreement of the supplier node C because node C is its parent.

This entry contains the attribute orclreplicaDN. Its value is the replica entry DN of consumer node D, with which node C has the replication agreement.
cn=replication DN: The bind DN that the directory replication server on node C uses to bind to the directory server.
cn=replication namecontext: Container of information about naming contexts that are included in replication.
cn=includednamingcontext000001 and cn=namingcontext002: The actual objects that are included in or excluded from replication. In the naming context included for replication, you can specify one or more subtrees to be excluded from replication. In that same included naming context, you can specify particular attributes to be excluded from replication.

Figure 42-3 shows the replication agreement entry in the DIT that pertains to node D in Figure 42-1.

Figure 42-3 Example: Replication Configuration Entries for Node D

For node D, the entry cn=replication configuration at the root DSE contains these RDNs:

orclReplicaID=UID_of_node_D: Unique identifier of node D and contains information about it.
orclagreementID=000003: Unique identifier of the relationship between supplier node D and consumer node E. You know that, in this case, orclagreementID=000003 is the replication agreement of the supplier node D because node D is its parent.

This entry contains the attribute orclreplicaDN, the value of which is the DN of consumer node E with which node D has the replication agreement.
cn=replication DN: Bind DN that the directory replication server on node D uses to bind to the directory server.
cn=replication namecontext: Container of information about naming contexts that are included in replication.
cn=namingcontext001 and cn=namingcontext002: Objects specifying naming contexts to be included in replication. In the naming context included in replication, you can specify one or more subtrees or particular attributes to be excluded from replication.

42.2 Configuring Replication Configuration Attributes by Using Fusion Middleware Control

This section provides a summary of the replication configuration attributes that correspond with fields you can configure by using Oracle Enterprise Manager Fusion Middleware Control. For more specific procedures, see Chapter 43, "Managing and Monitoring Replication."

42.2.1 Configuring Attributes on the Shared Properties, Replication Tab

You can configure some of the replication attributes by using the Oracle Internet Directory Shared Properties page of Fusion Middleware Control. Select Administration, then Shared Properties, then select Replication from the Oracle Internet Directory menu. After changing the configuration, choose Apply. The correspondence is as follows:

Table 42-5 Configuration Attributes on Shared Properties, Replication Tab

Field or Heading	Configuration Attribute
Change Retry Count	`orclchangeretrycount`
Maximum Number of Workers	`orclreplmaxworkers`
Autotune Replication	`orclreplautotune`
Number of Apply Threads Per Supplier	`orclthreadspersupplier`;apply
Number of Transport Threads per Supplier	`orclthreadspersupplier`;transport
Maximum Number of Entries to Process per Replication Cycle	`orclsizelimit`
Automatically Resolve Replication Conflicts	`orclconflresolution`
Generate Stack Dump	`orclsdumpflag`
SASL for Replication Bind	`orclreplusesasl`;digest-md5
Maximum Log File Size (MB)	`orclmaxlogfilesize`
Maximum number of log files to keep in rotation	`orclmaxlogfiles`
Conflict resolution for modify operations	`orclreplattrconflict`
DebugLevel	`orcldebuglevel`
Replication Status	`orclreplicationstate`
Activate/Inactivate	`orclactivatereplication`
Replica ID	`orclreplicaid`
Replica Primary URI	`orclreplicauri`
Replica Secondary URI	`orclreplicasecondaryuri`
Replica State	`orclreplicastate`
Replica Type	`orclreplicatype`

42.2.2 Configuring Replication Wizard Parameters

Some of the values you select or enter in the Oracle Enterprise Manager Fusion Middleware Control replication wizard control specific configuration attributes. For example, your selections on the Schedule page of the replication wizard control the attributes listed in Table 42-6, "Replication Schedule Attributes".

Table 42-6 Replication Schedule Attributes

Field or Heading	Configuration Attribute
LDAP Connection	`orclldapconnkeepalive`
Replication Frequency	`orclupdateschedule`
HIQ Schedule	`orclhiqshecule`

The wizard sets other attributes appropriately when you configure replication. For example, the attribute orclreplicauri is formed by concatenation of the fields on the Replicas page of the wizard.

42.3 Managing Replication Configuration Attributes From the Command Line

You can modify most attributes from the command line by using ldapmodify. The command line syntax is:

ldapmodify -D cn=orcladmin -q -p portNum -h hostname -f ldifFile

The contents of the LDIF file depends on the DN and the operation being performed.

For examples of LDIF files for changing replication configuration attributes, see Section 43.3, "Managing and Monitoring Replication by Using the Command Line."
