B Reference to Migration Details

It is important to understand about the Repositories, Data Objects, Mappings, and Pluggable Mappings

This appendix contains the following topics:

B.1 OWB Repositories

You can find out more information on the various repositories that are available.

B.1.1 OWB Workspace to ODI Work Repository

When invoking the migration utility, the OWB Workspace Owner and its password are needed to connect to the OWB Repository. Each OWB Workspace Owner may have multiple workspaces. Only one workspace will be migrated with each migration. Therefore, one workspace name must be specified for each migration. Each OWB workspace will be migrated to ODI as one ODI Work repository.

If an OWB Workspace owner has multiple OWB Workspaces, each OWB Workspace should be migrated to an ODI Work repository of an ODI Master repository. The migration utility can only migrate at most one OWB Workspace at each time.

B.1.2 OWB Platform to ODI Technology

OWB Platforms and their associated data types are mapped to ODI Technologies and their associated data types. This platform and data type mapping is stored in a configuration file.

For the predefined platforms in OWB, the mappings to ODI can be found in the file PlatformMappingsForMigration.xml located in the <ORACLE_HOME for OWB>/owb/bin/admin directory.

If a user has defined new or custom Platforms in OWB, the mapping of this platform and its data types to ODI technology and its data types can be defined in the same configuration file. The physical name of the OWB Platform should be specified in the mapping, and the internal name of the ODI technology should be used.

The following table shows the predefined OWB Platform to ODI Technology mappings.

OWB Platform ODI Technology

GENERIC

Generic SQL

ORACLE

(including Oracle Workflow, Apps Concurrent manager)

Oracle

DB2UDB

IBM DB2 UDB

SQLSERVER

Microsoft SQL Server

SAP

SAP ABAP

FILE

File

OBIEE, OBISE, J2EE

These are not migrated.

Data type mapping differs for each OWB Platform mapping. The following tables show the data type mappings for each predefined OWB Platform.

If an OWB data type that has no mapping in ODI is used in Data Objects like Table, View, Materialized View, and External Table, the data object is reported as not migrated.

If an OWB data type that has no mapping in ODI is used in a Mapping Attribute, the data type of the mapping attribute is not set.

B.1.2.1 Data Type Mapping for OWB GENERIC Platform to ODI Generic SQL Technology

OWB Data Type (GENERIC) ODI Data Type (Generic SQL)

BIGINT

BIGINT

BINARY

BINARY

BINARY_DOUBLE

BINARY_DOUBLE

BINARY_FLOAT

BINARY_FLOAT

BLOB

BLOB

BOOLEAN

CHAR

CHAR

CHAR

CLOB

CLOB

DATE

DATE

DATETIME

DATETIME

DECIMAL

DECIMAL

DOUBLE

DOUBLE

FLOAT

FLOAT


BLOB

INTEGER

INTEGER

INTERVAL DAY TO SECOND

INTERVAL DAY TO SECOND

INTERVAL YEAR TO MONTH

INTERVAL YEAR TO MONTH

LONG

CLOB

LONGVARBINARY

BLOB

LONGVARCHAR

CLOB

MONEY

MONEY

NCHAR

NCHAR

NCLOB

NCLOB

NTEXT

NCLOB

NUMERIC

NUMERIC

NVARCHAR

NVARCHAR

NVARCHAR(MAX)

NCLOB

REAL

REAL

SMALLINT

SMALLINT

TEXT

CLOB

TIME

TIME

TIMESTAMP

TIMESTAMP

TIMESTAMP WITH TIME ZONE

TIMESTAMP WITH TIME ZONE

TINYINT

TINYINT

VARBINARY

VARBINARY

VARBINARY(MAX)

BLOB

VARCHAR

VARCHAR

VARCHAR(MAX)

CLOB

XMLTYPE

XMLTYPE

B.1.2.2 Data Type Mapping for OWB ORACLE Platform to ODI Oracle Technology

OWB Data Type (ORACLE) ODI Data Type (Oracle)

BINARY_DOUBLE

BINARY_DOUBLE

BINARY_FLOAT

BINARY_FLOAT

BLOB

BLOB

CHAR

CHAR

CLOB

CLOB

DATE

DATE

FLOAT

FLOAT

INTEGER

NUMBER

INTERVAL DAY TO SECOND

INTERVAL DAY TO SECOND

INTERVAL YEAR TO MONTH

INTERVAL YEAR TO MONTH

LONG

LONG

LONG RAW

LONG RAW

MDSYS.SDOAGGRTYPE



MDSYS.SDO_DIM_ARRAY



MDSYS.SDO_DIM_ELEMENT



MDSYS.SDO_ELEM_INFO_ARRAY



MDSYS.SDO_GEOMETRY

MDSYS.SDO_GEOMETRY

MDSYS.SDO_ORDINATE_ARRAY



MDSYS.SDO_POINT_TYPE



NCHAR

NCHAR

NCLOB

NCLOB

NUMBER

NUMBER

NVARCHAR2

NVARCHAR2

RAW

RAW

ROWID

ROWID

SYS.ANYDATA



SYS.AQ$_JMS_BYTES_MESSAGE



SYS.AQ$_JMS_MAP_MESSAGE



SYS.AQ$_JMS_MESSAGE



SYS.AQ$_JMS_STREAM_MESSAGE



SYS.AQ$_JMS_TEXT_MESSAGE



SYS.LCR$_ROW_RECORD



TIMESTAMP

TIMESTAMP

TIMESTAMP WITH LOCAL TIME ZONE

TIMESTAMP WITH LOCAL TIME ZONE

TIMESTAMP WITH TIME ZONE

TIMESTAMP WITH TIME ZONE

UROWID

UROWID

VARCHAR

VARCHAR2

VARCHAR2

VARCHAR2

XMLFORMAT

XMLFORMAT

XMLTYPE

XMLTYPE

B.1.2.3 Data Type Mapping for OWB DB2UDB Platform to ODI IBM DB2 UDB Technology

OWB Data Type (DB2UDB) ODI Data Type (IBM DB2 UDB)

BIGINT

BIGINT

BLOB

BLOB

CHARACTER

CHAR

CLOB

CLOB

DATE

DATE

DBCLOB

DBCLOB

DECIMAL

DECIMAL

DOUBLE

DOUBLE

FLOAT

FLOAT

GRAPHIC

GRAPHIC

INTEGER

INTEGER

LONG VARCHAR

LONG VARCHAR

LONG VARGRAPHIC

LONG VARGRAPHIC

NUMERIC

NUMERIC

REAL

REAL

SMALLINT

SMALLINT

TIME

TIME

TIMESTAMP

TIMESTAMP

VARCHAR

VARCHAR

VARGRAPHIC

VARGRAPHIC

XML



B.1.2.4 Data Type Mapping for OWB SQLSERVER Platform to ODI Microsoft SQL Server Technology

OWB Data Type (SQLSERVER) ODI Data Type (Microsoft SQL Server)

BIGINT

BIGINT

BINARY

BINARY

BIT

BIT

CHAR

CHAR

DATETIME

DATETIME

DECIMAL

DECIMAL

FLOAT

FLOAT



INT

INT

MONEY

MONEY

NCHAR

NCHAR

NTEXT

NTEXT

NUMERIC

NUMERIC

NVARCHAR

NVARCHAR

NVARCHAR(MAX)

NTEXT

REAL

REAL

SMALLDATETIME

SMALLDATETIME

SMALLINT

SMALLINT

SMALLMONEY

SMALLMONEY

SQL_VARIANT

SQL_VARIANT

TEXT

TEXT

TIMESTAMP

TIMESTAMP

TINYINT

TINYINT

UNIQUEIDENTIFIER

UNIQUEIDENTIFIER

VARBINARY

VARBINARY

VARBINARY(MAX)


VARCHAR

VARCHAR

VARCHAR(MAX)

TEXT

XML



B.1.2.5 Data Type Mapping for OWB FILE Platform to ODI File Technology

OWB Data Type (FILE) ODI Data Type (File)

BYTEINT

BINARY_SIGNED_BIG_ENDIAN

CHAR

STRING

DECIMAL

EBCDIC_SIGNED_ZONED_DECIMAL

DATE

DATE

DECIMAL EXTERNAL

NUMERIC

DOUBLE

NUMERIC

FLOAT

NUMERIC

FLOAT EXTERNAL

NUMERIC

INTEGER

BINARY_SIGNED_BIG_ENDIAN

INTEGER UNSIGNED

BINARY_UNSIGNED_BIG_ENDIAN

INTEGER EXTERNAL

NUMERIC

INTERVAL DAY TO SECOND

DATE

INTERVAL YEAR TO MONTH

DATE

SMALLINT

BINARY_SIGNED_BIG_ENDIAN

SMALLINT UNSIGNED

BINARY_UNSIGNED_BIG_ENDIAN

TIMESTAMP

DATE

TIMESTAMP WITH TIME ZONE

DATE

TIMESTAMP WITH LOCAL TIME ZONE

DATE

VARRAWC

BINARY_SIGNED_BIG_ENDIAN

VARCHAR

STRING

VARCHARC

STRING

ZONED EXTERNAL

ASCII_SIGNED_ZONED_DECIMAL

ZONED

ASCII_SIGNED_ZONED_DECIMAL

B.1.2.6 Data Type Mapping for OWB SAP Platform to ODI SAP ABAP Technology

OWB Data Type (SAP) ODI Data Type (SAP ABAP)

ACCP

ACCP

CHAR

CHAR

CLNT

CLNT

CUKY

CUKY

CURR

CURR

DATS

DATS

DEC

DEC

FLTP

FLTP

INT1

INT1

INT2

INT2

INT4

INT4

LANG

LANG

LCHR

LCHR

LRAW

LRAW

NUMC

NUMC

PREC

PREC

QUAN

QUAN

RAW

RAW

TIMS

TIMS

UNIT

UNIT

B.1.3 OWB Location to ODI Data Server

Each OWB Location is associated with an OWB Platform or equivalent ODI technology. Hence OWB location will be migrated to an ODI Data Server under the equivalent ODI technology.

B.1.3.1 Location Name to Data Server Name

Location Name will be migrated to ODI Data Server Name. Since OWB Location Name is unique within an OWB Workspace, while ODI Data Server Name is unique within the master repository, when there are several OWB workspaces for a Workspace Owner, each OWB Workspace should be migrated to a different ODI Master repository to avoid name conflicts.

B.1.3.2 Location Properties to Data Server Properties

The following table shows mapping of properties of OWB Location to properties of ODI Data Server:

OWB Property Name ODI Property Name Note

-

dataServerId

(I_CONNECT)

This number will be generated.

platform

technology

(I_TECHNO)

-

Name

name

(CON_NAME)

-

Driver Class

jdbcDriverName

(JAVA_DRIVER)

-

Url

jdbcUrl

(JAVA_URL)

-

User Name

(CONNECT_AS_USER)

username

(USER_NAME)

-

Batch Update Size

(UPDATE_SIZE)

batchUpdateSize

(BATCH_UPDATE_SIZE)

-

Array Fetch Size

(FETCH_SIZE)

fetchArraySize

(FETCH_ARRAY_SERV)

-

Schema

schemaName

(SCHEMA_NAME)

-

Work Schema

workSchemaName

(WSCHEMA_NAME)

-

Catalog

catalogName

(CATALOG_NAME)

-

Work Catalog

workCatalogName

(WCATALOG_NAME)

-

B.1.3.3 Specific Location

For OWB Location using Database Link as the Connection Type, the location will be migrated to a new ODI Data Server, with the location name as the data server name. Other information for the location will not be migrated.

For File Location using FTP as the Connection Type, the location will be migrated to a new ODI Data Server with the location name as the data server name. Other information for the location will not be migrated.

B.1.4 OWB Modules to ODI Models

OWB Modules will be migrated to ODI Models.

B.1.4.1 Module Name to Model Name

To create a unique model name, the ODI Model name will be a concatenation of OWB Module Name and OWB Project name. If the resulting name is longer than the allowed length in ODI Model name, the resulting name will be trimmed.

B.1.4.2 Module Properties to Model Properties

OWB Property Name ODI Property Name Note

-

modelId

(I_MOD)

This number will be generated by the migration utility.

Name

name

(MOD_NAME)

If the length of the name exceeds the maximum limit, then the name will be truncated.

Platform

technology

(TECH_INT_NAME)

-

-

logicalSchema

(LSCHEMA_NAME)

Will be created according to the OWB module name.

Name

code

(COD_MOD)

If the length of the code exceeds the maximum limit allowed in ODI model code, then the code will be truncated.

Project

parentModelFolder

(I_MOD_FOLDER)

-

description

description

(I_TXT_MOD)

-

B.1.4.3 Additional Migration of OWB Modules to ODI Folders

Some OWB Modules will also be migrated to ODI as ODI Folders, in addition to ODI Models. The following OWB modules will also be migrated as ODI Folders:

  • Oracle Database Module

  • Template Mapping Module

OWB Oracle Database Module will be migrated as ODI Model where the OWB Data Objects are migrated to, and also as ODI Folder where OWB mappings are migrated to.

OWB Template Mapping Module and Pluggable Mapping Folder will be migrated as ODI Folder.

OWB Property Name ODI Property Name Note

Name

Name

(FOLDER_NAME)



B.1.4.4 Physical Schema and Logical Schema

OWB supported a list of Data Locations for use with a module but only one location is selected to use at a time. This location is called the active location. During migration, only the active location will be migrated to ODI. The location is migrated as ODI Data Server. Corresponding to the location user name, a new ODI Physical Schema will be created in ODI if one does not exist already. The new ODI Physical Schema will be from the Location Schema of OWB Database Location, or the directory path for File Location.

Corresponding to the physical schema, a logical schema will be created in ODI if none with the same name as the Model name exists. The logical schema will set to "LS_" plus model name, and will be associated with the physical schema in the global context.

B.1.5 OWB Projects to ODI Projects

OWB Project will be migrated as ODI Project.

OWB Property Name ODI Property Name Note

-

projectId

(I_PROJECT)

This number will be generated.

Name

Name

(PROJECT_NAME)

-

Name

code

(PROJECT_CODE)

-

B.1.6 OWB Folders to ODI Folders

Two types of OWB Folders will be migrated to ODI:

  • OWB Pluggable Mapping Folders

    OWB Pluggable Mapping Folders are migrated to ODI Folders; the name of the OWB Pluggable Mapping Folder will be the name of the ODI Folder.

  • OWB Pluggable Mapping Standalone Folders

    Pluggable mappings in this OWB folder will be migrated to an ODI Folder named STAND_ALONE.

B.2 OWB Data Objects

You can find out more information on the various data objects that are available.

B.2.1 OWB Table to ODI Datastore

OWB Table is migrated to ODI Datastore. The following related attributes of tables are migrated:

  • Columns

  • Keys

  • Indexes

Attribute Sets and Data Rules are not migrated.

For Partitions, the partition name and the description are migrated, other properties are not migrated.

Attributes or properties of OWB Table are migrated to ODI Datastore.

Attributes or properties of OWB Table Columns are migrated to ODI Datastore Columns as described in Table B-1.

OWB Table supports these types of keys: Primary Key, Unique Key, Foreign Key, and Constraint.

  • The attributes/properties of OWB Table Primary Keys and Unique Keys are migrated to ODI Keys as described in Table B-4.

  • The attributes/properties of OWB Table Constraints are migrated to ODI Condition as described in Table B-5.

  • The attributes/properties of OWB Table Foreign Keys are migrated to ODI Reference as described in Table B-6.

The attributes/properties of Indexes are migrated to ODI Datastore Key as described in Table B-7, which lists the mappings between the OWB Index and ODI Key.

OWB supports four types of indexes: unique, non-unique, bitmap, and function-based. A unique index will be mapped to OdiKey, and the key type will be set to ALTERNATE_KEY. A non-unique index will be mapped to OdiKey, and the key type will be set to INDEX. Bitmap and function-based keys are not migrated.

B.2.2 OWB View to ODI Datastore

OWB View is migrated to ODI Datastore. The following related attributes of OWB View are migrated:

  • Columns

  • Keys

Attribute Sets and Data Rules are not migrated.

Attributes or properties of OWB View are migrated to ODI Datastore.

Attributes or properties of OWB View Columns are migrated to ODI Datastore Columns as described in Table B-1.

OWB Table supports these types of keys: Primary Key, Unique Key, Foreign Key, and Constraint.

  • The attributes/properties of OWB View Primary/Unique Keys are migrated to ODI Keys as described in Table B-4.

  • The attributes/properties of OWB View Constraints are migrated to ODI Condition as described in Table B-5.

  • The attributes/properties of OWB View Foreign Keys are migrated to ODI Reference as described in Table B-6.

B.2.3 OWB Materialized View to ODI Datastore

OWB Materialized View is migrated to ODI Datastore. The following related attributes of Materialized views are migrated:

  • Columns

  • Keys

  • Indexes

Attribute Sets and Data Rules are not migrated.

For Partitions, the partition name and the description are migrated, other properties are not migrated.

Attributes or properties of OWB Materialized View are migrated to ODI Datastore.

Attributes or properties of OWB Materialized View Columns are migrated to ODI Datastore Columns as described in Table B-1.

OWB Materialized View supports these types of keys: Primary Key, Unique Key, Foreign Key, and Constraint.

The attributes/properties of OWB Materialized View Primary Keys and Unique Keys are migrated to ODI Keys as described in Table B-4.

The attributes/properties of OWB Materialized View Constraints are migrated to ODI Condition as described in Table B-5.

The attributes/properties of OWB Materialized View Foreign Keys are migrated to ODI Reference as described in Table B-6.

The attributes/properties of Indexes are migrated to ODI Datastore Key as described in Table B-7, which lists the mappings between the OWB Index and ODI Key.

B.2.4 OWB External Table to ODI Datastore

OWB External Table is migrated to ODI Datastore. The following related attributes of External Table are migrated:

  • Columns

Data Rules are not migrated. Associated locations will be migrated as ODI Data Server if the migration configuration option MIGRATE_DEPENDENCIES is set to true.

Attributes or properties of OWB External Table are migrated to ODI Datastore.

Attributes or properties of OWB External Table Columns are migrated to ODI Datastore Columns as described in Table B-1.

OWB External Table has association to OWB FLAT FILE and its access parameters. These associations will not be migrated to ODI.

B.2.5 OWB Flat File to ODI Datastore

OWB Flat File is migrated to ODI Datastore. The following related attributes of OWB Files are migrated:

  • Records

  • Fields

Attributes or properties of OWB Flat File are migrated to ODI Datastore.

OWB Flat File may contain one or more Records. Each Record will be migrated as one ODI Datastore. The naming convention for the ODI Datastore name is <FlatFileName>_<RecordName>.

Attributes or properties of OWB File Record are migrated to ODI Datastore Columns as described in Table B-3.

Attributes or properties of OWB File Record Field are migrated to ODI Datastore Columns as described in section Table B-2.

B.2.6 OWB Sequence to ODI Sequence

OWB Sequence is migrated to ODI Sequence (Native sequence). OWB Sequence contains Columns, which are not migrated to ODI.

Attributes or properties of OWB Sequence are migrated to ODI Sequence as described in Table B-9.

B.2.7 OWB Dimensions Under Database Module to ODI Dimension Model

OWB dimensions are placed under the Oracle database module. ODI dimension objects would be placed under a specific dimensional model. If dimensions or cubes exist in OWB Oracle database module, then that Oracle database module is migrated to an ODI dimension model. To reduce the name conflicts, the naming convention of the migrated ODI dimension model is in the form of <Oracle database module name>_<OWB project name>.

For example, In a project named BI_DEMO, if there is an Oracle module named SALES_WH then SALES_WH_BI_DEMO will be used for the ODI dimension model name after migration. If the length of the name exceeds the maximum length allowed (the maximum length is 35), then the proposed name will be truncated. If the name needs be to unique and it has already been occupied, a unique name suffixed by a digit is generated based on the proposed name. This naming rule is used for all migration objects when the object name needs to be unique and has a maximum length limitation.

Dimension :

OWB dimension will be migrated to ODI dimension.

Cube:

OWB Cube will be migrated to ODI Cube.

B.2.8 Property Migration Mapping Tables

Table B-1 OWB Table Column to ODI Datastore Column

OWB Property Name ODI Property Name Note

Name

Name

(COL_NAME)

-

-

COL_DESC

Short description.

TypeDefinition

dataTypeCode

(SOURCE_DT)

-

Position

position

(POS)

-

Length

length

(LONGC)

-

Precision

Length

(LONGC)

-

Scale

scale

(SCALEC)

-

Nullable

mandatory

(COL_MANDATORY)

-

dafaultValue

defaultValue

(DEF_VALUE)

If the length of the default value exceeds the maximum length allowed in ODI, then the default value will not be migrated.

-

scdType

(SCD_COL_TYPE)

-

description

description

(I_TXT_COL_DESC)

If the length of the description exceeds the maximum length allowed in ODI, then the description will be truncated.

fractionalsecondsprecision

length

(LONGC)

-

Table B-2 OWB File Record Field to ODI Datastore Column

OWB Property Name ODI Property Name Note

Name

Name

(COL_NAME)

-

TypeDefinition

dataTypeCode

(SOURCE_DT)

-

Position

position

(POS)

-

Sqlprecision

-

-

Sqlscale

-

-

Precision

bytes

(BYTES)

-

Scale

scale

(SCALEC)

-

StartPostion

startPosition

(FILE_POS)

Only for file/record.

FieldLength

bytes

(BYTES)

Only for file/record.

Nullable

mandatory

(COL_MANDATORY)

-

dafaultValue

defaultValue

(DEF_VALUE)

-

description

description

(I_TXT_COL_DESC)

If the length of the description exceeds the maximum length allowed in ODI, then the description will be truncated.

sqllength

-

-

mask

format

(SNP_COL.COL_FORMAT)

-

Table B-3 OWB File Record to ODI Datastore Column

OWB Property Name ODI Property Name Note

Name

name

(TABLE_NAME)

-

Name

defaultAlias

(TABLE_ALIAS)

-

classname

dataStoreType

(TABLE_TYPE)

-

Description

Description

(TABLE_DESC)

If the length of the description exceeds the maximum length allowed in ODI, then the description will be truncated.

Prefix

-

-

Position

-

-

RecordClassifierValue

-

-

RecordSize

-

-

Table B-4 OWB Key to ODI Key

OWB Property Name ODI Property Name Note

Name

Name

(KEY_NAME)

-

Primarykey

keyType

(CONS_TYPE)

keyType:

PRIMARY_KEY(PK)

ALTERNATE_KEY(AK)

Appslabel

-

-

Table B-5 OWB Check Constraint to ODI Condition

OWB Property Name ODI Property Name Note

Name

Name

(KEY_NAME)

-

Primarykey

keyType

(CONS_TYPE)

keyType:

PRIMARY_KEY(PK)

ALTERNATE_KEY(AK)

Appslabel

-

-

Table B-6 OWB ForeignKey to ODI Reference

OWB Property Name ODI Property Name Note

-

referenceId

(I_JOIN)

This number will be generated.

Name

name

(FK_NAME)

-

Should map to DB_REFERENCE

referenceType

(FK_TYPE)

referenceType:

DB_REFERENCE,

ODI_REFERENCE,

COMPLEX_REFERENCE

-

primaryDataStore

(I_TABLE_PK)

Find the table by Unique key.

module

primaryModel

(PK_I_MOD)

-

-

primaryDataStoreSchemaName

(PK_SCHEMA)

Find the schema based on the model of the primary table.

-

primaryDataStoreName

(PK_TABLE_NAME)

Find primary table name by unique key.

-

primaryDataStoreAlias

(PK_TABLE_ALIAS)

Find the alias by primary data store.

Appslabel

-

-

Mandatory

-

-

OnetoOne

-

-

Table B-7 OWB Index to ODI Key

OWB Property Name ODI Property Name Note

Name

Name

(KEY_NAME)



Indextype

keyType

(CONS_TYPE)

keyType:

ALTERNATE_KEY(AK)

INDEX(I)

Appslabel

-

-

Expression

-

-

LocalIndex

-

-

LocalPartitionType

-

-

Table B-8 OWB Partition to ODI Partition

OWB Property Name ODI Property Name Note

Name

name

(PARTITION_NAME)

-

Description

Description

(PARTITION_DESC)

If the length of the description exceeds the maximum length allowed in ODI, then the description will be truncated.

classname

-

-

Attribute

-

-

Autosubpartitionordering

-

-

Hashsubpartitioncount

-

-

IsDefault

-

-

IsSubPartition

-

-

PartitionOrder

-

-

Table B-9 OWB Sequence to ODI Sequence

OWB Property Name ODI Property Name Note

-

sequenceId

(SEQ_ID)

This number will be generated.

Project

project

(I_PROJECT)

-

Name

SEQ_NAME

-

Increment By

incrementValue

(INCR)

Retrieve from active configuration.

-

seqType

(SEQ_TYPE)

OWB sequence is migrated as project sequence.

-

type

(IND_STD)

OWB sequence is migrated as native sequence.

-

logicalSchemaName

(LSCHEMA_NAME)

Via OWB module, the ODI Model's logical schema is used here.

Name

nativeSequenceName

(DB_SEQ_NAME)

-

Prefix

-

-

ExternalElementName

-

-

Proxy

-

-

SynonymFor

-

-

ValidationResult

-

-

B.2.9 OWB Dimensions to ODI Dimensions

OWB dimension will be migrated to ODI dimension.

1. Dimension

Table B-10 General Properties

OWB Property Name ODI Property Name Note

Name

Name



Description

Description



Dimension Role

Not Migrated



Table B-11 Storage Properties

OWB Property Name ODI Property Name Note

OWB ROLAP Dimension



Implementation Type

Implementation Type. It has two types of implementation — Star (for one binding table) Snowflake (for more than one binding tables)

ODI dimension has no implementation type called Manual. If the OWB dimension is set to Manual implementation, according to the amount of the binding tables on OWB dimension, the implementation type is migrated to Star or Snowflake for ODI dimension. If there is only one binding table for OWB dimension, the implementation type is set to Star for ODI dimension, otherwise the implementation type is set to Snowflake.

Create composite Unique Key

Not Migrated



OWB MLOAP Dimensions

It has no binding tables. User needs to manually set the binding information after migration, if necessary.

AW Name

Not Migrated



AW table space name

Not Migrated



Generate surrogate keys in the analytic workspace

Not Migrated



Use natural keys from data source

Not Migrated


Physical Properties

All physical properties on OWB Dimension are not migrated.

SCD Properties

SCD properties are set directly on ODI dimension level attributes.

Table B-12 Orphan Properties

OWB Property Name ODI Property Name Note

Orphan management for loading – Null parent key values

Load Null Parent



Orphan management for loading – Invalid parent values

Load Invalid Parent



Orphan management for loading – Default Level Row



The default values for OWB level attributes in default parent record are migrated as default values for ODI level attributes.

Orphan management for removal

Not Migrated



Deploy Error Table

Not Migrated



2. Level Properties

OWB dimension level will be migrated to ODI dimension level.

Table B-13 Level

OWB Property Name ODI Property Name Note

Name

Name



Description

Description



Level Type (time dimension only)

Description

Level Type is migrated as a part of the description.

Used (time dimension only)

Not Migrated


If the OWB dimension is of snowflake implementation, the OWB dimension table for each level is migrated to ODI dimension table and bind to each dimension level. OWB does not have metadata for stage table and error table for dimension level. Migration utility will create the metadata of the stage table and error table for ODI dimension level. For more details, see Stage Table and Error Table.

3. Dimension Attribute and Level Attribute

As ODI has only level attributes and does not have dimension attributes, ODI level attribute combines all the properties from OWB dimension attribute and OWB level attribute.

Table B-14 General Properties

OWB Property Name ODI Property Name Note

Level Attribute Name

Name



Description

Description



Surrogate Key

Surrogate Key



Business Key

Natural Key Member

Each business key in OWB dimension is corresponding to an ODI dimension natural key member. Each ODI dimension natural key member is associated with a dimension level attribute.

Data Type

Data Type

ODI level attribute uses Generic data type. Migration utility will convert the data type from Oracle technology to Generic technology.

Length

Size



Scale

Scale



Precision

Size



Seconds Precision

Size



Default Value

Default Value



Table B-15 SCD2 Properties

OWB Property Name ODI Property Name Note

Trigger history

Trigger history



Effective Date

Start Date



Expiration Date

End Date



Table B-16 SCD3 Properties

OWB Property Name ODI Property Name Note

Previous Attribute

Type 3 Previous Attribute



Effective Date

Type 3 Start Date



4. Hierarchy

Table B-17 Hierarchy Properties

OWB Property Name ODI Property Name Note

Name

Name



Description

Description



Default

Default



Hierarchy Type (time dimension only)

Description

Hierarchy Type is migrated as part of the description of ODI hierarchy.

5. Binding Objects

All binding tables/views/sequences are selected to be migrated when the migration option MIGRATE_DEPENDENCY is set to TRUE. OWB surrogate key sequence is migrated as ODI surrogate key sequence. If the OWB dimension is of star implementation type, the OWB dimension table is migrated to ODI dimension table. OWB does not have metadata for dimension error table. Migration utility will create the metadata of the error table for ODI dimension when orphan management is enabled. For more details, see Error Table.

6. Stage Table

In OWB, there is no metadata for stage tables (the temp table operator in the extended map of the dimension is unbound). ODI does not allow unbound datastore component. The ODI dimension level needs to be explicitly associated with a stage table. In this case, migration utility creates the metadata of a stage table for each dimension level in ODI based on the structure of the dimension level.

7. Error Table

Error tables behave in the same way as the stage tables. ODI dimension needs to be explicitly bound to an error table if the orphan management feature is enabled. Migration utility will create the metadata of the error tables for dimension when orphan management is enabled. For star implementation dimension, a dimension is associated to an error table. For snowflake implementation dimension, a level is associated to an error table. The structure of the error table is similar to the dimension bound table. The error table should include all the columns from the dimension bound table. More audit columns are added in error table. The audit columns are:

Table B-18 Audit Columns of Error Table

Property Name Property Type
ODI_ERR_TYPE

VARCHAR 2 (1 CHAR) NULL

ODI_ERR_MESS

VARCHAR 2 (250 CHAR) NULL

ODI_ORIGIN

VARCHAR 2 (4000 CHAR) NULL

ODI_SESS_NO

VARCHAR 2 (36 CHAR) NULL

8. Exclusive Check

Before the real migration is performed, exclusive check should be done to check whether the dimension can be migrated or not. The exclusive check includes:

  1. Checking the binding objects (tables/views/sequences) to make sure all the bindings are in the migration selection list and can be migrated. If the bindings are not in the migration selection list, the dimension will be exclusive and so turn on MIGRATE_DEPENDENCY option or bindings should be explicitly specified in MIGRATION_OBJECTS present in the configuration file.

  2. If OWB dimension level attributes don't refer to any dimension attribute, then the dimension will be exclusive.

B.2.10 OWB Cubes to ODI Cubes

OWB Cube will be migrated to ODI Cube.

1. Cube Properties

Table B-19 General Properties

OWB Property Name ODI Property Name Note

Name

Name



Description

Description



Table B-20 Storage Type Properties

OWB Property Name ODI Property Name Note

For ROLAP Cube,

  1. Create bitmap indexes

  2. Create composite Unique Key

Not Migrated



For MOLAP Cube, the cube is migrated as unbound cube

  1. AW Name

  2. AW Table Space Name

Not Migrated



Table B-21 Dimensions Properties

OWB Property Name ODI Property Name Note

Level

Level



Role

Role



Table B-22 Measures

OWB Property Name ODI Property Name Note

Name

Name



Description

Description



Data Type

Data Type

OWB measure uses oracle data type, but ODI measure uses Generic technology data type. Data type conversion from oracle data type to Generic data type is handled in migration.

Length or Precision Or Seconds Precision

Size



Scale

Scale


OWB cube measure will be migrated to ODI cube measure. Each ODI measure will be bound to a column of the ODI cube bound datastore, according to the binding information from OWB measure.
Aggregation

OWB cube aggregation related properties will not be migrated.

Table B-23 Orphan

OWB Property Name ODI Property Name Note

Orphan management for loading — Null dimension key values

Load Null Dimension Key



Orphan management for loading — Invalid dimension key values

Load Invalid Dimension Key



Deploy Error Table(s)

Not Migrated.

ODI does not support this feature.

Physical Properties

All physical properties on cube are not migrated.

2. Binding Objects

All binding tables/views of cube are selected to be migrated when migration option MIGRATE_DEPENDENCY is set to true. If the option MIGRATE_DEPENDENCY is set to false, user should explicitly select the binding table or view together with cube to be migrated. Otherwise cube migration may fail because its bound object is not migrated. The error table is created based on the binding table. If any binding table is not specified to migrate, the corresponding error table will not be migrated.

3. Error Table

In OWB, cube is not explicitly bound to an error table. But in ODI, if the orphan management feature is enabled, then cube should be explicitly bound to an error datastore. Since OWB does not have metadata for cube error table, migration utility will create the error datastore for ODI cube according to the OWB cube bound table when orphan management is enabled. The error datastore should include all the columns from the cube bound table. More audit columns are added in error datastore. The audit columns are:

Table B-24 Audit Columns of Cube

Property Name Property Type
ODI_ERR_TYPE

VARCHAR 2 (1 CHAR) NULL

ODI_ERR_MESS

VARCHAR 2 (250 CHAR) NULL

ODI_ORIGIN

VARCHAR 2 (4000 CHAR) NULL

ODI_SESS_NO

VARCHAR 2 (36 CHAR) NULL

When cube references a dimension with a surrogate key enabled, a natural key column for each dimension reference is assumed to be in the cube error table to load the invalid natural key values from source. Migration utility will create these natural key columns using the naming conversion <dimension_key_bound_column>_NAT and data type set to VARCHAR2 (4000).

4. Exclusive Check

Before the real migration is performed, migration utility will check whether the cube can be migrated or not. It will check the binding objects (tables/views/) of the cube to make sure all the bindings are in the migration selection list and can be migrated. If the bindings are not in the migration selection list, the cube will be exclusive you must turn on MIGRATE_DEPENDENCY option or bindings should be explicitly specified in MIGRATION_OBJECTS.

B.3 OWB Mappings

You can find out more information on the various mappings that are available.

OWB Mapping is migrated to ODI Mapping. OWB Mappings are contained in Oracle module or Template Mapping Module while ODI Mappings are contained in Project Folder. OWB Project is migrated to ODI project, OWB Oracle Module or Template Mapping Module is migrated to ODI Project Folder.

B.3.1 OWB Mapping Properties

B.3.1.1 OWB Mapping Logical Properties

OWB Property Name Description ODI Property Name Note

Physical Name

(NAME)



Name



Business Name

(LOGICAL_NAME)



Execution Type

(EXECUTION_TYPE)

BATCH, TRICKLE



TRICKLE mappings are not supported for migration.

Target Load Order

(TARGET_LOAD_ORDER)



TARGET_LOAD_ORDER



Created By



Creation Time



Description



Description

If the length of the description exceeds the maximum length allowed in ODI, then the description will be truncated.

Icon Object



Last Update Time



Update By



B.3.1.2 OWB Mapping Physical Properties

Physical Properties of OWB Mappings are not migrated to ODI.

OWB Property Name Description ODI Property Name Note

Deployable

(DEPLOYABLE)



Not migrated.

Generation Comments

(GENERATION_COMMENTS)



Not migrated.

Language

(GENERATION_LANGUAGE)

Choices = 'PLSQL, SQLLOADER, ABAP, UNDEFINED'



Not migrated.

Referred Calendar

(REFERRED_CALENDAR)



Not migrated.

Schedules are not supported for migration.

B.3.1.3 PLSQL Physical Properties

B.3.1.3.1 Chunking Options

Properties for Chunking options are not migrated. Those properties are:

  • Chunk Method
  • Chunk table (NUMCOL_CHUNK_TABLE)
  • Chunk column (NUMCOL_CHUNK_COLUMN)
  • Chunk size (NUMCOL_CHUNK_SIZE)
  • Chunk table (ROWID_CHUNK_TABLE)
  • Chunk type (ROWID_CHUNK_TYPE)
  • Chunk size (ROWID_CHUNK_SIZE)
  • Chunk table (SQL_CHUNK_TABLE)
  • SQL statement (SQL_CHUNK_STATEMENT)
  • SQL statement chunk type (SQL_CHUNK_TYPE)
B.3.1.3.2 Runtime Parameters

Properties for Runtime parameters are not migrated. Those properties are:

  • Analyze table sample percentage
  • Bulk size
  • Chunk execute resume task
  • Chunk force resume
  • Chunk number of times to retry
  • Chunk parallel level
  • Commit frequency
  • Default audit level
  • Default Operating Mode
  • Default purge group
  • Maximum number of errors
B.3.1.3.3 Code Generation Options
Property Name Description ODI Property Name Note

Analyze table statements

Generate statistics collection statement if this is true.



Not migrated.

ANSI SQL Syntax

(ANSI_SQL_SYNTAX)

A switch between ANSI and Oracle SQL syntax.

ODI has no such property defined on mapping, but ODI Join Component has similar property.



AUTHID Option

(AUTHID)

Generate the map with selected AUTHID option.

Package will be executed with the permissions defined by the AUTHID clause rather than the package owner's permissions.



Not migrated.

Bulk Processing code

Generate bulk processing code if this is true.



Not migrated.

Commit Control

(COMMIT_CONTROL)

Choices = 'AUTO_COMMIT, AUTO_CORR_COMMIT, MANUAL_COMMIT'



Not migrated.

Enable Parallel DML

Determine if Parallel DML is enabled at runtime.



Not migrated.

Error trigger

(ERROR_TRIGGER)

Error trigger procedure name



Not migrated.

Generation Mode

Choices = 'SET_BASED, ROW_BASED, ROW_BASED_TARGET_ONLY, SET_BASED_FAIL_OVER_TO_ROW_BASED, SET_BASED_FAIL_OVER_TO_ROW_BASED_TARGET_ONLY, ALL_MODES'



Not migrated.

Optimized Code

Attempt to generate optimized code if this is true.



Not migrated.

PL/SQL Compilation Mode

Specifies the compilation mode for PL/SQL library unit.

Choices = 'DEFAULT, INTERPRETED, NATIVE'



Not migrated.

Use Target Load Ordering

(TARGET_LOAD_ORDERING)



Not migrated.

B.3.1.4 SQL*LOADER Physical Properties

B.3.1.4.1 SQL Loader Settings

Properties for SQL Loader Settings are not migrated. Those properties are:

  • Bind Size
  • Byte Order Mark
  • Column Array Rows
  • Continue Load
  • Control File Location
  • Control File Name
  • Database File Name
  • Delimited File Record Termination
  • Direct Mode
  • Endian (Byte Order)
  • Errors Allowed
  • Load Last Field As Pieced
  • Log File Location
  • Log File Name
  • Multithreading
  • Nls Characterset
  • Operation Recoverable
  • Perform Parallel Load
  • Preserver Blanks
  • Read Buffers
  • Read Size
  • Records to Load
  • Records to Skip
  • Resumable
  • Resumable Name
  • Resumeable Timeout
  • Rows per Commit
  • Skip Index Maintenance
  • Skip Unusable Indexes
  • Stream size
  • Suppress discards
  • Suppress Errors
  • Suppress Feedback
  • Suppress Header
  • Suppress partitions
B.3.1.4.2 Runtime Parameters

Properties for Runtime parameters are not migrated. Those properties are:

  • Audit
  • Default purge group
B.3.1.4.3 SQL Loader Data Files

Properties for SQL Loader Data Files are not migrated. Those properties are:

  • Data File Name
  • Data File Location
  • Discard File Name
  • Discard File Location
  • Discard Max
  • Bad File Name
  • Bad File Location

B.3.1.5 ABAP Mapping Physical Properties

B.3.1.5.1 Runtime Parameters

Properties for runtime parameters are not migrated, these properties are:

  • ABAP Report Name
  • Background Job
  • Control File Name
  • Data File Name
  • File Delimiter for Staging File
  • Include FTP
  • Install only
  • Log File Name
  • SAP Location
  • SAP System Version
  • Sql Join Collapsing
  • Staging File Directory
  • Timeout
B.3.1.5.2 SQL Loader Settings

Properties for SQL Loader Setting are not migrated, those properties are:

  • NLS Characterset

B.3.1.6 SQLPLUS Mapping Physical Properties

B.3.1.6.1 SQL*Plus Settings

The properties for SQL*Plus Settings are not migrated. Those properties are:

  • ARRAYSIZE
  • COPYCOMMIT
  • Log File Directory
  • Log File Name
  • LONG
  • SQL File Directory
  • SQL File Name
B.3.1.6.2 Runtime Parameters

The properties for Runtime Parameters are not migrated. Those properties are:

  • Audit
  • Default purge group

B.3.1.7 Code Template Mappings Physical Properties

B.3.1.7.1 Chunking Options

Properties for Chunking options are not migrated. (The same as PLSQL mappings.)

B.3.1.7.2 Code Generation Options
OWB Property Name Description ODI Property Name Note

Analyze table statements

Generate statistics collection statement if this is true.



Not migrated.

ANSI SQL Syntax

(ANSI_SQL_SYNTAX)

A switch between ANSI and Oracle SQL syntax.

ODI has no such property defined on the mapping, but ODI Join Component has a similar property, see migration on Join Operator.



AUTHID Option

(AUTHID)

Generate the map with selected AUTHID option.

Package will be executed with the permissions defined by the AUTHID clause rather than the package owner's permissions.



Not migrated.

Bulk Processing code

Generate bulk processing code if this is true.



Not migrated.

Commit Control

(COMMIT_CONTROL)

Choices='AUTO_COMMIT, AUTO_CORR_COMMIT, MANUAL_COMMIT'



Not migrated.

Enable Parallel DML

Determine if PDML is enabled at runtime.



Not migrated.

Error trigger

(ERROR_TRIGGER)

Error trigger procedure name.



Not migrated.

Generation Mode

Choices='SET_BASED, ROW_BASED, ROW_BASED_TARGET_ONLY, SET_BASED_FAIL_OVER_TO_ROW_BASED, SET_BASED_FAIL_OVER_TO_ROW_BASED_TARGET_ONLY, ALL_MODES'



Not migrated.

Optimized Code

Attempt to generate optimized code if this is true.



Not migrated.

Use Enclosure Char



Not migrated.

Use Target Load Ordering

(TARGET_LOAD_ORDERING)



Not migrated.

B.3.1.7.3 Runtime Parameters

Properties for runtime parameters are not migrated. Those properties are:

  • Analyze table sample percentage
  • Bulk size
  • Commit frequency
  • Default audit level
  • Default Operating Mode
  • Default purge group
  • Maximum number of errors
B.3.1.7.4 SCD Updates

Properties for SCD Updates are not migrated. Those properties are:

  • Strategy

B.3.2 Multiple Target Mapping Migration

For mappings with multiple targets, target load order and Multiple Target Insert (MTI) are considered for migration.

B.3.2.1 Target Load Order

The OWB Target Load Order property is migrated to the ODI Target Load Order property.

The OWB Use Target Load Ordering property is not migrated, because this property does not exist in ODI.

B.3.2.2 Multiple Target Insert (MTI)

When an OWB mapping has multiple targets to insert, the data is coming from the same sources, and the Optimized code option is set to true, during code generation, a single insert statement for all targets may be generated instead of a multi-table insert SQL statement.

Because this property is a physical property and MTI occurs at code generation, MTI is not supported for migration.

B.3.3 Mapping Operator

OWB Property Name ODI Property Name Note

Business Name

(LOGICAL_NAME)

Business Name

(BUSINESS_NAME)



Create By



Not migrated.

Create Time



Not migrated.

Description

(Description)

Description

(DESCRIPTION)

If the length of the description exceeds the maximum length allowed in ODI, then the description will be truncated.

Icon Object



Not migrated.

Last Update Time



Not migrated.

Physical Name

(NAME)

Name

(NAME)



Update By



Not migrated.

The above properties are common properties for the Mapping operator.

B.3.4 Mapping Attribute

B.3.4.1 General Properties

OWB Property Name ODI Property Name Note

Physical Name

(NAME)

Name



Business Name

(LOGICAL_NAME)



Not migrated.

Created By



Not migrated.

Creation Time



Not migrated.

Description

Description

If the length of the description exceeds the maximum length allowed in ODI, then the description will be truncated.

Icon Object



Not migrated.

Last Update Time



Not migrated.

Update By



Not migrated.

B.3.4.2 Data Type Information

OWB Property Name ODI Property Name Note

Data Type

(DATA_TYPE)

Data type

Convert the OWB data type to ODI data type according the data type mappings.

Fractional Seconds precision

(FRACTIONAL_SECONDS_PRECISION)



Not migrated.

Length

(Length)

Size

For data type which allows length.

Precision

(Precision)

Size

For data type which allows precision.

Scale

(Scale)

Scale



Mapping Attributes of OWB Mapping Operator use OWB GENERIC platform data types. OWB GENERIC platform is mapped to ODI Generic SQL technology. See Data Type Mapping for OWB GENERIC Platform to ODI Generic SQL Technologyfor details.

B.4 OWB Pluggable Mappings

You can find out more information on the various pluggable mappings that are available.

OWB Pluggable Mapping is migrated to ODI Reusable Mapping.

Also see Pluggable Mapping Operator.

B.4.1 Pluggable Mapping Folder

The OWB Pluggable Mapping Folder is migrated to an ODI Project Folder. Standalone pluggable mappings are migrated to a Project Folder named STAND_ALONE, which is created automatically during migration if it does not already exist.

B.4.2 Properties of Pluggable Mapping

Only Physical name and Description are migrated. Physical name of OWB Pluggable Mapping is migrated to name of ODI Reusable Mapping. Description of OWB Pluggable Mapping is migrated to Description of ODI Reusable Mapping.

B.4.3 Input Signature and Output Signature

In OWB, Signature Operator can have unlimited attribute groups (for Input Signature Operator, the attribute groups are output groups; for Output Signature Operator, the attribute groups are input groups). In ODI, Signature Component can have only one connector point, so each attribute group of OWB Signature Operator is migrated to a Signature Component.

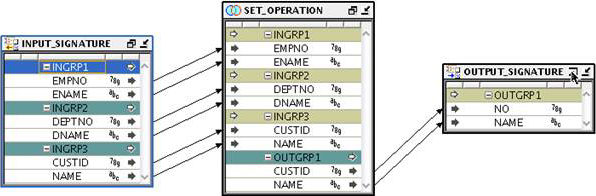

For example, the following figure shows a Pluggable Mapping for which the INPUT_SIGNATURE operator has three output groups (INGRP1, INGRP2, and INGPR3).

Input signature and output signature

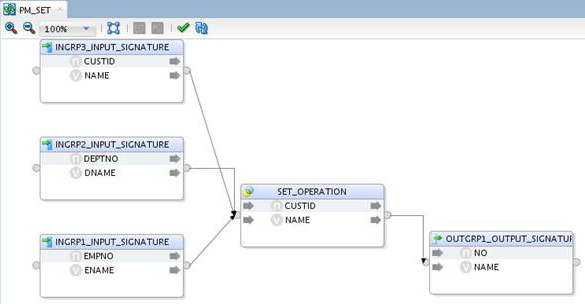

These OWB output groups are migrated to three Input Signature Components in ODI, as shown in the following figure.

Input signature and output signature

The name of ODI Signature Component is composed of OWB attribute group name of Signature Operator, underscore (_), and Signature Operator name.

The attributes of Signature Operator in OWB are migrated to attributes of Signature Component in ODI. No special properties need to be migrated for signature attributes.

B.4.4 Join Operator in Pluggable Mapping

OWB Pluggable Mapping does not have the property ANSI SQL Syntax as does a regular OWB Mapping. Therefore, all Join Operators of a Pluggable Mapping are split into binary joins during migration to ODI unless the migration configuration option SPLIT_JOIN_FOR_ANSI_SYNTAX is set to false in the migration utility configuration file. For information about ordered join, see Join Operator.
