21 Enabling User Preferences

This chapter describes how to create both application-level and application feature-level user preference pages.

This chapter includes the following sections:

Section 21.1, "Creating User Preference Pages for a Mobile Application"
Section 21.2, "Creating User Preference Pages for Application Features"
Section 21.3, "Using EL Expressions to Retrieve Stored Values for User Preference Pages"
Section 21.4, "Platform-Dependent Display Differences"

21.1 Creating User Preference Pages for a Mobile Application

Preferences enable you to add settings that can be configured by end users. Within both the maf-application.xml and maf-feature.xml files, the user preference pages are defined with the <adfmf:preferences> element. As shown in Example 21-1, the child element of <adfmf:preferences> called <adfmf:preferenceGroup> and its child elements define the user preferences by creating pages that present options in various forms, such as text strings, dropdown menus, or in the case of Example 21-1, as a child page that can present the user with additional options for application settings.

You also use the <adfmf:preferences> element to create the preferences that users manage within each application feature.

Example 21-1 Defining Application-Level Preferences with the <adfmf:preferences> Element

<?xml version="1.0" encoding="UTF-8" ?>
<adfmf:application xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
                   xmlns:adfmf="http://xmlns.oracle.com/adf/mf"
                   name="MobileApplication"
                   id="com.company.MobileApplication"
                   appControllerFolder="ApplicationController"
                   version="1"
                   vendor="oracle"
                   listener-class="application.LifeCycleListenerImpl">
  <adfmf:description>This app created by Mobile Application Framework</adfmf:description>
  <adfmf:featureReference id="PROD"/>
  <adfmf:featureReference id="HCM"/>
  <adfmf:featureReference id="Customers"/>
      <adfmf:preferences>
<adfmf:preferenceGroup id="a" label="Prefs Group A">
        <adfmf:preferenceBoolean id="a1_sound" label="Sound Effects"/>
        <adfmf:preferenceNumber id="a2_retries" label="Retries" default="3"/>
        <adfmf:preferenceList id="a3_background" label="Background" default="3">
          <adfmf:preferenceValue name="None" value="0" id="pv4"/>
          <adfmf:preferenceValue name="Field" value="1" id="pv1"/>
          <adfmf:preferenceValue name="Galaxy" value="2" id="pv5"/>
          <adfmf:preferenceValue name="Mountain" value="3" id="pv6"/>
        </adfmf:preferenceList>
        <adfmf:preferenceText id="a4_name" label="Default Name"/>
        <adfmf:preferencePage id="aa" label="Prefs SubGroup AA">
          <adfmf:preferenceGroup id="aa_sec" label="Security">
            <adfmf:preferenceBoolean id="aa_sec_useSec" label="Use Security"/>
            <adfmf:preferenceNumber id="aa_sec_timeout" label="Timeout (secs)" default="120"/>
          </adfmf:preferenceGroup>
        </adfmf:preferencePage>
      </adfmf:preferenceGroup>
      <adfmf:preferenceGroup id="b" label="Prefs Group B">
        <adfmf:preferenceBoolean id="b_cloudSync" label="Cloud Sync"/>
        <adfmf:preferenceList id="b_dispUsage" label="Display Usage As" default="1">
          <adfmf:preferenceValue name="Percent" value="1" id="pv2"/>
          <adfmf:preferenceValue name="Minutes" value="2" id="pv3"/>
        </adfmf:preferenceList>
      </adfmf:preferenceGroup>
    </adfmf:preferences>
</adfmf:application>

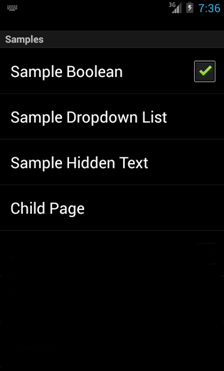

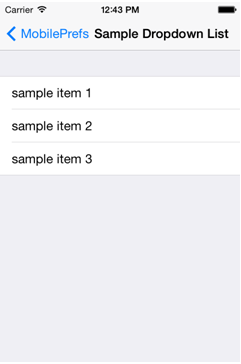

Figure 21-1 shows an example of how opening child user preferences page can offer subsequent options.

Figure 21-1 User Preferences Pages

This image is described in the surrounding text

Preference pages are defined within the <adfmf:preferenceGroup> element and have the following child elements:

<adfmf:preferencePage>—Specifies a new page in the user interface.
<adfmf:preferenceList>—Provides users with a specific set of options.
- <adfmf:preferenceValue>—A child element that defines a list element.
<adfmf:preferenceBoolean>—A boolean setting.
<adfmf:preferenceText>—A text preference setting.

See Tag Reference for Oracle Mobile Application Framework for more information on these elements and their attributes.

For an example of creating preference pages at both the application and application-feature levels, refer to the PrefDemo sample application. This sample application is available from File > New > MAF Examples.

The PrefDemo application is comprised of an application-level settings page as well as three application feature preference pages, which are implemented as MAF AMX. Figure 21-2 shows the PrefDemo application settings page, which you invoke from the general settings page. In this illustration, the preference settings page is invoked from the iOS Settings application.

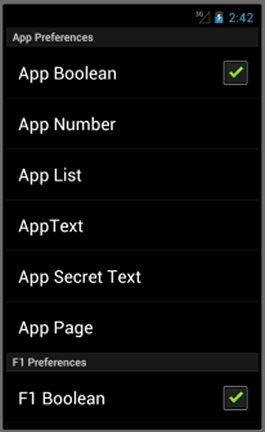

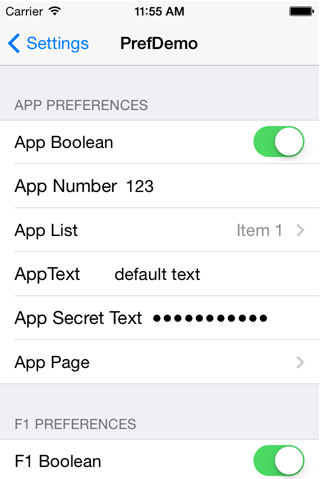

Figure 21-2 The PrefDemo Application Settings Page

The application feature preference pages, illustrated by App, Feature1 (which is selected), and Feature 2 in Figure 21-3, provide examples of preferences pages constructed from the MAF AMX Boolean Switch, Input Text, and Output Text components that use EL (Expression Language) to access the application feature and the various <adfmf:preferences> components configured within it. For more information, see Section 21.3, "Using EL Expressions to Retrieve Stored Values for User Preference Pages."

Figure 21-3 An Application Feature Preference Page from the PrefDemo Application

In the PrefDemo application, each MAF AMX preference page is referenced by a single bounded task flow comprised of a view activity and a control flow case that enables the page refresh.

21.1.1 How to Create Mobile Application-Level Preferences Pages

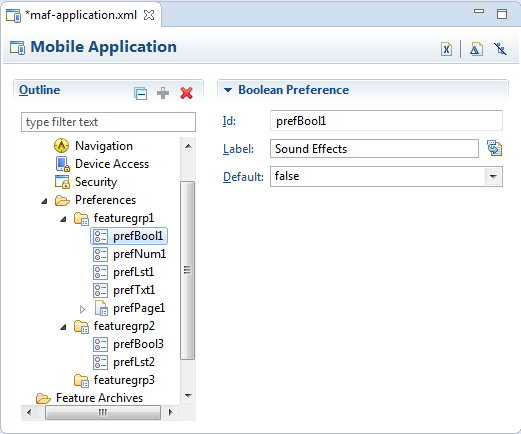

The Preferences section of the MAF Application Feature Editor, shown in Figure 21-4, enables you to build sets of application-level preference pages by nesting the child preference page elements within <adfmf:preferenceGroup>. The section presents the <adfmf:preferenceGroup> and its child elements as similarly named options (such as Preference Page, Preference List, Boolean Preference, and so on), which you assemble into a hierarchy (or tree).

Figure 21-4 Adding Mobile Application-Level Preferences Using the Preference Page

To ensure that the maf-application.xml file is well-formed, use the MAF Application Editor, shown in Figure 21-4, to construct the user preferences pages. This ensures that you can only select an element that can have the appropriate parent, child, or sibling relationship to a selected preferences element. For example, Figure 21-5 shows only the components that can be inserted within the Preference Group element, MyMobile. The editor also enables you to enter the values for the attributes specific to each preference element.

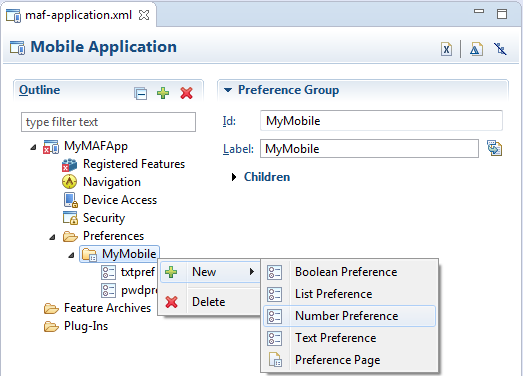

Figure 21-5 Choosing Preference Type

To create preferences pages:

In the MAF Application Editor, right-click Preferences and choose New > Preference Group to create the parent <adfmf:preferenceGroup> element.
Enter the following information for the new preference group, shown in Figure 21-6.

Figure 21-6 Defining the Parent Preference Group Element
- Enter a unique identifier for the Preference Group id element.
- Enter the descriptive text that displays in the user interface. For an example of how this text displays in the user interface, see Samples in Figure 21-1.
Note:
If a preference ID has a character that is considered an illegal identifier in EL, OEPE displays a warning because the runtime cannot support it properly. There is no problem unless a feature content page attempts to reference the preference using EL.

21.1.1.1 How to Create a New User Preference Page

The Preference Page component enables you to create a new user interface page.

Before you begin:

You must create a Preferences Group element.

To create a new user preference page:

Select the Preference Group element.
Right-click and choose New > Preference Page, as shown in Figure 21-7.

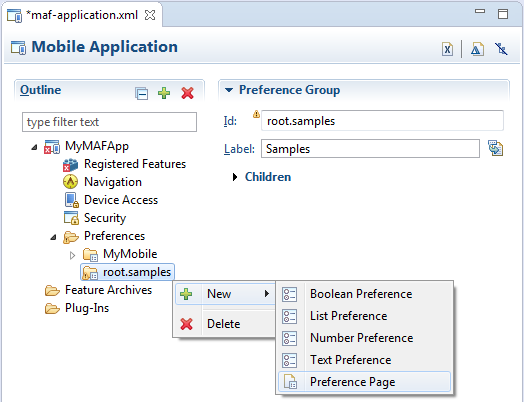

Figure 21-7 Selecting the Preference Page Component
Define the following Preference Page attributes in the Insert Preference Page dialog, shown in Figure 21-8:
- Enter a unique identifier for the Preference Page element.
- Enter the descriptive text that displays in the user interface.

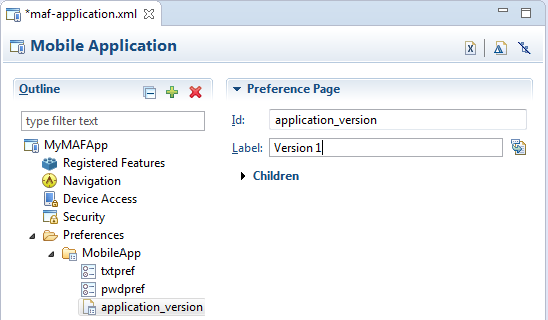

Figure 21-8 Inserting a Preference Page
Create the body of the preference page by inserting a child Preference Group element.

Right-click the Preference Page and choose New > Preference Group. In Figure 21-8 you would right-click application_version.
After you define a unique identifier and display name for the child Preference Group, you can populate it with other elements, such as a Preference List element.

21.1.1.2 What Happens When You Add a Preference Page

After you define the Preference Page and its child Preference Group components in the overview editor, OEPE generates an <adfmf:preferencePage> with attributes similar to Example 21-2. The <adfmf:preferencePage> is nested within a parent <adfmf:preferenceGroup> element.

Example 21-2 Adding an <adfmf:PreferencePage element>

<adfmf:preferences>
          <adfmf:preferenceGroup id="gen"
                                 label="MobileApp">
                     <adfmf:preferencePage id="application_version"
                                           label="Version">
                    <adfmf:preferenceGroup id="version_select"
                                           label="Select Your Version">
                         <adfmf:preferenceList id="edition"
                                                label="Edition"
                                                default="PERSONAL">
                              adfmf:preferenceValue name="Enterprise"
                                                    id="pv2"/>
                              <adfmf:preferenceValue name="Personal"
                                                     value="PERSONAL"
                                                     id="pv1"/>
                         </adfmf:preferenceList>
                    </adfmf:preferenceGroup>
                     </adfmf:preferencePage>
</adfmf:preferences>

21.1.1.3 How to Create User Preference Lists

Add a Preference List component to create a list of options.

Before you begin:

You must create Preference Group as the parent to the Preference List or any other list-related component.

To create a user preference list:

Select a Preference Group or Preference Page and then click Add, then Insert Inside, and then Preference List. Example 21-2 shows adding a Preference List as a child of a Preference Group component called Select Your Version.

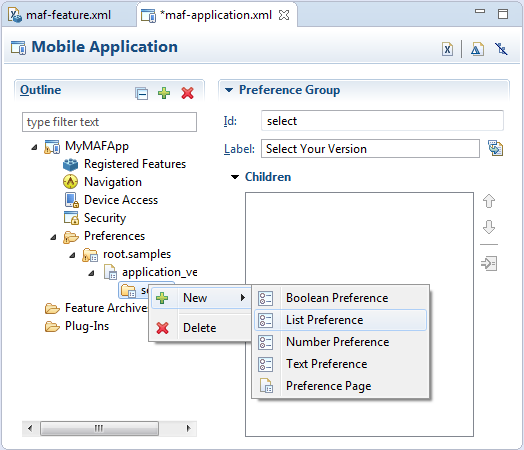

Figure 21-9 Adding a Preference List Component to a Preference Group
Define the following attributes using for the List Preference, shown in Figure 21-10.
- Enter a unique identifier.
- Enter the descriptive text that displays in the user interface.
Figure 21-10 Inserting a Preference List

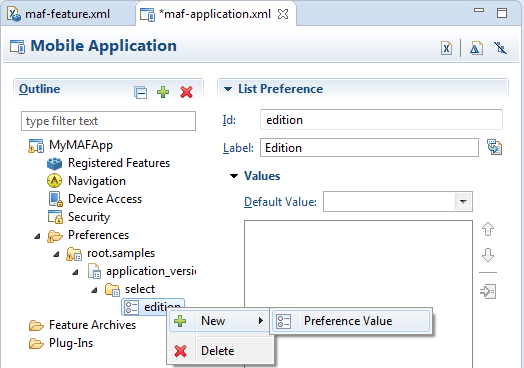

Define a list of items by right-clicking the list preference (in Figure 21-10, the list preference is edition) and choosing Preference Value.

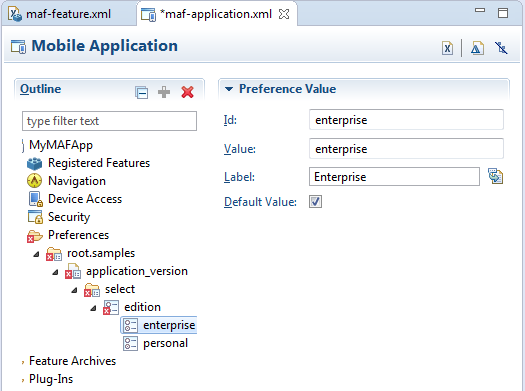

Now you can define the values of the list. Enter the Id, Value and Label, as shown in Figure 21-11.

You can present the user with a default setting by selecting Default. As illustrated in Example 21-2, the default status is defined within the <adfmf:preferenceList> element as default="ENTERPRISE".

Figure 21-11 Adding Preference Values

21.1.1.4 What Happens When You Create a Preference List

After you add Preference List component to a Preference Group and then define a series of Preference Values, OEPE updates the <adfmf:preferences> section with an <adfmf:preferenceList> element, as shown in Example 21-2.

21.1.1.5 How to Create a Boolean Preference List

See, for example, Example 21-1.

Before you begin:

Because an <adfmf:preferenceBoolean> element must be nested within an <adfmf:preferenceGroup> element, you must first insert a Preference Group component to the hierarchy.

To create a boolean preference list:

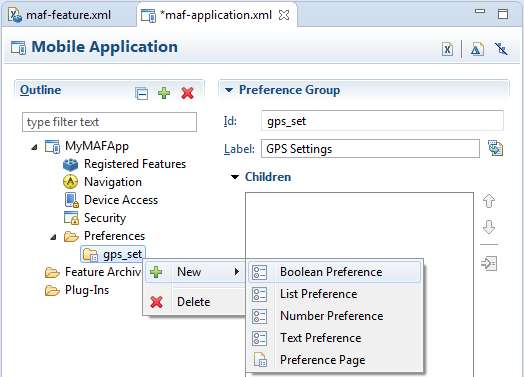

Select a Preference Group element, such as GPS Settings in Figure 21-12.

Figure 21-12 Adding a Boolean Preference to a Preference Group
Right-click and choose New > Boolean Preference.

Define the following attributes in Figure 21-13, and then click OK.
- Enter a unique identifier.
- Enter the descriptive text that displays in the user interface.

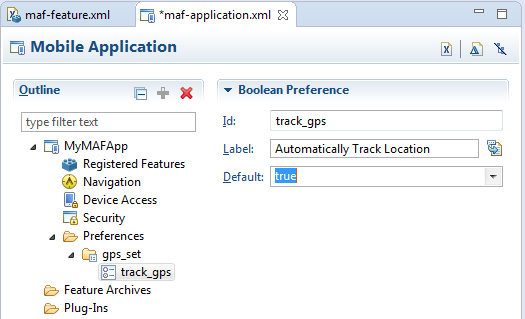

Figure 21-13 Inserting a Boolean Preference
Accept the default value of false, or select true.

21.1.1.6 What Happens When You Add a Boolean Preference

When you add a Boolean Preference and designate its default value, OEPE updates the <adfmf:preferences> section of the maf-application.xml file with a <adfmf:preferenceBoolean> element, as illustrated in Example 21-3.

Example 21-3 Adding an <adfmf:preferenceBoolean> Element

<adfmf:preferencePage id="gps_tracking"
                      label="Your_GPS_Locations">
   <adfmf:preferenceGroup id="gps"
                          label="GPS Settings">
      <adfmf:preferenceBoolean id="track_gps"
                               label="Automatically Track Location"
                               default="true"/>
</adfmf:preferencePage>

21.1.1.7 How to Add a Text Preference

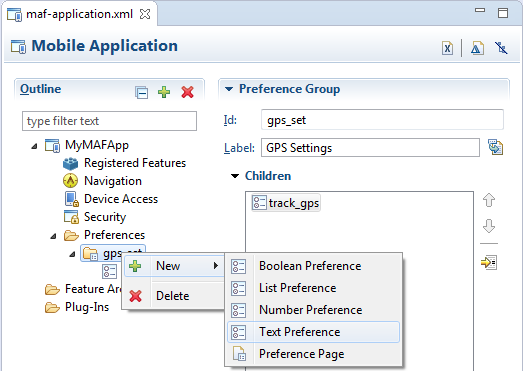

Use the insert options, shown in Figure 21-14, to create a Text Preference, a dialog that enables users to store information or view default text.

Figure 21-14 Inserting a Text Preference

Before you begin:

Create a Preference Group element.

To create a text preference:

Select a Preference Group element.
Right-click and choose New > Text Preference.
Enter the following information into the Insert Text Preference dialog, shown in Figure 21-15, and then click OK.
- Enter a unique identifier.
- Enter the descriptive text that displays in the user interface.
- Enter the default text value.

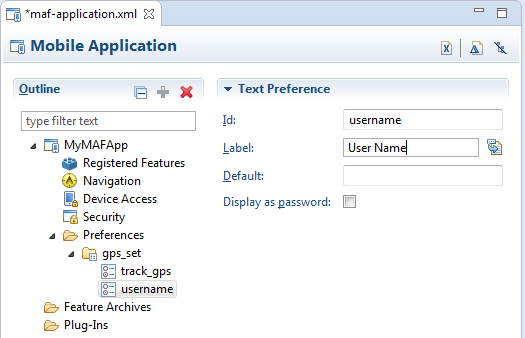

Figure 21-15 The Insert Text Preference Dialog

21.1.1.8 What Happens When You Define a Text Preference

When you add a Text Preference and designate its default value, OEPE updates the <adfmf:preferences> section of the maf-application.xml file with a <adfmf:preferenceText> element, as illustrated in Example 21-4.

Example 21-4 Adding the <adfmf:preferenceText> Element

   <adfmf:preferenceGroup id="security" label="Security">
      <adfmf:preferenceText id="serviceURL"
                            label="Security URL"
                            default="http://security.example.com/provider"/>
      <adfmf:preferenceText  id="username"
                             label="User Name"/>
      <adfmf:preferenceText  id="password"
                             label="Password"
                             secret="true"/>
   </adfmf:preferenceGroup>

The Preference Group elements that define a security URL, user name, and password preference setting display similarly to Figure 21-16.

Figure 21-16 Text Preferences

Figure 21-16 illustrates <adfmf:preferenceText> elements with a seeded value for the Security URL and an input value for the User Name. Because the MAF preferences are integrated with the iOS Settings application, the secret="true" attribute for the Password input text results in the application following the iOS convention of obscuring the user input with bullet points. For more information, see the description for the isSecure text field element in Settings Application Schema Reference, available from the iOS Developer Library (http://developer.apple.com/library/ios/navigation/) and Section 21.4, "Platform-Dependent Display Differences."

21.1.2 What Happens When You Create an Application-Level Preference Page

After you deploy the mobile application, the application-wide preference settings page is propagated to the device's global settings application, such as the Settings application on iOS-powered devices. For more information, see Appendix D, "Converting Preferences for Deployment."

21.2 Creating User Preference Pages for Application Features

You can distribute an application feature independently of its mobile application by adding a Feature Application Archive (FAR) .jar file containing the application feature to the library of another mobile application. You then reference the application feature in the application's maf-application.xml file. If an application feature requires a specific set of user preferences in addition to the general preferences defined for the consuming application, you can define them using the Preferences tab of the MAF Feature Editor, shown in Figure 21-17. You build application feature preferences in the same manner as the application-level preferences, which are described in Section 21.1, "Creating User Preference Pages for a Mobile Application." After you define the preferences in the MAF Feature Editor, you then create the actual preference page by creating an application feature that references a MAF AMX page that is embedded with the Boolean Switch, Input, and Output components described in Section 13.3, "Creating and Using UI Components."

Figure 21-17 Setting Application Feature-Level Preferences

21.3 Using EL Expressions to Retrieve Stored Values for User Preference Pages

When creating an application feature-level preference page, you add EL expressions to the MAF AMX components, such as the Input Text component in Example 21-5.

To create a feature-level preference page:

Open the AMX Editor for the page.
Select the XML element (for example, <amx:inputTest ...> in Example 21-5.
Open the Properties pane.
Select the Common tab in the Properties pane.
Click the Binding button on the Value attribute. This opens the OEPE EL expression builder.

Example 21-5 Referencing Preference Values Using EL in MAF AMX Components

<amx:inputText label="Number" id="it1" inputType="number"
               value="#{preferenceScope.feature.Feature1.f1top.f1Number}"/>

As illustrated in Example 21-5, EL expressions use the preferenceScope object to enable applications to access an application feature-level preference. These EL expressions are in the following format:

preferenceScope.feature.feature-id.group-id.property-id

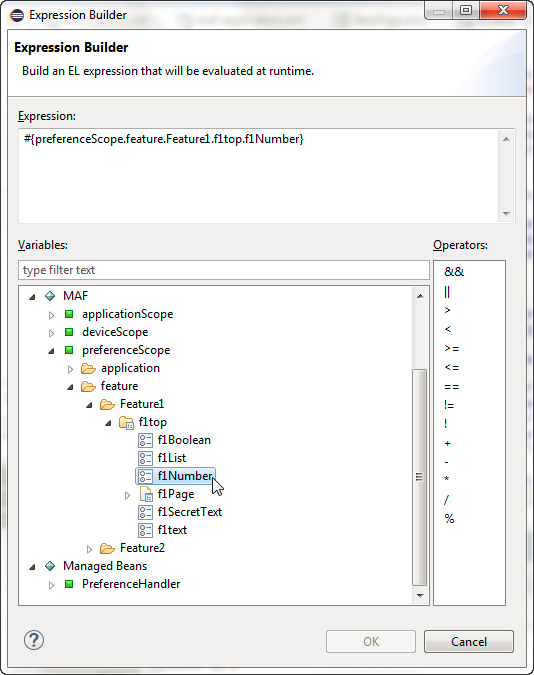

Figure 21-18 illustrates using the Expression Builder to create the EL expression.The preference itself is designated by the IDs configured for various components in maf-feature.xml, such as the ID of the application feature <adfmf:feature id="Feature1">), the ID of a Preference Group (<adfmf:preferenceGroup id="f1top">), and the ID of a preference property (<adfmf:preferenceNumber id="f1Number">).

The EL expression may include zero or more group-id and property-id elements.

Figure 21-18 Building an EL Expression for a Preference

21.3.1 What You May Need to Know About preferenceScope

An EL expression has the following resolution pattern:

From the JavaScript layer, EL value expressions are resolved using the following JavaScript function:
```
adf.mf.el.getValue(expression, success, failed)
```
The resolution of adf.mf.el.getValue begins with an attempt to resolve the expression locally using the JS-EL parser and JavaScript Context Cache. If the expression cannot be resolved locally, the expression is passed to the embedded Java layer for evaluation where it is resolved by the Java EL parser. This is done through the GenericInvokeRequest to the Model's getValue method.
At the Java layer, an EL value expression is resolved using the following approach:
```
String val = AdfmfJavaUtilities.evaluateELExpression("#{preferenceScope.feature.f0.vendor}");
```
For a setValue method, the expression is resolved as follows:
```
ValueExpression ve = AdfmfJavaUtilities.getValueExpression("#{preferenceScope.feature.f0.vendor}");
ve.setValue(AdfmfJavaUtilities.getADFELContext(), value);
```
Evaluation of the EL expression involves looking up the preferenceScope object. The evaluation is from left to right, where each token is resolved independently. After a token is resolved, it is used to resolve the next token (which is on its right).

Preferences cannot be exposed without the preferenceScope object. For more information about the preferenceScope object, see Section 14.3.5.3, "About the Mobile Application Framework Objects Category."

21.3.2 Reading Preference Values in iOS Native Views

MAF integrates APIs provided for a native UI (such as UIView or UIViewController) to allow certain configurations on iOS platform.

When the native UI is initialized, an instance of the ADFSession object becomes available. You can use its getPreferences method to instruct MAF to provide a listing of the available preferences for the application as defined in the maf-application.xml file. As shown in Example 21-6, this method returns a NSArray* of preference property objects that can include the id, value, and label for the preference. This API call ensures that either the end user provided the value for a particular preference, or that the default value of the preference is returned.

Example 21-6 Getting Preferences

//...
-(id) initWithADFSession:(id<ADFSession>) providedSession
{
   id me = [self init];
   session = providedSession;
   //...
   // Dump the preferences to the data display
   NSArray* prefsArray = [session getPreferences];
   NSString* prefs = [prefsArray JSONRepresentation];
   self.theData.text = [[NSString alloc ] initWithFormat:
        :@"%@\nUser Preferences = --> %@ <--", self.theData.text, prefs];
   //...
   return me;
}

21.4 Platform-Dependent Display Differences

The MAF preference pages maintain the native look-and-feel for both the iOS and Android platforms. Consequently, the MAF preference pages display differently on the two platforms. As shown in Table 21-1, preferences display inline on the iOS platform, meaning that the system does not invoke dialog pages. With a few exceptions, the Android platform presents these components as dialogs.

Table 21-1 Preference Component Comparison by Platform

Component	iOS	Android
Preference Groups (Category Selection)	The iOS platform displays the preference elements within their parent preference group.	The Android platform displays the preference elements within their parent preference group.
Boolean Preference List	The Boolean preference is represented as value pair, such as on and off.	Android presents the Boolean preference as a check box.
Text Preference	iOS displays the text inline.	Android displays the default text within an input field.
Text Preference (as secret input text)	On iOS platforms, users enter text inline, with each character obscured by a bullet point after it has been entered. For more information, see Section 21.1.1.8, "What Happens When You Define a Text Preference."	Android launches an input text dialog and obscures each character with a bullet point after it has been entered.
Single Item Selection List (from a Preference List)	iOS platforms display the single item selection list in a separate preferences page.	Android displays the single item selection list in a dialog.
Preference Page	iOS launches a child preference page from a preference group.	Android launches a child preference page from a preference group.

Although iOS and Android platforms have a Settings application, only the iOS platform supports integrating application-level preferences into the Settings application, as shown by the preferences in Figure 21-19.

Figure 21-19 Oracle Mobile Preferences in the iOS Settings Application

On Android-powered devices, users access application-specific preferences pages similar to the one shown in Figure 21-20 only when the application is running.

Figure 21-20 The Preferences Menu on an Android-Powered Device
