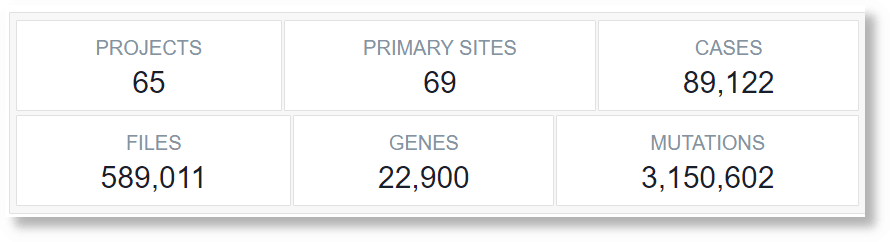

O bloco a seguir tem duas linhas, três colunas, título personalizado, tamanho de fonte personalizado e cor para título e conteúdo.

Consulta:

*
| link
| eval Projects = 65
| eval 'Primary Sites' = 69
| eval Cases = 89122
| eval Files = 589011
| eval Genes = 22900
| eval Mutations = 3150602

Definição de XML:

<summary>
  <container>
    <table>
      <row>
        <column>
          <tiles>
            <tile color="#17202A" font-size="large" field="Projects">
              <title><title-text color="#85929E">PROJECTS</title-text></title>
            </tile>
          </tiles>
        </column>
        <column>
          <tiles>
            <tile color="#17202A" font-size="large" field="Primary Sites">
              <title><title-text color="#85929E">PRIMARY SITES</title-text></title>
            </tile>
          </tiles>
        </column>
           <column>
          <tiles>
            <tile color="#17202A" font-size="large" field="Cases">
              <title>
                <title-text color="#85929E">CASES</title-text></title>
            </tile>
          </tiles>
        </column>
      </row>
      <row>
        <column>
          <tiles>
            <tile color="#17202A" font-size="large" field="Files">
              <title>
                <title-text color="#85929E">FILES</title-text></title>
            </tile>
          </tiles>
        </column>
        <column>
          <tiles>
            <tile color="#17202A" font-size="large" field="Genes">
              <title><title-text color="#85929E">GENES</title-text></title>
            </tile>
          </tiles>
        </column>
           <column>
          <tiles>
            <tile color="#17202A" font-size="large" field="Mutations">
              <title><title-text color="#85929E">MUTATIONS</title-text></title>
            </tile>
          </tiles>
        </column>
      </row>
    </table>
  </container>
</summary>

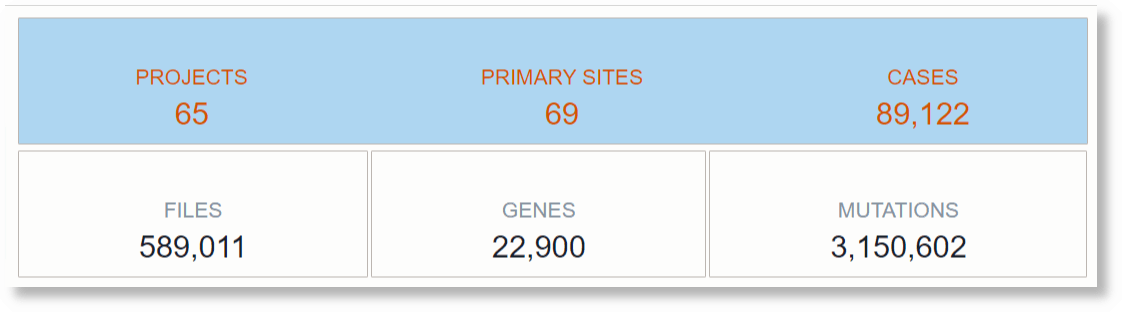

O exemplo a seguir tem o atributo table definido como o valor layout para compactar a primeira linha e tem preenchimento de cor de fundo.

Consulta:

*
| link
| eval Projects = 65
| eval 'Primary Sites' = 69
| eval Cases = 89122
| eval Files = 589011
| eval Genes = 22900
| eval Mutations = 3150602

Definição de XML:

<summary>
  <container display="none">
    <table>
      <row>
        <column>
          <tiles layout="table" columns="3" background-color="#AED6F1">
            <tile color="#D35400" font-size="large" field="Projects">
              <title><title-text color="#D35400">PROJECTS</title-text></title>
            </tile>
            <tile color="#D35400" font-size="large" field="Primary Sites">
              <title><title-text color="#D35400">PRIMARY SITES</title-text></title>
            </tile>
            <tile color="#D35400" font-size="large" field="Cases">
              <title>
                <title-text color="#D35400">CASES</title-text></title>
            </tile>
          </tiles>
        </column>
      </row>
      <row>
        <column>
          <tiles>
            <tile color="#17202A" font-size="large" field="Files">
              <title>
                <title-text color="#85929E">FILES</title-text></title>
            </tile>
          </tiles>
        </column>
        <column>
          <tiles>
            <tile color="#17202A" font-size="large" field="Genes">
              <title><title-text color="#85929E">GENES</title-text></title>
            </tile>
          </tiles>
        </column>
           <column>
          <tiles>
            <tile color="#17202A" font-size="large" field="Mutations">
              <title><title-text color="#85929E">MUTATIONS</title-text></title>
            </tile>
          </tiles>
        </column>
      </row>
    </table>
  </container>
</summary>

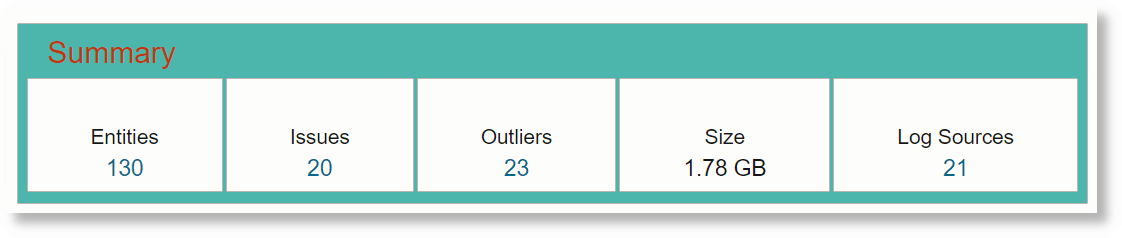

O exemplo a seguir tem uma linha, várias colunas, nomes de campo padrão, tipos de campo mistos (links, unidades) e nenhum separador.

Consulta:

* | eval 'Raw Size (bytes)' = unit('Raw Size', byte) | link includenulls = true 'Log Source', Entity, cluster() | stats sum('Raw Size (bytes)') as R | addfields [ * | where 'Potential Issue' = '1' | eventstats count as I ], [ * | where Count = 1 | eventstats count as O ] | eval 'Query Duration' = 'Query End Time' - 'Query Start Time' | eventstats distinctcount('Log Source') as L, distinctcount(Entity) as E, sum(Count) as Logs, sum(R) as Size, max(I) as I1, max(O)
      as O1 | eval QS = formatDate('Query Start Time') | eval QE = formatDate('Query End Time') | eval URL_LS = replace(replace('https://cloud.oracle.com/loganalytics/explorer?viz=hbar&query=Time%20between%20%27STARTTIME%27%20and%20%27ENDTIME%27%20%7C%20stats%20count%20by%20%27Log%20Source%27', literal(STARTTIME), QS), ENDTIME, QE) | eval URL_E = replace(replace('https://cloud.oracle.com/loganalytics/explorer?viz=pie&query=Time%20between%20%27STARTTIME%27%20and%20%27ENDTIME%27%20%7C%20stats%20count%20by%20%27Entity%27', literal(STARTTIME), QS), ENDTIME, QE) | eval URL_I = replace(replace('https://cloud.oracle.com/loganalytics/explorer?viz=cluster&query=Time%20between%20%27STARTTIME%27%20and%20%27ENDTIME%27%20%7C%20cluster', literal(STARTTIME), QS), ENDTIME, QE) | eval URL_O = replace(replace('https://cloud.oracle.com/loganalytics/explorer?viz=cluster&query=Time%20between%20%27STARTTIME%27%20and%20%27ENDTIME%27%20%7C%20cluster', literal(STARTTIME), QS), ENDTIME, QE) | eval 'Log Sources' = url(URL_LS, toString(L)) | eval E1 = if(E != null, E, 0) | eval Entities = url(URL_E, toString(E)) | eval I2 = if(I1 != null, I1, 0) | eval Issues = url(URL_I, toString(I2)) | eval Outliers = url(URL_O, toString(O1)) |
      fields -L, -E, -I, -I1, -I2, -E1, -O, -O1, -QS, -QE, -URL_LS, -URL_I, -URL_O, -URL_E,
      -'Potential Issue', -R, -'Log Source', -'Start Time', -'End Time', -'Query Duration' | head limit = 1

Definição de XML:

<summary>
  <container background-color="rgba(77, 182, 172)">
   <title>
    <title-text color="#BF360C" font-size="20px">Summary</title-text>
    </title>
    <table>
      <row>
        <column><tiles><tile field="Entities"></tile></tiles></column>
        <column><tiles><tile field="Issues"></tile></tiles></column>
        <column><tiles><tile field="Outliers"></tile></tiles></column>
        <column><tiles><tile field="Size"></tile></tiles></column>
        <column><tiles><tile field="Log Sources"></tile></tiles></column>
      </row>
    </table>
  </container>
</summary>

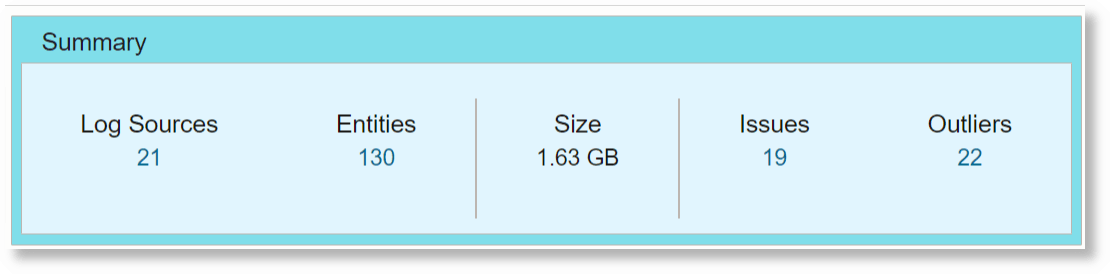

O exemplo a seguir tem uma linha, uma coluna, cartões compactados e separadores verticais.

Consulta:

* | eval 'Raw Size (bytes)' = unit('Raw Size', byte) | link includenulls = true 'Log Source', Entity, cluster() | stats sum('Raw Size (bytes)') as R | addfields [ * | where 'Potential Issue' = '1' | eventstats count as I ], [ * | where Count = 1 | eventstats count as O ] | eval 'Query Duration' = 'Query End Time' - 'Query Start Time' | eventstats distinctcount('Log Source') as L, distinctcount(Entity) as E, sum(Count) as Logs, sum(R) as Size, max(I) as I1, max(O)
      as O1 | eval QS = formatDate('Query Start Time') | eval QE = formatDate('Query End Time') | eval URL_LS = replace(replace('https://cloud.oracle.com/loganalytics/explorer?viz=hbar&query=Time%20between%20%27STARTTIME%27%20and%20%27ENDTIME%27%20%7C%20stats%20count%20by%20%27Log%20Source%27', literal(STARTTIME), QS), ENDTIME, QE) | eval URL_E = replace(replace('https://cloud.oracle.com/loganalytics/explorer?viz=pie&query=Time%20between%20%27STARTTIME%27%20and%20%27ENDTIME%27%20%7C%20stats%20count%20by%20%27Entity%27', literal(STARTTIME), QS), ENDTIME, QE) | eval URL_I = replace(replace('https://cloud.oracle.com/loganalytics/explorer?viz=cluster&query=Time%20between%20%27STARTTIME%27%20and%20%27ENDTIME%27%20%7C%20cluster', literal(STARTTIME), QS), ENDTIME, QE) | eval URL_O = replace(replace('https://cloud.oracle.com/loganalytics/explorer?viz=cluster&query=Time%20between%20%27STARTTIME%27%20and%20%27ENDTIME%27%20%7C%20cluster', literal(STARTTIME), QS), ENDTIME, QE) | eval 'Log Sources' = url(URL_LS, toString(L)) | eval E1 = if(E != null, E, 0) | eval Entities = url(URL_E, toString(E)) | eval I2 = if(I1 != null, I1, 0) | eval Issues = url(URL_I, toString(I2)) | eval Outliers = url(URL_O, toString(O1)) |
      fields -L, -E, -I, -I1, -I2, -E1, -O, -O1, -QS, -QE, -URL_LS, -URL_I, -URL_O, -URL_E,
      -'Potential Issue', -R, -'Log Source', -'Start Time', -'End Time', -'Query Duration' | head limit = 1

Definição de XML:

<summary>
  <container background-color="#80DEEA">
   <title>
    <title-text color="#212121" font-size="medium">Summary</title-text>
    </title>
    <table>
      <row>
        <column>
         <tiles background-color="#E1F5FE">
           <tile field="Log Sources"><title><title-text font-size="medium">Log Sources</title-text></title></tile>
           <tile field="Entities"><title><title-text font-size="medium">Entities</title-text></title></tile>
           <tile type="separator"/>
           <tile field="Size"><title><title-text font-size="medium">Size</title-text></title></tile>
           <tile type="separator"/>
           <tile field="Issues"><title><title-text font-size="medium">Issues</title-text></title></tile>
           <tile field="Outliers"><title><title-text font-size="medium">Outliers</title-text></title></tile>
         </tiles>
        </column>
      </row>
    </table>
  </container>
</summary>

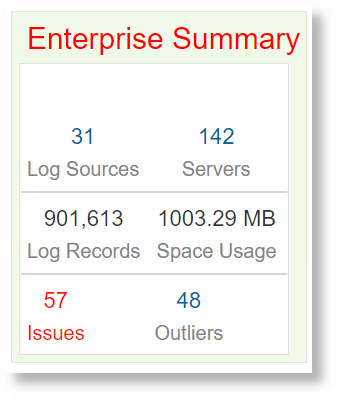

O exemplo a seguir tem um conjunto de cartões separados por linha horizontal, rótulos na parte inferior em vez de superior e cor para valores e rótulos específicos.

Consulta:

* | eval 'Raw Size (bytes)' = unit('Raw Size', byte) | link includenulls = true 'Log Source', Entity, cluster() | stats sum('Raw Size (bytes)') as R | addfields [ * | where 'Potential Issue' = '1' | eventstats count as I ], [ * | where Count = 1 | eventstats count as O ] | eval 'Query Duration' = 'Query End Time' - 'Query Start Time' | eventstats distinctcount('Log Source') as L, distinctcount(Entity) as E, sum(Count) as Logs, sum(R) as Size, max(I) as I1, max(O)
      as O1 | eval QS = formatDate('Query Start Time') | eval QE = formatDate('Query End Time') | eval URL_LS = replace(replace('https://cloud.oracle.com/loganalytics/explorer?viz=hbar&query=Time%20between%20%27STARTTIME%27%20and%20%27ENDTIME%27%20%7C%20stats%20count%20by%20%27Log%20Source%27', literal(STARTTIME), QS), ENDTIME, QE) | eval URL_E = replace(replace('https://cloud.oracle.com/loganalytics/explorer?viz=pie&query=Time%20between%20%27STARTTIME%27%20and%20%27ENDTIME%27%20%7C%20stats%20count%20by%20%27Entity%27', literal(STARTTIME), QS), ENDTIME, QE) | eval URL_I = replace(replace('https://cloud.oracle.com/loganalytics/explorer?viz=cluster&query=Time%20between%20%27STARTTIME%27%20and%20%27ENDTIME%27%20%7C%20cluster', literal(STARTTIME), QS), ENDTIME, QE) | eval URL_O = replace(replace('https://cloud.oracle.com/loganalytics/explorer?viz=cluster&query=Time%20between%20%27STARTTIME%27%20and%20%27ENDTIME%27%20%7C%20cluster', literal(STARTTIME), QS), ENDTIME, QE) | eval 'Log Sources' = url(URL_LS, toString(L)) | eval E1 = if(E != null, E, 0) | eval Entities = url(URL_E, toString(E)) | eval I2 = if(I1 != null, I1, 0) | eval Issues = url(URL_I, toString(I2)) | eval Outliers = url(URL_O, toString(O1)) |
      fields -L, -E, -I, -I1, -I2, -E1, -O, -O1, -QS, -QE, -URL_LS, -URL_I, -URL_O, -URL_E,
      -'Potential Issue', -R, -'Log Source', -'Start Time', -'End Time', -'Query Duration' | head limit = 1

Definição de XML:

<summary>
  <container background-color="rgba(228, 245, 211, 0.5)">
   <title><title-text color="rgba(255, 0, 0)" font-size="30px">Enterprise Summary</title-text></title>
    <table>
      <row>
        <column>
         <tiles layout="table" columns="2">
           <tile field="Log Sources"><title align="bottom"><title-text>Log Sources</title-text></title></tile>
           <tile field="Entities"><title align="bottom"><title-text>Servers</title-text></title></tile>
           <tile type="separator" display="horizontal"/>
           <tile field="Logs"><title align="bottom"><title-text>Log Records</title-text></title></tile>
           <tile field="Size"><title align="bottom"><title-text>Space Usage</title-text></title></tile>
           <tile type="separator" display="horizontal"/>
           <tile field="Issues" color="#F31806"><title align="bottom" color="#F31806"><title-text>Issues</title-text></title></tile>
           <tile field="Outliers"><title align="bottom"><title-text>Outliers</title-text></title></tile>
         </tiles>
        </column>
      </row>
    </table>
  </container>
</summary>

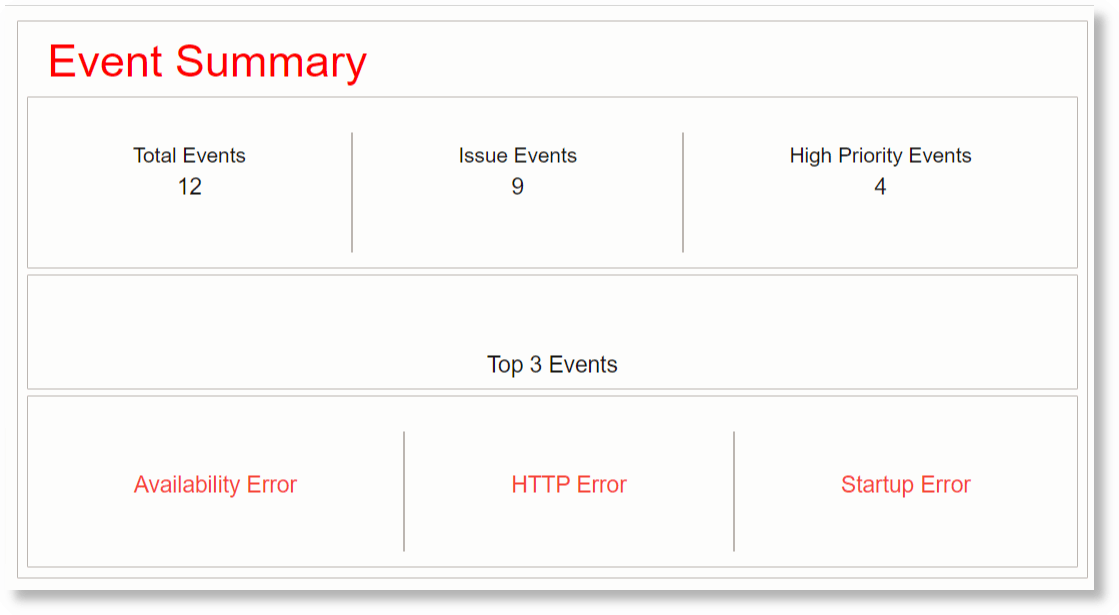

O exemplo a seguir exibe os 3 principais problemas:

Consulta:

* | link includenulls = true Label, 'Problem Priority' | eventstats distinctcount(Label) as Events | addfields [ * | where 'Problem Priority' != null | eventstats distinctcount(Label) as IS ] | sort -'Start Time' | addfields [ * | where 'Problem Priority' = High | eventstats distinctcount(Label) as HP, rownum as Row ] | addfields [ * | where Row = 1 | eventstats latest(Label) as L1 ], [ * | where Row = 2 | eventstats latest(Label) as L2 ], [ * | where Row = 3 | eventstats latest(Label) as L3 ] | eventstats max(IS) as 'Issue Events', max(HP) as 'High Priority Events', unique(L1) as HP1, unique(L2) as HP2, unique(L3) as HP3 | fields -L1, -L2, -L3, -IS, -HP, -Row

Definição de XML:

<summary>
  <container>
   <title>
     <title-text color="rgba(255, 0, 0)" font-size="30px">Event Summary</title-text>
    </title>
    <table>
      <row>
        <column>
         <tiles layout="table" columns="5">
           <tile field="Events"><title><title-text>Total Events</title-text></title></tile>
           <tile type="separator" display="vertical"/>
           <tile field="Issue Events"/>
           <tile type="separator" display="vertical"/>
           <tile field="High Priority Events"></tile>
          </tiles>
        </column>
      </row>
      <row>
        <column>
          <tiles layout="table">
          <tile type="condition">
            <condition type="if" field="High Priority Events" operator=">=" value="3">
              <tile type="text" value="Top 3 Events"/>
            </condition>
            <condition type="if" field="High Priority Events" operator=">=" value="2">
              <tile type="text" value="Top 2 Events"/>
            </condition>
            <condition type="if" field="High Priority Events" operator=">=" value="1">
              <tile type="text" value="Top Event"/>
            </condition>
          </tile>
          </tiles>
        </column>
      </row>
      <row>
        <column>
          <tiles layout="table">
            <tile type="condition">
              <condition type="if" field="High Priority Events" operator=">=" value="3">
                <tile color="#F44336" field="HP1"><title/></tile>
                <tile type="separator" display="vertical"/>
                <tile color="#F44336" field="HP2"><title/></tile>
                <tile type="separator" display="vertical"/>
                <tile color="#F44336" field="HP3"><title/></tile>
              </condition>
              <condition type="if" field="High Priority Events" operator=">=" value="2">
                <tile color="#F44336" field="HP1"><title/></tile>
                <tile type="separator" display="vertical"/>
                <tile color="#F44336" field="HP2"><title/></tile>
              </condition>
              <condition type="if" field="High Priority Events" operator=">=" value="1">
                <tile color="#F44336" field="HP1"><title/></tile>
              </condition>
            </tile>
          </tiles>
        </column>
      </row>
    </table>
  </container>
</summary>

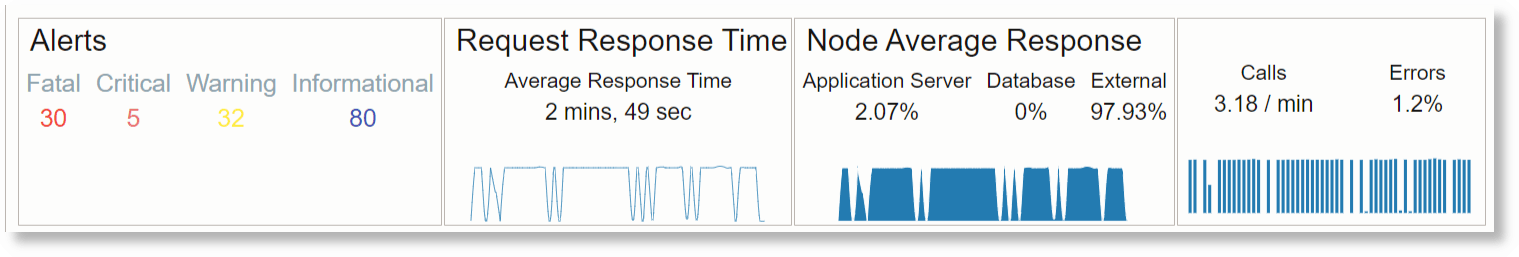

O exemplo a seguir tem várias colunas e gráficos em algumas colunas.

Consulta:

Duration != null | eval D = unit(Duration, second) | link Time, Node | eval Fatal = 30 | eval Critical = 5 | eval Warning = 32 | eval Informational = 80 | eval App = unit(2.07, pct) | eval Database = unit(0, pct) | eval External = unit(97.93, pct) | timestats name = 'Request Response Time' avg(D) as 'Request Response Time' by Node | eventstats avg(D) as 'Avg. Response' | eval Calls = '3.18 / min' | eval Errors = unit(1.2, pct)

Definição de XML:

<summary>
  <container display="none">
    <table>
      <row>
        <column>
          <tiles>
            <title>
              <title-text font-size="large">Alerts</title-text>
            </title>
            <tile font-size="medium" color="#F44336" field="Fatal">
              <title>
                <title-text font-size="medium" color="#90A4AE">Fatal</title-text>
              </title>
            </tile>
            <tile font-size="medium" color="#E57373" field="Critical">
              <title>
                <title-text font-size="medium" color="#90A4AE">Critical</title-text>
              </title>
            </tile>
            <tile font-size="medium" color="#FFEB3B" field="Warning">
              <title>
                <title-text font-size="medium" color="#90A4AE">Warning</title-text>
              </title>
            </tile>
            <tile font-size="medium" color="#3F51B5" field="Informational">
              <title>
                <title-text font-size="medium" color="#90A4AE">Informational</title-text>
              </title>
            </tile>
          </tiles>
        </column>
        <column>
          <tiles layout="table" columns="1">
            <title>
              <title-text font-size="large">Request Response Time</title-text>
            </title>
            <tile field="Avg. Response"><title><title-text>Average Response Time</title-text></title></tile>
            <tile type="chart" chart-type="line">
              <chart-value field="Request Response Time">
                <chart-by-clause field="Node" value="10.20.10.244"/>
              </chart-value>
            </tile>
          </tiles>
        </column>
        <column>
          <tiles layout="table" columns="3">
            <title>
              <title-text font-size="large">Node Average Response</title-text>
            </title>
            <tile field="App"><title><title-text>Application Server</title-text></title></tile>
            <tile field="Database"><title><title-text>Database</title-text></title></tile>
            <tile field="External"><title><title-text>External</title-text></title></tile>
            <tile type="chart" chart-type="area">
              <chart-value field="Request Response Time">
                <chart-by-clause field="Node" value="10.20.10.244"/>
              </chart-value>
            </tile>
          </tiles>
        </column>
        <column>
          <tiles layout="table" columns="2">
            <title></title>
            <tile field="Calls"/>
            <tile field="Errors"/>
            <tile type="chart" chart-type="bar">
              <chart-value field="Request Response Time">
                <chart-by-clause field="Node" value="10.20.10.244"/>
              </chart-value>
            </tile>
          </tiles>
        </column>
      </row>
    </table>
  </container>
</summary>

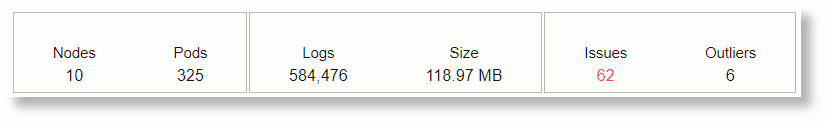

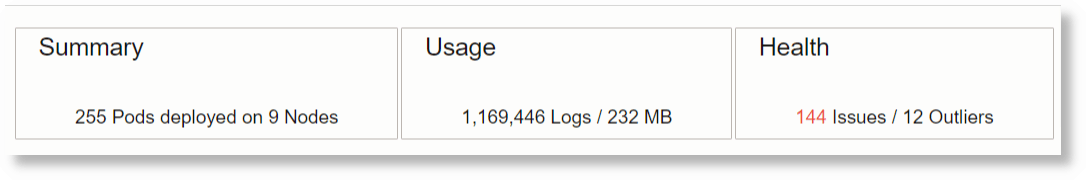

O exemplo a seguir tem font-size definido como o valor small do título. Isso é útil para criar um layout responsivo. O atributo color é definido com o valor priority-high. Isso atribui a mesma cor usada para rótulos de alta prioridade.

Consulta:

'Log Source' like 'Kubernetes %' | eval R = unit('Raw Size', byte) | link Node, Pod, cluster() | eventstats distinctcount(Node) as Nodes, distinctcount(Pod) as Pods, sum(Count) as Logs, sum(R) as Size | addfields [ * | where 'Potential Issue' = '1' | eventstats distinctcount('Cluster Sample') as I ], [ * | where Count = 1 and 'Potential Issue' != '1' | eventstats distinctcount('Cluster Sample') as O ] | eval O1 = if(O > 0, O, 0) | eventstats max(I) as Issues, max(O1) as Outliers | fields -I, -O, -O1, -'Cluster Sample', -'Potential Issue'

Definição de XML:

<summary>
  <container display="none">
    <table>
      <row>
        <column>
          <tiles>
            <title font-size="small">Summary</title>
            <tile field="Nodes"/>
            <tile field="Pods"/>
          </tiles>
        </column>
        <column>
          <tiles>
            <title font-size="small">Usage</title>
            <tile field="Logs"/>
            <tile field="Size"/>
          </tiles>
        </column>
        <column>
          <tiles>
            <title font-size="small">Health</title>
            <tile color="priority-high" field="Issues"/>
            <tile field="Outliers"/>
          </tiles>
        </column>
      </row>
    </table>
  </container>
</summary>

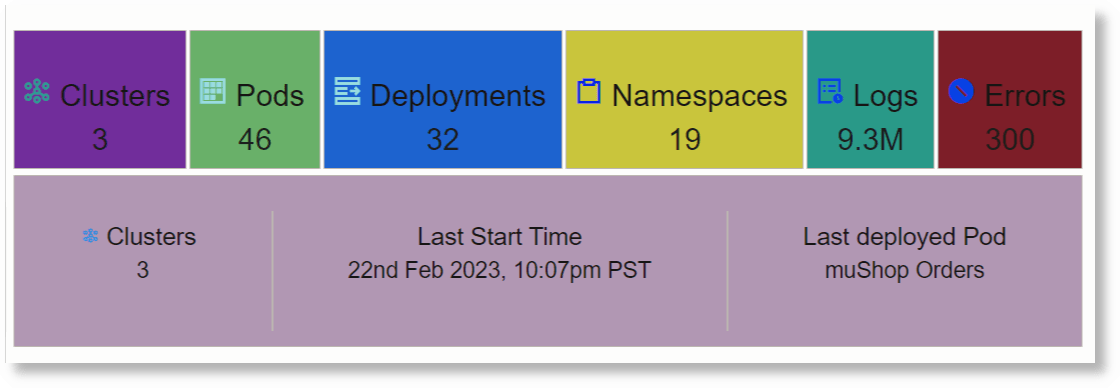

No exemplo a seguir, o ícone de título é usado em Imagens Oracle. A cor do ícone do título é personalizada.

Para obter mais imagens de ícone, consulte Imagens da Oracle.

Consulta:

'Log Source' like 'Kubernetes %' | eval R = unit('Raw Size', byte) | link Node, Pod, cluster() | eventstats distinctcount(Node) as Nodes, distinctcount(Pod) as Pods, sum(Count) as Logs, sum(R) as Size | addfields [ * | where 'Potential Issue' = '1' | eventstats distinctcount('Cluster Sample') as I ], [ * | where Count = 1 and 'Potential Issue' != '1' | eventstats distinctcount('Cluster Sample') as O ] | eval O1 = if(O > 0, O, 0) | eventstats max(I) as Issues, max(O1) as Outliers | fields -I, -O, -O1, -'Cluster Sample', -'Potential Issue'

Definição de XML:

<summary>
  <container display="none">
    <table>
      <row>
        <column>
          <tiles>
            <title font-size="small">Summary</title>
            <tile field="Nodes"/>
            <tile field="Pods"/>
          </tiles>
        </column>
        <column>
          <tiles>
            <title font-size="small">Usage</title>
            <tile field="Logs"/>
            <tile field="Size"/>
          </tiles>
        </column>
        <column>
          <tiles>
            <title>
              <title-icon color="#E32424">oj-ux-ico-warning-s</title-icon>
              <title-text font-size="small">Health</title-text>
            </title>
            <tile color="priority-high" field="Issues"/>
            <tile field="Outliers"/>
          </tiles>
        </column>
      </row>
    </table>
  </container>
</summary>

O exemplo a seguir usa a opção em linha para exibir texto compacto.

Consulta:

'Log Source' like 'Kubernetes %' | eval R = unit('Raw Size', byte) | link Node, Pod, cluster() | eventstats distinctcount(Node) as Nodes, distinctcount(Pod) as Pods, sum(Count) as Logs, sum(R) as Size | addfields [ * | where 'Potential Issue' = '1' | eventstats distinctcount('Cluster Sample') as I ], [ * | where Count = 1 and 'Potential Issue' != '1' | eventstats distinctcount('Cluster Sample') as O ] | eval O1 = if(O > 0, O, 0) | eventstats max(I) as Issues, max(O1) as Outliers | fields -I, -O, -O1, -'Cluster Sample', -'Potential Issue'

Definição de XML:

<summary>
  <container display="none">
    <table>
      <row>
        <column>
          <tiles>
            <title><title-text font-size="medium">Summary</title-text></title>
            <tile type="inline">
              <tile font-size="small" field="Pods"><text/></tile>
              <tile font-size="small" type="text" value=" Pods deployed on "><title/></tile>
              <tile font-size="small" field="Nodes"><title/></tile>
              <tile type="condition">
                <condition type="if" field="Nodes" operator=">" value="1">
                  <tile font-size="small" type="text" value=" Nodes"/>
                </condition>
                <condition type="else">
                  <tile font-size="small" type="text" value=" Node"/>
                </condition>
              </tile>
            </tile>
          </tiles>
        </column>
        <column>
          <tiles>
            <title><title-text font-size="medium">Usage</title-text></title>
            <tile type="inline">
              <tile font-size="small" field="Logs"><text/></tile>
              <tile font-size="small" type="text" value=" Logs / "><title/></tile>
              <tile font-size="small" field="Size"><title/></tile>
            </tile>
          </tiles>
        </column>
        <column>
          <tiles>
            <title><title-text font-size="medium">Health</title-text></title>
            <tile type="inline">
              <tile font-size="small" color="priority-high" field="Issues"><text/></tile>
              <tile font-size="small" type="text" value=" Issues / "><title/></tile>
              <tile font-size="small" field="Outliers"><title/></tile>
              <tile font-size="small" type="text" value=" Outliers"><title/></tile>
            </tile>
          </tiles>
        </column>
      </row>
    </table>
  </container>
</summary>

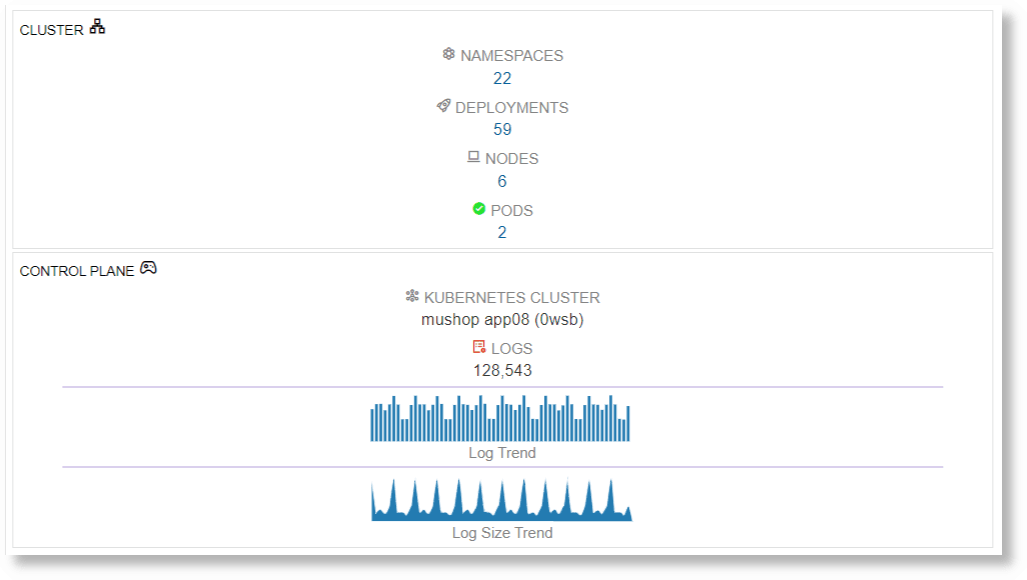

O exemplo a seguir tem um layout vertical com o uso de ícones e vários gráficos.

Consulta:

'Log Source' like 'Kubernetes%' and 'Kubernetes Cluster Name' = 'mushop app (skhu)' | eval NP = Node || Pod | eval 'Raw Size (byte)' = unit('Raw Size', byte) | link includenulls = true Time, 'Kubernetes Cluster Name', Namespace, NP, Deployment | stats unique(Node) as N1, unique(Pod) as P, sum('Raw Size (byte)') as S | eventstats distinctcount(Namespace) as NM, distinctcount(N1) as N2, distinctcount(Pod) as P, distinctcount(Deployment) as D, sum(Count) as Logs | eval Cluster = replace('Kubernetes Cluster Name', ' ', '%20') | oracle.logan.oke_demo_v2.build_urls('Nodes Drilldown', Nodes, Cluster, N2) | oracle.logan.oke_demo_v2.build_urls('Namespaces Drilldown', Namespaces, Cluster, NM) | oracle.logan.oke_demo_v2.build_urls('Pods Drilldown', Pods, Cluster, P) | oracle.logan.oke_demo_v2.build_urls('Deployments Drilldown', Deployments, Cluster, D) | timestats sum(Count) as 'Logs Trend', sum(S) as 'Log Size' | fields -N1, -N2, -NM, -P, -D, -NP, -S

Definição de XML:

<summary>
  <container display="none">
    <table>
      <row>
        <column>
          <tiles layout="table" columns="1">
            <title>
              <title-text font-size="small">CLUSTER</title-text>
              <title-text> </title-text>
              <title-icon>oj-ux-ico-networking</title-icon>
            </title>
            <tile field="Namespaces">
              <title>
                <title-icon>oj-ux-ico-application-flower-variant</title-icon>
                <title-text> </title-text>
                <title-text>NAMESPACES</title-text>
              </title>
            </tile>
            <tile field="Deployments">
              <title>
                <title-icon>oj-ux-ico-deploy</title-icon>
                <title-text> </title-text>
                <title-text>DEPLOYMENTS</title-text>
              </title>
            </tile>
            <tile field="Nodes">
              <title>
                <title-icon>oj-ux-ico-laptop</title-icon>
                <title-text> </title-text>
                <title-text>NODES</title-text>
              </title>
            </tile>
            <tile field="Pods">
              <title>
                <title-icon color="#24E330">oj-ux-ico-check-circle-s</title-icon>
                <title-text> </title-text>
                <title-text>PODS</title-text>
              </title>
            </tile>
          </tiles>
        </column>
      </row>
      <row>
        <column>
          <tiles layout="table" columns="1">
            <title>
              <title-text font-size="small">CONTROL PLANE</title-text>
              <title-text> </title-text>
              <title-icon>oj-ux-ico-game-controller</title-icon>
            </title>
            <tile field="Kubernetes Cluster Name">
              <title>
                <title-icon>oj-ux-ico-cluster</title-icon>
                <title-text> </title-text>
                <title-text>KUBERNETES CLUSTER</title-text>
              </title>
            </tile>
            <tile field="Logs">
              <title>
                <title-icon color="#E33524">oj-ux-ico-log</title-icon>
                <title-text> </title-text>
                <title-text>LOGS</title-text>
              </title>
            </tile>
            <tile type="separator" display="horizontal"/>
            <tile type="chart" chart-type="bar">
              <title align="bottom"><title-text>Log Trend</title-text></title>
              <chart-value field="Logs Trend"/>
            </tile>
            <tile type="separator" display="horizontal"/>
            <tile type="chart" chart-type="area">
              <title align="bottom"><title-text>Log Size Trend</title-text></title>
              <chart-value field="Log Size"/>
            </tile>
          </tiles>
        </column>
      </row>
    </table>
  </container>
</summary>

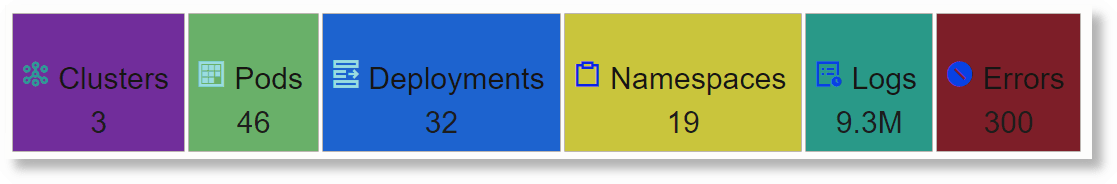

O exemplo a seguir tem cores personalizadas. Os blocos clicáveis são expandidos para mostrar informações adicionais.

Clique no número 3 em Clusters para expandir:

Consulta:

* | eval S = unit('Raw Size', byte) | link 'Log Source' | stats sum(S) as 'Log Source Size' | sort -'Log Source Size' | eventstats distinctcount('Log Source') as 'Log Sources', sum(S) as Size, sum(Count) as Records, earliest('Start Time') as 'First Log', latest('End Time') as 'Last Log', rownum as Row | addfields [ * | where Row = 1 | eventstats unique('Log Source') as L1 ], [ * | where Row = 2 | eventstats unique('Log Source') as L2 ], [ * | where Row = 3 | eventstats unique('Log Source') as L3 ] | eventstats unique(L1) as LS1, unique(L2) as LS2, unique(L3) as LS3 | fields -Row, -L1, -L2, -L3

Definição de XML:

<summary>
  <container display="none">
    <table>
      <row>
        <column>
          <tiles background-color="#712D9B">
            <tile value="3" href="show(id=show-clusters)" color="#1D1D1D" font-size="large">
              <title>
                <title-icon font-size="large" color="#2D9B94">oj-ux-ico-cluster</title-icon>
                <title-text font-size="large">Clusters</title-text>
              </title>
            </tile>
          </tiles>
          <tiles background-color="#69B069">
            <tile value="46" href="show(id=show-pods)" color="#1D1D1D" font-size="large">
              <title>
                <title-icon font-size="large" color="#9ADCE0">oj-ux-ico-component-block-container</title-icon>
                <title-text font-size="large">Pods</title-text>
              </title>
            </tile>
          </tiles>
          <tiles background-color="#1D63CF">
            <tile value="32" href="show(id=show-deployments)" color="#1D1D1D" font-size="large">
              <title>
                <title-icon font-size="large" color="#9ADCE0">oj-ux-ico-copy-field-to</title-icon>
                <title-text font-size="large">Deployments</title-text>
              </title>
            </tile>
          </tiles>
          <tiles background-color="#C9C53C">
            <tile value="19" href="show(id=show-namespaces)" color="#1D1D1D" font-size="large">
              <title>
                <title-icon font-size="large" color="#0823E4">oj-ux-ico-clipboard</title-icon>
                <title-text font-size="large">Namespaces</title-text>
              </title>
            </tile>
          </tiles>
          <tiles background-color="#299988">
            <tile value="9.3M" href="show(id=show-logs)" color="#1D1D1D" font-size="large">
              <title>
                <title-icon font-size="large" color="#0841E4">oj-ux-ico-log</title-icon>
                <title-text font-size="large">Logs</title-text>
              </title>
            </tile>
          </tiles>
          <tiles background-color="#7D1E28">
            <tile value="300" href="show(id=show-errors)" color="#1D1D1D" font-size="large">
              <title>
                <title-icon font-size="large" color="#0841E4">oj-ux-ico-error-s</title-icon>
                <title-text font-size="large">Errors</title-text>
              </title>
            </tile>
          </tiles>
        </column>
      </row>
      <row>
        <column>
          <tiles background-color="#B197B3" id="show-clusters" hidden="true" layout="table" columns="5">
            <tile type="text" value="3">
              <title>
                <title-icon color="#248FE3">oj-ux-ico-cluster</title-icon>
                <title-text font-size="medium">Clusters</title-text>
              </title>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile type="text" value="22nd Feb 2023, 10:07pm PST">
              <title>
                <title-icon color="#248FE3">oj-ux-hcm-Growth_big_2x</title-icon>
                <title-text font-size="medium">Last Start Time</title-text>
              </title>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile type="text" value="muShop Orders">
              <title>
                <title-icon color="#248FE3">oj-ux-ico-resource-service</title-icon>
                <title-text font-size="medium">Last deployed Pod</title-text>
              </title>
            </tile>
          </tiles>
          <tiles background-color="#9AB49B" id="show-pods" hidden="true" layout="table" columns="7">
            <tile type="text" value="46">
              <title>
                <title-icon color="#248FE3">oj-ux-ico-component-block-container</title-icon>
                <title-text font-size="medium">Pods</title-text>
              </title>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile type="text" value="3">
              <title>
                <title-icon color="#E3242D">oj-ux-ico-file-error</title-icon>
                <title-text font-size="medium" color="#E3242D">Pods with Errors</title-text>
              </title>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile type="text" value="muShop Cart">
              <title>
                <title-icon color="#248FE3">oj-ux-ico-resource-service</title-icon>
                <title-text font-size="medium">Recently Started Pod</title-text>
              </title>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile type="text" value="muShop Test">
              <title>
                <title-icon color="#248FE3">oj-ux-ico-git-parent-top</title-icon>
                <title-text font-size="medium">Recently Removed Pod</title-text>
              </title>
            </tile>
          </tiles>
          <tiles background-color="#9199DF" id="show-deployments" hidden="true" layout="table" columns="7">
            <tile type="text" value="32">
              <title>
                <title-icon color="#248FE3">oj-ux-ico-copy-field-to</title-icon>
                <title-text font-size="medium">Deployments</title-text>
              </title>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile type="expander">
             <tile background-color="#9199DF" value="muShop-orders-23jjsdkf8" href="show(id=deployment-fail-details, bounding-box=true, expand=bottom)">
              <title>
                <title-icon color="#248FE3">oj-ux-hcm-Growth_big_2x</title-icon>
                <title-text font-size="medium">Last Failed Deployment</title-text>
              </title>
              </tile>
              <expandtiles background-color="#9199DF" id="deployment-fail-details">
                <tile background-color="#9199DF" type="text" value="22nd Feb 2023 9:02am PST">
                  <title>
                    <title-icon color="#248FE3">oj-ux-ico-resource-service</title-icon>
                    <title-text font-size="medium">Failed at</title-text>
                  </title>
                </tile>
                <tile type="separator" display="vertical"/>
                <tile background-color="#9199DF" type="text" value="2400">
                  <title>
                    <title-icon color="#248FE3">oj-ux-ico-resource-service</title-icon>
                    <title-text font-size="medium">Number of users at this time</title-text>
                  </title>
                </tile>
                <tile type="separator" display="vertical"/>
                <tile background-color="#9199DF" type="text" value="83%">
                  <title>
                    <title-icon color="#248FE3">oj-ux-ico-resource-service</title-icon>
                    <title-text font-size="medium">Load average at this time</title-text>
                  </title>
                </tile>
                <tile type="separator" display="vertical"/>
               </expandtiles>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile type="text" value="13">
              <title>
                <title-icon color="#248FE3">oj-ux-ico-resource-service</title-icon>
                <title-text>Active Deployments</title-text>
              </title>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile type="text" value="4">
              <title>
                <title-icon color="#248FE3">oj-ux-ico-git-parent-top</title-icon>
                <title-text font-size="medium">Deployment Types</title-text>
              </title>
            </tile>
            </tiles>
          <tiles background-color="#DFDD91" id="show-namespaces" hidden="true" layout="table" columns="5">
            <tile type="text" value="19">
              <title>
                <title-icon color="#248FE3">oj-ux-ico-clipboard</title-icon>
                <title-text font-size="medium">Namespaces</title-text>
              </title>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile type="text" value="default">
              <title>
                <title-icon color="#248FE3">oj-ux-hcm-Growth_big_2x</title-icon>
                <title-text font-size="medium">Recent Namespace</title-text>
              </title>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile type="text" value="muShop / 20">
              <title>
                <title-icon color="#248FE3">oj-ux-ico-resource-service</title-icon>
                <title-text font-size="medium">Namespace with most Pods</title-text>
              </title>
            </tile>
            </tiles>
          <tiles background-color="#93DF91" id="show-logs" hidden="true" layout="table" columns="9">
            <tile type="text" value="9392348">
              <title>
                <title-icon color="#248FE3">oj-ux-ico-log</title-icon>
                <title-text font-size="medium">Records</title-text>
              </title>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile type="text" value="1.5TB">
              <title>
                <title-icon color="#248FE3">oj-ux-hcm-Growth_big_2x</title-icon>
                <title-text font-size="medium">Size</title-text>
              </title>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile type="text" value="13">
              <title>
                <title-icon color="#248FE3">oj-ux-ico-resource-service</title-icon>
                <title-text font-size="medium">Log Sources</title-text>
              </title>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile type="text" value="4">
              <title>
                <title-icon color="#248FE3">oj-ux-ico-git-parent-top</title-icon>
                <title-text font-size="medium">Entity Types</title-text>
              </title>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile type="text" value="278">
              <title>
                <title-icon color="#248FE3">oj-ux-ico-book</title-icon>
                <title-text font-size="medium">Entities</title-text>
              </title>
            </tile>
            </tiles>
          <tiles background-color="#DA6868" id="show-errors" hidden="true" layout="table" columns="5">
            <tile type="text" value="300">
              <title>
                <title-icon color="#E3242D">oj-ux-ico-error-s</title-icon>
                <title-text font-size="medium" color="#E3242D">Errors</title-text>
              </title>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile type="text" value="20">
              <title>
                <title-icon color="#E37E24">oj-ux-hcm-Growth_big_2x</title-icon>
                <title-text font-size="medium" color="#E37E24">Warnings</title-text>
              </title>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile type="text" value="Socket Timedout">
              <title>
                <title-icon color="oj-ux-ico-error-s">oj-ux-ico-resource-service</title-icon>
                <title-text font-size="medium">Most Frequent Error</title-text>
              </title>
            </tile>
            </tiles>
        </column>
      </row>
    </table>
  </container>
</summary>

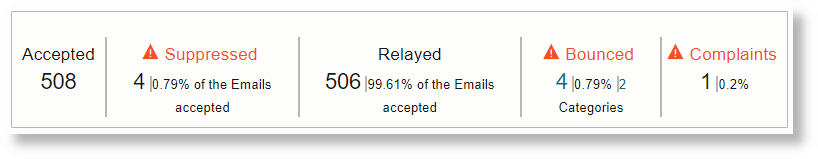

O exemplo a seguir tem blocos clicáveis, ícones com cores personalizadas e links.

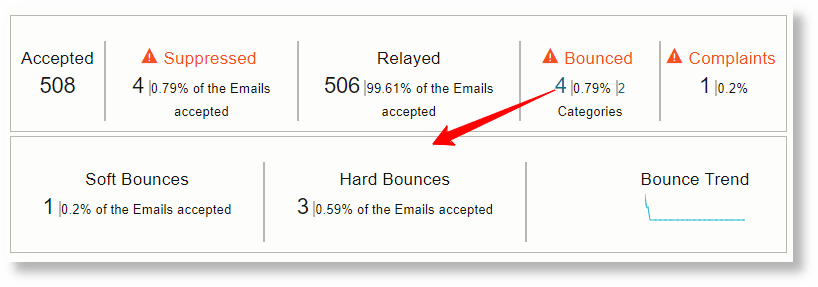

Clique em 4 para exibir detalhes adicionais:

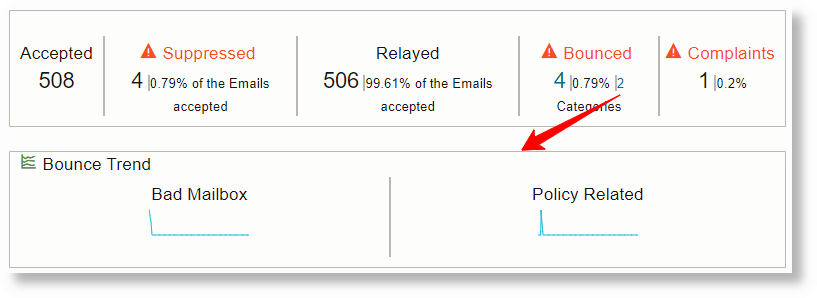

Clique em 2 Categorias para exibir as tendências das categorias:

Consulta:

'Log Source' = 'OCI Email Delivery Logs' | link 'Message ID', Action | stats unique(Type) as Type, unique('Error Text') as Error, unique('Event Category') as Category, unique('From (Email)') as Sender | addfields [ * | where Action = accept | eventstats sum(Count) as A1 ], [ * | where Error != null | eventstats count as ED1, distinctcount('Event Category') as EC1 ], [ * | where Action = literal(relay) | eventstats count as D1 ], [ * | where Action = bounce | eventstats count as B1 ], [ * | where Action = bounce and Error = soft | eventstats count as SB1 ], [ * | where Action = bounce and Error = hard | eventstats count as HB1 ], [ * | where Action = complaint | eventstats count as C1 ] | addfields [ * | where Category != null | timestats sum(Count) as 'Bounce Trend' ], [ * | where Category != null | timestats name = 'Bounce Categories' sum(Count) as 'Bounce Categories' by Category ] | eventstats max(A1) as A2, max(D1) as D2, max(B1) as B2, max(ED1) as ED2, max(SB1) as SB2, max(HB1) as HB2, max(C1) as C2, max(EC1) as Categories | eval Accepted = if(A2 >= 0, A2, 0) | eval Delivered = if(D2 >= 0, D2, 0) | eval 'Delivered %' = unit(round(100 / (Accepted / Delivered), 2), pct) | eval Bounced = if(B2 >= 0, B2, 0) | eval Complaints = if(C2 >= 0, C2, 0) | eval 'Bounced %' = unit(round(100 / (Accepted / Bounced), 2), pct) | eval 'Complaints %' = unit(round(100 / (Accepted / Complaints), 2), pct) | eval 'Soft Bounces' = if(SB2 >= 0, SB2, 0) | eval 'Hard Bounces' = if(HB2 >= 0, HB2, 0) | eval 'Soft Bounces %' = unit(round(100 / (Accepted / 'Soft Bounces'), 2), pct) | eval 'Hard Bounces %' = unit(round(100 / (Accepted / 'Hard Bounces'), 2), pct) | eval 'Error Delivery' = if(ED2 >= 0, ED2, 0) | eval 'Error Delivery %' = unit(round(100 / (Accepted / 'Error Delivery'), 2), pct) | fields -A1, -A2, -D1, -D2, -ED1, -ED2, -B1, -B2, -SB1, -SB2, -HB1, -HB2, -C1, -C2, -EC1

Definição de XML:

<summary>
  <container display="none">
    <table>
      <row>
        <column>
          <tiles>
            <tile font-size="large" field="Accepted">
              <title>
                <title-text font-size="medium">Accepted</title-text>
              </title>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile type="condition">
              <condition type="if" field="Error Delivery" operator=">" value="0">
                <tile type="inline">
                  <title>
                    <title-icon font-size="medium" color="#F4511E">oj-ux-ico-warning-s</title-icon>
                    <title-text font-size="medium" color="#F4511E">Suppressed</title-text>
                  </title>
                  <tile font-size="large" field="Error Delivery"/>
                  <tile value=" "/>
                  <tile font-size="large" type="separator" display="vertical"/>
                  <tile value=" "/>
                  <tile font-size="small" field="Error Delivery %"/>
                  <tile font-size="small" value=" of the Emails accepted"/>
                </tile>
              </condition>
              <condition type="else">
                <tile font-size="large" color="#558B2F" value="None">
                  <title>
                    <title-icon font-size="medium" color="#558B2F">oj-ux-ico-check-circle</title-icon>
                    <title-text font-size="medium">Suppressed</title-text>
                  </title>
                </tile>
              </condition>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile type="inline">
              <title>
                <title-text font-size="medium">Relayed</title-text>
              </title>
              <tile font-size="large" field="Delivered"/>
              <tile value=" "/>
              <tile font-size="large" type="separator" display="vertical"/>
              <tile value=" "/>
              <tile font-size="small" field="Delivered %"/>
              <tile font-size="small" value=" of the Emails accepted"/>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile type="condition">
              <condition type="if" field="Bounced" operator=">" value="0">
                <tile type="inline">
                  <title>
                    <title-icon font-size="medium" color="#F4511E">oj-ux-ico-warning-s</title-icon>
                    <title-text font-size="medium" color="#F4511E">Bounced</title-text>
                  </title>
                  <tile font-size="large" field="Bounced" href="show(id=bounce-details)"/>
                  <tile value=" "/>
                  <tile type="separator" display="vertical"/>
                  <tile value=" "/>
                  <tile font-size="small" field="Bounced %"/>
                  <tile value=" "/>
                  <tile type="separator" display="vertical"/>
                  <tile value=" "/>
                  <tile font-size="small" field="Categories" href="show(id=bounce-category-trend)"/>
                  <tile font-size="small" value=" Categories"/>
                </tile>
              </condition>
              <condition type="else">
                <tile font-size="large" color="#558B2F" value="None">
                  <title>
                    <title-icon font-size="medium" color="#558B2F">oj-ux-ico-check-circle</title-icon>
                    <title-text font-size="medium">Bounced</title-text>
                  </title>
                </tile>
              </condition>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile type="condition">
              <condition type="if" field="Complaints" operator=">" value="0">
                <tile type="inline">
                  <title>
                    <title-icon font-size="medium" color="#F4511E">oj-ux-ico-warning-s</title-icon>
                    <title-text font-size="medium" color="#F4511E">Complaints</title-text>
                  </title>
                  <tile font-size="large" field="Complaints"/>
                  <tile value=" "/>
                  <tile font-size="large" type="separator" display="vertical"/>
                  <tile value=" "/>
                  <tile font-size="small" field="Complaints %"/>
                </tile>
              </condition>
              <condition type="else">
                <tile font-size="large" color="#558B2F" value="None">
                  <title>
                    <title-icon font-size="medium" color="#558B2F">oj-ux-ico-check-circle</title-icon>
                    <title-text font-size="medium">Complaints</title-text>
                  </title>
                </tile>
              </condition>
            </tile>
          </tiles>
        </column>
      </row>
      <row>
        <column>
          <tiles id="bounce-details" hidden="true">
            <tile type="inline">
              <title>
                <title-text font-size="medium">Soft Bounces</title-text>
              </title>
              <tile font-size="large" field="Soft Bounces"/>
              <tile value=" "/>
              <tile font-size="large" type="separator" display="vertical"/>
              <tile value=" "/>
              <tile font-size="small" field="Soft Bounces %"/>
              <tile font-size="small" value=" of the Emails accepted"/>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile type="inline">
              <title>
                <title-text font-size="medium">Hard Bounces</title-text>
              </title>
              <tile font-size="large" field="Hard Bounces"/>
              <tile value=" "/>
              <tile font-size="large" type="separator" display="vertical"/>
              <tile value=" "/>
              <tile font-size="small" field="Hard Bounces %"/>
              <tile font-size="small" value=" of the Emails accepted"/>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile value=" "/>
            <tile type="chart" chart-type="sparkline">
              <title>
                <title-text font-size="medium">Bounce Trend</title-text>
              </title>
              <chart-value field="Bounce Trend"/>
            </tile>
          </tiles>
        </column>
      </row>
      <row>
        <column>
          <tiles id="bounce-category-trend" hidden="true">
            <title>
              <title-icon font-size="medium" color="#558B2F">oj-ux-ico-chart-line</title-icon>
              <title-text font-size="medium">Bounce Trend</title-text>
            </title>
            <tile type="chart" chart-type="sparkline">
              <title>
                <title-text font-size="medium">Bad Mailbox</title-text>
              </title>
              <chart-value field="Bounce Categories">
                <chart-by-clause field="Category" value="bad-mailbox"/>
              </chart-value>
            </tile>
            <tile type="separator" display="vertical"/>
            <tile type="chart" chart-type="sparkline">
              <title>
                <title-text font-size="medium">Policy Related</title-text>
              </title>
              <chart-value field="Bounce Categories">
                <chart-by-clause field="Category" value="policy-related"/>
              </chart-value>
            </tile>
          </tiles>
        </column>
      </row>
    </table>
  </container>
</summary>
