在同一区域中的云数据库之间复制数据

了解如何设置 Oracle Cloud Infrastructure GoldenGate 以在两个自治数据库之间复制数据。

概述

Oracle Cloud Infrastructure GoldenGate 可用于在同一区域中复制受支持的数据库。以下步骤将指导您使用 Oracle Data Pump 实例化目标数据库,并将数据从源复制到目标。

此快速入门还提供 LiveLab:观看研讨会

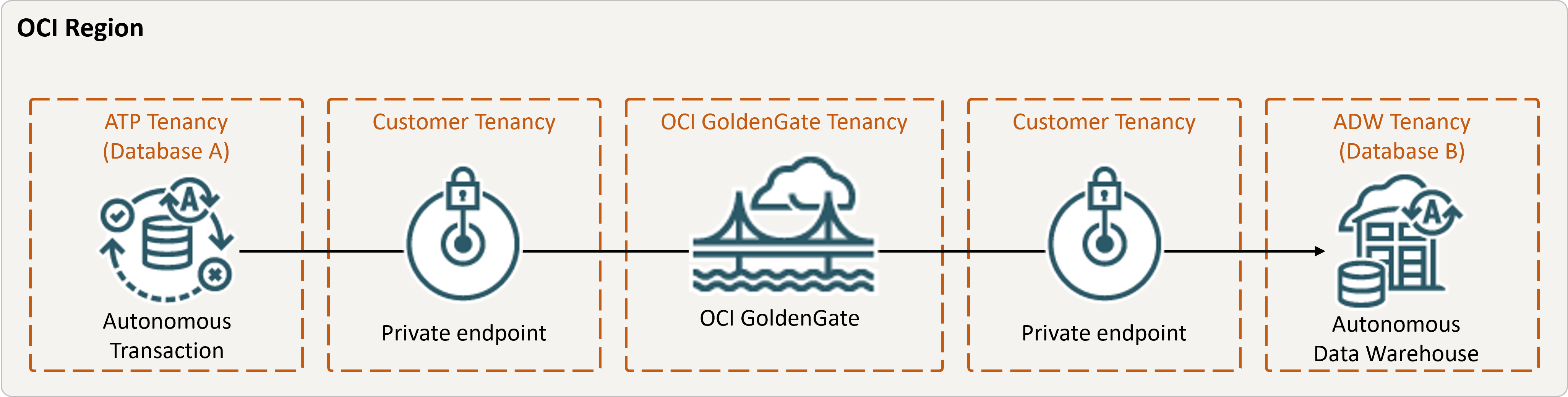

下面是 same-region.png 的说明
插图 same-region.png 的说明

开始之前

您必须具有以下各项才能继续:

任务 1:设置环境

  1. Create a Data Replication deployment(创建数据复制部署)
  2. 创建源 Oracle Autonomous Transaction Processing (ATP) 连接
  3. 创建目标 Autonomous Data Warehouse (ADW) 连接
  4. 分配与部署的连接
  5. 使用 Autonomous Database SQL 工具启用补充日志记录:
    ALTER DATABASE ADD SUPPLEMENTAL LOG DATA
  6. 在 SQL 工具中运行以下查询,确保源数据库中所有表的 support_mode=FULL

    select * from DBA_GOLDENGATE_SUPPORT_MODE where owner = 'SRC_OCIGGLL';

任务 2:创建集成提取

集成提取捕获对源数据库的持续更改。

  1. 在“部署详细信息”页上,单击启动控制台
  2. 如果需要,请在 oggadmin 中输入用户名和创建部署时使用的密码,然后单击登录
  3. 添加事务处理数据和检查点表:
    1. 打开导航菜单,然后单击数据库连接
    2. 单击连接到数据库 SourceATP
    3. 在导航菜单中,单击 Trandata ,然后单击 Add Trandata (加号图标)。
    4. 对于方案名称,输入 SRC_OCIGGLL,然后单击提交
    5. 要进行验证,请在“搜索”字段中输入 SRC_OCIGGLL,然后单击搜索
    6. 打开导航菜单,然后单击数据库连接
    7. 单击连接到数据库 TargetADW
    8. 在导航菜单中,依次单击检查点添加检查点(加号图标)。
    9. 对于检查点表,输入 "SRCMIRROR_OCIGGLL"."CHECKTABLE",然后单击提交
  4. 添加提取

    注意:

    有关可用于指定源表的参数的详细信息,请参阅其他提取参数选项
    在“提取参数”页上,在 EXTTRAIL <trail-name> 下附加以下行:
    -- Capture DDL operations for listed schema tables
    ddl include mapped

    -- Add step-by-step history of
    -- to the report file. Very useful when troubleshooting.
    ddloptions report

    -- Write capture stats per table to the report file daily.
    report at 00:01

    -- Rollover the report file weekly. Useful when IE runs
    -- without being stopped/started for long periods of time to
    -- keep the report files from becoming too large.
    reportrollover at 00:01 on Sunday

    -- Report total operations captured, and operations per second
    -- every 10 minutes.
    reportcount every 10 minutes, rate

    -- Table list for capture
    table SRC_OCIGGLL.*;
  5. 检查长时间运行的事务处理。在源数据库上运行以下脚本:
    select start_scn, start_time from gv$transaction where start_scn < (select max(start_scn) from dba_capture);

    如果查询返回任何行,则必须找到事务处理的 SCN,然后提交或回退事务处理。

任务 3:使用 Oracle Data Pump 导出数据 (ExpDP)

使用 Oracle Data Pump (ExpDP) 将数据从源数据库导出到 Oracle 对象存储。

  1. 创建 Oracle 对象存储存储桶

    记下要与导出和导入脚本一起使用的名称空间和存储桶名称。

  2. 创建验证令牌,然后将令牌字符串复制并粘贴到文本编辑器以供日后使用。
  3. 在源数据库中创建身份证明,使用您在上一步中创建的 Oracle Cloud 账户用户名和令牌字符串替换 <user-name><token>
    BEGIN
      DBMS_CLOUD.CREATE_CREDENTIAL(
        credential_name => 'ADB_OBJECTSTORE',
        username => '<user-name>',
        password => '<token>'
      );
    END;
  4. 在源数据库中运行以下脚本以创建“导出数据”作业。确保相应地替换对象存储 URI 中的 <region><namespace><bucket-name>SRC_OCIGGLL.dmp 是运行此脚本时将创建的文件。
    DECLARE
    ind NUMBER;              -- Loop index
    h1 NUMBER;               -- Data Pump job handle
    percent_done NUMBER;     -- Percentage of job complete
    job_state VARCHAR2(30);  -- To keep track of job state
    le ku$_LogEntry;         -- For WIP and error messages
    js ku$_JobStatus;        -- The job status from get_status
    jd ku$_JobDesc;          -- The job description from get_status
    sts ku$_Status;          -- The status object returned by get_status

    BEGIN
    -- Create a (user-named) Data Pump job to do a schema export.
    h1 := DBMS_DATAPUMP.OPEN('EXPORT','SCHEMA',NULL,'SRC_OCIGGLL_EXPORT','LATEST');

    -- Specify a single dump file for the job (using the handle just returned
    -- and a directory object, which must already be defined and accessible
    -- to the user running this procedure.
    DBMS_DATAPUMP.ADD_FILE(h1,'https://objectstorage.<region>.oraclecloud.com/n/<namespace>/b/<bucket-name>/o/SRC_OCIGGLL.dmp','ADB_OBJECTSTORE','100MB',DBMS_DATAPUMP.KU$_FILE_TYPE_URIDUMP_FILE,1);

    -- A metadata filter is used to specify the schema that will be exported.
    DBMS_DATAPUMP.METADATA_FILTER(h1,'SCHEMA_EXPR','IN (''SRC_OCIGGLL'')');

    -- Start the job. An exception will be generated if something is not set up properly.
    DBMS_DATAPUMP.START_JOB(h1);

    -- The export job should now be running. In the following loop, the job
    -- is monitored until it completes. In the meantime, progress information is displayed.
    percent_done := 0;
    job_state := 'UNDEFINED';
    while (job_state != 'COMPLETED') and (job_state != 'STOPPED') loop
      dbms_datapump.get_status(h1,dbms_datapump.ku$_status_job_error + dbms_datapump.ku$_status_job_status + dbms_datapump.ku$_status_wip,-1,job_state,sts);
      js := sts.job_status;

    -- If the percentage done changed, display the new value.
    if js.percent_done != percent_done
    then
      dbms_output.put_line('*** Job percent done = ' || to_char(js.percent_done));
      percent_done := js.percent_done;
    end if;

    -- If any work-in-progress (WIP) or error messages were received for the job, display them.
    if (bitand(sts.mask,dbms_datapump.ku$_status_wip) != 0)
    then
      le := sts.wip;
    else
      if (bitand(sts.mask,dbms_datapump.ku$_status_job_error) != 0)
      then
        le := sts.error;
      else
        le := null;
      end if;
    end if;
    if le is not null
    then
      ind := le.FIRST;
      while ind is not null loop
        dbms_output.put_line(le(ind).LogText);
        ind := le.NEXT(ind);
      end loop;
    end if;
      end loop;

      -- Indicate that the job finished and detach from it.
      dbms_output.put_line('Job has completed');
      dbms_output.put_line('Final job state = ' || job_state);
      dbms_datapump.detach(h1);
    END;

任务 4:使用 Oracle Data Pump 实例化目标数据库 (ImpDP)

使用 Oracle Data Pump (ImpDP) 将数据从从源数据库导出的 SRC_OCIGGLL.dmp 导入到目标数据库。

  1. 在目标数据库中创建一个身份证明以访问 Oracle 对象存储(使用前面部分中的相同信息)。
    BEGIN
      DBMS_CLOUD.CREATE_CREDENTIAL(
        credential_name => 'ADB_OBJECTSTORE',
        username => '<user-name>',
        password => '<token>'
      );
    END;
  2. 在目标数据库中运行以下脚本以从 SRC_OCIGGLL.dmp 导入数据。确保相应地替换对象存储 URI 中的 <region><namespace><bucket-name>
    DECLARE
    ind NUMBER;  -- Loop index
    h1 NUMBER;  -- Data Pump job handle
    percent_done NUMBER;  -- Percentage of job complete
    job_state VARCHAR2(30);  -- To keep track of job state
    le ku$_LogEntry;  -- For WIP and error messages
    js ku$_JobStatus;  -- The job status from get_status
    jd ku$_JobDesc;  -- The job description from get_status
    sts ku$_Status;  -- The status object returned by get_status
    BEGIN

    -- Create a (user-named) Data Pump job to do a "full" import (everything
    -- in the dump file without filtering).
    h1 := DBMS_DATAPUMP.OPEN('IMPORT','FULL',NULL,'SRCMIRROR_OCIGGLL_IMPORT');

    -- Specify the single dump file for the job (using the handle just returned)
    -- and directory object, which must already be defined and accessible
    -- to the user running this procedure. This is the dump file created by
    -- the export operation in the first example.

    DBMS_DATAPUMP.ADD_FILE(h1,'https://objectstorage.<region>.oraclecloud.com/n/<namespace>/b/<bucket-name>/o/SRC_OCIGGLL.dmp','ADB_OBJECTSTORE',null,DBMS_DATAPUMP.KU$_FILE_TYPE_URIDUMP_FILE);


    -- A metadata remap will map all schema objects from SRC_OCIGGLL to SRCMIRROR_OCIGGLL.
    DBMS_DATAPUMP.METADATA_REMAP(h1,'REMAP_SCHEMA','SRC_OCIGGLL','SRCMIRROR_OCIGGLL');

    -- If a table already exists in the destination schema, skip it (leave
    -- the preexisting table alone). This is the default, but it does not hurt
    -- to specify it explicitly.
    DBMS_DATAPUMP.SET_PARAMETER(h1,'TABLE_EXISTS_ACTION','SKIP');

    -- Start the job. An exception is returned if something is not set up properly.
    DBMS_DATAPUMP.START_JOB(h1);

    -- The import job should now be running. In the following loop, the job is
    -- monitored until it completes. In the meantime, progress information is
    -- displayed. Note: this is identical to the export example.
    percent_done := 0;
    job_state := 'UNDEFINED';
    while (job_state != 'COMPLETED') and (job_state != 'STOPPED') loop
      dbms_datapump.get_status(h1,
        dbms_datapump.ku$_status_job_error +
        dbms_datapump.ku$_status_job_status +
        dbms_datapump.ku$_status_wip,-1,job_state,sts);
        js := sts.job_status;

      -- If the percentage done changed, display the new value.
      if js.percent_done != percent_done
      then
        dbms_output.put_line('*** Job percent done = ' ||
        to_char(js.percent_done));
        percent_done := js.percent_done;
      end if;

      -- If any work-in-progress (WIP) or Error messages were received for the job, display them.
      if (bitand(sts.mask,dbms_datapump.ku$_status_wip) != 0)
      then
        le := sts.wip;
      else
        if (bitand(sts.mask,dbms_datapump.ku$_status_job_error) != 0)
        then
          le := sts.error;
        else
          le := null;
        end if;
      end if;
      if le is not null
      then
        ind := le.FIRST;
        while ind is not null loop
          dbms_output.put_line(le(ind).LogText);
          ind := le.NEXT(ind);
        end loop;
      end if;
    end loop;

    -- Indicate that the job finished and gracefully detach from it.
    dbms_output.put_line('Job has completed');
    dbms_output.put_line('Final job state = ' || job_state);
    dbms_datapump.detach(h1);
    END;

任务 5:添加和运行非集成副本

  1. Add and run a Replicat(添加并运行复制)
    参数文件屏幕上,将 MAP *.*, TARGET *.*; 替换为以下脚本:
    -- Capture DDL operations for listed schema tables
    --
    ddl include mapped
    --
    -- Add step-by-step history of ddl operations captured
    -- to the report file. Very useful when troubleshooting.
    --
    ddloptions report
    --
    -- Write capture stats per table to the report file daily.
    --
    report at 00:01
    --
    -- Rollover the report file weekly. Useful when PR runs
    -- without being stopped/started for long periods of time to
    -- keep the report files from becoming too large.
    --
    reportrollover at 00:01 on Sunday
    --
    -- Report total operations captured, and operations per second
    -- every 10 minutes.
    --
    reportcount every 10 minutes, rate
    --
    -- Table map list for apply
    --
    DBOPTIONS ENABLE_INSTANTIATION_FILTERING;
    MAP SRC_OCIGGLL.*, TARGET SRCMIRROR_OCIGGLL.*;

    注意:

    DBOPTIONS ENABLE_INSTATIATION_FILTERING 允许对使用 Oracle Data Pump 导入的表进行 CSN 筛选。有关更多信息,请参见 DBOPTIONS Reference
  2. 对源数据库执行插入:
    1. 返回 Oracle Cloud 控制台,然后使用导航菜单导航回 Oracle DatabaseAutonomous Transaction ProcessingSourceATP
    2. 在“源 ATP 详细信息”页上,依次单击工具数据库操作
    3. 使用研习会详细信息中的源 ATP 数据库身份证明登录到数据库操作,然后单击 SQL
    4. 输入以下插入,然后单击运行脚本
      Insert into SRC_OCIGGLL.SRC_CITY (CITY_ID,CITY,REGION_ID,POPULATION) values (1000,'Houston',20,743113);
      Insert into SRC_OCIGGLL.SRC_CITY (CITY_ID,CITY,REGION_ID,POPULATION) values (1001,'Dallas',20,822416);
      Insert into SRC_OCIGGLL.SRC_CITY (CITY_ID,CITY,REGION_ID,POPULATION) values (1002,'San Francisco',21,157574);
      Insert into SRC_OCIGGLL.SRC_CITY (CITY_ID,CITY,REGION_ID,POPULATION) values (1003,'Los Angeles',21,743878);
      Insert into SRC_OCIGGLL.SRC_CITY (CITY_ID,CITY,REGION_ID,POPULATION) values (1004,'San Diego',21,840689);
      Insert into SRC_OCIGGLL.SRC_CITY (CITY_ID,CITY,REGION_ID,POPULATION) values (1005,'Chicago',23,616472);
      Insert into SRC_OCIGGLL.SRC_CITY (CITY_ID,CITY,REGION_ID,POPULATION) values (1006,'Memphis',23,580075);
      Insert into SRC_OCIGGLL.SRC_CITY (CITY_ID,CITY,REGION_ID,POPULATION) values (1007,'New York City',22,124434);
      Insert into SRC_OCIGGLL.SRC_CITY (CITY_ID,CITY,REGION_ID,POPULATION) values (1008,'Boston',22,275581);
      Insert into SRC_OCIGGLL.SRC_CITY (CITY_ID,CITY,REGION_ID,POPULATION) values (1009,'Washington D.C.',22,688002);
    5. 在 OCI GoldenGate 部署控制台中,单击提取名称 (UAEXT) ,然后单击统计信息。验证 SRC_OCIGGLL.SRC_CITY 是否列出了 10 个插入项。
    6. 返回到 "Overview"(概述)屏幕,单击 Replicat name (REP) ,然后单击 "Statistics"(统计信息)。验证 SRCMIRROR_OCIGGLL.SRC_CITY 是否列出了 10 个插入项

任务 6:监控和维护流程

  1. 监视复制过程
  2. 管理线索文件
