配置双向复制

设置单向复制后,只需执行几个额外的步骤即可按照相反的方向复制数据。此快速入门示例使用 Autonomous Transaction Processing 和 Autonomous Data Warehouse 作为其两个云数据库。

相关主题

开始之前

必须在同一租户和区域中有两个现有数据库,才能继续执行此快速入门。如果需要示例数据,请下载 Archive.zip ,然后按照练习 1,任务 3:加载 ATP 方案中的说明进行操作

概述

以下步骤将指导您了解如何使用 Oracle Data Pump 实例化目标数据库,以及如何在同一区域中的两个数据库之间设置双向(双向)复制。

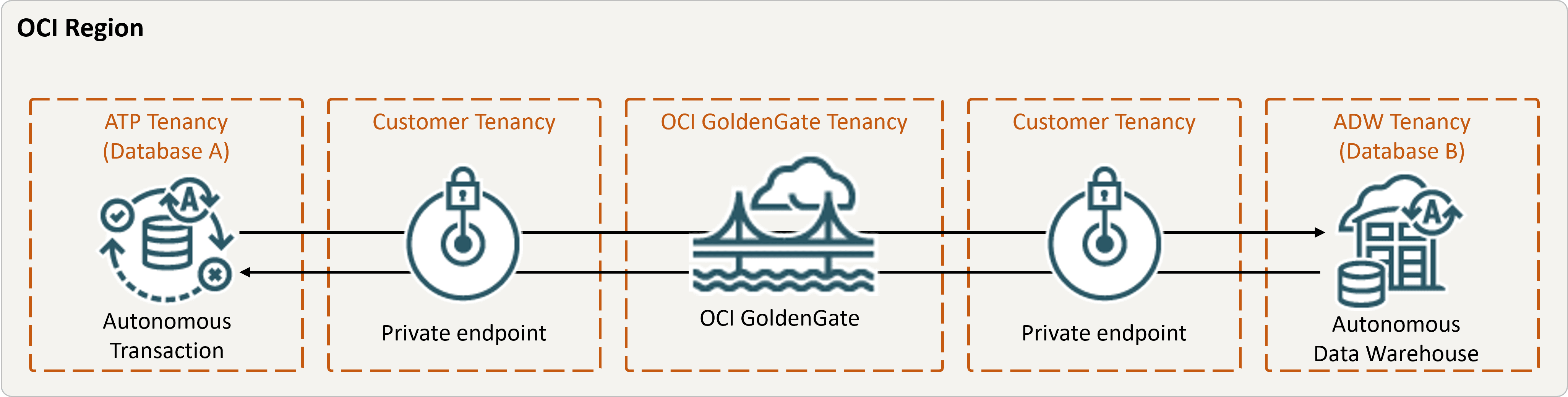

后面是 bidirectional.png 的说明
插图 bidirectional.png 的说明

任务 1:设置的环境

  1. 创建部署
  2. 创建与数据库的连接
  3. 将连接分配给部署
  4. 启用补充事件记录:
    ALTER DATABASE ADD SUPPLEMENTAL LOG DATA
  5. 运行以下查询以确保源数据库中的所有表的 support_mode=FULL

    select * from DBA_GOLDENGATE_SUPPORT_MODE where owner = 'SRC_OCIGGLL';
  6. 对数据库 B 运行以下查询,确保为数据库中的所有表运行 support_mode=FULL
    select * from DBA_GOLDENGATE_SUPPORT_MODE where owner = 'SRCMIRROR_OCIGGLL';

任务 2:为两个数据库添加事务处理信息和检查点表

OCI GoldenGate 部署控制台中,转至管理服务的 "Configuration"(配置)屏幕,然后完成以下操作:

  1. 在数据库 A 和 B 上添加事务处理信息
    1. 对于数据库 A,为方案名称输入 SRC_OCIGGLL
    2. 对于数据库 B,为方案名称输入 SRCMIRROR_OCIGGLL

    注意:

    方案名称应唯一,并且如果您使用的是本示例中的不同数据集,则应与数据库方案名称匹配。
  2. 为数据库 A 和 B 创建检查点表
    1. 对于数据库 A,为检查点表输入 "SRC_OCIGGLL"."ATP_CHECKTABLE"
    2. 对于数据库 B,为检查点表输入 "SRCMIRROR_OCIGGLL"."CHECKTABLE"

任务 3:创建集成提取

集成提取捕获对源数据库的持续更改。

  1. 在“部署详细信息”页上,单击启动控制台
  2. 添加和运行集成提取

    注意:

    有关可用于指定源表的参数的详情,请参阅附加提取参数选项
    1. 在“提取参数”页上,在 EXTTRAIL <extract-name> 下附加以下行:
      -- Capture DDL operations for listed schema tables
      ddl include mapped

      -- Add step-by-step history of
      -- to the report file. Very useful when troubleshooting.
      ddloptions report

      -- Write capture stats per table to the report file daily.
      report at 00:01

      -- Rollover the report file weekly. Useful when IE runs
      -- without being stopped/started for long periods of time to
      -- keep the report files from becoming too large.
      reportrollover at 00:01 on Sunday

      -- Report total operations captured, and operations per second
      -- every 10 minutes.
      reportcount every 10 minutes, rate

      -- Table list for capture
      table SRC_OCIGGLL.*;

      -- Exclude changes made by GGADMIN
      tranlogoptions excludeuser ggadmin

    注意:

    tranlogoptions excludeuser ggadmin 可避免重新捕获 ggadmin 在双向复制方案中应用的事务。
  3. 检查长耗时事务处理:
    1. 在源数据库上运行以下脚本:
      select start_scn, start_time from gv$transaction where start_scn < (select max(start_scn) from dba_capture);

      如果查询返回任何行,则必须找到事务处理的 SCN,然后提交或回退事务处理。

任务 4:使用 Oracle Data Pump 导出数据 (ExpDP)

使用 Oracle Data Pump (ExpDP) 将数据从源数据库导出到 Oracle 对象存储。

  1. 创建 Oracle 对象存储存储桶

    记下与导出和导入脚本一起使用的名称空间和存储桶名称。

  2. 创建验证令牌,然后将令牌字符串复制并粘贴到文本编辑器以供日后使用。
  3. 在源数据库中创建一个身份证明,将 <user-name><token> 替换为您的 Oracle Cloud 账户用户名和在上一步中创建的令牌字符串:
    BEGIN
      DBMS_CLOUD.CREATE_CREDENTIAL(
        credential_name => 'ADB_OBJECTSTORE',
        username => '<user-name>',
        password => '<token>'
      );
    END;
  4. 在源数据库中运行以下脚本以创建导出数据作业。确保相应地替换对象存储 URI 中的 <region><namespace><bucket-name>SRC_OCIGGLL.dmp 是将在此脚本运行时创建的文件。
    DECLARE
    ind NUMBER;              -- Loop index
    h1 NUMBER;               -- Data Pump job handle
    percent_done NUMBER;     -- Percentage of job complete
    job_state VARCHAR2(30);  -- To keep track of job state
    le ku$_LogEntry;         -- For WIP and error messages
    js ku$_JobStatus;        -- The job status from get_status
    jd ku$_JobDesc;          -- The job description from get_status
    sts ku$_Status;          -- The status object returned by get_status

    BEGIN
    -- Create a (user-named) Data Pump job to do a schema export.
    h1 := DBMS_DATAPUMP.OPEN('EXPORT','SCHEMA',NULL,'SRC_OCIGGLL_EXPORT','LATEST');

    -- Specify a single dump file for the job (using the handle just returned
    -- and a directory object, which must already be defined and accessible
    -- to the user running this procedure.
    DBMS_DATAPUMP.ADD_FILE(h1,'https://objectstorage.<region>.oraclecloud.com/n/<namespace>/b/<bucket-name>/o/SRC_OCIGGLL.dmp','ADB_OBJECTSTORE','100MB',DBMS_DATAPUMP.KU$_FILE_TYPE_URIDUMP_FILE,1);

    -- A metadata filter is used to specify the schema that will be exported.
    DBMS_DATAPUMP.METADATA_FILTER(h1,'SCHEMA_EXPR','IN (''SRC_OCIGGLL'')');

    -- Start the job. An exception will be generated if something is not set up properly.
    DBMS_DATAPUMP.START_JOB(h1);

    -- The export job should now be running. In the following loop, the job
    -- is monitored until it completes. In the meantime, progress information is displayed.
    percent_done := 0;
    job_state := 'UNDEFINED';
    while (job_state != 'COMPLETED') and (job_state != 'STOPPED') loop
      dbms_datapump.get_status(h1,dbms_datapump.ku$_status_job_error + dbms_datapump.ku$_status_job_status + dbms_datapump.ku$_status_wip,-1,job_state,sts);
      js := sts.job_status;

    -- If the percentage done changed, display the new value.
    if js.percent_done != percent_done
    then
      dbms_output.put_line('*** Job percent done = ' || to_char(js.percent_done));
      percent_done := js.percent_done;
    end if;

    -- If any work-in-progress (WIP) or error messages were received for the job, display them.
    if (bitand(sts.mask,dbms_datapump.ku$_status_wip) != 0)
    then
      le := sts.wip;
    else
      if (bitand(sts.mask,dbms_datapump.ku$_status_job_error) != 0)
      then
        le := sts.error;
      else
        le := null;
      end if;
    end if;
    if le is not null
    then
      ind := le.FIRST;
      while ind is not null loop
        dbms_output.put_line(le(ind).LogText);
        ind := le.NEXT(ind);
      end loop;
    end if;
      end loop;

      -- Indicate that the job finished and detach from it.
      dbms_output.put_line('Job has completed');
      dbms_output.put_line('Final job state = ' || job_state);
      dbms_datapump.detach(h1);
    END;

任务 5:使用 Oracle Data Pump 实例化目标数据库 (ImpDP)

使用 Oracle Data Pump (ImpDP) 可以将数据从从源数据库导出的 SRC_OCIGGLL.dmp 导入到目标数据库。

  1. 在目标数据库中创建一个身份证明以访问 Oracle 对象存储(使用前面部分中的相同信息)。
    BEGIN
      DBMS_CLOUD.CREATE_CREDENTIAL(
        credential_name => 'ADB_OBJECTSTORE',
        username => '<user-name>',
        password => '<token>'
      );
    END;
  2. 在目标数据库中运行以下脚本以从 SRC_OCIGGLL.dmp 导入数据。确保相应地替换对象存储 URI 中的 <region><namespace><bucket-name>
    DECLARE
    ind NUMBER;  -- Loop index
    h1 NUMBER;  -- Data Pump job handle
    percent_done NUMBER;  -- Percentage of job complete
    job_state VARCHAR2(30);  -- To keep track of job state
    le ku$_LogEntry;  -- For WIP and error messages
    js ku$_JobStatus;  -- The job status from get_status
    jd ku$_JobDesc;  -- The job description from get_status
    sts ku$_Status;  -- The status object returned by get_status
    BEGIN

    -- Create a (user-named) Data Pump job to do a "full" import (everything
    -- in the dump file without filtering).
    h1 := DBMS_DATAPUMP.OPEN('IMPORT','FULL',NULL,'SRCMIRROR_OCIGGLL_IMPORT');

    -- Specify the single dump file for the job (using the handle just returned)
    -- and directory object, which must already be defined and accessible
    -- to the user running this procedure. This is the dump file created by
    -- the export operation in the first example.

    DBMS_DATAPUMP.ADD_FILE(h1,'https://objectstorage.<region>.oraclecloud.com/n/<namespace>/b/<bucket-name>/o/SRC_OCIGGLL.dmp','ADB_OBJECTSTORE',null,DBMS_DATAPUMP.KU$_FILE_TYPE_URIDUMP_FILE);


    -- A metadata remap will map all schema objects from SRC_OCIGGLL to SRCMIRROR_OCIGGLL.
    DBMS_DATAPUMP.METADATA_REMAP(h1,'REMAP_SCHEMA','SRC_OCIGGLL','SRCMIRROR_OCIGGLL');

    -- If a table already exists in the destination schema, skip it (leave
    -- the preexisting table alone). This is the default, but it does not hurt
    -- to specify it explicitly.
    DBMS_DATAPUMP.SET_PARAMETER(h1,'TABLE_EXISTS_ACTION','SKIP');

    -- Start the job. An exception is returned if something is not set up properly.
    DBMS_DATAPUMP.START_JOB(h1);

    -- The import job should now be running. In the following loop, the job is
    -- monitored until it completes. In the meantime, progress information is
    -- displayed. Note: this is identical to the export example.
    percent_done := 0;
    job_state := 'UNDEFINED';
    while (job_state != 'COMPLETED') and (job_state != 'STOPPED') loop
      dbms_datapump.get_status(h1,
        dbms_datapump.ku$_status_job_error +
        dbms_datapump.ku$_status_job_status +
        dbms_datapump.ku$_status_wip,-1,job_state,sts);
        js := sts.job_status;

      -- If the percentage done changed, display the new value.
      if js.percent_done != percent_done
      then
        dbms_output.put_line('*** Job percent done = ' ||
        to_char(js.percent_done));
        percent_done := js.percent_done;
      end if;

      -- If any work-in-progress (WIP) or Error messages were received for the job, display them.
      if (bitand(sts.mask,dbms_datapump.ku$_status_wip) != 0)
      then
        le := sts.wip;
      else
        if (bitand(sts.mask,dbms_datapump.ku$_status_job_error) != 0)
        then
          le := sts.error;
        else
          le := null;
        end if;
      end if;
      if le is not null
      then
        ind := le.FIRST;
        while ind is not null loop
          dbms_output.put_line(le(ind).LogText);
          ind := le.NEXT(ind);
        end loop;
      end if;
    end loop;

    -- Indicate that the job finished and gracefully detach from it.
    dbms_output.put_line('Job has completed');
    dbms_output.put_line('Final job state = ' || job_state);
    dbms_datapump.detach(h1);
    END;

任务 6:添加和运行非集成复制

  1. Add and run a Replicat (添加和运行复制)。
    1. Parameter File 屏幕上,将 MAP *.*, TARGET *.*; 替换为以下脚本:
      -- Capture DDL operations for listed schema tables
      --
      ddl include mapped
      --
      -- Add step-by-step history of ddl operations captured
      -- to the report file. Very useful when troubleshooting.
      --
      ddloptions report
      --
      -- Write capture stats per table to the report file daily.
      --
      report at 00:01
      --
      -- Rollover the report file weekly. Useful when PR runs
      -- without being stopped/started for long periods of time to
      -- keep the report files from becoming too large.
      --
      reportrollover at 00:01 on Sunday
      --
      -- Report total operations captured, and operations per second
      -- every 10 minutes.
      --
      reportcount every 10 minutes, rate
      --
      -- Table map list for apply
      --
      DBOPTIONS ENABLE_INSTANTIATION_FILTERING;
      MAP SRC_OCIGGLL.*, TARGET SRCMIRROR_OCIGGLL.*;

      注意:

      DBOPTIONS ENABLE_INSTATIATION_FILTERING 允许对使用 Oracle Data Pump 导入的表进行 CSN 筛选。有关更多信息,请参见《 DBOPTIONS Reference 》
  2. 对数据库 A 执行一些更改,以查看它们已复制到数据库 B。

任务 7:配置从数据库 B 到数据库 A 的复制

任务 1 到 6 已建立从数据库 A 到数据库 B 的复制。以下步骤设置从数据库 B 到数据库 A 的复制。

  1. 在数据库 B 上添加和运行提取。在 EXTRAIL <extract-name> 之后的提取参数页上,确保包括:
    -- Table list for capture
    table SRCMIRROR_OCIGGLL.*;

    -- Exclude changes made by GGADMIN
    tranlogoptions excludeuser ggadmin
  2. 向数据库 A 添加并运行复制。在“参数”页上,将 MAP *.*, TARGET *.*; 替换为:
    MAP SRCMIRROR_OCIGGLL.*, TARGET SRC_OCIGGLL.*;
  3. 对数据库 B 执行一些更改,以查看它们已复制到数据库 A。

任务 8:监控和维护流程

  1. 监视性能
  2. Manage Trail files(管理线索文件)
