Deploy Oracle Solaris 11 Zones Workflow
12c Release 1 (18.104.22.168.0)
This workflow provides an end-to-end example for how to use Oracle Enterprise Manager Ops Center.
Workflows are divided into two categories: Deploy and Operate. This workflow shows how to use Oracle Enterprise Manager Ops Center to deploy zones on an Oracle Solaris 11 operating system and add the zones to a server pool.
A zone is a virtualized operating system environment created within a single instance of the Oracle Solaris operating system. Zones provide an isolated and secure environment for running software applications. This workflow is an example of how to deploy Oracle Solaris 11 zones on an Oracle Solaris 11 operating system.
The following lists the permissions and roles that are required to complete the tasks in the workflow:
Provision Oracle Solaris 11
Discover and manage Oracle Solaris 11
Create and manage the zone profiles and plans
Create a zone server pool

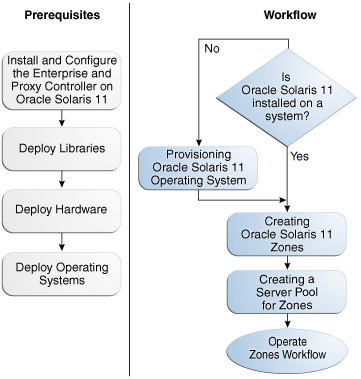

The left side of Figure 1 indicates prerequisite tasks and workflows. Before you begin this workflow, ensure that Oracle Enterprise Manager Ops Center is installed and configured on an Oracle Solaris 11 operating system, that your libraries are deployed and configured, and that your hardware and operating systems are discovered and managed in the software.
The right side of Figure 1 is the workflow for how to deploy Oracle Solaris 11 zones. Zones require an Oracle Solaris operating system. You can use an existing system, or provision an operating system. This workflow includes tasks to create Oracle Solaris 11 zones, and then create a server pool to efficiently manage the zones. The end of the workflow is to view the Oracle Enterprise Manager Ops Center Operate Zones Workflow.
Note:If you plan on provisioning or updating Oracle Solaris 11, the Enterprise Controller and a Proxy Controller must be installed on Oracle Solaris 11. For provisioning, the Proxy Controller must be on the same subnet as the assets being provisioned.
At the end of this workflow, you will have Oracle Solaris 11 zones available for you to use as separate operating systems. See the Oracle Enterprise Manager Ops Center Operate Zones Workflow for how to monitor and manage the zones.
To see a video that demonstrates how to deploy an Oracle Solaris 11 zone and an Oracle Solaris 10 zone in an Oracle Solaris 11 global zone, go to the
Oracle Learning Library.
The Oracle Enterprise Manager Ops Center 12c documentation is located at
http://www.oracle.com/pls/topic/lookup?ctx=oc121. See the following:
The Oracle Enterprise Manager Ops Center Feature Reference Guide has information about asset management, storage, networks, zones, and server pools.
The Oracle Enterprise Manager Ops Center Administration Guide has information about user roles and permissions.
For more examples, see the
How To library.
For in-depth information about zones, see the Oracle Solaris Zones documentation at
For in-depth information about Oracle Solaris 11, see the Oracle Solaris 11 documentation at
