CREATE TRIGGER

Purpose

Use the CREATE TRIGGER statement to create and enable a database trigger, which is

• A stored PL/SQL block associated with a table, a schema, or the database or
• An anonymous PL/SQL block or a call to a procedure implemented in PL/SQL or Java

Oracle automatically executes a trigger when specified conditions occur.

When you create a trigger, Oracle enables it automatically. You can subsequently disable and enable a trigger with the DISABLE and ENABLE clause of the ALTER TRIGGER or ALTER TABLE statement.

See Also: Oracle9i Database Concepts for a description of the various types of triggers Oracle9i Application Developer's Guide - Fundamentals for more information on how to design triggers ALTER TRIGGER and ALTER TABLE for information on enabling, disabling, and compiling triggers DROP TRIGGER for information on dropping a trigger

Prerequisites

Before a trigger can be created, the user SYS must run a SQL script commonly called DBMSSTDX.SQL. The exact name and location of this script depend on your operating system.

• To create a trigger in your own schema on a table in your own schema or on your own schema (SCHEMA), you must have the CREATE TRIGGER privilege.
• To create a trigger in any schema on a table in any schema, or on another user's schema (schema.SCHEMA), you must have the CREATE ANY TRIGGER privilege.
• In addition to the preceding privileges, to create a trigger on DATABASE, you must have the ADMINISTER DATABASE TRIGGER system privilege.

If the trigger issues SQL statements or calls procedures or functions, then the owner of the trigger must have the privileges necessary to perform these operations. These privileges must be granted directly to the owner rather than acquired through roles.

Syntax

create_trigger::=

Text description of create_trigger

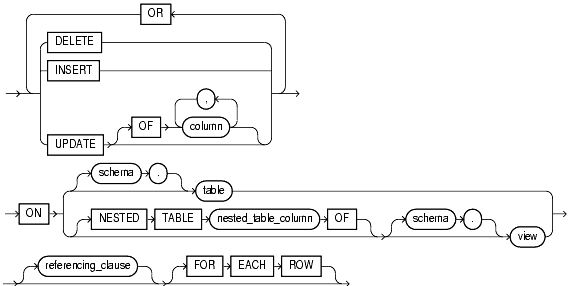

dml_event_clause::=

Text description of dml_event_clause

referencing_clause::=

Text description of referencing_clause

Keywords and Parameters

OR REPLACE

Specify OR REPLACE to re-create the trigger if it already exists. Use this clause to change the definition of an existing trigger without first dropping it.

schema

Specify the schema to contain the trigger. If you omit schema, then Oracle creates the trigger in your own schema.

trigger

Specify the name of the trigger to be created.

If a trigger produces compilation errors, then it is still created, but it fails on execution. This means it effectively blocks all triggering DML statements until it is disabled, replaced by a version without compilation errors, or dropped. You can see the associated compiler error messages with the SQL*Plus command SHOW ERRORS.

Note: If you create a trigger on a base table of a materialized view, then you must ensure that the trigger does not fire during a refresh of the materialized view. (During refresh, the DBMS_MVIEW procedure I_AM_A_REFRESH returns TRUE.)

BEFORE

Specify BEFORE to cause Oracle to fire the trigger before executing the triggering event. For row triggers, the trigger is fired before each affected row is changed.

Restrictions on BEFORE triggers:

• You cannot specify a BEFORE trigger on a view or an object view.
• You can write to the :NEW value but not to the :OLD value.

AFTER

Specify AFTER to cause Oracle to fire the trigger after executing the triggering event. For row triggers, the trigger is fired after each affected row is changed.

Restrictions on AFTER triggers:

• You cannot specify an AFTER trigger on a view or an object view.
• You cannot write either the :OLD or the :NEW value.

  Note: When you create a materialized view log for a table, Oracle implicitly creates an AFTER ROW trigger on the table. This trigger inserts a row into the materialized view log whenever an INSERT, UPDATE, or DELETE statement modifies the table's data. You cannot control the order in which multiple row triggers fire. Therefore, you should not write triggers intended to affect the content of the materialized view.

  See Also: CREATE MATERIALIZED VIEW LOG for more information on materialized view logs

INSTEAD OF

Specify INSTEAD OF to cause Oracle to fire the trigger instead of executing the triggering event. INSTEAD OF triggers are valid for DML events on views. They are not valid for DDL or database events.

If a view is inherently updatable and has INSTEAD OF triggers, then the triggers take preference. In other words, Oracle fires the triggers instead of performing DML on the view.

If the view belongs to a hierarchy, then the trigger is not inherited by subviews.

Restrictions on INSTEAD OF triggers:

• INSTEAD OF triggers are valid only for views. You cannot specify an INSTEAD OF trigger on a table.
• You can read both the :OLD and the :NEW value, but you cannot write either the :OLD or the :NEW value.

  Note: You can create multiple triggers of the same type (BEFORE, AFTER, or INSTEAD OF) that fire for the same statement on the same table. The order in which Oracle fires these triggers is indeterminate. If your application requires that one trigger be fired before another of the same type for the same statement, combine these triggers into a single trigger whose trigger action performs the trigger actions of the original triggers in the appropriate order.

  See Also: "Creating an INSTEAD OF Trigger: Example"

dml_event_clause

The dml_event_clause lets you specify one of three DML statements that can cause the trigger to fire. Oracle fires the trigger in the existing user transaction.

See Also: "Creating a DML Trigger: Examples"

DELETE

Specify DELETE if you want Oracle to fire the trigger whenever a DELETE statement removes a row from the table or removes an element from a nested table.

INSERT

Specify INSERT if you want Oracle to fire the trigger whenever an INSERT statement adds a row to table or adds an element to a nested table.

UPDATE

Specify UPDATE if you want Oracle to fire the trigger whenever an UPDATE statement changes a value in one of the columns specified after OF. If you omit OF, then Oracle fires the trigger whenever an UPDATE statement changes a value in any column of the table or nested table.

For an UPDATE trigger, you can specify object type, varray, and REF columns after OF to indicate that the trigger should be fired whenever an UPDATE statement changes a value in one of the columns. However, you cannot change the values of these columns in the body of the trigger itself.

Note: Using OCI functions or the DBMS_LOB package to update LOB values or LOB attributes of object columns does not cause Oracle to fire triggers defined on the table containing the columns or the attributes.

Restrictions on triggers on UPDATE operations:

• You cannot specify UPDATE OF for an INSTEAD OF trigger. Oracle fires INSTEAD OF triggers whenever an UPDATE changes a value in any column of the view.
• You cannot specify a nested table or LOB column in the UPDATE OF clause.

  See Also: AS subquery of CREATE VIEW for a list of constructs that prevent inserts, updates, or deletes on a view

Performing DML operations directly on nested table columns does not cause Oracle to fire triggers defined on the table containing the nested table column.

ddl_event

Specify one or more types of DDL statements that can cause the trigger to fire. You can create triggers for these events on DATABASE or SCHEMA unless otherwise noted. You can create BEFORE and AFTER triggers for these events. Oracle fires the trigger in the existing user transaction.

Restriction on triggers on DDL events: You cannot specify as a triggering event any DDL operation performed through a PL/SQL procedure.

See Also: "Creating a DDL Trigger: Example"

The following ddl_event values are valid:

ALTER

Specify ALTER to fire the trigger whenever an ALTER statement modifies a database object in the data dictionary.

Restriction on triggers on ALTER operations: The trigger will not be fired by an ALTER DATABASE statement.

ANALYZE

Specify ANALYZE to fire the trigger whenever Oracle collects or deletes statistics or validates the structure of a database object.

ASSOCIATE STATISTICS

Specify ASSOCIATE STATISTICS to fire the trigger whenever Oracle associates a statistics type with a database object.

AUDIT

Specify AUDIT to fire the trigger whenever Oracle tracks the occurrence of a SQL statement or tracks operations on a schema object.

COMMENT

Specify COMMENT to fire the trigger whenever a comment on a database object is added to the data dictionary.

CREATE

Specify CREATE to fire the trigger whenever a CREATE statement adds a new database object to the data dictionary.

Restriction on triggers on CREATE operations: The trigger will not be fired by a CREATE DATABASE or CREATE CONTROLFILE statement.

DISASSOCIATE STATISTICS

Specify DISASSOCIATE STATISTICS to fire the trigger whenever Oracle disassociates a statistics type from a database object.

DROP

Specify DROP to fire the trigger whenever a DROP statement removes a database object from the data dictionary.

GRANT

Specify GRANT to fire the trigger whenever a user grants system privileges or roles or object privileges to another user or to a role.

NOAUDIT

Specify NOAUDIT to fire the trigger whenever a NOAUDIT statement instructs Oracle to stop tracking a SQL statement or operations on a schema object.

RENAME

Specify RENAME to fire the trigger whenever a RENAME statement changes the name of a database object.

REVOKE

Specify REVOKE to fire the trigger whenever a REVOKE statement removes system privileges or roles or object privileges from a user or role.

TRUNCATE

Specify TRUNCATE to fire the trigger whenever a TRUNCATE statement removes the rows from a table or cluster and resets its storage characteristics.

DDL

Specify DDL to fire the trigger whenever any of the preceding DDL statements is issued.

database_event

Specify one or more particular states of the database that can cause the trigger to fire. You can create triggers for these events on DATABASE or SCHEMA unless otherwise noted. For each of these triggering events, Oracle opens an autonomous transaction scope, fires the trigger, and commits any separate transaction (regardless of any existing user transaction).

See Also: "Creating a Database Event Trigger: Example"

SERVERERROR

Specify SERVERERROR to fire the trigger whenever a server error message is logged.

The following errors do not cause a SERVERERROR trigger to fire:

• ORA-01403: data not found
• ORA-01422: exact fetch returns more than requested number of rows
• ORA-01423: error encountered while checking for extra rows in exact fetch
• ORA-01034: ORACLE not available
• ORA-04030: out of process memory

LOGON

Specify LOGON to fire the trigger whenever a client application logs onto the database.

LOGOFF

Specify LOGOFF to fire the trigger whenever a client applications logs off the database.

STARTUP

Specify STARTUP to fire the trigger whenever the database is opened.

SHUTDOWN

Specify SHUTDOWN to fire the trigger whenever an instance of the database is shut down.

SUSPEND

Specify SUSPEND to fire the trigger whenever a server error causes a transaction to be suspended.

Notes: Only AFTER triggers are relevant for LOGON, STARTUP, SERVERERROR, and SUSPEND. Only BEFORE triggers are relevant for LOGOFF and SHUTDOWN. AFTER STARTUP and BEFORE SHUTDOWN triggers apply only to DATABASE.

See Also: PL/SQL User's Guide and Reference for more information on autonomous transaction scope

ON table | view

The ON clause lets you determine the database object on which the trigger is to be created.

table | view

Specify the schema and table or view name of one of the following on which the trigger is to be created:

• Table or view
• Object table or object view
• A column of nested-table type

If you omit schema, then Oracle assumes the table is in your own schema. You can create triggers on index-organized tables.

Restriction on schema: You cannot create a trigger on a table in the schema SYS.

NESTED TABLE Clause

Specify the nested_table_column of a view upon which the trigger is being defined. Such a trigger will fire only if the DML operates on the elements of the nested table.

Restriction on triggers on nested tables: You can specify NESTED TABLE only for INSTEAD OF triggers.

DATABASE

Specify DATABASE to define the trigger on the entire database. The trigger fires whenever any database user initiates the triggering event.

SCHEMA

Specify SCHEMA to define the trigger on the current schema. The trigger fires whenever any user connected as schema initiates the triggering event.

See Also: "Creating a SCHEMA Trigger: Example"

referencing_clause

The referencing_clause lets you specify correlation names. You can use correlation names in the PL/SQL block and WHEN condition of a row trigger to refer specifically to old and new values of the current row. The default correlation names are OLD and NEW. If your row trigger is associated with a table named OLD or NEW, use this clause to specify different correlation names to avoid confusion between the table name and the correlation name.

• If the trigger is defined on a nested table, then OLD and NEW refer to the row of the nested table, and PARENT refers to the current row of the parent table.
• If the trigger is defined on an object table or view, then OLD and NEW refer to object instances.

Restriction on the referencing_clause: The referencing_clause is not valid with INSTEAD OF triggers on CREATE DDL events.

FOR EACH ROW

Specify FOR EACH ROW to designate the trigger as a row trigger. Oracle fires a row trigger once for each row that is affected by the triggering statement and meets the optional trigger constraint defined in the WHEN condition.

Except for INSTEAD OF triggers, if you omit this clause, then the trigger is a statement trigger. Oracle fires a statement trigger only once when the triggering statement is issued if the optional trigger constraint is met.

INSTEAD OF trigger statements are implicitly activated for each row.

Restriction on row triggers: This clause is valid only for DML event triggers (not DDL or database event triggers).

WHEN Clause

Specify the trigger restriction, which is a SQL condition that must be satisfied for Oracle to fire the trigger. See the syntax description of condition in Chapter 5, "Conditions". This condition must contain correlation names and cannot contain a query.

The NEW and OLD keywords, when specified in the WHEN clause, are not considered bind variables, so are not preceded by a colon (:). However, you must precede NEW and OLD with a colon in all references other than the WHEN clause.

See Also: "Calling a Procedure in a Trigger Body: Example"

Restrictions on trigger conditions:

• If you specify this clause for a DML event trigger, then you must also specify FOR EACH ROW. Oracle evaluates this condition for each row affected by the triggering statement.
• You cannot specify trigger restrictions for INSTEAD OF trigger statements.
• You can reference object columns or their attributes, or varray, nested table, or LOB columns. You cannot invoke PL/SQL functions or methods in the trigger restriction.

pl/sql_block

Specify the PL/SQL block that Oracle executes to fire the trigger.

The PL/SQL block of a database trigger can contain one of a series of built-in functions in the SYS schema designed solely to extract system event attributes. These functions can be used only in the PL/SQL block of a database trigger.

Restrictions on trigger implementation:

• The PL/SQL block of a trigger cannot contain transaction control SQL statements (COMMIT, ROLLBACK, SAVEPOINT, and SET CONSTRAINT) if the block is executed within the same transaction.
• You can reference and use LOB columns in the trigger action inside the PL/SQL block. You can modify the :NEW values but not the :OLD values of LOB columns within the trigger action.

  See Also: PL/SQL User's Guide and Reference for information on PL/SQL, including how to write PL/SQL blocks Oracle9i Application Developer's Guide - Fundamentals for information on these functions "Calling a Procedure in a Trigger Body: Example"

call_procedure_statement

The call_procedure_statement lets you call a stored procedure, rather than specifying the trigger code inline as a PL/SQL block. The syntax of this statement is the same as that for CALL, with the following exceptions:

• You cannot specify the INTO clause of CALL, because it applies only to functions.
• You cannot specify bind variables in expr.
• To reference columns of tables on which the trigger is being defined, you must specify :NEW and :OLD.

  See Also: "Calling a Procedure in a Trigger Body: Example"

Examples

Creating a DML Trigger: Examples

This example creates a BEFORE statement trigger named emp_permit_changes in the schema hr. You would write such a trigger to place restrictions on DML statements issued on this table (such as when such statements could be issued).

CREATE TRIGGER hr.emp_permit_changes
    BEFORE
    DELETE OR INSERT OR UPDATE
    ON hr.employees
       < pl/sql block >

Oracle fires this trigger whenever a DELETE, INSERT, or UPDATE statement affects the employees table in the schema hr. The trigger emp_permit_changes is a BEFORE statement trigger, so Oracle fires it once before executing the triggering statement.

This example creates a BEFORE row trigger named salary_check in the schema hr. The PL/SQL block might specify, for example, that the employee's salary must fall within the established salary range for the employee's job:

CREATE TRIGGER hr.salary_check
      BEFORE INSERT OR UPDATE OF salary, job_id ON hr.employees
      FOR EACH ROW
         WHEN (new.job_id <> 'AD_VP')
      < pl/sql_block >

Oracle fires this trigger whenever one of the following statements is issued:

• An INSERT statement that adds rows to the employees table
• An UPDATE statement that changes values of the salary or job_id columns of the employees table

salary_check is a BEFORE row trigger, so Oracle fires it before changing each row that is updated by the UPDATE statement or before adding each row that is inserted by the INSERT statement.

salary_check has a trigger restriction that prevents it from checking the salary of the administrative vice president (AD_VP).

Creating a DDL Trigger: Example

This example creates an AFTER statement trigger on any DDL statement CREATE. Such a trigger can be used to audit the creation of new data dictionary objects in your schema.

CREATE TRIGGER audit_db_object AFTER CREATE
   ON SCHEMA
      < pl/sql_block >

Calling a Procedure in a Trigger Body: Example

You could create the salary_check trigger described in the preceding example by calling a procedure instead of providing the trigger body in a PL/SQL block. Assume you have defined a procedure hr.salary_check, which verifies that an employee's salary is in an appropriate range. Then you could create the trigger salary_check as follows:

CREATE TRIGGER hr.salary_check
   BEFORE INSERT OR UPDATE OF salary, job_id ON hr.employees
   FOR EACH ROW
   WHEN (new.job_id <> 'AD_VP')
   CALL check_sal(:new.job_id, :new.salary, :new.last_name);

The procedure check_sal could be implemented in PL/SQL, C, or Java. Also, you can specify :OLD values in the CALL clause instead of :NEW values.

Creating a Database Event Trigger: Example

This example creates a trigger to log all errors. The hypothetical PL/SQL block does some special processing for a particular error (invalid logon, error number 1017). This trigger is an AFTER statement trigger, so it is fired after an unsuccessful statement execution (such as unsuccessful logon).

CREATE TRIGGER log_errors AFTER SERVERERROR ON DATABASE
 BEGIN
 IF (IS_SERVERERROR (1017)) THEN
    <special processing of logon error>
 ELSE
    <log error number>
 END IF;
 END;

Creating an INSTEAD OF Trigger: Example

In this example, an oe.order_info view is created to display information about customers and their orders:

CREATE VIEW order_info AS
   SELECT c.customer_id, c.cust_last_name, c.cust_first_name,
          o.order_id, o.order_date, o.order_status
   FROM customers c, orders o
   WHERE c.customer_id = o.customer_id;

Normally this view would not be updatable, because the primary key of the orders table (order_id) is not unique in the result set of the join view. To make this view updatable, create an INSTEAD OF trigger on the view to process INSERT statements directed to the view (the PL/SQL trigger implementation is shown in italics):

CREATE OR REPLACE TRIGGER order_info_insert
   INSTEAD OF INSERT ON order_info
 DECLARE
 duplicate_info EXCEPTION;
 PRAGMA EXCEPTION_INIT (duplicate_info, -00001);
 BEGIN
 INSERT INTO customers
  (customer_id, cust_last_name, cust_first_name)
 VALUES (
 :new.customer_id,
 :new.cust_last_name,
 :new.cust_first_name);
 INSERT INTO orders
 (order_id, order_date, customer_id)
 VALUES (
 :new.order_id,
 :new.order_date,
 :new.customer_id);
 EXCEPTION
 WHEN duplicate_info THEN
  RAISE_APPLICATION_ERROR (
    num=> -20107,
    msg=> 'Duplicate customer or order ID');
 END order_info_insert;
/

You can now insert into both base tables through the view (as long as all NOT NULL columns receive values):

INSERT INTO order_info VALUES
   (999, 'Smith', 'John', 2500, '13-MAR-2001', 0);

Creating a SCHEMA Trigger: Example

The following example creates a BEFORE statement trigger on the sample schema hr. Whenever a user connected as hr attempts to drop any database object, Oracle fires the trigger before dropping the object:

CREATE OR REPLACE TRIGGER drop_trigger
   BEFORE DROP ON hr.SCHEMA
   BEGIN
      RAISE_APPLICATION_ERROR (
         num => -20000,
         msg => 'Cannot drop object');
   END;
/
