Copyright © 2004, Oracle. All rights reserved.
Oracle is a registered trademark of Oracle Corporation and/or its affiliates. Other names may be trademarks of their respective owners.
Backup and Recovery
Release 2 (9.0.4)
Part No. B15613-01
November 2004
The purpose of this document is to discuss the general methodology for backup and recovery of the Oracle Collaboration Suite.
For information on backup and recovery of individual components of the Oracle Collaboration Suite,
Contents
This document contains the following topics:

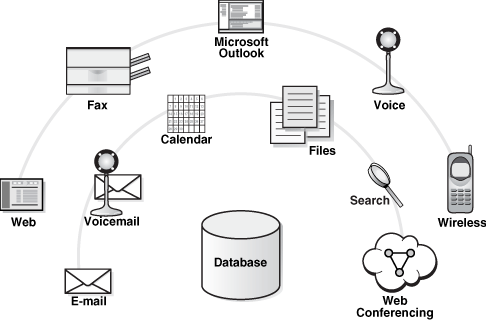

The Oracle Collaboration Suite offers the user a number of integrated software services that can be deployed in different configurations. Depending on the configuration choice, an Oracle Collaboration Suite instance has varying properties of availability, scalability, application service component deployment, flexibility for growth, and failure coupling.
Oracle Collaboration Suite uses the Oracle9i Application Server and the Oracle9i Database to provide services that enable communication and collaboration between users. Figure 1 illustrates these options:
Users can send emails, receive voicemails and faxes, organize their appointments, share documents, search for information and conduct online meetings.
Users can interact with these services over the web, by fax, using client applications such as Microsoft Outlook, by voice, or over wireless networks using phones and PDAs.
|
See Also: Oracle Collaboration Suite Concepts Guide and the Oracle Collaboration Suite Deployment Guide for a discussion of Oracle Collaboration Suite deployment options and their characteristics. |
Looking at the Oracle Collaboration Suitesuite from a high architectural level, we can consider it to be composed of three main layers:
The Infostore, or data tier, is built on the Oracle9i Database and contains Files and Email databases.
The Infrastructure tier is built on Oracle9i Application Server, and comprises a common set of services used by the applications. These include Java execution (J2EE), Web Services, Portal, Workflow, Security and Directory.
The Middle tier includes the Email, Calendar, Files, Web Conferencing, Voicemail and Search applications themselves. These can be accessed through a wide range of channels, such as Wireless, Voice, Fax, Web and Outlook.
The actual deployment architecture is very flexible, and there are several options regarding how these layers are placed into physical server hardware and the ways that the required security, availability, scalability and ease of management is implemented. Figure 2 shows an example of Oracle Collaboration Suite architecture.

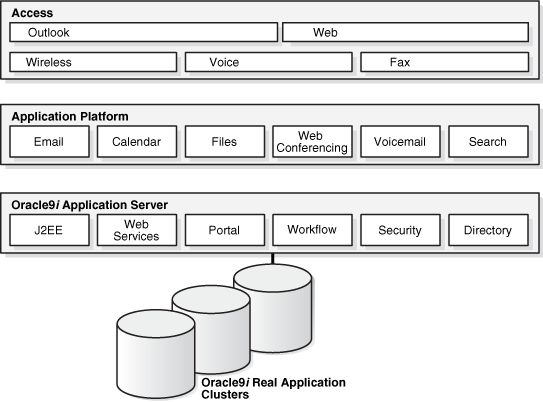

Figure 2 Sample Oracle Collaboration Suite Architecture
While all of the three tiers of Oracle Collaboration Suite could be placed on a single node, this is very unlikely to meet your security and availability requirements in any but a few very small system scenarios.
Distribution of the layers should always be considered. The nature of the middle tier, infrastructure and infostore workloads differ greatly:
While the middle tier uses CPU and memory intensively with little disk I/O, the infrastructure and infostore are very intensive in disk I/O.
While the infostore disk I/O consists of both reads and writes, the infrastructure disk is primarily used in I/O reads.
To obtain optimum resource utilization from a particular machine and software configuration, you should not to mix different workloads on a single machine. For this reason, architectures, especially for larger systems, typically feature the distribution of these tiers onto different machines. In Oracle Collaboration Suite, middle tier resource demands scale at a different rate than the infrastructure and infostore. This adds further justification for a distributed architecture that allows the infostore and middle tier to be scaled independently.

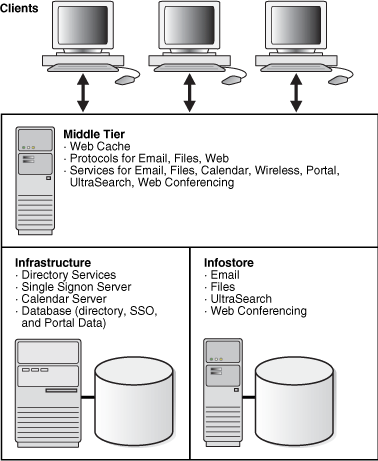

Figure 3 provides a somewhat simplified detail of the three layers of Oracle Collaboration Suite: Middle Tier, Infostore and Infrastructure:
The Middle tier consists of the following services:
Email Protocols (SMTP, POP3, IMAP4)
Files Protocols (FTP, SMB, NFS, AFP, WebDav)
Web Protocols (HTTP, HTTP/S)
Email Services (Webmail/HTTP)
Files Services (Files/HTTP)
Calendar Services (Webcal/HTTP, SyncML/HTTP, Calendar Server)
Wireless Services (Wireless/HTTP)
Portal Services (Portal/HTTP)
UltraSearch Services
Webcache
This section provides an introduction to backup and recovery concepts, an overview of Oracle's backup and recovery strategy in an enterprise environment, and assumptions and restrictions necessary to implementing this strategy.
Because all organizations need to protect themselves from potential disaster resulting from data loss, backup and recovery is one of the most important aspects of administration.Your Oracle Collaboration Suite environment is the framework within which you perform backup and recovery, and contains the following tiers, as previously discussed in Section 1.3 and illustrated in Figure 3, "Oracle Collaboration Suite Tiers": an infostore installation, an infrastructure installation, and a middle tier installation.
These installations contain interdependent configuration information, applications, and data. During normal operation, the application server automatically synchronizes this information. However, in the event of system failure or data loss, the administrator has to restore the application server to a consistent state.
For this reason, it is important to visualize the Oracle Collaboration Suite environment as a single entity when performing backup and recovery, instead of approaching it as a set of independent installations. As a result, you must back up data across all installations at the same point in time. If you were backing up the infrastructure on Mondays, the infostore on Tuesdays and the middle tier installation on Wednesdays, in the event of data loss you would only be able to restore your separate tiers of the Oracle Collaboration Suite to the state they had on the days when they were last saved. This would create problems in the application server. If you backup critical data from all tiers at the same time, you can restore and recover all tiers to a consistent state.
The backup and recovery strategies and procedures in this document involve backing up the entire Oracle Collaboration Suite environment as a whole and restoring it so that its state remains consistent.
The overall backup strategy should be comprised of a cold backup and partial online backups.
You should perform an initial complete cold backup, which includes everything necessary to restore your initial installation of your Oracle Collaboration Suite environment:
Back up the middle tier Oracle home
Back up the infrastructure Oracle home
Back up the infostore Oracle home
Back up Calendar and its associated files
You should also perform regular partial online backups of your Oracle Collaboration Suite environment, which involves saving the configuration information across your entire Oracle Collaboration Suite environment at the same point in time:
Back up the configuration files in the middle tier Oracle home
Back up the configuration files in the infrastructure Oracle home
Back up configuration files in the infostore Oracle home
Perform an online backup of the infrastructure
Perform an online backup of the infostore
Restore and recovery procedures for data loss, host failure, or media failure enable you to recover from failures that involve actual data loss. Depending on the type of loss, they can involve a variety of steps. In all cases, care must be taken to ensure that state is consistent across all installations:
Restore Oracle static binaries or libraries from a complete cold backup
Restore configuration files from the most recent partial online backup
Restore and recover the infrastructure to its latest state
Restore and recover the infostore to its latest state
Recovery strategies for process or system outages and crashes involve restarting processes that have stopped or failed. They do not involve data recovery.
More specifically, Oracle recommends that you use one of the following general strategies to implement backup and recovery within your organization. Both strategies have the following common characteristics:
These strategies use complete recovery for the infrastructure and infostore. Specifically, they restore the backup and then apply all online and archived redo logs generated after the restored backup. This recovers the database to the state it had at the time of the loss.
These strategies use same-point-in-time recovery of the middle tier, infrastructure, and infostore. Regardless of where the loss occurred, the middle tier, the infrastructure and the infostore are always restored together so they are synchronized as they were at the time of the most recent backup.
Oracle developed the Oracle9iAS Backup and Recovery Tool for Oracle9i Application Server installations. In conjunction with RMAN, its automated scripts enable a quick deployment of the Oracle Collaboration Suite backup and recovery strategy. This entire strategy can be summarized in the following steps:
Use the Oracle9iAS Backup and Recovery Tool for backing up and restoring the middle tier and the infrastructure database.
Use RMAN to backup and recover the infostore.
Use the Oracle9iAS Backup and Recovery Tool to configure Oracle Collaboration Suite components within the middle tier.
Use Calendar backup and recovery procedures.
If your organization is using customized backup and recovery operations already, you may not wish to use the Oracle9iAS Backup and Recovery Tool as part of your Oracle Collaboration Suite backup and recovery strategy. The general steps would then be as follows:
Use RMAN and/or customized scripts to back up and restore the infrastructure and infostore databases.
Use customized scripts to backup and restore the middle tier and its components.
Use Calendar backup and recovery procedures.
Prerequisites to suite-level backup and recovery include:
Oracle Collaboration Suite support is limited to these releases:
Oracle9iAS Release 2 (9.0.2.1.0) or later
Oracle9iAS Release 2 (9.0.3)
These installation types are supported:
J2EE and Web Cache
Portal and Wireless
Infrastructure
Infostore
All operating system platforms that are certified for Oracle Collaboration Suite are supported.
Each host must have a Perl installation of version 5.0 or above.
The infrastructure must be a single instance database. The procedures in this document do not support using Real Application Clusters (RAC).
When restoring the Oracle Collaboration Suite, you should restore to the same host. When this is not possible, you can restore to a new host provided you first initialize it with the same system configuration as the original host, such as hostname, IP address, user names, directory paths, and operating system levels.
You should turn on database archive logging since point-in-time recovery is a requirement.
Before running the Oracle9iAS Backup and Recovery Tool:
Log in as the user that installed Oracle Collaboration Suite.
Make sure the ORACLE_HOME environment variable is set.
If you are performing a database backup, make sure the ORACLE_SID environment variable is set.
Change directory to the directory that contains the installed Oracle9iAS Backup and Recovery Tool.
The Oracle Collaboration Suite environment includes the infostore tier, an Oracle9i Release 1 (9.0.1) Enterprise Edition database. Performing backup and recovery on Oracle Collaboration Suite includes performing backup and recovery of that database. It is therefore important to understand database backup and recovery. In particular, the following topics apply to Oracle Collaboration Suite backup and recovery:
Using ARCHIVELOG mode, as discussed in Section 6.4.1, "Enabling ARCHIVELOG Mode"
Performing cold database backups, as discussed in Section 6.3.1, "Performing Cold Database Backups"
Performing online database backups, as discussed in Section 6.3.2, "Performing Online Database Backups"
Using the RMAN backup and recovery utility
|
See also: The following books in the Oracle 9i Release 1 (9.0.1) documentation set if you are not experienced with database backup and recovery.
You can find these volumes in the database document library, at: |
Since a database contains a wide variety of data, database administrators must decide what information they should copy when developing a backup and recovery strategy. The basic principle is to prioritize data depending on its importance and the degree to which it changes. For example, archive logs do not change, but they are crucial for recovering the database, so multiple copies should be maintained whenever possible. Expense account tables, however, are constantly updated by users. Therefore, this tablespace should be backed up frequently to prevent having to apply large chunks of redo data during recovery.
Backups can be combined in a variety of ways, such as combining weekly whole database backups (to ensure a relatively current copy of original database information) with daily backups of the most accessed tablespaces. Another approach is to multiplex control file and archived redo logs as an additional safeguard. The following list describes the basic backup types:
Online Database Backup An online backup or also known as an open backup, is a backup in which all read-write datafiles and control files have not been checkpointed with respect to the same log sequence number (SCN). For example, one read-write datafile header may contain an SCN of 100 while other read-write datafile headers contain an SCN of 95 or 90. Oracle cannot open the database until all of these header SCNs are consistent, or until all changes recorded in the online redo logs have been saved to the datafiles on disk. For databases that must be running non-stop, you have no choice but to perform online backups of a the entire database in ARCHIVELOG mode.
Offline Database Backup In this backup, all datafiles and control files are consistent to the same point in time (or the same SCN). The only tablespaces in a consistent backup that are allowed to have older SCNs are read-only and offline-normal tablespaces, which are consistent with the other datafiles in the backup. This type of backup allows you to open the set of files created by the backup without applying redo logs because the data is already consistent. The only way to perform this type of backup is to shut down the database cleanly and make the backup while the database is closed. A consistent whole database backup is the only valid backup option for databases running in NOARCHIVELOG mode.
Whole Database Backup The most common type of backup, the whole database backup contains the control file along with all database files that belong to that database. If the database is operating in ARCHIVELOG mode, you also has the option of backing up different parts of the database over a period of time.
Tablespace Backups A tablespace backup is a subset of the database. Tablespace backups are only valid if the database is operating in ARCHIVELOG mode. The only time a tablespace backup is valid for a database running in NOARCHIVELOG mode is when that tablespace is read-only or offline-normal.
Datafile Backups A datafile backup contains a single datafile. This approach is not as common as tablespace backups, and is only valid for databases that are in ARCHIVELOG mode. The only time a datafile backup is valid for a database running in NOARCHIVELOG mode is if that datafile is the only file in a tablespace.
Control File Backups A control file backup saves the database's control file. If the database is open, you can create a valid backup through the Recovery Manager (RMAN) or by issuing the following SQL statement:
ALTER DATABASE BACKUP CONTROLFILE TO LOCATION
Archived Redo Log Backups Archived redo logs are necessary for successful media recovery. Depending on the disk space available and the number of transactions executed on the database, you should keep the maximum number of days of archive logs on disk, and you should back them up regularly to ensure a more complete recovery.
Configuration Files Backup Configuration files may be of spfile or init.ora, password file, tnsnames.ora, and sqlnet.ora. Since these files do not change often, they require a less frequent backup schedule.
There are three basic types of recovery: instance recovery, crash recovery, and media recovery. Oracle performs both instance and crash recovery automatically at instance startup, but media recovery requires additional steps.
An instance recovery is only possible in an Oracle Real Applications Cluster configuration; it occurs in an open database when one instance discovers that another instance has crashed. A surviving instance automatically uses the redo log to recover the committed data in the database buffers that were lost when the instance failed. Oracle also undoes any in-progress transactions on the failed instance and clears any locks held by the crashed instance after recovery is complete.
A crash recovery occurs when either a single-instance database or all instances of a multi-instance database crash. An instance must open the database and then execute recovery operations. In general, the first instance to open the database after a crash or SHUTDOWN ABORT automatically performs crash recovery.
A media recovery is executed on the user's command, usually in response to media failure. Online or archived redo logs can be used to make a restored backup current, or to update it to a specific point in time. Media recovery can restore the whole database, a tablespace or a datafile, and recover them to a specified time.
A restored backup can always be used to perform the recovery. There are two principal types of media recovery: complete and incomplete recovery. Complete recovery involves using redo log data along with a backup of a database, tablespace, or datafile, to apply every change that took place after the most recent backup, and to ensure that the recovery is to the most current point in time. Typically, media recovery is performed after a media failure damages datafiles or the control file. If you do not recover the database to the most current time, you must specify how far to recover in one of the following ways:
Tablespace point-in-time recovery (TSPITR) recovers one or more tablespaces to a point-in-time that is different from the rest of the database.
Time-based recovery, also called point-in-time recovery (PITR), recovers the data up to a specified point in time.
Cancel-based recovery which recovers data until the CANCEL command.
Change-based recovery, or log sequence recovery, recovers data up to a specified SCN in the redo record if using O/S commands.
If using RMAN, log sequence recovery recovers up to a specified log sequence number. When performing an incomplete recovery, the user must reset the online redo logs when opening the database. The new version of the reset database is called a new incarnation. Opening the database with the RESETLOGS option is an instruction to discard some redo information.
While Oracle provides users with a choice of several basic methods for making backups, we recommend that you use the Recovery Manager (RMAN) for Oracle Collaboration Suite. RMAN is a tool specifically designed to establish a connection with a server process and automate the movement of data for backup and recovery operations. It is a powerful and versatile program that allows users to make either an RMAN backup or an image copy of the data. RMAN automatically establishes the names and locations of all the files that need to be backed up, and can also use used for incremental backups, saving only those blocks of data that have changed since a previous backup.
The basic RMAN commands are RESTORE and RECOVER. RMAN can be used to restore datafiles from backup sets or image copes, either to their current location or to a new location. If any archived redo logs are required to complete the recovery operation, RMAN automatically restores and applies them. In a recovery catalog, RMAN keeps a record containing all the essential information concerning every backup ever taken. If a recovery catalog is not used, RMAN uses the control file for necessary information.
The RMAN RECOVER command can be used to perform complete media recovery and apply incremental backups, and to perform incomplete media recovery. If you specify files or archived logs using the RMAN BACKUP command, RMAN creates an output that is a backup set, or file(s) in a proprietary-specific format. This format requires the use of the RMAN RESTORE command for recovery operations. In contrast, when the BACKUP AS COPY command is used to create an image copy of a file, the copy is in an instance-usable format; you do not need to invoke RMAN to restore or recover it.
To facilitate easy suite-level backup and recovery, Oracle recommends deploying the Oracle Collaboration Suite in the middle tier and using the Oracle9iAS Backup and Recovery Tool, a Perl script and associated configuration files that will automatically perform the following tasks:
At a minimum, all users can refer to the tool for the list of configuration files that must be backed up.
If you are new to backup and recovery, you can use the tool to automatically perform configuration file and infrastructure database backup and recovery.
If you are experienced with backup and recovery, you can refer to the tool for guidance when setting up your own specific configuration file and infrastructure database backup and recovery scripts.
The Oracle9iAS Backup and Recovery Tool is not available in the standard Oracle Collaboration Suite installation and can be downloaded from Oracle Technology Network (OTN) at:
http://www.oracle.com/technology/products/ias/hi_av/9iAS_BR.zip
You must download and configure the Oracle9iAS Backup and Recovery Tool for each installation in your Oracle Collaboration Suite environment, for the infrastructure installation and for the middle tier installation. The reason you must download and configure the tool for all installations is that you will customize the tool for each one.
It is important to note that the Oracle9iAS Backup and Recovery Tool does not cover backing up and restoring Oracle Collaboration Suite software, such as binaries, oraInventory files, or Oracle system files (for example, /var/opt/oracle). In addition, it does not back up any user or application-specific files that are not part of the default installation. You will need to handle backup and recovery of these pieces separately, as required.
The syntax for the Oracle9iAS Backup and Recovery Tool is:
bkp_restore.pl [-defsv] -m mode [args]
The syntax supports the following options:
-d Print a trace without executing.
-e Specify an environment file; (default environment file is config.inp.
-f Force log file, database backup, and configuration file directories to be created if they do not exist.
-s Run in silent mode.
-v Run in verbose mode.
Use the -m option to specify which mode to run; some modes take arguments. The following listing describes the modes, their optional arguments, and their function.
config [-e env_file]
Configures the tool.
If this is an infrastructure, make sure the database is running before you run this command.
Reads the parameters specified in the default environment file (config.inp).With the -e option, uses the specified environment file instead.
Updates config_files_list and install_type in config.inp with the appropriate files for your installation.
If this is an infrastructure, queries the database id (dbid) and updates the configuration file and creates customized *.dat files from the database backup *.tmpl files.
backup_config [-e env_file]
Performs a configuration file backup.
Opens config.inp (unless the -e option was used) and retrieves config_files_list, config_backup_path, and log_path.
Attempts to open each file in config_files_list. Exits with an error if it cannot open all of the files.
For each file in config_files_list, checks if the first entry (the key file) exists. If it does not exist, assumes this component does not exist and moves on to the next file. Otherwise, backs up all files in the list. If any files do not exist, logs an error and continues.
When finished, stores the backup in config_backup_path/config_bkp_timestamp.
If any errors are encountered, creates a log file in log_path/config_bkp_timestamp.
restore_config [-e env_file] [-t config_bkp_timestamp]
Restores configuration files.
Opens config.inp (unless the -e option was used) and retrieves config_backup_path and log_path.
If the -t option is supplied, restores from that backup.
If the -t option is not supplied, displays a list of configuration backups in config_backup_path and exits.
Restores all files from the configuration backup to the Oracle home, preserving owner, group, permissions, and timestamp.
Performs dcmctl updateConfig to sync up DCM-related configuration files with the DCM repository.
If any errors are encountered, creates a log file in log_path/config_rst_timestamp.
backup_cold [-e env_file]
Performs a complete cold backup of the infrastructure database.
Opens config.inp (unless the -e option was used) and retrieves log_path.
Shuts down the database, starts it in mounted mode, but does not open it.
Performs a backup of the datafiles and control files using RMAN. The commands are in backup_cold.dat.
Stores the backup in the directory specified in backup_cold.dat. This is usually set to the database_backup_path in config.inp.
Stores a log file in log_path.
Opens the database.
backup_cold_incr [-e env_file] -l incr_backup_level
Performs an incremental cold backup of the infrastructure database.
Opens config.inp (unless the -e option was used) and retrieves log_path.
The -l option specifies the increment level (0-4).
Shuts down the database, starts it in mounted mode, but does not open it.
Performs a backup of the datafiles and control files using RMAN.
The commands are in backup_cold_incrlevel.dat.
Stores the backup in the directory specified in backup_cold_incrlevel.dat. This is usually set to the database_backup_path in config.inp.
Stores a log file in log_path.
Opens the database.
backup_online [-e env_file]
Performs an online backup of the infrastructure database.
Opens config.inp (unless the -e option was used) and retrieves log_path.
Assumes the database is open.
Performs a backup of the datafiles and control files using RMAN.
The commands are in backup_online.dat.
Stores the backup in the directory specified in backup_online.dat. (This is usually set to the database_backup_path in config.inp.)
Stores a log file in log_path.
Leaves the database open.
backup_online_incr -l incr_backup_level
Performs an incremental online backup of the infrastructure database.
Opens config.inp (unless the -e option was used) and retrieves log_path.
The -l option specifies the increment level (0-4).
Assumes the database is open.
Performs a backup of the datafiles and control files using RMAN.
The commands are in backup_online_incrlevel.dat.
Stores the backup in the directory specified in backup_online_incrlevel.dat. (This is usually set to the database_backup_path in config.inp.)
Stores a log file in log_path.
Leaves the database open.
restore_db [-e env_file] [-c]
Restores and recovers the infrastructure database from the available cold and online backups.
Opens config.inp (unless the -e option was used) and retrieves log_path.
Assumes the database is shut down.
Restores the control files and datafiles, and performs recovery using RMAN. The commands are in restore_db.dat.
Stores a log file in log_path.
Leaves the database open.
The -c option restores the control file. By default, the control file is not restored. If you use the -c option, be sure to do a full backup right away, because all past backups are invalidated.
By default, this command searches for the most recent backup in the last 7 days and recovers the database to the current time. You can modify this behavior as follows:
To begin the search on a day other than the current day, use the SET UNTIL command.
To search backwards for a number other than 7 days, use the MAXDAYS command. Refer to Oracle9i Recovery Manager Reference for details.
help
Prints a usage message.
Step 1: Obtain the Oracle9iAS Backup and Recovery Tool
Point your browser to the Oracle Technology Network (OTN) Web site Oracle9i Application Server High Availability section, Technical Information. The exact URL is:
Download the ZIP file for Oracle9i Application Server: Backup and Recovery.
Step 2: Install the Oracle9iAS Backup and Recovery Tool
Create an empty directory in which to install the Oracle9iAS Backup and Recovery Tool. The directory can have any name you choose and can exist within the Oracle Collaboration Suite Oracle home or anywhere else on your system. The directory should be owned and writable by the operating system user who installed Oracle Collaboration Suite.
To create a directory called BackupTool in the Oracle Collaboration Suite Oracle home, log in as the user who installed Oracle Collaboration Suite and perform:
mkdir ORACLE_HOME/BackupTool
Copy all of the tool files into the tool directory.
Make sure all files in the directory are owned by the user who installed Oracle Collaboration Suite.
For Unix only, make sure bkp_restore.pl has execute permission:
chmod 755 bkp_restore.pl
Familiarize yourself with the Oracle9iAS Backup and Recovery Tool files. Instructions for editing the configuration files are in subsequent steps.
bkp_restore.pl
The Perl script that you execute to perform backup and recovery operations.
config.inp
The main configuration file that contains parameters for customizing the tool for your environment.
config_component_files.inp
Component configuration files. Each contains a list of configuration files for a particular component. These specify which files to back up when performing a configuration file backup.
*.tmpl
Templates for scripts for performing database backup and recovery operations using RMAN. When you initially configure the tool, a customized *.dat file will be created from each*.tmpl file.
query_dbid.sql
A SQL script called by the tool to initialize your configuration.
Step 3: Check Your Perl Installation
The Oracle9iAS Backup and Recovery Tool contains a Perl script, so you must have a Perl interpreter on your system and make sure it will work with the tool.
Make sure your system has a Perl installation of version 5.0 or above.
Make sure your Perl installation contains the Getopt module. If this module is not present, you will get an error of this type when you try to run the tool:
Can't locate Getopt.pm in @INC
If your Perl installation does not contain the Getopt module you can:
Download the module separately from the Comprehensive Perl Archive Network (CPAN):
http://www.cpan.org
For Windows only, install the latest version of Active Perl:
http://www.activestate.com/Products/ActivePerl
Make sure the tool can locate your Perl interpreter.
On Unix,
Locate the Perl executable on your host:
which perl
Edit the bkp_restore.pl file. In the first line, supply the full path to the Perl executable on your host:
#!/usr/bin/perl -w
You can then run the tool as follows:
cd BACKUP_TOOL_DIRECTORY
./bkp_restore.pl options
On Windows,
Insert the Perl executable directory into your PATH environment variable. This directory is the same on infrastructure and middle tier installations:
ORACLE_HOME\perl\5.6.1\bin\MSwin32-x86
You can then run the tool as follows:
cd BACKUP_TOOL_DIRECTORY
perl bkp_restore.pl options
Step 4: Create Backup Directories
Create directories to hold the various types of backup files:
Log files: Log files for database backups and configuration file backups. Create this directory for middle tier and infrastructure installations.
Database backup files: Datafile and control file backups of the database. Create this directory only if this is an infrastructure installation.
Configuration backup files: These are file backups of the configuration files in the Oracle home. Create this directory for middle tier and infrastructure installations.
Oracle recommendations that you create backup directories as follows:
Create your backup directories on a filesystem that is on a separate disk and, if possible, a separate disk controller, than your Oracle Collaboration Suite Oracle home. This will give you the best chance of recovering data in the event of a hardware failure.
Allow enough disk space for your backups. Configuration file backups can use several hundred megabytes of space; database backups can use 1 or 2 gigabytes of space.
Make sure your backup directories are writable by the user that installed Oracle Collaboration Suite.
For example, to create directories on /private for log files, database backup files, and configuration backup files:
On Unix,
mkdir -p /private/backups/log_files mkdir -p /private/backups/db_files mkdir -p /private/backups/config_files cd /private/backups chmod 755 log_files db_files config_files chown Oracle9iAS_user log_files db_files config_files
On Windows,
mkdir C:\backups\log_files mkdir C:\backups\db_files mkdir C:\backups\config_files
Step 5: Perform Initial Configuration
Configure the Oracle9iAS Backup and Recovery Tool for your installation.
Edit config.inp and modify the parameters as described in the following list. Notice that some of the instructions are different depending on whether this is a middle-tier or infrastructure installation.
oracle_home
Specify the full path of the Oracle home.
log_path
The full path of the directory for log files.
config_files_list
Do not insert a value for this; leave it as config_files_list=DO_NOT_SET.
This parameter will be updated with the appropriate list of configuration files for your installation when you run bkp_restore.pl -m configure.
config_backup_path
Specify the full path of the directory for configuration backup files.
install_type
Do not insert a value for this; leave is as install_type=DO_NOT_SET.
This parameter will be updated with the appropriate value for your installation when you run bkp_restore.pl -m configure.
dbid
Do not insert a value for this; leave it as dbid=DO_NOT_SET.
In infrastructure installations, this value will be updated with the infrastructure database dbid when you run bkp_restore.pl -m configure.In middle tier installations, this value will stay untouched.
pfile
In middle tier installations, leave this line commented out.
In infrastructure, if desired, specify an alternate pfile to use when starting up the database. Otherwise, leave the line commented out and the default pfile will be used:
On Unix, ORACLE_HOME/dbs/initiasdb.ora
On Windows, ORACLE_HOME/database/initiasdb.ora
If you want to use the default, leave the pfile entry commented out; blank values are not allowed in this file.
database_backup_path
In the middle tier installation, do not insert a value for this; leave it as database_backup_path=VALUE_NOT_SET.
In infrastructure, specify the full path of the directory for database backup files.
Set the ORACLE_HOME environment variable to the Oracle Collaboration Suite Oracle home.
If this is an infrastructure installation:
Set the ORACLE_SID environment variable to the infrastructure database SID. The default is iasdb.
Make sure the infrastructure database is started.
Update parameters in config.inp and, in the case of an infrastructure, create customized *.dat files that are used to perform backup, restore, and recovery on the database,:
On Unix, ./bkp_restore.pl -m configure
On Windows, perl bkp_restore.pl -m configure
|
Note: You must runbkp_restore.pl -m config every time a change in the config.inp file is made in order for the changes to take effect. |
The Calendar component provides command line utilities for backing up and restoring the database. These utilities can be used on their own, or they can be integrated into your existing environment and customized scripts used for backup and recovery. Note that in this release, the backup and recovery of the Calendar component is handled separately from other parts of the Oracle Collaboration Suite.
To copy the Calendar database to a specified location, use the online backup utility unidbbackup. This operation creates a backup of a single Calendar server node and its related configuration information. More specifically, it backs up the ORACLE_HOME/ocal/misc and ORACLE_HOME/ocal/db directories. Because the data in these two directories is interdependent, it is important to ensure they are backed up at the same time. As its last step, unidbbackup rotates the saved database to a tape backup.
By default, the unidbbackup utility performs a copy of the source to the destination. If you require something other than a straight copy, alternative external backup choices can be invoked through the unidbbackup utility.
You should note that unidbbackup backs up the Calendar server internal database. If you are using a directory server, its database should also be backed up at the same time.
Note that the unidbbackup utility can be used when the Calendar server is either up or down.
The Calendar server can be restored by using a complement to unidbbackup, the unidbrestore utility. This operation restores a single node and related configuration information of a Calendar server from a backup made earlier by unidbbackup. By default, the destination directory for the restore is ORACLE_HOME/ocal, which means that the restore utility overwrites the existing files of the Calendar server database. Therefore, you should use unidbrestore with extreme care and ensure that the Calendar server database is not inadvertently corrupted. You may chose to use the -d option to specify a different directory for the restore, and then copy the individual files from the restored directory into the ORACLE_HOME/ocal directory.
Because unidbrestore restores the Calendar server's internal database, if the directory server is used in your deployment, its database is not backed up. Therefore, if a Calendar server node is restored after some users have been deleted, these users must be added back into the directory server. Similarly, if a single node is restored after its network information is changed, the database may encounter conflicts between the current network configuration and the restored node's old network information, which results in errors.
Note that unlike unidbbackup, the unidbrestore utility can only be used when the Calendar server is down.
If you need to restore a single user account, run the unirestore utility to extract this information from a backup previously made by the unidbbackup utility.
|
See Also: The following documents for a detailed information on how to implement a backup and recovery strategy for the Calendar component of your Oracle Collaboration Suite deployment:
|
This section describes the various procedures involved in backup and recovery of the Oracle Collaboration Suite, including the middle tier, the infrastructure and the infostore. In general, you should use either customized scripts or RMAN to perform backup and recovery operations on the infostore tier.
You should note that in this release the backup and recovery of the Calendar component is handled separately, as described in Section 5, "Understanding Calendar Backup and Recovery".
The following list summarizes the backup and recovery procedures mentioned in the previous section and show which ones you can perform with the tool.
Backing up the middle tier Oracle home Use standard OS utilities like tar, copy or cpio.
Backing up the infrastructure Oracle home Use standard OS utilities like tar, copy or cpio.
Backing up the infostore Oracle home Use standard OS utilities like tar, copy or cpio.
Performing a complete cold backup of the infrastructure You can use the Oracle9iAS Backup and Recovery Tool for this, or refer to the tool and develop your own scripts.
Performing a complete cold backup of the infostore Use RMAN or customized scripts to backup the database.
Backing up Oracle system files Use standard OS utilities like tar, copy or cpio.
Backing up the configuration files in the middle tier Oracle home You can use the Oracle9iAS Backup and Recovery Tool for this, or refer to the tool and develop your own scripts.
Backing up the configuration files in the infrastructure Oracle home You can use the Oracle9iAS Backup and Recovery Tool for this, or refer to the tool and develop your own scripts.
Backing up the configuration files in the infostore Oracle Home Use standard OS utilities like tar, copy or cpio.
Performing an online backup of the infrastructure You can use the Oracle9iAS Backup and Recovery Tool for this, or refer to the tool and develop your own scripts.
Performing an online backup of the infostore Use RMAN or customized scripts to backup the database.
Restoring Oracle static binaries or libraries from a complete cold backup Use standard OS utilities like tar, copy or cpio.
Restoring configuration files from your most recent partial online backup You can use the Oracle9iAS Backup and Recovery Tool for this, or refer to the tool and develop your own scripts.
Restoring and recovering the infrastructure to its latest state You can use the Oracle9iAS Backup and Recovery Tool for this, or refer to the tool and develop your own scripts.
Restoring and recovering the infostore to its latest state Use RMAN or customized scripts to backup the database.
A configuration file backup is a filesystem backup of all configuration files in a middle tier or infrastructure Oracle home.
Before you customize the tool, you should understand how it works. When you use the tool to back up your configuration files, it:
Opens config.inp (unless another environment file was specified with the -e option) and retrieves config_files_list. This contains the names of the configuration files that apply to your installation. These files have the following name format:
config_component_files.inp
Attempts to open each file in config_files_list. Exits with an error if it cannot open all of the files.
The first entry in each configuration file is the key file, used to determine if the component is in this installation. If the tool finds the key file, it knows the component is installed, and attempts to back up all of the entries in the configuration file. It logs an error whenever it cannot find a file.
If the key file does not exist, the tool does not attempt to back up any entries in the configuration file. It logs an error to the log file and skips to the next configuration file.
Since the tool knows how to determine which configuration files exist in your installation, it is not necessary to customize the tool. The only time you might want to customize the tool is to add your own local configuration files. To add your own local configuration files:
Add entries to the config_misc_files.inp file.
Make sure that the first entry in the file (the key file) is a file that will always exist in your installation.
Add as many entries to the file as you like.
The config_misc_files.inp file is always included in the config_files_list in parameter in config.inp, so there is no need to edit config.inp.
To back up the configuration files in a middle-tier or infrastructure installation:
Change directory to the Oracle9iAS Backup and Recovery Tool directory for the Oracle home you would like to back up. For example:
cd ORACLE_HOME/BackupTool
Start the database and the listener, and then perform the following commands:
oidmon start oidctl server=oidldapd instance=1 start $ORACLE_HOME/opmn/bin/opmnctl start $ORACLE_HOME/opmn/bin/opmnctl startproc type=ohs $ORACLE_HOME/opmn/bin/opmnctl startproc type=oc4j gid=OC4J_DAS $ORACLE_HOME/dcm/bin/dcmctl updateconfig -d -v
Run the following command. Use the -v option to see the list of files that are backed up. You may want to first run the command with the -d option to preview the results and determine if there will be any errors.
On Unix,./bkp_restore.pl [-v] -m backup_config
On Windows, perl bkp_restore.pl [-v] -m backup_config
When finished, the command prints the name of the directory in which it stored the backup. This directory has a timestamp in its name. If any errors occurred, it prints the name of the log file that contains the error messages. The log file has the same timestamp.
You should implement the following tasks both for the infrastructure and for the middle tier:
Change directory to the Oracle9iAS Backup and Recovery Tool directory for the Oracle home you would like to back up. For example:
cd ORACLE_HOME/BackupTool
Run the following command. Use the -v option to see the list of files that are restored:
On Unix,
./bkp_restore.pl [-v] -m restore_config -t backup_dir_name
On Windows,
perl bkp_restore.pl [-v] -m restore_config -t backup_dir_name
The tool copies all files in the backup to the Oracle home. If any errors occurred, it prints the name of the log file that contains the error messages. After all files have been restored, the tool performs dcmctl updateConfig to sync up the DCM-related configuration files with the DCM repository.
This section deals with particulars of cold database backup, online database backup, and restoring a database using the Oracle9iAS Backup and Recovery Tool.
Leave the database open. The tool will take care of stopping it and starting it again when finished.
Set the ORACLE_HOME environment variable to the infrastructure Oracle home.
Set the ORACLE_SID environment variable to the infrastructure SID. The default is iasdb.
Change directory to the Oracle9iAS Backup and Recovery Tool directory for the infrastructure Oracle home:
cd ORACLE_HOME/BackupTool
Run the following command. Use the -v option to see the list of files that are backed up. This command stores a datafile backup and a control file backup in the database_backup_path specified in config.inp. It also stores timestamped log files in log_path.
On Unix, ./bkp_restore.pl -m backup_cold
On Windows, perl bkp_restore.pl -m backup_cold
To backup the infostore database, use RMAN or customized scripts.
Leave the database open.
Set the ORACLE_HOME environment variable to the infrastructure Oracle home.
Set the ORACLE_SID environment variable to the infrastructure SID. The default is iasdb.
Change directory to the Oracle9iAS Backup and Recovery Tool directory for the infrastructure Oracle home.
cd ORACLE_HOME/BackupTool
Run the following command. Use the -v option to see the list of files that are backed up. This command stores a datafile backup and a control file backup in the database_backup_path specified in config.inp. It also stores timestamped log files in log_path.
On Unix, ./bkp_restore.pl -m backup_online
On Windows, perl bkp_restore.pl -m backup_online
To backup the infostore database, use RMAN or customized scripts.
Shut down the database.
Set the ORACLE_HOME environment variable to the infrastructure Oracle home.
Set the ORACLE_SID environment variable to the infrastructure SID. The default is iasdb.
Change directory to the Oracle9iAS Backup and Recovery Tool directory for the infrastructure Oracle home.
cd ORACLE_HOME/BackupTool
Restore the database:
On Unix, ./bkp_restore.pl -m restore_db
On Windows, perl bkp_restore.pl -m restore_db
To restore the infostore database, use RMAN or customized scripts.
The basic outline of backup procedures follows.
Immediately after you install Oracle Collaboration Suite,
Download and configure the Oracle9iAS Backup and Recovery Tool, as described in Section 4.2, "Downloading and Configuring the Oracle9iAS Backup and Recovery Tool".
Set up RMAN or customized scripts for backup and recovery of the infostore; see Section 3.3, "Oracle Database Backup Methodology".
Enable ARCHIVELOG mode in the infrastructure and infostore databases, as described in Section 6.4.1, "Enabling ARCHIVELOG Mode".
Create a record of your Oracle Collaboration Suite environment, as described in Section 6.4.2, "Creating a Record of Your Oracle Collaboration Suite Configuration".
Perform a complete cold backup of your Oracle Collaboration Suite environment, as described in Section 6.4.3, "Performing a Complete Cold Backup of Your Oracle Collaboration Suite Environment".
Perform regular partial online backups of your Oracle Collaboration Suite environment, as described in Section 6.4.4, "Performing a Partial Online Backup of Your Oracle Collaboration Suite Environment".
Whenever you need to upgrade or patch Oracle Collaboration Suite or your operating system,
Update the record of your Oracle Collaboration Suite environment, as described in Section 6.4.2, "Creating a Record of Your Oracle Collaboration Suite Configuration".
Perform a complete cold backup of your Oracle Collaboration Suite environment, as described in Section 6.4.3, "Performing a Complete Cold Backup of Your Oracle Collaboration Suite Environment".
Perform regular online backups of your Oracle Collaboration Suite environment, as described in Section 6.4.4, "Performing a Partial Online Backup of Your Oracle Collaboration Suite Environment".
Additional tips:
Create a backup of the JRE/JDK on your system. This isn't an Oracle product, but it is utilized by Oracle Collaboration Suite and, if accidentally lost or corrupted, would need to be restored in order for Oracle Collaboration Suite to function. This issue applies to HP-UX, HP Tru64, and IBM AIX systems.
Make sure your backups are valid by routinely verifying that they can be restored.
By default, the infrastructure and infostore do not have ARCHIVELOG mode enabled. You should enable ARCHIVELOG mode before you perform your first complete cold backup. Otherwise, your backup control files will contain the NOARCHIVELOG mode setting. These steps should be used for both the infrastructure and the infostore.
To enable ARCHIVELOG mode:
Step 1: Set up archive logging parameters
On Unix, edit the file INFRA_ORACLE_HOME/dbs/init.ora:
Uncomment the following line by removing the initial '#' character so it appears like this:
log_archive_start = true
[Optional] The default destination directory for archive logs is INFRA_ORACLE_HOME/rdbms. If you would like to use a different directory, uncomment the following line and specify the directory:
log_archive_dest = '/disk1/archive'
[Optional] The default filename format for archive logs is TthreadSsequence.ARC. If you would like to use a different format, uncomment the following line and specify a format:
log_archive_format = arch%s.arc
On Windows, edit the file:
INFRA_ORACLE_HOME\..\admin\iasdb\pfile\init.ora
Add the following line anywhere in the file:
log_archive_start = true
[Optional] The default destination directory for archive logs is INFRA_ORACLE_HOME\rdbms. If you would like to use a different directory, add the following line and specify the directory:
log_archive_dest = ' C:\database_archives\'
[Optional] The default filename format for archive logs is TthreadSsequence.ARC. If you would like to use a different format, add the following line and specify a format:
log_archive_format = arch%s.arc
Step 2: Set the ORACLE_HOME and Oracle_SID variables
Make sure the ORACLE_HOME and ORACLE_SID environment variables are properly set; the default is iasdb.
Step 3: Check for active users
Make sure nobody is using the database.
Step 4: Shut down database
Perform a clean, normal shutdown of the database instance.
INFRA_ORACLE_HOME/bin/sqlplus /nolog SQL> connect sys/password as sysdba SQL> shutdown
Step 5: Start up the database
Start up the instance and mount, but do not open, the database.
SQL> startup mount;
Step 6: Turn on ARCHIVELOG
Enable database ARCHIVELOG mode.
SQL> alter database archivelog; SQL> alter system set log_archive_start=true scope=spfile;
Step 7: Shut down and restart database
Shut down and restart the database instance.
SQL> shutdown SQL> startup
Step 8: Verify that ARCHIVELOG is on
Verify the database is now in ARCHIVELOG mode. Execute the following command and verify that the database log mode is 'Archive Mode' and automatic archival is enabled.
SQL> archive log list; Database log mode Archive Mode Automatic archival Enabled Archive destination /private/oraocs/dbs/arch Oldest on-line log sequence 19 Next log sequence to archive 21 Current log sequence 21
|
See Also: Oracle9i Database Administrator's Guide Release 1 (9.0.1) for more detailed information on the parameters in this section, and on setting up archive logging in general. |
In the event you need to restore and recover your Oracle Collaboration Suite environment, it is important to have all the necessary information at your disposal. This is especially true in the event of a hardware loss that requires you to reconstruct all or part of your Oracle Collaboration Suite environment on a new disk or host.
You should maintain an up-to-date record of your Oracle Collaboration Suite environment that includes the information listed in this section. You should keep this information both in hardcopy and electronic form. The electronic form should be stored on a host or email system that is completely separate from your Oracle Collaboration Suite environment.
Your Oracle Collaboration Suite hardware and software configuration record should include the following information:
Host For each host in your environment, include:
Hostname
Virtual hostname, if any
Domain name
IP address
Hardware platform
Operating system release level and patch information
Oracle Collaboration Suite For each Oracle Collaboration Suite installation in your environment, include:
Installation type (Infrastructure, J2EE and Web Cache, Portal and Wireless)
Host on which the installation resides
Amount of disk space used by the installation
Port numbers used by the installation
On a Unix system,
User name, userid number, group name, groupid number, environment profile, and type of shell for the operating system user that owns the Oracle home (/etc/passwd and /etc/group entries)
Directory structure, mount points, and full path for ORACLE_HOME
Infrastructure and Infostore For infrastructure and infostore databases, include:
Database version and patch level
Base language
Character set
Database name
SID
This section describes how to perform an complete cold backup of your Oracle Collaboration Suite environment. The steps are:
Step 1: Shut down your Oracle Collaboration Suite Environment
Stop the middle tier instance by following steps in Section 6.7.2, "Stopping the Middle Tier Instance"
Stop the infrastructure by following steps in Section 6.7.4, "Stopping the Infrastructure".
Stop the infostore by following steps in Section 6.7.6, "Stopping the Infostore"
Step 2: Back up the infrastructure
Perform a cold database backup of the infrastructure database using either your own procedures or the Oracle9iAS Backup and Recovery Tool. Note that the Oracle9iAS Backup and Recovery Tool leaves the infrastructure database running. You should shut it down before proceeding with these steps:
cd INFRA_BACKUP_TOOL_DIRECTORY
On Unix, ./bkp_restore.pl -m backup_cold
On Windows, perl bkp_restore.pl -m backup_cold
Perform a complete backup of all files in the infrastructure Oracle home using your preferred operating system command, such as tar or cpio.
Be sure to perform this backup as root because some of the files in the Oracle home are owned by root. It is important to perform the backup so that file owners, groups, permissions, and timestamps are preserved.
cd INFRA_ORACLE_HOME tar cvf full_path_of_backup_file .
Perform a backup of all configuration files in the infrastructure Oracle home. The reason for doing a configuration file backup immediately after backing up the entire Oracle home is that it provides a snapshot of your initial configuration files, in case you start to reconfigure your system and then would like to restore the configuration files to their original state.
For example, to do this using the Oracle9iAS Backup and Recovery Tool:
cd INFRA_BACKUP_TOOL_DIRECTORY
On Unix, ./bkp_restore.pl -m backup_config
On Windows, perl bkp_restore.pl -m backup_config
Step 3: Back up the infostore
To backup the infostore database, use RMAN or customized scripts.
Step 4: Back up the middle tier
Perform a complete backup of all files in the middle-tier Oracle home using your preferred operating system command, such as tar or cpio. Be sure to perform this backup as root because some of the files in the Oracle home are owned by root. It is important to perform the backup so that file owners, groups, permissions, and timestamps are preserved. For example:
cd MID_TIER_ORACLE_HOME tar cvf full_path_of_backup_file .
Perform a backup of all configuration files in the middle tier Oracle home. The reason for doing a configuration file backup immediately after backing up the entire Oracle home is that it provides a snapshot of your initial configuration files, in case you start to reconfigure your system and then would like to restore the configuration files to their original state.
To do this using the Oracle9iAS Backup and Recovery Tool:
cd MID_TIER_BACKUP_TOOL_DIRECTORY
On Unix, ./bkp_restore.pl -m backup_config
On Windows, perl bkp_restore.pl -m backup_config
Step 4: Back up your Oracle system files
On each host in your Oracle Collaboration Suite environment:
Make a backup of your Oracle system files using your preferred operating system command, such as tar or cpio. Consult your OS-specific documentation to determine which directory contains the Oracle system files.
On Unix, they may be in the /etc or the /var/opt/oracle directory.
If the oraInventory directory resides outside of your Oracle Collaboration Suite Oracle home, make a backup of it using your preferred operation system command, such as tar or cpio. Consult your OS-specific documentation to determine the location of the oraInventory directory.
On Unix, the location of the oraInventory directory may be listed in /etc/oraInst.loc or /var/opt/oracle/oraInst.loc.
On Windows, the location of the oraInventory directory can be obtained from the registry HKEY_LOCAL_MACHINE\SOFTWARE\ORACLE\INST_LOC.
Step 5: Start your Oracle Collaboration Suite environment
Start the infrastructure, as described in Section 6.7.3, "Starting the Infrastructure".
Start the infostore, as described in Section 6.7.5, "Starting the Infostore"
Start the middle tier instance, as described in Section 6.7.1, "Starting the Middle Tier Instance".
Perform subsequent partial online backups at regular intervals.These backups only contain configuration files, the infrastructure and the infostore.
You can set up a regularly scheduled job that performs a partial online backup. The frequency with which you perform a backup depends on how often you perform administrative operations on your Oracle Collaboration Suite environment, such as changing passwords, changing configuration parameters, installing new components, or deploying new applications.
Step 1: Back up the infrastructure
You can leave all infrastructure processes running while you perform this step.
Perform a backup of all configuration files in the infrastructure Oracle home. To do this using the Oracle9iAS Backup and Recovery Tool:
cd INFRA_BACKUP_TOOL_DIRECTORY
On Unix, ./bkp_restore.pl -m backup_config
On Windows, perl bkp_restore.pl -m backup_config
Perform an online database backup of the infrastructure database. You can perform this step using your own procedures or the Oracle9iAS Backup and Recovery Tool:
cd INFRA_BACKUP_TOOL_DIRECTORY
On Unix, ./bkp_restore.pl -m backup_online
On Windows, perl bkp_restore.pl -m backup_online
Step 2: Back up the Infostore
To backup the infostore database, use RMAN or customized scripts.
Step 3: Back up the Middle Tier
You can leave all middle tier processes running while you perform this step. Perform a backup of all configuration files in the middle tier Oracle home. To do this using the Oracle9iAS Backup and Recovery Tool:
cd MID_TIER_BACKUP_TOOL_DIRECTORY
On Unix, ./bkp_restore.pl -m backup_config
On Windows, perl bkp_restore.pl -m backup_config
This section describes restore and recovery methods for outages that involve actual data loss or corruption, host failure, or media failure where the host or disk cannot be restarted and are permanently lost. This type of failure requires some type of data restoration before the Oracle Collaboration Suite environment can be restarted and continue with normal processing.
The following procedures assume that:
ARCHIVELOG mode was enabled for all infrastructure and infostore backups.
No administrative changes were made since the last backup. If administrative changes were made since the last backup, they will need to be reapplied after restore and recovery is complete. Administrative changes include any operations that result in changes to configuration files or the infrastructure database, such as changing configuration parameters, passwords, or applications.
Complete recovery of the database can be performed; no redo log files have been lost.
When the loss happens in the infrastructure tier,
If any Oracle binaries have been lost or corrupted, you must recover the entire infrastructure, as described in Section 6.5.1, "Restoring an Infrastructure to the Same Host".
If the infrastructure database is corrupted due to data loss or media failure, you can restore and recover it, as described in Section 6.5.2, "Restoring and Recovering the Infrastructure".
If you lose any configuration files in the infrastructure Oracle home, you can restore them, as described in Section 6.5.4, "Restoring Infrastructure Configuration Files".
If you lose some configuration files and the infrastructure database is corrupted, you can restore and recover both, as described in Section 6.5.4, "Restoring Infrastructure Configuration Files" and Section 6.5.2, "Restoring and Recovering the Infrastructure".
When the loss happens in the infostore tier, use RMAN or customized scripts.
When the loss happens in the middle tier,
If any Oracle binaries have been lost or corrupted, you must restore the entire middle tier to the same host, as described in Section 6.5.5, "Restoring a Middle Tier to the Same Host"
If you lose any configuration files in the middle tier Oracle home, you can restore them., as described in Section 6.5.6, "Restoring Middle Tier Configuration Files".
This section describes how to restore and recover an infrastructure to the same host. Use this procedure when you have lost some or all of your Oracle binaries.
Step 1: Stop the infrastructure
Follow the steps in Section 6.7.4, "Stopping the Infrastructure"
Step 2: Stop the infostore
Follow the steps in Section 6.7.6, "Stopping the Infostore"
Step 3: Restore the infrastructure Oracle home
Restore the backup (tar, cpio) of the infrastructure Oracle home from your complete cold backup. Be sure your method of restoring the files preserves the original owner, group, permissions, and timestamps. To do this using the Oracle9iAS Backup and Recovery Tool:
cd BACKUP_TOOL_DIRECTORY
On Unix,
./bkp_restore.pl -m restore_config -t config_bkp_timestamp
On Windows,
perl bkp_restore.pl -m restore_config -t config_bkp_timestamp
Restore the configuration file backup from your most recent partial online backup.
Step 4: Restore the infostore Oracle home
Use RMAN or customized scripts.
Step 5: Restore and recover the infrastructure
Restore and recover the infrastructure database from your latest backup. To do this using the Oracle9iAS Backup and Recovery Tool:
cd BACKUP_TOOL_DIRECTORY
On Unix, ./bkp_restore.pl -m restore_db
On Windows, perl bkp_restore.pl -m restore_db
Step 6: Restore and recover the infostore
Use RMAN or customized scripts.
Step 7: Start the infrastructure
Follow the steps in Section 6.7.3, "Starting the Infrastructure".
Step 8: Start the infostore
Follow the steps in Section 6.7.5, "Starting the Infostore".
If only the infrastructure has been corrupted, and other files in the Oracle home are not damaged, you should restore and recover the infrastructure database from your latest backup using your own procedures, or the Oracle9iAS Backup and Recovery Tool:
cd BACKUP_TOOL_DIRECTORY
On Unix, ./bkp_restore.pl -m restore_db
On Windows, perl bkp_restore.pl -m restore_db
This section describes how to restore the configuration files in an infrastructure Oracle home. Use this procedure when any configuration files have been lost or corrupted.
Step 1: Stop the infrastructure
Follow the steps in Section 6.7.4, "Stopping the Infrastructure".
Step 2: Restore configuration files
Restore the configuration files from your most recent partial online backup. To do this using the Oracle9iAS Backup and Recovery Tool:
cd BACKUP_TOOL_DIRECTORY
On Unix,
./bkp_restore.pl -m restore_config -t config_bkp_timestamp
On Windows,
perl bkp_restore.pl -m restore_config -t config_bkp_timestamp
Step 3: Apply recent administrative changes
If you made any administrative changes since the last time you did a partial online backup, reapply them now.
Step 4: Start the infrastructure
Follow the steps in Section 6.7.3, "Starting the Infrastructure"
This section describes how to restore a middle tier to the same host. Use this procedure when you have lost some or all of your Oracle binaries.
Step 1: Stop the middle tier instance
Follow the steps in Section 6.7.2, "Stopping the Middle Tier Instance".
Step 2: Make sure the infrastructure is up
If the middle tier is associated with an infrastructure, make sure the infrastructure is up and running while you restore the middle tier. This is because there is a step in the recovery procedure that involves syncing up configuration files between the middle tier and the infrastructure.
Step 3: Restore the middle tier Oracle home
Restore the backup (tar, cpio) of the middle tier Oracle home from your complete cold backup. Be sure your method of restoring the files preserves the original owner, group, permissions, and timestamps.
Restore the configuration file backup from your most recent partial online backup. To do this using the Oracle9iAS Backup and Recovery Tool:
cd BACKUP_TOOL_DIRECTORY
On Unix,
./bkp_restore.pl -m restore_config -t config_bkp_timestamp
On Windows,
perl bkp_restore.pl -m restore_config -t config_bkp_timestamp
Step 4: Start the middle tier
Follow the steps in Section 6.7.1, "Starting the Middle Tier Instance".
This section describes how to restore the configuration files in a middle-tier Oracle home. Use this procedure when any configuration files have been lost or corrupted.
Step 1: Stop the middle tier
Follow the steps in Section 6.7.2, "Stopping the Middle Tier Instance".
Step 2: Restore configuration files
Restore the configuration files from your most recent partial online backup. To do this using the Oracle9iAS Backup and Recovery Tool:
cd BACKUP_TOOL_DIRECTORY
On Unix,
./bkp_restore.pl -m restore_config -t config_bkp_timestamp
On Windows,
perl bkp_restore.pl -m restore_config -t config_bkp_timestamp
Step 3: Apply recent administrative changes
If you made any administrative changes since the last time you did a partial online backup, reapply them now.
Step 4: Start the middle tier
Follow the steps in Section 6.7.1, "Starting the Middle Tier Instance".
This section describes recovery strategies for process or system outages and crashes. These types of outages do not involve any data loss, and therefore do not require any files to be restored or recovered. In some cases, failure may be transparent and no manual intervention is required to restore the failed component. However, in some cases, manual intervention is required to restart a process or component.
While these strategies do not strictly fit into the category of backup and recovery, they are included in this document for completeness.
When determining which restore and recovery strategy to use, you should identify the scope of loss (middle tier or infrastructure), identify the type of loss, and follow the recovery strategy. The strategies refer to specific recovery procedures. If the loss occurred in both the infrastructure and middle tier, follow the infrastructure recovery strategy first, then the middle tier recovery strategy.
To restart:
Reboot the host.
Follow the steps in Section 6.7.3, "Starting the Infrastructure".
To check status:
Try connecting to the database using SQL*Plus.
Check the state as follows:
SQL> select status from v$instance;
To restart:
ORACLE_HOME/bin/sqlplus /nolog
SQL> connect sys/password as sysdba
SQL> startup
SQL> quit
To check status:
ORACLE_HOME/bin/lsnrctl status
For Windows only, use the Services tool in the Control Panel to check the status
To restart:
ORACLE_HOME/bin/lsnrctl start
For Windows only, use the Services tool in the Control Panel to start the listener
To check status:
ORACLE_HOME/ldap/bin/ldapbind -h OID_HOST -p OID_PORT
For Windows only, use the Services tool in the Control Panel to check the status
To restart:
ORACLE_HOME/bin/oidctl
server=oidldapd \ configset=0 instance=1 start
For Windows only, use the Services tool in the Control Panel to start the OID
To check status:
ORACLE_HOME/ldap/bin/ldapbind -h OID_HOST -p OID_PORT
To restart:
ORACLE_HOME/bin/oidmon start
To check status:
ORACLE_HOME/bin/emctl status
For Windows only, use the Services tool in the Control Panel to check status
To restart:.
ORACLE_HOME/bin/emctl start
For Windows only, use the Services tool in the Control Panel to start the EM Web site.
To check status:
ORACLE_HOME/dcm/bin/dcmctl getState
To restart:
ORACLE_HOME/dcm/bin/dcmctl start -ct ohs -v
To check status:
ORACLE_HOME/dcm/bin/dcmctl getState
To restart:
ORACLE_HOME/dcm/bin/dcmctl start -ct oc4j -v
To check status:
ORACLE_HOME/dcm/bin/dcmctl getState
To restart:
ORACLE_HOME/dcm/bin/dcmctl start -co OC4J_DAS -v
To check status:
ORACLE_HOME/opmn/bin/opmnctl status
To restart:
ORACLE_HOME/opmn/bin/opmnctl startall
To restart:
Reboot the host.
Follow the steps in Section 6.7.5, "Starting the Infostore".
To check status:
Try connecting to the database using SQL*Plus.
Check the state as follows:
SQL> select status from v$instance;
To restart:
ORACLE_HOME/bin/sqlplus /nolog
SQL> connect sys/password as sysdba
SQL> startup
SQL> quit
To check status:
ORACLE_HOME/bin/lsnrctl status
For Windows only, use the Services tool in the Control Panel to check the status
To restart:
ORACLE_HOME/bin/lsnrctl start
For Windows only, use the Services tool in the Control Panel to start the listener
To restart:
Reboot the host.
Follow the steps in Section 6.7.1, "Starting the Middle Tier Instance"
To check status:
ORACLE_HOME/bin/emctl status
To restart:
ORACLE_HOME/bin/emctl start
To check status:
ORACLE_HOME/dcm/bin/dcmctl getState
To restart:
ORACLE_HOME/dcm/bin/dcmctl start -ct ohs -v
To check status:
ORACLE_HOME/dcm/bin/dcmctl getState
To restart:
ORACLE_HOME/dcm/bin/dcmctl start -ct oc4j -v
To check status:
ORACLE_HOME/dcm/bin/dcmctl getState
To restart:
ORACLE_HOME/dcm/bin/dcmctl start -co OC4J_Portal -v
This section contains procedures for starting and stopping middle-tier instances and infrastructures.
Set the ORACLE_HOME environment variable to the middle-tier Oracle home.
For Unix only, set the LD_LIBRARY_PATH environment variable to $ORACLE_HOME/lib.
Start OPMN, Oracle HTTP Server, and all OC4J instances:
ORACLE_HOME/dcm/bin/dcmctl start -v
Start Oracle Collaboration Suite Web Cache (if configured):
ORACLE_HOME/bin/webcachectl start
Start Discoverer (if configured):
ORACLE_HOME/discoverer902/util/startall.sh
Start Reports (if configured):
ORACLE_HOME/bin/rwserver.sh server=name
Start the Enterprise Manager Web site:
ORACLE_HOME/bin/emctl start
Set the ORACLE_HOME environment variable to the middle-tier Oracle home.
Stop the Enterprise Manager Web site:
ORACLE_HOME/bin/emctl stop
Stop Reports (if configured):
ORACLE_HOME/bin/rwserver.sh server-name shutdown=yes
Stop Discoverer (if configured):
ORACLE_HOME/discoverer902/util/stopall.sh
Stop Oracle Collaboration Suite Web Cache (if configured):
ORACLE_HOME/bin/webcachectl stop
Stop Oracle HTTP Server, and all OC4J instances:
ORACLE_HOME/dcm/bin/dcmctl stop -v
Stop OPMN:
ORACLE_HOME/opmn/bin/opmnctl stopall
Set the ORACLE_HOME environment variable to the infrastructure Oracle home.
Set the ORACLE_SID environment variable to the infrastructure database SID. The default is iasdb.
For Unix only, set the LD_LIBRARY_PATH environment variable to $ORACLE_HOME/lib.
Start the infrastructure database:
ORACLE_HOME/bin/lsnrctl start ORACLE_HOME/bin/sqlplus /nolog SQL> connect sys/password as sysdba SQL> startup SQL> quit
Start Oracle Internet Directory.
Start the Oracle Internet Directory monitor and Wait approximately 30 seconds:
ORACLE_HOME/bin/oidmon start
Start the Oracle Internet Directory server:
ORACLE_HOME/bin/oidctl server=oidldapd configset=0 instance=1 start
Start OPMN, Oracle HTTP Server, and all OC4J instances:
ORACLE_HOME/dcm/bin/dcmctl start -v
Start Oracle Collaboration Suite Web Cache (if configured); by default, Web Cache is not configured in an infrastructure:
ORACLE_HOME/bin/webcachectl start
Start the Enterprise Manager Web site:
ORACLE_HOME/bin/emctl start
Start Intelligent Agent and Oracle Management Server (if configured):
ORACLE_HOME/bin/agentctl start agent ORACLE_HOME/bin/oemctl start oms
Set the ORACLE_HOME environment variable to the infrastructure Oracle home.
Set the ORACLE_SID environment variable to the infrastructure database SID. The default is iasdb.
Stop Oracle Management Server and Intelligent Agent (if configured):
ORACLE_HOME/bin/oemctl stop oms ORACLE_HOME/bin/agentctl stop agent
Stop the Enterprise Manager Web site:
ORACLE_HOME/bin/emctl stop
Stop Oracle Collaboration Suite Web Cache (if configured); by default, Web Cache is not configured in an infrastructure:
ORACLE_HOME/bin/webcachectl stop
Stop Oracle HTTP Server and all OC4J instances:
ORACLE_HOME/dcm/bin/dcmctl stop -v
Stop OPMN:
ORACLE_HOME/opmn/bin/opmnctl stopall
Stop Oracle Internet Directory:
Stop the Oracle Internet Directory server (n is the instance number):
ORACLE_HOME/bin/oidctl server=oidldapd instance=n stop
Stop the Oracle Internet Directory monitor (Wait approximately 30 seconds):
ORACLE_HOME/bin/oidmon stop
Stop the infrastructure database:
ORACLE_HOME/bin/sqlplus /nolog
SQL> connect sys/password as sysdba
SQL> shutdown
SQL> quit
ORACLE_HOME/bin/lsnrctl stop
Set the ORACLE_HOME environment variable to the infostore Oracle home.
Set the ORACLE_SID environment variable to the infostore database SID. The default is ocsdb.
For Unix only, set the LD_LIBRARY_PATH environment variable to $ORACLE_HOME/lib.
Start the database listener:
lsnrctl start
Check the database listener:
lsnrctl status
Start the infostore database:
ORACLE_HOME/bin/lsnrctl start ORACLE_HOME/bin/sqlplus /nolog SQL> connect sys/password as sysdba SQL> startup SQL> quit
Set the ORACLE_HOME environment variable to the infostore Oracle home.
Set the ORACLE_SID environment variable to the infostore SID. The default is ocsdb.
Stop the database listener:
lsnrctl stop
Stop the infostore database:
ORACLE_HOME/bin/sqlplus /nolog
SQL> connect sys/password as sysdba
SQL> shutdown
SQL> quit
Our goal is to make Oracle products, services, and supporting documentation accessible, with good usability, to the disabled community. To that end, our documentation includes features that make information available to users of assistive technology. This documentation is available in HTML format, and contains markup to facilitate access by the disabled community. Standards will continue to evolve over time, and Oracle is actively engaged with other market-leading technology vendors to address technical obstacles so that our documentation can be accessible to all of our customers. For additional information, visit the Oracle Accessibility Program Web site at
http://www.oracle.com/accessibility/
Accessibility of Code Examples in Documentation
JAWS, a Windows screen reader, may not always correctly read the code examples in this document. The conventions for writing code require that closing braces should appear on an otherwise empty line; however, JAWS may not always read a line of text that consists solely of a bracket or brace.
Accessibility of Links to External Web Sites in Documentation
This documentation may contain links to Web sites of other companies or organizations that Oracle does not own or control. Oracle neither evaluates nor makes any representations regarding the accessibility of these Web sites.
