This chapter shows how PL/SQL supports the SQL commands, functions, and operators that let you manipulate Oracle data.
This chapter contains these topics:
By extending SQL, PL/SQL offers a unique combination of power and ease of use. You can manipulate Oracle data flexibly and safely because PL/SQL fully supports all SQL data manipulation statements (except EXPLAIN
PLAN
), transaction control statements, functions, pseudocolumns, and operators. PL/SQL also conforms to the current ANSI/ISO SQL standard.
In addition to static SQL discussed in this chapter, PL/SQL also supports dynamic SQL, which enables you to execute SQL data definition, data control, and session control statements dynamically. See Chapter 7, "Performing SQL Operations with Native Dynamic SQL".
To manipulate Oracle data you can include DML operations, such as INSERT
, UPDATE
, and DELETE
statements, directly in PL/SQL programs, without any special notation, as shown in Example 6-1. You can also include the SQL COMMIT
statement directly in a PL/SQL program; see "Overview of Transaction Processing in PL/SQL". See also COMMIT
in the Oracle Database SQL Reference.
Example 6-1 Data Manipulation With PL/SQL
CREATE TABLE employees_temp AS SELECT employee_id, first_name, last_name FROM employees; DECLARE emp_id employees_temp.employee_id%TYPE; emp_first_name employees_temp.first_name%TYPE; emp_last_name employees_temp.last_name%TYPE; BEGIN INSERT INTO employees_temp VALUES(299, 'Bob', 'Henry'); UPDATE employees_temp SET first_name = 'Robert' WHERE employee_id = 299; DELETE FROM employees_temp WHERE employee_id = 299 RETURNING first_name, last_name INTO emp_first_name, emp_last_name; COMMIT; DBMS_OUTPUT.PUT_LINE( emp_first_name || ' ' || emp_last_name); END; /
To find out how many rows are affected by DML statements, you can check the value of SQL%ROWCOUNT
as shown in Example 6-2.
Example 6-2 Checking SQL%ROWCOUNT After an UPDATE
CREATE TABLE employees_temp AS SELECT * FROM employees; BEGIN UPDATE employees_temp SET salary = salary * 1.05 WHERE salary < 5000; DBMS_OUTPUT.PUT_LINE('Updated ' || SQL%ROWCOUNT || ' salaries.'); END; /
Wherever you would use literal values, or bind variables in some other programming language, you can directly substitute PL/SQL variables as shown in Example 6-3.
Example 6-3 Substituting PL/SQL Variables
CREATE TABLE employees_temp AS SELECT first_name, last_name FROM employees; DECLARE x VARCHAR2(20) := 'my_first_name'; y VARCHAR2(25) := 'my_last_name'; BEGIN INSERT INTO employees_temp VALUES(x, y); UPDATE employees_temp SET last_name = x WHERE first_name = y; DELETE FROM employees_temp WHERE first_name = x; COMMIT; END; /
With this notation, you can use variables in place of values in the WHERE
clause. To use variables in place of table names, column names, and so on, requires the EXECUTE IMMEDIATE
statement that is explained in "Using the EXECUTE IMMEDIATE Statement in PL/SQL".
For information on the use of PL/SQL records with SQL to update and insert data, see "Inserting PL/SQL Records into the Database" and "Updating the Database with PL/SQL Record Values".
For additional information on assigning values to PL/SQL variables, see "Assigning a SQL Query Result to a PL/SQL Variable".
Oracle is transaction oriented; that is, Oracle uses transactions to ensure data integrity. A transaction is a series of SQL data manipulation statements that does a logical unit of work. For example, two UPDATE
statements might credit one bank account and debit another. It is important not to allow one operation to succeed while the other fails.
At the end of a transaction that makes database changes, Oracle makes all the changes permanent or undoes them all. If your program fails in the middle of a transaction, Oracle detects the error and rolls back the transaction, restoring the database to its former state.
You use the COMMIT
, ROLLBACK
, SAVEPOINT
, and SET
TRANSACTION
commands to control transactions. COMMIT
makes permanent any database changes made during the current transaction. ROLLBACK
ends the current transaction and undoes any changes made since the transaction began. SAVEPOINT
marks the current point in the processing of a transaction. Used with ROLLBACK
, SAVEPOINT
undoes part of a transaction. SET
TRANSACTION
sets transaction properties such as read-write access and isolation level. See "Overview of Transaction Processing in PL/SQL".
PL/SQL recognizes the SQL pseudocolumns CURRVAL
, LEVEL
, NEXTVAL
, ROWID
, and ROWNUM
. However, there are limitations on the use of pseudocolumns, including the restriction on the use of some pseudocolumns in assignments or conditional tests. For additional information, including restrictions, on the use of SQL pseudocolumns, see Oracle Database SQL Reference.
CURRVAL and NEXTVAL
A sequence is a schema object that generates sequential numbers. When you create a sequence, you can specify its initial value and an increment.
CURRVAL
returns the current value in a specified sequence. Before you can reference CURRVAL
in a session, you must use NEXTVAL
to generate a number. A reference to NEXTVAL
stores the current sequence number in CURRVAL
. NEXTVAL
increments the sequence and returns the next value. To get the current or next value in a sequence, use dot notation:
sequence_name.CURRVAL
sequence_name.NEXTVAL
Each time you reference the NEXTVAL
value of a sequence, the sequence is incremented immediately and permanently, whether you commit or roll back the transaction.
After creating a sequence, you can use it to generate unique sequence numbers for transaction processing. You can use CURRVAL
and NEXTVAL
only in a SELECT
list, the VALUES
clause, and the SET
clause. Example 6-5 shows how to generate a new sequence number and refer to that same number in more than one statement.
Example 6-5 Using CURRVAL and NEXTVAL
CREATE TABLE employees_temp AS SELECT employee_id, first_name, last_name FROM employees; CREATE TABLE employees_temp2 AS SELECT employee_id, first_name, last_name FROM employees; DECLARE seq_value NUMBER; BEGIN -- Display initial value of NEXTVAL -- This is invalid: seq_value := employees_seq.NEXTVAL; SELECT employees_seq.NEXTVAL INTO seq_value FROM dual; DBMS_OUTPUT.PUT_LINE ('Initial sequence value: ' || TO_CHAR(seq_value)); -- The NEXTVAL value is the same no matter what table you select from -- You usually use NEXTVAL to create unique numbers when inserting data. INSERT INTO employees_temp VALUES (employees_seq.NEXTVAL, 'Lynette', 'Smith'); -- If you need to store the same value somewhere else, you use CURRVAL INSERT INTO employees_temp2 VALUES (employees_seq.CURRVAL, 'Morgan', 'Smith'); -- Because NEXTVAL values might be referenced by different users and -- applications, and some NEXTVAL values might not be stored in the -- database, there might be gaps in the sequence -- The following uses the stored value of the CURRVAL in seq_value to specify -- the record to delete because CURRVAL (or NEXTVAL) cannot used in a WHERE clause -- This is invalid: WHERE employee_id = employees_seq.CURRVAL; SELECT employees_seq.CURRVAL INTO seq_value FROM dual; DELETE FROM employees_temp2 WHERE employee_id = seq_value; -- The following udpates the employee_id with NEXTVAL for the specified record UPDATE employees_temp SET employee_id = employees_seq.NEXTVAL WHERE first_name = 'Lynette' AND last_name = 'Smith'; -- Display end value of CURRVAL SELECT employees_seq.CURRVAL INTO seq_value FROM dual; DBMS_OUTPUT.PUT_LINE ('Ending sequence value: ' || TO_CHAR(seq_value)); END; /
LEVEL
You use LEVEL
with the SELECT
CONNECT
BY
statement to organize rows from a database table into a tree structure. You might use sequence numbers to give each row a unique identifier, and refer to those identifiers from other rows to set up parent-child relationships. LEVEL
returns the level number of a node in a tree structure. The root is level 1, children of the root are level 2, grandchildren are level 3, and so on.
In the START
WITH
clause, you specify a condition that identifies the root of the tree. You specify the direction in which the query traverses the tree (down from the root or up from the branches) with the PRIOR
operator.
ROWID
ROWID
returns the rowid (binary address) of a row in a database table. You can use variables of type UROWID
to store rowids in a readable format.
When you select or fetch a physical rowid into a UROWID
variable, you can use the function ROWIDTOCHAR
, which converts the binary value to a character string. You can compare the UROWID
variable to the ROWID
pseudocolumn in the WHERE
clause of an UPDATE
or DELETE
statement to identify the latest row fetched from a cursor. For an example, see "Fetching Across Commits".
ROWNUM
ROWNUM
returns a number indicating the order in which a row was selected from a table. The first row selected has a ROWNUM
of 1, the second row has a ROWNUM
of 2, and so on. If a SELECT
statement includes an ORDER
BY
clause, ROWNUM
s are assigned to the retrieved rows before the sort is done; use a subselect to get the first n sorted rows. The value of ROWNUM
increases only when a row is retrieved, so the only meaningful uses of ROWNUM
in a WHERE
clause are:
... WHERE ROWNUM < constant;
... WHERE ROWNUM <= constant;
You can use ROWNUM
in an UPDATE
statement to assign unique values to each row in a table, or in the WHERE
clause of a SELECT
statement to limit the number of rows retrieved, as shown in Example 6-6.
CREATE TABLE employees_temp AS SELECT * FROM employees; DECLARE CURSOR c1 IS SELECT employee_id, salary FROM employees_temp WHERE salary > 2000 AND ROWNUM <= 10; -- 10 arbitrary rows CURSOR c2 IS SELECT * FROM (SELECT employee_id, salary FROM employees_temp WHERE salary > 2000 ORDER BY salary DESC) WHERE ROWNUM < 5; -- first 5 rows, in sorted order BEGIN -- Each row gets assigned a different number UPDATE employees_temp SET employee_id = ROWNUM; END; /
PL/SQL lets you use all the SQL comparison, set, and row operators in SQL statements. This section briefly describes some of these operators. For more information, see Oracle Database SQL Reference.
Comparison Operators
Typically, you use comparison operators in the WHERE
clause of a data manipulation statement to form predicates, which compare one expression to another and yield TRUE
, FALSE
, or NULL
. You can use the comparison operators in the following list to form predicates. You can combine predicates using the logical operators AND
, OR
, and NOT
.
Operator | Description |
---|---|
ALL |
Compares a value to each value in a list or returned by a subquery and yields TRUE if all of the individual comparisons yield TRUE . |
ANY , SOME |
Compares a value to each value in a list or returned by a subquery and yields TRUE if any of the individual comparisons yields TRUE . |
BETWEEN |
Tests whether a value lies in a specified range. |
EXISTS |
Returns TRUE if a subquery returns at least one row. |
IN |
Tests for set membership. |
IS NULL |
Tests for nulls. |
LIKE |
Tests whether a character string matches a specified pattern, which can include wildcards. |
Set Operators
Set operators combine the results of two queries into one result. INTERSECT
returns all distinct rows selected by both queries. MINUS
returns all distinct rows selected by the first query but not by the second. UNION
returns all distinct rows selected by either query. UNION
ALL
returns all rows selected by either query, including all duplicates.
Row Operators
Row operators return or reference particular rows. ALL
retains duplicate rows in the result of a query or in an aggregate expression. DISTINCT
eliminates duplicate rows from the result of a query or from an aggregate expression. PRIOR
refers to the parent row of the current row returned by a tree-structured query.
PL/SQL uses implicit and explicit cursors. PL/SQL declares a cursor implicitly for all SQL data manipulation statements, including queries that return only one row. If you want precise control over query processing, you can declare an explicit cursor in the declarative part of any PL/SQL block, subprogram, or package. You must declare an explicit cursor for queries that return more than one row.
Implicit cursors are managed automatically by PL/SQL so you are not required to write any code to handle these cursors. However, you can track information about the execution of an implicit cursor through its cursor attributes.
Implicit cursor attributes return information about the execution of DML and DDL statements, such INSERT
, UPDATE
, DELETE
, SELECT
INTO
, COMMIT
, or ROLLBACK
statements. The cursor attributes are %FOUND
, %ISOPEN
%NOTFOUND
, and %ROWCOUNT
. The values of the cursor attributes always refer to the most recently executed SQL statement. Before Oracle opens the SQL
cursor, the implicit cursor attributes yield NULL
.
The SQL
cursor has another attribute, %BULK_ROWCOUNT
, designed for use with the FORALL
statement. For more information, see "Counting Rows Affected by FORALL with the %BULK_ROWCOUNT Attribute".
%FOUND Attribute: Has a DML Statement Changed Rows?
Until a SQL data manipulation statement is executed, %FOUND
yields NULL
. Thereafter, %FOUND
yields TRUE
if an INSERT
, UPDATE
, or DELETE
statement affected one or more rows, or a SELECT
INTO
statement returned one or more rows. Otherwise, %FOUND
yields FALSE
. In Example 6-7, you use %FOUND
to insert a row if a delete succeeds.
CREATE TABLE dept_temp AS SELECT * FROM departments; DECLARE dept_no NUMBER(4) := 270; BEGIN DELETE FROM dept_temp WHERE department_id = dept_no; IF SQL%FOUND THEN -- delete succeeded INSERT INTO dept_temp VALUES (270, 'Personnel', 200, 1700); END IF; END; /
%ISOPEN Attribute: Always FALSE for Implicit Cursors
Oracle closes the SQL cursor automatically after executing its associated SQL statement. As a result, %ISOPEN
always yields FALSE
.
%NOTFOUND Attribute: Has a DML Statement Failed to Change Rows?
%NOTFOUND
is the logical opposite of %FOUND
. %NOTFOUND
yields TRUE
if an INSERT
, UPDATE
, or DELETE
statement affected no rows, or a SELECT
INTO
statement returned no rows. Otherwise, %NOTFOUND
yields FALSE
.
%ROWCOUNT Attribute: How Many Rows Affected So Far?
%ROWCOUNT
yields the number of rows affected by an INSERT
, UPDATE
, or DELETE
statement, or returned by a SELECT
INTO
statement. %ROWCOUNT
yields 0
if an INSERT
, UPDATE
, or DELETE
statement affected no rows, or a SELECT
INTO
statement returned no rows. In Example 6-8, %ROWCOUNT
returns the number of rows that have been deleted.
Example 6-8 Using SQL%ROWCOUNT
CREATE TABLE employees_temp AS SELECT * FROM employees; DECLARE mgr_no NUMBER(6) := 122; BEGIN DELETE FROM employees_temp WHERE manager_id = mgr_no; DBMS_OUTPUT.PUT_LINE('Number of employees deleted: ' || TO_CHAR(SQL%ROWCOUNT)); END; /
If a SELECT
INTO
statement returns more than one row, PL/SQL raises the predefined exception TOO_MANY_ROWS
and %ROWCOUNT
yields 1
, not the actual number of rows that satisfy the query.
The value of the SQL%ROWCOUNT
attribute refers to the most recently executed SQL statement from PL/SQL. To save an attribute value for later use, assign it to a local variable immediately.
The SQL%ROWCOUNT
attribute is not related to the state of a transaction. When a rollback to a savepoint is performed, the value of SQL%ROWCOUNT
is not restored to the old value before the savepoint was taken. Also, when an autonomous transaction is exited, SQL%ROWCOUNT
is not restored to the original value in the parent transaction.
The following are considerations when using attributes of implicit cursors:
The values of the cursor attributes always refer to the most recently executed SQL statement, wherever that statement is. It might be in a different scope (for example, in a sub-block). To save an attribute value for later use, assign it to a local variable immediately. Doing other operations, such as procedure calls, might change the value of the variable before you can test it.
The %NOTFOUND
attribute is not useful in combination with the SELECT INTO
statement:
If a SELECT
INTO
statement fails to return a row, PL/SQL raises the predefined exception NO_DATA_FOUND
immediately, interrupting the flow of control before you can check %NOTFOUND
.
A SELECT
INTO
statement that calls a SQL aggregate function always returns a value or a null. After such a statement, the %NOTFOUND
attribute is always FALSE
, so checking it is unnecessary.
When you need precise control over query processing, you can explicitly declare a cursor in the declarative part of any PL/SQL block, subprogram, or package.
You use three commands to control a cursor: OPEN
, FETCH
, and CLOSE
. First, you initialize the cursor with the OPEN
statement, which identifies the result set. Then, you can execute FETCH
repeatedly until all rows have been retrieved, or you can use the BULK
COLLECT
clause to fetch all rows at once. When the last row has been processed, you release the cursor with the CLOSE
statement.
This technique requires more code than other techniques such as the implicit cursor FOR loop. Its advantage is flexibility. You can:
Process several queries in parallel by declaring and opening multiple cursors.
Process multiple rows in a single loop iteration, skip rows, or split the processing into more than one loop.
You must declare a cursor before referencing it in other statements. You give the cursor a name and associate it with a specific query. You can optionally declare a return type for the cursor, such as table_name
%ROWTYPE
. You can optionally specify parameters that you use in the WHERE
clause instead of referring to local variables. These parameters can have default values. Example 6-9 shows how you can declare cursors.
Example 6-9 Declaring a Cursor
DECLARE my_emp_id NUMBER(6); -- variable for employee_id my_job_id VARCHAR2(10); -- variable for job_id my_sal NUMBER(8,2); -- variable for salary CURSOR c1 IS SELECT employee_id, job_id, salary FROM employees WHERE salary > 2000; my_dept departments%ROWTYPE; -- variable for departments row CURSOR c2 RETURN departments%ROWTYPE IS SELECT * FROM departments WHERE department_id = 110;
The cursor is not a PL/SQL variable: you cannot assign values to a cursor or use it in an expression. Cursors and variables follow the same scoping rules. Naming cursors after database tables is possible but not recommended.
A cursor can take parameters, which can appear in the associated query wherever constants can appear. The formal parameters of a cursor must be IN
parameters; they supply values in the query, but do not return any values from the query. You cannot impose the constraint NOT
NULL
on a cursor parameter.
As the following example shows, you can initialize cursor parameters to default values. You can pass different numbers of actual parameters to a cursor, accepting or overriding the default values as you please. Also, you can add new formal parameters without having to change existing references to the cursor.
DECLARE CURSOR c1 (low NUMBER DEFAULT 0, high NUMBER DEFAULT 99) IS SELECT * FROM departments WHERE department_id > low AND department_id < high;
Cursor parameters can be referenced only within the query specified in the cursor declaration. The parameter values are used by the associated query when the cursor is opened.
Opening the cursor executes the query and identifies the result set, which consists of all rows that meet the query search criteria. For cursors declared using the FOR
UPDATE
clause, the OPEN
statement also locks those rows. An example of the OPEN
statement follows:
DECLARE CURSOR c1 IS SELECT employee_id, last_name, job_id, salary FROM employees WHERE salary > 2000; BEGIN OPEN C1;
Rows in the result set are retrieved by the FETCH
statement, not when the OPEN
statement is executed.
Unless you use the BULK
COLLECT
clause, discussed in "Fetching with a Cursor", the FETCH
statement retrieves the rows in the result set one at a time. Each fetch retrieves the current row and advances the cursor to the next row in the result set. You can store each column in a separate variable, or store the entire row in a record that has the appropriate fields, usually declared using %ROWTYPE
.
For each column value returned by the query associated with the cursor, there must be a corresponding, type-compatible variable in the INTO
list. Typically, you use the FETCH
statement with a LOOP
and EXIT WHEN .. NOTFOUND
statements, as shown in Example 6-10. Note the use of built-in regular expression functions in the queries.
Example 6-10 Fetching With a Cursor
DECLARE v_jobid employees.job_id%TYPE; -- variable for job_id v_lastname employees.last_name%TYPE; -- variable for last_name CURSOR c1 IS SELECT last_name, job_id FROM employees WHERE REGEXP_LIKE (job_id, 'S[HT]_CLERK'); v_employees employees%ROWTYPE; -- record variable for row CURSOR c2 is SELECT * FROM employees WHERE REGEXP_LIKE (job_id, '[ACADFIMKSA]_M[ANGR]'); BEGIN OPEN c1; -- open the cursor before fetching LOOP FETCH c1 INTO v_lastname, v_jobid; -- fetches 2 columns into variables EXIT WHEN c1%NOTFOUND; DBMS_OUTPUT.PUT_LINE( RPAD(v_lastname, 25, ' ') || v_jobid ); END LOOP; CLOSE c1; DBMS_OUTPUT.PUT_LINE( '-------------------------------------' ); OPEN c2; LOOP FETCH c2 INTO v_employees; -- fetches entire row into the v_employees record EXIT WHEN c2%NOTFOUND; DBMS_OUTPUT.PUT_LINE( RPAD(v_employees.last_name, 25, ' ') || v_employees.job_id ); END LOOP; CLOSE c2; END; /
The query can reference PL/SQL variables within its scope. Any variables in the query are evaluated only when the cursor is opened. In Example 6-11, each retrieved salary is multiplied by 2
, even though factor
is incremented after every fetch.
Example 6-11 Referencing PL/SQL Variables Within Its Scope
DECLARE my_sal employees.salary%TYPE; my_job employees.job_id%TYPE; factor INTEGER := 2; CURSOR c1 IS SELECT factor*salary FROM employees WHERE job_id = my_job; BEGIN OPEN c1; -- factor initially equals 2 LOOP FETCH c1 INTO my_sal; EXIT WHEN c1%NOTFOUND; factor := factor + 1; -- does not affect FETCH END LOOP; CLOSe c1; END; /
To change the result set or the values of variables in the query, you must close and reopen the cursor with the input variables set to their new values. However, you can use a different INTO
list on separate fetches with the same cursor. Each fetch retrieves another row and assigns values to the target variables, as shown inExample 6-12.
Example 6-12 Fetching the Same Cursor Into Different Variables
DECLARE CURSOR c1 IS SELECT last_name FROM employees ORDER BY last_name; name1 employees.last_name%TYPE; name2 employees.last_name%TYPE; name3 employees.last_name%TYPE; BEGIN OPEN c1; FETCH c1 INTO name1; -- this fetches first row FETCH c1 INTO name2; -- this fetches second row FETCH c1 INTO name3; -- this fetches third row CLOSE c1; END;/
If you fetch past the last row in the result set, the values of the target variables are undefined. Eventually, the FETCH
statement fails to return a row. When that happens, no exception is raised. To detect the failure, use the cursor attribute %FOUND
or %NOTFOUND
. For more information, see "Using Cursor Expressions".
The BULK
COLLECT
clause lets you fetch all rows from the result set at once. See "Retrieving Query Results into Collections with the BULK COLLECT Clause". In Example 6-13, you bulk-fetch from a cursor into two collections.
Example 6-13 Fetching Bulk Data With a Cursor
DECLARE TYPE IdsTab IS TABLE OF employees.employee_id%TYPE; TYPE NameTab IS TABLE OF employees.last_name%TYPE; ids IdsTab; names NameTab; CURSOR c1 IS SELECT employee_id, last_name FROM employees WHERE job_id = 'ST_CLERK'; BEGIN OPEN c1; FETCH c1 BULK COLLECT INTO ids, names; CLOsE c1; -- Here is where you process the elements in the collections FOR i IN ids.FIRST .. ids.LAST LOOP IF ids(i) > 140 THEN DBMS_OUTPUT.PUT_LINE( ids(i) ); END IF; END LOOP; FOR i IN names.FIRST .. names.LAST LOOP IF names(i) LIKE '%Ma%' THEN DBMS_OUTPUT.PUT_LINE( names(i) ); END IF; END LOOP; END; /
The CLOSE
statement disables the cursor, and the result set becomes undefined. Once a cursor is closed, you can reopen it, which runs the query again with the latest values of any cursor parameters and variables referenced in the WHERE
clause. Any other operation on a closed cursor raises the predefined exception INVALID_CURSOR
.
Every explicit cursor and cursor variable has four attributes: %FOUND
, %ISOPEN
%NOTFOUND
, and %ROWCOUNT
. When appended to the cursor or cursor variable name, these attributes return useful information about the execution of a SQL statement. You can use cursor attributes in procedural statements but not in SQL statements.
Explicit cursor attributes return information about the execution of a multi-row query. When an explicit cursor or a cursor variable is opened, the rows that satisfy the associated query are identified and form the result set. Rows are fetched from the result set.
%FOUND Attribute: Has a Row Been Fetched?
After a cursor or cursor variable is opened but before the first fetch, %FOUND
returns NULL
. After any fetches, it returns TRUE
if the last fetch returned a row, or FALSE
if the last fetch did not return a row. Example 6-14 uses %FOUND
to select an action.
DECLARE CURSOR c1 IS SELECT last_name, salary FROM employees WHERE ROWNUM < 11; my_ename employees.last_name%TYPE; my_salary employees.salary%TYPE; BEGIN OPEN c1; LOOP FETCH c1 INTO my_ename, my_salary; IF c1%FOUND THEN -- fetch succeeded DBMS_OUTPUT.PUT_LINE('Name = ' || my_ename || ', salary = ' || my_salary); ELSE -- fetch failed, so exit loop EXIT; END IF; END LOOP; END; /
If a cursor or cursor variable is not open, referencing it with %FOUND
raises the predefined exception INVALID_CURSOR
.
%ISOPEN Attribute: Is the Cursor Open?
%ISOPEN
returns TRUE
if its cursor or cursor variable is open; otherwise, %ISOPEN
returns FALSE
. Example 6-15 uses %ISOPEN
to select an action.
DECLARE CURSOR c1 IS SELECT last_name, salary FROM employees WHERE ROWNUM < 11; the_name employees.last_name%TYPE; the_salary employees.salary%TYPE; BEGIN IF c1%ISOPEN = FALSE THEN -- cursor was not already open OPEN c1; END IF; FETCH c1 INTO the_name, the_salary; CLOSE c1; END; /
%NOTFOUND Attribute: Has a Fetch Failed?
%NOTFOUND
is the logical opposite of %FOUND
. %NOTFOUND
yields FALSE
if the last fetch returned a row, or TRUE
if the last fetch failed to return a row. In Example 6-16, you use %NOTFOUND
to exit a loop when FETCH
fails to return a row.
DECLARE CURSOR c1 IS SELECT last_name, salary FROM employees WHERE ROWNUM < 11; my_ename employees.last_name%TYPE; my_salary employees.salary%TYPE; BEGIN OPEN c1; LOOP FETCH c1 INTO my_ename, my_salary; IF c1%NOTFOUND THEN -- fetch failed, so exit loop -- Another form of this test is "EXIT WHEN c1%NOTFOUND OR c1%NOTFOUND IS NULL;" EXIT; ELSE -- fetch succeeded DBMS_OUTPUT.PUT_LINE('Name = ' || my_ename || ', salary = ' || my_salary); END IF; END LOOP; END; /
Before the first fetch, %NOTFOUND
returns NULL
. If FETCH
never executes successfully, the loop is never exited, because the EXIT
WHEN
statement executes only if its WHEN
condition is true. To be safe, you might want to use the following EXIT
statement instead:
EXIT WHEN c1%NOTFOUND OR c1%NOTFOUND IS NULL;
If a cursor or cursor variable is not open, referencing it with %NOTFOUND
raises an INVALID_CURSOR
exception.
%ROWCOUNT Attribute: How Many Rows Fetched So Far?
When its cursor or cursor variable is opened, %ROWCOUNT
is zeroed. Before the first fetch, %ROWCOUNT
yields 0
. Thereafter, it yields the number of rows fetched so far. The number is incremented if the last fetch returned a row. Example 6-17 uses %ROWCOUNT
to test if more than ten rows have been fetched.
DECLARE CURSOR c1 IS SELECT last_name FROM employees WHERE ROWNUM < 11; name employees.last_name%TYPE; BEGIN OPEN c1; LOOP FETCH c1 INTO name; EXIT WHEN c1%NOTFOUND OR c1%NOTFOUND IS NULL; DBMS_OUTPUT.PUT_LINE(c1%ROWCOUNT || '. ' || name); IF c1%ROWCOUNT = 5 THEN DBMS_OUTPUT.PUT_LINE('--- Fetched 5th record ---'); END IF; END LOOP; CLOSE c1; END; /
If a cursor or cursor variable is not open, referencing it with %ROWCOUNT
raises INVALID_CURSOR
.
Table 6-1 shows what each cursor attribute returns before and after you execute an OPEN
, FETCH
, or CLOSE
statement.
Table 6-1 Cursor Attribute Values
%FOUND | %ISOPEN | %NOTFOUND | %ROWCOUNT | ||
---|---|---|---|---|---|
OPEN | before | exception | FALSE |
exception | exception |
after | NULL |
TRUE |
NULL |
0 | |
First FETCH | before | NULL |
TRUE |
NULL |
0 |
after | TRUE |
TRUE |
FALSE |
1 | |
Next FETCH(es) | before | TRUE |
TRUE |
FALSE |
1 |
after | TRUE |
TRUE |
FALSE |
data dependent | |
Last FETCH | before | TRUE |
TRUE |
FALSE |
data dependent |
after | FALSE |
TRUE |
TRUE |
data dependent | |
CLOSE | before | FALSE |
TRUE |
TRUE |
data dependent |
after | exception | FALSE |
exception | exception |
The following applies to the information in Table 6-1:
Referencing %FOUND
, %NOTFOUND
, or %ROWCOUNT
before a cursor is opened or after it is closed raises INVALID_CURSOR
.
After the first FETCH
, if the result set was empty, %FOUND
yields FALSE
, %NOTFOUND
yields TRUE
, and %ROWCOUNT
yields 0.
PL/SQL lets you perform queries (SELECT
statements in SQL) and access individual fields or entire rows from the result set. In traditional database programming, you process query results using an internal data structure called a cursor. In most situations, PL/SQL can manage the cursor for you, so that code to process query results is straightforward and compact. This section discusses how to process both simple queries where PL/SQL manages everything, and complex queries where you interact with the cursor.
If you expect a query to only return one row, you can write a regular SQL SELECT
statement with an additional INTO
clause specifying the PL/SQL variable to hold the result.
If the query might return more than one row, but you do not care about values after the first, you can restrict any result set to a single row by comparing the ROWNUM
value. If the query might return no rows at all, use an exception handler to specify any actions to take when no data is found.
If you just want to check whether a condition exists in your data, you might be able to code the query with the COUNT(*)
operator, which always returns a number and never raises the NO_DATA_FOUND
exception.
If you need to bring a large quantity of data into local PL/SQL variables, rather than looping through a result set one row at a time, you can use the BULK COLLECT
clause. When you query only certain columns, you can store all the results for each column in a separate collection variable. When you query all the columns of a table, you can store the entire result set in a collection of records, which makes it convenient to loop through the results and refer to different columns. See Example 6-13, "Fetching Bulk Data With a Cursor".
This technique can be very fast, but also very memory-intensive. If you use it often, you might be able to improve your code by doing more of the work in SQL:
If you only need to loop once through the result set, use a FOR
loop as described in the following sections. This technique avoids the memory overhead of storing a copy of the result set.
If you are looping through the result set to scan for certain values or filter the results into a smaller set, do this scanning or filtering in the original query instead. You can add more WHERE
clauses in simple cases, or use set operators such as INTERSECT
and MINUS
if you are comparing two or more sets of results.
If you are looping through the result set and running another query or a DML statement for each result row, you can probably find a more efficient technique. For queries, look at including subqueries or EXISTS
or NOT EXISTS
clauses in the original query. For DML statements, look at the FORALL
statement, which is much faster than coding these statements inside a regular loop.
Perhaps the most common case of a query is one where you issue the SELECT
statement, then immediately loop once through the rows of the result set. PL/SQL lets you use a simple FOR
loop for this kind of query:
The iterator variable for the FOR
loop does not need to be declared in advance. It is a %ROWTYPE
record whose field names match the column names from the query, and that exists only during the loop. When you use expressions rather than explicit column names, use column aliases so that you can refer to the corresponding values inside the loop.
For full control over query processing, you can use explicit cursors in combination with the OPEN
, FETCH
, and CLOSE
statements.
You might want to specify a query in one place but retrieve the rows somewhere else, even in another subprogram. Or you might want to choose very different query parameters, such as ORDER BY
or GROUP BY
clauses, depending on the situation. Or you might want to process some rows differently than others, and so need more than a simple loop.
Because explicit cursors are so flexible, you can choose from different notations depending on your needs. The following sections describe all the query-processing features that explicit cursors provide.
With PL/SQL, it is very simple to issue a query, retrieve each row of the result into a %ROWTYPE
record, and process each row in a loop:
You include the text of the query directly in the FOR
loop.
PL/SQL creates a record variable with fields corresponding to the columns of the result set.
You refer to the fields of this record variable inside the loop. You can perform tests and calculations, display output, or store the results somewhere else.
Here is an example that you can run in SQL*Plus. It does a query to get the name and job Id of employees with manager Ids greater than 120.
BEGIN FOR item IN ( SELECT last_name, job_id FROM employees WHERE job_id LIKE '%CLERK%' AND manager_id > 120 ) LOOP DBMS_OUTPUT.PUT_LINE('Name = ' || item.last_name || ', Job = ' || item.job_id); END LOOP; END; /
Before each iteration of the FOR
loop, PL/SQL fetches into the implicitly declared record. The sequence of statements inside the loop is executed once for each row that satisfies the query. When you leave the loop, the cursor is closed automatically. The cursor is closed even if you use an EXIT
or GOTO
statement to leave the loop before all rows are fetched, or an exception is raised inside the loop. See "LOOP Statements".
If you need to reference the same query from different parts of the same procedure, you can declare a cursor that specifies the query, and process the results using a FOR loop.
DECLARE CURSOR c1 IS SELECT last_name, job_id FROM employees WHERE job_id LIKE '%CLERK%' AND manager_id > 120; BEGIN FOR item IN c1 LOOP DBMS_OUTPUT.PUT_LINE('Name = ' || item.last_name || ', Job = ' || item.job_id); END LOOP; END; /
See also: "LOOP Statements"
In a cursor FOR loop, PL/SQL creates a %ROWTYPE
record with fields corresponding to columns in the result set. The fields have the same names as corresponding columns in the SELECT
list.
The select list might contain an expression, such as a column plus a constant, or two columns concatenated together. If so, use a column alias to give unique names to the appropriate columns.
In Example 6-18, full_name
and dream_salary
are aliases for expressions in the query:
A subquery is a query (usually enclosed by parentheses) that appears within another SQL data manipulation statement. The statement acts upon the single value or set of values returned by the subquery. For example:
You can use a subquery to find the MAX()
, MIN()
, or AVG()
value for a column, and use that single value in a comparison in a WHERE
clause.
You can use a subquery to find a set of values, and use this values in an IN
or NOT
IN
comparison in a WHERE
clause. This technique can avoid joins.
You can filter a set of values with a subquery, and apply other operations like ORDER
BY
and GROUP
BY
in the outer query.
You can use a subquery in place of a table name, in the FROM
clause of a query. This technique lets you join a table with a small set of rows from another table, instead of joining the entire tables.
You can create a table or insert into a table, using a set of rows defined by a subquery.
Example 6-19 is illustrates two subqueries used in cursor declarations.
Example 6-19 Using a Subquery in a Cursor
DECLARE CURSOR c1 IS -- main query returns only rows where the salary is greater than the average SELECT employee_id, last_name FROM employees WHERE salary > (SELECT AVG(salary) FROM employees); CURSOR c2 IS -- subquery returns all the rows in descending order of salary -- main query returns just the top 10 highest-paid employees SELECT * FROM (SELECT last_name, salary FROM employees ORDER BY salary DESC, last_name) WHERE ROWNUM < 11; BEGIN FOR person IN c1 LOOP DBMS_OUTPUT.PUT_LINE('Above-average salary: ' || person.last_name); END LOOP; FOR person IN c2 LOOP DBMS_OUTPUT.PUT_LINE('Highest paid: ' || person.last_name || ' $' || person.salary); END LOOP; -- subquery identifies a set of rows to use with CREATE TABLE or INSERT END; /
Using a subquery in the FROM
clause, the query in Example 6-20 returns the number and name of each department with five or more employees.
Example 6-20 Using a Subquery in a FROM Clause
DECLARE CURSOR c1 IS SELECT t1.department_id, department_name, staff FROM departments t1, ( SELECT department_id, COUNT(*) as staff FROM employees GROUP BY department_id) t2 WHERE t1.department_id = t2.department_id AND staff >= 5; BEGIN FOR dept IN c1 LOOP DBMS_OUTPUT.PUT_LINE('Department = ' || dept.department_name || ', staff = ' || dept.staff); END LOOP; END; /
While a subquery is evaluated only once for each table, a correlated subquery is evaluated once for each row. Example 6-21 returns the name and salary of each employee whose salary exceeds the departmental average. For each row in the table, the correlated subquery computes the average salary for the corresponding department.
Example 6-21 Using a Correlated Subquery
DECLARE -- For each department, find the average salary. Then find all the employees in -- that department making more than that average salary. CURSOR c1 IS SELECT department_id, last_name, salary FROM employees t WHERE salary > ( SELECT AVG(salary) FROM employees WHERE t.department_id = department_id ) ORDER BY department_id; BEGIN FOR person IN c1 LOOP DBMS_OUTPUT.PUT_LINE('Making above-average salary = ' || person.last_name); END LOOP; END; /
Instead of referring to local variables, you can declare a cursor that accepts parameters, and pass values for those parameters when you open the cursor. If the query is usually issued with certain values, you can make those values the defaults. You can use either positional notation or named notation to pass the parameter values.
Example 6-22 displays the wages paid to employees earning over a specified wage in a specified department.
Example 6-22 Passing Parameters to a Cursor FOR Loop
DECLARE CURSOR c1 (job VARCHAR2, max_wage NUMBER) IS SELECT * FROM employees WHERE job_id = job AND salary > max_wage; BEGIN FOR person IN c1('CLERK', 3000) LOOP -- process data record DBMS_OUTPUT.PUT_LINE('Name = ' || person.last_name || ', salary = ' || person.salary || ', Job Id = ' || person.job_id ); END LOOP; END; /
In Example 6-23, several ways are shown to open a cursor.
Example 6-23 Passing Parameters to Explicit Cursors
DECLARE emp_job employees.job_id%TYPE := 'ST_CLERK'; emp_salary employees.salary%TYPE := 3000; my_record employees%ROWTYPE; CURSOR c1 (job VARCHAR2, max_wage NUMBER) IS SELECT * FROM employees WHERE job_id = job and salary > max_wage; BEGIN -- Any of the following statements opens the cursor: -- OPEN c1('ST_CLERK', 3000); OPEN c1('ST_CLERK', emp_salary); -- OPEN c1(emp_job, 3000); OPEN c1(emp_job, emp_salary); OPEN c1(emp_job, emp_salary); LOOP FETCH c1 INTO my_record; EXIT WHEN c1%NOTFOUND; -- process data record DBMS_OUTPUT.PUT_LINE('Name = ' || my_record.last_name || ', salary = ' || my_record.salary || ', Job Id = ' || my_record.job_id ); END LOOP; END; /
To avoid confusion, use different names for cursor parameters and the PL/SQL variables that you pass into those parameters.
Formal parameters declared with a default value do not need a corresponding actual parameter. If you omit them, they assume their default values when the OPEN
statement is executed.
Like a cursor, a cursor variable points to the current row in the result set of a multi-row query. A cursor variable is more flexible because it is not tied to a specific query. You can open a cursor variable for any query that returns the right set of columns.
You pass a cursor variable as a parameter to local and stored subprograms. Opening the cursor variable in one subprogram, and processing it in a different subprogram, helps to centralize data retrieval. This technique is also useful for multi-language applications, where a PL/SQL subprogram might return a result set to a subprogram written in a different language, such as Java or Visual Basic.
Cursor variables are available to every PL/SQL client. For example, you can declare a cursor variable in a PL/SQL host environment such as an OCI or Pro*C program, then pass it as an input host variable (bind variable) to PL/SQL. Application development tools such as Oracle Forms, which have a PL/SQL engine, can use cursor variables entirely on the client side. Or, you can pass cursor variables back and forth between a client and the database server through remote procedure calls.
Cursor variables are like pointers to result sets. You use them when you want to perform a query in one subprogram, and process the results in a different subprogram (possibly one written in a different language). A cursor variable has datatype REF
CURSOR
, and you might see them referred to informally as REF
CURSOR
s.
Unlike an explicit cursor, which always refers to the same query work area, a cursor variable can refer to different work areas. You cannot use a cursor variable where a cursor is expected, or vice versa.
You use cursor variables to pass query result sets between PL/SQL stored subprograms and various clients. PL/SQL and its clients share a pointer to the query work area in which the result set is stored. For example, an OCI client, Oracle Forms application, and Oracle database server can all refer to the same work area.
A query work area remains accessible as long as any cursor variable points to it, as you pass the value of a cursor variable from one scope to another. For example, if you pass a host cursor variable to a PL/SQL block embedded in a Pro*C program, the work area to which the cursor variable points remains accessible after the block completes.
If you have a PL/SQL engine on the client side, calls from client to server impose no restrictions. For example, you can declare a cursor variable on the client side, open and fetch from it on the server side, then continue to fetch from it back on the client side. You can also reduce network traffic by having a PL/SQL block open or close several host cursor variables in a single round trip.
To create cursor variables, you define a REF
CURSOR
type, then declare cursor variables of that type. You can define REF
CURSOR
types in any PL/SQL block, subprogram, or package. In the following example, you declare a REF CURSOR
type that represents a result set from the DEPARTMENTS
table:
DECLARE
TYPE DeptCurTyp IS REF CURSOR RETURN departments%ROWTYPE;
REF
CURSOR
types can be strong (with a return type) or weak (with no return type). Strong REF
CURSOR
types are less error prone because the PL/SQL compiler lets you associate a strongly typed cursor variable only with queries that return the right set of columns. Weak REF
CURSOR
types are more flexible because the compiler lets you associate a weakly typed cursor variable with any query. Because there is no type checking with a weak REF CURSOR
, all such types are interchangeable. Instead of creating a new type, you can use the predefined type SYS_REFCURSOR
.
Once you define a REF
CURSOR
type, you can declare cursor variables of that type in any PL/SQL block or subprogram.
DECLARE TYPE empcurtyp IS REF CURSOR RETURN employees%ROWTYPE; -- strong TYPE genericcurtyp IS REF CURSOR; -- weak cursor1 empcurtyp; cursor2 genericcurtyp; my_cursor SYS_REFCURSOR; -- didn't need to declare a new type TYPE deptcurtyp IS REF CURSOR RETURN departments%ROWTYPE; dept_cv deptcurtyp; -- declare cursor variable
To avoid declaring the same REF CURSOR
type in each subprogram that uses it, you can put the REF CURSOR
declaration in a package spec. You can declare cursor variables of that type in the corresponding package body, or within your own procedure or function.
In the RETURN
clause of a REF
CURSOR
type definition, you can use %ROWTYPE
to refer to a strongly typed cursor variable, as shown in Example 6-24.
Example 6-24 Cursor Variable Returning a %ROWTYPE Variable
DECLARE TYPE TmpCurTyp IS REF CURSOR RETURN employees%ROWTYPE; tmp_cv TmpCurTyp; -- declare cursor variable TYPE EmpCurTyp IS REF CURSOR RETURN tmp_cv%ROWTYPE; emp_cv EmpCurTyp; -- declare cursor variable
You can also use %ROWTYPE
to provide the datatype of a record variable, as shown in Example 6-25.
Example 6-25 Using the %ROWTYPE Attribute to Provide the Datatype
DECLARE dept_rec departments%ROWTYPE; -- declare record variable TYPE DeptCurTyp IS REF CURSOR RETURN dept_rec%TYPE; dept_cv DeptCurTyp; -- declare cursor variable
Example 6-26 specifies a user-defined RECORD
type in the RETURN
clause:
Example 6-26 Cursor Variable Returning a Record Type
DECLARE TYPE EmpRecTyp IS RECORD ( employee_id NUMBER, last_name VARCHAR2(25), salary NUMBER(8,2)); TYPE EmpCurTyp IS REF CURSOR RETURN EmpRecTyp; emp_cv EmpCurTyp; -- declare cursor variable
You can declare cursor variables as the formal parameters of functions and procedures. Example 6-27 defines a REF
CURSOR
type, then declares a cursor variable of that type as a formal parameter.
Example 6-27 Passing a REF CURSOR as a Parameter
DECLARE TYPE empcurtyp IS REF CURSOR RETURN employees%ROWTYPE; emp empcurtyp; -- after result set is built, process all the rows inside a single procedure -- rather than calling a procedure for each row PROCEDURE process_emp_cv (emp_cv IN empcurtyp) IS person employees%ROWTYPE; BEGIN DBMS_OUTPUT.PUT_LINE('-----'); DBMS_OUTPUT.PUT_LINE('Here are the names from the result set:'); LOOP FETCH emp_cv INTO person; EXIT WHEN emp_cv%NOTFOUND; DBMS_OUTPUT.PUT_LINE('Name = ' || person.first_name || ' ' || person.last_name); END LOOP; END; BEGIN -- First find 10 arbitrary employees. OPEN emp FOR SELECT * FROM employees WHERE ROWNUM < 11; process_emp_cv(emp); CLOSE emp; -- find employees matching a condition. OPEN emp FOR SELECT * FROM employees WHERE last_name LIKE 'R%'; process_emp_cv(emp); CLOSE emp; END; /
Like all pointers, cursor variables increase the possibility of parameter aliasing. See "Overloading Subprogram Names".
You use three statements to control a cursor variable: OPEN-FOR
, FETCH
, and CLOSE
. First, you OPEN
a cursor variable FOR
a multi-row query. Then, you FETCH
rows from the result set. When all the rows are processed, you CLOSE
the cursor variable.
The OPEN-FOR
statement associates a cursor variable with a multi-row query, executes the query, and identifies the result set. The cursor variable can be declared directly in PL/SQL, or in a PL/SQL host environment such as an OCI program. For the syntax of the OPEN-FOR
statement, see "OPEN-FOR Statement".
The SELECT
statement for the query can be coded directly in the statement, or can be a string variable or string literal. When you use a string as the query, it can include placeholders for bind variables, and you specify the corresponding values with a USING clause.
This section discusses the static SQL case, in which select_statement
is used. For the dynamic SQL case, in which dynamic_string
is used, see "OPEN-FOR Statement".
Unlike cursors, cursor variables take no parameters. Instead, you can pass whole queries (not just parameters) to a cursor variable. The query can reference host variables and PL/SQL variables, parameters, and functions.
Example 6-28 opens a cursor variable. Notice that you can apply cursor attributes (%FOUND
, %NOTFOUND
, %ISOPEN
, and %ROWCOUNT
) to a cursor variable.
Example 6-28 Checking If a Cursor Variable is Open
DECLARE TYPE empcurtyp IS REF CURSOR RETURN employees%ROWTYPE; emp_cv empcurtyp; BEGIN IF NOT emp_cv%ISOPEN THEN -- open cursor variable OPEN emp_cv FOR SELECT * FROM employees; END IF; CLOSE emp_cv; END; /
Other OPEN-FOR
statements can open the same cursor variable for different queries. You need not close a cursor variable before reopening it. Note that consecutive OPEN
s of a static cursor raise the predefined exception CURSOR_ALREADY_OPEN
. When you reopen a cursor variable for a different query, the previous query is lost.
Typically, you open a cursor variable by passing it to a stored procedure that declares an IN
OUT
parameter that is a cursor variable. In Example 6-29 the procedure opens a cursor variable.
Example 6-29 Stored Procedure to Open a Ref Cursor
CREATE PACKAGE emp_data AS TYPE empcurtyp IS REF CURSOR RETURN employees%ROWTYPE; PROCEDURE open_emp_cv (emp_cv IN OUT empcurtyp); END emp_data; / CREATE PACKAGE BODY emp_data AS PROCEDURE open_emp_cv (emp_cv IN OUT EmpCurTyp) IS BEGIN OPEN emp_cv FOR SELECT * FROM employees; END open_emp_cv; END emp_data; /
You can also use a standalone stored procedure to open the cursor variable. Define the REF
CURSOR
type in a package, then reference that type in the parameter declaration for the stored procedure.
To centralize data retrieval, you can group type-compatible queries in a stored procedure. In Example 6-30, the packaged procedure declares a selector as one of its formal parameters. When called, the procedure opens the cursor variable emp_cv
for the chosen query.
Example 6-30 Stored Procedure to Open Ref Cursors with Different Queries
CREATE PACKAGE emp_data AS TYPE empcurtyp IS REF CURSOR RETURN employees%ROWTYPE; PROCEDURE open_emp_cv (emp_cv IN OUT empcurtyp, choice INT); END emp_data; / CREATE PACKAGE BODY emp_data AS PROCEDURE open_emp_cv (emp_cv IN OUT empcurtyp, choice INT) IS BEGIN IF choice = 1 THEN OPEN emp_cv FOR SELECT * FROM employees WHERE commission_pct IS NOT NULL; ELSIF choice = 2 THEN OPEN emp_cv FOR SELECT * FROM employees WHERE salary > 2500; ELSIF choice = 3 THEN OPEN emp_cv FOR SELECT * FROM employees WHERE department_id = 100; END IF; END; END emp_data; /
For more flexibility, a stored procedure can execute queries with different return types, shown in Example 6-31.
Example 6-31 Cursor Variable with Different Return Types
CREATE PACKAGE admin_data AS TYPE gencurtyp IS REF CURSOR; PROCEDURE open_cv (generic_cv IN OUT gencurtyp, choice INT); END admin_data; / CREATE PACKAGE BODY admin_data AS PROCEDURE open_cv (generic_cv IN OUT gencurtyp, choice INT) IS BEGIN IF choice = 1 THEN OPEN generic_cv FOR SELECT * FROM employees; ELSIF choice = 2 THEN OPEN generic_cv FOR SELECT * FROM departments; ELSIF choice = 3 THEN OPEN generic_cv FOR SELECT * FROM jobs; END IF; END; END admin_data; /
You can declare a cursor variable in a PL/SQL host environment such as an OCI or Pro*C program. To use the cursor variable, you must pass it as a host variable to PL/SQL. In the following Pro*C example, you pass a host cursor variable and selector to a PL/SQL block, which opens the cursor variable for the chosen query.
EXEC SQL BEGIN DECLARE SECTION;
...
/* Declare host cursor variable. */
SQL_CURSOR generic_cv;
int choice;
EXEC SQL END DECLARE SECTION;
...
/* Initialize host cursor variable. */
EXEC SQL ALLOCATE :generic_cv;
...
/* Pass host cursor variable and selector to PL/SQL block. */
EXEC SQL EXECUTE
BEGIN
IF :choice = 1 THEN
OPEN :generic_cv FOR SELECT * FROM employees;
ELSIF :choice = 2 THEN
OPEN :generic_cv FOR SELECT * FROM departments;
ELSIF :choice = 3 THEN
OPEN :generic_cv FOR SELECT * FROM jobs;
END IF;
END;
END-EXEC;
Host cursor variables are compatible with any query return type. They behave just like weakly typed PL/SQL cursor variables.
The FETCH
statement retrieves rows from the result set of a multi-row query. It works the same with cursor variables as with explicit cursors. Example 6-32 fetches rows one at a time from a cursor variable into a record.
Example 6-32 Fetching from a Cursor Variable into a Record
DECLARE TYPE empcurtyp IS REF CURSOR RETURN employees%ROWTYPE; emp_cv empcurtyp; emp_rec employees%ROWTYPE; BEGIN OPEN emp_cv FOR SELECT * FROM employees WHERE employee_id < 120; LOOP FETCH emp_cv INTO emp_rec; -- fetch from cursor variable EXIT WHEN emp_cv%NOTFOUND; -- exit when last row is fetched -- process data record DBMS_OUTPUT.PUT_LINE('Name = ' || emp_rec.first_name || ' ' || emp_rec.last_name); END LOOP; CLOSE emp_cv; END; /
Using the BULK
COLLECT
clause, you can bulk fetch rows from a cursor variable into one or more collections as shown in Example 6-33.
Example 6-33 Fetching from a Cursor Variable into Collections
DECLARE TYPE empcurtyp IS REF CURSOR; TYPE namelist IS TABLE OF employees.last_name%TYPE; TYPE sallist IS TABLE OF employees.salary%TYPE; emp_cv empcurtyp; names namelist; sals sallist; BEGIN OPEN emp_cv FOR SELECT last_name, salary FROM employees WHERE job_id = 'SA_REP'; FETCH emp_cv BULK COLLECT INTO names, sals; CLOSE emp_cv; -- loop through the names and sals collections FOR i IN names.FIRST .. names.LAST LOOP DBMS_OUTPUT.PUT_LINE('Name = ' || names(i) || ', salary = ' || sals(i)); END LOOP; END; /
Any variables in the associated query are evaluated only when the cursor variable is opened. To change the result set or the values of variables in the query, reopen the cursor variable with the variables set to new values. You can use a different INTO
clause on separate fetches with the same cursor variable. Each fetch retrieves another row from the same result set.
PL/SQL makes sure the return type of the cursor variable is compatible with the INTO
clause of the FETCH
statement. If there is a mismatch, an error occurs at compile time if the cursor variable is strongly typed, or at run time if it is weakly typed. At run time, PL/SQL raises the predefined exception ROWTYPE_MISMATCH
before the first fetch. If you trap the error and execute the FETCH
statement using a different (compatible) INTO
clause, no rows are lost.
When you declare a cursor variable as the formal parameter of a subprogram that fetches from the cursor variable, you must specify the IN
or IN
OUT
mode. If the subprogram also opens the cursor variable, you must specify the IN
OUT
mode.
If you try to fetch from a closed or never-opened cursor variable, PL/SQL raises the predefined exception INVALID_CURSOR
.
The CLOSE
statement disables a cursor variable and makes the associated result set undefined. Close the cursor variable after the last row is processed.
When declaring a cursor variable as the formal parameter of a subprogram that closes the cursor variable, you must specify the IN
or IN
OUT
mode. If you try to close an already-closed or never-opened cursor variable, PL/SQL raises the predefined exception INVALID_CURSOR
.
When passing host cursor variables to PL/SQL, you can reduce network traffic by grouping OPEN-FOR
statements. For example, the following PL/SQL block opens multiple cursor variables in a single round trip:
/* anonymous PL/SQL block in host environment */
BEGIN
OPEN :emp_cv FOR SELECT * FROM employees;
OPEN :dept_cv FOR SELECT * FROM departments;
OPEN :loc_cv FOR SELECT * FROM locations;
END;
/
This technique might be useful in Oracle Forms, for instance, when you want to populate a multi-block form. When you pass host cursor variables to a PL/SQL block for opening, the query work areas to which they point remain accessible after the block completes, so your OCI or Pro*C program can use these work areas for ordinary cursor operations. For example, you open several such work areas in a single round trip:
BEGIN
OPEN :c1 FOR SELECT 1 FROM dual;
OPEN :c2 FOR SELECT 1 FROM dual;
OPEN :c3 FOR SELECT 1 FROM dual;
END;
The cursors assigned to c1
, c2
, and c3
behave normally, and you can use them for any purpose. When finished, release the cursors as follows:
BEGIN
CLOSE :c1; CLOSE :c2; CLOSE :c3;
END;
/
If both cursor variables involved in an assignment are strongly typed, they must have exactly the same datatype (not just the same return type). If one or both cursor variables are weakly typed, they can have different datatypes.
If you try to fetch from, close, or refer to cursor attributes of a cursor variable that does not point to a query work area, PL/SQL raises the INVALID_CURSOR
exception. You can make a cursor variable (or parameter) point to a query work area in two ways:
OPEN
the cursor variable FOR
the query.
Assign to the cursor variable the value of an already OPEN
ed host cursor variable or PL/SQL cursor variable.
If you assign an unopened cursor variable to another cursor variable, the second one remains invalid even after you open the first one.
Be careful when passing cursor variables as parameters. At run time, PL/SQL raises ROWTYPE_MISMATCH
if the return types of the actual and formal parameters are incompatible.
Currently, cursor variables are subject to the following restrictions:
You cannot declare cursor variables in a package specification, as illustrated in Example 6-34.
If you bind a host cursor variable into PL/SQL from an OCI client, you cannot fetch from it on the server side unless you also open it there on the same server call.
You cannot use comparison operators to test cursor variables for equality, inequality, or nullity.
Database columns cannot store the values of cursor variables. There is no equivalent type to use in a CREATE
TABLE
statement.
You cannot store cursor variables in an associative array, nested table, or varray.
Cursors and cursor variables are not interoperable; that is, you cannot use one where the other is expected. For example, you cannot reference a cursor variable in a cursor FOR
loop.
Example 6-34 Declaration of Cursor Variables in a Package
CREATE PACKAGE emp_data AS TYPE EmpCurTyp IS REF CURSOR RETURN employees%ROWTYPE; -- emp_cv EmpCurTyp; -- not allowed PROCEDURE open_emp_cv; END emp_data; / CREATE PACKAGE BODY emp_data AS -- emp_cv EmpCurTyp; -- not allowed PROCEDURE open_emp_cv IS emp_cv EmpCurTyp; -- this is legal BEGIN OPEN emp_cv FOR SELECT * FROM employees; END open_emp_cv; END emp_data; /
Note:
|
A cursor expression returns a nested cursor. Each row in the result set can contain values as usual, plus cursors produced by subqueries involving the other values in the row. A single query can return a large set of related values retrieved from multiple tables. You can process the result set with nested loops that fetch first from the rows of the result set, then from any nested cursors within those rows.
PL/SQL supports queries with cursor expressions as part of cursor declarations, REF CURSOR
declarations and ref cursor variables. You can also use cursor expressions in dynamic SQL queries. Here is the syntax:
CURSOR(
subquery
)
A nested cursor is implicitly opened when the containing row is fetched from the parent cursor. The nested cursor is closed only when:
The nested cursor is explicitly closed by the user
The parent cursor is reexecuted
The parent cursor is closed
The parent cursor is canceled
An error arises during a fetch on one of its parent cursors. The nested cursor is closed as part of the clean-up.
The following are restrictions on cursor expressions:
You cannot use a cursor expression with an implicit cursor.
Cursor expressions can appear only:
In a SELECT
statement that is not nested in any other query expression, except when it is a subquery of the cursor expression itself.
As arguments to table functions, in the FROM
clause of a SELECT
statement.
Cursor expressions can appear only in the outermost SELECT
list of the query specification.
Cursor expressions cannot appear in view declarations.
You cannot perform BIND
and EXECUTE
operations on cursor expressions.
In Example 6-35, we find a specified location ID, and a cursor from which we can fetch all the departments in that location. As we fetch each department's name, we also get another cursor that lets us fetch their associated employee details from another table.
Example 6-35 Using a Cursor Expression
DECLARE TYPE emp_cur_typ IS REF CURSOR; emp_cur emp_cur_typ; dept_name departments.department_name%TYPE; emp_name employees.last_name%TYPE; CURSOR c1 IS SELECT department_name, -- second item in the result set is another result set, -- which is represented as a ref cursor and labelled "employees". CURSOR ( SELECT e.last_name FROM employees e WHERE e.department_id = d.department_id) employees FROM departments d WHERE department_name like 'A%'; BEGIN OPEN c1; LOOP FETCH c1 INTO dept_name, emp_cur; EXIT WHEN c1%NOTFOUND; DBMS_OUTPUT.PUT_LINE('Department: ' || dept_name); -- for each row in the result set, the result set from a subquery is processed -- the set could be passed to a procedure for processing rather than the loop LOOP FETCH emp_cur INTO emp_name; EXIT WHEN emp_cur%NOTFOUND; DBMS_OUTPUT.PUT_LINE('-- Employee: ' || emp_name); END LOOP; END LOOP; CLOSE c1; END; /
You can use cursor subqueries, also know as cursor expressions, to pass sets of rows as parameters to functions. For example, this statement passes a parameter to the StockPivot function consisting of a REF CURSOR
that represents the rows returned by the cursor subquery:
SELECT * FROM TABLE(StockPivot(
CURSOR(SELECT * FROM StockTable)));
Cursor subqueries are often used with table functions, which are explained in "Setting Up Transformations with Pipelined Functions".
This section explains transaction processing with PL/SQL using SQL COMMIT
, SAVEPOINT
, and ROLLBACK
statements that ensure the consistency of a database. You can include these SQL statements directly in your PL/SQL programs. Transaction processing is an Oracle feature, available through all programming languages, that lets multiple users work on the database concurrently, and ensures that each user sees a consistent version of data and that all changes are applied in the right order.
You usually do not need to write extra code to prevent problems with multiple users accessing data concurrently. Oracle uses locks to control concurrent access to data, and locks only the minimum amount of data necessary, for as little time as possible. You can request locks on tables or rows if you really do need this level of control. You can choose from several modes of locking such as row share
and exclusive
.
For information on transactions, see Oracle Database Concepts. For information on the SQL COMMIT
, SAVEPOINT
, and ROLLBACK
statements, see the Oracle Database SQL Reference.
The COMMIT
statement ends the current transaction, making any changes made during that transaction permanent, and visible to other users. Transactions are not tied to PL/SQL BEGIN-END
blocks. A block can contain multiple transactions, and a transaction can span multiple blocks.
Example 6-36 illustrates a transaction that transfers money from one bank account to another. It is important that the money come out of one account, and into the other, at exactly the same moment. Otherwise, a problem partway through might make the money be lost from both accounts or be duplicated in both accounts.
Example 6-36 Using COMMIT With the WRITE Clause
CREATE TABLE accounts (account_id NUMBER(6), balance NUMBER (10,2)); INSERT INTO accounts VALUES (7715, 6350.00); INSERT INTO accounts VALUES (7720, 5100.50); DECLARE transfer NUMBER(8,2) := 250; BEGIN UPDATE accounts SET balance = balance - transfer WHERE account_id = 7715; UPDATE accounts SET balance = balance + transfer WHERE account_id = 7720; COMMIT COMMENT 'Transfer From 7715 to 7720' WRITE IMMEDIATE NOWAIT; END; /
The optional COMMENT
clause lets you specify a comment to be associated with a distributed transaction. If a network or machine fails during the commit, the state of the distributed transaction might be unknown or in doubt. In that case, Oracle stores the text specified by COMMENT
in the data dictionary along with the transaction ID.
Asynchronous commit provides more control for the user with the WRITE
clause. This option specifies the priority with which the redo information generated by the commit operation is written to the redo log.
For more information on using COMMIT
, see "Committing Transactions" in Oracle Database Application Developer's Guide - Fundamentals. For information about distributed transactions, see Oracle Database Concepts. See also "COMMIT Statement".
The ROLLBACK
statement ends the current transaction and undoes any changes made during that transaction. If you make a mistake, such as deleting the wrong row from a table, a rollback restores the original data. If you cannot finish a transaction because an exception is raised or a SQL statement fails, a rollback lets you take corrective action and perhaps start over.
Example 6-37 inserts information about an employee into three different database tables. If an INSERT
statement tries to store a duplicate employee number, the predefined exception DUP_VAL_ON_INDEX
is raised. To make sure that changes to all three tables are undone, the exception handler executes a ROLLBACK
.
CREATE TABLE emp_name AS SELECT employee_id, last_name FROM employees; CREATE UNIQUE INDEX empname_ix ON emp_name (employee_id); CREATE TABLE emp_sal AS SELECT employee_id, salary FROM employees; CREATE UNIQUE INDEX empsal_ix ON emp_sal (employee_id); CREATE TABLE emp_job AS SELECT employee_id, job_id FROM employees; CREATE UNIQUE INDEX empjobid_ix ON emp_job (employee_id); DECLARE emp_id NUMBER(6); emp_lastname VARCHAR2(25); emp_salary NUMBER(8,2); emp_jobid VARCHAR2(10); BEGIN SELECT employee_id, last_name, salary, job_id INTO emp_id, emp_lastname, emp_salary, emp_jobid FROM employees WHERE employee_id = 120; INSERT INTO emp_name VALUES (emp_id, emp_lastname); INSERT INTO emp_sal VALUES (emp_id, emp_salary); INSERT INTO emp_job VALUES (emp_id, emp_jobid); EXCEPTION WHEN DUP_VAL_ON_INDEX THEN ROLLBACK; DBMS_OUTPUT.PUT_LINE('Inserts have been rolled back'); END; /
See also "ROLLBACK Statement".
SAVEPOINT
names and marks the current point in the processing of a transaction. Savepoints let you roll back part of a transaction instead of the whole transaction. The number of active savepoints for each session is unlimited.
Example 6-38 marks a savepoint before doing an insert. If the INSERT
statement tries to store a duplicate value in the employee_id
column, the predefined exception DUP_VAL_ON_INDEX
is raised. In that case, you roll back to the savepoint, undoing just the insert.
Example 6-38 Using SAVEPOINT With ROLLBACK
CREATE TABLE emp_name AS SELECT employee_id, last_name, salary FROM employees; CREATE UNIQUE INDEX empname_ix ON emp_name (employee_id); DECLARE emp_id employees.employee_id%TYPE; emp_lastname employees.last_name%TYPE; emp_salary employees.salary%TYPE; BEGIN SELECT employee_id, last_name, salary INTO emp_id, emp_lastname, emp_salary FROM employees WHERE employee_id = 120; UPDATE emp_name SET salary = salary * 1.1 WHERE employee_id = emp_id; DELETE FROM emp_name WHERE employee_id = 130; SAVEPOINT do_insert; INSERT INTO emp_name VALUES (emp_id, emp_lastname, emp_salary); EXCEPTION WHEN DUP_VAL_ON_INDEX THEN ROLLBACK TO do_insert; DBMS_OUTPUT.PUT_LINE('Insert has been rolled back'); END; /
When you roll back to a savepoint, any savepoints marked after that savepoint are erased. The savepoint to which you roll back is not erased. A simple rollback or commit erases all savepoints.
If you mark a savepoint within a recursive subprogram, new instances of the SAVEPOINT
statement are executed at each level in the recursive descent, but you can only roll back to the most recently marked savepoint.
Savepoint names are undeclared identifiers. Reusing a savepoint name within a transaction moves the savepoint from its old position to the current point in the transaction. This means that a rollback to the savepoint affects only the current part of your transaction, as shown in Example 6-39.
Example 6-39 Reusing a SAVEPOINT With ROLLBACK
CREATE TABLE emp_name AS SELECT employee_id, last_name, salary FROM employees; CREATE UNIQUE INDEX empname_ix ON emp_name (employee_id); DECLARE emp_id employees.employee_id%TYPE; emp_lastname employees.last_name%TYPE; emp_salary employees.salary%TYPE; BEGIN SELECT employee_id, last_name, salary INTO emp_id, emp_lastname, emp_salary FROM employees WHERE employee_id = 120; SAVEPOINT my_savepoint; UPDATE emp_name SET salary = salary * 1.1 WHERE employee_id = emp_id; DELETE FROM emp_name WHERE employee_id = 130; SAVEPOINT my_savepoint; -- move my_savepoint to current poin INSERT INTO emp_name VALUES (emp_id, emp_lastname, emp_salary); EXCEPTION WHEN DUP_VAL_ON_INDEX THEN ROLLBACK TO my_savepoint; DBMS_OUTPUT.PUT_LINE('Transaction rolled back.'); END; /
See also "SAVEPOINT Statement".
Before executing an INSERT
, UPDATE
, or DELETE
statement, Oracle marks an implicit savepoint (unavailable to you). If the statement fails, Oracle rolls back to the savepoint. Usually, just the failed SQL statement is rolled back, not the whole transaction. If the statement raises an unhandled exception, the host environment determines what is rolled back.
Oracle can also roll back single SQL statements to break deadlocks. Oracle signals an error to one of the participating transactions and rolls back the current statement in that transaction.
Before executing a SQL statement, Oracle must parse it, that is, examine it to make sure it follows syntax rules and refers to valid schema objects. Errors detected while executing a SQL statement cause a rollback, but errors detected while parsing the statement do not.
If you exit a stored subprogram with an unhandled exception, PL/SQL does not assign values to OUT
parameters, and does not do any rollback.
You should explicitly commit or roll back every transaction. Whether you issue the commit or rollback in your PL/SQL program or from a client program depends on the application logic. If you do not commit or roll back a transaction explicitly, the client environment determines its final state.
For example, in the SQL*Plus environment, if your PL/SQL block does not include a COMMIT
or ROLLBACK
statement, the final state of your transaction depends on what you do after running the block. If you execute a data definition, data control, or COMMIT
statement or if you issue the EXIT
, DISCONNECT
, or QUIT
command, Oracle commits the transaction. If you execute a ROLLBACK
statement or abort the SQL*Plus session, Oracle rolls back the transaction.
You use the SET
TRANSACTION
statement to begin a read-only or read-write transaction, establish an isolation level, or assign your current transaction to a specified rollback segment. Read-only transactions are useful for running multiple queries while other users update the same tables.
During a read-only transaction, all queries refer to the same snapshot of the database, providing a multi-table, multi-query, read-consistent view. Other users can continue to query or update data as usual. A commit or rollback ends the transaction. In Example 6-40 a store manager uses a read-only transaction to gather order totals for the day, the past week, and the past month. The totals are unaffected by other users updating the database during the transaction.
Example 6-40 Using SET TRANSACTION to Begin a Read-only Transaction
DECLARE daily_order_total NUMBER(12,2); weekly_order_total NUMBER(12,2); monthly_order_total NUMBER(12,2); BEGIN COMMIT; -- ends previous transaction SET TRANSACTION READ ONLY NAME 'Calculate Order Totals'; SELECT SUM (order_total) INTO daily_order_total FROM orders WHERE order_date = SYSDATE; SELECT SUM (order_total) INTO weekly_order_total FROM orders WHERE order_date = SYSDATE - 7; SELECT SUM (order_total) INTO monthly_order_total FROM orders WHERE order_date = SYSDATE - 30; COMMIT; -- ends read-only transaction END; /
The SET
TRANSACTION
statement must be the first SQL statement in a read-only transaction and can only appear once in a transaction. If you set a transaction to READ
ONLY
, subsequent queries see only changes committed before the transaction began. The use of READ
ONLY
does not affect other users or transactions.
By default, Oracle locks data structures for you automatically, which is a major strength of the Oracle database: different applications can read and write to the same data without harming each other's data or coordinating with each other.
You can request data locks on specific rows or entire tables if you need to override default locking. Explicit locking lets you deny access to data for the duration of a transaction.:
With the LOCK
TABLE
statement, you can explicitly lock entire tables.
With the SELECT
FOR
UPDATE
statement, you can explicitly lock specific rows of a table to make sure they do not change after you have read them. That way, you can check which or how many rows will be affected by an UPDATE
or DELETE
statement before issuing the statement, and no other application can change the rows in the meantime.
When you declare a cursor that will be referenced in the CURRENT
OF
clause of an UPDATE
or DELETE
statement, you must use the FOR
UPDATE
clause to acquire exclusive row locks. An example follows:
DECLARE CURSOR c1 IS SELECT employee_id, salary FROM employees WHERE job_id = 'SA_REP' AND commission_pct > .10 FOR UPDATE NOWAIT;
The SELECT
... FOR
UPDATE
statement identifies the rows that will be updated or deleted, then locks each row in the result set. This is useful when you want to base an update on the existing values in a row. In that case, you must make sure the row is not changed by another user before the update.
The optional keyword NOWAIT
tells Oracle not to wait if requested rows have been locked by another user. Control is immediately returned to your program so that it can do other work before trying again to acquire the lock. If you omit the keyword NOWAIT
, Oracle waits until the rows are available.
All rows are locked when you open the cursor, not as they are fetched. The rows are unlocked when you commit or roll back the transaction. Since the rows are no longer locked, you cannot fetch from a FOR
UPDATE
cursor after a commit. For a workaround, see "Fetching Across Commits".
When querying multiple tables, you can use the FOR
UPDATE
clause to confine row locking to particular tables. Rows in a table are locked only if the FOR
UPDATE
OF
clause refers to a column in that table. For example, the following query locks rows in the employees
table but not in the departments
table:
DECLARE CURSOR c1 IS SELECT last_name, department_name FROM employees, departments WHERE employees.department_id = departments.department_id AND job_id = 'SA_MAN' FOR UPDATE OF salary;
As shown in Example 6-41, you use the CURRENT
OF
clause in an UPDATE
or DELETE
statement to refer to the latest row fetched from a cursor.
Example 6-41 Using CURRENT OF to Update the Latest Row Fetched From a Cursor
DECLARE my_emp_id NUMBER(6); my_job_id VARCHAR2(10); my_sal NUMBER(8,2); CURSOR c1 IS SELECT employee_id, job_id, salary FROM employees FOR UPDATE; BEGIN OPEN c1; LOOP FETCH c1 INTO my_emp_id, my_job_id, my_sal; IF my_job_id = 'SA_REP' THEN UPDATE employees SET salary = salary * 1.02 WHERE CURRENT OF c1; END IF; EXIT WHEN c1%NOTFOUND; END LOOP; END; /
You use the LOCK
TABLE
statement to lock entire database tables in a specified lock mode so that you can share or deny access to them. Row share locks allow concurrent access to a table; they prevent other users from locking the entire table for exclusive use. Table locks are released when your transaction issues a commit or rollback.
LOCK TABLE employees IN ROW SHARE MODE NOWAIT;
The lock mode determines what other locks can be placed on the table. For example, many users can acquire row share locks on a table at the same time, but only one user at a time can acquire an exclusive lock. While one user has an exclusive lock on a table, no other users can insert, delete, or update rows in that table. For more information about lock modes, see Oracle Database Application Developer's Guide - Fundamentals.
A table lock never keeps other users from querying a table, and a query never acquires a table lock. Only if two different transactions try to modify the same row will one transaction wait for the other to complete.
PL/SQL raises an exception if you try to fetch from a FOR
UPDATE
cursor after doing a commit. The FOR
UPDATE
clause locks the rows when you open the cursor, and unlocks them when you commit.
DECLARE -- if "FOR UPDATE OF salary" is included on following line, an error is raised CURSOR c1 IS SELECT * FROM employees; emp_rec employees%ROWTYPE; BEGIN OPEN c1; LOOP FETCH c1 INTO emp_rec; -- FETCH fails on the second iteration with FOR UPDATE EXIT WHEN c1%NOTFOUND; IF emp_rec.employee_id = 105 THEN UPDATE employees SET salary = salary * 1.05 WHERE employee_id = 105; END IF; COMMIT; -- releases locks END LOOP; END; /
If you want to fetch across commits, use the ROWID
pseudocolumn to mimic the CURRENT
OF
clause. Select the rowid of each row into a UROWID
variable, then use the rowid to identify the current row during subsequent updates and deletes.
Example 6-42 Fetching Across COMMITs Using ROWID
DECLARE CURSOR c1 IS SELECT last_name, job_id, rowid FROM employees; my_lastname employees.last_name%TYPE; my_jobid employees.job_id%TYPE; my_rowid UROWID; BEGIN OPEN c1; LOOP FETCH c1 INTO my_lastname, my_jobid, my_rowid; EXIT WHEN c1%NOTFOUND; UPDATE employees SET salary = salary * 1.02 WHERE rowid = my_rowid; -- this mimics WHERE CURRENT OF c1 COMMIT; END LOOP; CLOSE c1; END; /
Because the fetched rows are not locked by a FOR
UPDATE
clause, other users might unintentionally overwrite your changes. The extra space needed for read consistency is not released until the cursor is closed, which can slow down processing for large updates.
The next example shows that you can use the %ROWTYPE
attribute with cursors that reference the ROWID
pseudocolumn:
DECLARE CURSOR c1 IS SELECT employee_id, last_name, salary, rowid FROM employees; emp_rec c1%ROWTYPE; BEGIN OPEN c1; LOOP FETCH c1 INTO emp_rec; EXIT WHEN c1%NOTFOUND; IF emp_rec.salary = 0 THEN DELETE FROM employees WHERE rowid = emp_rec.rowid; END IF; END LOOP; CLOSE c1; END; /
An autonomous transaction is an independent transaction started by another transaction, the main transaction. Autonomous transactions do SQL operations and commit or roll back, without committing or rolling back the main transaction. For example, if you write auditing data to a log table, you want to commit the audit data even if the operation you are auditing later fails; if something goes wrong recording the audit data, you do not want the main operation to be rolled back.

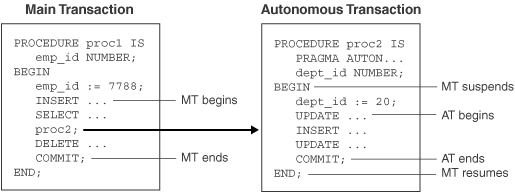

Figure 6-1 shows how control flows from the main transaction (MT) to an autonomous transaction (AT) and back again.
Once started, an autonomous transaction is fully independent. It shares no locks, resources, or commit-dependencies with the main transaction. You can log events, increment retry counters, and so on, even if the main transaction rolls back.
More important, autonomous transactions help you build modular, reusable software components. You can encapsulate autonomous transactions within stored procedures. A calling application does not need to know whether operations done by that stored procedure succeeded or failed.
To define autonomous transactions, you use the pragma (compiler directive) AUTONOMOUS_TRANSACTION
. The pragma instructs the PL/SQL compiler to mark a routine as autonomous (independent). In this context, the term routine includes
Top-level (not nested) anonymous PL/SQL blocks
Local, standalone, and packaged functions and procedures
Methods of a SQL object type
Database triggers
You can code the pragma anywhere in the declarative section of a routine. But, for readability, code the pragma at the top of the section. The syntax is PRAGMA
AUTONOMOUS_TRANSACTION
.
Example 6-43 marks a packaged function as autonomous. You cannot use the pragma to mark all subprograms in a package (or all methods in an object type) as autonomous. Only individual routines can be marked autonomous.
Example 6-43 Declaring an Autonomous Function in a Package
CREATE OR REPLACE PACKAGE emp_actions AS -- package specification FUNCTION raise_salary (emp_id NUMBER, sal_raise NUMBER) RETURN NUMBER; END emp_actions; / CREATE OR REPLACE PACKAGE BODY emp_actions AS -- package body -- code for function raise_salary FUNCTION raise_salary (emp_id NUMBER, sal_raise NUMBER) RETURN NUMBER IS PRAGMA AUTONOMOUS_TRANSACTION; new_sal NUMBER(8,2); BEGIN UPDATE employees SET salary = salary + sal_raise WHERE employee_id = emp_id; COMMIT; SELECT salary INTO new_sal FROM employees WHERE employee_id = emp_id; RETURN new_sal; END raise_salary; END emp_actions; /
Example 6-44 marks a standalone procedure as autonomous.
Example 6-44 Declaring an Autonomous Standalone Procedure
CREATE PROCEDURE lower_salary (emp_id NUMBER, amount NUMBER) AS PRAGMA AUTONOMOUS_TRANSACTION; BEGIN UPDATE employees SET salary = salary - amount WHERE employee_id = emp_id; COMMIT; END lower_salary; /
Example 6-45 marks a PL/SQL block as autonomous. However, you cannot mark a nested PL/SQL block as autonomous.
Example 6-45 Declaring an Autonomous PL/SQL Block
DECLARE PRAGMA AUTONOMOUS_TRANSACTION; emp_id NUMBER(6); amount NUMBER(6,2); BEGIN emp_id := 200; amount := 200; UPDATE employees SET salary = salary - amount WHERE employee_id = emp_id; COMMIT; END; /
Example 6-46 marks a database trigger as autonomous. Unlike regular triggers, autonomous triggers can contain transaction control statements such as COMMIT
and ROLLBACK
.
Example 6-46 Declaring an Autonomous Trigger
CREATE TABLE emp_audit ( emp_audit_id NUMBER(6), up_date DATE, new_sal NUMBER(8,2), old_sal NUMBER(8,2) ); CREATE OR REPLACE TRIGGER audit_sal AFTER UPDATE OF salary ON employees FOR EACH ROW DECLARE PRAGMA AUTONOMOUS_TRANSACTION; BEGIN -- bind variables are used here for values INSERT INTO emp_audit VALUES( :old.employee_id, SYSDATE, :new.salary, :old.salary ); COMMIT; END; /
Although an autonomous transaction is started by another transaction, it is not a nested transaction:
It does not share transactional resources (such as locks) with the main transaction.
It does not depend on the main transaction. For example, if the main transaction rolls back, nested transactions roll back, but autonomous transactions do not.
Its committed changes are visible to other transactions immediately. (A nested transaction's committed changes are not visible to other transactions until the main transaction commits.)
Exceptions raised in an autonomous transaction cause a transaction-level rollback, not a statement-level rollback.
The main transaction shares its context with nested routines, but not with autonomous transactions. When one autonomous routine calls another (or itself recursively), the routines share no transaction context. When an autonomous routine calls a non-autonomous routine, the routines share the same transaction context.
Changes made by an autonomous transaction become visible to other transactions when the autonomous transaction commits. These changes become visible to the main transaction when it resumes, if its isolation level is set to READ
COMMITTED
(the default).
If you set the isolation level of the main transaction to SERIALIZABLE
, changes made by its autonomous transactions are not visible to the main transaction when it resumes:
SET TRANSACTION ISOLATION LEVEL SERIALIZABLE;
The first SQL statement in an autonomous routine begins a transaction. When one transaction ends, the next SQL statement begins another transaction. All SQL statements executed since the last commit or rollback make up the current transaction. To control autonomous transactions, use the following statements, which apply only to the current (active) transaction:
COMMIT
ROLLBACK [TO savepoint_name]
SAVEPOINT savepoint_name
SET TRANSACTION
Note:
|
Entering and Exiting
When you enter the executable section of an autonomous routine, the main transaction suspends. When you exit the routine, the main transaction resumes.
To exit normally, you must explicitly commit or roll back all autonomous transactions. If the routine (or any routine called by it) has pending transactions, an exception is raised, and the pending transactions are rolled back.
Committing and Rolling Back
COMMIT
and ROLLBACK
end the active autonomous transaction but do not exit the autonomous routine. When one transaction ends, the next SQL statement begins another transaction. A single autonomous routine could contain several autonomous transactions, if it issued several COMMIT
statements.
Using Savepoints
The scope of a savepoint is the transaction in which it is defined. Savepoints defined in the main transaction are unrelated to savepoints defined in its autonomous transactions. In fact, the main transaction and an autonomous transaction can use the same savepoint names.
You can roll back only to savepoints marked in the current transaction. In an autonomous transaction, you cannot roll back to a savepoint marked in the main transaction. To do so, you must resume the main transaction by exiting the autonomous routine.
When in the main transaction, rolling back to a savepoint marked before you started an autonomous transaction does not roll back the autonomous transaction. Remember, autonomous transactions are fully independent of the main transaction.
Avoiding Errors with Autonomous Transactions
To avoid some common errors, keep the following points in mind:
If an autonomous transaction attempts to access a resource held by the main transaction, a deadlock can occur. Oracle raises an exception in the autonomous transaction, which is rolled back if the exception goes unhandled.
The Oracle initialization parameter TRANSACTIONS
specifies the maximum number of concurrent transactions. That number might be exceeded because an autonomous transaction runs concurrently with the main transaction.
If you try to exit an active autonomous transaction without committing or rolling back, Oracle raises an exception. If the exception goes unhandled, the transaction is rolled back.
Among other things, you can use database triggers to log events transparently. Suppose you want to track all inserts into a table, even those that roll back. In Example 6-47, you use a trigger to insert duplicate rows into a shadow table. Because it is autonomous, the trigger can commit changes to the shadow table whether or not you commit changes to the main table.
Example 6-47 Using Autonomous Triggers
CREATE TABLE emp_audit ( emp_audit_id NUMBER(6), up_date DATE, new_sal NUMBER(8,2), old_sal NUMBER(8,2) ); -- create an autonomous trigger that inserts into the audit table before -- each update of salary in the employees table CREATE OR REPLACE TRIGGER audit_sal BEFORE UPDATE OF salary ON employees FOR EACH ROW DECLARE PRAGMA AUTONOMOUS_TRANSACTION; BEGIN INSERT INTO emp_audit VALUES( :old.employee_id, SYSDATE, :new.salary, :old.salary ); COMMIT; END; / -- update the salary of an employee, and then commit the insert UPDATE employees SET salary = salary * 1.05 WHERE employee_id = 115; COMMIT; -- update another salary, then roll back the update UPDATE employees SET salary = salary * 1.05 WHERE employee_id = 116; ROLLBACK; -- show that both committed and rolled-back updates add rows to audit table SELECT * FROM emp_audit WHERE emp_audit_id = 115 OR emp_audit_id = 116;
Unlike regular triggers, autonomous triggers can execute DDL statements using native dynamic SQL, discussed in Chapter 7, "Performing SQL Operations with Native Dynamic SQL". In the following example, trigger drop_temp_table
drops a temporary database table after a row is inserted in table emp_audit
.
CREATE TABLE emp_audit ( emp_audit_id NUMBER(6), up_date DATE, new_sal NUMBER(8,2), old_sal NUMBER(8,2) ); CREATE TABLE temp_audit ( emp_audit_id NUMBER(6), up_date DATE); CREATE OR REPLACE TRIGGER drop_temp_table AFTER INSERT ON emp_audit DECLARE PRAGMA AUTONOMOUS_TRANSACTION; BEGIN EXECUTE IMMEDIATE 'DROP TABLE temp_audit'; COMMIT; END; /
For more information about database triggers, see Oracle Database Application Developer's Guide - Fundamentals.
A function called from SQL statements must obey certain rules meant to control side effects. See "Controlling Side Effects of PL/SQL Subprograms". To check for violations of the rules, you can use the pragma RESTRICT_REFERENCES
. The pragma asserts that a function does not read or write database tables or package variables. For more information, See Oracle Database Application Developer's Guide - Fundamentals.
However, by definition, autonomous routines never violate the rules read no database state (RNDS)
and write no database state (WNDS)
no matter what they do. This can be useful, as Example 6-48 shows. When you call the packaged function log_msg
from a query, it inserts a message into database table debug_output
without violating the rule write no database state
.
Example 6-48 Calling an Autonomous Function
-- create the debug table CREATE TABLE debug_output (msg VARCHAR2(200)); -- create the package spec CREATE PACKAGE debugging AS FUNCTION log_msg (msg VARCHAR2) RETURN VARCHAR2; PRAGMA RESTRICT_REFERENCES(log_msg, WNDS, RNDS); END debugging; / -- create the package body CREATE PACKAGE BODY debugging AS FUNCTION log_msg (msg VARCHAR2) RETURN VARCHAR2 IS PRAGMA AUTONOMOUS_TRANSACTION; BEGIN -- the following insert does not violate the constraint -- WNDS because this is an autonomous routine INSERT INTO debug_output VALUES (msg); COMMIT; RETURN msg; END; END debugging; / -- call the packaged function from a query DECLARE my_emp_id NUMBER(6); my_last_name VARCHAR2(25); my_count NUMBER; BEGIN my_emp_id := 120; SELECT debugging.log_msg(last_name) INTO my_last_name FROM employees WHERE employee_id = my_emp_id; -- even if you roll back in this scope, the insert into 'debug_output' remains -- committed because it is part of an autonomous transaction ROLLBACK; END; /
