Expression
An expression is an arbitrarily complex combination of operands (variables, constants, literals, operators, function calls, and placeholders) and operators. The simplest expression is a single variable.
The PL/SQL compiler determines the data type of an expression from the types of the operands and operators that comprise the expression. Every time the expression is evaluated, a single value of that type results.
Description of the illustration expression.gif
Description of the illustration boolean_expression.gif
Description of the illustration other_boolean_form.gif

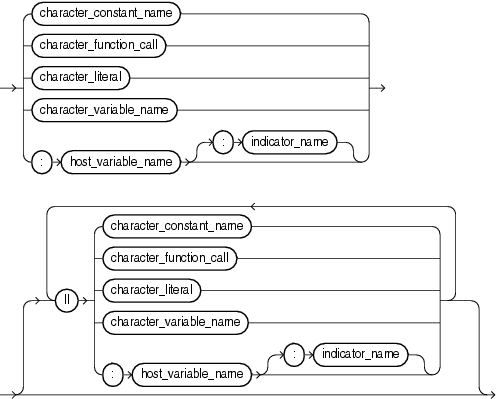

Description of the illustration character_expression.gif

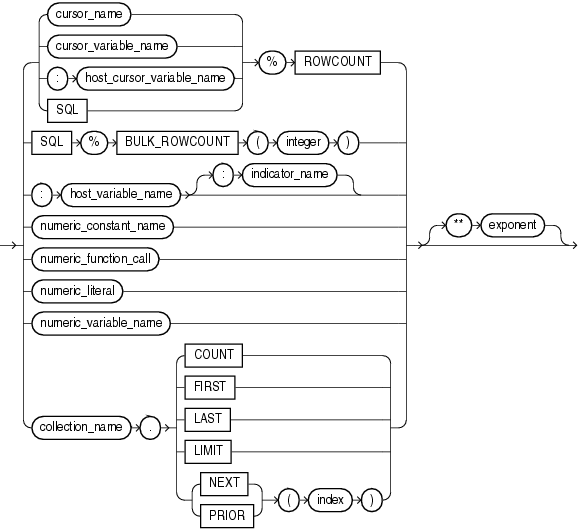

Description of the illustration numeric_subexpression.gif

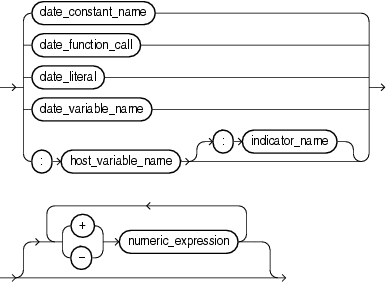

Description of the illustration date_expression.gif

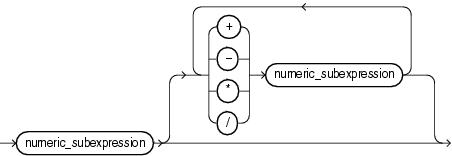

Description of the illustration numeric_expression.gif
Description of the illustration simple_case_expression.gif
Description of the illustration searched_case_expression.gif
Keyword and Parameter Descriptions
This comparison operator tests whether a value lies in a specified range. It means: greater than or equal to low value and less than or equal to high value.
A constant of type BOOLEAN, which must be initialized to the value TRUE, FALSE, or NULL. Arithmetic operations on Boolean constants are not allowed.
An expression whose value is Boolean (TRUE, FALSE, or NULL).
A call to a function that returns a Boolean value.
The predefined values TRUE, FALSE, or NULL (which stands for a missing, unknown, or inapplicable value). You cannot insert the value TRUE or FALSE into a database column.
A variable of type BOOLEAN. Only the values TRUE, FALSE, and NULL can be assigned to a BOOLEAN variable. You cannot select or fetch column values into a BOOLEAN variable. Also, arithmetic operations on BOOLEAN variables are not allowed.
Designed for use with the FORALL statement, this is a composite attribute of the implicit cursor SQL. For more information, see SQL (Implicit) Cursor Attribute.
A previously declared constant that stores a character value. It must be initialized to a character value or a value implicitly convertible to a character value.
An expression that returns a character or character string.
A function call that returns a character value or a value implicitly convertible to a character value.
A literal that represents a character value or a value implicitly convertible to a character value.
A previously declared variable that stores a character value.
A collection (nested table, index-by table, or varray) previously declared within the current scope.
An explicit cursor previously declared within the current scope.
A PL/SQL cursor variable previously declared within the current scope.
A previously declared constant that stores a date value. It must be initialized to a date value or a value implicitly convertible to a date value.
An expression that returns a date/time value.
A function call that returns a date value or a value implicitly convertible to a date value.
A literal representing a date value or a value implicitly convertible to a date value.
A previously declared variable that stores a date value.
EXISTS, COUNT, FIRST, LAST, LIMIT, NEXT, PRIOR
Collection methods. When appended to the name of a collection, these methods return useful information. For example, EXISTS(n) returns TRUE if the nth element of a collection exists. Otherwise, EXISTS(n) returns FALSE. For more information, see Collection Method Call.
An expression that must return a numeric value.
%FOUND, %ISOPEN, %NOTFOUND, %ROWCOUNT
Cursor attributes. When appended to the name of a cursor or cursor variable, these attributes return useful information about the execution of a multiple-row query. You can also append them to the implicit cursor SQL.
A cursor variable declared in a PL/SQL host environment and passed to PL/SQL as a bind argument. Host cursor variables must be prefixed with a colon.
A variable declared in a PL/SQL host environment and passed to PL/SQL as a bind argument. The data type of the host variable must be implicitly convertible to the appropriate PL/SQL data type. Also, host variables must be prefixed with a colon.
Comparison operator that tests set membership. It means: equal to any member of. The set can contain nulls, but they are ignored. Also, expressions of the form
value NOT IN set
return FALSE if the set contains a null.
A numeric expression that must return a value of type BINARY_INTEGER, PLS_INTEGER, or a value implicitly convertible to that data type.
An indicator variable declared in a PL/SQL host environment and passed to PL/SQL. Indicator variables must be prefixed with a colon. An indicator variable indicates the value or condition of its associated host variable. For example, in the Oracle Precompiler environment, indicator variables can detect nulls or truncated values in output host variables.
Comparison operator that returns the Boolean value TRUE if its operand is null, or FALSE if its operand is not null.
Comparison operator that compares a character value to a pattern. Case is significant. LIKE returns the Boolean value TRUE if the character patterns match, or FALSE if they do not match.
Logical operators, which follow the tri-state logic of Table 2-3. AND returns the value TRUE only if both its operands are true. OR returns the value TRUE if either of its operands is true. NOT returns the opposite value (logical negation) of its operand. For more information, see Logical Operators.
Keyword that represents a null. It stands for a missing, unknown, or inapplicable value. When NULL is used in a numeric or date expression, the result is a null.
A previously declared constant that stores a numeric value. It must be initialized to a numeric value or a value implicitly convertible to a numeric value.
An expression that returns an integer or real value.
A function call that returns a numeric value or a value implicitly convertible to a numeric value.
A literal that represents a number or a value implicitly convertible to a number.
A previously declared variable that stores a numeric value.
A character string compared by the LIKE operator to a specified string value. It can include two special-purpose characters called wildcards. An underscore (_) matches exactly one character; a percent sign (%) matches zero or more characters. The pattern can be followed by ESCAPE 'character_literal', which turns off wildcard expansion wherever the escape character appears in the string followed by a percent sign or underscore.
Operator that compares expressions. For the meaning of each operator, see Comparison Operators.
A cursor opened implicitly by the database to process a SQL data manipulation statement. The implicit cursor SQL always refers to the most recently executed SQL statement.
Symbols for the addition, subtraction, division, multiplication, and exponentiation operators.
The concatenation operator. As the following example shows, the result of concatenating string1 with string2 is a character string that contains string1 followed by string2:
'Good' || ' morning!' = 'Good morning!'
The next example shows that nulls have no effect on the result of a concatenation:
'suit' || NULL || 'case' = 'suitcase'
A null string (''), which is zero characters in length, is treated like a null.
An expression whose value is used to select one of several alternative result values. The value of case_operand can be of any PL/SQL type except BLOB, BFILE, an object type, a PL/SQL record, an index-by table, a varray, or a nested table.
WHEN { case_operand_value | boolean_expression } THEN result_value
The case_operand_values or boolean_expressions are evaluated sequentially. If a case_operand_value is the value of case_operand, or if the value of a boolean_expression is TRUE, the result_value associated with that case_operand_value or boolean_expression is returned. Subsequent case_operand_values or boolean_expressions are not evaluated.
A case_operand_value can be of any PL/SQL type other than BLOB, BFILE, an object type, a PL/SQL record, an index-by table, a varray, or a nested table.
In the simple CASE expression, the result_value is returned if and only if no case_operand_value has the same value as case_operand.
In the searched CASE statement, the result_value is returned if and only if no boolean_expression has the value TRUE.
If you omit the ELSE clause, the case expression returns NULL.
In a Boolean expression, you can only compare values that have compatible data types. For more information, see PL/SQL Data Type Conversion.
In conditional control statements, if a Boolean expression returns TRUE, its associated sequence of statements is executed. But, if the expression returns FALSE or NULL, its associated sequence of statements is not executed.
The relational operators can be applied to operands of type BOOLEAN. By definition, TRUE is greater than FALSE. Comparisons involving nulls always return a null. The value of a Boolean expression can be assigned only to Boolean variables, not to host variables or database columns. Also, data type conversion to or from type BOOLEAN is not supported.
You can use the addition and subtraction operators to increment or decrement a date value, as the following examples show:
hire_date := '10-MAY-95'; hire_date := hire_date + 1; -- makes hire_date '11-MAY-95' hire_date := hire_date - 5; -- makes hire_date '06-MAY-95'
When PL/SQL evaluates a boolean expression, NOT has the highest precedence, AND has the next-highest precedence, and OR has the lowest precedence. However, you can use parentheses to override the default operator precedence.
Within an expression, operations occur in the following order (first to last):
-
Parentheses
-
Exponents
-
Unary operators
-
Multiplication and division
-
Addition, subtraction, and concatenation
PL/SQL evaluates operators of equal precedence in no particular order. When parentheses enclose an expression that is part of a larger expression, PL/SQL evaluates the parenthesized expression first, then uses the result in the larger expression. When parenthesized expressions are nested, PL/SQL evaluates the innermost expression first and the outermost expression last.
