4 Preprocessing a Database Workload

After a workload is captured and setup of the test system is complete, the captured data must be preprocessed. Preprocessing a captured workload transforms the captured data into replay files and creates all necessary metadata. This must be done once for every captured workload before they can be replayed. After the captured workload is preprocessed, it can be replayed repeatedly on a replay system.

To preprocess a captured workload, you will first need to move all captured data files from the directory where they are stored on the capture system to a directory on the instance where the preprocessing will be performed. Preprocessing is resource intensive and should be performed on a system that is:

• Separate from the production system

• Running the same version of Oracle Database as the replay system

For Oracle RAC, select one database instance of the replay system for the preprocessing. This instance must have access to the captured data files that require preprocessing, which can be stored on a local or shared file system. If the capture directory path on the capture system resolves to separate physical directories in each instance, you will need to move all the capture files created in each of these directories into a single directory on which preprocessing will be performed.

Typically, you will preprocess the captured workload on the replay system. If you plan to preprocess the captured workload on a system that is separate from the replay system, you will also need to move all preprocessed data files from the directory where they are stored on the preprocessing system to a directory on the replay system after preprocessing is complete.

This chapter contains the following sections:

• Preprocessing a Database Workload Using Enterprise Manager

• Preprocessing a Database Workload Using APIs

Tip:

Before you can preprocess a captured workload, you need to capture the workload on the production system, as described in Chapter 3, "Capturing a Database Workload".

Preprocessing a Database Workload Using Enterprise Manager

This section describes how to preprocess a captured workload using Enterprise Manager. The primary tool for preprocessing workload captures is Oracle Enterprise Manager. If for some reason Oracle Enterprise Manager is unavailable, you can preprocess workload captures using the APIs, as described in "Preprocessing a Database Workload Using APIs".

To preprocess a captured workload using Enterprise Manager:

1. On the Software and Support page, under Real Application Testing, click Database Replay.

   The Database Replay page appears.

2. In the Go to Task column, click the icon that corresponds to the Preprocess Captured Workload task.

   The Preprocess Captured Workload page appears.

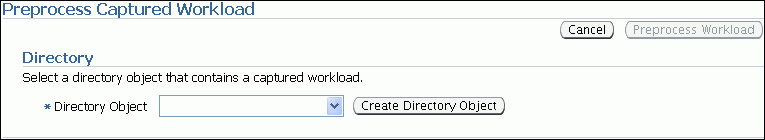

   Description of the illustration dbr_process_empty.gif



3. In the Directory Object list, select a directory that contains the captured workload that you want to preprocess.

   After a directory is selected, the Preprocess Captured Workload page will be refreshed to display the Capture Summary section, which contains information about the captured workload in the selected directory.

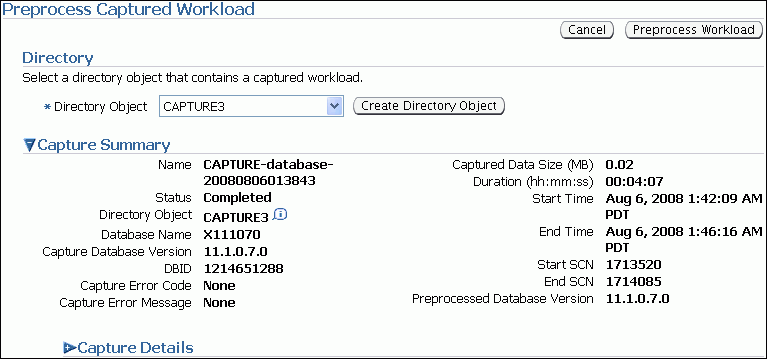

   Description of the illustration dbr_process_capture3.gif



   To view additional details about the captured workload, expand Capture Details. The expanded Capture Details section displays the workload profile and details for the captured workload.

4. Click Preprocess Workload.

   The Preprocess Captured Workload: Database Version page appears.

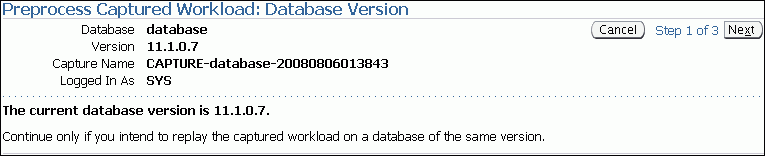

   Description of the illustration dbr_process_dbversion.gif



5. Ensure that the current database version displayed matches the database version on the intended replay system and click Next.

   Preprocessing must be performed on a system that is running the same version of Oracle Database as the replay system.

   The Preprocess Captured Workload: Schedule page appears.

6. Define the parameters for the preprocessing job.

   • Under Job Parameters, enter a name and a description for the job.

   • Under Start, select whether the job will run immediately by selecting Immediately, or at a later time by selecting Later and specifying the desired time using the Date and Time fields.

   • Under Host Credentials, enter the user name and password information for the database host that will used for the preprocessing.

   After defining the job parameters, click Next.

   The Preprocess Captured Workload: Review page appears.

7. Review the selected options for the preprocessing job.

   To preprocess the captured workload, click Submit. To make changes, click Back. To cancel preprocessing without saving changes, click Cancel.

Tip:

After preprocessing a captured workload, you can replay it on the test system, as described in Chapter 5, "Replaying a Database Workload".

Preprocessing a Database Workload Using APIs

This section describes how to preprocess a captured workload using the DBMS_WORKLOAD_REPLAY package. You can also use Oracle Enterprise Manager to preprocess a captured workload, as described in "Preprocessing a Database Workload Using Enterprise Manager".

To preprocess a captured workload, use the PROCESS_CAPTURE procedure:

BEGIN
  DBMS_WORKLOAD_REPLAY.PROCESS_CAPTURE (capture_dir => 'dec06');
END;
/

In this example, the captured workload stored in the dec06 directory will be preprocessed.

The PROCESS_CAPTURE procedure in this example uses the capture_dir required parameter, which specifies the directory that contains the captured workload to be preprocessed.

Tip:

After preprocessing a captured workload, you can replay it on the test system, as described in Chapter 5, "Replaying a Database Workload".

See Also:

Oracle Database PL/SQL Packages and Types Reference for information about the DBMS_WORKLOAD_REPLAY package
