This section provides a brief overview of how each page in the SRDemo application uses the SRService application module's view object instances and service methods.

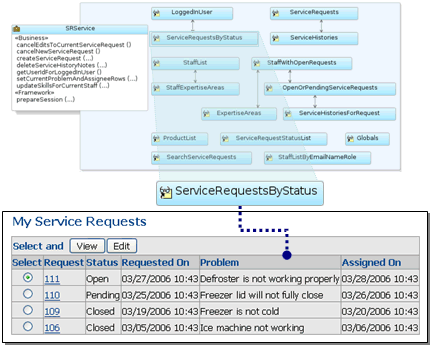

Figure 10-16 illustrates the data binding for SRList page.
ServiceRequestsByStatusIterator for ServiceRequestsByStatus view object instance
None
setCurrentRowWithKey, ExecuteWithParams related to the ServiceRequestsByStatusIterator iterator binding
None
None
ServiceRequestsByStatus is an instance of the entity-based view object ServiceRequestsByStatus, which extends the ServiceRequests view object and adds a named bind variable called StatusCode.
None

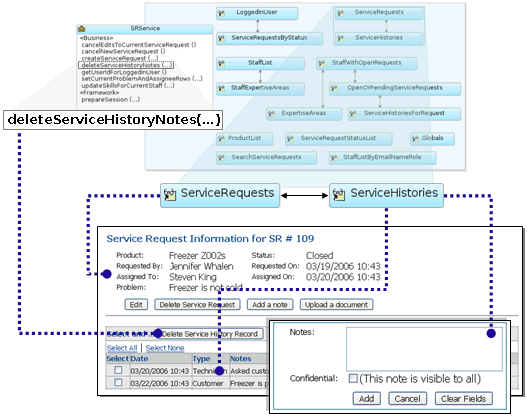

Figure 10-17 illustrates the data binding for the SRMain page.
ServiceRequestsIterator for ServiceRequests view object instance
ServiceHistoriesIterator for ServiceHistories view object instance
None
setCurrentRowWithKey, Delete related to the ServiceRequestsIterator iterator binding
Create, DeleteNewHistory (for Delete built-in) related to the ServiceHistoriesIterator iterator binding
Commit related to the SRService data control
deleteServiceHistoryNotes invokes deleteServiceHistoryNotes() method on the SRService client interface
None
|
Note: TheSRMain backing bean for the SRMain page (in the oracle.srdemo.view.backing package) is using the technique described in Section 10.5.4.3, "Using Custom ADF Page Lifecycle to Invoke an onPageLoad Backing Bean Method" to programmatically accomplish exactly the same thing that the SREdit page is doing declaratively. |
ServiceRequests is an instance of the entity-based view object ServiceRequests. It joins data from the main ServiceRequest entity usage and three additional reference entity usages: CreatedByUser (User entity object), AssignedToUser (User entity object), and Product. The ServiceRequests view object is linked master/detail to the ServiceHistories view object.
ServiceHistories is an instance of the entity-based view object ServiceHistories. It joins data from the main ServiceHistory entity usage and an additional reference entity usage SystemUser (User entity object). It is an XML-only view object, with no custom Java class.
As shown in Example 10-3, the deleteServiceHistoryNotes() method deletes service history note rows corresponding to the Key objects in the key set passed as an argument.
Example 10-3 DeleteServiceHistoryNotes Method in SRServiceImpl.java
public void deleteServiceHistoryNotes(Set keySet) {
if (keySet != null) {
ViewObject histories = getServiceHistories();
for (Key k: (Set<Key>)keySet) {
Row[] rowToDelete = histories.findByKey(k, 1);
if (rowToDelete == null || rowToDelete.length == 0) {
throw new JboException("Failed to find row with serialized key" +
k.toStringFormat(false));
}
rowToDelete[0].remove();
getDBTransaction().commit();
}
}
}

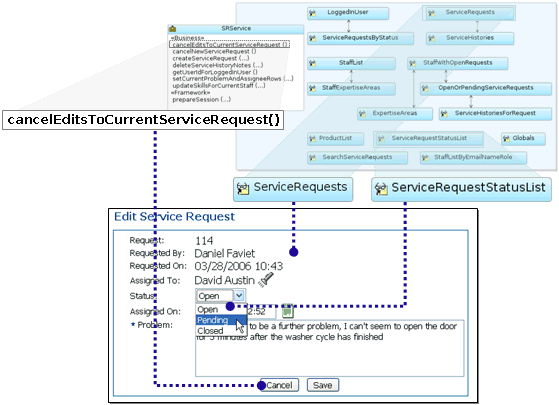

Figure 10-18 illustrates the data binding in the SREdit page.
ServiceRequestsIterator for ServiceRequests view object instance
ServiceRequestStatusListIterator for ServiceRequestStatusList view object instance
None
setCurrentRowWithKey related to the ServiceRequestsIterator iterator binding
Commit related to the SRService data control
cancelEditsToCurrentServiceRequest invokes cancelEditsToCurrentServiceRequest() on the SRService client interface
setRowToEditFromRequestParameter invokes the built-in setCurrentRowWithKey operation in prepare model phase (Refresh="prepareModel") when first navigating to the page (i.e. not processing a postback) and processScope.rowKeyStr attribute is not set (RefreshCondition="${adfFacesContext.postback == false and not empty processScope.rowKeyStr}").
ServiceRequests is an instance of the entity-based view object ServiceRequests. It joins data from the main ServiceRequest entity usage and three additional reference entity usages: CreatedByUser (User entity object), AssignedToUser (User entity object), and Product.
ServiceRequestStatusList is an instance of the read-only view object ServiceRequestStatusList. Its data is provided by a static list supplied in the ServiceRequestStatusListImpl.java class. This class extends a SRStaticDataViewObjectImpl in the FrameworkExtensions project which provides the basic support for implementing a view object based on static data.
As shown in Example 10-4, the cancelEditsToCurrentServiceRequest() method uses the refresh() method to cancel edits made in the current transaction to the current service request row.

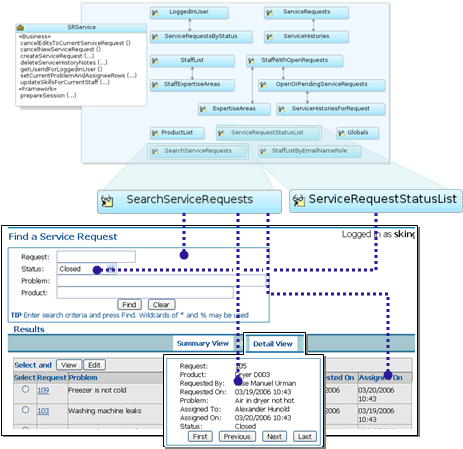

Figure 10-19 illustrates the data binding in the SRSearch page.
SearchServiceRequestsIterator for SearchServiceRequests view object instance (Forced to stay in find mode by AlwaysFind invokeAction).
SearchServiceRequestsResultsIterator for SearchServiceRequests view object instance
ServiceRequestStatusListIterator for ServiceRequestStatusList view object instance
None
Execute, Delete, Create related to the SearchServiceRequestsIterator iterator binding
Find, First, Next, Previous, Last, setCurrentRowWithKey related to the SearchServiceRequestsResultsIterator iterator binding
None
AlwaysFind invokes the built-in Find operation (for the SearchServiceRequestsIterator iterator binding) in either prepare model or render model phases (Refresh="ifNeeded") when the SearchServiceRequestsIterator is not in find mode ( ${bindings.SearchServiceRequestsIterator.findMode == false})
insertBlankViewCriteriaRowIfThereAreNone invokes the built-in Create operation in either prepare model or render model phases (Refresh="ifNeeded") when the SearchServiceRequestsIterator is not in find mode ( ${bindings.SearchServiceRequestsIterator.findMode == false})
SearchServiceRequests is an instance of the entity-based view object ServiceRequests. It joins data from the main ServiceRequest entity usage and three additional reference entity usages: CreatedByUser (User entity object), AssignedToUser (User entity object), and Product.
ServiceRequestStatusList is an instance of the read-only view object ServiceRequestStatusList. Its data is provided by a static list supplied in the ServiceRequestStatusListImpl.java class. This class extends a SRStaticDataViewObjectImpl in the FrameworkExtensions project which provides the basic support for implementing a view object based on static data.
None

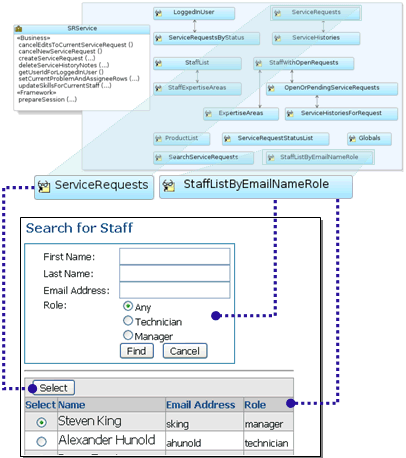

Figure 10-20 illustrates the data binding for the SRStaffSearch page.
StaffListByEmailNameRoleIterator for StaffListByEmailNameRole view object instance
StaffListByEmailNameRole_Role, StaffListByEmailNameRole_EmailAddress, StaffListByEmailNameRole_TheFirstName, StaffListByEmailNameRole_TheLastName
ExecuteWithParams related to StaffListByEmailNameRoleIterator iterator binding
None
None
StaffListByEmailNameRole is an instance of the entity-based view object StaffListByEmailNameRole, which extends the StaffList view object and adds name bind variables EmailAddress, Role, TheFirstName, and TheLastName.
None

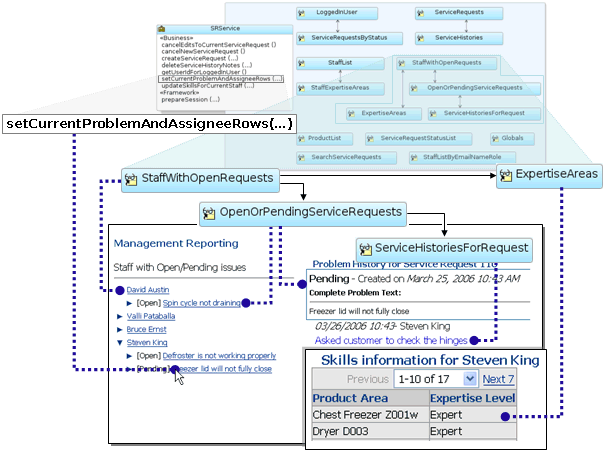

Figure 10-21 illustrates the data binding in the SRManage page.
StaffWithOpenRequestsIterator for StaffWithOpenRequests view object instance
ExpertiseAreasIterator for ExpertiseAreas view object instance
OpenOrPendingServiceRequestsIterator for OpenOrPendingServiceRequests view object instance
ServiceHistoriesForRequestIterator for ServiceHistoriesForRequest view object instance
None
setCurrentStaffRowWithKey (for setCurrentRowWithKey built-in) related to StaffWithOpenRequestsIterator iterator binding
setCurrentProblemAndAssigneeRows invokes setCurrentProblemAndAssigneeRows() on the SRService client interface
None
StaffWithOpenRequests is an instance of the read-only view object StaffWithOpenRequests. It queries information from the USERS and SERVICE_REQUESTS tables. It is an XML only view object, with no related Java class. This view object is linked master/detail with the ExpertiseAreas and OpenOrPendingServiceRequests view objects.
ExpertiseAreas is an instance of the entity-based view object ExpertiseAreas. It joins information from the primary ExpertiseArea entity usage and a reference Product entity usage. It is an XML only view object, with no related Java class.
OpenOrPendingServiceRequests is an instance of the read-only view object OpenOrPendingServiceRequests. It queries information from the SERVICE_REQUESTS table. It is an XML only view object, with no related Java class. This view object is linked master/detail with the ServiceHistories view object.
ServiceHistoriesForRequest is an instance of the entity-based view object ServiceHistories. It joins data from the main ServiceHistory entity usage and an additional reference entity usage SystemUser (User entity object). It is an XML-only view object, with no custom Java class.
As shown in Example 10-5, the setCurrentProblemAndAssigneeRows() method uses a helper method to set the current row in the StaffWithOpenRequests view object instance and the OpenOrPendingServiceRequests view object instance based on the serialized string keys passed in.

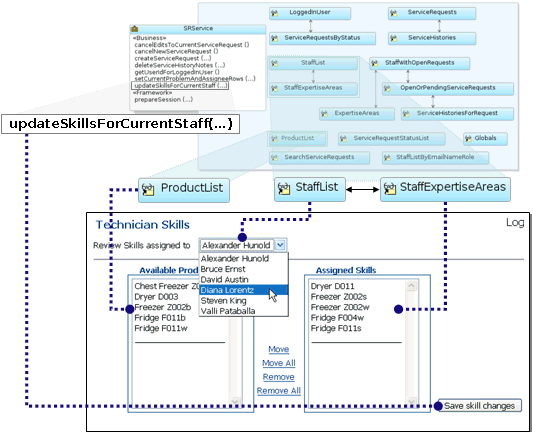

Figure 10-21 illustrates the data binding for the SRSkills page.
StaffListIterator for StaffList view object instance
StaffExpertiseAreasIterator for StaffExpertiseAreas view object instance
ProductListIterator for ProductList view object instance
None
None
updateSkillsForCurrentStaff invokes the updateSkillsForCurrentStaff() method on the SRService client interface
None
StaffList is an instance of the entity-based view object StaffList. It queries information from the primary entity usage SystemUser (User entity object). This view object is linked master/detail with the ExpertiseAreas view object.
StaffExpertiseAreas is an instance of the entity-based view object ExpertiseAreas. It joins information from the primary ExpertiseArea entity usage and a reference Product entity usage. It is an XML only view object, with no related Java class.
ProductList is an instance of the entity-based view object ProductList. It queries data from the primary entity usage Products (Product entity object). It is an XML only view object, with no related Java class.
As shown in Example 10-6, the updateSkillsForCurrentStaff() method performs the following steps:
Clones the list of product ids
Creates a secondary RowSetIterator to do programmatic iteration over the ExpertiseAreas
Removes rows for current user for products that are not in the list of products ids
Closes the secondary row set iterator when done iterating
Adds new rows for the keys that are left
Commits the transaction.
Example 10-6 UpdateSkillsForCurrentStaff Method in SRServiceImpl.java
public void updateSkillsForCurrentStaff(List productIds) {
if (productIds != null && productIds.size() > 0) {
// 1. Cone the list of product ids
List<Number> copyOfProductIds = (List<Number>)Utils.cloneList(productIds);
ViewObject skills = getStaffExpertiseAreas();
// 2. Create a secondary rowset iterator for iteration
RowSetIterator rsi = skills.createRowSetIterator(null);
// 3. Remove rows for current user for products not in list of products
while (rsi.hasNext()) {
Row r = rsi.next();
Number productId = (Number)r.getAttribute("ProdId");
// if the existing row is in the list, we're ok, so remove from list.
if (copyOfProductIds.contains(productId)) {
copyOfProductIds.remove(productId);
}
// if the existing row is in not list, remove it.
else {
r.remove();
}
}
// 4. Close the secondary row set iterator when we're done
rsi.closeRowSetIterator();
// 5. Add new rows for the keys that are left
for (Number productIdToAdd: copyOfProductIds) {
Row newRow = skills.createRow();
skills.insertRow(newRow);
newRow.setAttribute("ProdId", productIdToAdd);
}
// 6. Commit the transaction
getDBTransaction().commit();
}
}
|
Note: Since the iterator bindings in the ADF Model layer bind by default to the default row set iterator for the default rowset of the view object instance to which they are related, it's best practice to create a secondary row set iterator to perform programmatic iteration of a view object's row set in your application business logic. This way you do not affect the current row that the user sees in the user interface. The secondary iterator can have a developer-assigned name, but if you passnull the system assigns it a name. Since you'll typically always be closing it as soon as you're done iterating, using the system-assigned name is fine. |

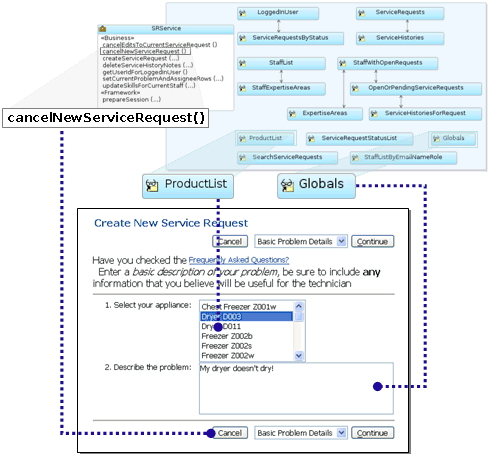

Figure 10-23 illustrates the data binding for the SRCreate page.
GlobalsIterator for Globals view object instance
ProductListIterator for ProductList view object instance
None
None
cancelNewServiceRequest invokes the cancelNewServiceRequest method on the SRService client interface
clearServiceRequestFieldsIfNotInTrain invokes the cancelNewServiceRequest method action binding during prepare model phase (Refresh="prepareModel") when the page is not handling postback events and the requestScope.processChoice attribute is not set (RefreshCondition="${adfFacesContext.postback == false and empty requestScope.processChoice}").
ProductList is an instance of the entity-based view object ProductList. It queries data from the primary entity usage Products (Product entity object). It is an XML only view object, with no related Java class.
Globals is an instance of the transient view object Globals. It contains transient attributes to temporarily store information about ProductId, ProductName, and ProductDescription across pages.
|
Note: A transient view object is one that has no SQL query and all transient attributes. It can contain rows that are populated either programmatically by your application module business logic or declaratively using action bindings for built-in operations in the ADF Model layer. For users familiar with Oracle Forms, this is similar to what you know as a "non database block" in Forms. |
As shown in Example 10-7, the cancelNewServiceRequest() method ensures there is a single blank row in the Globals view object instance.

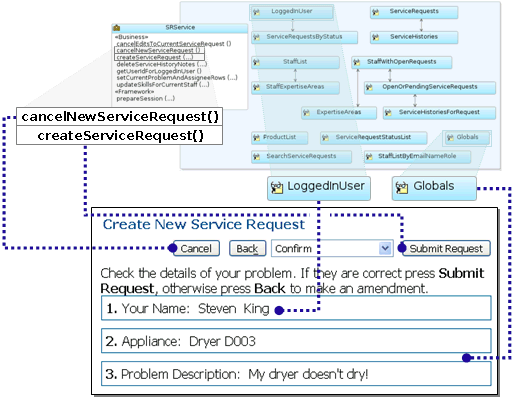

Figure 10-24 illustrates the data binding for the SRConfirmCreate page.
GlobalsIterator for Globals view object instance
LoggedInUserIterator for LoggedInUser view object instance
None
None
cancelNewServiceRequest invokes the cancelNewServiceRequest() on the SRService client interface
createServiceRequest invokes the createServiceRequest() on the SRService client interface
None
Globals is an instance of the transient view object Globals. It contains transient attributes to temporarily store information about ProductId, ProductName, and ProductDescription across pages.
LoggedInUser is an instance of the entity-based view object LoggedInUser. It queries data from the primary entity usage Users (User entity object). The LoggedInUser view object is linked master/detail with the ServiceRequestsByStatus view object.
As shown in Example 10-8, the createServiceRequest() method performs the following basic steps:
Gets the entity definition for ServiceRequest
Creates a new ServiceRequest entity row (ServiceRequestImpl class)
Accesses the current row in Globals as a strongly-typed GlobalsRowImpl
Set the problem description and product ID for new service request
Commits the transaction
Returns an Integer representing the database-trigger assigned SR number for the new service request.
Example 10-8 CreateServiceRequest Method in SRServiceImpl.java
public Integer createServiceRequest() {
// 1. Get the entity definition for ServiceRequest
EntityDefImpl svcReqDef = ServiceRequestImpl.getDefinitionObject();
// 2. Create a new ServiceRequest entity row
ServiceRequestImpl newReq =
(ServiceRequestImpl)svcReqDef.createInstance2(getDBTransaction(),null);
// 3. Access the current row in Globals as a strongly-typed GlobalsRowImpl
GlobalsRowImpl globalsRow = (GlobalsRowImpl)getGlobals().getCurrentRow();
// 4. Set the problem description and product id for new service request
newReq.setProblemDescription(globalsRow.getProblemDescription());
newReq.setProdId(globalsRow.getProductId());
// 5. Commit the transaction
getDBTransaction().commit();
// 6. Return an integer representing the database-assigned SR Number
return newReq.getSvrId().getSequenceNumber().intValue();
}
