8.3 Using Tables and Forms to Display Master-Detail Objects

JDeveloper enables you to create a master-detail browse page in a single declarative action using the Data Control Palette—you do not need to write any extra code, even the navigation is included. The Data Control Palette provides pre-built master-detail widgets that display both the master and detail objects on the same page as any combination of read-only tables and forms. All you have to do is drop the detail collection on the page and choose the type of widget you want to use.

The pre-built master-detail widgets available from the Data Control Palette include range navigation that enables the user to scroll through the data objects in collections. The the table provided by the pre-built master-detail widgets includes a selection facet and Submit command button. By default, all attributes of the master and detail objects are included in the master-detail widgets as text fields (in forms) or columns (in tables). You can delete unwanted attributes by removing the text field or column from the page.

Tip:

If you do not want to use the pre-built master-detail widgets, you can drag and drop the master and detail objects individually as tables and forms on a single page or on separate pages. For more information about creating individual forms and tables, see Chapter 6, "Creating a Basic Page" or Chapter 7, "Adding Tables".

When you add master-detail components to a page, the iterator bindings are responsible for exposing data to the components on the page. The iterator bindings bind to the underlying rowset iterators. The rowset iterator for the detail object is responsible for exposing the correct detail data when a specific master object is displayed or selected on the page.

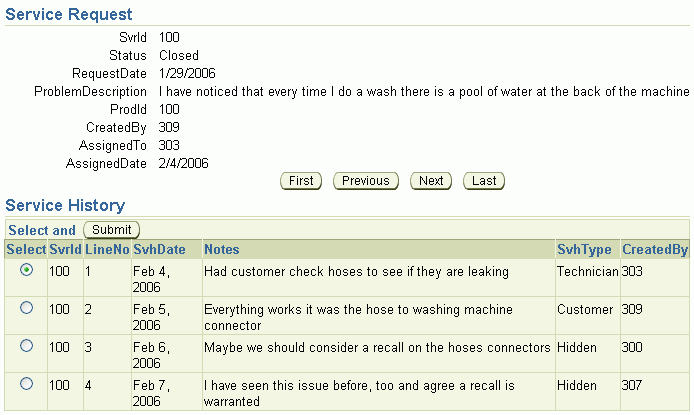

Figure 8-2 shows an example of a pre-built master-detail widget, which display a service request in a form at the top of the page and all the related service history in a table at the bottom of the page. When the user scrolls through the master data, the page automatically displays the related detail data.

Figure 8-2 Pre-Built Data Control Palette Master-Detail Widget

8.3.1 How to Display Master-Detail Objects in Tables and Forms

The Data Control Palette enables you to create both the master and detail widgets on one page with a single declarative action using pre-built master-detail forms and tables. For information about displaying master and detail data on separate pages, see Section 8.3.4, "What You May Need to Know About Master-Detail on Separate Pages".

To create a master-detail page using the pre-built ADF master-detail forms and tables:

From the Data Control Palette, locate the detail object, as was previously described in Section 8.2, "Identifying Master-Detail Objects on the Data Control Palette".
Drag and drop the detail object onto the JSF page.

In the context menu, choose one of the following Master-Details widgets:

ADF Master Table, Detail Form: Displays the master objects in a table and the detail objects in a read-only form under the table.

When a specific data object is selected in the master table, the first related detail data object is displayed in the form below it. The user must use the form navigation to scroll through each subsequent detail data objects.
ADF Master Form, Detail Table: Displays the master objects in a read-only form and the detail objects in a read-only table under the form.

When a specific master data object is displayed in the form, the related detail data objects are displayed in a table below it.

This widget is available only when both the master and detail objects are collections.
ADF Master Form, Detail Form: Displays the master and detail objects in separate forms.

When a specific master data object is displayed in the top form, the first related detail data object is displayed in the form below it. The user must use the form navigation to scroll through each subsequent detail data object.
ADF Master Table, Detail Table: Displays the master and detail objects in separate tables.

When a specific master data object is selected in the top table, the first set of related detail data objects are displayed in the table below it.

This widget is available only when both the master and detail objects are collections.

Note:

If an object is not a collection, but rather just a single data item, JDeveloper automatically excludes the range navigation from the default widget.

Also, accessor returns can be collections or single objects. Single objects can be displayed only in forms. Consequently, the master-detail widgets available from the Data Control Palette context menu differ depending on whether the accessor return is a collection or a single object.

If you want to modify the default forms or tables, see Chapter 6, "Creating a Basic Page" or Chapter 7, "Adding Tables".

8.3.2 What Happens When You Create Master-Detail Tables and Forms

When you drag and drop from the Data Control Palette, JDeveloper does many things for you, including adding code to the JSF page and corresponding entries in the page definition file. For a full description of what happens and what is created when you use the Data Control Palette, see Section 5.2.3, "What Happens When You Use the Data Control Palette".

8.3.2.1 Code Generated in the JSF Page

The JSF code generated for a pre-built master-detail widget is basically the same as the JSF code generated when you use the Data Control Palette to create a basic read-only table or form. For more information, see Chapter 6, "Creating a Basic Page" and Chapter 7, "Adding Tables". If you are building your own master-detail widgets, you might want to consider including similar components that are automatically included in the pre-built master-detail tables and forms.

The tables and forms in the pre-built master-detail widgets include a panelHeader tag that contains the fully qualified name of the data object populating the form or table. You can change this label as needed using a string or an EL expression that binds to a resource bundle.

If there is more than one data object in a collection, a form in a pre-built master-detail widget includes four commandButton tags for range navigation: First, Previous, Next, and Last. These range navigation buttons enable the user to scroll through the data objects in the collection. The actionListener of each button is bound to a data control operation, which performs the navigation. The execute property used in the actionListener binding, invokes the operation when the button is clicked. (If the form displays a single data object, JDeveloper would automatically omit the range navigation components.) For more information about range navigation, see Section 6.4, "Incorporating Range Navigation into Forms".

By default, tables in a pre-built master-detail widget include a tableSelectOne selection facet and a Submit button that enables the user to select a specific object in the collection. The default button is not automatically bound to a method or operation. So to get the selection facet to work, you would need to add an action binding to the button. For example, you could bind the button to a method that enables the user to edit the selected data object, as was done in the SRMain page of the SRDemo application. For more information about selection facets, see Section 10.3, "Creating Command Components to Execute Methods".

Tip:

If you drop an ADF Master Table, Detail Form or ADF Master Table, Detail Table widget on the page, the parent tag of the detail component (for example, panelForm tag or table tag) automatically has the partialTriggers attribute set to the id of the master component. At runtime, the partialTriggers attribute causes only the detail component to be re-rendered when the user makes a selection in the master component, which is called partial rendering. When the master component is a table, ADF uses partial rendering, because the table does not need to be re-rendered when the user simply makes a selection in the facet: only the detail component needs to be re-rendered to display the new data. For more information about partial rendering, see Section 11.4, "Enabling Partial Page Rendering".

8.3.2.2 Binding Objects Defined in the Page Definition File

Example 8-1 shows the page definition file created for a master-detail page that was created by dropping the serviceHistoryCollection accessor return, which is a detail collection under the ServiceRequest method return, on the page as an ADF Master Form, Detail Table.

The executables element defines a method iterator for the service requests (which is the master object) and an accessor iterator for the service history (which is the detail object). The accessor iterator contains a MasterBinding attribute, which references the method iterator for the master object. This reference to the master iterator enables the detail iterator to expose the correct detail data for the current master object (for more information, see Section 8.3.3, "What Happens at Runtime").

The bindings element defines a methodAction object, which invokes the method iterator for the master collection, and the value bindings for the form and the table. The attribute bindings that populate the text fields in the form are defined in the attributeValues elements. The id attribute of the attributeValues element contains the name of each data attribute, and the IterBinding attribute references an iterator binding to display data from the master object in the text fields.

The attribute bindings that populate the text fields in the form are defined in the attributeValues elements. The id attribute of the attributeValues element contains the name of each data attribute, and the IterBinding attribute references an iterator binding to display data from the master object in the text fields.

The range navigation buttons in the form are bound to the action bindings defined in the action elements. As in the attribute bindings, the IterBinding attribute of the action binding references the iterator binding for the master object.

The table, which displays the detail data, is bound to the table binding object defined in the table element. The IterBinding attribute references the iterator binding for the detail object.

For more information about the elements and attributes of the page definition file, see Section A.7, "<pageName>PageDef.xml".

Example 8-1 Binding Objects Defined in the Page Definition for a Master-Detail Page

<executables>
    <methodIterator id="findAllServiceRequestIter"
                    Binds="findAllServiceRequest.result"
                    DataControl="SRPublicFacade" RangeSize="10"
                    BeanClass="oracle.srdemo.model.ServiceRequest"/>
    <accessorIterator id="serviceHistoryCollectionIterator" RangeSize="10"
                      Binds="serviceHistoryCollection"
                      DataControl="SRPublicFacade"
                      BeanClass="oracle.srdemo.model.ServiceHistory"
                      MasterBinding="findAllServiceRequestIter"/>
</executables>
<bindings>
    <methodAction id="findAllServiceRequest"
                  InstanceName="SRPublicFacade.dataProvider"
                  DataControl="SRPublicFacade"
                  MethodName="findAllServiceRequest" RequiresUpdateModel="true"
                  Action="999"
                  ReturnName="SRPublicFacade.methodResults.SRPublicFacade_
                               dataProvider_findAllServiceRequest_result"/>
    ...
    <attributeValues id="assignedDate" IterBinding="findAllServiceRequestIter">
      <AttrNames>
        <Item Value="assignedDate"/>
      </AttrNames>
    </attributeValues>
    <attributeValues id="problemDescription"
                     IterBinding="findAllServiceRequestIter">
      <AttrNames>
        <Item Value="problemDescription"/>
      </AttrNames>
    </attributeValues>
    <action id="First" RequiresUpdateModel="true" Action="12"
            IterBinding="findAllServiceRequestIter"/>
    <action id="Previous" RequiresUpdateModel="true" Action="11"
            IterBinding="findAllServiceRequestIter"/>
    <action id="Next" RequiresUpdateModel="true" Action="10"
            IterBinding="findAllServiceRequestIter"/>
    <action id="Last" RequiresUpdateModel="true" Action="13"
            IterBinding="findAllServiceRequestIter"/>
    <table id="ServiceRequestserviceHistoryCollection"
           IterBinding="serviceHistoryCollectionIterator">
      <AttrNames>
        <Item Value="lineNo"/>
        <Item Value="nextLineItem"/>
        ...
      </AttrNames>
    </table>
</bindings>

8.3.3 What Happens at Runtime

As was previously mentioned in Section 5.5.2.2, "Binding Objects Defined in the executables Element", ADF iterators are associated with underlying RowSetIterator objects, which manage which data objects, or rows, are currently displayed on a page. At runtime, the rowset iterators manage the data displayed in the master and detail components.

Both the master and detail rowset iterators listen to rowset navigation events, such as the user selecting a specific row or clicking the range navigation buttons, and display the appropriate rows in the UI. In the case of the default master-detail components, the rowset navigation events are the command buttons on a form (First, Previous, Next, Last) or the selection facet and Submit button on a table.

The rowset iterator for the detail collection manages the synchronization of the detail data with the master data. It listens to the row navigation events in both the master and detail collections. The MasterBinding attribute on the detail iterator definition in the page definition file tells the detail rowset iterator which master iterator to listen to. If a rowset navigation event occurs in the master collection, the detail rowset iterator automatically executes and returns the detail rows related to the current master row.

8.3.4 What You May Need to Know About Master-Detail on Separate Pages

The default master-detail components display the master-detail data on a single page. However, using the master and detail objects on the Data Control Palette, you can also display the collections on separate pages, and still have the binding iterators manage the synchronization of the master and detail objects.

For example, in the SRDemo application the service requests and service history are displayed on the SRMain page. However, the page could display the service request only, and instead of showing the service history, it could provide a button called Details. If the user clicks the Details button, the application would navigate to a new page that displays all the related service history in a table. A button on the service history page would enable the user to return to the service request page.

To display master-detail objects on separate pages, create two pages, one for the master object and one for the detail object, using the individual tables or forms available from the Data Control Palette. (For information about using the forms or tables, see Chapter 6, "Creating a Basic Page" or Chapter 7, "Adding Tables".) Remember that the detail object iterator manages the synchronization of the master and detail data. So, be sure to drag the appropriate detail object from the Data Control Palette when you create the page to display the detail data (see Section 8.2, "Identifying Master-Detail Objects on the Data Control Palette").

To handle the page navigation, add command buttons or links to each page, or use the default Submit button available when you create a form or table using the Data Control Palette. Each button must specify a navigation rule outcome value in the action attribute. In the faces-config.xml file, add a navigation rule from the master data page to the detail data page, and another rule to return from the detail data page to the master data page. The from-outcome value in the navigation rules must match the outcome value specified in the action attribute of the buttons. For information about adding navigation between pages, see Chapter 9, "Adding Page Navigation".
