A Appendix: Installer Windows for Server Installation

You need specific details about your environment for the installer to successfully install the Point-of-Service application. This appendix shows the windows that are displayed during the installation of the Point-of-Service server. Depending on the options you select, you may not see some windows or fields.

For each field in a window, a table is included in this appendix that describes the field.

For the installer windows for a client installation, see Appendix B.

Note: The paths shown in the window examples in this appendix use the path format for Microsoft Windows. In the table describing those fields, example paths for both Microsoft Windows and Novell SLEPOS are shown.

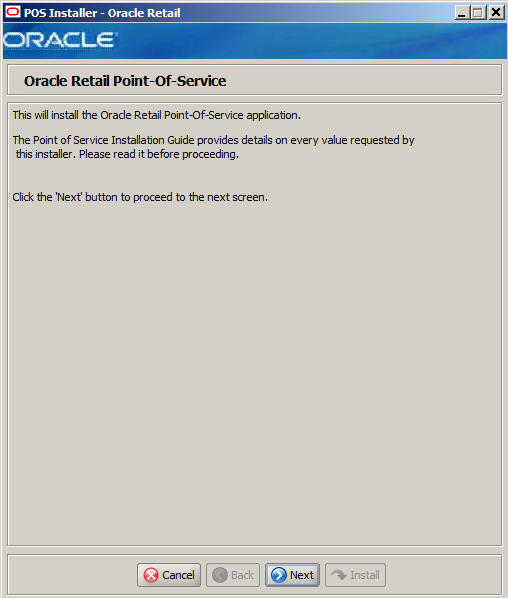

Figure A-1 Introduction

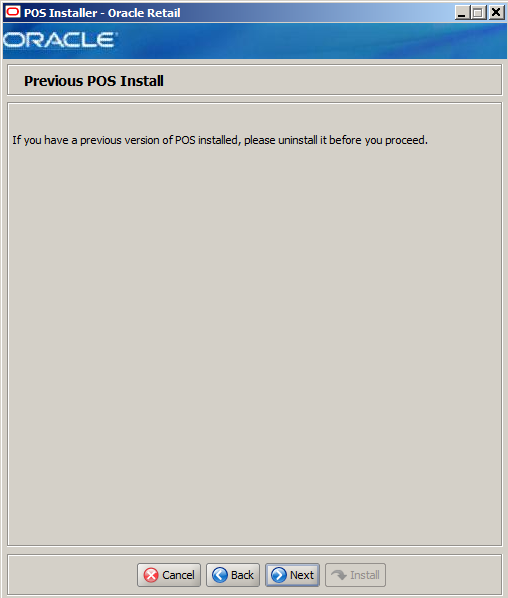

Figure A-2 Previous POS Install

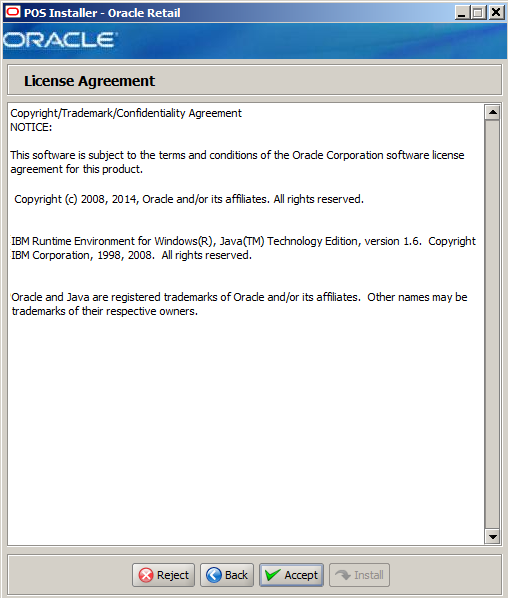

Figure A-3 License Agreement

Note: You must choose to accept the terms of the license agreement in order for the installation to continue.

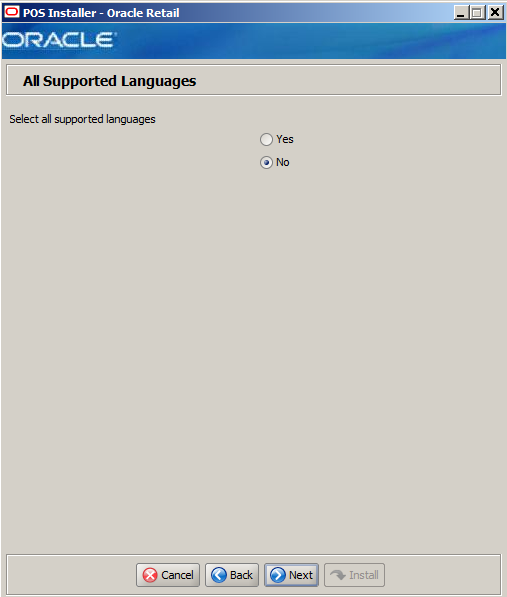

Figure A-4 All Supported Languages

The field in this window is described in the following table:

Details	Content
Field Title	Select all supported languages
Field Description	Choose whether all languages are initially selected on the Supported Languages screen: To have all available languages initially selected, select Yes. To have only English initially selected, select No.
Example	No

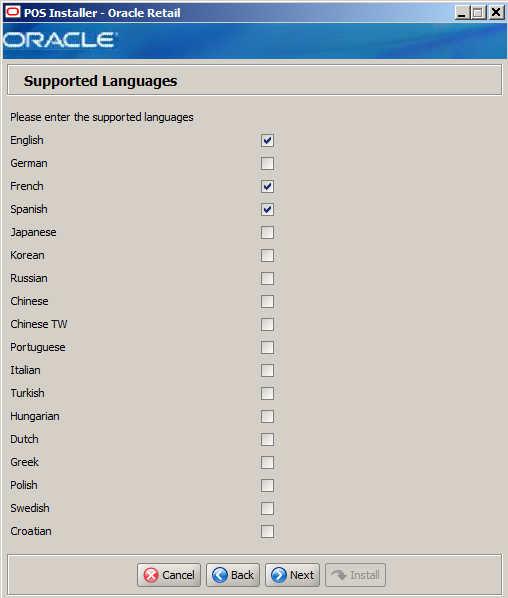

Figure A-5 Supported Languages

The field in this window is described in the following table:

Details	Content
Field Title	Please enter the supported languages
Field Description	Select the languages that will be available for the Point-of-Service application. The languages selected in this window determine the available choices in the Enter Default Locale window.
Example	English, French, and Spanish

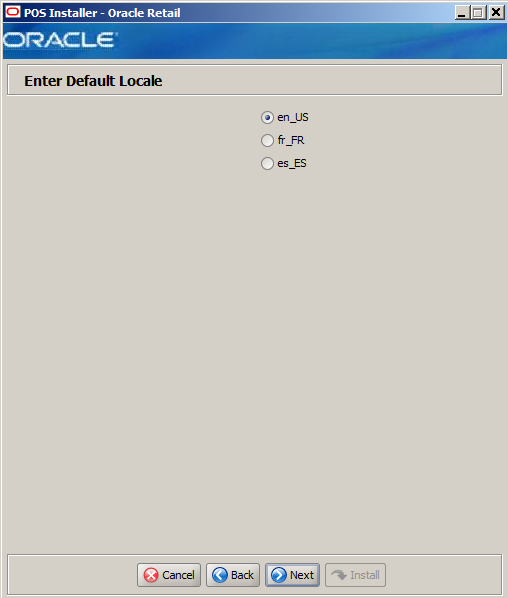

Figure A-6 Enter Default Locale

The field in this window is described in the following table:

Details	Content
Field Title	Enter Default Locale
Field Description	Locale support in Point-of-Service enables the date, time, currency, calendar, address, and phone number to be displayed in the format for the selected default locale. The choices for default locale are dependent on the selections made in the Supported Languages window. For each selected language, the default locale for that language is displayed in the Enter Default Locale window. For example, if English, French, and Italian are selected in the Supported Languages window, en_US, fr_FR, and it_IT are the available choices for the default locale.
Example	en_US

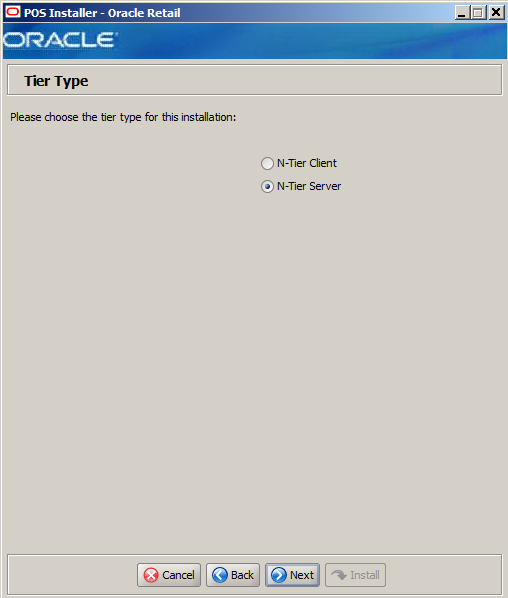

Figure A-7 Tier Type

The field in this window is described in the following table:

Details	Content
Field Title	Tier Type
Field Description	Choose the server tier type for this installation. For more information, see "Determining Tier Type" in Chapter 3. To install the N-Tier version of the server, choose N-Tier Server.
Example	N-Tier Server

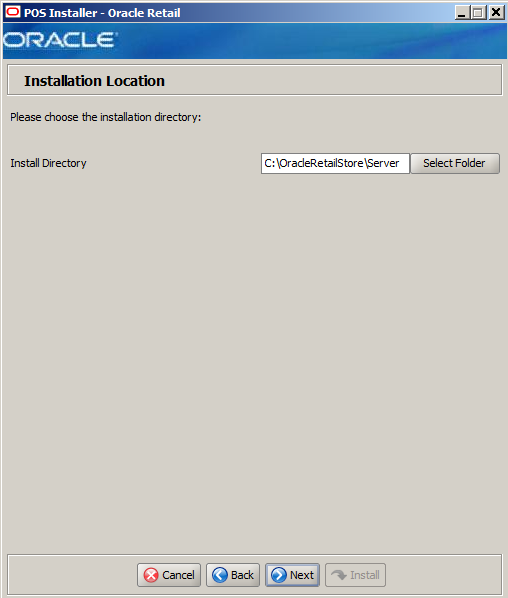

Figure A-8 Installation Location

The field in this window is described in the following table:

Details	Content
Field Title	Install Directory
Field Description	Choose the directory into which the Point-of-Service files are copied. The default for the first directory in the path is OracleRetailStore. This directory should be the same for all Oracle Retail POS Suite products. Note: The server and the client must not be installed into the same directory. In this guide, <POS_install_directory> refers to the selected installation directory for the server or client. Files specific to Point-of-Service are copied to the pos subdirectory of <POS_install_directory>.
Example	Microsoft Windows: C:\OracleRetailStore\Server Novell SLEPOS: /opt/OracleRetailStore/Server

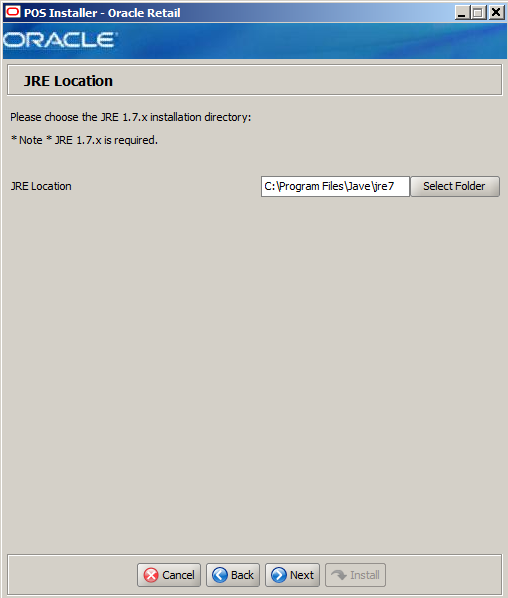

Figure A-9 JRE Location

The field in this window is described in the following table:

Details	Content
Field Title	JRE Location
Field Description	Enter the location where the JRE is installed.
Example	Microsoft Windows: C:\Program Files\Java\jre7 Novell SLEPOS: /opt/Java/jre7

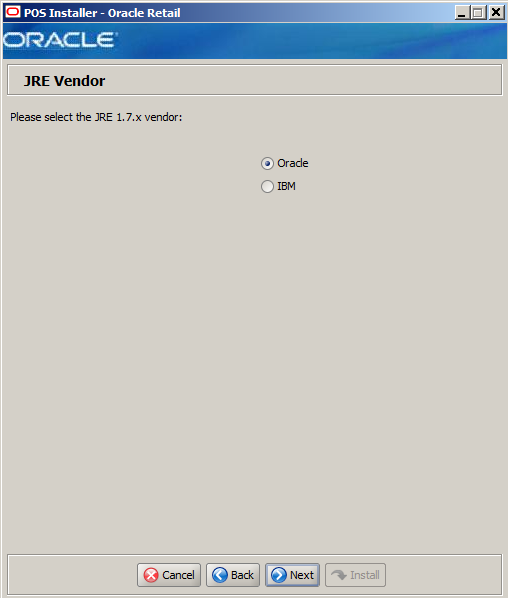

Figure A-10 JRE Vendor

The field in this window is described in the following table:

Details	Content
Field Title	Please select the JRE 1.7.x vendor
Field Description	Select the vendor for the JRE entered in the JRE Location window: Oracle IBM Choose Oracle.

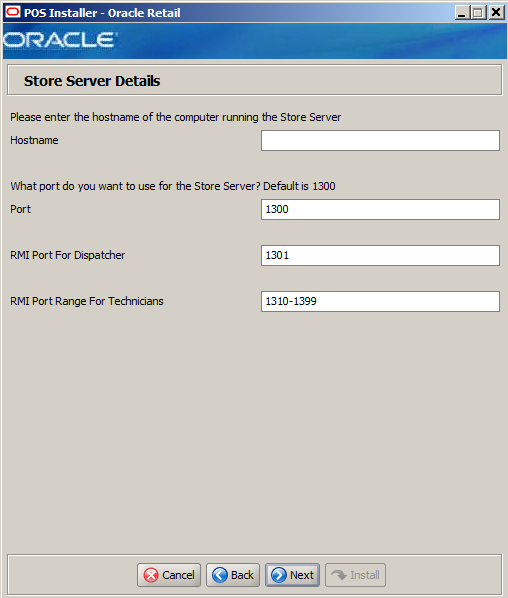

Figure A-11 Store Server Details

The fields in this window are described in the following tables:

Details	Content
Field Title	Hostname
Field Description	Enter the host name of the store server.

Details	Content
Field Title	Port
Field Description	Enter the port number of the store server host computer used for JNDI lookups by remote clients.
Example	1300

Details	Content
Field Title	RMI Port For Dispatcher
Field Description	Enter the port number of the store server host computer used for RMI communication to this installation's Point-of-Service dispatcher.
Example	1301

Details	Content
Field Title	RMI Port Range For Technicians
Field Description	Enter the range of port numbers enabled for RMI communication to this installation's technicians.
Example	1310-1399

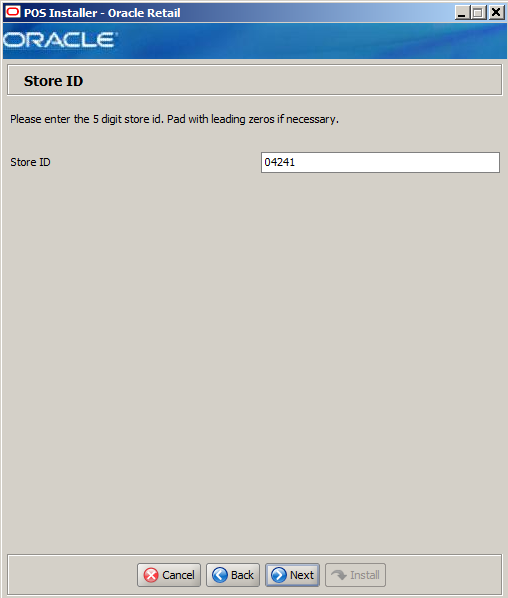

Figure A-12 Store ID

The field in this window is described in the following table:

Details	Content
Field Title	Store ID
Field Description	Enter the store ID. Note: The store ID must be five digits. It can be padded with leading zeroes if necessary. The store ID can only contain the numeric characters 0 through 9.
Example	04241

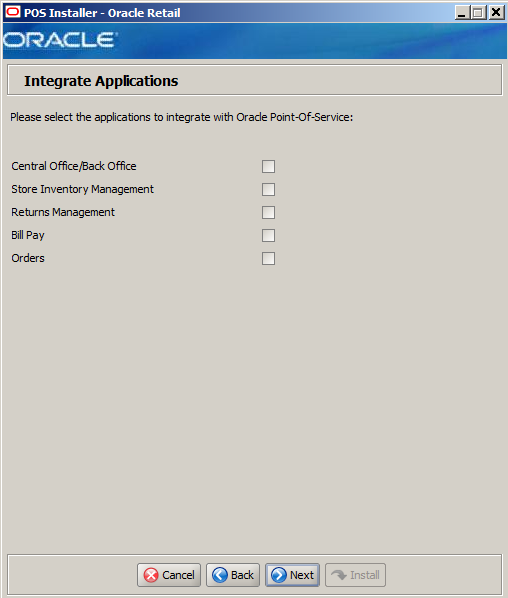

Figure A-13 Integrate Applications

The field in this window is described in the following table:

Details	Content
Field Title	Please select the applications to integrate with Oracle Point-of-Service
Field Description	Select the applications that Point-of-Service is integrated with: Central Office/Back Office Store Inventory Management Returns Management Bill Pay Orders

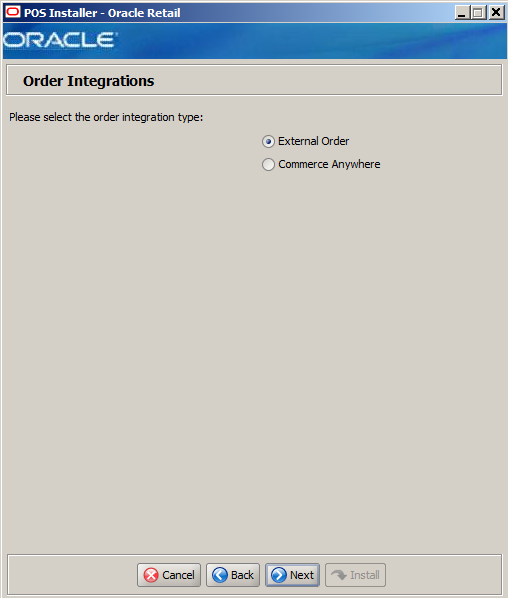

Figure A-14 Order Integrations

This window is only displayed if Orders is selected in the Integrate Applications window.

The field in this window is described in the following table:

Details	Content
Field Title	Please select the order integration type
Field Description	Select the type of orders to be used: External Order Commerce Anywhere
Example	External Order

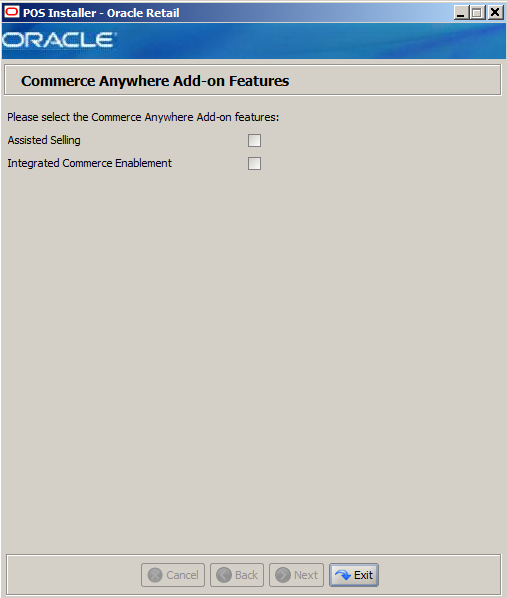

Figure A-15 Commerce Anywhere Add-on Features

This window is only displayed if Commerce Anywhere is selected in the Order Integrations window.

The field in this window is described in the following table:

Details	Content
Field Title	Please select the Commerce Anywhere Add-on features
Field Description	Select the Commerce Anywhere features that will be used in Mobile Point-of-Service: To use the Assisted Selling Application (ASA), select Assisted Selling. Note: This feature is not tested in Release 14.1. To use integrated commerce, select Integrated Commerce Enablement.

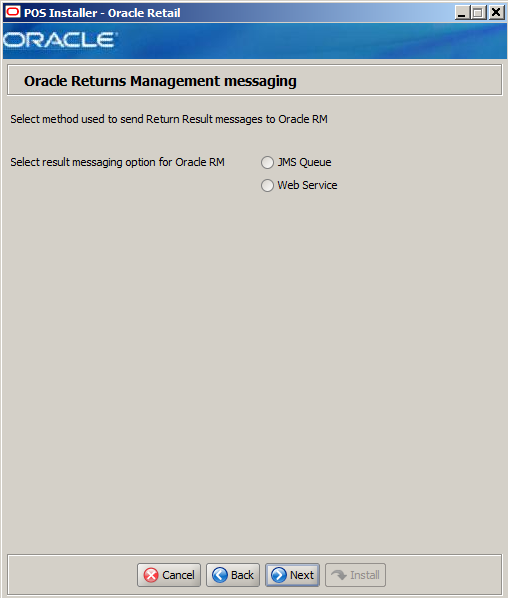

Figure A-16 Oracle Returns Management Messaging

This window is only displayed if Returns Management is selected in the Integrate Applications window.

The field in this window is described in the following table:

Details	Content
Field Title	Select result messaging option for Oracle RM
Field Description	Choose the method to use to send return result messages to Oracle Retail Returns Management: If you want messages sent to a JMS queue, choose JMS Queue. If you want to use a web service to send the messages, choose Web Service.

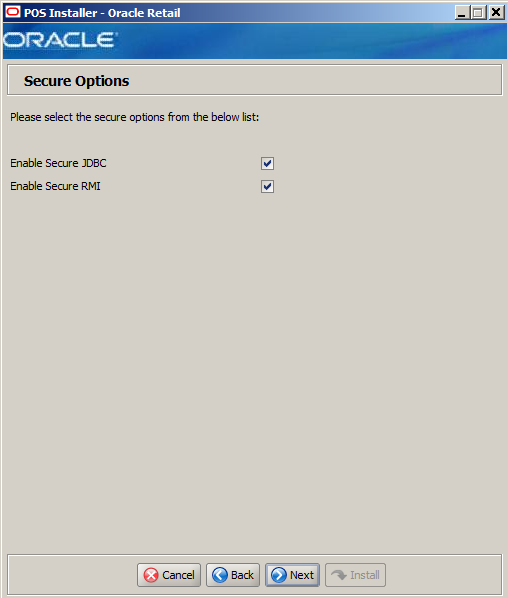

Figure A-17 Secure Options

The fields in this window are described in the following tables:

Details	Content
Field Title	Enable Secure JDBC?
Field Description	Select whether secure JDBC is to be used for communication with the database.
Example	Yes

Details	Content
Field Title	Enable Secure RMI?
Field Description	Select whether secure RMI is to be used for communication between the store server and registers.
Example	Yes

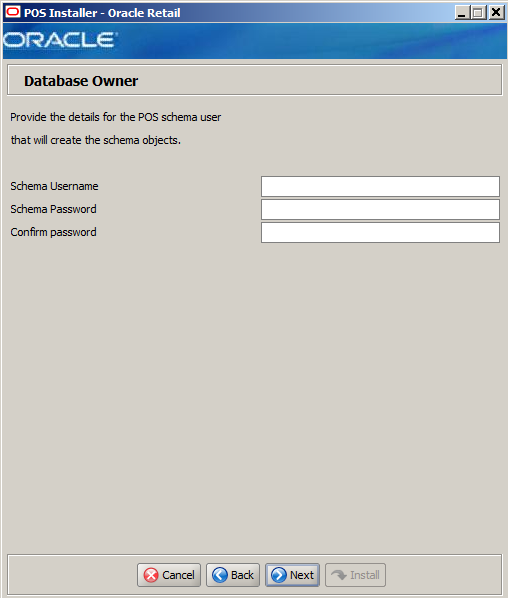

Figure A-18 Database Owner

The fields in this window are described in the following tables:

Details	Content
Field Title	Schema Username
Field Description	Schema user name that manages the objects in the schema. This user has Create, Drop, and Alter privileges in the schema, that is, Data Definition Language (DDL) execution privileges. For information on creating this user, see "Create the Database Schema Owner and Data Source Users" in Chapter 3. Note: This user creates the database objects used by Point-of-Service.

Details	Content
Field Title	Schema Password
Field Description	Password for the database owner.

Details	Content
Field Title	Confirm Password
Field Description	Reentered Schema Password used to confirm the password. Note: The passwords in the Schema Password and Confirm Password fields must match.

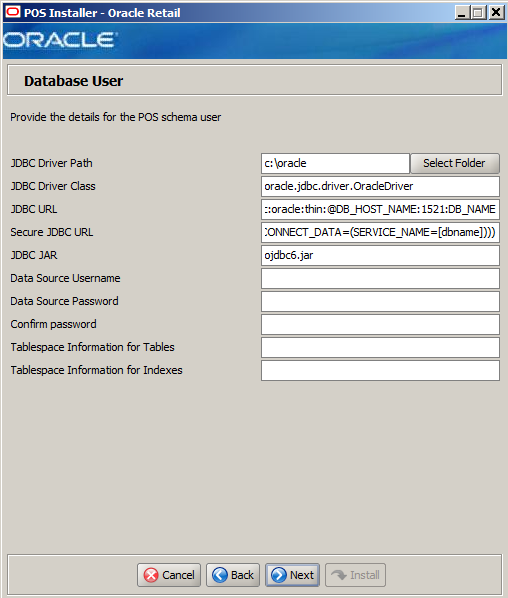

Figure A-19 Database Source User

The fields in this window are described in the following tables:

Details	Content
Field Title	JDBC Driver Path
Field Description	Choose the path to the jar containing the database driver. This is the jar entered in the JDBC JAR field. Note: The ojdbc6.jar file can be found in the <INSTALL-DIR>\product\server\common\db\lib
Example	Microsoft Windows: C:\oracle Novell SLEPOS: /opt/oracle

Details	Content
Field Title	JDBC Driver Class
Field Description	Enter the database driver class name.
Example	oracle.jdbc.driver.OracleDriver

Details	Content
Field Title	JDBC URL
Field Description	URL used by the Point-of-Service application to access the database schema. For the expected syntax, see Appendix E. Note: If Enable Secure JDBC is selected in the Secure Options window, this URL is only used by the installer.
Example	jdbc:oracle:thin:@DB_HOST_NAME:1521:DB_NAME

Details	Content
Field Title	Secure JDBC URL
Field Description	Secure URL containing the specific parameters used by Point-of-Service to access the database schema. See Appendix E for the expected syntax. This field is only displayed if Enable Secure JDBC is selected in the Secure Options window.
Example	jdbc:oracle:thin:@(DESCRIPTION=(ADDRESS=(PROTOCOL=tcps)(HOST=[host])(PORT=[tcpsPort]))(CONNECT_DATA=(SERVICE_NAME=[dbname])))

Details	Content
Field Title	JDBC JAR
Field Description	Enter the name of the jar containing the database driver.
Example	ojdbc6.jar

Details	Content
Field Title	Data Source Username
Field Description	Database user name that can access and manipulate the data in the schema. This user can have Select, Insert, Update, Delete, and Execute privileges on objects in the schema, that is, Data Manipulation Language (DML) execution privileges. For information on creating this user, see "Create the Database Schema Owner and Data Source Users" in Chapter 3. Note: This schema user is used by Point-of-Service to access the database.

Details	Content
Field Title	Data Source Password
Field Description	Password for the data source user.

Details	Content
Field Title	Confirm Password
Field Description	Reentered Data Source Password used to confirm the password. Note: The passwords in the Data Source Password and Confirm Password fields must match.

Details	Content
Field Title	Tablespace Information for Tables
Field Description	Name of the tablespace, associated with the data source user, which is used for tables. If this field is blank, tables are installed in the default tablespace.

Details	Content
Field Title	Tablespace Information for Indexes
Field Description	Name of the tablespace, associated with the data source user, which is used for indexes. If this field is blank, indexes are installed in the default tablespace.

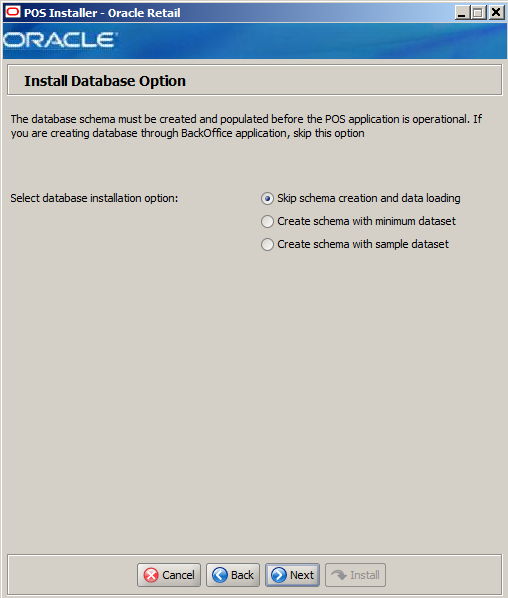

Figure A-20 Install Database Option

The field in this window is described in the following table:

Details	Content
Field Title	Select database installation option
Field Description	The database schema must be created and populated before starting Point-of-Service. This window gives you the option to have the installer create and populate the database schema or leave the database schema unmodified. Caution: If the database schema is already created and populated, select Skip schema creation and data loading. Selecting one of the other options will result in the loss of the data already in the database. If the database schema was created and populated using Back Office, reports data, and Back Office parameters will be lost. To have the installer leave the database schema unchanged, select Skip schema creation and data loading. To have the installer create and populate the database schema with the minimum dataset, select Create schema with minimum dataset. To have the installer create and populate the database schema with the sample dataset, select Create schema with sample dataset. For more information, see "Database Install Options" in Chapter 3.
Example	Skip schema creation and data loading

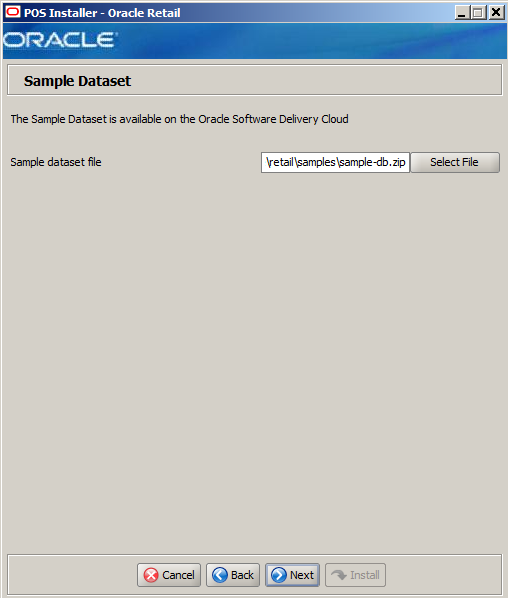

Figure A-21 Sample Dataset

This window is only displayed when Create schema with sample dataset is selected in the Install Database Option window.

The field in this window is described in the following table:

Details	Content
Field Title	Sample dataset file
Field Description	Enter the path to the sample dataset to be loaded into the database schema. You can obtain the sample-dataset-14.1.zip file from the Oracle Software Delivery Cloud at the following web site: https://edelivery.oracle.com/ For more information on the sample dataset, see "Database Install Options" in Chapter 3.
Example	Microsoft Windows: C:\oracle\retail\samples\sample-db.zip Novell SLEPOS: /oracle/retail/samples/sample-db.zip

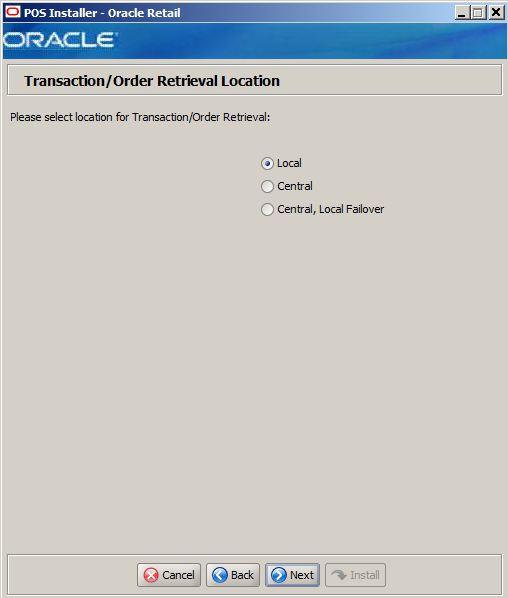

Figure A-22 Transaction Retrieval Location

This window is only displayed if Central Office/Back Office is selected in the Integrate Applications window.

The field in this window is described in the following table:

Details	Content
Field Title	Please select location for Transaction Retrieval
Field Description	Choose the location for retrieving transactions. If transactions should only be retrieved from the store database, choose Local. If transactions should only be retrieved from the corporate database, choose Central. If transactions should be retrieved from the corporate database, and if not found, then retrieved from the store database, choose Central, Local Failover. Note: You must choose the same location for both the store server and client installations.
Example	Local

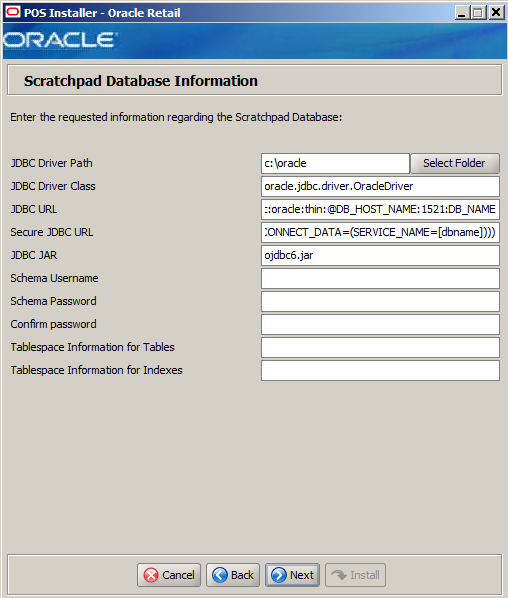

Figure A-23 Scratchpad Database Information

This window is only displayed if Central or Central, Local Failover is selected in the Transaction Retrieval Location window.

The fields in this window are described in the following tables:

Details	Content
Field Title	JDBC Driver Path
Field Description	Choose the path to the jar containing the database driver. This is the jar entered in the JDBC JAR field.
Example	Microsoft Windows: C:\oracle Novell SLEPOS: /opt/oracle

Details	Content
Field Title	JDBC Driver Class
Field Description	Enter the database driver class name.
Example	oracle.jdbc.driver.OracleDriver

Details	Content
Field Title	JDBC URL
Field Description	URL used by the Point-of-Service application to access the database schema. For the expected syntax, see Appendix E. Note: If Enable Secure JDBC is selected in the Secure Options window, this URL is only used by the installer.
Example	jdbc:oracle:thin:@DB_HOST_NAME:1521:DB_NAME

Details	Content
Field Title	Secure JDBC URL
Field Description	Secure URL containing the specific parameters used by Point-of-Service to access the database schema. See Appendix E for the expected syntax. This field is only displayed if Enable Secure JDBC is selected in the Secure Options window.
Example	jdbc:oracle:thin:@(DESCRIPTION=(ADDRESS=(PROTOCOL=tcps)(HOST=[host])(PORT=[tcpsPort]))(CONNECT_DATA=(SERVICE_NAME=[dbname])))

Details	Content
Field Title	JDBC JAR
Field Description	Enter the name of the jar containing the database driver.
Example	ojdbc6.jar

Details	Content
Field Title	Schema Username
Field Description	Enter the database user that owns the scratchpad database.

Details	Content
Field Title	Schema Password
Field Description	Password for the database owner.

Details	Content
Field Title	Confirm Password
Field Description	Reentered Schema Password used to confirm the password. Note: The passwords in the Schema Password and Confirm Password fields must match.

Details	Content
Field Title	Tablespace Information for Tables
Field Description	Name of the tablespace, associated with the data source user, which is used for tables. If this field is blank, tables are installed in the default tablespace.

Details	Content
Field Title	Tablespace Information for Indexes
Field Description	Name of the tablespace, associated with the data source user, which is used for indexes. If this field is blank, indexes are installed in the default tablespace.

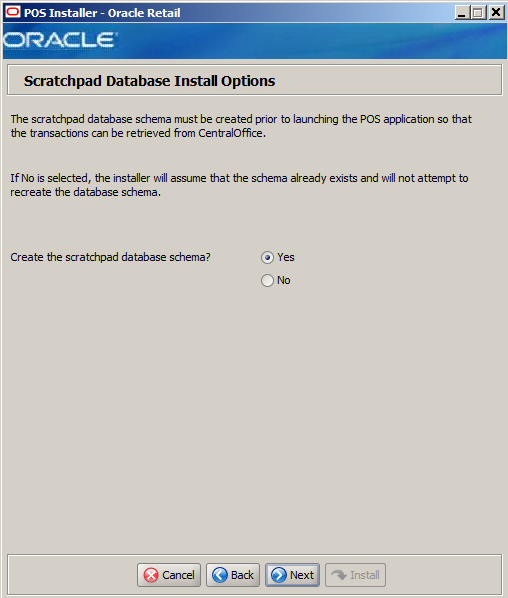

Figure A-24 Scratchpad Database Install Options

This window is only displayed if Central or Central, Local Failover is selected in the Transaction Retrieval Location window.

The field in this window is described in the following table:

Details	Content
Field Title	Create the scratchpad database schema
Field Description	Choose whether the installer creates the scratchpad database schema.
Example	Yes

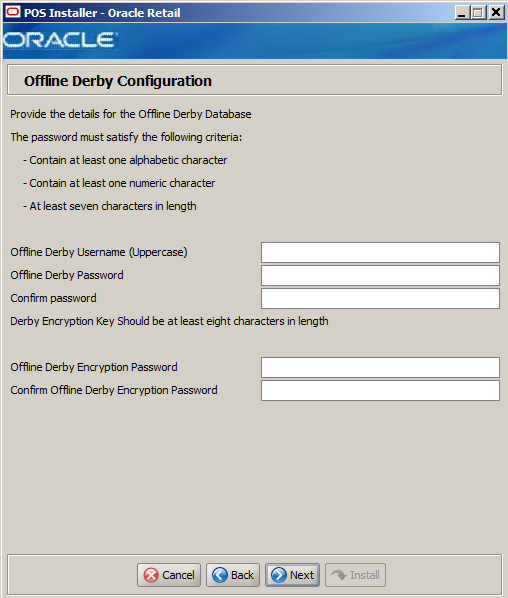

Figure A-25 Offline Derby Configuration

The fields in this window are described in the following tables:

Details	Content
Field Title	Offline Derby Username (Uppercase)
Field Description	Enter the user name used for offline Derby processing. The user name must be in uppercase characters.

Details	Content
Field Title	Offline Derby Password
Field Description	Enter the password for the offline Derby user.

Details	Content
Field Title	Confirm Password
Field Description	Reentered Offline Derby Password used to confirm the password. Note: The passwords in the Offline Derby Password and Confirm Password fields must match.

Details	Content
Field Title	Offline Derby Encryption Password
Field Description	Enter the encryption password for the offline Derby user.

Details	Content
Field Title	Confirm Offline Derby Encryption Password
Field Description	Reentered Offline Derby Encryption Password used to confirm the password. Note: The passwords in the Offline Derby Encryption Password and Confirm Password fields must match.

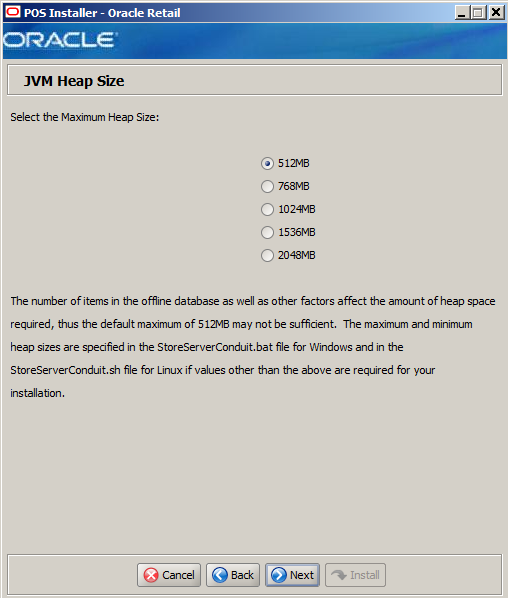

Figure A-26 JVM Heap Size

The field in this window is described in the following table:

Details	Content
Field Title	Select the Maximum Heap Size
Field Description	Select the maximum heap size for the offline database. Note: The number of items in the offline database, as well as other factors, affect the amount of heap size required.
Example	512MB

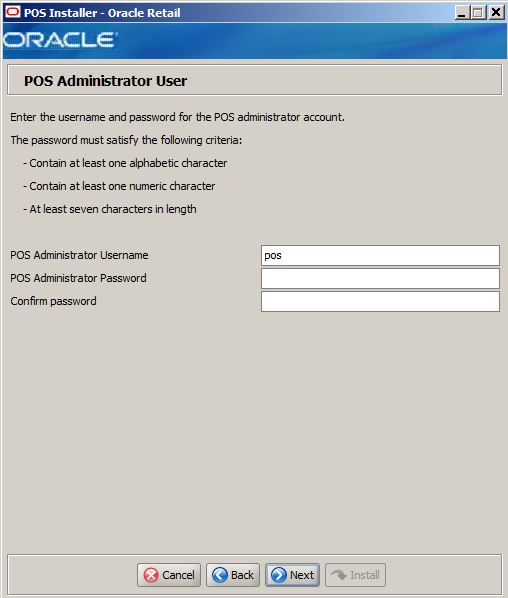

Figure A-27 POS Administrator User

The fields in this window are described in the following tables:

Details	Content
Field Title	POS Administrator Username
Field Description	Enter the user name used for performing Point-of-Service administrative functions.
Example	pos

Details	Content
Field Title	POS Administrator Password
Field Description	Enter the password for the administrator user.

Details	Content
Field Title	Confirm Password
Field Description	Reentered POS Administrator Password used to confirm the password. Note: The passwords in the POS Administrator Password and Confirm Password fields must match.

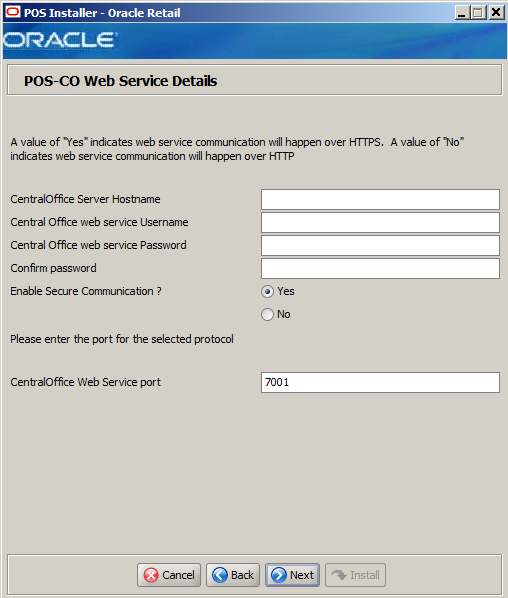

Figure A-28 POS-CO WebService Details

This window is only displayed if Central Office/Back Office is selected in the Integrate Applications window.

The fields in this window are described in the following tables:

Details	Content
Field Title	Central Office Server Hostname
Field Description	Enter the host name for the Central Office web service.

Details	Content
Field Title	Central Office web service Username
Field Description	Enter the user ID that is used to access the web service. Note: The same Web Service Username that was entered when installing Central Office must be entered here. For more information, see the Oracle Retail Central Office Installation Guide.

Details	Content
Field Title	Central Office web service Password
Field Description	Enter the password of the authorized user. Note: The same Web Service Password that was entered when installing Central Office must be entered here. For more information, see the Oracle Retail Central Office Installation Guide.

Details	Content
Field Title	Confirm Password
Field Description	Reentered Central Office web service Password used to confirm the password. Note: The passwords in the Central Office web service Password and Confirm Password fields must match.

Details	Content
Field Title	Enable Secure Communication
Field Description	Select Yes for web service communication with Central Office using HTTPS.
Example	Yes

Details	Content
Field Title	Central Office Webs Service Port
Field Description	Enter the port number for the Central Office web service.

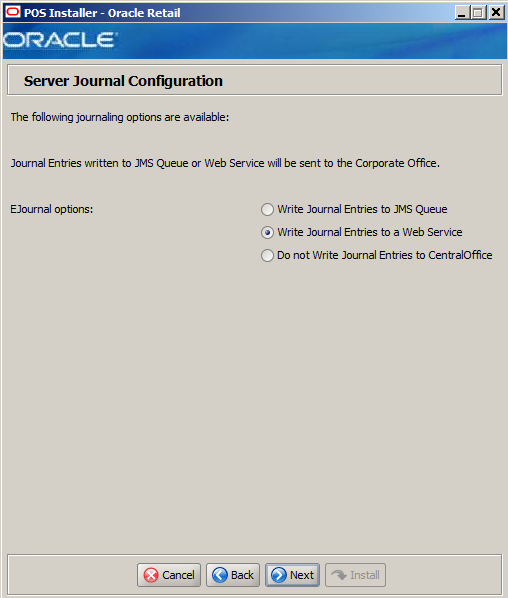

Figure A-29 Server Journal Configuration

This window is only displayed if Central Office/Back Office is selected in the Integrate Applications window.

The field in this window is described in the following table:

Details	Content
Field Title	EJounal options
Field Description	Select an option for journaling. Journal entries written to a JMS queue or web service are sent to the corporate office. Write Journal Entries to JMS Queue Write Journal Entries to a Web Service Do not Write Journal Entries to CentralOffice
Example	Write Journal Entries to a Web Service

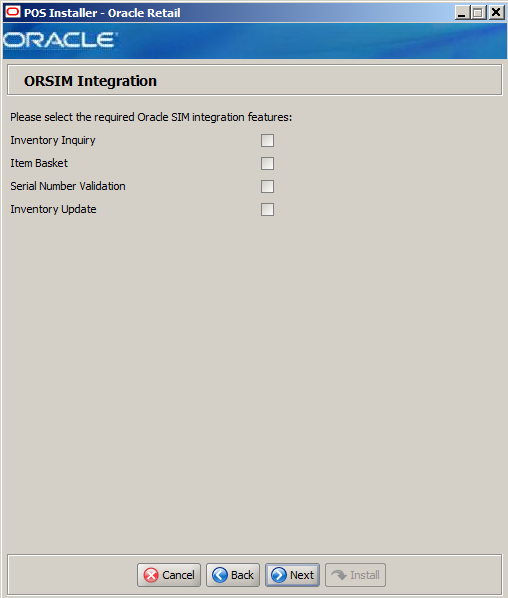

Figure A-30 ORSIM Integration

This window is only displayed if Store Inventory Management is selected in the Integrate Applications window.

The field in this window is described in the following table:

Details	Content
Field Title	Please select the required SIM integration features
Field Description	Select the Oracle Retail Store Inventory Management (SIM) features that will be used in Point-of-Service: To inquire about inventory using SIM, select Inventory Inquiry. To enable item baskets created using SIM, select Item Basket. To enable validation of serial numbers using SIM, select Serial Number Validation. To update inventory using SIM, select Inventory Update.

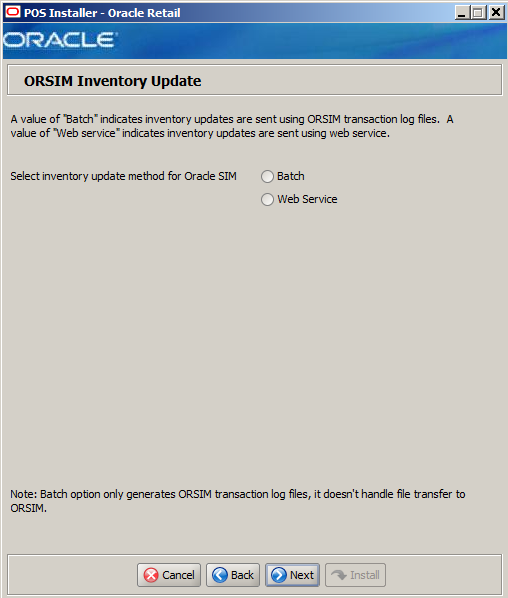

Figure A-31 ORSIM Inventory Update

This window is only displayed if Inventory Update is selected in the ORSIM Integration window.

The field in this window is described in the following table:

Details	Content
Field Title	Select inventory update method for Oracle SIM
Field Description	Select the inventory update method used for SIM: To use batch, select Batch. To use a web service, select Web Service.

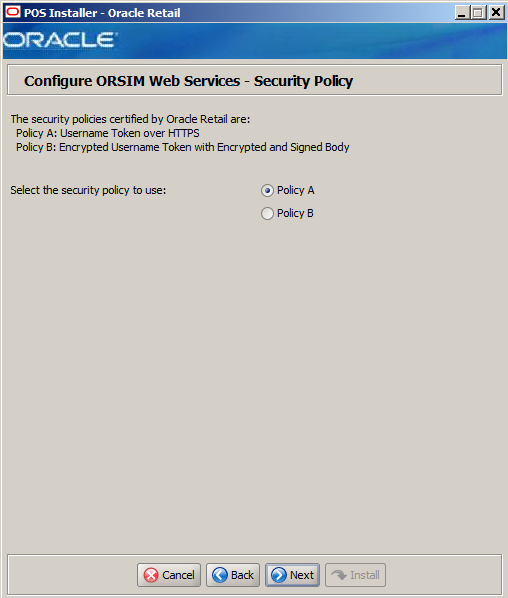

Figure A-32 Configure ORSIM Web Services - Security Policy

This window is only displayed if any features are selected in the ORSIM Integration window.

The field in this window is described in the following table:

Details	Content
Field Title	Select the security policy to use
Field Description	Select the security policy certified by Oracle: To use a user name token over https, select Policy A. To use an encrypted user name token with an encrypted and signed body, select Policy B.
Example	Policy A

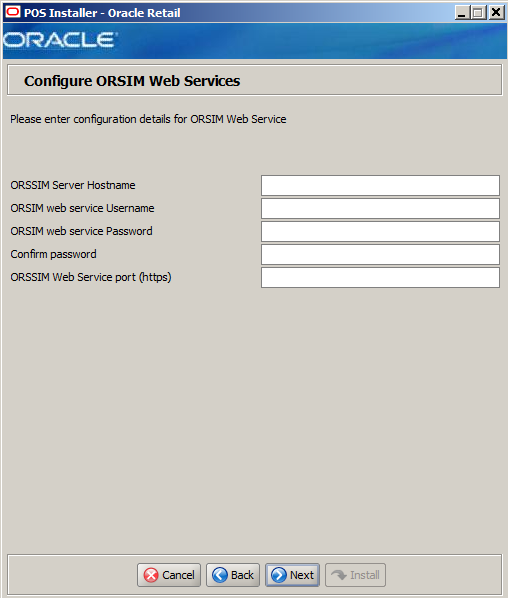

Figure A-33 Configure ORSIM Web Services for Policy A

This window is only displayed Policy A is selected in the Configure ORSIM Web Services - Security Policy window.

The fields in this window are described in the following tables:

Details	Content
Field Title	ORSIM Server Hostname
Field Description	Enter the host name for the Oracle Retail Store Inventory Management web server.

Details	Content
Field Title	ORSIM Web Service Username
Field Description	Enter the user ID used to access the Oracle Retail Store Inventory Management web service.

Details	Content
Field Title	ORSIM Web Service Password
Field Description	Enter the password used to access Oracle Retail Store Inventory Management web service.

Details	Content
Field Title	Confirm Password
Field Description	Reentered ORSIM Web Service Password used to confirm the password. Note: The passwords in the WebService Password and Confirm Password fields must match.

Details	Content
Field Title	ORSIM Web Service Port (https)
Field Description	Enter the port number used to access Oracle Retail Store Inventory Management web service.

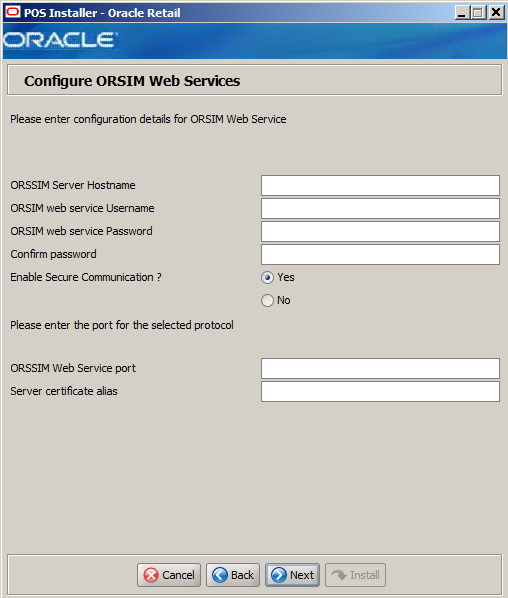

Figure A-34 Configure ORSIM Web Services for Policy B

This window is only displayed Policy B is selected in the Configure ORSIM Web Services - Security Policy window.

The fields in this window are described in the following tables:

Details	Content
Field Title	ORSIM Server Hostname
Field Description	Enter the host name for the Oracle Retail Store Inventory Management web server.

Details	Content
Field Title	ORSIM Web Service Username
Field Description	Enter the user ID used to access the Oracle Retail Store Inventory Management web service.

Details	Content
Field Title	ORSIM Web Service Password
Field Description	Enter the password used to access Oracle Retail Store Inventory Management web service.

Details	Content
Field Title	Confirm Password
Field Description	Reentered ORSIM Web Service Password used to confirm the password. Note: The passwords in the WebService Password and Confirm Password fields must match.

Details	Content
Field Title	Enable Secure Communication?
Field Description	Select Yes for web service communication with Oracle Retail Store Inventory Management using HTTPS.
Example	Yes

Details	Content
Field Title	ORSIM Web Service Port
Field Description	Enter the port number used to access the Oracle Retail Store Inventory Management web service.

Details	Content
Field Title	Server Certificate Alias
Field Description	Enter the alias for the server certificate used to access the Oracle Retail Store Inventory Management web service.

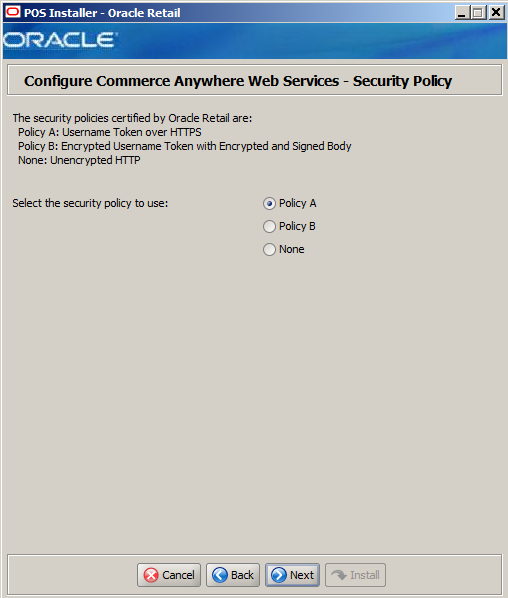

Figure A-35 Configure Commerce Anywhere Web Services - Security Policy

This window is only displayed if Orders in the Integrate Applications window and then Commerce Anywhere is selected in the Order Integrations window.

The field in this window is described in the following table:

Details	Content
Field Title	Select the security policy to use
Field Description	Select the security policy certified by Oracle: To use a user name token over https, select Policy A. To use an encrypted user name token with an encrypted and signed body, select Policy B. To use un-encrypted http, select None.
Example	Policy A

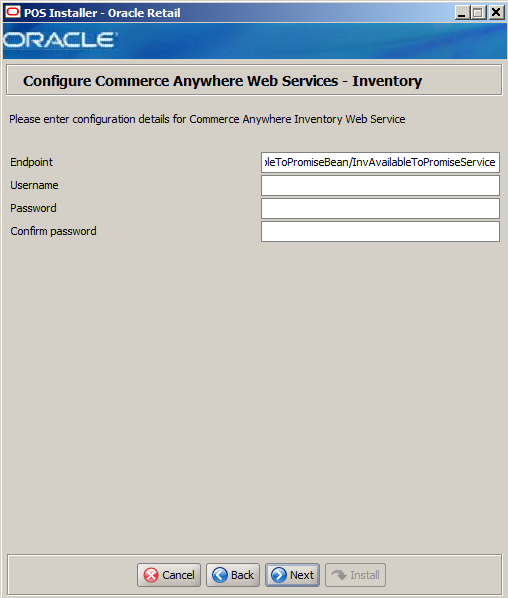

Figure A-36 Configure Commerce Anywhere Web Services - Inventory for Policy A

This window is only displayed if Policy A is selected in the Configure Commerce Anywhere Web Services - Security Policy window.

The fields in this window are described in the following tables:

Details	Content
Field Title	Endpoint
Field Description	Entry point to the Commerce Anywhere Inventory web service.
Example	https://HOST[:PORT]/InvAvailableToPromiseBean/InvAvailableToPromiseService

Details	Content
Field Title	Username
Field Description	User name for the Commerce Anywhere Customer Inventory web service.

Details	Content
Field Title	Password
Field Description	Password for the user.

Details	Content
Field Title	Confirm Password
Field Description	Reentered Password used to confirm the password. Note: The passwords in the Password and Confirm Password fields must match.

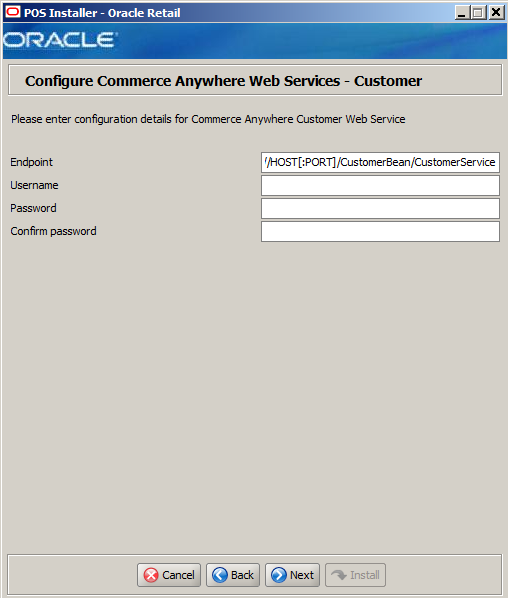

Figure A-37 Configure Commerce Anywhere Web Services - Customer for Policy A

This window is only displayed if Policy A is selected in the Configure Commerce Anywhere Web Services - Security Policy window.

The fields in this window are described in the following tables:

Details	Content
Field Title	Endpoint
Field Description	Entry point to the Commerce Anywhere Customer web service.
Example	https://HOST[:PORT]/CustomerBean/CustomerService

Details	Content
Field Title	Username
Field Description	User name for the Commerce Anywhere Customer web service.

Details	Content
Field Title	Password
Field Description	Password for the user.

Details	Content
Field Title	Confirm Password
Field Description	Reentered Password used to confirm the password. Note: The passwords in the Password and Confirm Password fields must match.

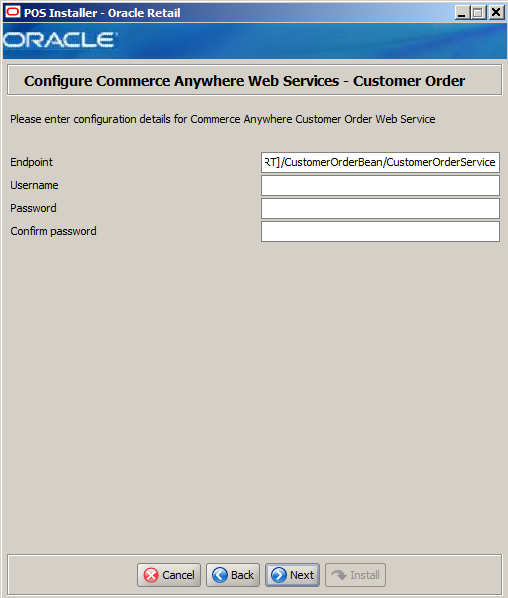

Figure A-38 Configure Commerce Anywhere Web Services - Customer Order for Policy A

This window is only displayed if Policy A is selected in the Configure Commerce Anywhere Web Services - Security Policy window.

The fields in this window are described in the following tables:

Details	Content
Field Title	Endpoint
Field Description	Entry point to the Commerce Anywhere Customer Order web service.
Example	https://HOST[:PORT]/CustomerOrderBean/CustomerOrderService

Details	Content
Field Title	Username
Field Description	User name for the Commerce Anywhere Customer Order web service.

Details	Content
Field Title	Password
Field Description	Password for the user.

Details	Content
Field Title	Confirm Password
Field Description	Reentered Password used to confirm the password. Note: The passwords in the Password and Confirm Password fields must match.

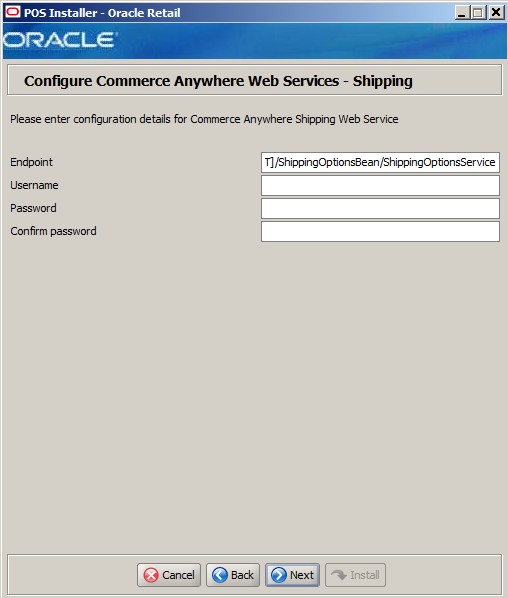

Figure A-39 Configure Commerce Anywhere Web Services - Shipping for Policy A

This window is only displayed if Policy A is selected in the Configure Commerce Anywhere Web Services - Security Policy window.

The fields in this window are described in the following tables:

Details	Content
Field Title	Endpoint
Field Description	Entry point to the Commerce Anywhere Shipping web service.
Example	https://HOST[:PORT]/ShippingOptionsBean/ShippingOptionsService

Details	Content
Field Title	Username
Field Description	User name for the Commerce Anywhere Shipping web service.

Details	Content
Field Title	Password
Field Description	Password for the user.

Details	Content
Field Title	Confirm Password
Field Description	Reentered Password used to confirm the password. Note: The passwords in the Password and Confirm Password fields must match.

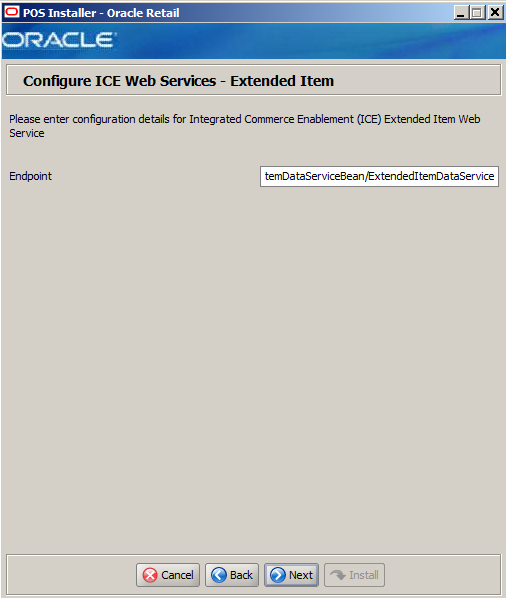

Figure A-40 Configure ICE Web Services - Extended Item for Policy A

This window is only displayed if Orders is selected in the Integrate
Application window and then Integrated Commerce Enablement is selected in the Order Integrations window and Policy A is selected in the Configure Commerce Anywhere Web Services - Security Policy window.

The field in this window is described in the following table:

Details	Content
Field Title	Endpoint
Field Description	Entry point to the ICE Extended Item web service.
Example	https://HOST[:PORT]/ExtendedItemDataServiceBean/ExtendedItemDataService

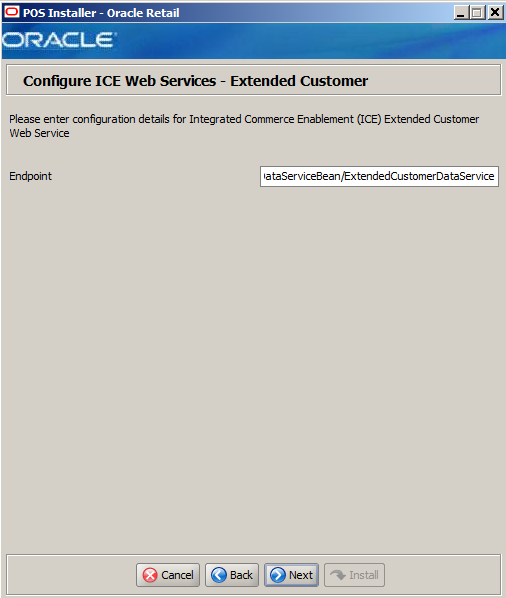

Figure A-41 Configure ICE Web Services - Extended Customer for Policy A

This window is only displayed if Orders is selected in the Integrate
Application window and then Integrated Commerce Enablement is selected in the Order Integrations window and Policy A is selected in the Configure Commerce Anywhere Web Services - Security Policy window.

The field in this window is described in the following table:

Details	Content
Field Title	Endpoint
Field Description	Entry point to the ICE Extended Customer web service.
Example	https://HOST[:PORT]/ExtendedCustomerDataServiceBean/ExtendedCustomerDataService

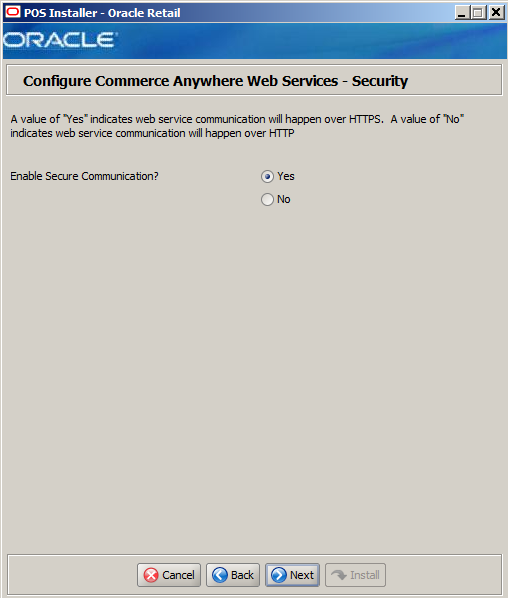

Figure A-42 Configure Commerce Anywhere Web Services - Security for Policy B

This window is only displayed if Policy B is selected in the Configure Commerce Anywhere Web Services - Security Policy window.

The field in this window is described in the following table:

Details	Content
Field Title	Enable Secure Communication?
Field Description	Select Yes for web service communication with Commerce Anywhere using HTTPS.
Example	Yes

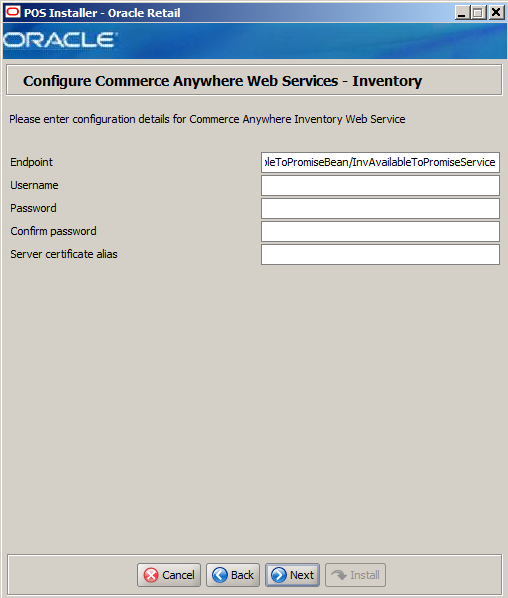

Figure A-43 Configure Commerce Anywhere Web Services - Inventory for Policy B

This window is only displayed if Policy B is selected in the Configure Commerce Anywhere Web Services - Security Policy window.

The fields in this window are described in the following tables:

Details	Content
Field Title	Endpoint
Field Description	Entry point to the Commerce Anywhere Inventory web service.
Example	https://HOST[:PORT]/InvAvailableToPromiseBean/InvAvailableToPromiseService

Details	Content
Field Title	Username
Field Description	User name for the Commerce Anywhere Customer Inventory web service.

Details	Content
Field Title	Password
Field Description	Password for the user.

Details	Content
Field Title	Confirm Password
Field Description	Reentered Password used to confirm the password. Note: The passwords in the Password and Confirm Password fields must match.

Details	Content
Field Title	Server certificate alias
Field Description	Alias used for the server key.

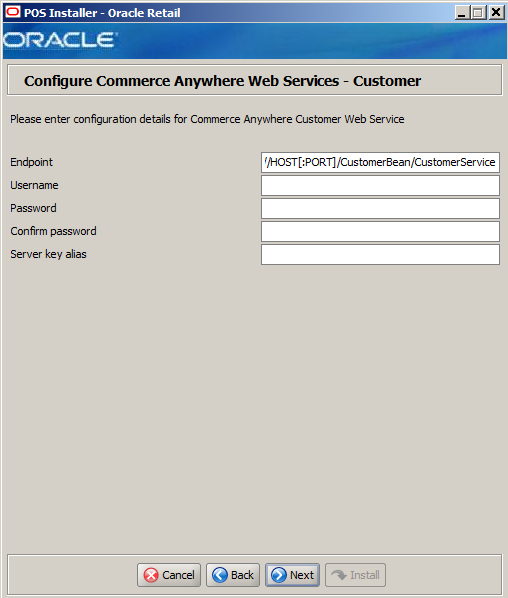

Figure A-44 Configure Commerce Anywhere Web Services - Customer for Policy B

This window is only displayed if Policy B is selected in the Configure Commerce Anywhere Web Services - Security Policy window.

The fields in this window are described in the following tables:

Details	Content
Field Title	Endpoint
Field Description	Entry point to the Commerce Anywhere web service.
Example	https://HOST[:PORT]/CustomerBean/CustomerService

Details	Content
Field Title	Username
Field Description	User name for the Commerce Anywhere Customer web service.

Details	Content
Field Title	Password
Field Description	Password for the user.

Details	Content
Field Title	Confirm Password
Field Description	Reentered Password used to confirm the password. Note: The passwords in the Password and Confirm Password fields must match.

Details	Content
Field Title	Server certificate alias
Field Description	Alias used for the server key.

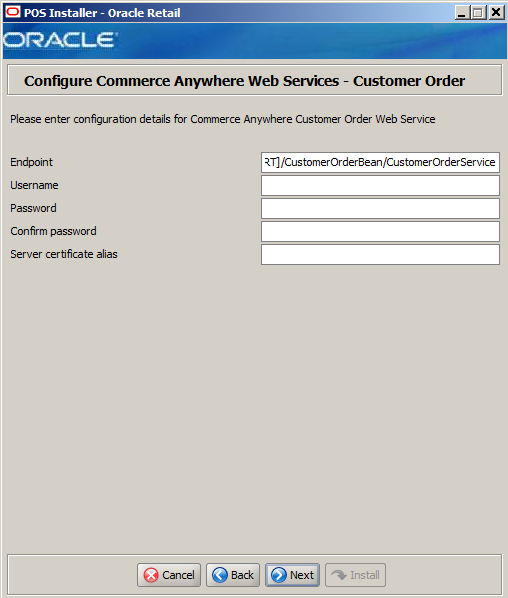

Figure A-45 Configure Commerce Anywhere Web Services - Customer Order for Policy B

This window is only displayed if Policy B is selected in the Configure Commerce Anywhere Web Services - Security Policy window.

The fields in this window are described in the following tables:

Details	Content
Field Title	Endpoint
Field Description	Entry point to the Commerce Anywhere Customer Order web service.
Example	https://HOST[:PORT]/CustomerOrderBean/CustomerOrderService

Details	Content
Field Title	Username
Field Description	User name for the Commerce Anywhere Customer Order web service.

Details	Content
Field Title	Password
Field Description	Password for the user.

Details	Content
Field Title	Confirm Password
Field Description	Reentered Password used to confirm the password. Note: The passwords in the Password and Confirm Password fields must match.

Details	Content
Field Title	Server certificate alias
Field Description	Alias used for the server key.

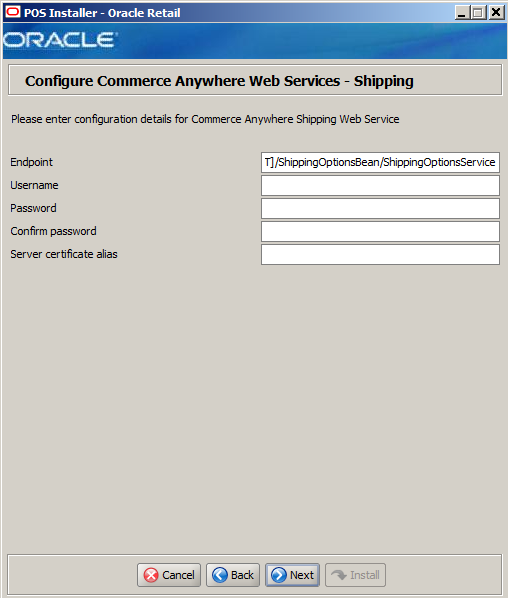

Figure A-46 Configure Commerce Anywhere Web Services - Shipping for Policy B

This window is only displayed if Policy B is selected in the Configure Commerce Anywhere Web Services - Security Policy window.

The fields in this window are described in the following tables:

Details	Content
Field Title	Endpoint
Field Description	Entry point to the Commerce Anywhere Shipping web service.
Example	https://HOST[:PORT]/ShippingOptionsBean/ShippingOptionsService

Details	Content
Field Title	Username
Field Description	User name for the Commerce Anywhere Shipping web service.

Details	Content
Field Title	Password
Field Description	Password for the user.

Details	Content
Field Title	Confirm Password
Field Description	Reentered Password used to confirm the password. Note: The passwords in the Password and Confirm Password fields must match.

Details	Content
Field Title	Server certificate alias
Field Description	Alias used for the server key.

Figure A-47 Configure ICE Web Services - Extended Item for Policy B

This window is only displayed if Orders is selected in the Integrate
Application window and then Integrated Commerce Enablement is selected in the Order Integrations window and Policy B is selected in the Configure Commerce Anywhere Web Services - Security Policy window.

The field in this window is described in the following table:

Details	Content
Field Title	Endpoint
Field Description	Entry point to the ICE Extended Item web service.
Example	https://HOST[:PORT]/ExtendedItemDataServiceBean/ExtendedItemDataService

Figure A-48 Configure ICE Web Services - Extended Customer for Policy B

This window is only displayed if Orders is selected in the Integrate
Application window and then Integrated Commerce Enablement is selected in the Order Integrations window and Policy B is selected in the Configure Commerce Anywhere Web Services - Security Policy window.

The field in this window is described in the following table:

Details	Content
Field Title	Endpoint
Field Description	Entry point to the ICE Extended Customer web service.
Example	https://HOST[:PORT]/ExtendedCustomerDataServiceBean/ExtendedCustomerDataService

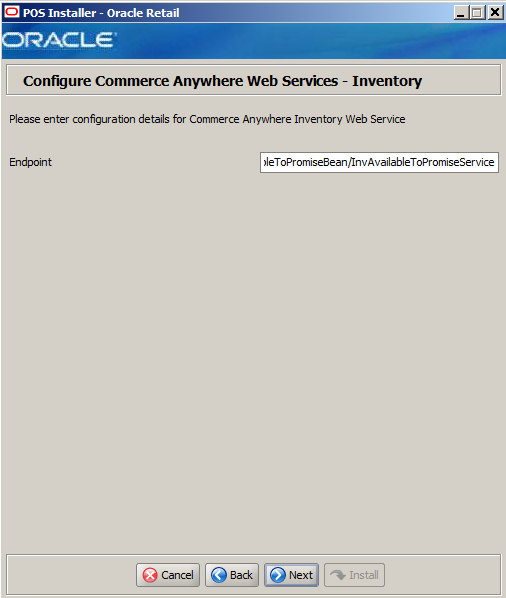

Figure A-49 Configure Commerce Anywhere Web Services - Inventory for Policy None

This window is only displayed if None is selected in the Configure Commerce Anywhere Web Services - Security Policy window.

The field in this window is described in the following table:

Details	Content
Field Title	Endpoint
Field Description	Entry point to the Commerce Anywhere Inventory web service.
Example	http://HOST[:PORT]/InvAvailableToPromiseBean/InvAvailableToPromiseService

Figure A-50 Configure Commerce Anywhere Web Services - Customer for Policy None

This window is only displayed if None is selected in the Configure Commerce Anywhere Web Services - Security Policy window.

The field in this window is described in the following table:

Details	Content
Field Title	Endpoint
Field Description	Entry point to the Commerce Anywhere web service.
Example	http://HOST[:PORT]/CustomerBean/CustomerService

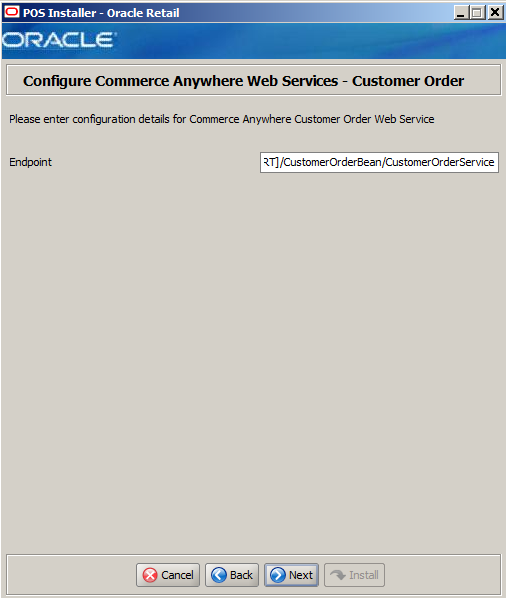

Figure A-51 Configure Commerce Anywhere Web Services - Customer Order for Policy None

This window is only displayed if None is selected in the Configure Commerce Anywhere Web Services - Security Policy window.

The field in this window is described in the following table:

Details	Content
Field Title	Endpoint
Field Description	Entry point to the Commerce Anywhere Customer Order web service.
Example	http://HOST[:PORT]/CustomerOrderBean/CustomerOrderService

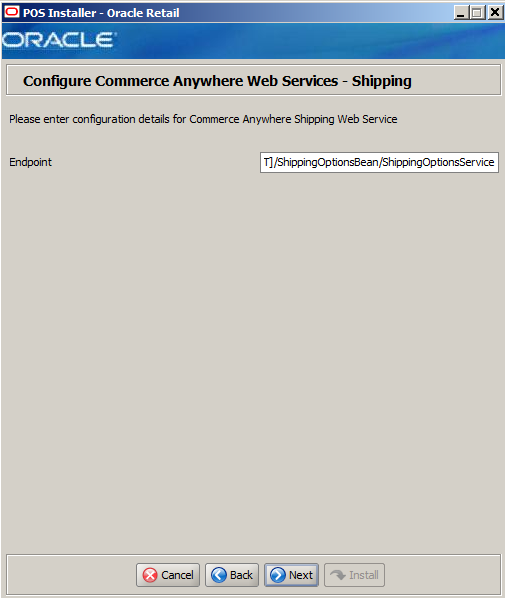

Figure A-52 Configure Commerce Anywhere Web Services - Shipping for Policy None

This window is only displayed if None is selected in the Configure Commerce Anywhere Web Services - Security Policy window.

The fields in this window are described in the following tables:

Details	Content
Field Title	Endpoint
Field Description	Entry point to the Commerce Anywhere Shipping web service.
Example	http://HOST[:PORT]/ShippingOptionsBean/ShippingOptionsService

Figure A-53 Configure ICE Web Services - Extended Item for Policy None

This window is only displayed if Orders is selected in the Integrate
Application window and then Integrated Commerce Enablement is selected in the Order Integrations window and None is selected in the Configure Commerce Anywhere Web Services - Security Policy window.

The field in this window is described in the following table:

Details	Content
Field Title	Endpoint
Field Description	Entry point to the ICE Extended Item web service.
Example	http://HOST[:PORT]/ExtendedItemDataServiceBean/ExtendedItemDataService

Figure A-54 Configure ICE Web Services - Extended Customer for Policy None

This window is only displayed if Orders is selected in the Integrate
Application window and then Integrated Commerce Enablement is selected in the Order Integrations window and None is selected in the Configure Commerce Anywhere Web Services - Security Policy window.

The field in this window is described in the following table:

Details	Content
Field Title	Endpoint
Field Description	Entry point to the ICE Extended Customer web service.
Example	http://HOST[:PORT]/ExtendedCustomerDataServiceBean/ExtendedCustomerDataService

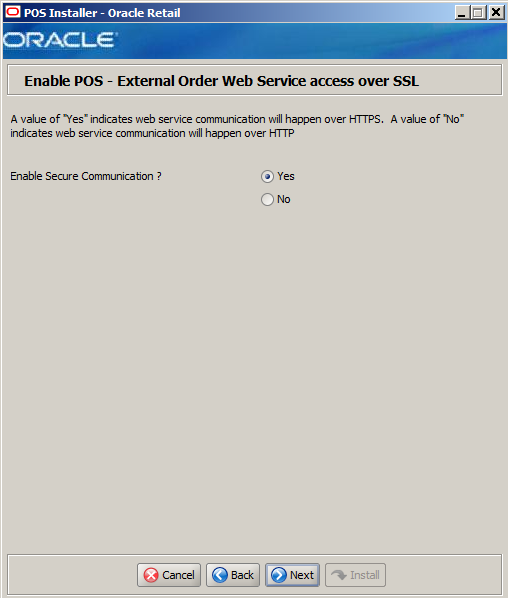

Figure A-55 Enable POS - External Order Web Service Access Over SSL

This window is only displayed if Orders and then External Order are selected in the Integrate Applications window.

The field in this window is described in the following table:

Details	Content
Field Title	Enable Secure Communication?
Field Description	Select Yes if web service communication with the external order management is using HTTPS.
Example	Yes

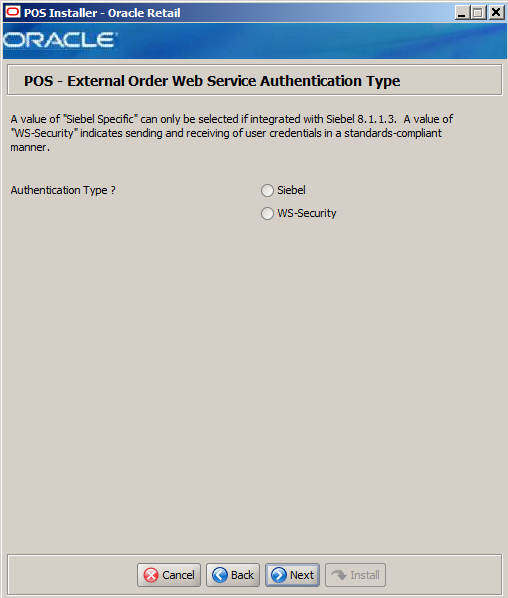

Figure A-56 POS - External Order Web Service Authentication Type

This window is only displayed if Orders and then External Order are selected in the Integrate Applications window.

The field in this window is described in the following table:

Details	Content
Field Title	Authentication Type?
Field Description	To use Siebel-specific authentication, select Siebel. To send and receive user credentials in a standards-compliant manner, select WS-Security. Note: Only select Siebel if Point-of-Service is integrated with Siebel 8.1.1.3 and is configured to use Siebel web service authentication.

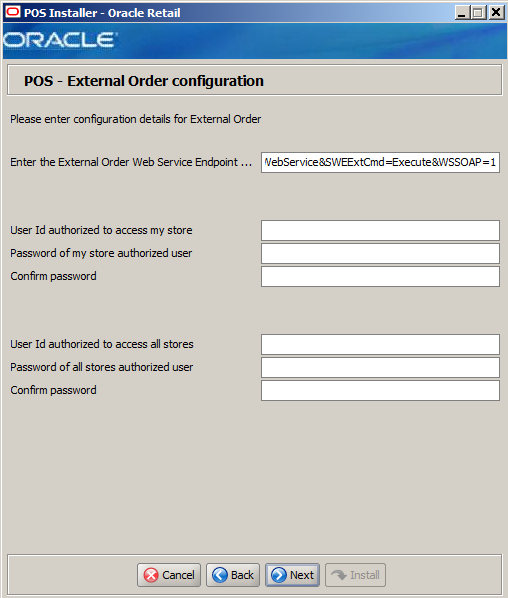

Figure A-57 POS - External Order Configuration

This window is only displayed if Orders and then External Order are selected in the Integrate Applications window.

The fields in this window are described in the following tables:

Details	Content
Field Title	Enter the External Order Web Service Endpoint URL
Field Description	Enter the URL used by the Point-of-Service application to access the external order management system.
Example	https://HOST[:PORT]/eai_secure_enu/start.swe?SWEExtSource=SecureWebService&SWEExtCmd=Execute&WSSOAP=1

Details	Content
Field Title	User Id authorized to access my store
Field Description	Enter the user ID for the user authorized to access my store.

Details	Content
Field Title	Password of my store authorized user
Field Description	Enter the password for accessing my store.

Details	Content
Field Title	Confirm Password
Field Description	Reentered password of my store authorized user used to confirm the password. Note: The passwords in the Password of my store authorized user and Confirm Password fields must match.

Details	Content
Field Title	User Id authorized to access all stores
Field Description	Enter the user ID for the user authorized to access all stores.

Details	Content
Field Title	Password of all stores authorized user
Field Description	Enter the password for the accessing all stores.

Details	Content
Field Title	Confirm Password
Field Description	Reentered password of all stores authorized user used to confirm the password. Note: The passwords in the Password of all stores authorized user and Confirm Password fields must match.

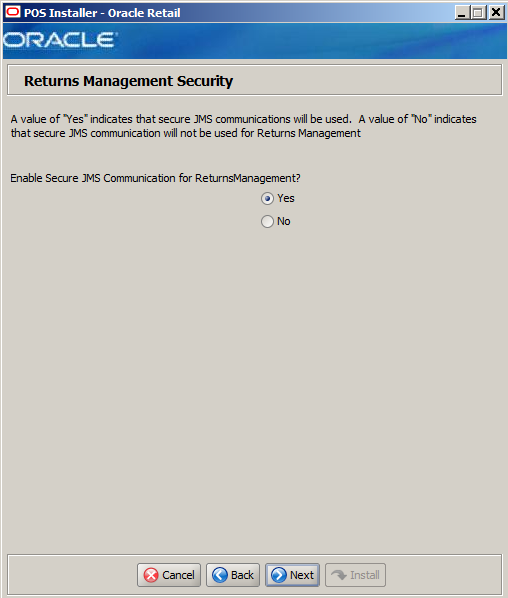

Figure A-58 Returns Management Security

This window is only displayed if Returns Management is selected in the Integrate Applications window and JMS Queue is selected in the Oracle Returns Management Messaging window.

The field in this window is described in the following table:

Details	Content
Field Title	Enable Secure JMS Communication for Returns Management?
Field Description	Select whether secure JMS communication is used: To use secure communication, choose Yes. To not use secure communication, choose No.
Example	Yes

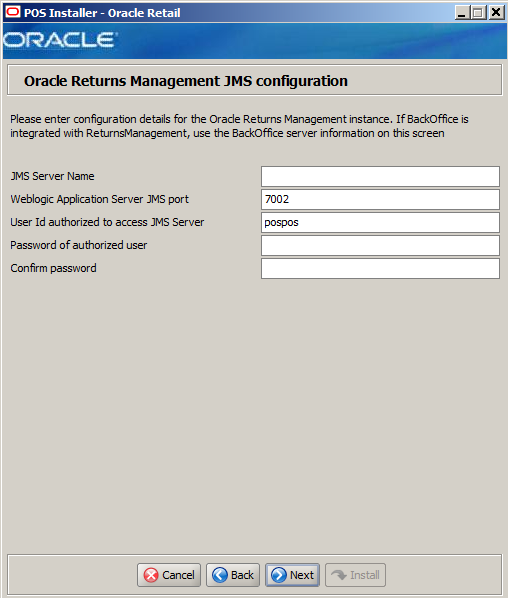

Figure A-59 Oracle Returns Management JMS Configuration

This window is only displayed if Returns Management is selected in the Integrate Applications window and JMS Queue is selected in the Oracle Returns Management Messaging window.

The fields in this window are described in the following table:

Details	Content
Field Title	JMS Server Name
Field Description	Enter the name for the JMS server.

Details	Content
Field Title	Weblogic Application Server JMS port
Field Description	Enter the port number of the JMS server to use to send return result messages to Oracle Retail Returns Management.
Example	7002

Details	Content
Field Title	User Id authorized to access JMS Server
Field Description	Enter the user ID that is used to access the JMS Server.

Details	Content
Field Title	Password of authorized user
Field Description	Enter the password of the authorized user.

Details	Content
Field Title	Confirm Password
Field Description	Reentered Password of authorized user used to confirm the password. Note: The passwords in the Password of authorized user and Confirm Password fields must match.

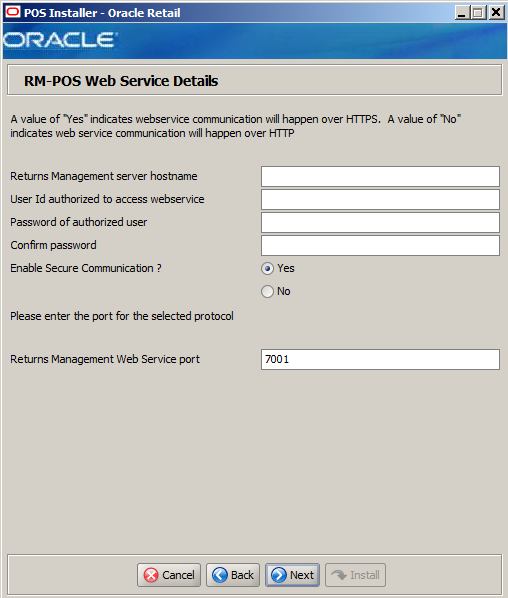

Figure A-60 RM-POS Web Service Details

This window is only displayed if Returns Management is selected in the Integrate Applications window and Web Service is selected in the Oracle Returns Management Messaging window.

The fields in this window are described in the following tables:

Details	Content
Field Title	Returns Management server hostname
Field Description	Enter the host name for the Oracle Retail Returns Management server.

Details	Content
Field Title	User Id authorized to access webservice
Field Description	Enter the user ID that is used to access the web service. Note: The same Web Service Username that was entered when installing Returns Management must be entered here. For more information, see the Oracle Retail Returns Management Installation Guide.

Details	Content
Field Title	Password of authorized user
Field Description	Enter the password of the authorized user. Note: The same Web Service Password that was entered when installing Returns Management must be entered here. For more information, see the Oracle Retail Returns Management Installation Guide.

Details	Content
Field Title	Confirm Password
Field Description	Reentered Password of authorized user used to confirm the password. Note: The passwords in the Password of authorized user and Confirm Password fields must match.

Details	Content
Field Title	Enable Secure Communication?
Field Description	Choose whether secure communication over HTTPS is used.

Details	Content
Field Title	Returns Management Web Service port
Field Description	Enter the port number for the Oracle Retail Returns Management web service.
Example	7001

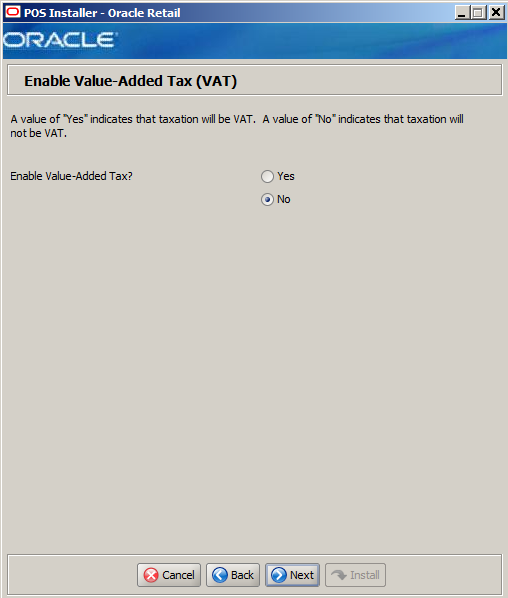

Figure A-61 Enable Value-Added Tax (VAT)

The field in this window is described in the following table:

Details	Content
Field Title	Enable Value-Added Tax?
Field Description	Select Yes if Value-Added Tax is used.
Example	No

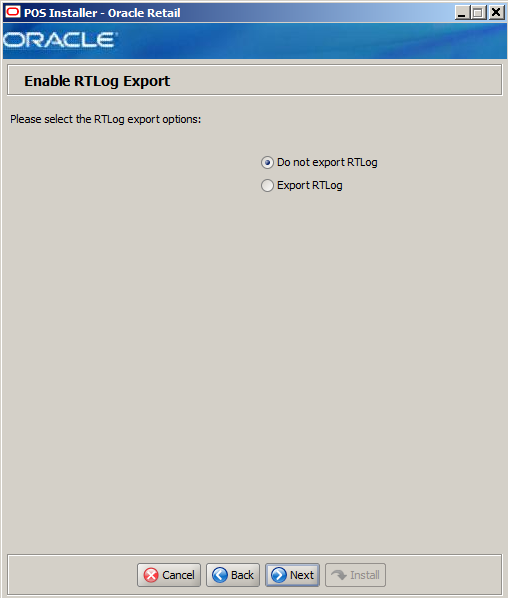

Figure A-62 Enable RTLog Export

The field in this window is described in the following table:

Details	Content
Field Title	Please select RTLog export options
Field Description	Choose how the RTLog is to be exported. To not export the log, choose Do not export RTLog. To export the log, choose Export RTLog.
Example	Do not export RTLog

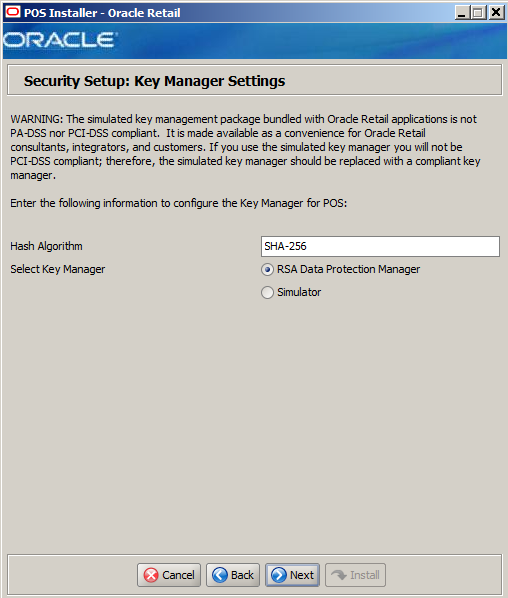

Figure A-63 Security Setup: Key Manager Settings

This window is used to configure the Encryption Key Manager.

The fields in this window are described in the following tables:

Details	Content
Field Title	Hash Algorithm
Field Description	Name of the algorithm used by the Key Manager to hash sensitive data.
Example	SHA-256

Details	Content
Field Title	Select Key Manager
Field Description	Provider for Key Store management: RSA Data Protection Manager package, select RSA Data Protection Manager. The next window displayed is Figure A-64. To use the simulated key management package, select Simulator. The next window displayed is Figure A-67.
Example	RSA Data Protection Manager

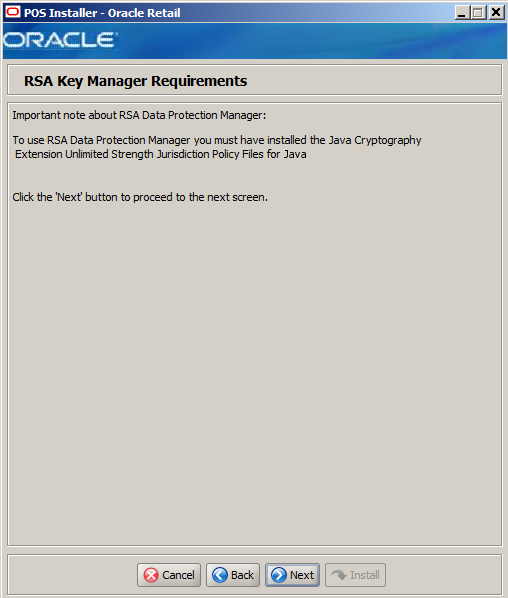

Figure A-64 RSA Key Manager Requirements

This window is only displayed if RSA Data Protection Manager is selected in the Security Setup: Key Manager window. This informational window explains the requirements needed to use the RSA Data Protection Manager. Verify that you meet the requirements and then click Next.

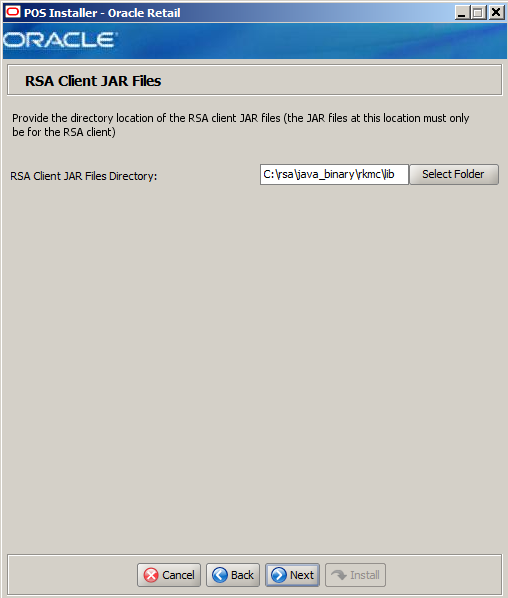

Figure A-65 RSA Client JAR Files

This window is only displayed if RSA Data Protection Manager is selected in the Security Setup: Key Manager window.

The field in this window is described in the following table:

Details	Content
Field Title	RSA Client JAR Files Directory
Field Description	Choose the directory where the following RSA client jar files are located: cryptojce.jar cryptojcommon.jar jcm.jar jcmFIPS.jar kmsclient.jar LB.jar LBJNI.jar sslj.jar
Example	Microsoft Windows: C:\rsa\java_binary\rlmc\lib Novell SLEPOS: /opt/rsa/java_binary/rlmc/lib

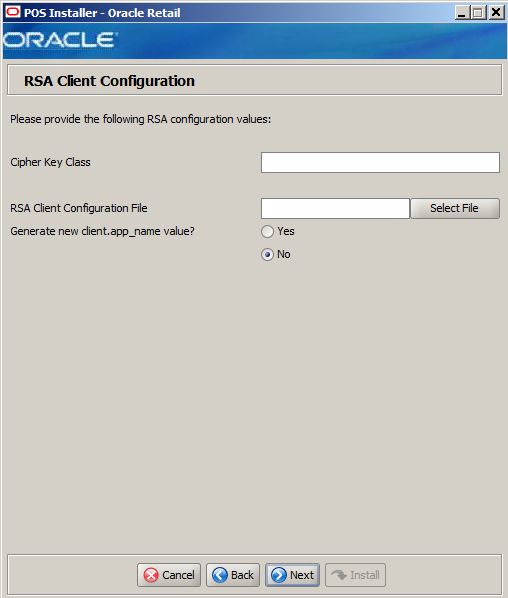

Figure A-66 RSA Client Configuration

This window is only displayed if RSA Data Protection Manager is selected in the Security Setup: Key Manager window.

The fields in this window are described in the following tables:

Details	Content
Field Title	Cipher Key Class
Field Description	Enter the name of the cipher suite that define the authentication and encryption algorithms that will be used by RSA to negotiate the security settings for the network connection.

Details	Content
Field Title	RSA Client Configuration File
Field Description	Select the location of the RSA client configuration file. This file contains the details for configuring the RSA client.

Details	Content
Field Title	Generate a new client.app.name value
Field Description	To have the installer generate a unique name for the client.app.name value in the RSA client configuration file, select Yes. To not change the value in the configuration file, select No.
Example	No

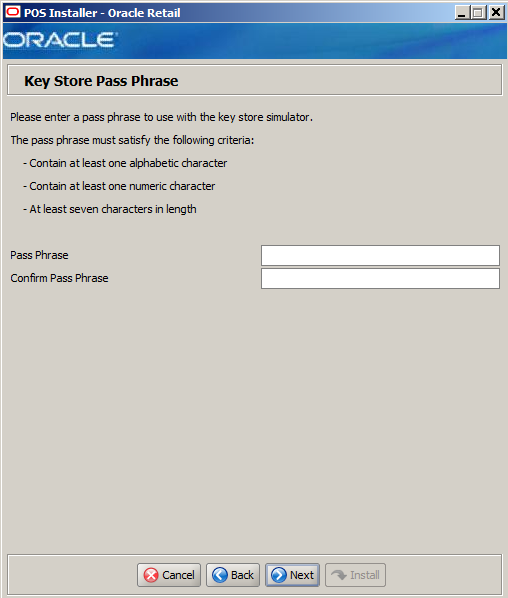

Figure A-67 Key Store Pass Phrase

This window is only displayed if Simulator is selected in the Security Setup: Key Manager window.

The field in this window is described in the following table:

Details	Content
Field Title	Pass Phrase
Field Description	Enter the pass phrase used to access the Key Store simulator. Note: Use the same pass phrase for all Oracle Retail POS Suite applications in your configuration.

Details	Content
Field Title	Confirm Pass Phrase
Field Description	Reentered Pass Phrase used to confirm the pass phrase. Note: The pass phrases in the Pass Phrase and Confirm Pass Phrase fields must match.

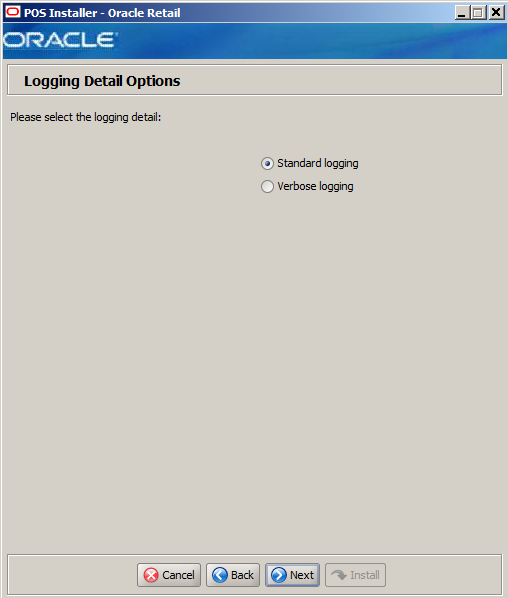

Figure A-68 Logging Detail Options

The field in this window is described in the following table:

Details	Content
Field Title	Please select the logging detail
Field Description	Choose the level of client logging: To only log some of the messages, choose Standard Logging. To log all of the messages, choose Verbose Logging.
Example	Standard logging

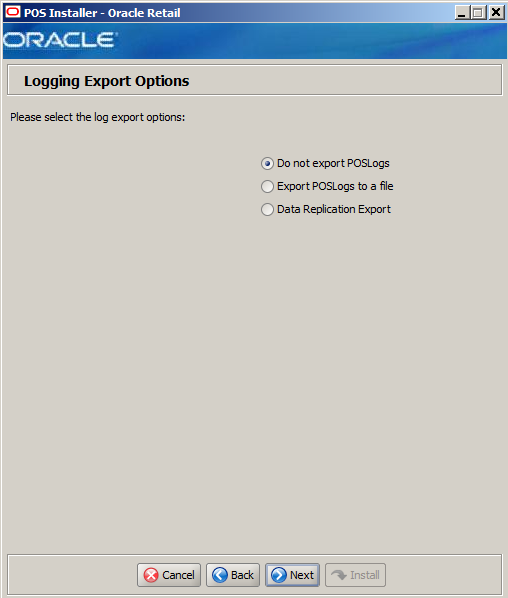

Figure A-69 Logging Export Options

This window is only displayed if Central Office/Back Office is selected in the Integrate Applications window.

The field in this window is described in the following table:

Details	Content
Field Title	Please select logging export options
Field Description	Choose how the log is to be exported. To not generate any logs, choose Do not export Point-of-Service logs. To export the logs to a file, choose Export Point-of-Service logs to a file. To have the data pushed from the store to the corporate database using replication, choose Data Replication Export. Note: If you are using Centralized Transaction Retrieval, you must select Data Replication Export.
Example	Do not export Point-of-Service logs

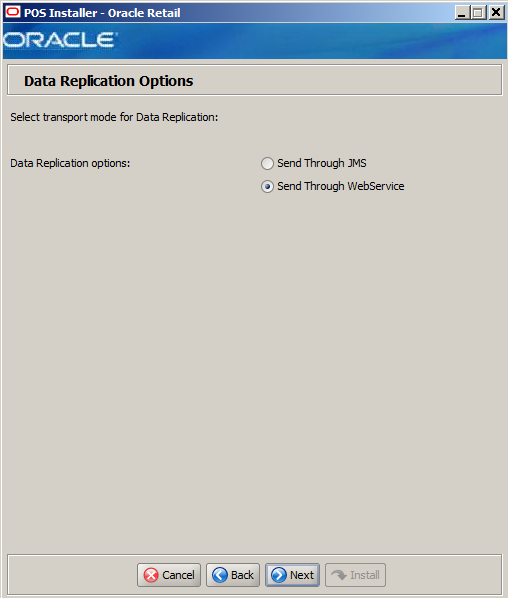

Figure A-70 Data Replication Options

This window is only displayed if Data Replication Export is selected in the Logging Export Options window.

The field in this window is described in the following table:

Details	Content
Field Title	Select transport mode for Data Replication
Field Description	Select the transport mode for data replication. To use a JMS queue, choose Send through JMS. To use a web service, choose Send through Webservice.
Example	Send through WebService

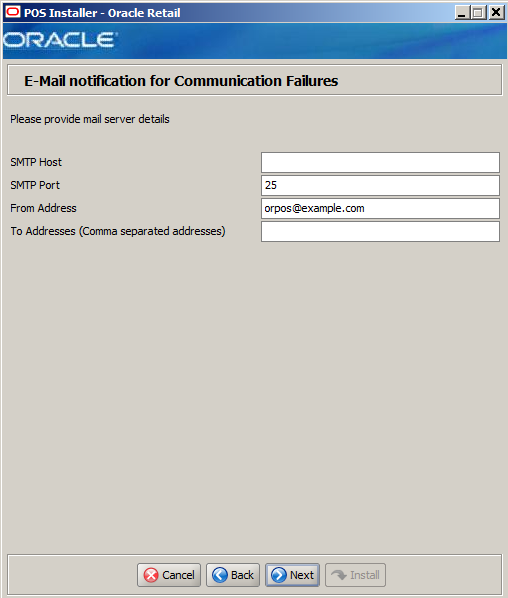

Figure A-71 E-Mail Notification for Communication Failures

This window is only displayed if Send through Webservice is selected in the Data Replication Options window.

The fields in this window are described in the following tables:

Details	Content
Field Title	SMTP host
Field Description	Host where the SMTP server is running.

Details	Content
Field Title	SMTP Port
Field Description	Enter the SMTP port number.
Example	25

Details	Content
Field Title	From Address
Field Description	Enter the address for sender of the e-mail.
Example	[e-mail]

Details	Content
Field Title	To Address (Comma Separated Addresses)
Field Description	Enter the addresses for the recipients of the e-mail.

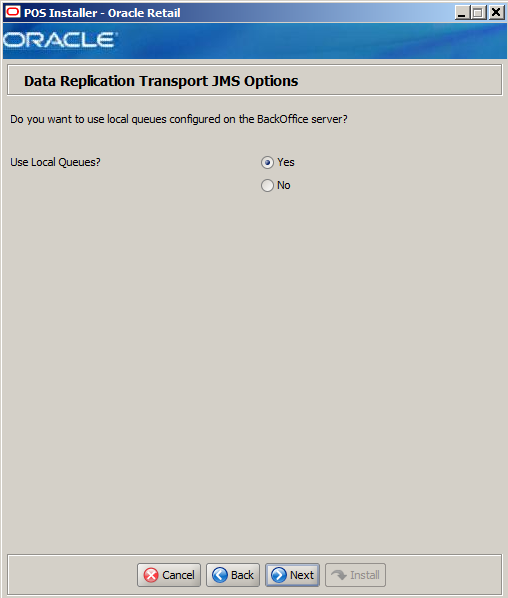

Figure A-72 Data Replication Transport JMS Options

This window is only displayed if Send through JMS is selected in the Data Replication Options window.

The field in this window is described in the following table:

Details	Content
Field Title	Use Local Queues?
Field Description	Select whether local queues are used for JMS transport. To use a local queue, choose Yes. To not use a local queue, choose No.
Example	Yes

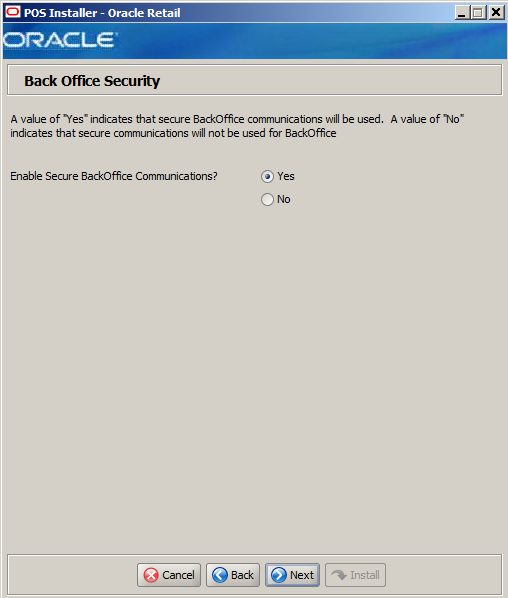

Figure A-73 Back Office Security

This window is only displayed if Central Office/Back Office is selected in the Integrate Applications window.

The field in this window is described in the following table:

Details	Content
Field Title	Enable Secure Back Office Communications?
Field Description	Select Yes if secure communication with Back Office is required.
Example	Yes

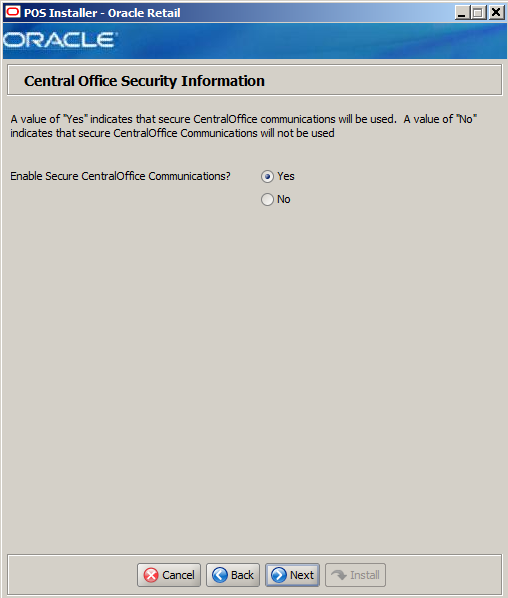

Figure A-74 Central Office Security Information

This window is only displayed if Central Office/Back Office is selected in the Integrate Applications window.

The field in this window is described in the following table:

Details	Content
Field Title	Enable Secure Central Office Communications?
Field Description	Select Yes if secure communication with Central Office is required.
Example	Yes

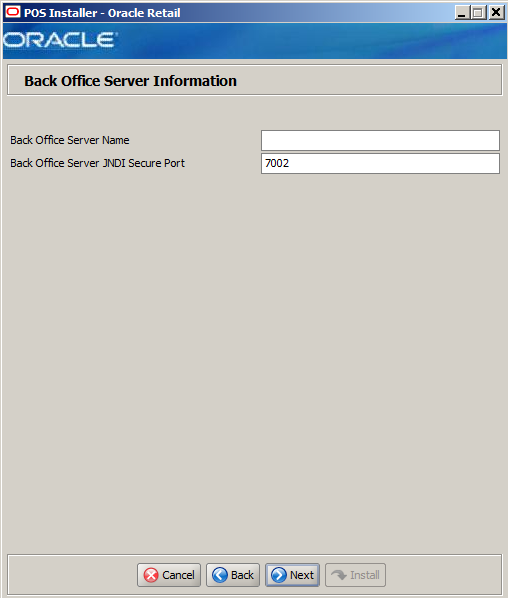

Figure A-75 Back Office Server Information

This window is only displayed if Central Office/Back Office is selected in the Integrate Applications window.

The fields in this window are described in the following tables:

Details	Content
Field Title	Back Office Server Name
Field Description	Enter the host name for the Back Office application.

Details	Content
Field Title	Back Office Server JNDI Secure Port
Field Description	Enter the port number for the Back Office application. This is the port number that was selected when the Back Office domain was created.
Example	7002

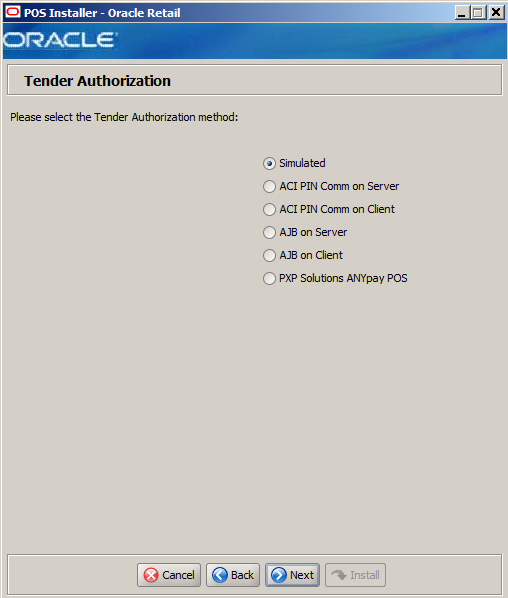

Figure A-76 Tender Authorization

The field in this window is described in the following table:

Details	Content
Field Title	Please select the tender authorization method
Field Description	Choose where tender authorizations are sent: If approvals do not leave the store server and are based on values and certain numbers, choose Simulated. If approvals are sent by the store server to a third-party system to approve the authorizations, choose ACI PIN Comm on Server, AJB on Server, or PXP Solutions ANYpay POS. If approvals are handled by the client, select ACI PIN Comm on Client or AJB on Client. Note: If the store server is located at a remote location, it is highly recommended to configure ACI PINComm or AJB at each client in order to help minimize network delay. Note: Demo installations should use the Simulated option.
Example	Simulated

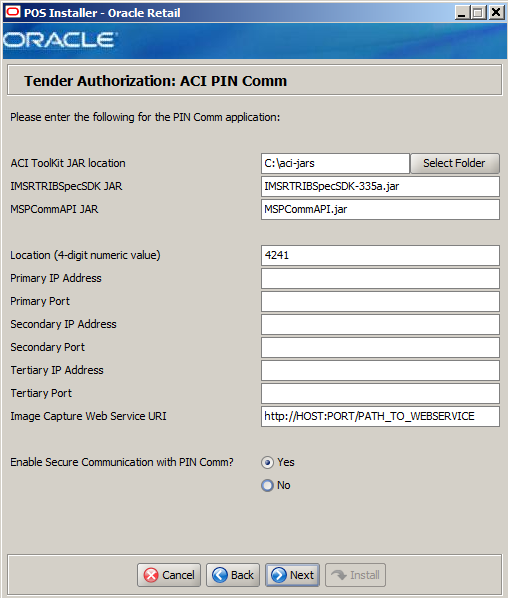

Figure A-77 Tender Authorization: ACI PIN Comm

This window is only displayed if ACI PIN Comm on Server is selected in the Tender Authorization window.

The fields in this window are described in the following tables:

Details	Content
Field Title	ACI ToolKit JAR Location
Field Description	Enter the path to the ACI ToolKit JAR file.
Example	Microsoft Windows: C:\aci-jars Novell SLEPOS: /opt/aci-jars

Details	Content
Field Title	IMSRTRIBSpecSDK JAR
Field Description	Enter the name of the IMSRTRIBSpecSDK JAR file.
Example	IMSRTRIBSpecSDK-335a.jar

Details	Content
Field Title	MSPCommAPI JAR
Field Description	Enter the name of the MSPCommAPI JAR file.
Example	MSPCommAPI.jar

Details	Content
Field Title	Location (4-digit numeric value)
Field Description	Enter the four digit numeric value for the location.
Example	4241

Details	Content
Field Title	Primary IP Address
Field Description	Enter the primary IP address used for the communication between the store server and the tender authorizer.

Details	Content
Field Title	Primary Port
Field Description	Enter the primary port number used for the communication between the store server and the tender authorizer.

Details	Content
Field Title	Secondary IP Address
Field Description	Enter the secondary IP address used for the communication between the store server and the tender authorizer.

Details	Content
Field Title	Secondary Port
Field Description	Enter the secondary port number used for the communication between the store server and the tender authorizer.

Details	Content
Field Title	Tertiary IP Address
Field Description	Enter the tertiary IP address used for the communication between the store server and the tender authorizer.

Details	Content
Field Title	Tertiary Port
Field Description	Enter the tertiary port number used for the communication between the store server and the tender authorizer.

Details	Content
Field Title	Image Capture Web Service URI
Field Description	Enter the address of the Image Capture web service.
Example	http://HOST:PORT/PATH_TO_WEBSERVICE

Details	Content
Field Title	Enable Secure Communication with PIN Comm?
Field Description	Select Yes for communication with ACI PINComm using HTTPS.
Example	Yes

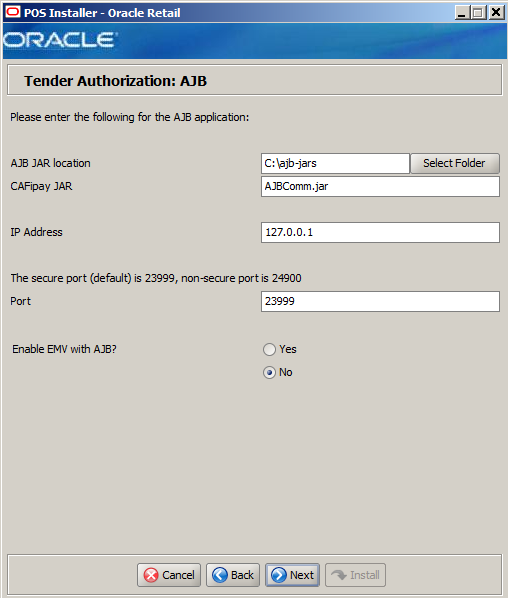

Figure A-78 Tender Authorization: AJB

This window is only displayed if AJB on Server is selected in the Tender Authorization window.

The fields in this window are described in the following tables:

Details	Content
Field Title	AJB JAR Location
Field Description	Enter the path to the AJB JAR file.
Example	Microsoft Windows: C:\ajb-jars Novell SLEPOS: /opt/ajb-jars

Details	Content
Field Title	CAFipay JAR
Field Description	Enter the name of the CAFipay JAR file.
Example	AJBComm.jar

Details	Content
Field Title	IP Address
Field Description	Enter the IP address used for the communication between the store server and the tender authorizer.
Example	127.0.0.1

Details	Content
Field Title	Port
Field Description	Enter the port number used for the communication between the store server and the tender authorizer.
Example	23999

Details	Content
Field Title	Enable EMV with AJB?
Field Description	Select whether Europay, MasterCard, and Visa (EMV) is enabled with AJB: To enable EMV, select Yes. To not enable EMV, select No.
Example	No

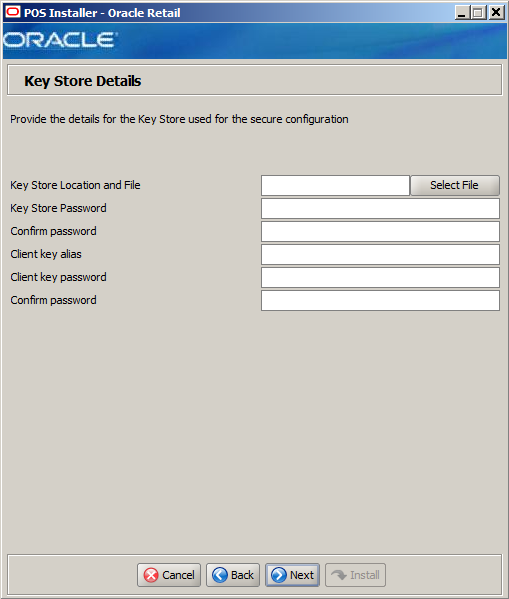

Figure A-79 Key Store Details

This window is displayed if Policy B is selected in the Configure Commerce Anywhere Web Services - Security Policy window.

The fields in this window are described in the following tables:

Details	Content
Field Title	Key Store Location and File
Field Description	Enter the location and name of the Key Store.

Details	Content
Field Title	Key Store Password
Field Description	Enter the password for the Key Store.

Details	Content
Field Title	Confirm Password
Field Description	Reentered Key Store Password used to confirm the password. Note: The passwords in the Key Store Password and Confirm Password fields must match.

Details	Content
Field Title	Client Key Alias
Field Description	Enter the alias for the client key.

Details	Content
Field Title	Client Key Password
Field Description	Enter the password for the client key.

Details	Content
Field Title	Confirm Password
Field Description	Reentered Client Key Password used to confirm the password. Note: The passwords in the Client Key Password and Confirm Password fields must match.

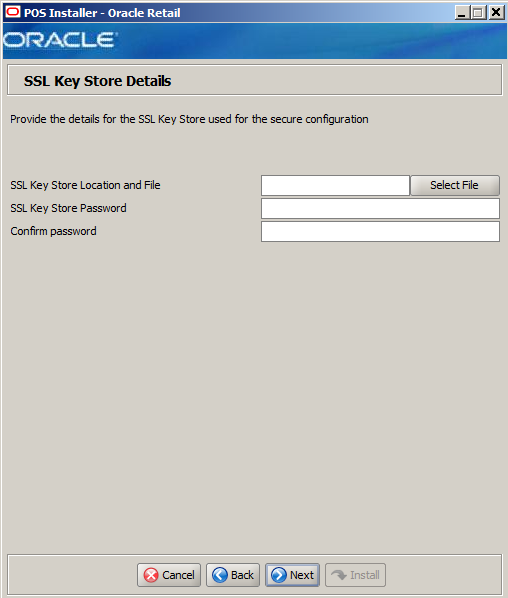

Figure A-80 SSL Key Store Details

This window is displayed depending on the security options selected.

The fields in this window are described in the following tables:

Details	Content
Field Title	SSL Key Store Location and File
Field Description	Enter the location and name of the Key Store.

Details	Content
Field Title	SSL Key Store Password
Field Description	Enter the password for the Key Store.

Details	Content
Field Title	Confirm Password
Field Description	Reentered SSL Key Store Password used to confirm the password. Note: The passwords in the SSL Key Store Password and Confirm Password fields must match.

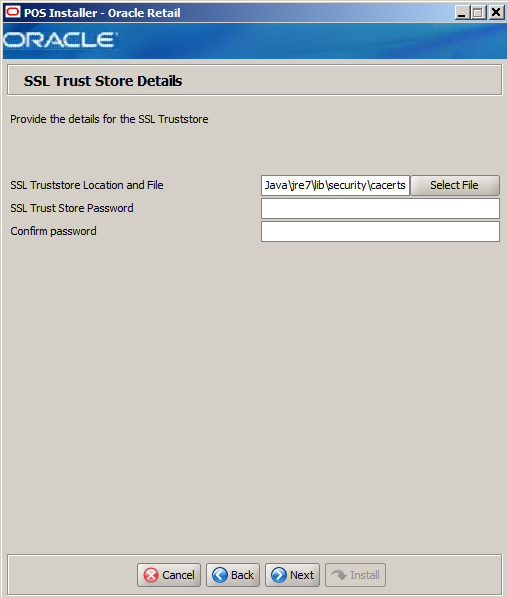

Figure A-81 SSL Trust Store Details

The fields in this window are described in the following tables:

Details	Content
Field Title	SSL Truststore Location and File
Field Description	Enter the location and name of the truststore file.
Example	Microsoft Windows: C:\Program Files\Java\jre7\lib\security\cacerts Novell SLEPOS: /opt/Java/jre7/lib/security\cacerts

Details	Content
Field Title	SSL Trust Store Password (optional)
Field Description	Enter the password for the truststore.

Details	Content
Field Title	Confirm Password
Field Description	Reentered SSL Trust Store Password used to confirm the password. Note: The passwords in the SSL Trust Store Password and Confirm Password fields must match.

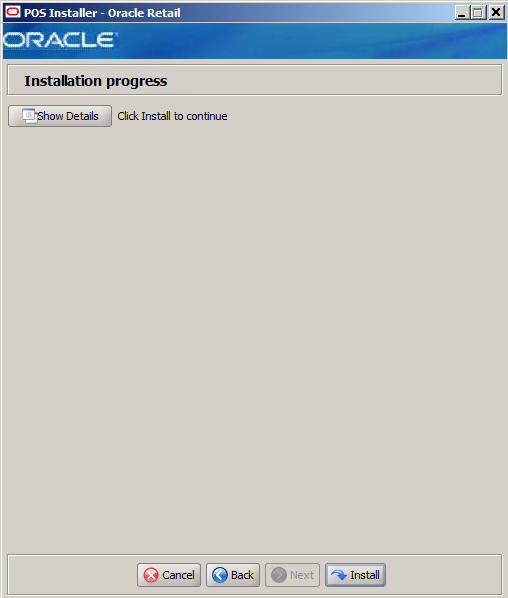

Figure A-82 Installation Progress

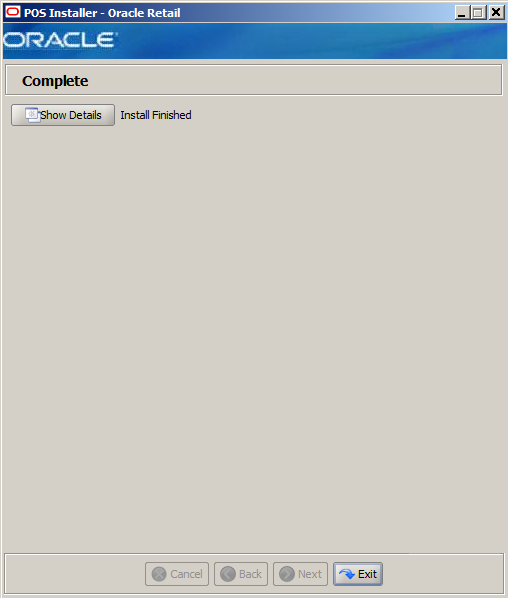

Figure A-83 Install Complete
