SPI Sample Implementation

The structure of the SPI sample implementation and demo application is as follows:

The sample implementation calls EJBs to manipulate a database. Also, it calls SipServlet and manipulates the database from SIP Servlet Engine and SPI via JMS.

The list and JNDI names of EJBs called from the sample implementation are as follows:

The following sections describe each sample implementation and its relation to EJBs.

Sample Implementation of User Management Interface

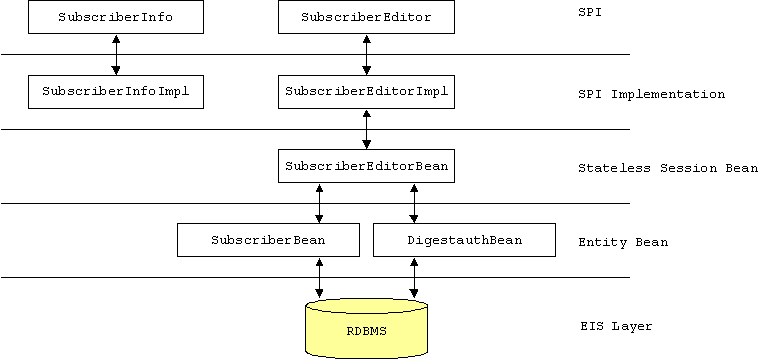

The structure of the user management interface sample implementation is as follows:

Initialization parameters of this sample implementation is described below:

The operation specific to the sample implementation is described below:

• The realm specified when a user is created is not used. The default realm is always used.
• The createSubscriberInfo() method always return SubscriberInfoImpl.
• SubscriberInfoImpl includes our unique user information.
• It is assumed that our unique user information alias is used as the user part of SipURI. So the combination of alias and the host part of SipURI is recognized as user defined SipURI. If you attempt to use this combination to add another user, InvalidSubscriberException is thrown.
• If a method with the SubscriberInfo argument passes an argument other than SubscriberInfoImpl, IllegalArgumentException occurs.
• If a user other than WebLogic administrator executes a certain method (createSubscriber(), removeSubscriber(), updateSubscriber(), or resetPassword()) of the SubscriberEditor interface, a security exception occurs. (EJB security is applied. If it is not necessary, edit the EJB configuration file.)

Sample Implementation of Location Management Interface

The structure of the location management interface sample implementation is as follows:

Initialization parameters of this sample implementation is described below:

The operation specific to the sample implementation is described below:

• Upon startup of this implementation, a thread is started to delete expired location information.
• If location information is not editable (the implementation works with NS), executing a method defined in LocationEditor results in IllegalOperationException.
• If location information is editable (the implementation does not work with NS), a thread is started to delete expired location information from the database. This thread searches the database every 30 seconds and deletes expired location information.
• If location information is editable, SubscriberEvent is registered with the specified topic name when addRegistration() or removeRegistration() is executed.
• RegistrationInfoImpl is always returned as the implementation of RegistrationInfo.

Sample Implementation of Presence Management Interface

The structure of the presence management interface sample implementation is as follows:

Initialization parameters of this sample implementation is described below:

The operation specific to the sample implementation is described below:

• Only SipURI can be specified in the URI presentity argument. If other URI (such as TelURI) is specified, IllegalArgumentException occurs.
• When ACL information is changed, SubscriberEvent is registered with the specified topic name.
• When ACL information is changed, a notification is sent to the specified host name and port number in NS-specific UDP packet.
• You can add a string including *@*, alice@*, *@oki.com, and bob@oki.com as a value of watcher. It is assumed that thorough string check is done at application level.

Sample Implementation of Role Management Interface

Initialization parameters of this sample implementation is described below:

The operation specific to the sample implementation is described below:

• The default role is always added to the registered user.
• RoleMapInfoImpl is always returned as the implementation of RoleMap.

JMS Interaction

This section describes the interaction between the SPI sample implementation, SIP Servlet Engine, and demo application via JMS.

The configuration of the interaction is shown below:

When Authentication Fails

If digest authentication fails using the authentication function of SIP Servlet Engine, the following sequence is performed.

• SIP Servlet Engine registers SubscriberEvent to notify JMS of the authentication failure.
• EventManagerBean receives SubscriberEvent and performs a process that increments the failure count.

When REGISTER Succeeds

The following sequence is executed:

• RegistrarServlet invokes LocationEditor.addRegistration().
• The LcationEditor sample implementation registers SubscriberEvent with JMS.

Currently, there is no MDB to receive and handle such event.

When UNREGISTER Succeeds

• RegistrarServlet invokes LocationEditor.removeRegistration().
• The LcationEditor sample implementation registers SubscriberEvent with JMS.

Currently, there is no MDB to receive and handle such event.

Changing Presence ACL Information

This section describes the sequence where the sample application changes presence ACL information.

• HTTP Servlet invokes SPI (such as PresenceACLEditor.addAcceptURI()) to change presence ACL information.
• The PresenceACLEditor sample implementation registers SubscriptionEvent with JMS.
• If EventSubscriptionBean receives SubscriptionEvent and adds a permission or rejection list, PresenceServlet is called to send NOTIFY.

*1: Stateless Session Bean
*2: CMP Entity Bean
