The simpapp server, simpserver, should appear in the server list in the right panel of the main window. If the simpapp server does not appear, this indicates that you did not copy the iservers.lst file from the Configuration Expert samples simpapp directory to the application location defined in step 1.
However, from this point you can add the simpserver server to the iservers.lst file by clicking the Create button. This brings up a window where you can specify the server properties. In the server name field, specify simpserver. Make sure that the group added in step 2 is selected in the list. Now the simpserver server should appear in the server list on the right panel. Select this server, and add it to the group created in step 2.
Note:
Remember to select the Export option in the dialog box. If this is not selected, a server can be created and displayed but the server will not be exported to the iservers.lst file.

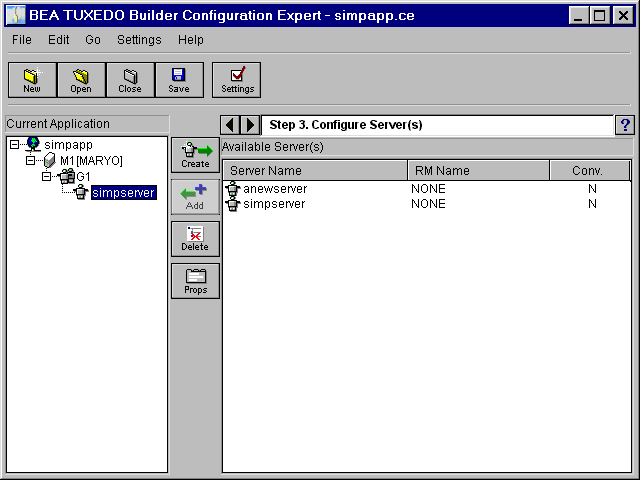

The Configuration Expert window should look like Figure 5-3:
Figure 5-3 Adding a Server in Sample Application
Once the simpserver server has been added to the application, go to the next step by clicking the right arrow button.
