A Log Central message consists of a message header and a message body. A message definition is associated with a message based on the message ID and subsystem values in the message header. The following sections provide detailed descriptions of the Log Central message and message definition formats:

Example of a Log Central Message and Message Definition

For information about how Log Central constructs a log message, see Construction of Log Messages in Overview.

Example of a Log Central Message and Message Definition

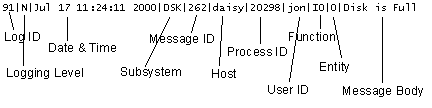

The following figure shows the fields that are in a Log Central message.

Figure A-1 Log Central Message Fields

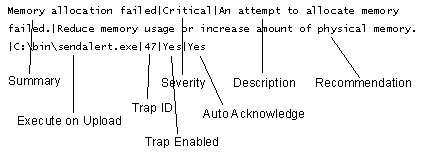

The following figure shows the fields that are in a Log Central message definition.

Figure A-2 Log Central Message Definition Fields

Message Header

The following sections describe the fields in a message header:

For more information about message headers, see "IL_SM_LOG_TABLE: Message Header" in Appendix E, "Database Schema," in the Log Central Configuration Guide.

Log ID

Description:

Value that distinguishes one set of log messages from another, which lets logically separate log information be stored in one database. For example, the log IDs IRX and DCS might distinguish messages logged by a drug claim system from those logged by a document control system.

Format:

String

Size:

Up to 3 characters

Optional?:

Optional

Corresponding Field:

In the IL_SM_LOG_TABLE database table: MSG_LOG_ID

Logging Level

Description:

Logging level

Format:

Character

Size:

1 character

Range:

Possible values:
N = Normal message
D = Debug message
V = Verbose message
S = Special message

Optional?:

Not optional

Corresponding Field:

In the IL_SM_LOG_TABLE database table: MSG_REP_MODE

Date and Time

Description:

Month, day, hour, minute, second, and year on the machine that generated the message.

Format:

Mmm dd hh:mm:ss yyyy

Optional?:

Not optional

Corresponding Field:

In the IL_SM_LOG_TABLE database table: MSG_KEY_TS

Subsystem

Description:

Subsystem that generated the message. The subsystem_create and subsystem_delete commands, which are described in Commands, let you add and delete subsystems.

Format:

String

Size:

Up to 8 characters

Optional?:

Not optional. In a message definition file, this field must be in the first definition, and is optional for the succeeding definitions.

Corresponding Field:

In the IL_SM_LOG_TABLE database table: MSG_SS_NAME

Message ID

Description:

Identifies the type of message within a subsystem. Together, the Subsystem and Message ID uniquely identify a message.

Format:

Integer

Range:

1 through 99999
The convention for message ID values is:
1 through 49999 = Activity and error messages defined by application developers
50000 through 89999 = Reserved for future use
90000 = Startup message
90001 = Shutdown message
90002 = Transaction processing message
90100 = Transaction processing message (NCPDP)
90201 through 99999 = Reserved for future use

Optional?:

Not optional

Corresponding Field:

In the IL_SM_LOG_TABLE database table: MSG_ID

Host

Description:

Network host for the system that generated the message. This value can include dots, underscores, and dashes.

Format:

String

Size:

Up to 64 characters

Optional?:

Not optional

Corresponding Field:

In the IL_SM_LOG_TABLE database table: MSG_HOST_NAME

Process ID

Description:

PID of the process that generated the message.

Format:

Integer

Range:

1 through 99999

Optional?:

Not optional

Corresponding Field:

In the IL_SM_LOG_TABLE database table: MSG_PID

User ID

Description:

User ID of the process that generated the message.

Format:

String

Size:

Up to 8 characters

Optional?:

Not optional

Corresponding Field:

In the IL_SM_LOG_TABLE database table: MSG_UID

Function

Description:

Internal function that generated the message. The convention for function values is:
Function name if logged by a library function
Process name if logged by a main process function

Format:

String

Size:

Up to 40 characters

Optional?:

Optional

Corresponding Field:

In the IL_SM_LOG_TABLE database table: MSG_FCT_NAME

Entity

Description:

Value that helps correlate a message with messages from other managed nodes. You can use this value to define a domain. The domain can be a Tuxedo domain or WebLogic Enterprise domain, but is not required to be one of these types of domains. The default value is "None."
For example, if a system has three managed nodes and each managed node has a Log Monitor with an entity name of LogMonWLE, these Log Monitors constitute a domain.
For another example, if you have a Tuxedo domain for sales information, you can set the entity name to "Sales" for each Log Monitor in the domain.
For information about setting and using the entity value, see Chapter 7, "Creating Filters," and the section "DEFINE_LOG_MONITOR" in Appendix G, "Configuration Files."

Format:

String

Size:

Up to 21 characters

Optional?:

Optional

Corresponding Field:

In the IL_SM_LOG_TABLE database table: MSG_TRAN_KEY

Message Body

Description:

Text determined by the application developer.

Format:

String

Size:

Up to 2000 characters

Optional?:

Not optional

Corresponding Field:

In the IL_SM_LOG_TABLE database table: MSG_TEXT

Message Definition

The following sections describe the fields in a message definition:

For more information about message definitions, see:

Chapter 6, "Creating Message Definitions," in the Log Central Configuration Guide.
"IL_MSG: Message Definition" in Appendix E, "Database Schema," in the Log Central Configuration Guide.
Changing Message Definitions and Subsystem Descriptions.

Summary

Description:

Summary of the Description field which describes the condition or event that the message is reporting.

Format:

String

Size:

Up to 40 characters

Optional?:

Not optional

Corresponding Fields:

In a message definition file: SUMMARY
In the IL_MSG database table: LOG_SDESC

Severity

Description:

Possible values:
Informational = Activity message.
Warning = Problem that does not need immediate attention.
Minor = Performance or service degradation may result.
Major = Problem that needs immediate attention, or the system performance may deteriorate.
Critical = Problem that need immediate attention, or the system may crash.

Format:

String

Size:

N/A

Optional?:

Not optional. In a message definition file, this field must be in the first definition, and is optional for the succeeding definitions.

Corresponding Fields:

In a message definition file: SEVERITY
In the IL_MSG database table: LOG_MSG_SEVERITY

Description

Description:

Description of the condition or event that the message is reporting.

Format:

String

Size:

With the Recommendation field, up to 2 Gb.

Optional?:

Optional

Corresponding Fields:

In a message definition file: DESCRIPTION
In the IL_MSG database table: LOG_MSG_DESC_REC

Recommendation

Description:

Recommended action for handling the message.

Format:

String

Size:

With the Description field, up to 2 Gb.

Optional?:

Optional

Corresponding Fields:

In a message definition file: RECOMMENDATAION
In the IL_MSG database table: LOG_MSG_DESC_REC

Execute on Upload

Description:

Path to a script or executable file that the Central Collector runs when it stores the message in the Log Central database.

Format:

String

Size:

Up to 40 characters

Optional?:

Optional

Corresponding Fields:

In a message definition file: EXECUTE_ON_UPLOAD
In the IL_MSG database table: LOG_MSG_PARSE_FNC

Trap ID

Description:

Basic SNMP trap to generate for the message. For information about generating basic SNMP traps, see "Configuring SNMP Traps" in the Log Central Online Help.

Format:

Integer

Range:

1 through 99999

Optional?:

Optional

Corresponding Fields:

In a message definition file: TRAP_ID
In the IL_MSG database table: LOG_MSG_TRAP_ID

Trap Enabled

Description:

Flag that indicates whether or not to generate a basic SNMP trap for the message. For information about generating basic SNMP traps, see "Configuring SNMP Traps" in the Log Central Online Help.

Format:

String

Range:

YES
NO (default)

Optional?:

Optional

Corresponding Fields:

In a message definition file: TRAP_ENABLED
In the IL_MSG database table: LOG_MSG_TRAP_ENABLED

Auto Acknowledge

Description:

Flag that indicates whether or not to automatically acknowledge the message. One reason to acknowledge messages is to keep track of the system problems that are currently being resolved or actively investigated.

Format:

String

Range:

YES
NO (default)

Optional?:

Optional

Corresponding Fields:

In a message definition file: AUTO_ACKNOWLEDGE
In the IL_MSG database table: LOG_MSG_AUTO_ACK
