Server Properties (New)

You get the New Server Properties dialog window when you choose Create on the Configuration Toolbar in the main window.

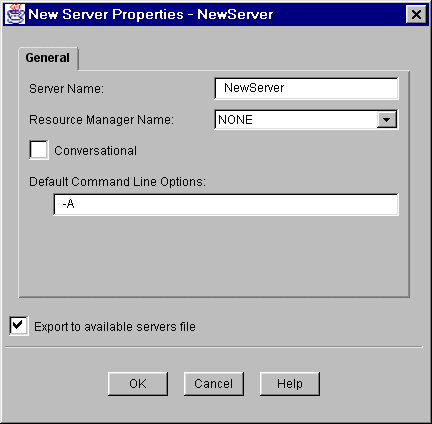

Figure 7-9 New Server Properties

Fields

The following table explains the options available on this window.

Table 7-9 General Server Properties

Field	Description
Server Name	Name of the server executable. For a Windows NT server executable you do not need to specify the.exe file extension.
Resource Manager Name	Resource Manager assigned to the new server. This is the same Resource Manager name that you have used with the -r option when building the server.
Conversational (check box)	If selected, the new server is a conversational server. The corresponding BEA TUXEDO parameter is CONV.
Default Command Line Options	Command line options assigned to the new server. The corresponding BEA TUXEDO parameter is CLOPT.
Export to available server file	If selected, the server is added to the exported server file iservers.lst; otherwise it is not exported.

Description

This is where you create a new server.

Buttons

When you have filled in the fields, click OK to close the window and save your changes. (Or click Cancel to close the window without saving your changes.)

See Also

Configuring Servers (Step 3), Creating a New Server
