4. Connecting Domains

---

What This Chapter Is About

This chapter describes how to hook BEA TUXEDO system applications together as communicating /TDOMAINs. We want to make it clear at the outset that while this discussion refers to sample programs delivered with the BEA TUXEDO system software (and add-ons), we are describing the steps in a process, not documenting sample programs presently delivered with the Domains software.

The Principal Sections of the Chapter

This chapter contains the following sections:

• "The Starting Point: Two BEA TUXEDO Applications"-This section describes two applications that are frequently used as examples in the documentation; it also tells where you can find out more about them.

• "The Need to Intercommunicate"-This section also describes a common problem with business applications, when two applications exist there soon arises a business need for communication between them.

• "Solution 1: Reconfigure the Applications"-One solution (to the need to intercommunicate) is to redefine the two applications as a single networked application. This section shows how to do so.

• "Solution 2: Redefine the Applications as /TDOMAINs"-Redefining the two applications as a single MP application is not the only solution; with the Domains software, you can recast them as domains.

• "Sample /TDOMAIN Application: creditapp"-The chapter ends with a look at a runnable sample application that is delivered with the software.

The Starting Point: Two BEA TUXEDO Applications

Suppose a company has developed the two BEA TUXEDO system applications shown in Figure 4-1.

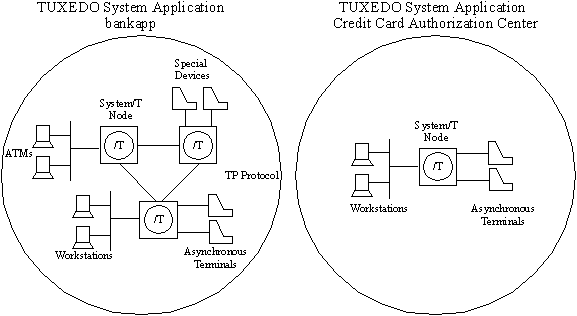

Figure 4-1 Two BEA TUXEDO System Applications

bankapp and the Credit Authorization Application

The applications shown in Figure 4-1 are known as bankapp and the Credit Authorization application. bankapp is distributed as a sample application with the BEA TUXEDO software. It can be found in $TUXDIR/apps/bankapp, and is documented in the BEA TUXEDO Application Development Guide. Be sure to take a close look at the configuration file for implementing bankapp as a multiprocessor application: $TUXDIR/apps/bankapp/ubbmp.

The Credit Authorization application is described in more detail later in this chapter. For the time being, we ask you to think of it only as a hypothetical extension of bankapp.

The Need to Intercommunicate

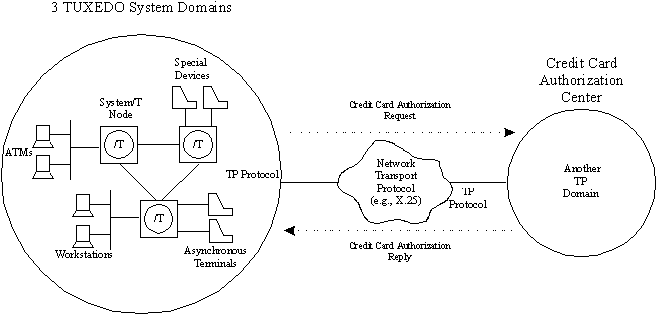

In the course of time our hypothetical business organization has come to realize that their customers would be better served if the bankapp application could communicate directly with the Credit Authorization application. That way they could offer instant credit cards to anyone opening a new account.

In the remainder of this chapter we are going to look at two solutions to this problem.

Solution 1: Reconfigure the Applications

The first solution is to combine two BEA TUXEDO system applications into one, as shown in Figure 4-2.

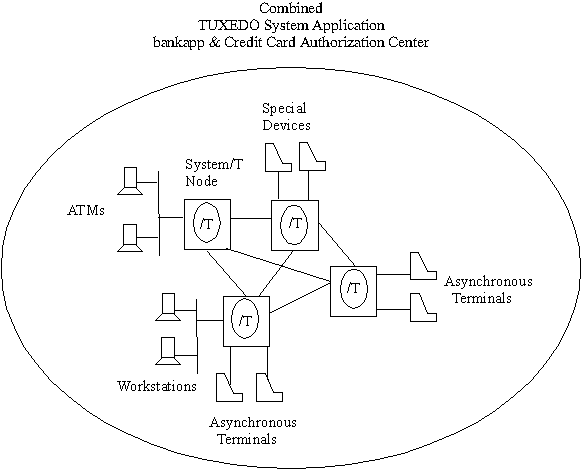

Figure 4-2 Combining Two BEA TUXEDO System Applications

In the process of combining the two applications into a single configuration, the following changes are made:

• OPTION=LAN is specified and a *NETWORK section is included.

• Server migration is enabled by specifying OPTION=MIGRATE; at the same time a backup master site is defined.

• The gateway server is redefined as three other servers: TLRA, ACCTA, and CRDT.

• Credit Authorization services are added.

Configuration File to Combine the Sample Applications

Listing 4-1 shows a possible configuration file for the combined applications. A similar config file (differing only in the network address) must be installed on each machine of the application.

Listing 4-1 Sample Configuration File for the Combined Application

---

*RESOURCES
IPCKEY           76666
UID              0000
GID              000
PERM             0660
MAXACCESSERS     40
MAXSERVERS       35
MAXSERVICES      75
MAXCONV          10
MASTER           SITE1,SITE2
SCANUNIT         10
MODEL            MP
LDBAL            Y
OPTIONS          LAN,MIGRATE
MAXGTT           100
MAXBUFTYPE       16
SCANUNIT         10
SANITYSCAN       5
DBBLWAIT         6
BBLQUERY         50
BLOCKTIME        2
#
#
*MACHINES
#
mach1 LMID=SITE1
                 TUXDIR="/home/mylogin/tuxroot"
                 APPDIR="/home/mylogin/bankapp"
                 ENVFILE="/home/mylogin/bankapp/ENVFILE"
                 TLOGDEVICE="/home/mylogin/bankapp/TLOG"
                 TLOGNAME=TLOG
                 TUXCONFIG="/home/mylogin/bankapp/tuxconfig"
                 ULOGPFX="/home/mylogin/bankapp/ULOG"
                 TYPE="type1"
#
mach2 LMID=SITE2
                 TUXDIR="/home/mylogin/tuxroot"
                 APPDIR="/home/mylogin/bankapp"
                 ENVFILE="/home/mylogin/bankapp/ENVFILE"
                 TLOGDEVICE="/home/mylogin/bankapp/TLOG"
                 TLOGNAME=TLOG
                 TUXCONFIG="/home/mylogin/bankapp/tuxconfig"
                 ULOGPFX="/home/mylogin/bankapp/ULOG"
                 TYPE="type2"
#
mach3 LMID=SITE3
                 TUXDIR="/home/mylogin/tuxroot"
                 APPDIR="/home/mylogin/bankapp"
                 ENVFILE="/home/mylogin/bankapp/ENVFILE"
                 TLOGDEVICE="/home/mylogin/bankapp/TLOG"
                 TLOGNAME=TLOG
                 TUXCONFIG="/home/mylogin/bankapp/tuxconfig"
                 ULOGPFX="/home/mylogin/bankapp/ULOG"
                 TYPE="type2"
#
mach4 LMID=SITE4
                 TUXDIR="/home/mylogin/tuxroot"
                 APPDIR="/home/mylogin/bankapp"
                 ENVFILE="/home/mylogin/bankapp/ENVFILE"
                 TLOGDEVICE="/home/mylogin/bankapp/TLOG"
                 TLOGNAME=TLOG
                 TUXCONFIG="/home/mylogin/bankapp/tuxconfig"
                 ULOGPFX="/home/mylogin/bankapp/ULOG"
                 TYPE="type1"
#
*GROUPS
#
DEFAULT:  TMSNAME=TMS_SQL    TMSCOUNT=2
BANKB1    LMID=SITE1         GRPNO=1
OPENINFO="TUXEDO/SQL:/home/mylogin/bankapp/bankdl1:bankdb:readwrite"
BANKB2             LMID=SITE2         GRPNO=2
OPENINFO="TUXEDO/SQL:/home/mylogin/bankapp/bankdl2:bankdb:readwrite"
BANKB3             LMID=SITE3         GRPNO=3
OPENINFO="TUXEDO/SQL:/home/mylogin/bankapp/bankdl3:bankdb:readwrite"
BANKB4    LMID=SITE4         GRPNO=4
OPENINFO="TUXEDO/SQL:/home/mylogin/bankapp/bankdl4:bankdb:readwrite"
#
#
*NETWORK
#
SITE1    NADDR="<network address of SITE1>"
         BRIDGE="<device of provider1>"
         NLSADDR="<network listener address of SITE1>"
SITE2    NADDR="<network address of SITE2>"
         BRIDGE="<device of provider2>"
         NLSADDR="<network listener address of SITE2>"
SITE3    NADDR="<network address of SITE3>"
         BRIDGE="<device of provider3>"
         NLSADDR="<network listener address of SITE3>"
SITE4    NADDR="<network address of SITE4>"
         BRIDGE="<device of provider4>"
         NLSADDR="<network listener address of SITE4>"
#
*SERVERS<



 Limitations of This Solution

Administering a single large application can be more cumbersome than administering two smaller ones; each smaller one has its own administrative interface.

Booting a networked application can be more costly because of the time required to boot each server and because of the need to propagate bulletin boards across the network. Smaller, separate applications can be booted simultaneously.

 Solution 2: Redefine the Applications as /TDOMAINS


Figure  4-3 shows the combined application reconfigured as four /TDOMAINs. (Three of the domains are in the left-hand circle.)

Figure 4-3    Picture of the Domain Configuration






 Changes to the BEA TUXEDO System Configuration Files


To reconfigure the combined application as /TDOMAINs, make the following changes to the UBBCONFIG files:

Change MODEL to SHM.

Remove the *NETWORK section.

Add domains-specific servers, for example DMADM, GWADM, and GWTDOMAIN.

Listing  4-2 shows a sample converted UBBCONFIG file.



Listing 4-2
A Converted UBBCONFIG File



*RESOURCES
IPCKEY         76666
UID            7901
GID            601
PERM           0660
MAXACCESSERS   40
MAXSERVERS     35
MAXSERVICES    75
MAXCONV        10
MASTER         SITE1
SCANUNIT       10
MODEL          SHM
LDBAL          Y
MAXGTT         100
MAXBUFTYPE     16
SCANUNIT       10
SANITYSCAN     5
BBLQUERY       50
BLOCKTIME      2
#
*MACHINES
sfexpz         LMID=SITE1
               TUXDIR="/home/mylogin/tuxroot"
               APPDIR="/home/mylogin/creditapp"
               ENVFILE="/home/mylogin/creditapp/ENVFILE"
               TLOGDEVICE="/home/mylogin/creditapp/TLOG"
               TLOGNAME=TLOG
               TUXCONFIG="/home/mylogin/creditapp/tuxconfig"
               ULOGPFX="/home/mylogin/creditapp/ULOG"
               TYPE="type1"
#
#
#
*GROUPS
DEFAULT:       LMID=SITE1
BANKB1         GRPNO=1  TMSNAME=TMS_SQL         TMSCOUNT=2
OPENINFO="TUXEDO/SQL:/home/mylogin/creditapp/crdtdl1:bankdb:readwrite"
BANKB2         GRPNO=2
BANKB3         GRPNO=3
BANKB4         GRPNO=4
DMADMGRP  LMID=mach1 GRPNO=5
#
#
#
*SERVERS
#
DEFAULT: RESTART=Y MAXGEN=5 REPLYQ=Y CLOPT="-A"
GWADM          SRVGRP=BANKB2    SRVID=30
               REPLYQ = Y RESTART = Y GRACE = 0
GWTDOMAIN      SRVGRP=BANKB2    SRVID=31
               REPLYQ = Y RESTART = Y GRACE = 0
GWADM          SRVGRP=BANKB3    SRVID=24
               REPLYQ = Y RESTART = Y GRACE = 0
GWTDOMAIN      SRVGRP=BANKB3    SRVID=25
               REPLYQ = Y RESTART = Y GRACE = 0
GWADM          SRVGRP=BANKB4    SRVID=20
               REPLYQ = Y RESTART = Y GRACE = 0
GWTDOMAIN      SRVGRP=BANKB4    SRVID=21
               REPLYQ = Y RESTART = Y GRACE = 0
DMADM          SRVGRP="DMADMGRP"   SRVID=50
               REPLYQ = N RESTART = Y GRACE = 0
TLRA     SRVGRP=BANKB1  SRVID=2         CLOPT="-A -- -T 100"
BTADD    SRVGRP=BANKB1  SRVID=3
ACCTA    SRVGRP=BANKB1  SRVID=4
CRDT     SRVGRP=BANKB1  SRVID=5
CRDTA    SRVGRP=BANKB1  SRVID=6
*SERVICES
DEFAULT:       LOAD=50
INQUIRYA       PRIO=50
WITHDRAWALA    PRIO=50
OPEN_ACCT2     PRIO=40
OPENC          PRIO=40
OPENCA         PRIO=40
CLOSECA        PRIO=40
BR_ADD         PRIO=20
TLR_ADD        PRIO=20



 Adding DMCONFIG Files

You also need to make four DMCONFIG files. A sample is shown in Listing  4-3.



Listing 4-3
Sample DMCONFIG File



#
#
*DM_LOCAL_DOMAINS
#
#
QDOM1   GWGRP=BANKB2
        TYPE=TDOMAIN
        DOMAINID=QDOM1
        BLOCKTIME=10
        MAXDATALEN=56
        MAXRDOM=89
        DMTLOGDEV="/home/mylogin/creditapp/DMTLOG"
        AUDITLOG="/home/mylogin/creditapp/AUDITLOG"

QDOM2   GWGRP=BANKB3
        TYPE=TDOMAIN
        DOMAINID=QDOM2
        BLOCKTIME=10
        MAXDATALEN=56
        MAXRDOM=89
        DMTLOGDEV="/home/mylogin/creditapp/DMTLOG"
        AUDITLOG="/home/mylogin/creditapp/AUDITLOG"
        DMTLOGNAME="DMTLOG_TDOM2"
QDOM3   GWGRP=BANKB4
        TYPE=TDOMAIN
        DOMAINID=QDOM3
        BLOCKTIME=10
        MAXDATALEN=56
        MAXRDOM=89
        DMTLOGDEV="/home/mylogin/creditapp/DMTLOG"
        AUDITLOG="/home/mylogin/creditapp/AUDITLOG"
        DMTLOGNAME="DMTLOG_TDOM3"
#
*DM_REMOTE_DOMAINS
#
#
TDOM1   TYPE=TDOMAIN
        DOMAINID=TDOM1

TDOM2   TYPE=TDOMAIN
        DOMAINID=TDOM2

TDOM3   TYPE=TDOMAIN
        DOMAINID=TDOM3
#
#
*DM_TDOMAIN
#
QDOM1    NWADDR="0x0002DEEF93026927"
         NWDEVICE="/dev/tcp"
QDOM2    NWADDR="0x0002BEEF93026927"
         NWDEVICE="/dev/tcp"
QDOM3    NWADDR="0x0002CEEF93026927"
         NWDEVICE="/dev/tcp"
TDOM1    NWADDR="0x0002DEEF93026947"
         NWDEVICE="/dev/null"
TDOM2    NWADDR="0x0002BEEF9302691D"
         NWDEVICE="/dev/tcp"
TDOM3    NWADDR="0x0002CEEF9302690E"
         NWDEVICE="/dev/tcp"
#
#
#
*DM_LOCAL_SERVICES
#
#
WITHDRAWALA
INQUIRYA
OPENCA
CLOSECA



 Sample /TDOMAIN Application: creditapp

A sample application, creditapp, is distributed with the software. creditapp is a runnable version of the hypothetical application that was the basis for the discussion above.

The application is located in $TUXDIR/apps/creditapp. It includes the files shown in Listing  4-4.



Listing 4-4
creditapp Files



ACCT.ec       ACCTA.ec      AUDITC.c      BAL.ec       BALANCE.m
BALANCEA.m    BALC.ec       BTADD.ec      CBALANCE.m   CCLOSE.m
CDEPOSIT.m    CLOSE.m       COPEN.m       CRDT.ec      CRDTA.ec
CRMENU.m      CRMENU2.m     CTRANSFER.m   CWITHDRAW.m  DEPOSIT.m
DEPOSITA.m    FILES         HCBALANCE.m   HCCLOSE.m    HCLOSE.m
HCOPEN.m      HCWITHDRAW.m  HELP.m        HOPEN.m      OPEN.m
README        RUNME         RUNME.sh      SETUP.sh     TLR.ec
TLR1.ec       TLR2.ec       TLR3.ec       TLRA.ec      TRANSFER.m
WITHDRAW.m    WITHDRAWA.m   XFER.c        appinit.c    aud.h
aud.v         audit.c       auditcon.c    bank.flds    bank.flds.h
bank.h        cleanup.sh    crbank.sh     crbankdb.sh  crdt_app.mk
crdt_app2.mk  crdt_app3.mk  crdt_app4.mk  crdt_flds.h  crdtvar
crdtvar2      credit.flds   crtlog.sh     crtlog2      crtlog2.sh
domcon1       domcon2       domcon3       domcon4      driver.sh
envfile.sh    gendata.c     gentran.c     hostmk       listnr
populate.sh   run.sh        setenv        ubbdom1      ubbdom2
ubbdom3       ubbdom4       util.c



Listing  4-5 is a version of the README file from the creditapp directory. The README file documents a script that installs and runs creditapp. It has been edited to include a few things that are not in the original script.



Listing 4-5
README File for creditapp



SIMPLE BUILD PROCEDURE

The creditapp application is an enhancement of the
bankapp and hostapp applications.

The creditapp application is designed to be a four domain application,
so the software must be built on four machines. The RUNME.sh
script will lead you through the necessary steps.


Step 1: Copy the Software for creditapp.

Make a new directory under your $HOME directory and copy all of
the source files from <TUXDIR>/apps/creditapp into that directory.
TUXDIR is the root directory under which your BEA TUXEDO System
software is installed. We call the new directory
$HOME /creditapp. The rest of the steps in this procedure are
done in the directory $HOME/creditapp.


Step 2: On each of the remaining three machines:

Make a directory creditapp in a directory that can be used for the application.

We call this directory $HOME/creditapp.

Make a note of the full directory path for $HOME/creditapp and TUXDIR
for each machine. These will be needed by the RUNME.sh script.


Step 3: On the "master site" execute the "RUNME.sh" script.

The shell script "RUNME.sh" is an interactive program designed to
lead you through initialization, booting, shutdown and cleanup
of the four domain creditapp application. The shell is interactive
and requires no command line arguments. All you need in the directory
is the source from the TUXDIR/apps/creditapp directory that you
copied in Step 1.

You will be prompted to enter values for RSH and RCP
environment variables, or accept the defaults.

IT IS VERY IMPORTANT THAT VALUES FOR RSH AND RCP BE ENTERED AS THEY ARE
USED TO REMOTE COPY AND EXECUTE THE NECESSARY SCRIPTS.

The following environment variables are important. The script picks up
the values for TUXDIR and APPDIR from your environment and
prompts you (in OPTION 4) for BLKSIZE:

TUXDIR         Root directory of the BEA TUXEDO System where you have
                 installed the  software.

APPDIR          Directory in which the creditapp application resides.
                 crdtvar.dm1 initially is set to allow this to default
                 to the current working directory, which agrees with
                 our intention to use $HOME/creditapp. This is the
                 directory into which you copied the creditapp files in
                 Step 1.

BLKSIZE         Logical blocksize for the database in bytes.
                 Must be an integral multiple of the physical
                 page size of the computer (for example, 512 bytes or 4096 bytes).

When you invoke RUNME.sh you are shown a menu with 10 options (11 counting "quit").
Here is the list of choices:

          1) Initialize configuration files and makefiles.
          2) Copy files to remote sites.
          3) Build crdtapp clients and servers.
          4) Create databases.
          5) Generate binary tuxconfig and bdmconfig files.
          6) Create Transaction Log file.
          7) Boot the application.
          8) Populate the database.
          9) Shutdown the application.
          10) Cleanup IPC Resources, database files and log files.
          q) Quit.

To go through the complete process of building and running the sample
application, start with choice No. 1. When the script completes a step,
the menu is displayed for your next choice.


OPTION 1. Initialize configuration files and makefiles.
          This option sets up makefiles, UBBCONFIG and DMCONFIG files that are
          necessary for the application.

          All questions must be answered.

          ENTER the system name: enter uname for machines you are using
                                    beginning with the current machine you are on.


          ENTER TUXDIR for each machine.

          ENTER APPDIR for each machine.


          Continue to answer all queries.


          An example of 4 hexadecimal digits may be (beef, cfff, 6774, aeef).          NOTE: EACH MACHINE MUST HAVE A UNIQUE HEX SEQUENCE.


OPTION 2. Copies the files to the other domains in the configuration.


OPTION 3. Builds clients and servers on all machines.

          NOTE: CAREFULLY CHECK THAT THE BUILDS ARE COMPLETED SUCCESSFULLY ON
                EACH SITE. IF NECESSARY YOU MAY RUN THE BUILD YOURSELF.

                ON THE SPECIFIC SITE ENTER
                nohup make -f CRDT{$MACH}.mk2

                where ${MACH} is the uname for the machine you are building on.
                For example,

                        nohup make -f CRDTtux1.mk2


OPTION 4. Builds the databases on each site.

          NOTE: ON EACH SITE MAKE SURE THE BLKSIZE VALUE IN files

                crdt${MACH}.dm1 for the primary site

                or crdt${MACH}.dm2 for the remote sites

                where ${MACH} is the uname for the machine you are building on

                ARE CORRECT FOR THAT SPECIFIC MACHINE


OPTION 5. Generates the tuxconfig and bdmconfig files.


All other options are similar to bankapp.


After OPTION 8 : Populate the database

                  Enter q to Quit the menu.

RUNNING CREDITAPP.
__________________


            On each machine a script run.sh exists.

            Execute run.sh.

            run
At the response :

               Is this machine the Credit Card Authorization Center(y/n)?

               If machine is the primary machine answer y .
               If machine is any other answer n.

On the primary machine a different menu will be seen than the other 3 machines.

All Credit accounts exist on primary machine and all machines can access any
account.


            ACCOUNTS 10000000 - 120000000

Machines 2,3,4 are the enhanced bankapp application.

            ACCOUNTS 10000 - 39999 exist on machine 2
            ACCOUNTS 40000 - 79999 exist on machine 3
            ACCOUNTS 80000 - 109999 exist on machine 4

All processing is done using the /DOMAIN software.

A tail -f of the ULOG###### will show the actual processing of the requests.

On the machine that will process the request enter :

           tail -f ULOG###### where ###### is today's date.






[Top] [Prev]
