Wrapping a BEA TUXEDO Service in an Object

This chapter presents an overview of one way in which you can call a BEA TUXEDO service from within an object managed by a WebLogic Enterprise server application, using the Wrapper sample application as an example.

This chapter includes the following topics:

• Overview of Wrapping a BEA TUXEDO Service. This section addresses the following topics:

  • Designing the Object That Wraps the BEA TUXEDO Service

  • Creating the Buffer in Which to Encapsulate BEA TUXEDO Service Calls

  • Implementing the Operations That Send Messages to and from the BEA TUXEDO Service

• Design Considerations for the Wrapper Sample Application

The Wrapper sample application delegates a set of billing operations to a BEA TUXEDO teller application, which contains a set of services that perform basic billing procedures. The approach in this chapter shows one technique for incorporating a BEA TUXEDO application into a WebLogic Enterprise domain.

The examples shown in this chapter demonstrate a one-to-one relationship between operations on an object and calls to specific services within a BEA TUXEDO server application. In a sense, the calls to the BEA TUXEDO services are wrapped as operations on a CORBA object; thus, the object delegates its work to the BEA TUXEDO application. If you have a set of BEA TUXEDO services that you want to use in a WebLogic Enterprise server application, the technique shown in this chapter may work for you.

This chapter does not provide any details about BEA TUXEDO applications. For information about how to build and configure BEA TUXEDO applications, and for information about how they work, see the BEA TUXEDO information set.

Overview of Wrapping a BEA TUXEDO Service

The process described in this chapter for wrapping a set of BEA TUXEDO services encompasses the following steps:

1. Designing the object that structures a set of tasks that are oriented to BEA TUXEDO as operations on that object.

2. Creating the message buffer used by the BEA TUXEDO services. You use this message buffer to send and receive messages to and from the BEA TUXEDO services. You can allocate the buffer in the object's constructor in the application's implementation file.

3. Implementing on the object the operations that send and receive messages to and from the BEA TUXEDO services. This step also includes choosing the implementation for how the BEA TUXEDO services are called.

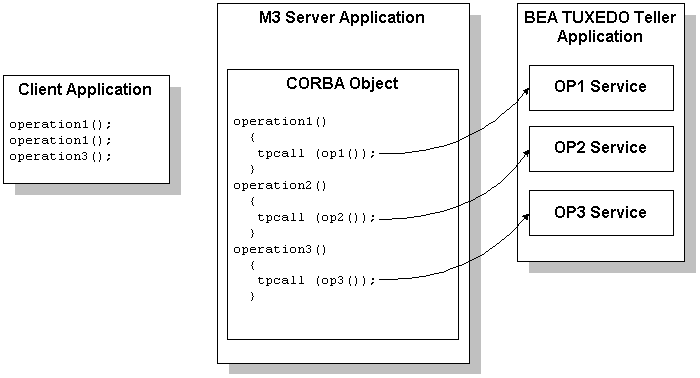

The following figure shows a high-level view of the relationship among the client application, the CORBA object managed by the WebLogic Enterprise server application, and the BEA TUXEDO application that implements the services called from the CORBA object.

Designing the Object That Wraps the BEA TUXEDO Service

The first step described in this chapter is designing the object that wraps the calls to the BEA TUXEDO application. For example, the goal for the Wrapper sample application is to add billing capability to the student registration process, which can be done by delegating a set of billing operations to an existing BEA TUXEDO teller application.

The BEA TUXEDO teller application used by the Wrapper sample application contains the following services:

• CURRBALANCE -- Obtains the current balance of a given account

• CREDIT -- Credits an account by a given dollar amount

• DEBIT -- Debits an account by a given dollar amount

To wrap these services, the Wrapper sample application includes a separate OMG IDL file that defines a new interface, Teller, which has the following operations:

• get_balance()

• credit()

• debit()

Each of these operations on the Teller object maps one-to-one to calls on the services in the BEA TUXEDO teller application.

A typical usage scenario of the Teller object may be the following:

1. The client application invokes the register_for_courses() operation on the Registrar object, which requires a student ID.

2. As part of the registration process, the Registrar object invokes the get_balance() operation on the Teller object, passing an account number.

3. The get_balance() operation on the Teller object puts the account number into a message buffer and sends the buffer to the BEA TUXEDO teller application's CURRBALANCE service.

4. The BEA TUXEDO teller application receives the message buffer, extracts its contents, and makes the appropriate call to the CURRBALANCE service.

5. The CURRBALANCE service obtains from the University database the current balance of the account and gives it to the BEA TUXEDO teller application.

6. The BEA TUXEDO teller application inserts the current balance into a message buffer and returns it to the Teller object.

7. The Teller object extracts the current balance amount from the message buffer and returns the current balance to the Registrar object.

For more design information about the Teller object and the Wrapper sample application, see the section "Design Considerations for the Wrapper Sample Application" on page 6-8.

Creating the Buffer in Which to Encapsulate BEA TUXEDO Service Calls

The next step described in this chapter is creating the buffer within which messages are sent between the object and the BEA TUXEDO service. There are a number of buffer types that may be used by various BEA TUXEDO applications, and the examples used in this chapter are based on the FML buffer type. For more information about buffer types in the BEA TUXEDO system, see the BEA TUXEDO information set.

In your application implementation file, you need to allocate the chosen buffer type. You can allocate the buffer in the object's constructor, because the buffer you allocate does not need to be unique to any particular Teller object instance. This allocation operation typically includes specifying the buffer type, passing any flags appropriate for the procedure call to the BEA TUXEDO service, and specifying a buffer size.

You also need to add to your implementation's header file the definition of the variable that represents the buffer.

The following code example shows the constructor for the Wrapper application's Teller object that allocates the BEA TUXEDO buffer, m_tuxbuf:

Teller_i::Teller_i() :
    m_tuxbuf((FBFR32*)tpalloc("FML32", "", 1000))
{
    if (m_tuxbuf == 0) {
        throw CORBA::INTERNAL();
    }
}

Note the following about the line that allocates the FML buffer:

The object's implementation file should also deallocate the buffer in the destructor, as in the following statement from the Wrapper application implementation file:

tpfree((char*)m_tuxbuf);

The next step is implementing the operations on the object that wraps calls to the BEA TUXEDO application. In this step, you choose the implementation of how the BEA TUXEDO services are called from the object. The Wrapper sample application uses the tpcall implementation.

An operation on an object that wraps a BEA TUXEDO service typically includes statements that do the following:

• Fill the message buffer with the data that you want to send to the BEA TUXEDO service.

• Call the BEA TUXEDO service. The following arguments are included in the call:

  1. The BEA TUXEDO service that you want to invoke

  2. The message buffer to be sent to the BEA TUXEDO service

  3. The message buffer to be returned from the BEA TUXEDO service

  4. The size of the buffer in which the BEA TUXEDO service response is to be placed

• Extract the response from the BEA TUXEDO service

• Return the results to the client application

The following example shows the implementation of the get_balance() operation in the Wrapper application Teller object. This operation retrieves the balance of a specific account, and the BEA TUXEDO service being called is CURRBALANCE.

CORBA::Double Teller_i::get_balance(BillingW::AccountNumber account)
{
    // "marshal" the "in" parameters (account number)
    Fchg32(m_tuxbuf, ACCOUNT_NO, 0, (char*)&account, 0);
    long size = Fsizeof32(tuxbuf);
    // Call the CURRBALANCE TUXEDO service
    if (tpcall("CURRBALANCE", (char*)tuxbuf, 0,
               (char**)&tuxbuf, &size, 0) ) {
        throw CORBA::PERSIST_STORE();
    }
    // "unmarshal" the "out" parameters (current balance)
    CORBA::Double currbal;
    Fget32(m_tuxbuf, CURR_BALANCE, 0, (char*)&currbal, 0);
    return currbal;
}

In this code example, note the following:

The following statement fills the message buffer, m_tuxbuf, with the student account number. For information about FML, see the BEA TUXEDO Reference Manual: Section 3FML, FML pages.

Fchg32(m_tuxbuf, ACCOUNT_NO, 0, (char*)&account, 0);

The following statement calls the CURRBALANCE BEA TUXEDO service, via the tpcall implementation, passing the message buffer. This statement also specifies where the BEA TUXEDO service response is to be placed, which in this example is also the same buffer as the one in which the request was sent.

if (tpcall("CURRBALANCE", (char*)tuxbuf, 0,
               (char**)&tuxbuf, &size, 0) ) {
        throw CORBA::PERSIST_STORE();
        }

The following statement extracts the balance from the returned BEA TUXEDO message buffer:

Fget32(m_tuxbuf, CURR_BALANCE, 0, (char*)&currbal, 0);

The last line in the get_balance() operation returns the results to the client application:

return currbal;

Note the following restrictions regarding how you can incorporate BEA TUXEDO services within a WebLogic Enterprise domain:

• You may not combine object implementations and BEA TUXEDO services within the same server application. The BEA TUXEDO services may only exist within a separate BEA TUXEDO server application in the same domain as the WebLogic Enterprise server application.

• You may not include the tpreturn() or tpforward() BEA TUXEDO implementations within an object that calls a BEA TUXEDO service.

Design Considerations for the Wrapper Sample Application

The basic design considerations for the Wrapper sample application are based on the scenario that is described in this section. When a student registers for a course, the Registrar object performs, as part of its registration process, invocations to the Teller object, which charges the student's account for the course.

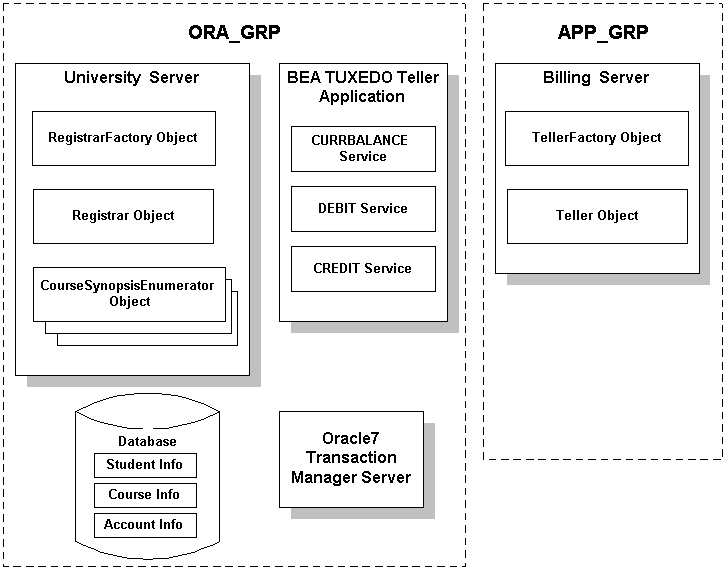

This section describes the design for the Wrapper sample application, which incorporates an additional server application, Billing, into the configuration. Therefore, the Wrapper sample application consists of the following four server applications:

• University, which has the RegistrarFactory, Registrar, and CourseSynopsisEnumerator objects

• Billing, which has the TellerFactory and Teller objects

• BEA TUXEDO Teller Application, which has the CURRBALANCE, CREDIT, and DEBIT services

• The Oracle7 Transaction Manager Server (TMS)

In addition, the UBBCONFIG file for the Wrapper sample application specifies the following groups:

• ORA_GRP, which contains the University server application, the BEA TUXEDO Teller application, and the Oracle7 TMS. Since these three processes are involved in transactions on the University database, they must all be in the same group, along with the database itself.

• APP_GRP, which contains the Billing server application. This application does not need to be in ORA_GRP, because this application does not interact with the University database.

The configuration of the WebLogic Enterprise domain in the Wrapper sample application is shown in the following figure.

Incorporating a BEA TUXEDO application into the University sample applications makes sense from the standpoint of using the Process-Entity design pattern. BEA TUXEDO applications generally implement the Process-Entity design pattern, which are also used in the University sample applications.

The University database is updated to include a new table containing account information for each student. Therefore, when services in the BEA TUXEDO Teller Application process billing data, they perform transactions using the University database.

How the Wrapper University Sample Application Works

A typical usage scenario in the Wrapper sample application encompasses the following sequence of events:

1. After the student logon procedure, the client application invokes the get_student_details() operation on the Registrar object. Included in the implementation of the get_student_details() operation is code that retrieves:

   • The student's account number from the student table in the database

   • The student's balance from the account table in the database, which is obtained by invoking the get_balance() operation on the Teller object

2. The student browses courses, as with the Basic sample application, and identifies a list of courses for which he or she wants to register.

3. The client application sends a request to the Registrar object, as with the Transactions sample application scenario, to invoke the register_for_courses() operation. The request continues to include only a list of course numbers and a student ID.

4. While registering the student for the list of courses, the register_for_courses() operation invokes:

   • The get_balance() operation on the Teller object, to make sure that the student does not have a delinquent account

   • The debit() operation on the Teller object, which is managed by the Billing server application to bill for courses

5. The get_balance() and debit() operations on the Teller object each send a request to the BEA TUXEDO Teller application. Encapsulated in the request is an FML buffer containing the appropriate calls, including the account number calls to, respectively, the CURRBALANCE and DEBIT services in the BEA TUXEDO Teller application.

6. The CURRBALANCE and DEBIT services perform the appropriate database calls to, respectively, obtain the current balance and debit the student's account to reflect the charges for the courses for which he or she has registered.

   If the student has a delinquent account, the Registrar object returns the DelinquentAccount exception to the client application. The client application then rolls back the transaction.

   If the debit() operation fails, the Teller object invokes the rollback_only() operation on the TransactionCurrent object. Because the Teller and Registrar objects are scoped within the same transaction, this rollback affects the entire registration process and thus prevents the situation where there is an inconsistent database (showing, for example, that the student is registered for the course, but the student's account balance has not been debited for the course).

7. If no exceptions have been raised, the Registrar object registers the student for the desired courses.

The following interface definitions are defined for the Billing server application:

• The TellerFactory object, whose only operation is find_teller(). The find_teller() operation works exactly the same as the find_registrar() operation in the University server RegistrarFactory object.

• The Teller object, which, as mentioned earlier, implements the following operations:

  • debit()

  • credit()

  • current_balance()

    Like the Registrar object, the Teller object has no state data and does not have a unique object ID (OID).

Additional Design Considerations for the Wrapper Sample Application

The following additional considerations influence the design of the Wrapper sample application:

• The Registrar object needs a way to send requests to the Teller object to handle billing operations.

• The University server application and the BEA TUXEDO Teller Application need access to the same database. Therefore, for course registration transactions to work properly, both server applications need to be in the same server group as the Oracle7 TMS and the University database.

Both of these considerations have implications on the UBBCONFIG file for the Wrapper sample application. The following sections discuss these and other additional design considerations in detail.

Sending Requests to the Teller Object

Up until now, all the objects in the University server application have been defined in the same server process. Therefore, for one object to send a request to another object is fairly straightforward, and is summarized in the following steps, using the Registrar and CourseSynopsisEnumerator objects as an example:

1. The Registrar object creates an object reference to the CourseSynopsisEnumerator object.

2. Using the newly created object reference, the Registrar object sends the request to the CourseSynopsisEnumerator object.

3. If the CourseSynopsisEnumerator object is not in memory, the TP Framework invokes the Server::create_servant() operation on the Server object to instantiate the CourseSynopsisEnumerator object.

However, now that there are two server processes running, and an object in one process needs to send a request to an object managed by the second process, the procedure is not quite so straightforward. For example, the notion of getting an object reference to an object in another server process has important implications. For one, the second server process has to be running when the request is made. Also, the factory for the object in the other server process must be available.

The Wrapper sample application addresses this by incorporating the following configuration and design elements:

• The University server application gets the object reference to the TellerFactory object in the University Server object's Server::initialize() operation. The University server application then caches the TellerFactory object reference. This introduces a performance optimization because, otherwise, the Registrar object would need to do the following each time it needs a TellerFactory object:

  • Invoke the resolve_initial_references() operation on the Bootstrap object to get the FactoryFinder object

  • Invoke the find_one_factory_by_id() operation on the FactoryFinder object to obtain a reference to a TellerFactory object.

• The Billing server process is started before the University server process is started. When the Registrar object subsequently invokes the TellerFactory object, the Registrar object uses the object reference acquired by the Server::initialize() operation (described in the preceding list item). You specify in the UBBCONFIG file the order in which server processes are started.

• To handle billing during the course registration process, the register_for_courses() and get_student_details() operations on the Registrar object are modified to include code that invokes operations on the Teller object.

Exception Handling

The Wrapper sample application is designed to handle the situation in which the amount owed by the student exceeds the maximum allowed. If the student tries to register for a course when he or she owes more than is permitted by University, the Registrar object generates a user-defined DelinquentAccount exception. When this exception is returned to the client application, the client application rolls back the transaction. For information about how to implement user-defined exceptions, see the section "User-Defined Exceptions" on page 5-20.

Setting Transaction Policies on the Interfaces in the Wrapper Sample Application

Another consideration that affects the performance of the Wrapper sample application is setting the appropriate transaction policies for the interfaces of the objects in that application. The Registrar, CourseSynopsisEnumerator, and Teller objects are configured with the always transaction policy. The RegistrarFactory and TellerFactory objects are configured with the ignore transaction policy, which prevents the transactional context from being propagated to these objects, which do not need to be included in transactions.

Configuring the University and Billing Server Applications

As mentioned earlier, the Billing server application is configured in a group separate from the group containing the University database and the University, BEA TUXEDO Teller, and Oracle7 transaction manager server (TMS) applications.

However, since the Billing server application participates in the transactions that register students for courses, the Billing server application must include invocations to the TP::open_xa_rm() and TP::close_xa_rm() operations in the Server object. This is a requirement for any server application that manages an object that is included in any transaction. If that object does not perform any read or write operations on a database, you can specify the NULL resource manager in the following locations:

• In the appropriate group definition in the UBBCONFIG file

• In an argument to the buildobjserver command when you build the server application

For information about building, configuring, and running the Wrapper sample application, see the Guide to the University Sample Applications.
